I'm in the process of adding 7" round headlights to my 80 and trying to figure out the wiring on my 97 LX450
Any one add 7" rounds Headlights on an 80? (1 Viewer)
- Thread starter KTP
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

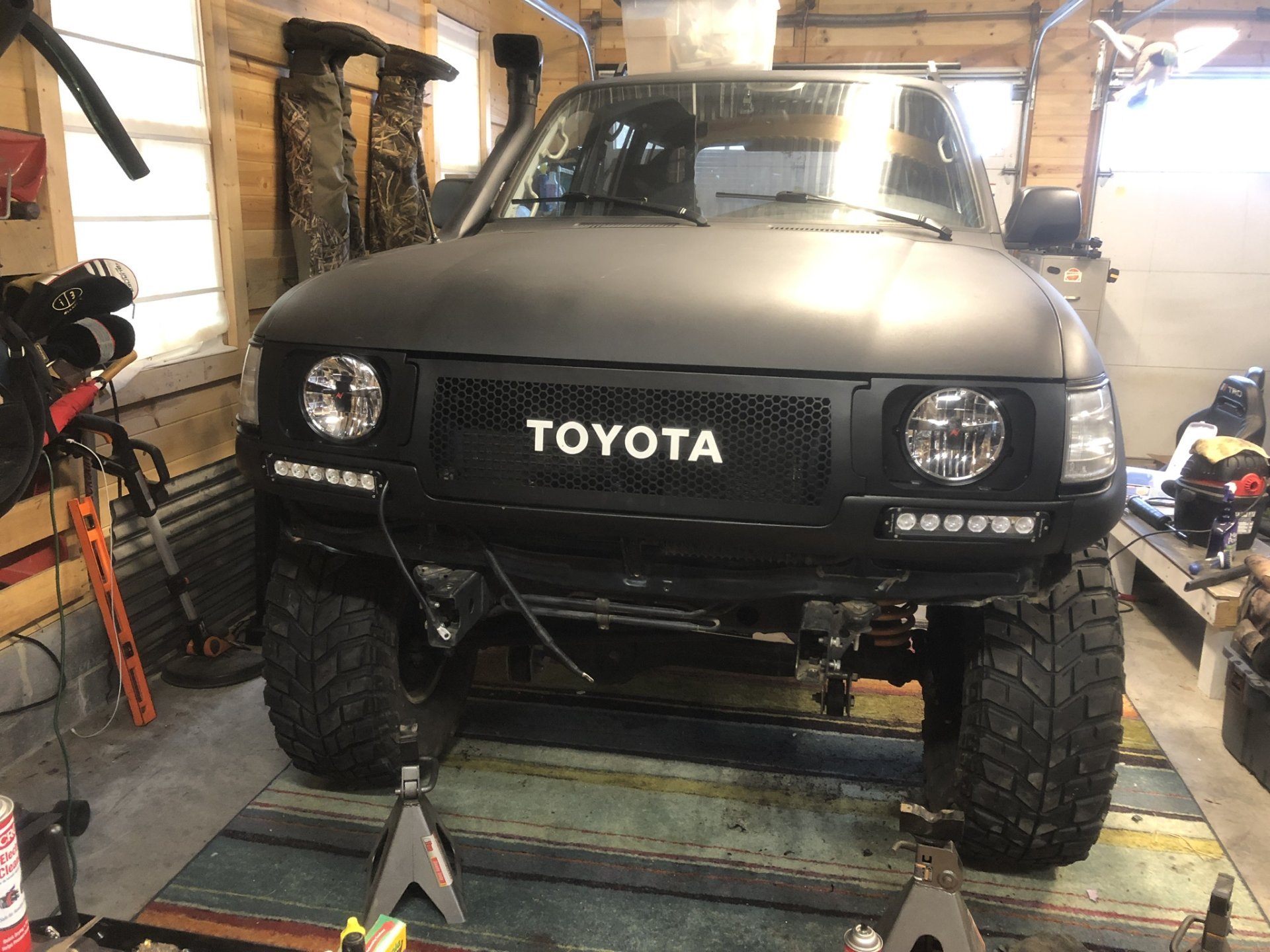

There is a guy on here that makes an aftermarket grill and his product let's your run a round headlight.
I can't remember his name but here is a link to his website.
https://landcruisergrilles.com/
I can't remember his name but here is a link to his website.
https://landcruisergrilles.com/
voodu3
SILVER Star
voodu3
SILVER Star

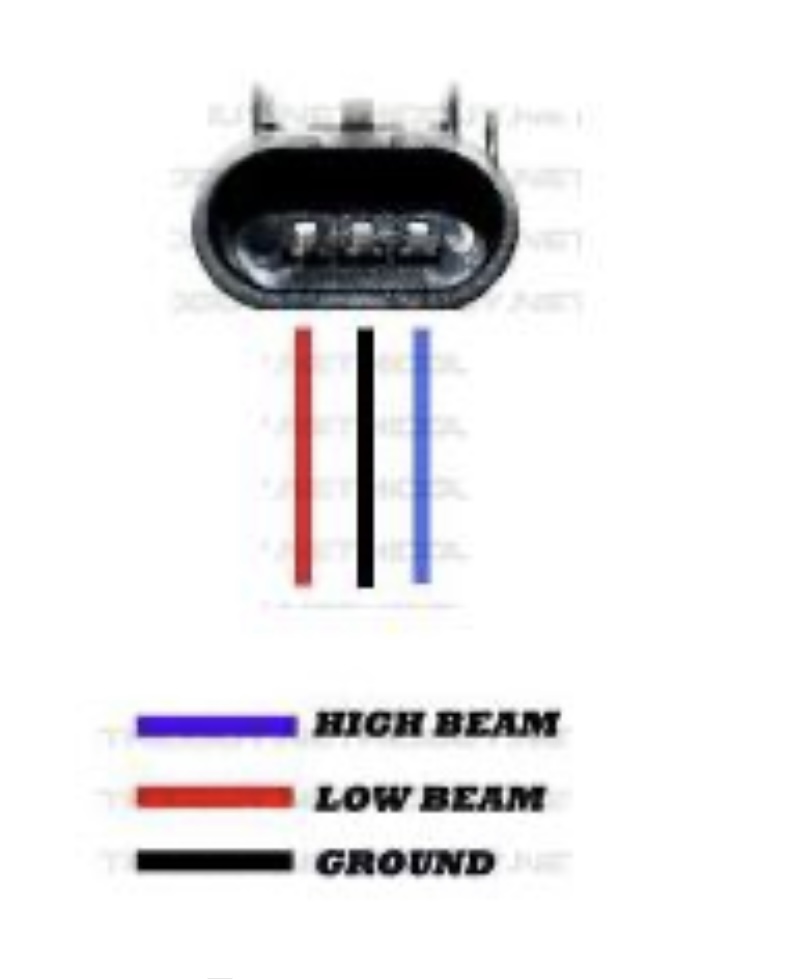

To answer your question about wiring there is a connector/adapter that goes between the new lights and stock harness. I think it was for a Honda. I’ll see if I can find the link.
devo
SILVER Star
Who is this guy? In post #3 you can see that he has two people hanging upside down from the wall!
Whats going on?
devo
Whats going on?
devo

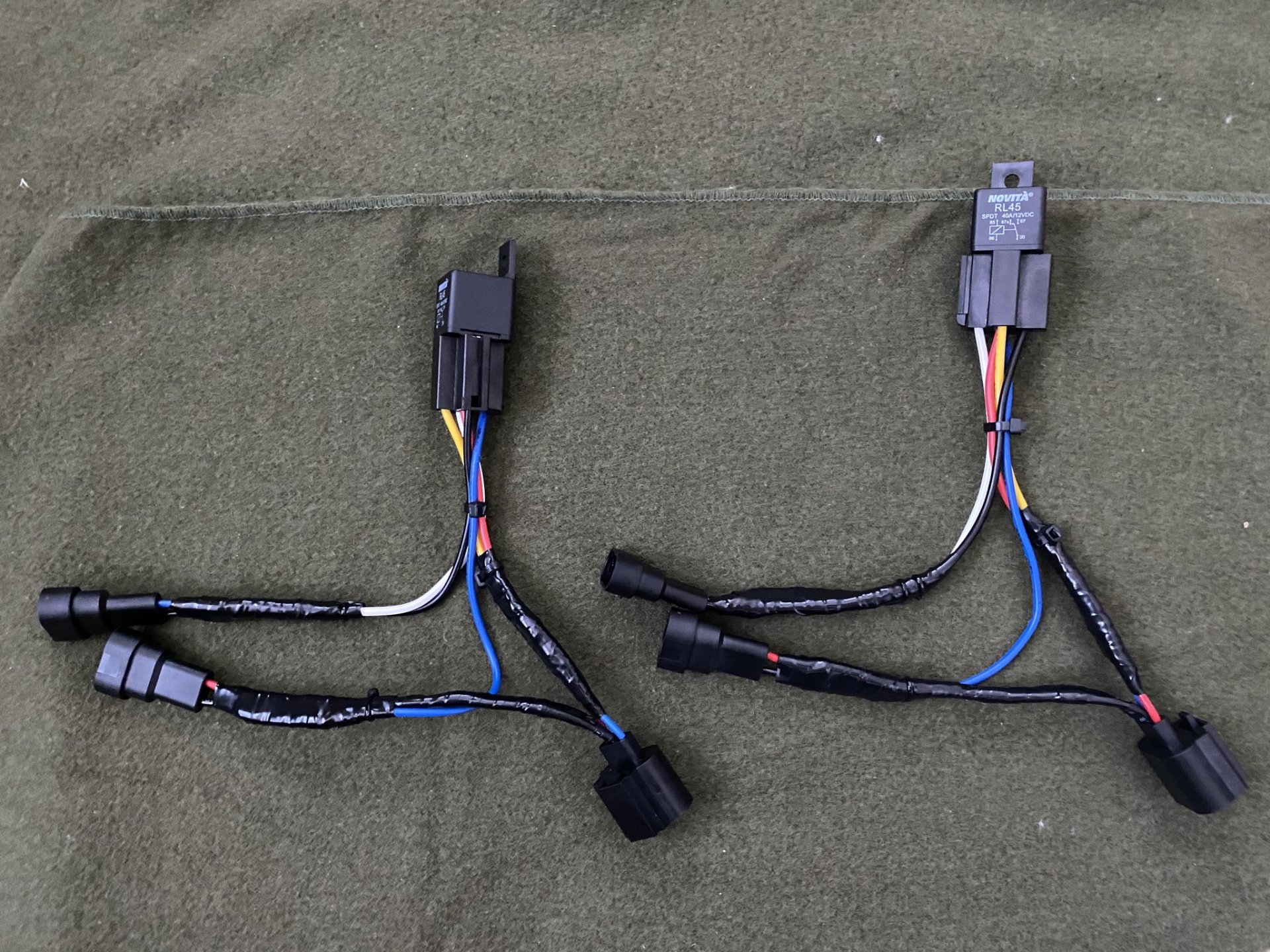

@KTP Besides the adaptor that i got ( adapter) I also chopped them up and spliced in some waterproof relays ( Relays ) so that turning on my low beams didn't activate my high beams. Not expensive just have to bend your mind around it.
thats the best my memory has on the diagram which is what i am guessing you were hoping for.
thats the best my memory has on the diagram which is what i am guessing you were hoping for.
Last edited:
They told him he had a nice Jeep. What happened next was totally justified!
It took some relays. I think I posted a wiring diagram on @kelly saad ’s post introducing his 7” round housings.
- Thread starter
- #9
Thank you, I did install one of Kelly's Grilles and love my new look. My issue is connecting two connectors( High & Low) into one H4 connection. came with the connectors BUT! both high & low come on when you turn on the lights. presently I have my highs unplugged till this gets figured out., Did this same mod to my son's 100 but it only has one bulb.
- Thread starter
- #10
Here you go ...
Post in thread 'Headlight conversion 7” round' Headlight conversion 7” round - https://forum.ih8mud.com/threads/headlight-conversion-7-round.1038902/post-12164352
Post in thread 'Headlight conversion 7” round' Headlight conversion 7” round - https://forum.ih8mud.com/threads/headlight-conversion-7-round.1038902/post-12164352
- Thread starter
- #12
Thank you, Thank you,
I did try looking under all sorts of different terms and words
I did try looking under all sorts of different terms and words
voodu3
SILVER Star
I don’t know if this helps but I used the @sleeoffroad headlight harness with mine.
sleeoffroad.com
SLEE - 9005/9006 Headlight Upgrade Harness - Slee Off Road
Wire lengths and ground terminals are made to fit the 1991-97 Land Cruiser / LX450 without any modifications Custom wire lengths ensure a clean installation with no excess wire Connectors added for plug and play addition of auxiliary light harness High Temperature (572° F) 9005/9006 bulb connectors
sleeoffroad.com
My solution is post #403 on this thread
- Thread starter
- #15
Your Diagram of the two relays is blocked by your Photobucket label.....Thank you for this as i'm going insane in the membrane.
I like the grills - but hate the round lights. Sorry to say .
voodu3
SILVER Star
I love the round but I’m not a purist. The light output is so much better than even the best bulbs I could find for the stock housings.
It’s been quite awhile since I did this conversion, and the 70’s were not kind to my memory.
This looks like the original source of the diagram. But to be honest, I’d have to refigure it out from scratch to be sure.
DominicanFZJ80
Getting there...
Wiring for bulb type conversion - diagrams I used and final harness created, uses relays, as previously mentioned.
