air conditioning line torque specs

Joined
Sep 25, 2015
Messages
153
Location
Edmonton

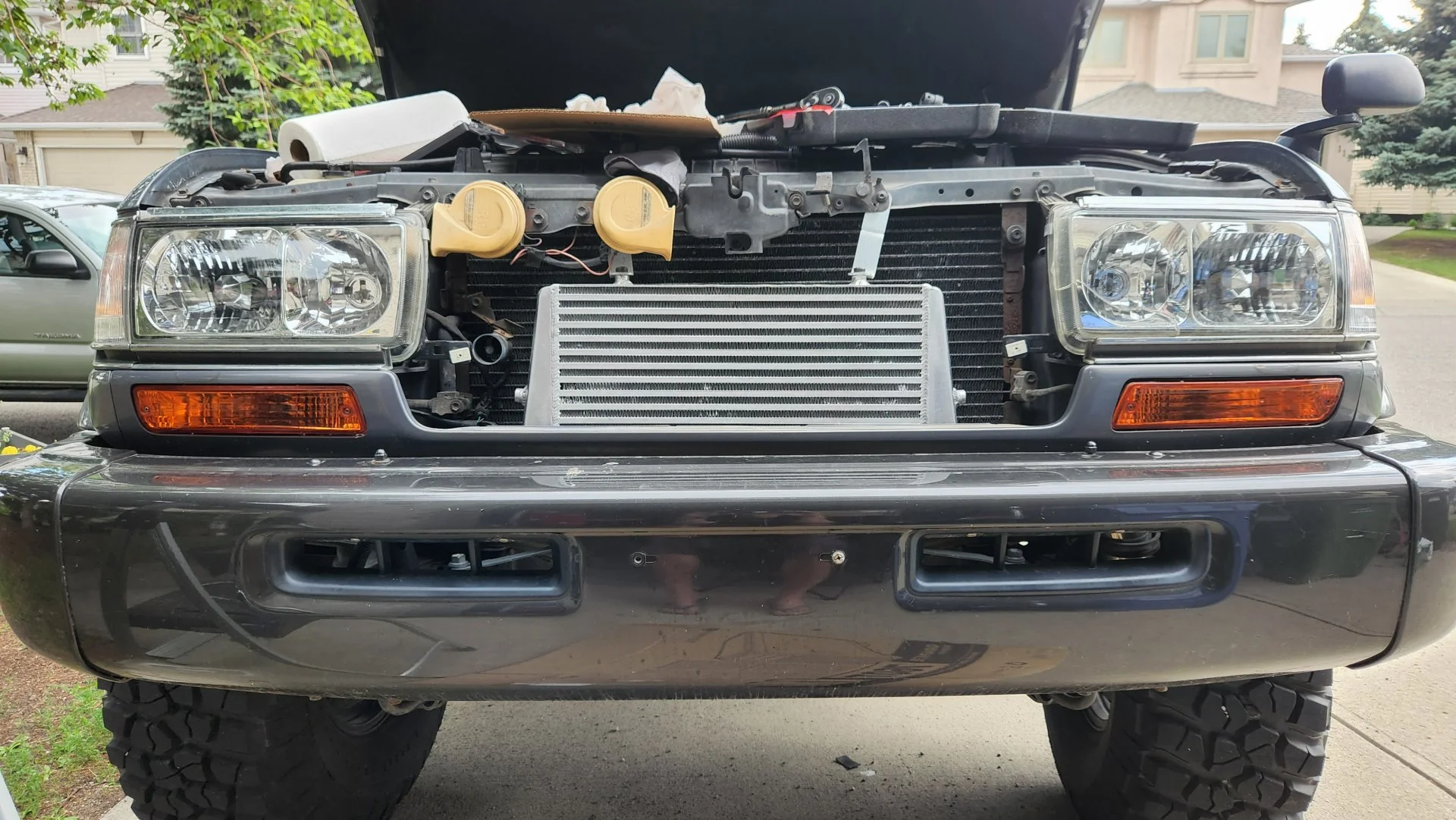

Just replaced 7 o-rings on the ac system. Not sure if there's anymore.

Found torque specs in FSM but already snapped one bolt. Anyone have a clear understanding of the torque for each?

Joined
Sep 25, 2015
Messages
153
Location
Edmonton

Joined
Jan 5, 2017
Messages
3,877
Location
Charlotte, NC & Alexandria, VA
All the screws are steel into aluminum. Are you using OEM screws?

Joined
Apr 14, 2016
Messages
2,096
Location
Oregon
Yeah. I need part # for bolts.

You didn't say what you have. Here's a 95+ US market:


Joined
Nov 9, 2012
Messages
13,023
Location
Olathe, KS, USA
Just replaced 7 o-rings on the ac system. Not sure if there's anymore.

Found torque specs in FSM but already snapped one bolt. Anyone have a clear understanding of the torque for each?
What FSM are you using? There are a few versions of the Toyota FSM that have incorrect torque specs in them (like lb-in instead of lb-ft)

These screws don't require much. It will be something like 14 lb-in (whatever that is in Nm for you....)

Joined
Sep 25, 2015
Messages
153
Location
Edmonton
What FSM are you using? There are a few versions of the Toyota FSM that have incorrect torque specs in them (like lb-in instead of lb-ft)

These screws don't require much. It will be something like 14 lb-in (whatever that is in Nm for you....)

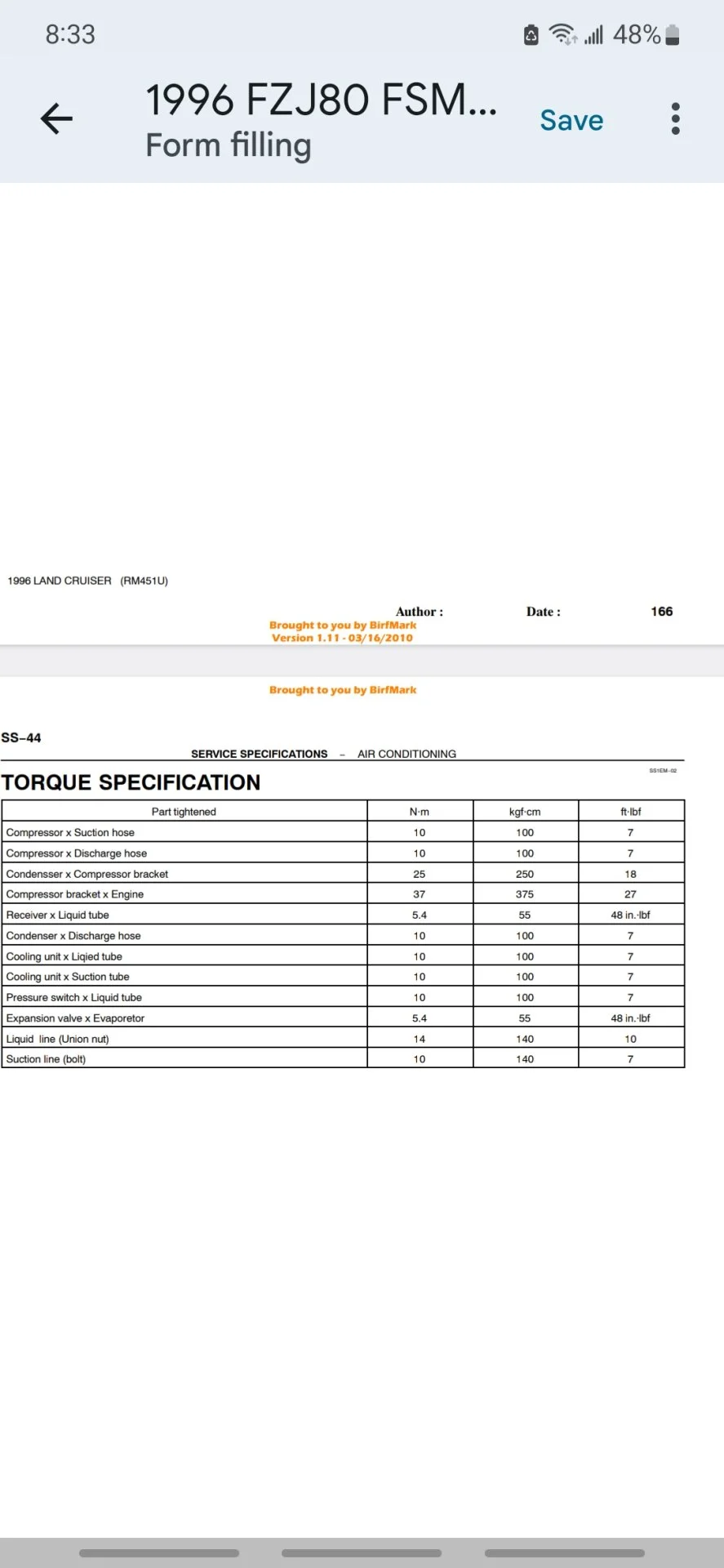

Wow I didn't know that. Just using this one
The 1st bolt off compressor was 10nm and I used a lb.ft 7 and it snapped. Perhaps my torque wrench was off. But I torqued much higher on the condenser and they survived.

Joined
Nov 9, 2012
Messages
13,023
Location
Olathe, KS, USA
Wow I didn't know that. Just using this one
The 1st bolt off compressor was 10nm and I used a lb.ft 7 and it snapped. Perhaps my torque wrench was off. But I torqued much higher on the condenser and they survived.

7 lb-ft is 84 lb-in.

That's a lot for those.


Tedward

95 LC
SILVER Star
Joined
Feb 2, 2015
Messages
1,265
Location
Cleveland OH
I snapped a couple bolts working the a/c myself.
I don't think you did anything wrong. It just happens with alum and steel and time and crust
Only bolts I broke on that wagon besides the rear lower shock mounts.

Joined
Sep 25, 2015
Messages
153
Location
Edmonton
So just had shop charge ac and there's a blockage. Should I just go ahead snd replace receiver and dryer?

Joined
Apr 14, 2016
Messages
2,096
Location
Oregon
The dryer should be replaced any time the system is opened.

If you have a blockage, I think you're going to have to find it and remove it, which likely means removing the dryer, compressor, condenser, and evaporator.

Joined
Sep 25, 2015
Messages
153
Location
Edmonton
The dryer should be replaced any time the system is opened.

If you have a blockage, I think you're going to have to find it and remove it, which likely means removing the dryer, compressor, condenser, and evaporator.
Already replaced compressor. I guess I'll start with the rest.

Joined
Apr 14, 2016
Messages
2,096
Location
Oregon
Already replaced compressor. I guess I'll start with the rest.

No, you have to remove each component so that you can blow out the lines with solvent. Attempting to clear a blockage without doing so will just send the blockage down the line. That could clog your condenser, TXV, or grenade your compressor.

Joined
Sep 25, 2015
Messages
153
Location
Edmonton
No, you have to remove each component so that you can blow out the lines with solvent. Attempting to clear a blockage without doing so will just send the blockage down the line. That could clog your condenser, TXV, or grenade your compressor.
Ok thx. I'll see what it costs the shop to do.

Joined
Jan 5, 2017
Messages
3,877
Location
Charlotte, NC & Alexandria, VA
It won't be cheap; in addition to the engine compartment components, you have to remove the dash to get the interior unit out. You can, however, do it yourself.
