ABS light on, error C1225/25, changing solenoid module possible? (6 Viewers)

[Knuttski]

Hi folk, first post here. Great forum, been following a long time and learnt a lot from this site!

Owner of a HDJ100 '98.
ABS light came on a while ago, ABS brakes not setting in when locking the brakes. Local Toyota shop checked everything (wires, sensors etc) and found nothing wrong except error code C1225/25.
From FSM: "Open or short circuit in hydraulic brake booster solenoid circuit
(SA1 circuit) Hydraulic brake booster"
Toyota think the fault is "somewhere" in the brake master assembly. Solution: new brake master assembly for almost $3000 (in Norway). (I also checked the resistance on the ABS sensors and got 1076 Ohm at front sensors and 1364 Ohm on rear sensors).

The brakes are working great, I really dont think there is need to do change that Cylinder (0449360320) in the brake master assembly... The motor for the pump and accumulator seems to be working ok: The pressure is always building up at ignition turned to on. This process takes 1 minute at most. I checked the voltage between the solenoid module and the motor (for the pump) and got 12 V when the pump set in. Seems right.

I'm wondering the fault can be found in the solenoid module. I believe the "SA1 circuit"-thing is to be found inside this secret black box... This part is not available from Toyota, but found a used one at Cruiserparts.net. They call it "Skid Controll Actuator 98-02":

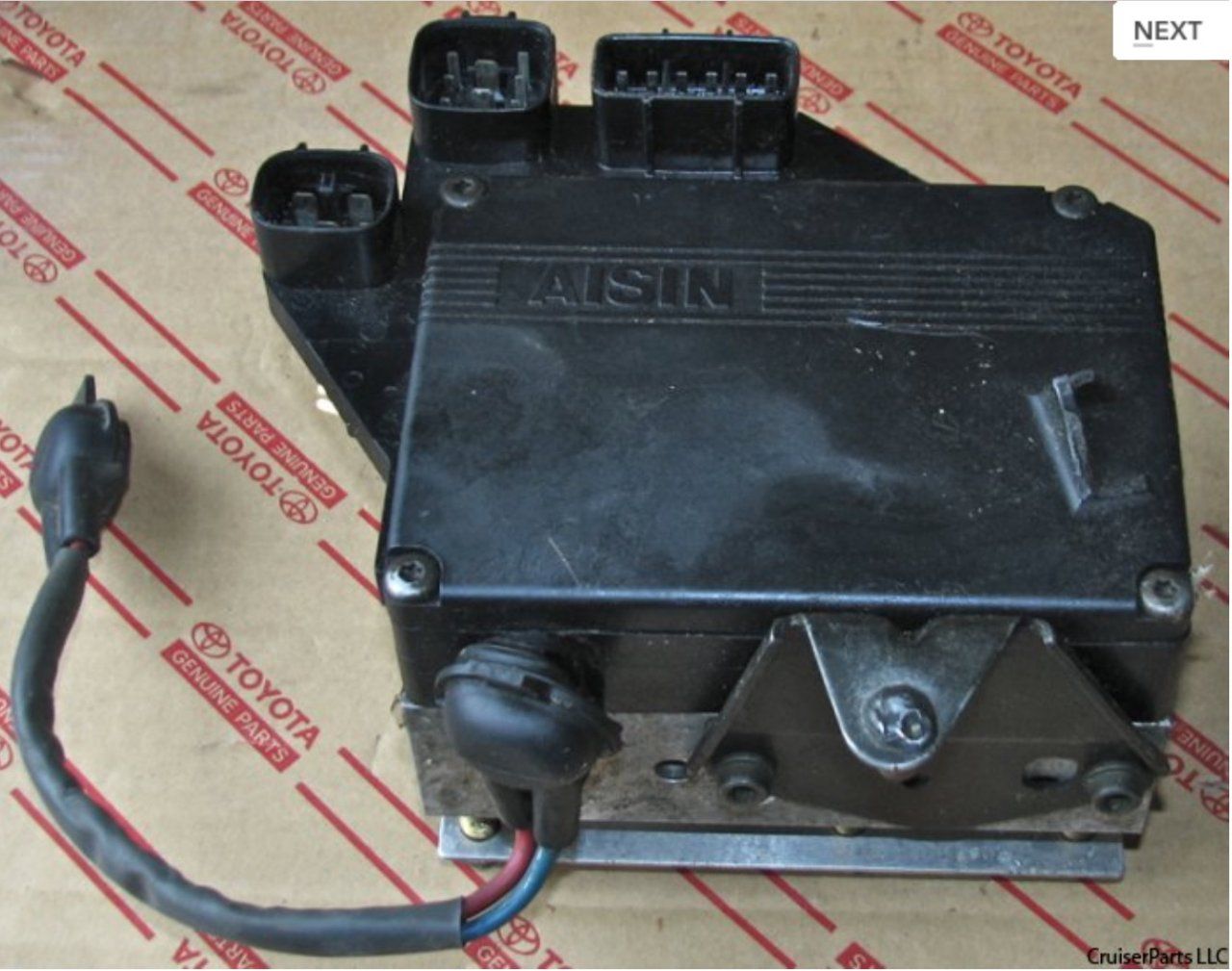

ABS Skid Control Actuator 98-02 Used [47025-60041-U-R] - $350.00 : CruiserParts.net, Toyota Landcruiser Parts

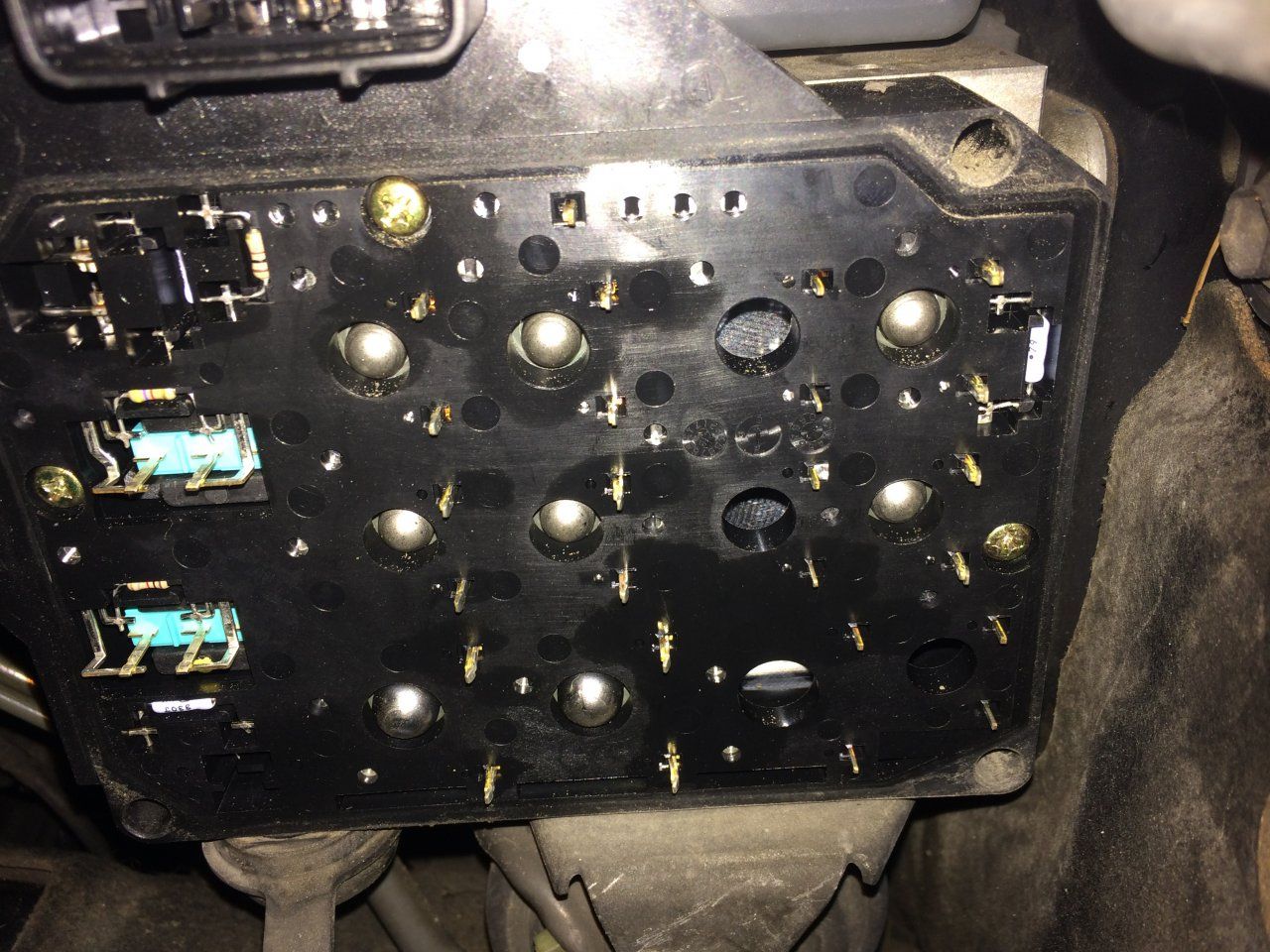

Anyone had success in changing or fixing the solenoid module on this car? I opened the front cover and loosened the 3 small screws inside but everything is attached/glued together... I guess behind the solenoid valves there is a circuit board? It seems non-serviceable.

I searched the forum but cannot see anyone having serviced the solenoid module. As a reference here are some other members work on the Master brake assembly:

Motor/pump/cables failure:
ABS Modulator - (Master cylinder, Pump/Motor, Accumulator, Resivoir, Solenoid module)

Master cylinder rebuild:
Master Cylinder Rebuild - DIY

Any tips appreciated!



[Jody Highroller]

Hi folk, first post here. Great forum, been following a long time and learnt a lot from this site!

Owner of a HDJ100 '98.
ABS light came on a while ago, ABS brakes not setting in when locking the brakes. Local Toyota shop checked everything (wires, sensors etc) and found nothing wrong except error code C1225/25.
From FSM: "Open or short circuit in hydraulic brake booster solenoid circuit
(SA1 circuit) Hydraulic brake booster"
Toyota think the fault is "somewhere" in the brake master assembly. Solution: new brake master assembly for almost $3000 (in Norway). (I also checked the resistance on the ABS sensors and got 1076 Ohm at front sensors and 1364 Ohm on rear sensors).

The brakes are working great, I really dont think there is need to do change that Cylinder (0449360320) in the brake master assembly... The motor for the pump and accumulator seems to be working ok: The pressure is always building up at ignition turned to on. This process takes 1 minute at most. I checked the voltage between the solenoid module and the motor (for the pump) and got 12 V when the pump set in. Seems right.

I'm wondering the fault can be found in the solenoid module. I believe the "SA1 circuit"-thing is to be found inside this secret black box... This part is not available from Toyota, but found a used one at Cruiserparts.net. They call it "Skid Controll Actuator 98-02":
ABS Skid Control Actuator 98-02 Used [47025-60041-U-R] - $350.00 : CruiserParts.net, Toyota Landcruiser Parts

Anyone had success in changing or fixing the solenoid module on this car? I opened the front cover and loosened the 3 small screws inside but everything is attached/glued together... I guess behind the solenoid valves there is a circuit board? It seems non-serviceable.

I searched the forum but cannot see anyone having serviced the solenoid module. As a reference here are some other members work on the Master brake assembly:

Motor/pump/cables failure:
ABS Modulator - (Master cylinder, Pump/Motor, Accumulator, Resivoir, Solenoid module)

Master cylinder rebuild:
Master Cylinder Rebuild - DIY

Any tips appreciated!

View attachment 1326468

View attachment 1326469

Welcome to hell



[diego355]

What was the solution to this issue?
I'm having the same code and my abs pump sounds like is overworking. Today I replaced the skid control computeroom with no luck.
I got a used one, does it need to be Flashed or reprogramed?



[gil12]

I'm no expert, but 1 min sounds long. I'd lean towards replacing pump and accumulator, and rebuild master cylinder while there, as preventive maintenance if for no other reason than to avoid a total failure.



[sugarsam]

Same issue...any progress on this?



[codename607]

I wanted to bring this back to the top for any updates. My truck is currently at a shop(OTRAMM - highly recommend) and I was told the SA1 Circuit has a short and needed to be replaced. I guess this is an expensive part as I was quoted $3000 for the repair.

I'm interested in replacing the SA1 Circuit but nothing else. Mainly trying to do this repair and not break the bank...I only paid $3000 for the truck itself.



[Knuttski]

Hi all, sorry for not giving you feedback. This is what I did:
Ordered a used ABS solenoid module (they called it skid control unit) from cruiserparts.net. 350$.
Installed it. The ABS light disappeared after start up! A great moment.
Took a test ride and hit the brakes - I could feel and hear the ABS working .
This is 3 years ago and the ABS is still working.



[Rubio]



[Rubio]



[Rubio]

Hi. I have the same problem with a 1998 100 series in Costa Rica.

Some time ago the brake system stopped completely, I repaired it and it worked correctly for about 3 months, now I have that code but the car brakes well



[Arthus]

Hi all, sorry for not giving you feedback. This is what I did:
Ordered a used ABS solenoid module (they called it skid control unit) from cruiserparts.net. 350$.
Installed it. The ABS light disappeared after start up! A great moment.
Took a test ride and hit the brakes - I could feel and hear the ABS working .
This is 3 years ago and the ABS is still working.

Can you post a picture on where this unit is located?



[tone33]

Can you post a picture on where this unit is located?

It's on the side (or was that the bottom in my pic below??) of the brake MC.



[Deash]

View attachment 2479685

Can anyone tell what the solution for this is I have the same code



[2001LC]

Brakes ...... Overdue write-up.
