8274-50 click

Joined
Dec 20, 2005
Messages
401

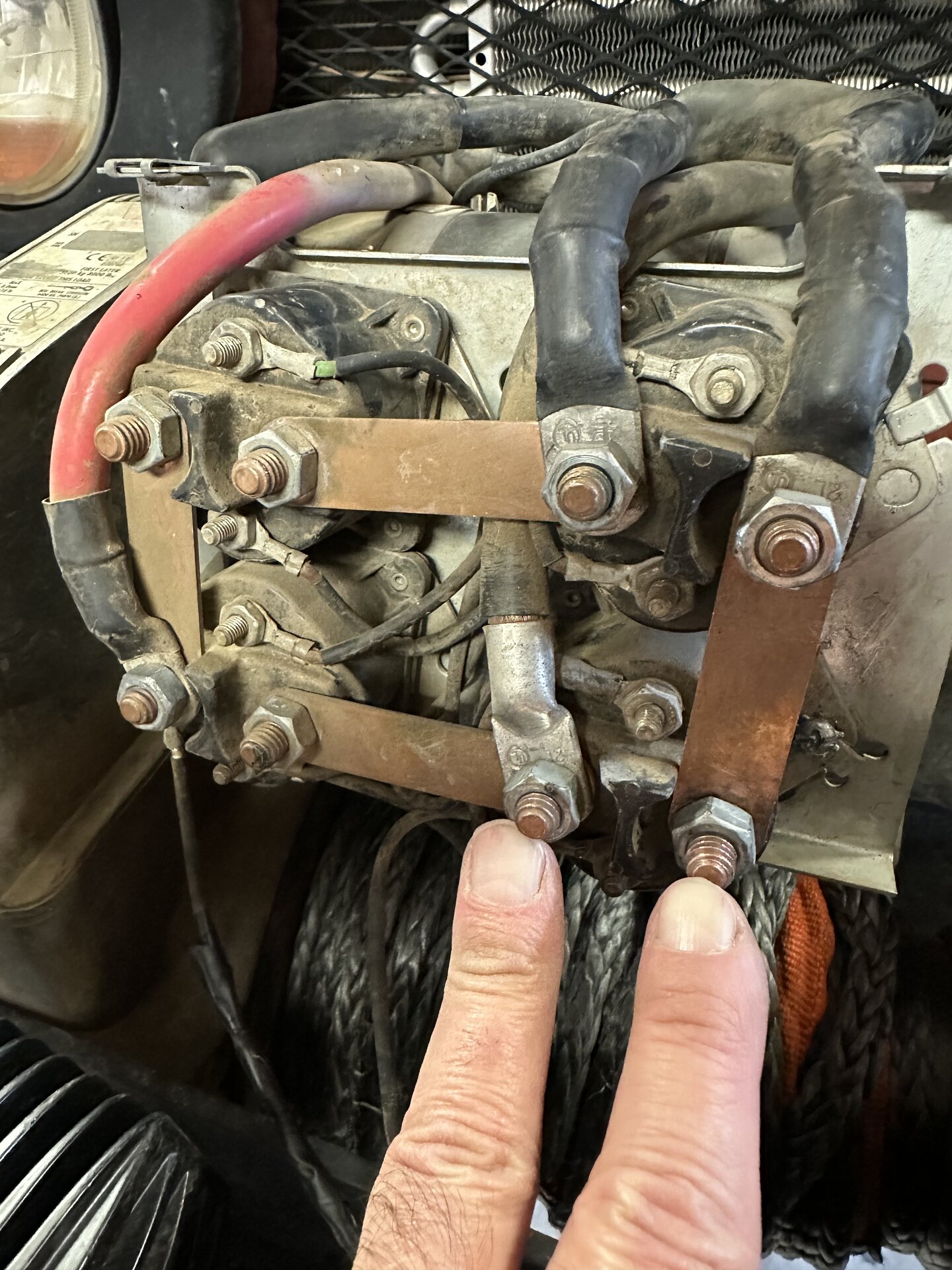

My 8274-50 is just clicking when spooling in. It spools out just fine. If I jump across the two bolts my fingers are pointing to, then it will spoil in. Is this a grounding issue? I’ve removed the nuts from the 8 large bolts and cleaned the connections, but that didn’t help. Since it spools in when jumped I assume the solenoid is good. Any ideas on what to check? Thanks



1911

chupacabra
Joined
Aug 11, 2006
Messages
7,145
Location
Parker County, Texas
I think the fact that you can jump across that solenoid and have it spool in says that solenoid is bad.

Now would be a good time to convert from the four solenoids to a single contactor.


John McVicker

SILVER Star
Joined
Jul 11, 2005
Messages
3,896
Location
Big Pine, CA
^^^
Do this and never look back.👍🎯👍

Joined
Sep 17, 2003
Messages
4,359
Location
Sunnyvale, CA
Website
www.george4wd.taskled.com
Wow - I like the solenoid setup in my 1980 era 8274 (started as a 24V winch):



Essentially the same function as the OP's solenoids, just looks neater :) Ignore the wiring comments, since they are for reconfiguring the solenoids for 12V operation versus 24V. Both the 12V and 24V winches use the 12V solenoids, just that the control wires are in series for 24V (12V+12V) versus in parallel for 12V.

Anyhow, the way the solenoids work is that solenoids 1-4 activate to go one direction and 2-3 activate to go the other direction. The fact you hear a click is one solenoid is activating (would be the top left (my #1) and your bottom right (my #4) isn't. So, either a dead solenoid or the control wire to activate the solenoid is faulty. A multimeter is your friend...

The 4 solenoids basically allow the + and - to the winch motor to be flipped +/- or -/+ to provide the direction change. It's pretty basic.

Albright is a good solution if your solenoid is dead. If just a control wire issue, then it's just a few cents to fix and you can decide if you want to go the albright path as an 'upgrade'.

cheers,
george.
