78 FJ45 Long and Slow Rebuild

Just a couple of pics of my discovery process to see what I am up against.

PO seemed to be talented with fiberglass repair kits. He had a knack for making the end result look just like a big nasty glob of peanut butter.

I was almost afraid to see what was under this hunk of fiberglass, but was pleasantly surprised at what I found.

Found out last night that the truck came with a complimentary cheap pocket knife. It actually looks pretty good in the fuel tank well.

Marvin
Feb1-2005 002 (Small).jpg
Feb1-2005 004 (Small).jpg
Feb1-2005 001 (Small).jpg

Last edited:
Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas

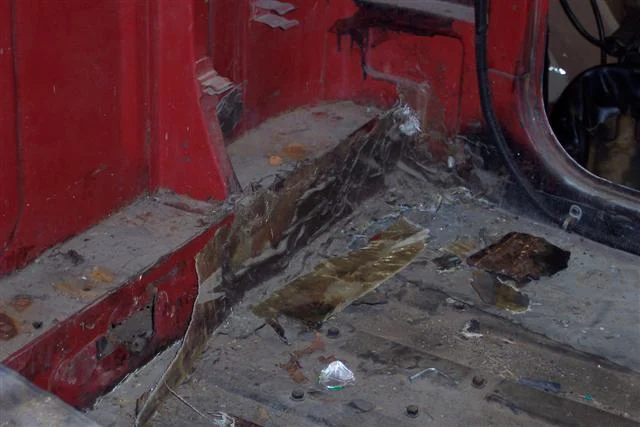

A couple more pics of the driver's side. I'm almost embarrased to show these. The driver's side is going to take a little work.
Jan31-2005 006 (Small).jpg
Jan31-2005 010 (Small).jpg

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas
Well, I'm on a limited budget so I'm not going for a total restoration. Hopefully when I am done it will look about like madams557's truck because I like the way it looks. For color I'm thinking either Mustard Yellow or Olive Brown like the FJ40 on the CCOT site. I haven't figured out that paint code #653 because some of them I have seen look brownish and some look greenish.

I'll probably end up using diamond plate for the bed floor and wheel wells just because of cost. Therefore, I may end up with some patch panel material for sale that others might be able to use.

It needs power steering but I need to educate myself more on the different methods (probably Saginaw).

I've only got one leaking rear wheel cylinder and the shoes and drums look good, so I will probably just keep the power drum brakes. I ordered some parts from Cdan to go through my front axle and fix my brakes. Also have a carburetor kit, radiator, radiator hoses, and front fenders on the way. Parts are supposed to start arriving tomorrow.

Of course, it will get custom color Rhino Linings underneath, in the bed and inside the cab floor.

Regards,
Marvin

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas
Yeah, I saw that thread and it definitely looks like it might be one of the easiest ways to go. I don't plan to do any serious offroading in this truck, I'm sure its toughest days are behind it now.

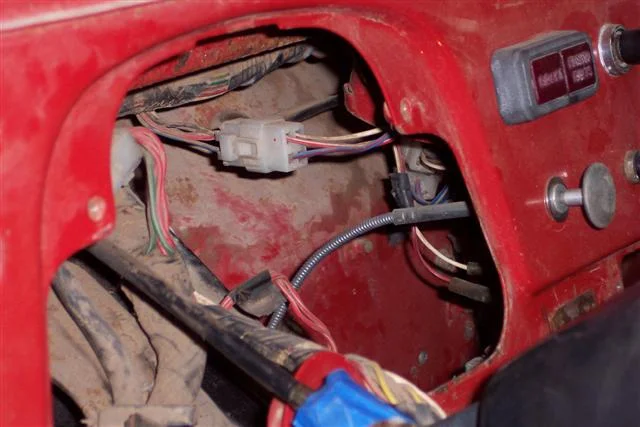

Got started taking stuff off of the dash last night, but didn't get too far. I'm guessing the PO was probably an electrician, thank goodness. He had added a dome lamp with door jamb switches, front driving lights, aftermarket radio, and dual batteries all without damaging the factory wiring harness. All of his inline connections were soldered then sealed in heat shrink and most of it was then run through flexible conduit. This will make a nice new radio for my fishing boat.
Feb2-2005 001 (Small).jpg
Feb2-2005 017 (Small).jpg
Feb2-2005 007 (Small).jpg

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas

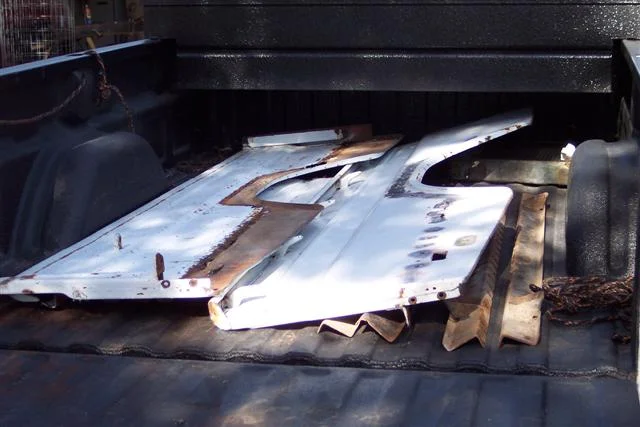

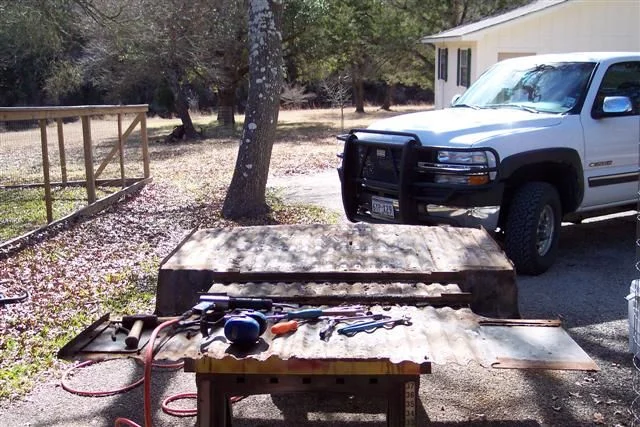

I got the bed completely taken apart this weekend and I dropped off some of the parts to be sand blasted this morning. To blast the bed sides, front header panel and all of the lower support braces will be less than $150, which I thought sounded fair. Can't wait to get them back to see how many holes appear.
Feb6-2005 002 (Small).jpg
Feb6-2005 012 (Small).jpg
Feb6-2005 019 (Small).jpg

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas

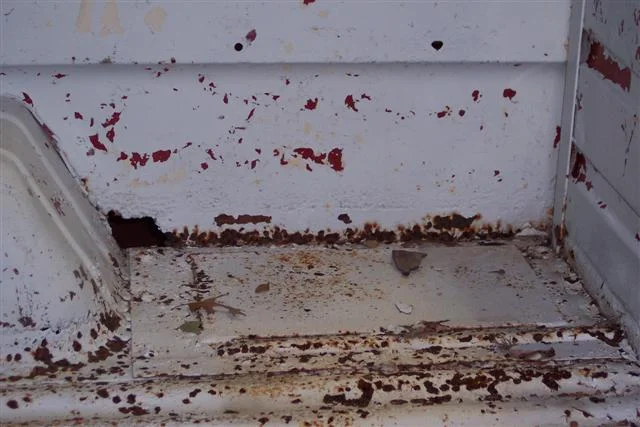

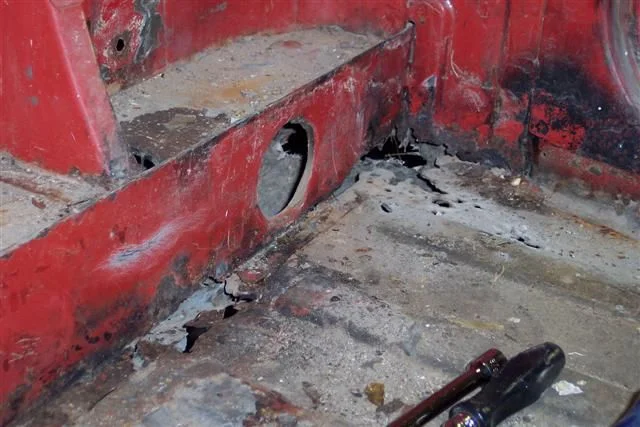

I drilled out some of the spot welds and used the air chisel on others. Some areas of the bed were so pitted that you couldn't even tell where the spot welds were. The chisel also came in handy to cut off all of the bolts because there was no way to get a Phillips screwdriver into them all of the rust and previous multiple paint jobs. These pics show what some of the worst portions of the bed floor looked like.
Jan30-2005 083 (Small).jpg
Jan30-2005 084 (Small).jpg

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas

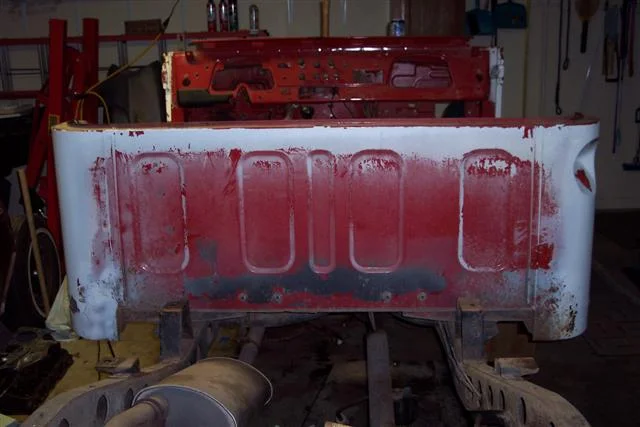

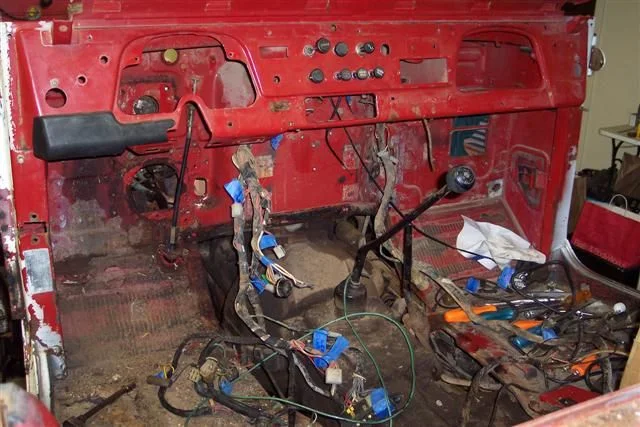

Just a couple of pics of last nights progress. I removed the steering column and pedal assemblies. Most of the wiring harness has been removed at this point.

It's starting to look a little bare now.

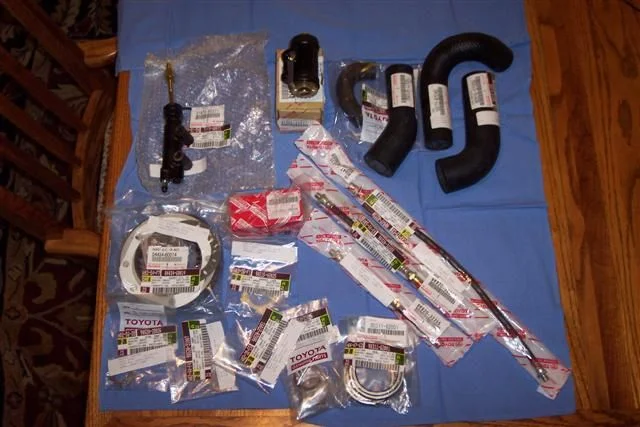

Also, I received my parts to repair the front axle leaks, a new rear wheel cylinder, brake hoses, radiator hoses and a clutch slave cylinder. Thanks to CDan.
Feb7-2005 016 (Small).jpg
Feb7-2005 019 (Small).jpg
100_1045 (Small).JPG

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas
Is this factory?

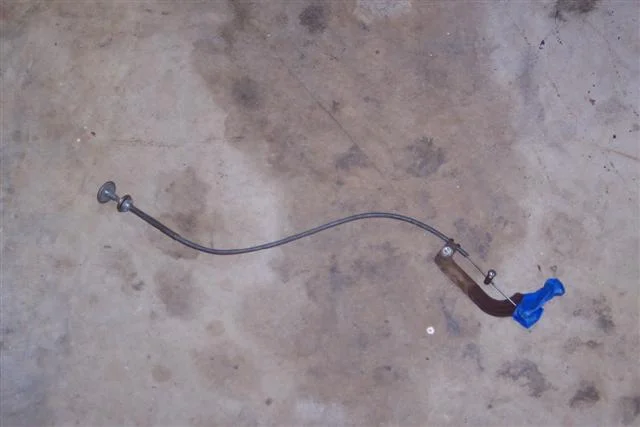

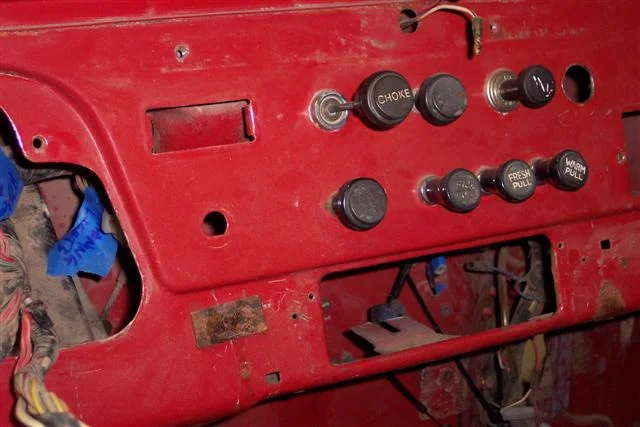

Is this a factory throttle control cable that I pulled out? It was installed in the "D" shaped hole in the dash just under the rectangular hole for the brake and seatbelt warning lights. The bracket looks like it is a Toyota part but the cable looks like it might be aftermarket. Anyone have a picture of what it's supposed to look like?
Feb7-2005 008 (Small).jpg
Feb7-2005 009 (Small).jpg

Joined
Mar 9, 2004
Messages
598
Location
Flagstaff, AZ
Rhinoliner said:
Is this a factory throttle control cable that I pulled out? It was installed in the "D" shaped hole in the dash just under the rectangular hole for the brake and seatbelt warning lights. The bracket looks like it is a Toyota part but the cable looks like it might be aftermarket. Anyone have a picture of what it's supposed to look like?

Sorry - I can't help you on that one, unless the toggle switch on my rig is factory. LOL

I'd be curious to know as well what is supposed to go in there.

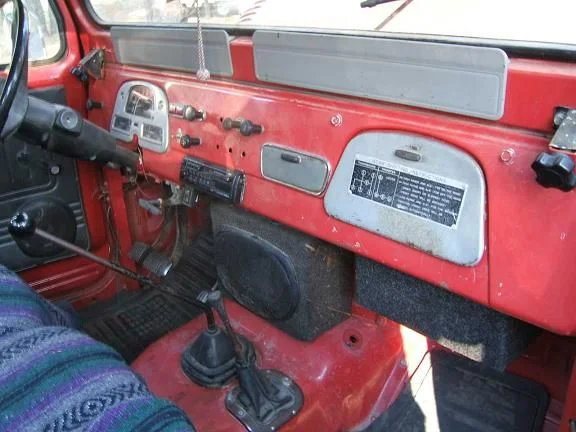

fj45 - 1-1.JPG

Joined
May 10, 2005
Messages
2,406
Location
Calgary, Alberta
The throttle control knob on my truck is located inbetween the e-brake handle and the steering colum. It is on a bracket screwed to the bottom lip on the dash. I am pretty sure it is stock. Mine is Canadian though so it might have been different from the factory.

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas

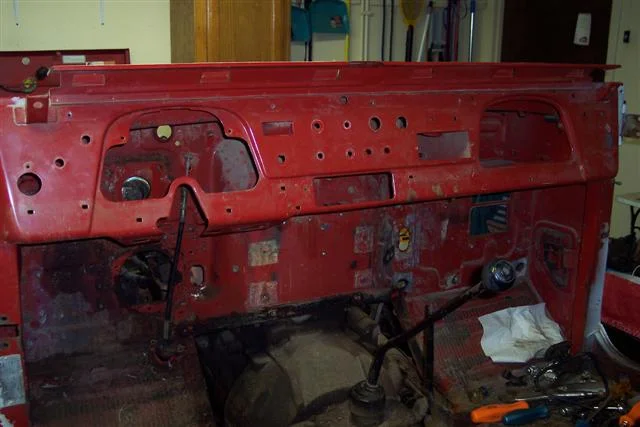

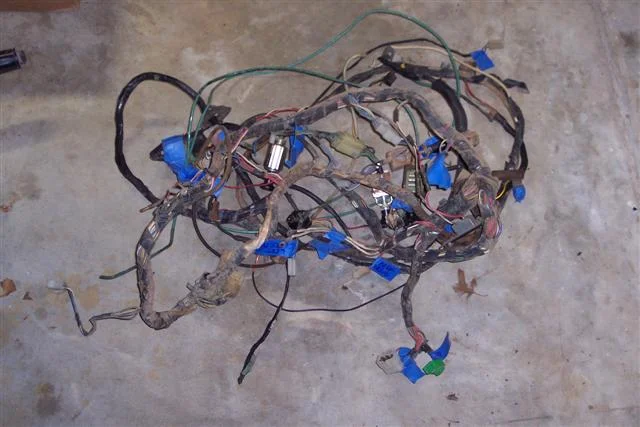

A little more progress made last night. I got the wiring harness out and everything removed from the dash.

I got a new Honey-Do/small remodelling project assignment last night so I probably won't get to work on the Cruiser for the next couple of days.
Feb7-2005 021 (Small).jpg
Feb7-2005 025 (Small).jpg

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas
Driver's door pillar

These pics sort of show a problem area that I could use some help with. The driver's side door pillar is a little tweaked. I made a few adjustments before starting to take everything apart and I got the door opening and closing nice and smoothly. And I got everything looking really straight and lined up when the door is closed. But, when the door is open or off you can notice the pillar is bent a little. It's just a cosmetic issue from the inside. From the outside everything looks normal. The door weatherstrip appeared to seal fine.

Has anyone here replaced one of these pillars? Would anyone advise against replacing the pillar? Any guidance would be appreciated. Also, anyone know a source where I could get a pillar to use as a replacement?

Thanks,
Marvin
Feb7-2005 024 (Small).jpg
Feb7-2005 031 (Small).jpg
Feb7-2005 032 (Small).jpg

Joined
Mar 9, 2004
Messages
598
Location
Flagstaff, AZ
Marvin,

If the door seals OK and only cosmetic from the inside - is it worth the trouble to fix it?

I'll PM you the name of a guy I have just bought a firewall from that I am going to put into my FJ45. Maybe he can cut one out of a late '70's rig that you can put in there.

When do you get the bed back from the sandblaster?

Brian

Joined
Oct 25, 2005
Messages
622
Location
Kerrville, Texas

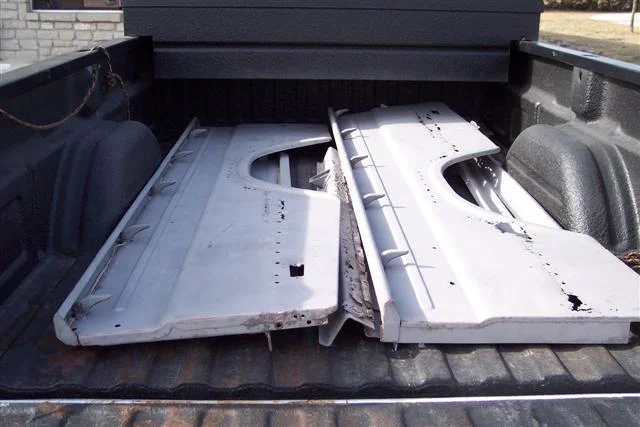

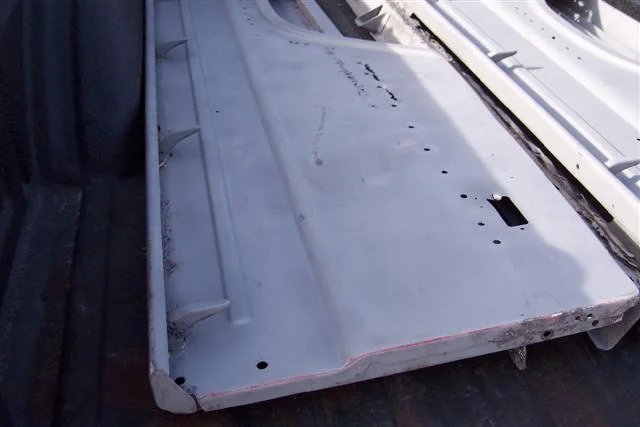

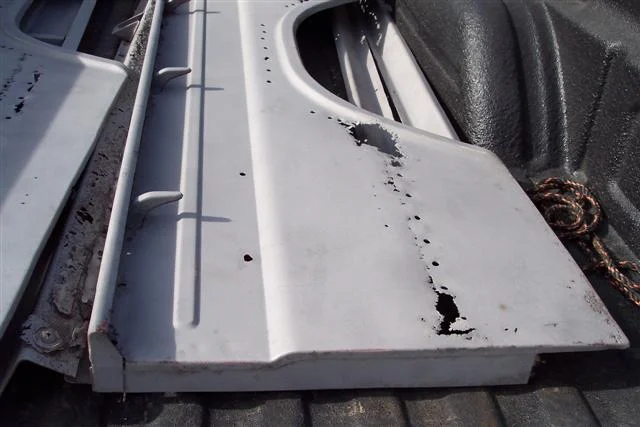

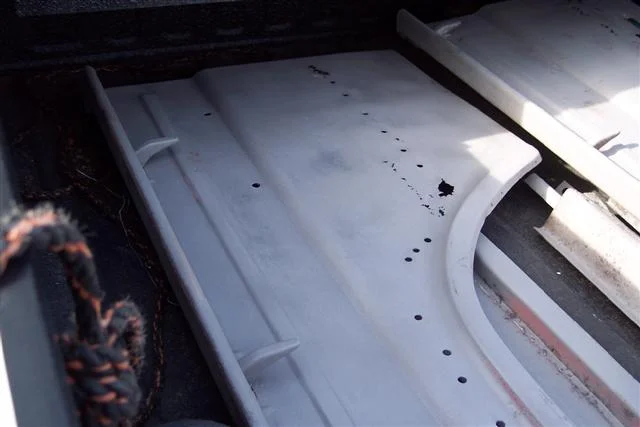

Well, I got the bed parts back from being sand blasted today. They look pretty good, sorta like Swiss cheese. At least most of the bad areas are basically flat. The bed supports look pretty good except for the top of the very front brace.
Feb9-2005 001 (Small).jpg
Feb9-2005 002 (Small).jpg
Feb9-2005 003 (Small).jpg
