76 FJ40 starter and ignition coil wiring question (1 Viewer)

Joined
Oct 6, 2021
Messages
4
Location
06897
Hello everyone, noobie here!

I am attempting to fix up some of the wiring on my car and want to make sure I am doing it correctly. Please see the pics for labels to my 4 questions.

A) I believe the BY wire from the + terminal of the ignition coil is supposed to connect to this terminal on the starter coil, correct? Nothing was there when I got the car for some reason.

B) Is something supposed to connect to this terminal on the starter coil?

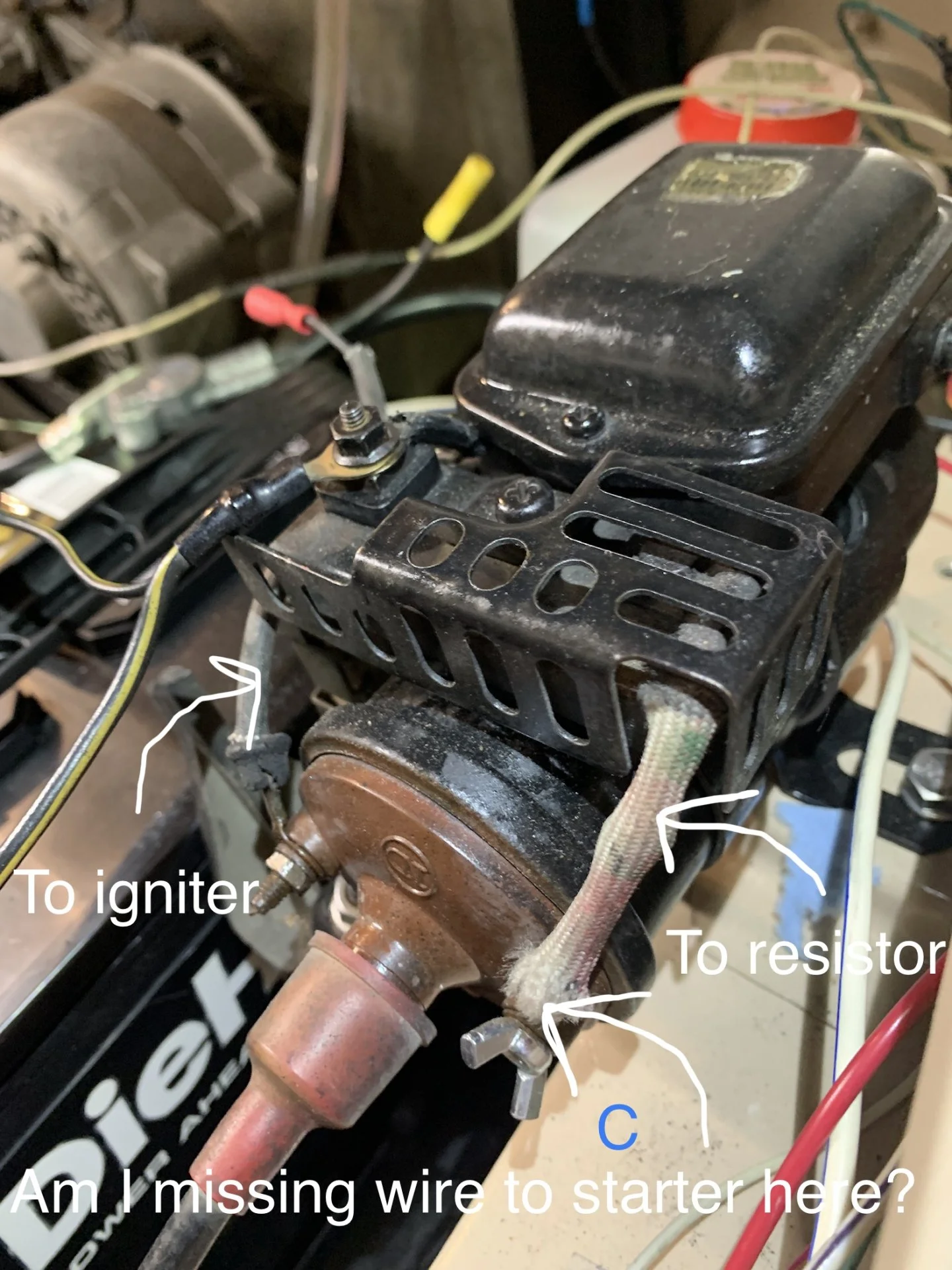

C) Is this where the BY wire from the starter is supposed to land on the ignition coil?

D) how is the igniter grounded? Is it this wire?

Thank you in advance for your help - let me know if you see anything that is wrong-trying not too cause a meltdown!









ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
22,477
Location
EAST COAST
Website
vintageteqparts.com
Hello everyone, noobie here!

I am attempting to fix up some of the wiring on my car and want to make sure I am doing it correctly. Please see the pics for labels to my 4 questions.

A) I believe the BY wire from the + terminal of the ignition coil is supposed to connect to this terminal on the starter coil, correct? Nothing was there when I got the car for some reason.

B) Is something supposed to connect to this terminal on the starter coil?

C) Is this where the BY wire from the starter is supposed to land on the ignition coil?

D) how is the igniter grounded? Is it this wire?

Thank you in advance for your help - let me know if you see anything that is wrong-trying not too cause a meltdown!

View attachment 3020569

View attachment 3020570

View attachment 3020571

View attachment 3020572

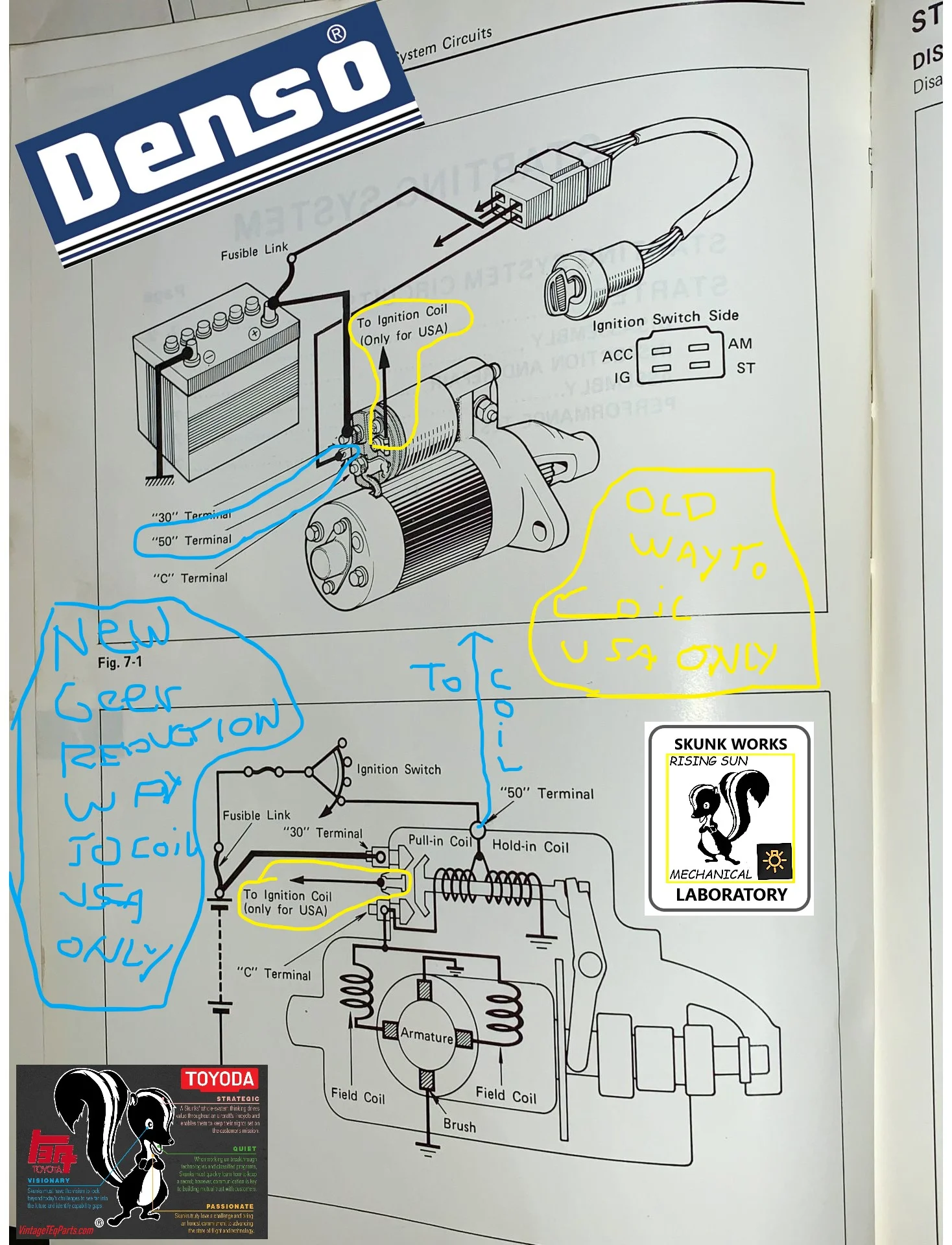

does this help at all ?
