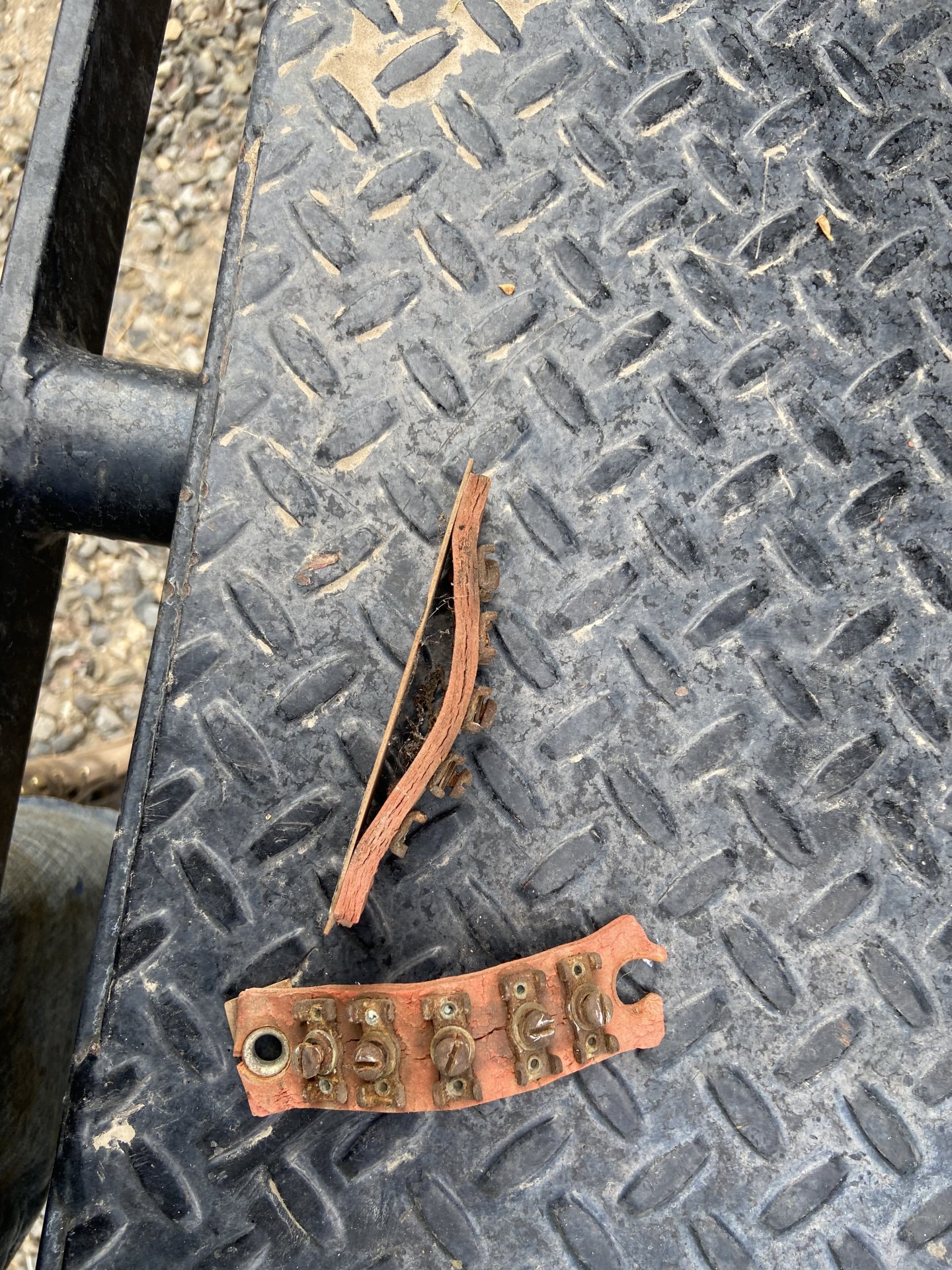

Anyone know where I may be able to find these. Cannot find a wiring diagram. This is on a 64fj45

Joined
Oct 27, 2007
Messages
2,189
Location
Alabama
@ClemsonCruiser should be able to provide wiring expertise on this early stuff.


middlecalf

SILVER Star
Joined
Jul 20, 2004
Messages
4,540
Location
Sweet, Idaho

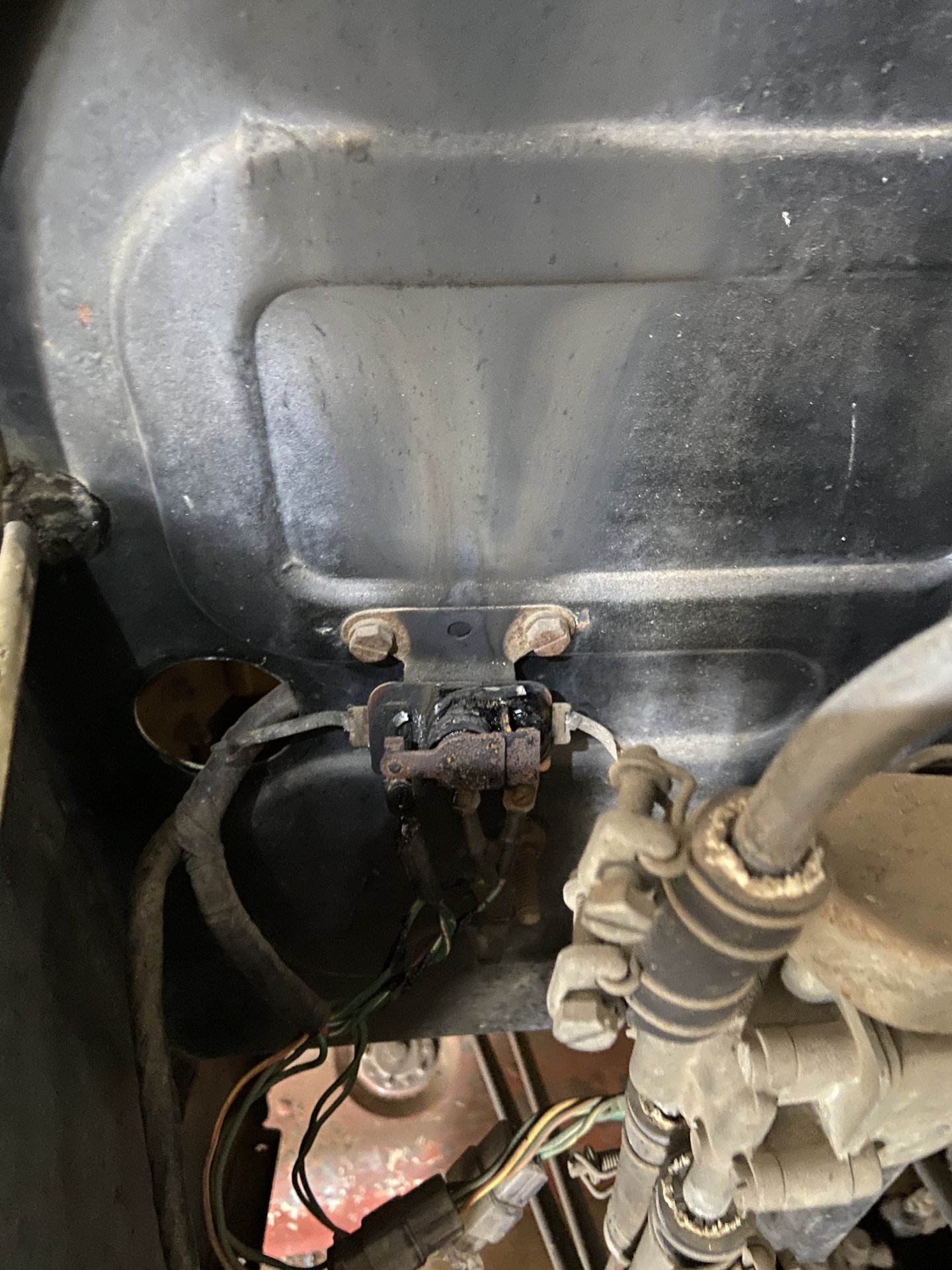

2nd pic is the horn relay. OEM horn relay part numbers depending on which horns you have:
Denso 86530-20040
Maruko 86530-20030

Either relay will work, but they’re NLA new and the handful of used/NOS ones in “inventory” are difficult to acquire unless you can find a sympathetic heart. I’ve got a third party one that works on my 45, I’ll see if I can find the reference.


middlecalf

SILVER Star
Joined
Jul 20, 2004
Messages
4,540
Location
Sweet, Idaho

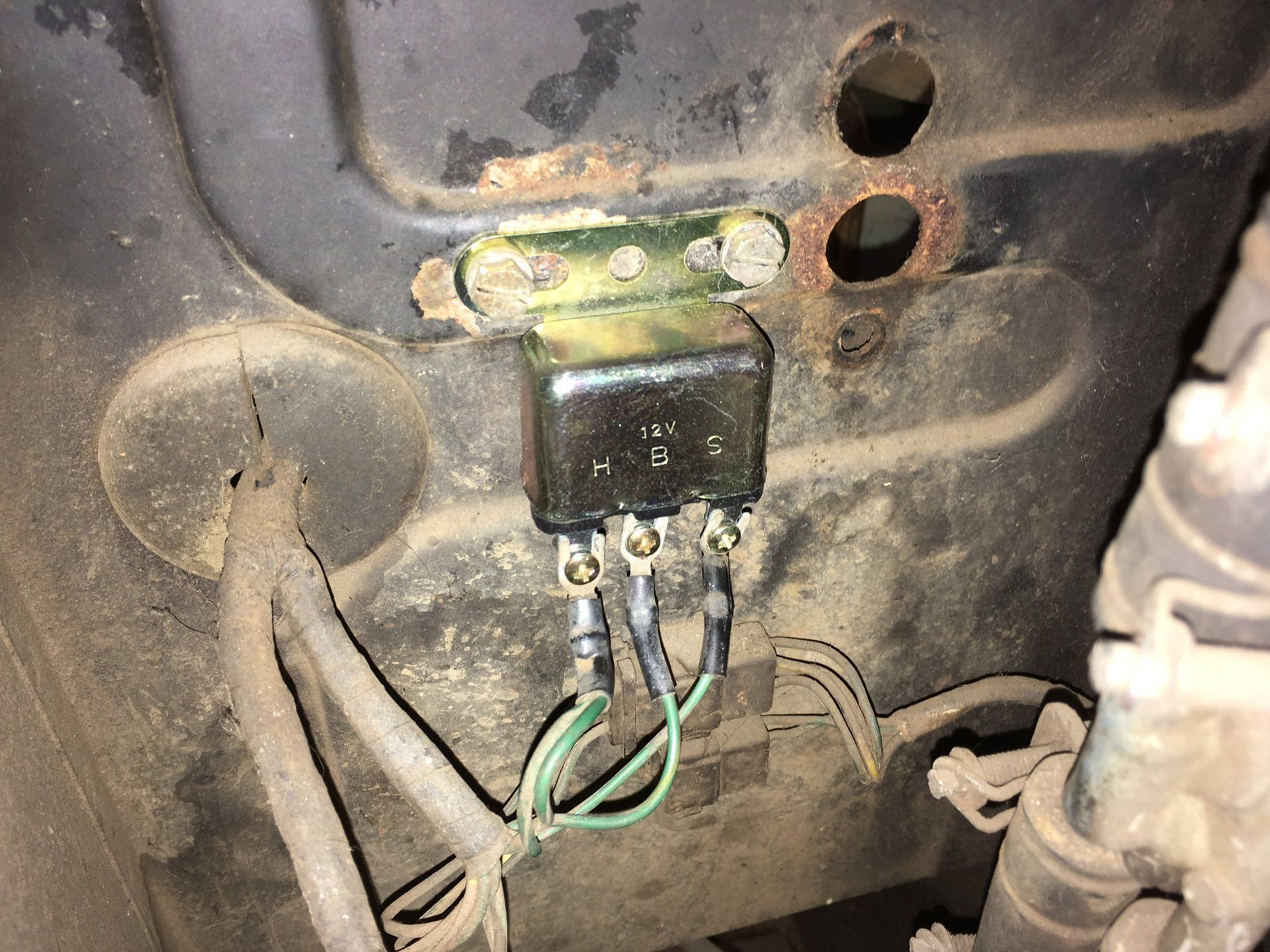

Here’s a link to the thread posting that pointed me to a workable third party horn relay:
After failing to find a horn relay that would work on my rig w/o modification at 2 modern full service parts houses, I paid a visit to the old fashioned, same-family-owned-since-1960 non-computerized parts place across town. Went to the counter, showed my non-working Denso to the 2 women and 1 guy behind the counter, and said I needed an old fashioned 3 terminal horn relay with screw terminals, and if it was similar in shape and mounting, even better. All 3 looked at mine, and after a few seconds the man said, “Wells HR610.” One of the women walked down a back aisle, came back with this one. Works great, now both horns work!

View attachment 1657973

BTW, the OEM numbers listed in previous post are out of a ‘65 parts book. At some point right around ‘64 or ‘65 the OEM relays went from a metal covered one to a plastic covered one. Not sure which the above part numbers point to. Either will work electrically, but you can’t swap a plastic cover with a metal cover, they’re slightly different size-wise I guess.


Michael B

SILVER Star
Joined
Aug 1, 2012
Messages
4,775
Location
Huntsville Al
I have a used relay, I think it is for the horn. It looks like the un-burned version pictured above. The cover is plastic. It came with a group of parts from a 69' LBP I purchased. I don't know if it works or not but it appears to be in working condition. If anyone is interested send me a PM.

Joined
Dec 14, 2003
Messages
184
Location
Colorado
Poose,

I found this color highlighted schematic particularly helpful. (also at Coolerman's website)

PS. A little late to the posting party.
