this video might help with windshield ideas, hes got a couple other videos on how he makes removable windshields for prerunners too.

also when will this thing get the total chaos front hoops and bypass shocks?

Thanks for sharing that vid! I like their use of the aircraft nut tabs. That's really well done.

Yeah 5Speed, I've bene eyeing TC's front hoops for bypass shocks for the past few weeks. That, and the OSR relocation kit from optoffroad. I could use that for bypasses in the rear as well.

optoffroad
total chaos

Concerning bypasses, the budget's tight right now. I want to do those so bad, but I've got to save up for that. Since I plan to race the Baja 1000 in 2023, they'd hopefully happen next spring. We're working on a sponsorship deck right now, so if y'all have any guidance or referrals, that'd be fantastic.

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Update!

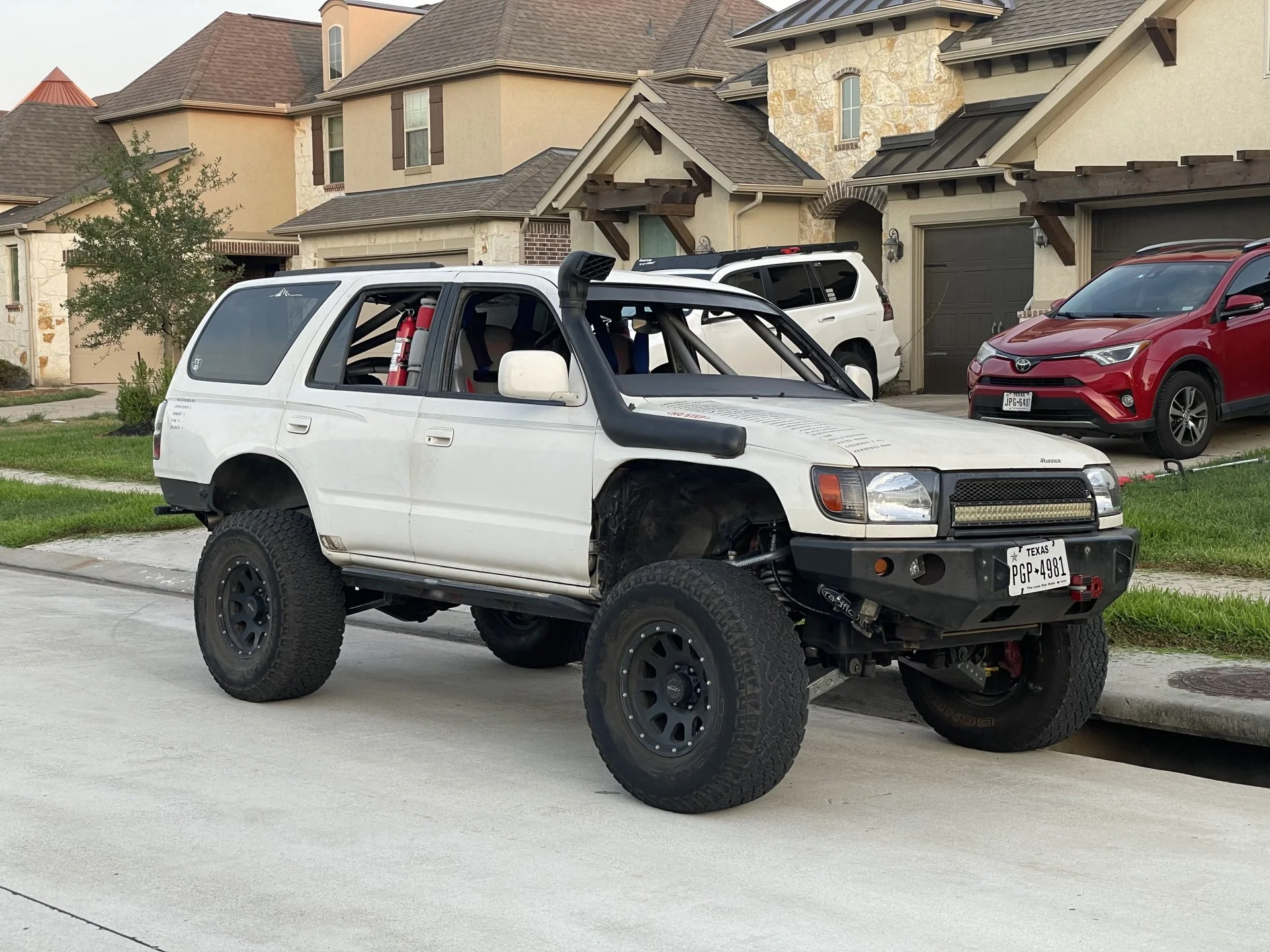

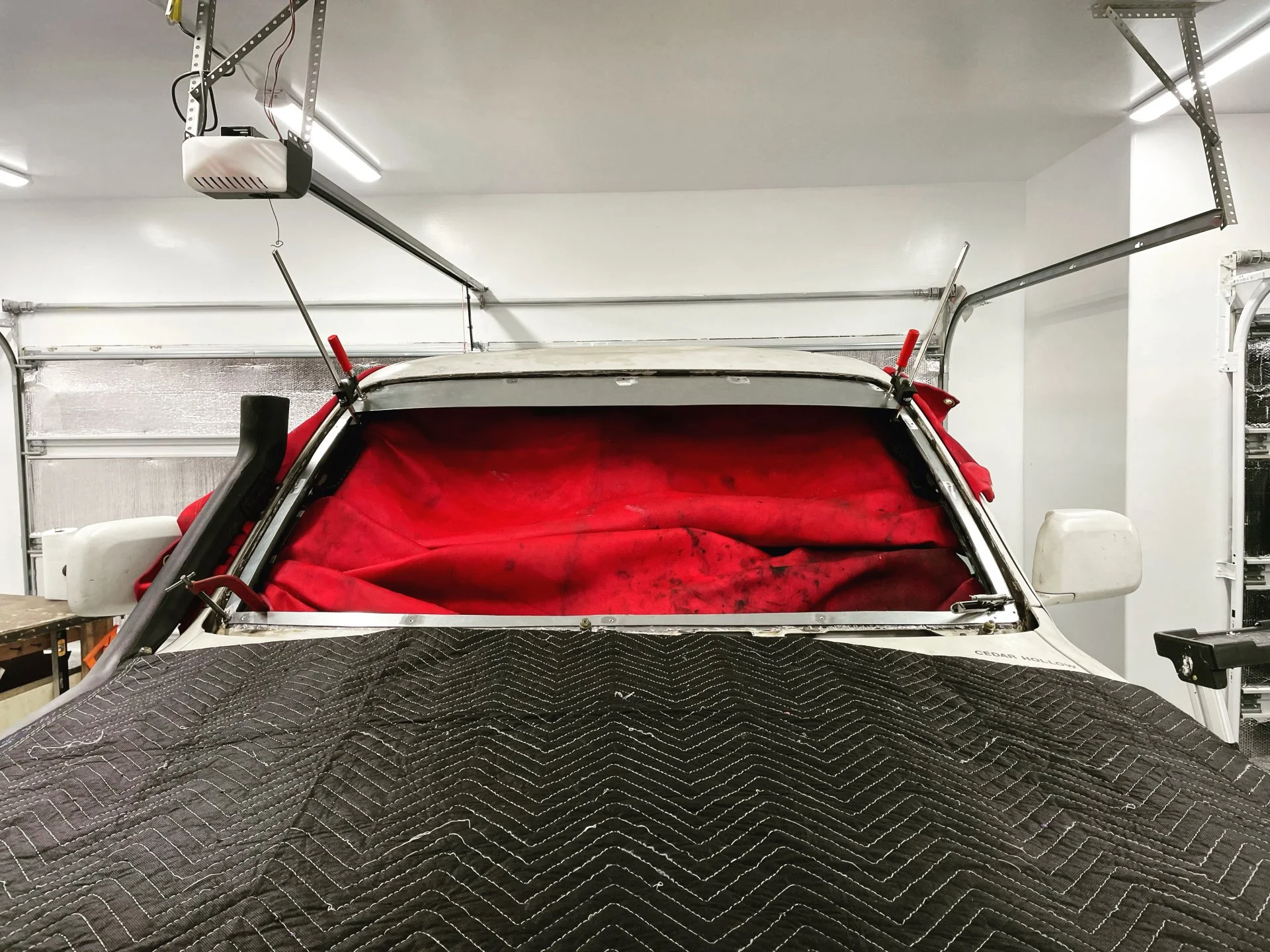

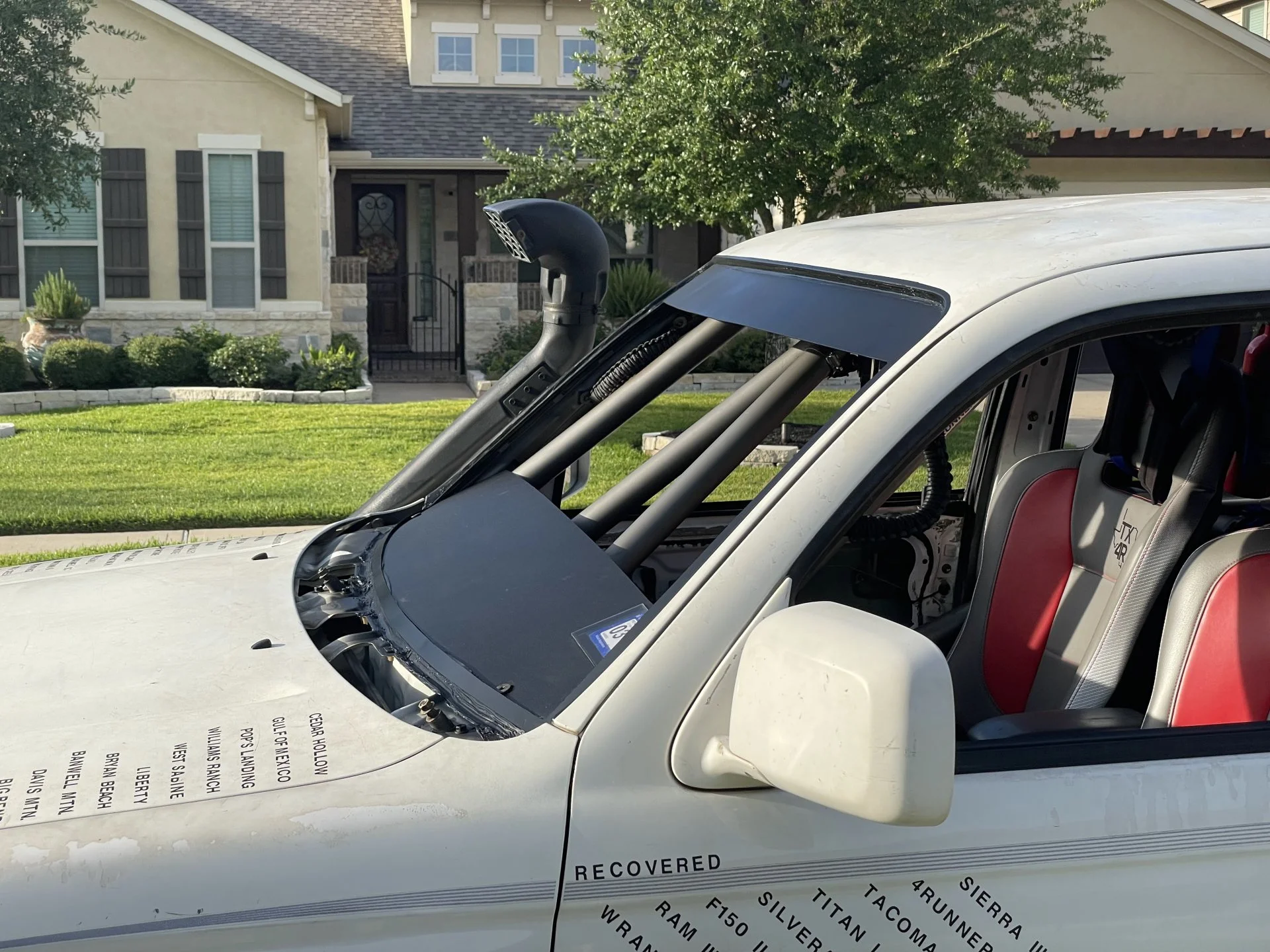

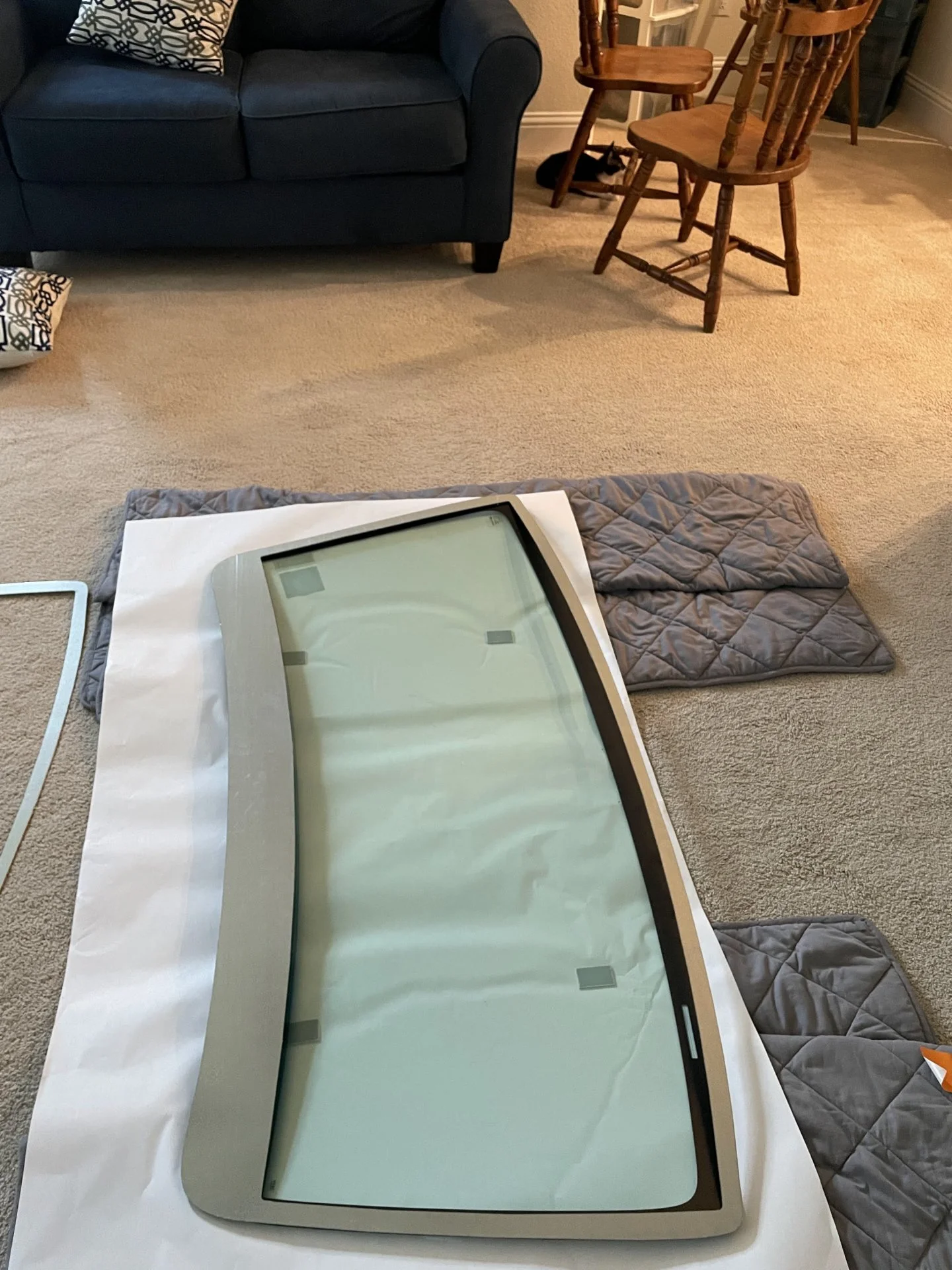

Windshield visors have been made! AND THEY FIT.

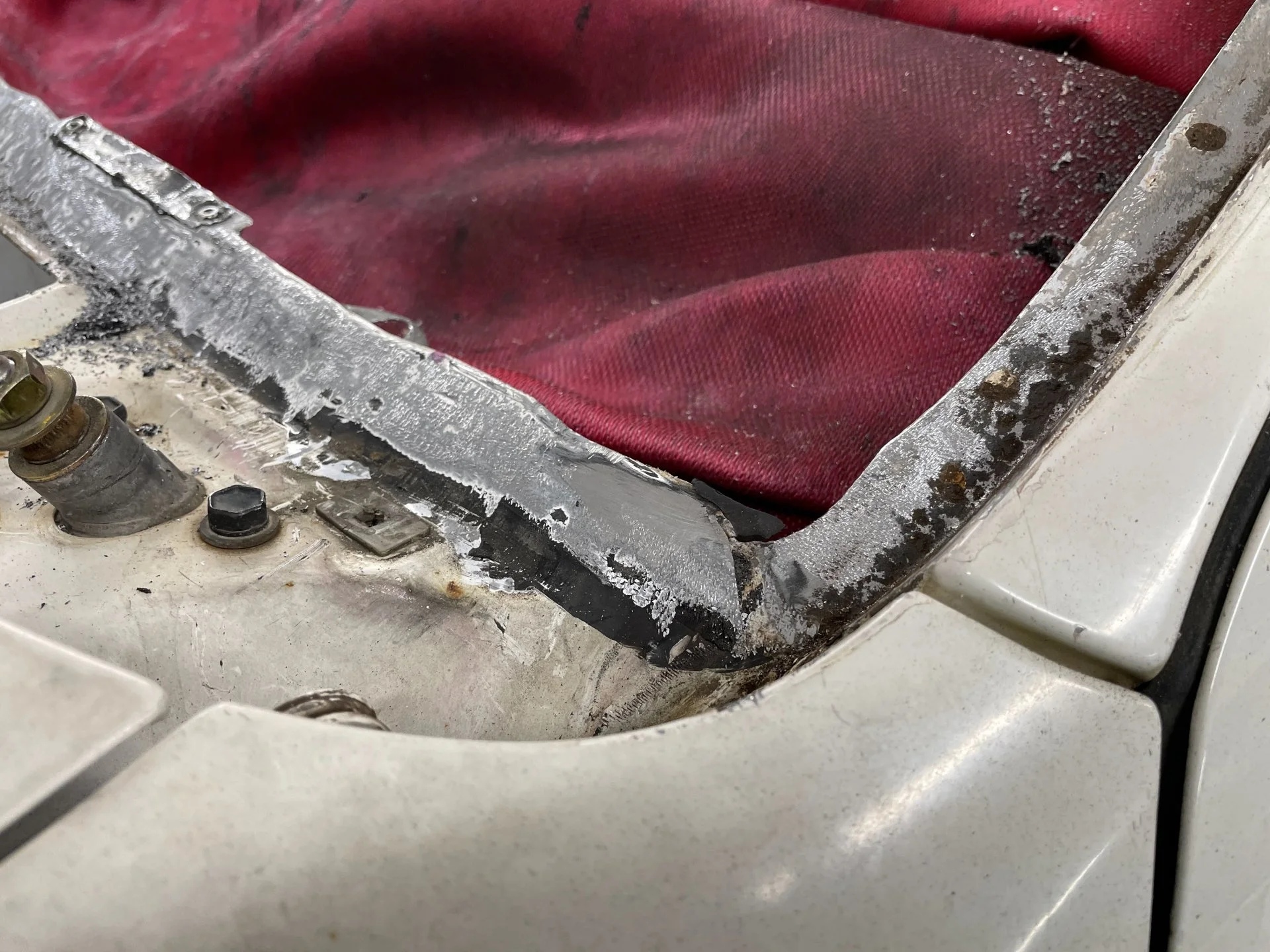

- I'm going to take the next few days to work on welding one to the truck, and then glueing the other to the windshield. There's painting in there somewhere, and they'll be black.

1/4" black HDPE Seaboard sheet is fitted for the top dash. This material rocks, and I plan to continue making the rest of the dashboard out of it.
Source. eplastics.com They do will-calls at their Dallas location, and they gave us a tour of their warehouse. What's super cool? They also provide cutting and multi-axis machining services at that location, so if you make a .dxf file or drawing to make specific shapes, they can do it. It's rad, and I wish we had a good supplier like that in Houston.






Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Update!

Seaboard Black HDPE really is a fun material to work in the garage. If you're ever wanting to use it, it's worth it. However, if you're cutting it with a jigsaw, it's better to leave that mess outdoors.

We're driving the 4runner to Velox Offroad's grand opening. If y'all are coming too, please say hi! It's good to put names to faces.

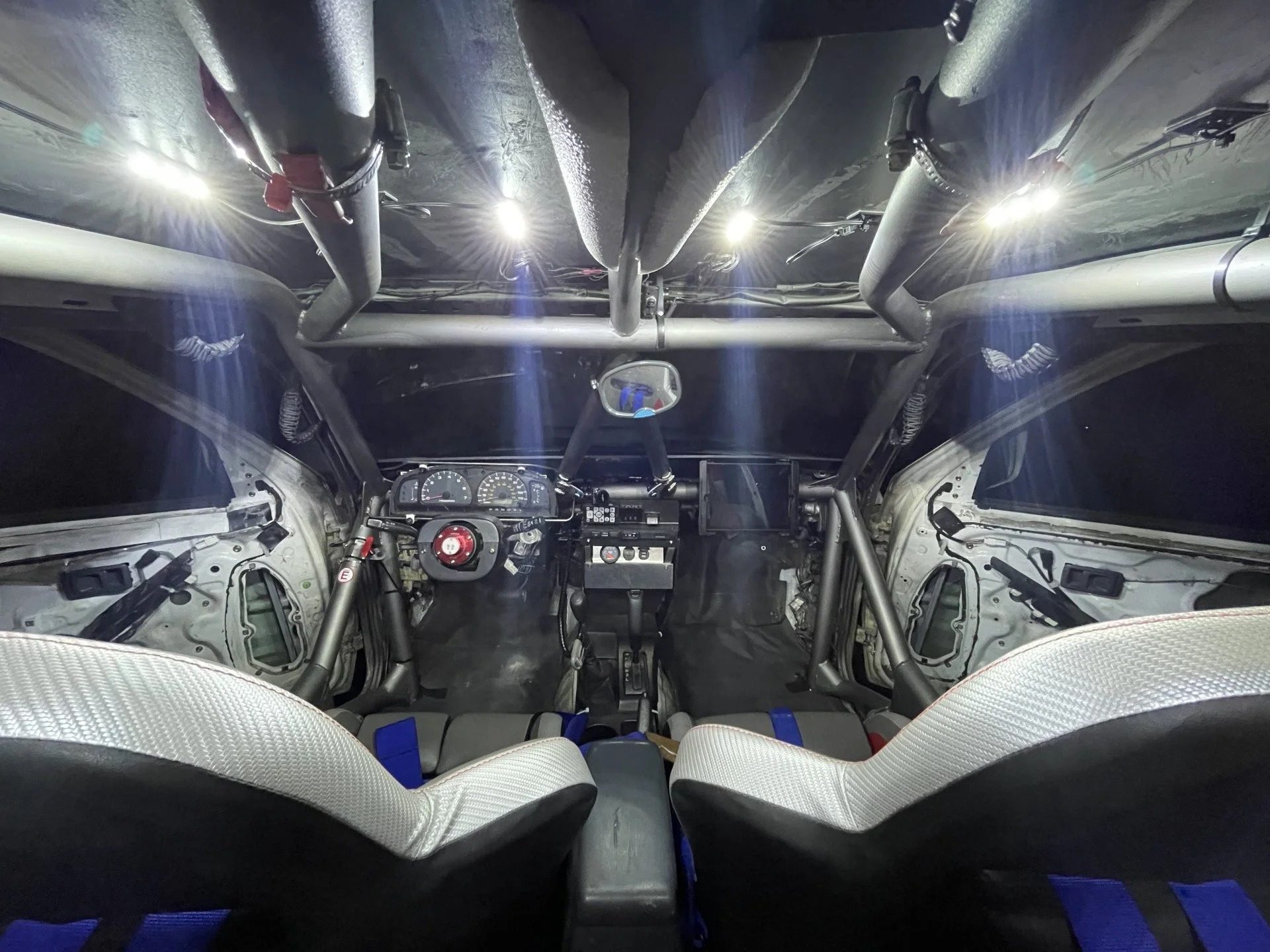

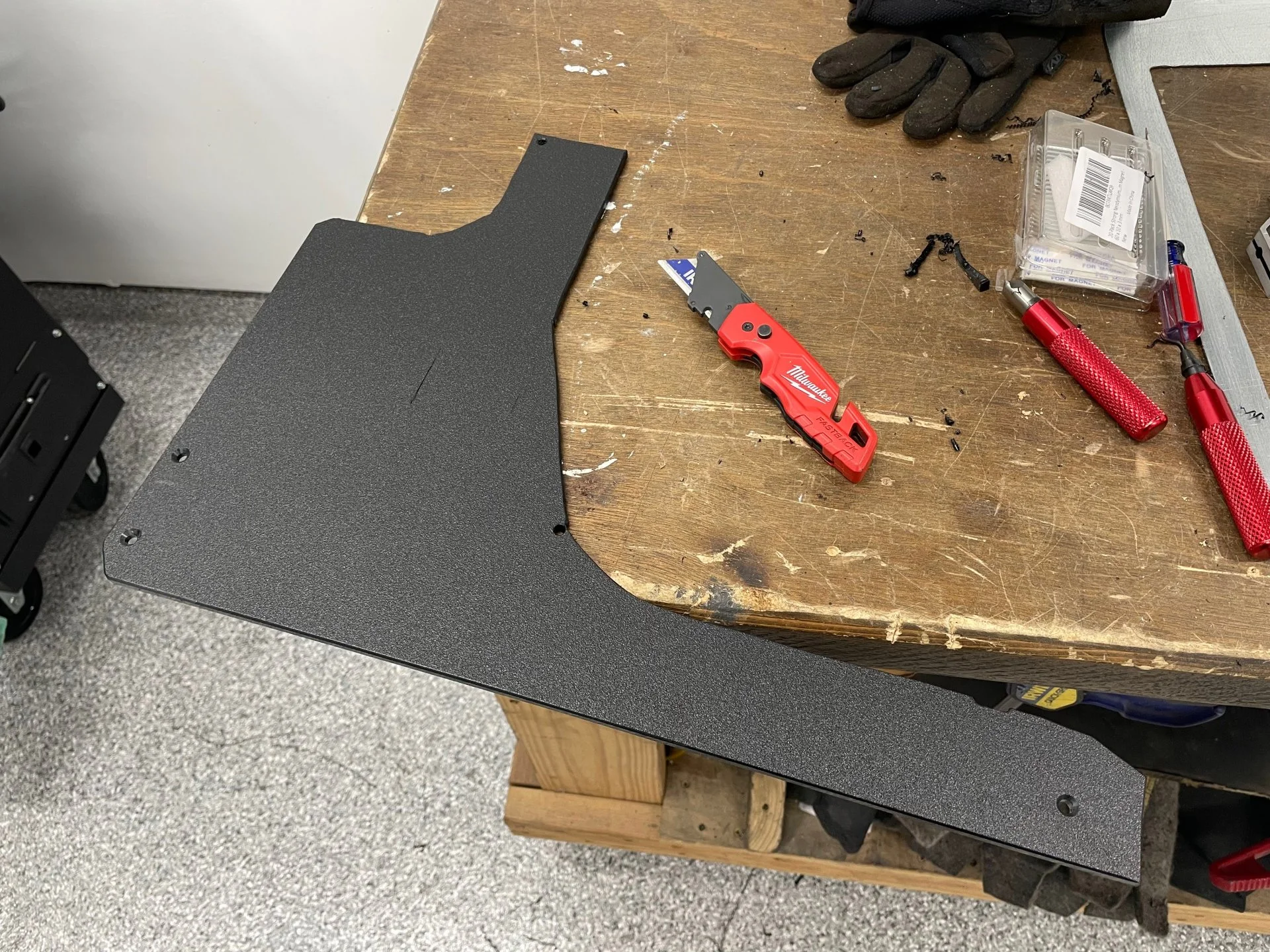

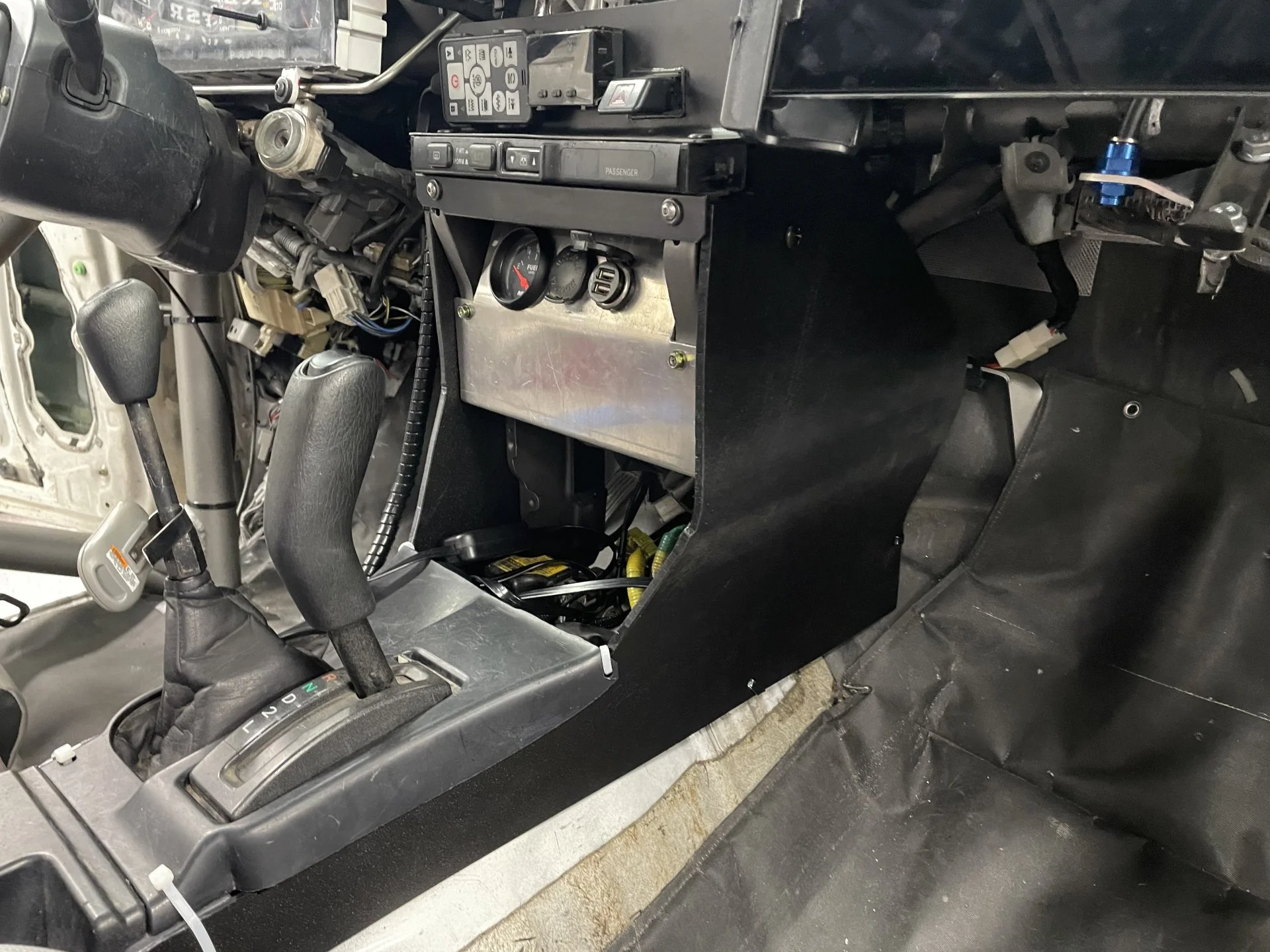

^starting panels for the inside of the dash. My wife didn't notice it, so I thought it was a win!




Joined
Jan 9, 2017
Messages
23
Location
Texas
Update!

Seaboard Black HDPE really is a fun material to work in the garage. If you're ever wanting to use it, it's worth it. However, if you're cutting it with a jigsaw, it's better to leave that mess outdoors.

We're driving the 4runner to Velox Offroad's grand opening. If y'all are coming too, please say hi! It's good to put names to faces.

View attachment 3088324

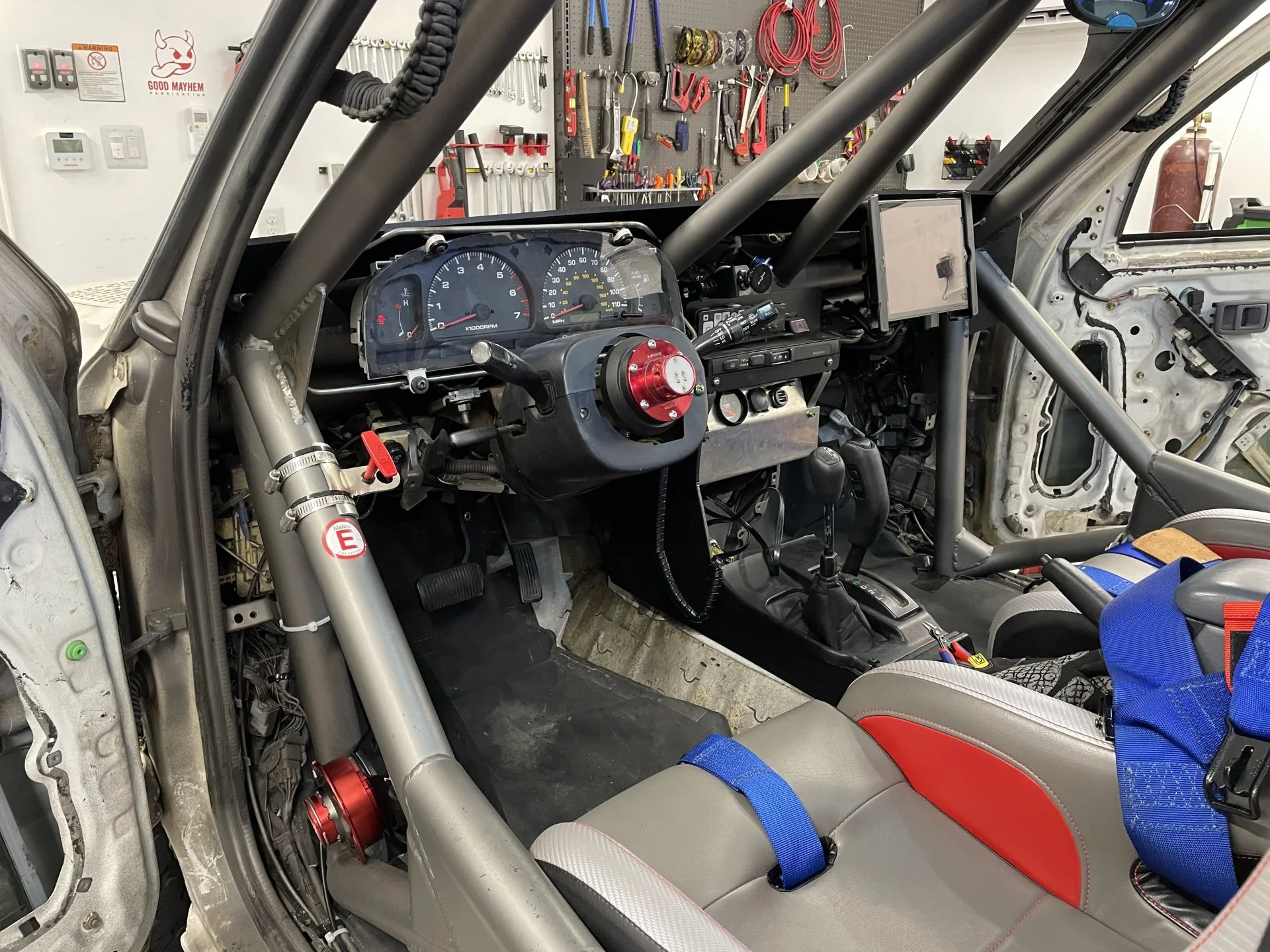

^starting panels for the inside of the dash. My wife didn't notice it, so I thought it was a win!

View attachment 3088325

View attachment 3088326
When is their grand opening happening?

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Velox's meet up was great! They'd give Rig and Churros a run for their money. For a first event, that was excellent.

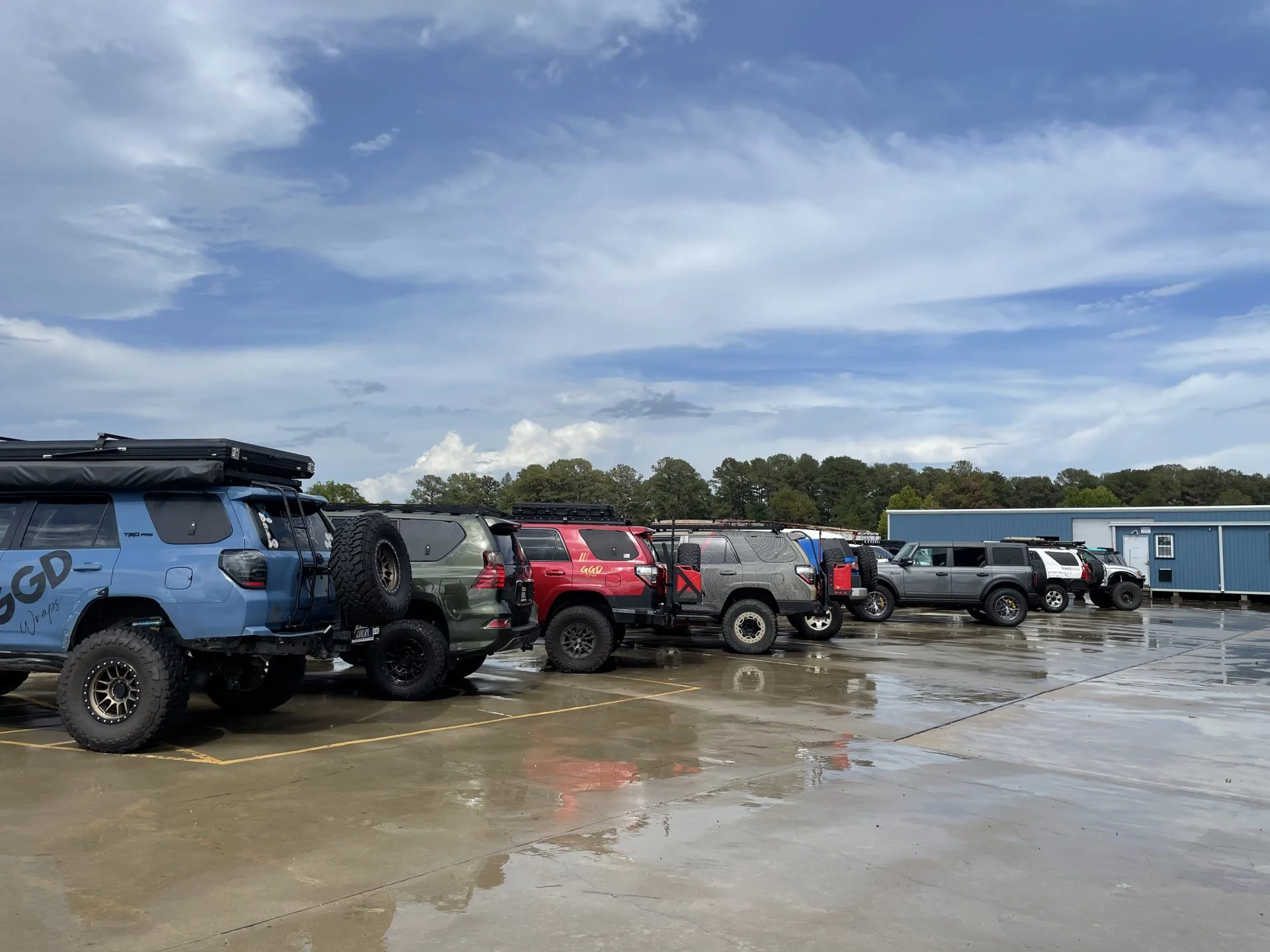

Over 100 people showed up, about 60 rigs or so. They had room to accommodate everyone.

P.S. Their gullwing doors are super cool in person!

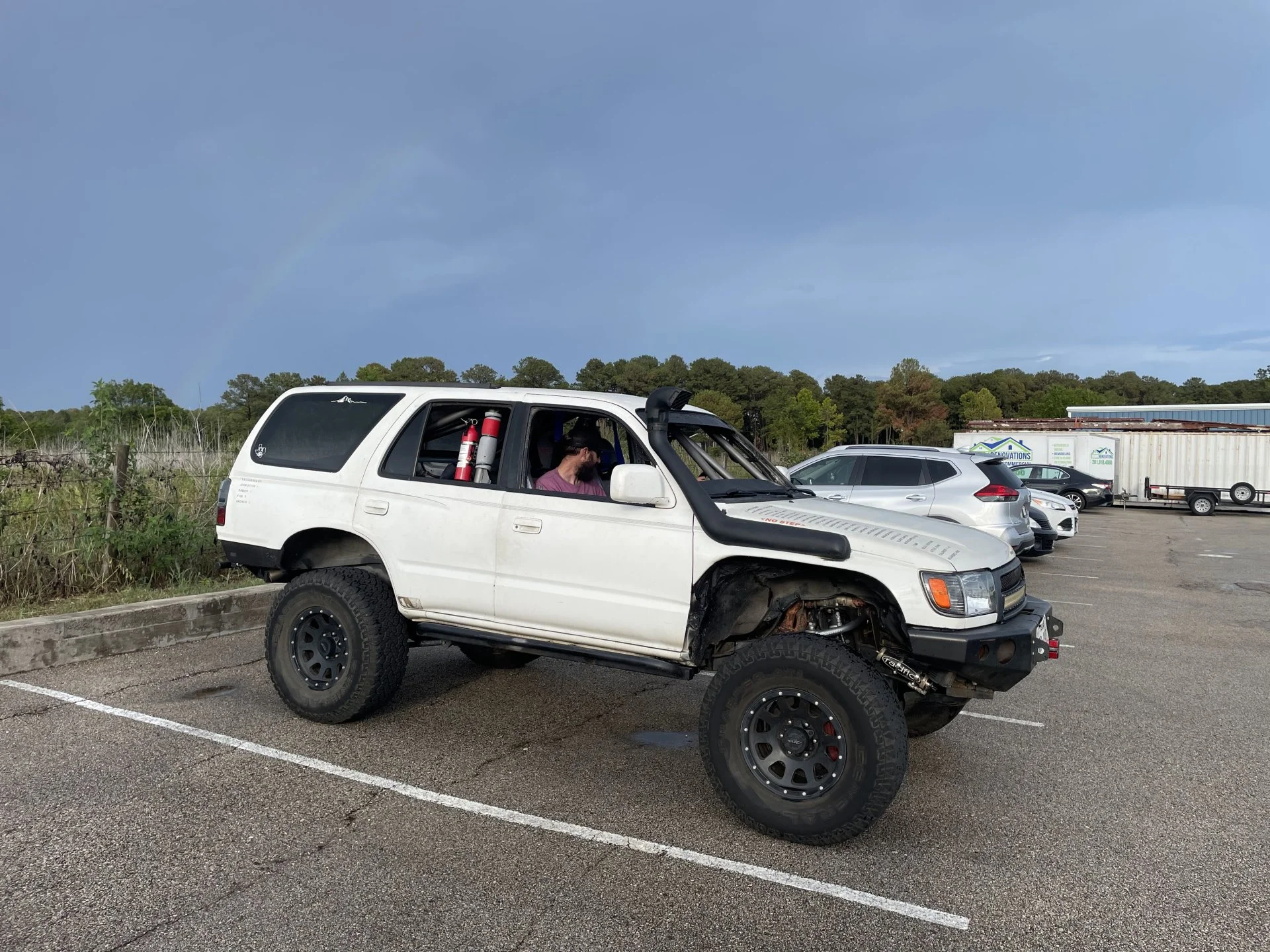

Then rain showed up. Torrential downpours, but hey! Double rainbow!

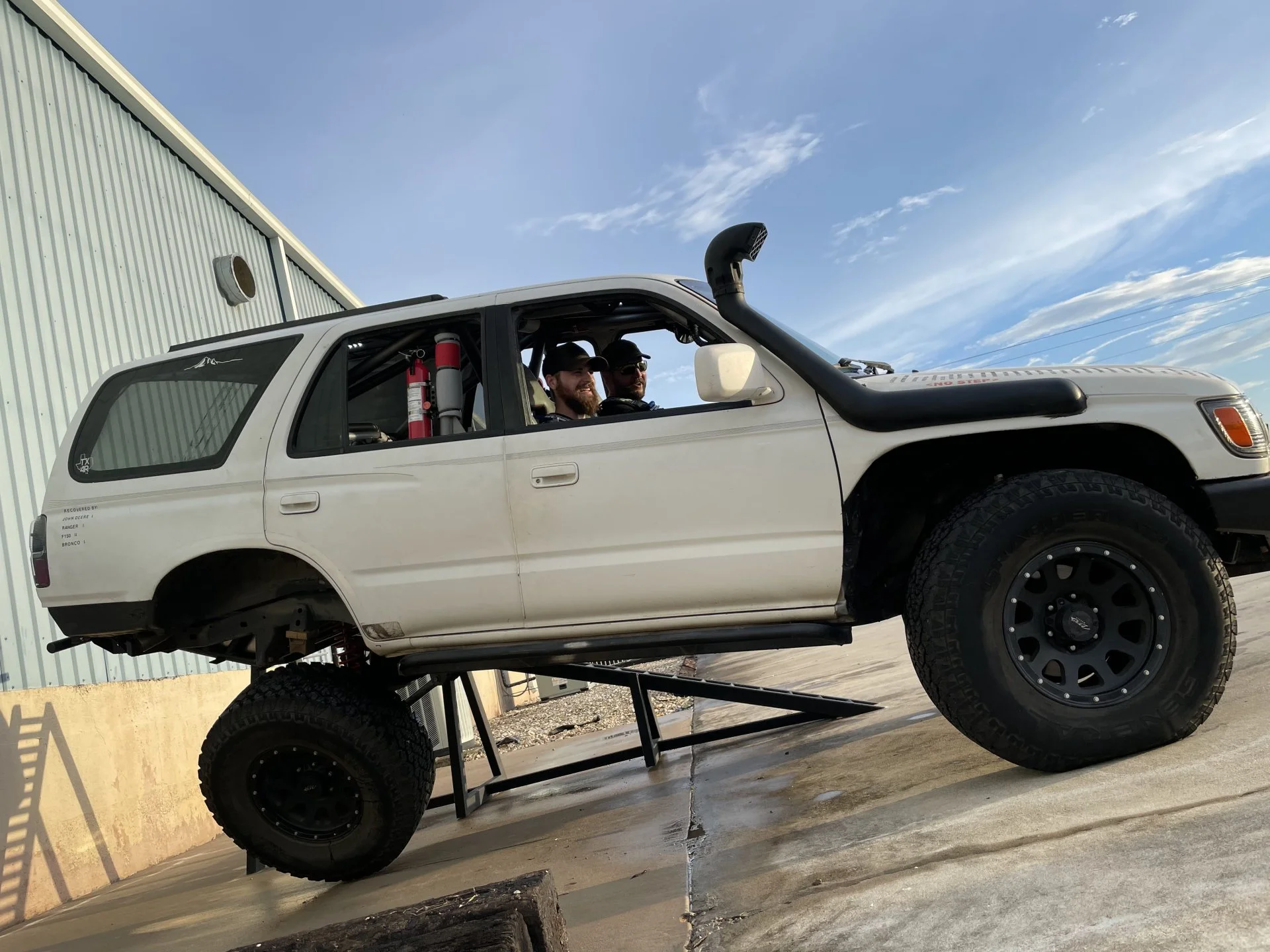

And there was an RTI ramp! Now that was a hoot to drive over.


I didn't get many picture with the windshield out, but it definitely got some attention. That, and I encourage people to sit in the rig and some even drove it! That was to share.

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Confession time!

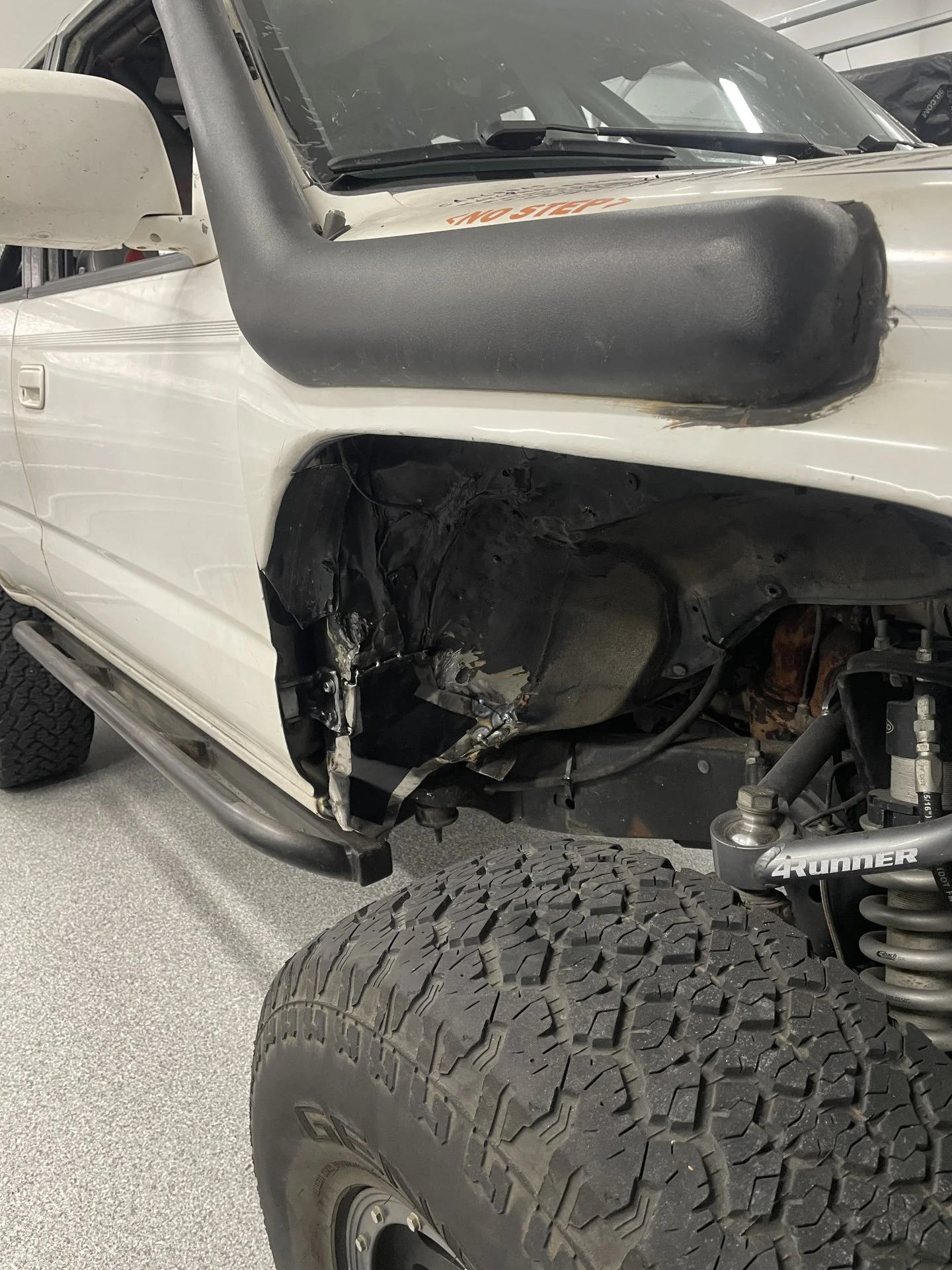

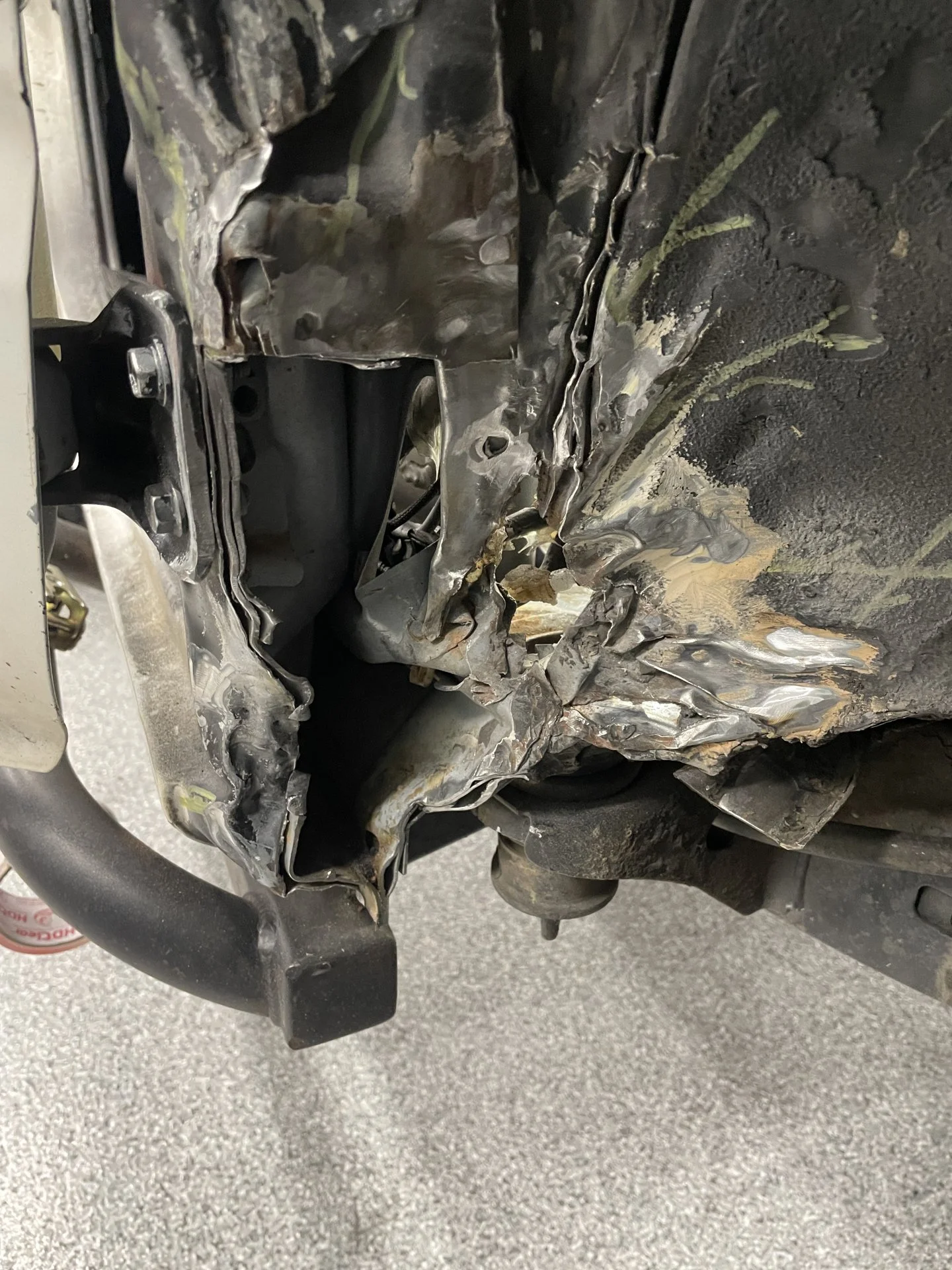

I hated fender trimming. After finessing the outer fender, I 9lb sledged that @#$% inner fender into submission. 5 years later, I needed to come back and do it right.

I was ashamed at what I had done. I was in denial. I was--I was---an idiot.

With 34's + long travel, it made for one heck of a fender bash. I made it work, and made one heck of a hole in the process. With 10 lbs of silicon sealant, it was water tight, but no where near structurally sound. Time to fix that.

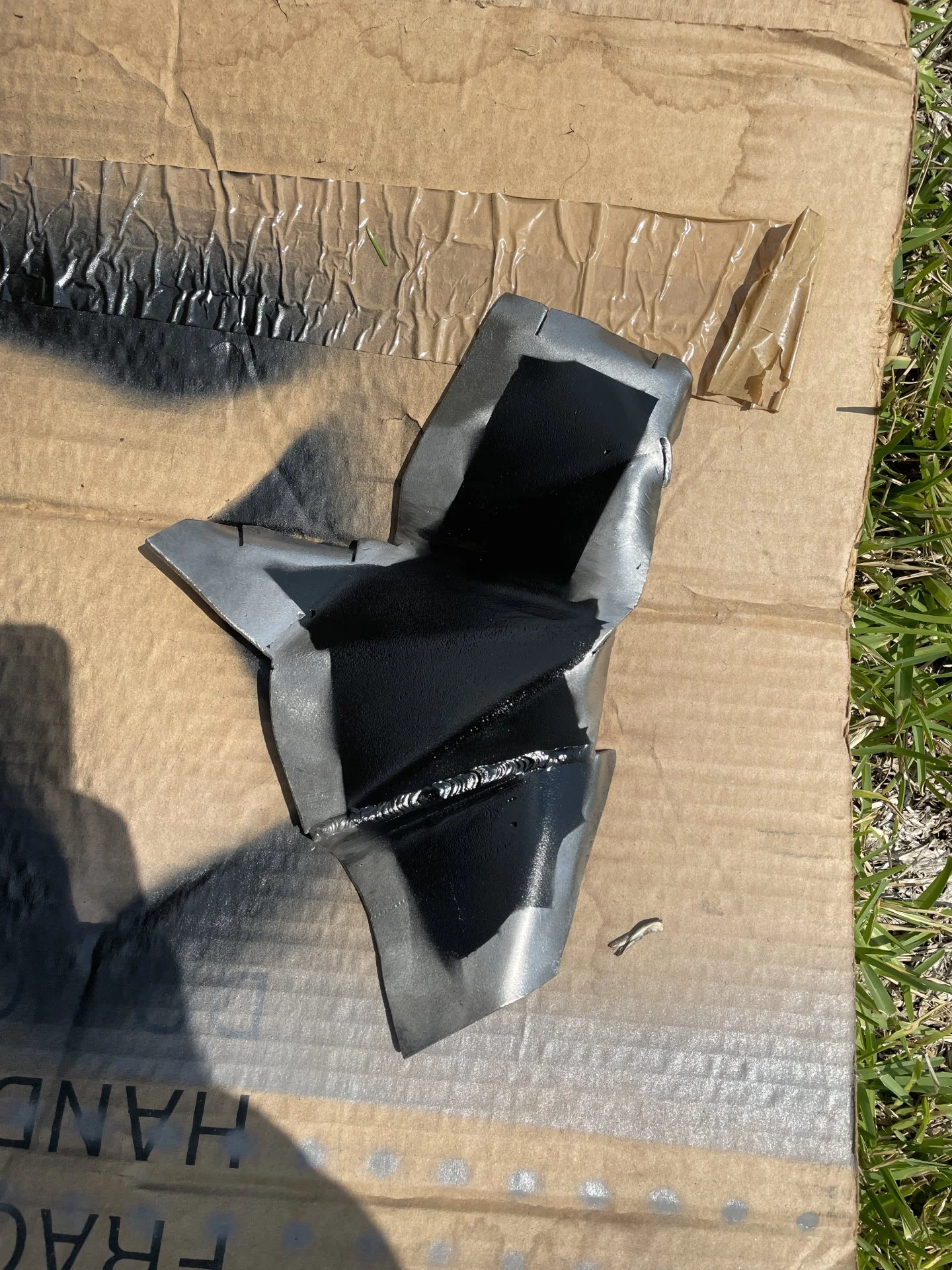

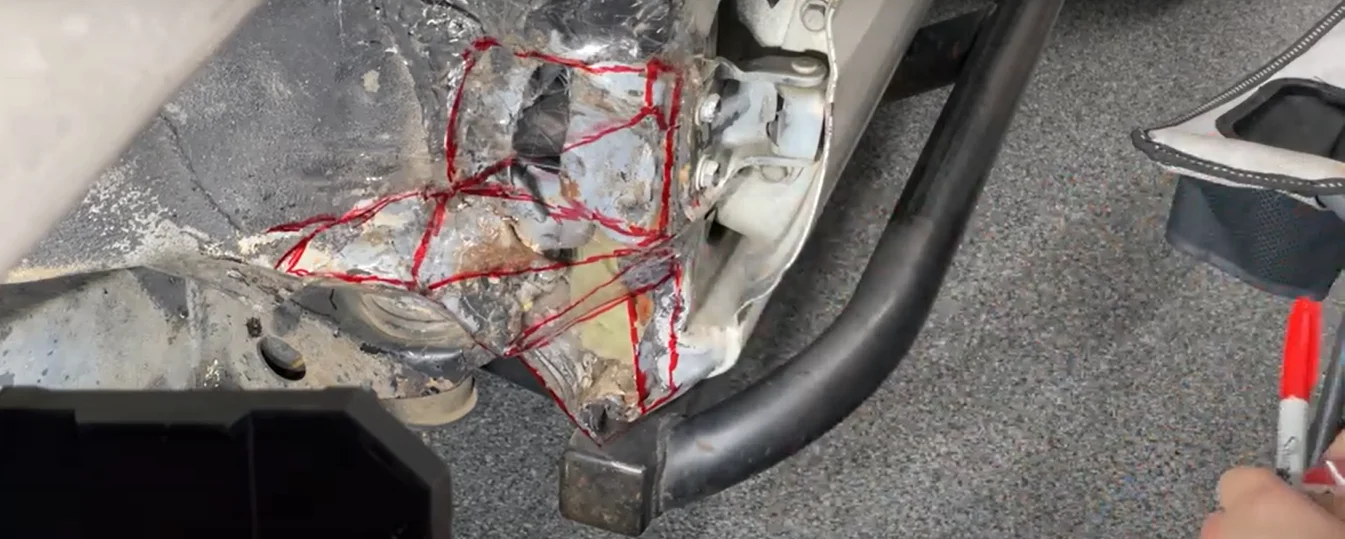

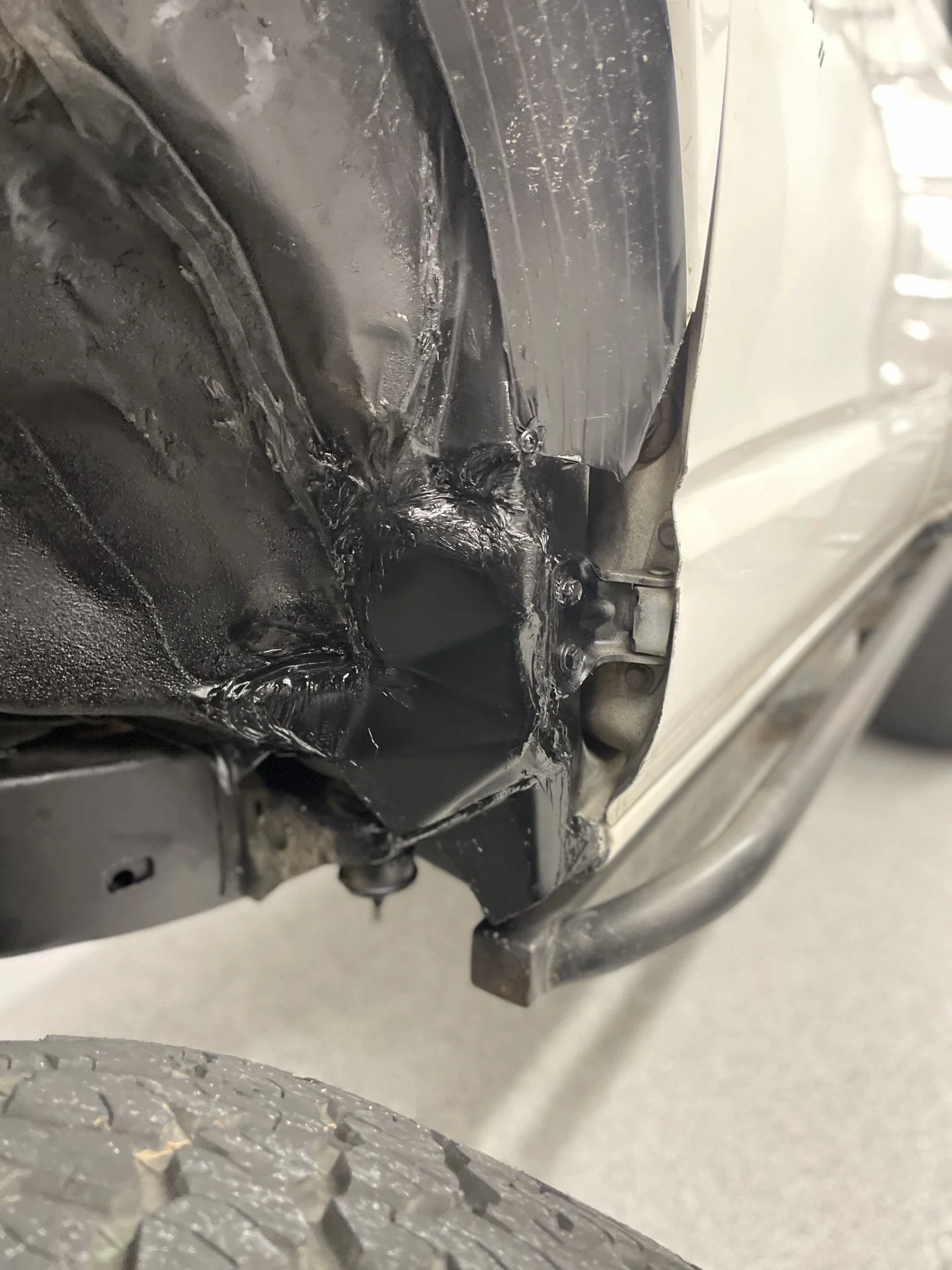

This weekend, I geometrically shaped out leftover 1/8" thick gusset plate and welded them in, both together and the body. I'm done with that mess!! Now it's structurally sound, water tight, and thick to boot.













Joined
Jan 9, 2017
Messages
23
Location
Texas
Confession time!

I hated fender trimming. After finessing the outer fender, I 9lb sledged that @#$% inner fender into submission. 5 years later, I needed to come back and do it right.

I was ashamed at what I had done. I was in denial. I was--I was---an idiot.

With 34's + long travel, it made for one heck of a fender bash. I made it work, and made one heck of a hole in the process. With 10 lbs of silicon sealant, it was water tight, but no where near structurally sound. Time to fix that.

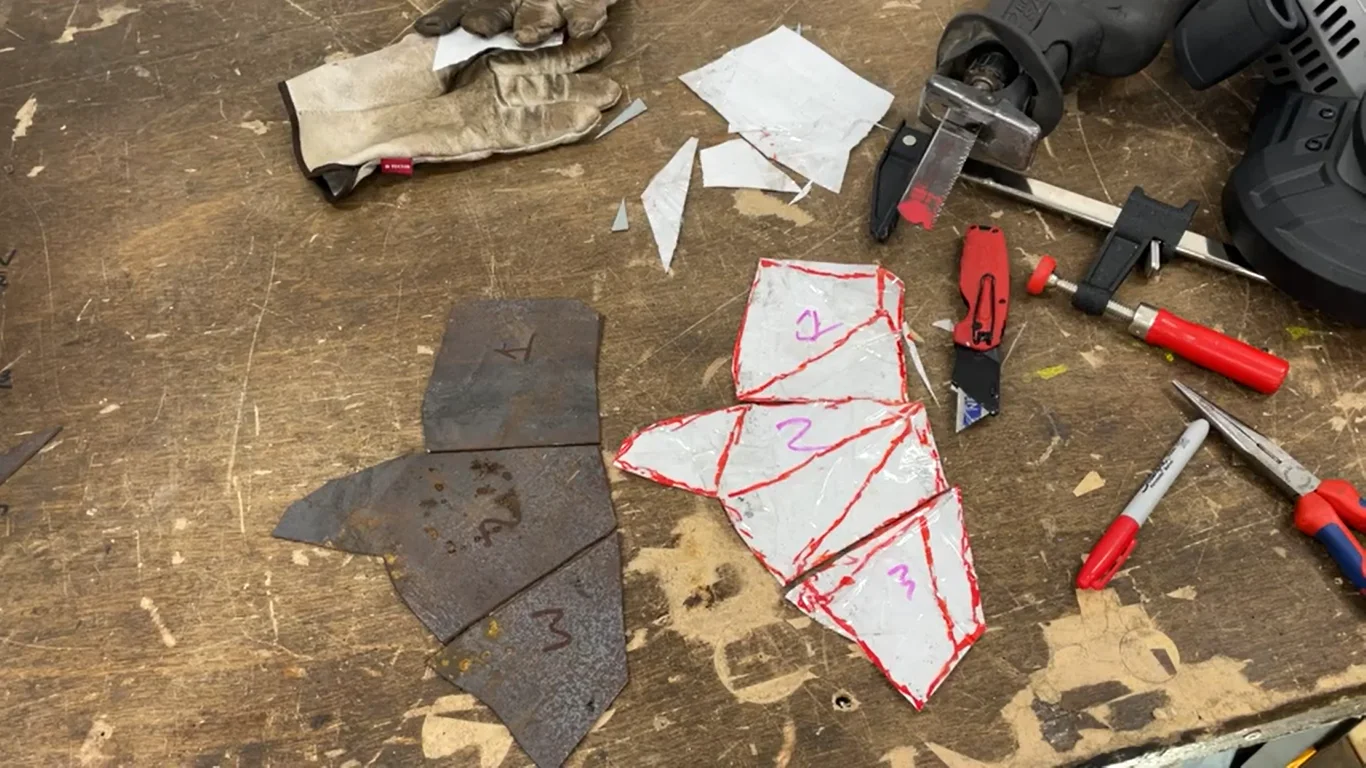

This weekend, I geometrically shaped out leftover 1/8" thick gusset plate and welded them in, both together and the body. I'm done with that mess!! Now it's structurally sound, water tight, and thick to boot.


View attachment 3112401

View attachment 3112403


View attachment 3112407


View attachment 3112416

View attachment 3112409
Nicely done, reminds me that I need to do this on my Tundra for the 37s... not looking forward to it...

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Nicely done, reminds me that I need to do this on my Tundra for the 37s... not looking forward to it...

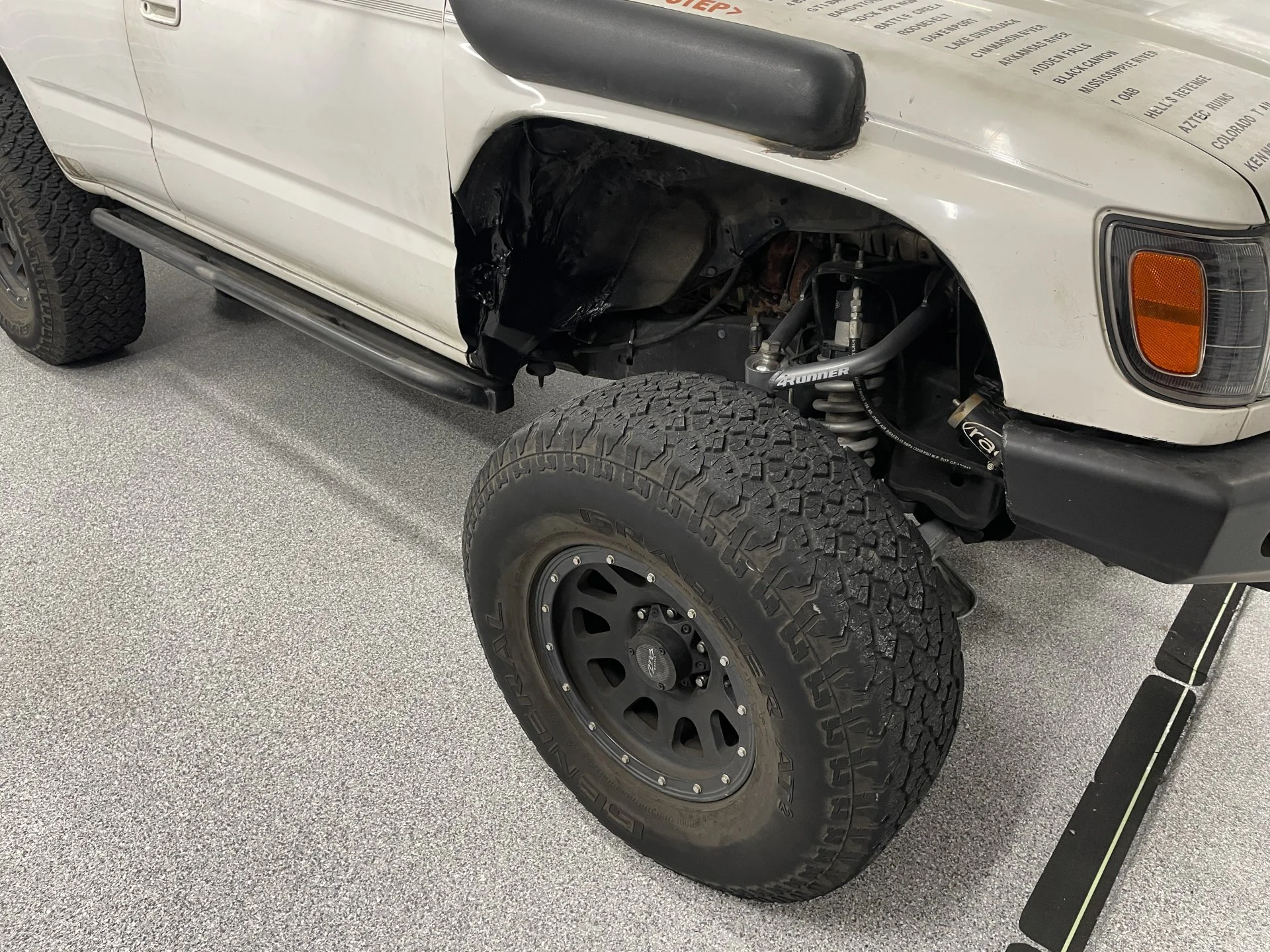

Me neither! Time for the right side!

By the way, a 2" die grinder shaves off two or three days of work on each side. I just found out while working with the right side plates.

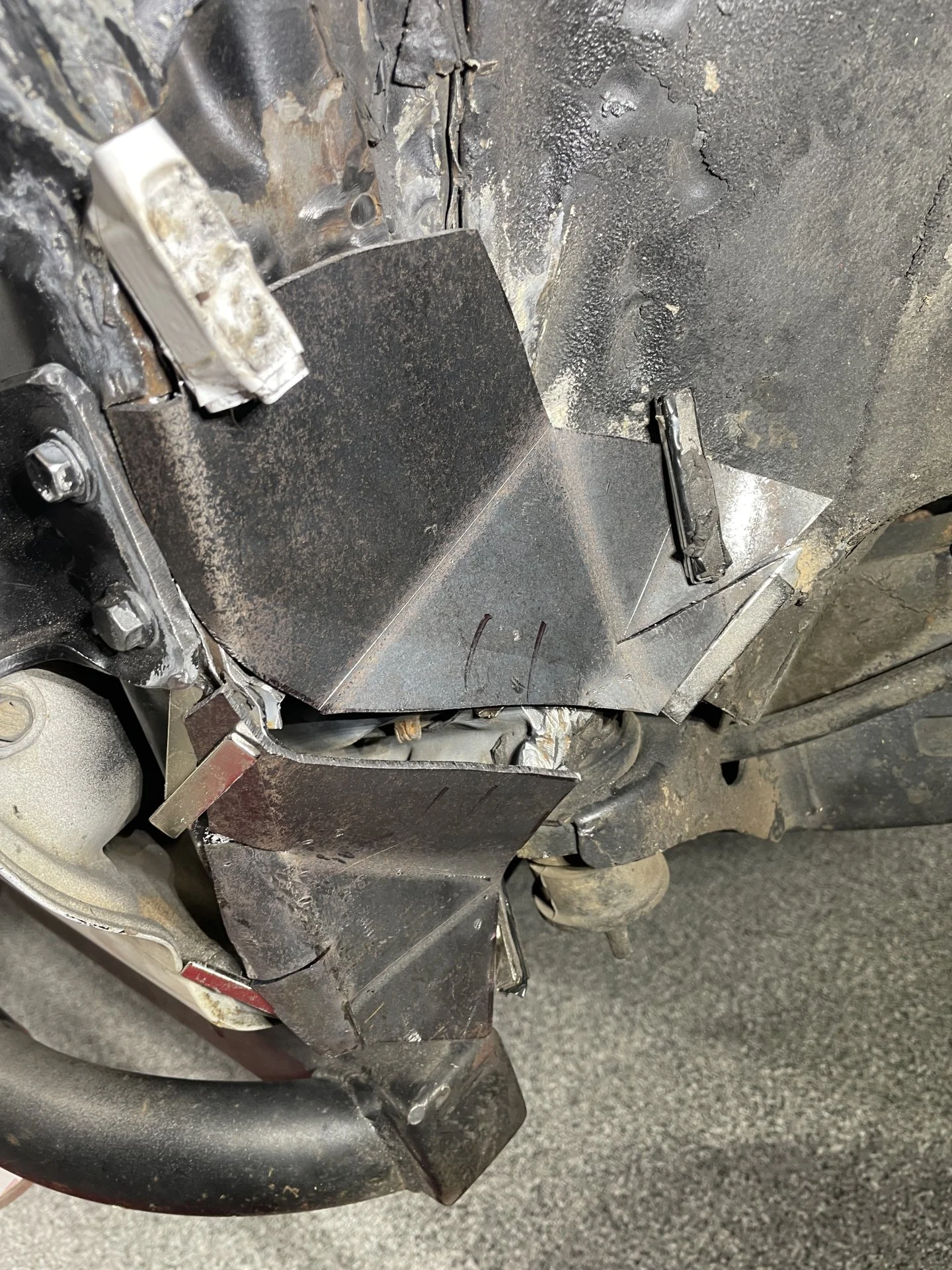

^coated and testdrove.


^welded in place.


^fitup was tedious--ended up needing to make a plate to bridge the two big sections. Similar to the left side.


^did some welding to join the sheets after the photo was taken.

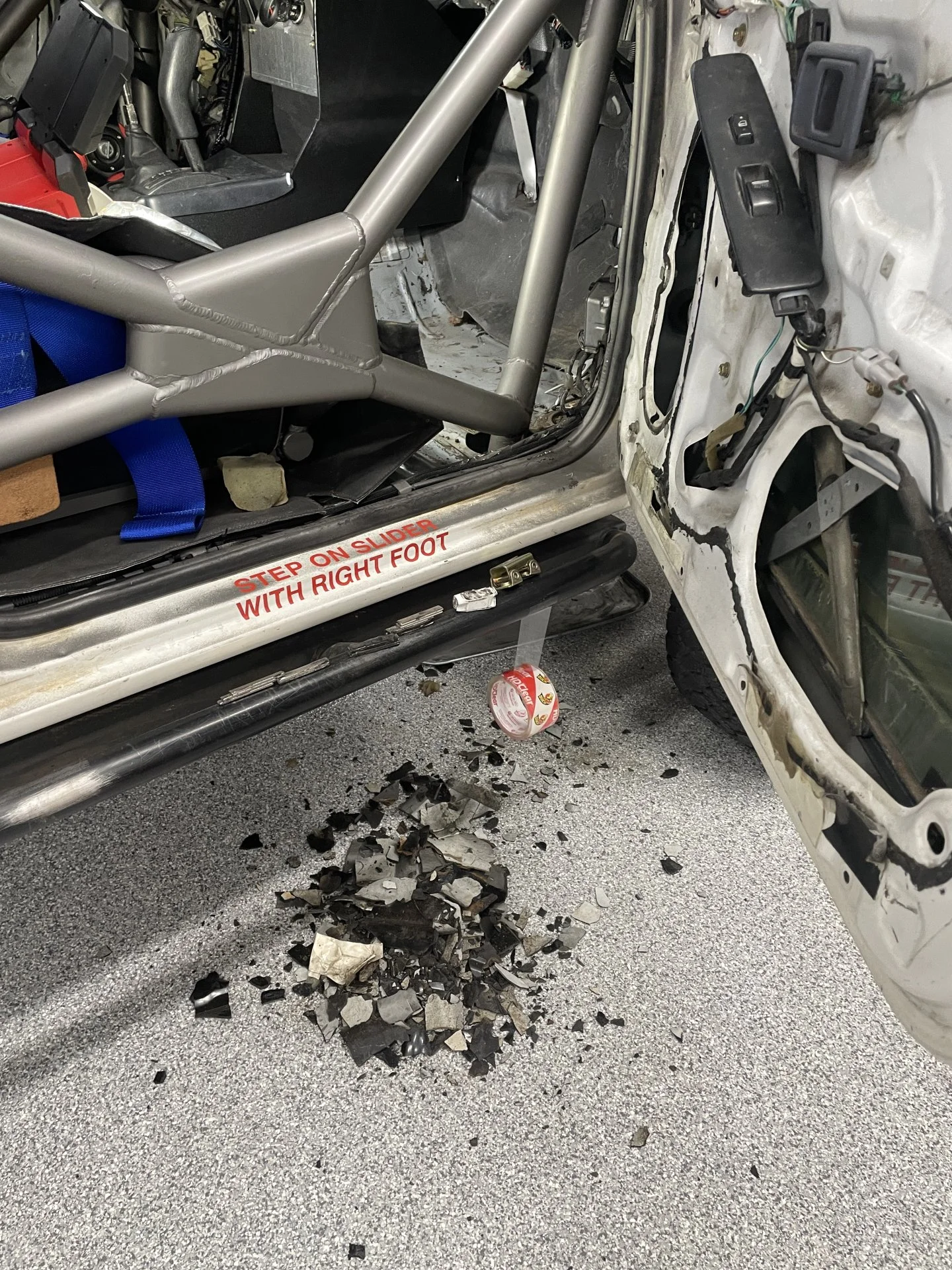

^^removing the passenger side heat mat/sound deadener.

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Weird update!

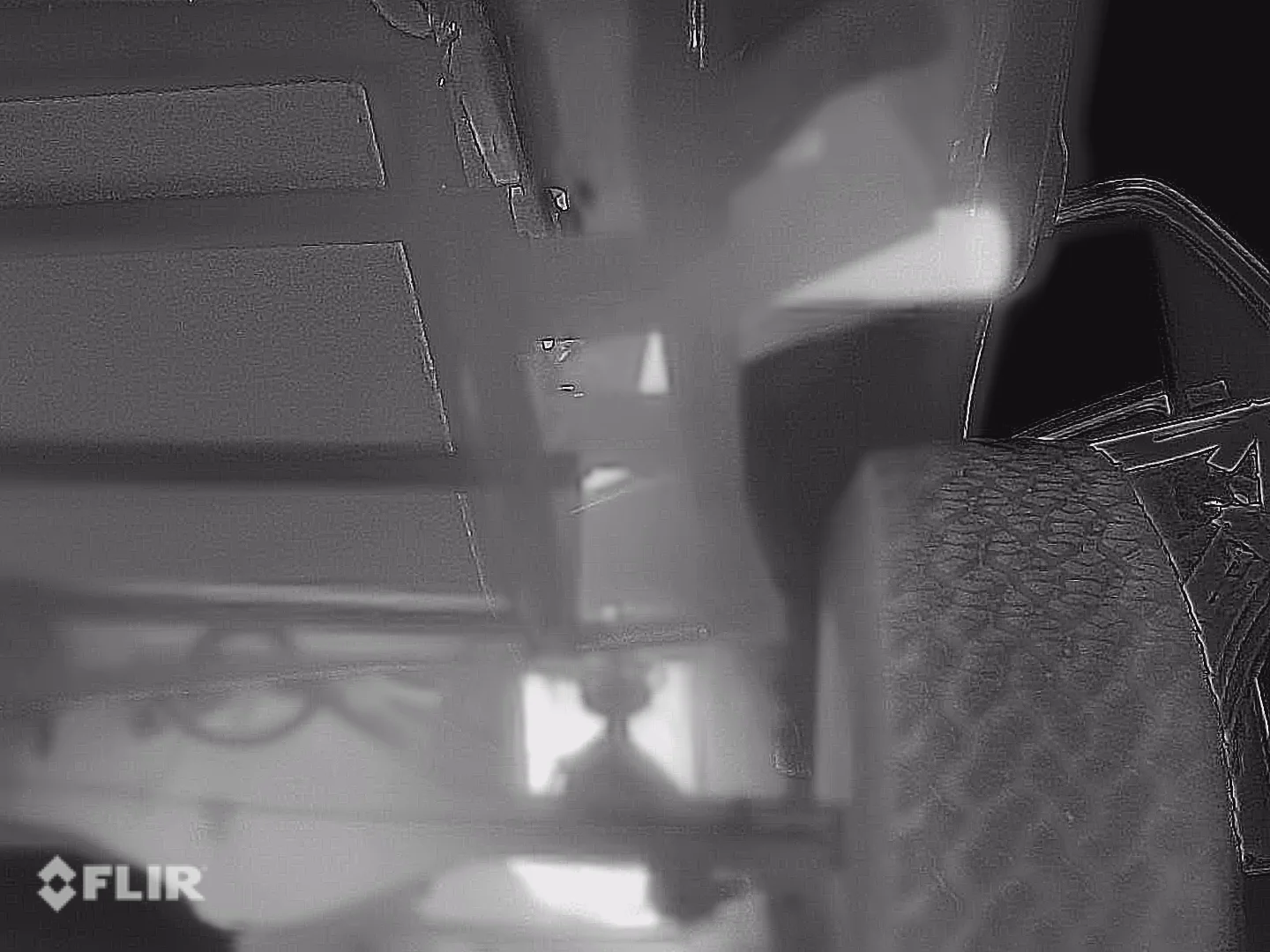

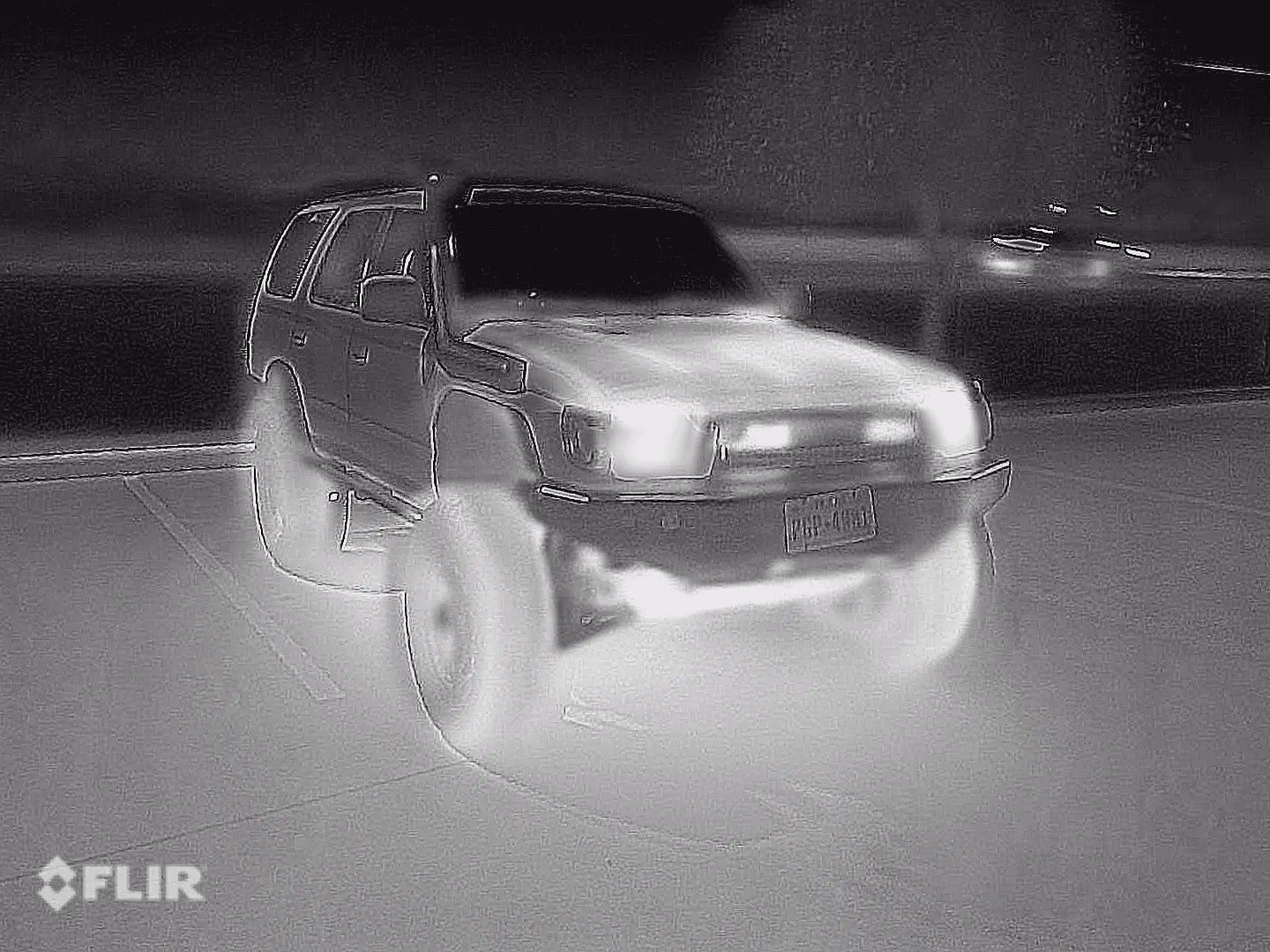

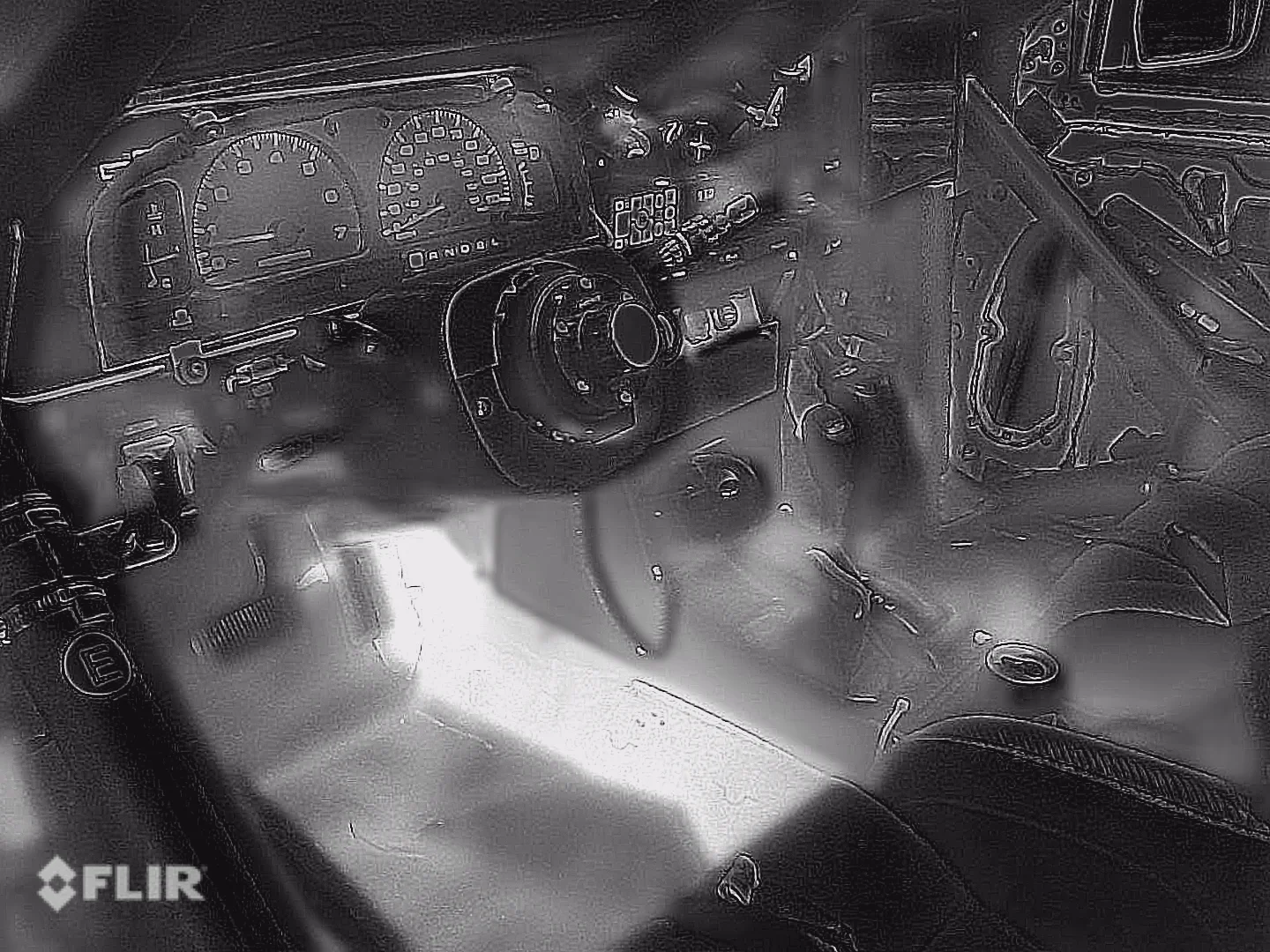

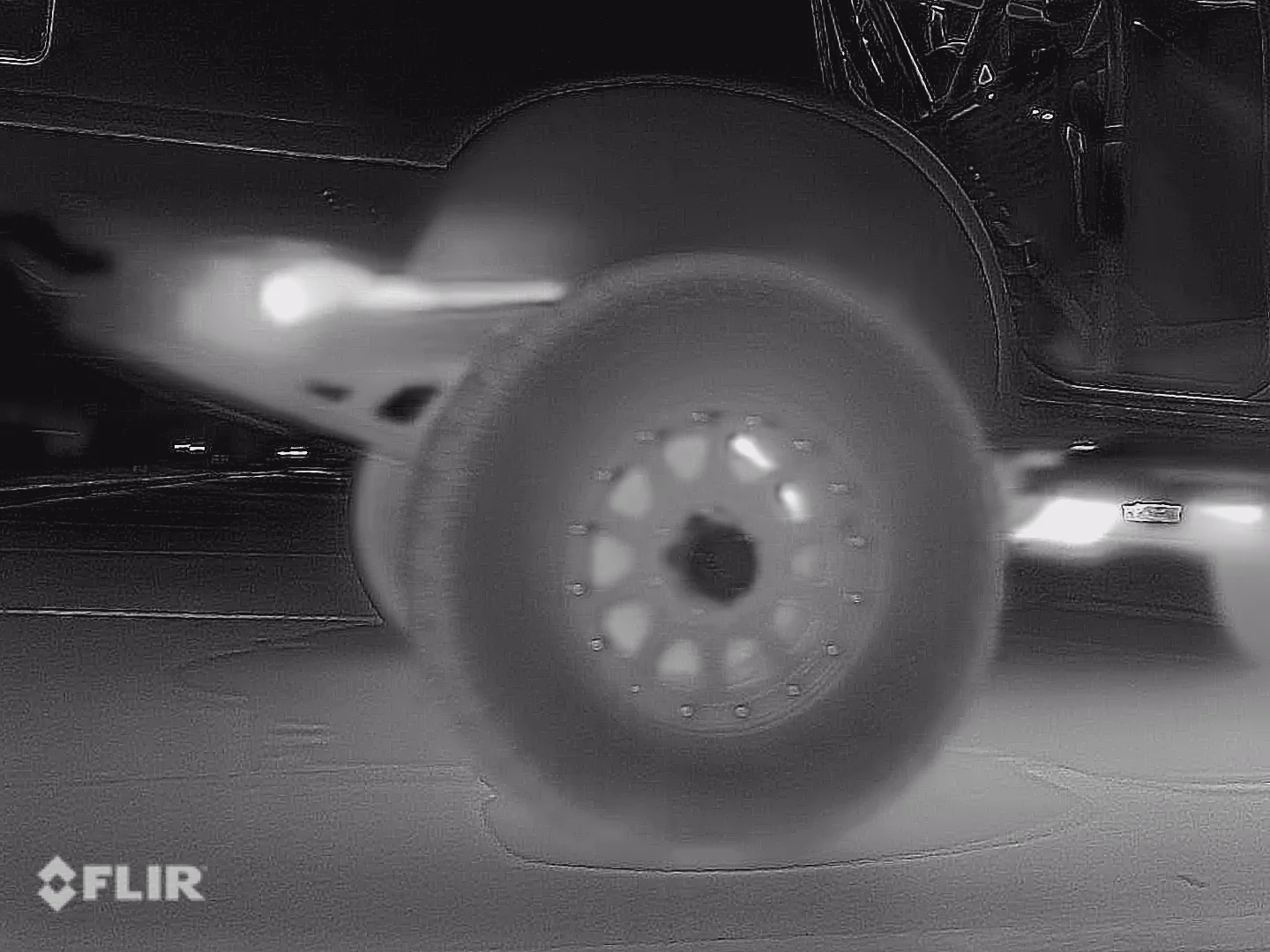

I got my hands on a cool camera this weekend, so here's the 4runner in thermal!

What's really cool is how much heat is not radiating from the exhaust pipe to the fuel cell. I worked really hard to make sure they have ample clearance, and the footage provides more warm and fuzzies.

It was a reminder that the transmission tunnel is hot, and the exhaust under the passenger is hotter. I wish there was a good race-car solution to improving the heat shields underneath, but most heat sheeting out there isn't durable enough for offroad, or super costly. Any ideas?










Joined
Jan 9, 2017
Messages
23
Location
Texas

This guy has a company wrap his drift car headers and hot side of his turbo kit in a type of heat shield. Fast forward to 15:45 to see him unbox them and talk about it. He hasn't raced with it yet, but if it will hold up to a drift car, might be worth a shot on a race truck.

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas

This guy has a company wrap his drift car headers and hot side of his turbo kit in a type of heat shield. Fast forward to 15:45 to see him unbox them and talk about it. He hasn't raced with it yet, but if it will hold up to a drift car, might be worth a shot on a race truck.

Thanks for the idea! I'll research that more and learn that heat shield.

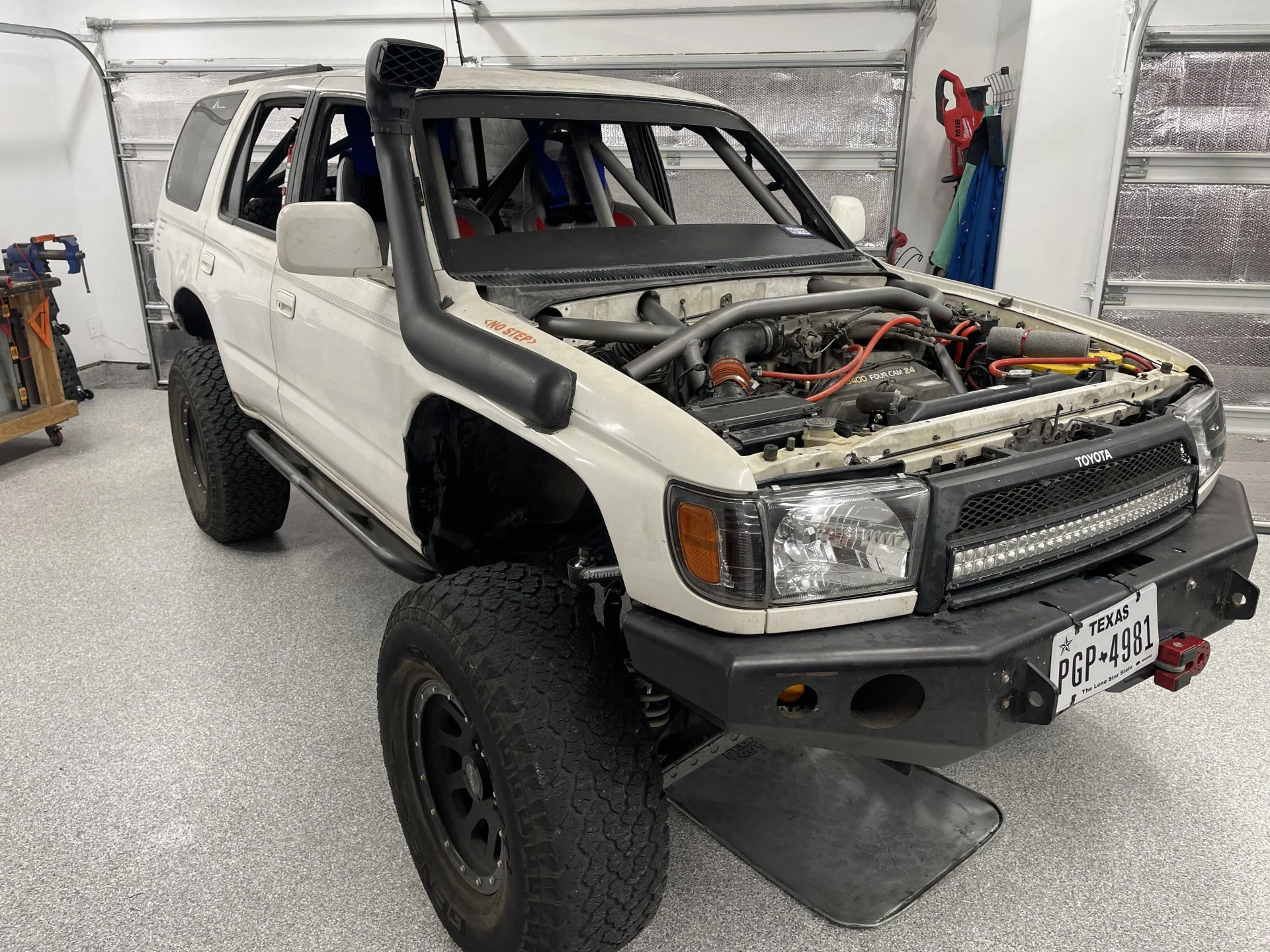

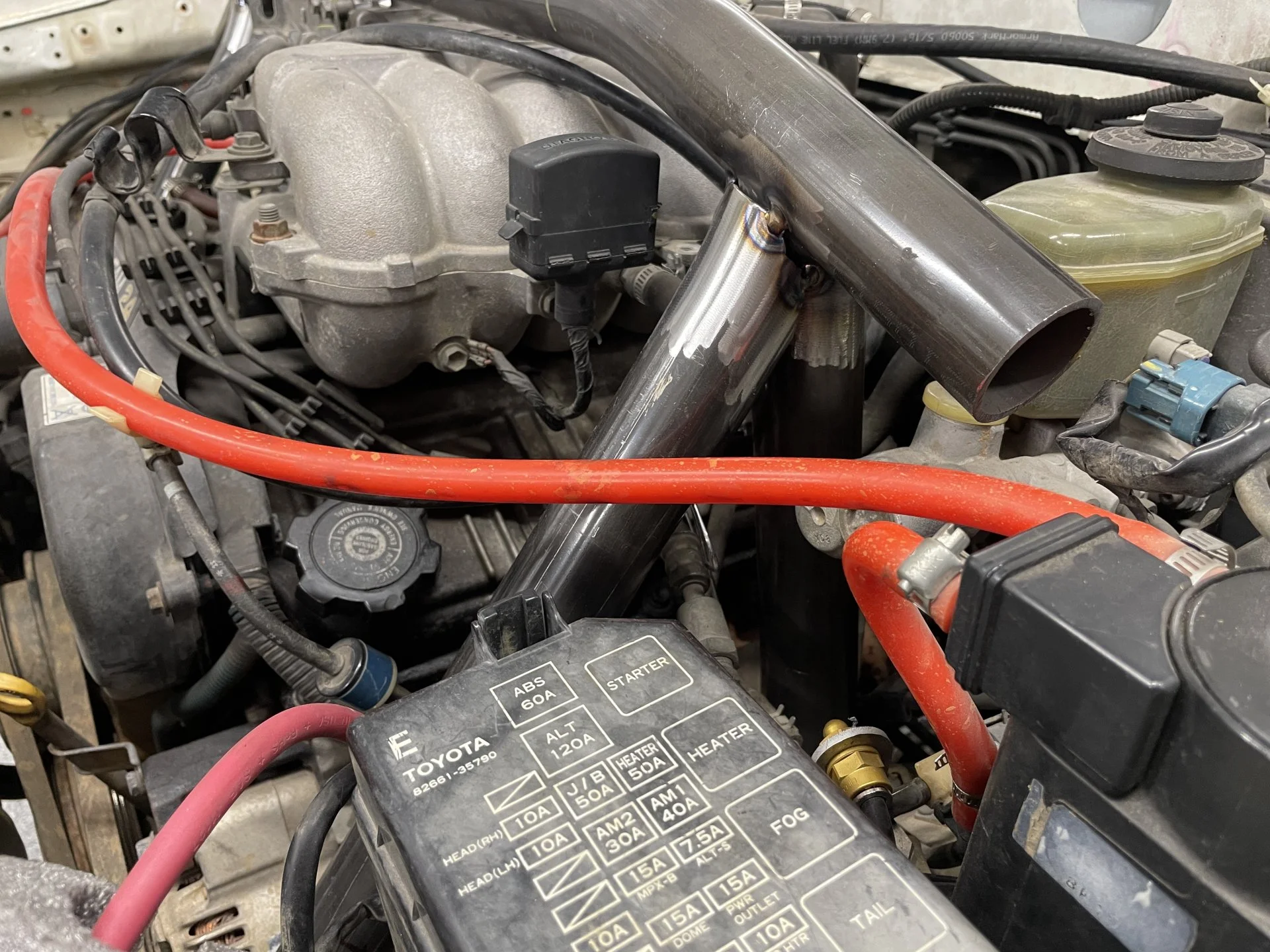

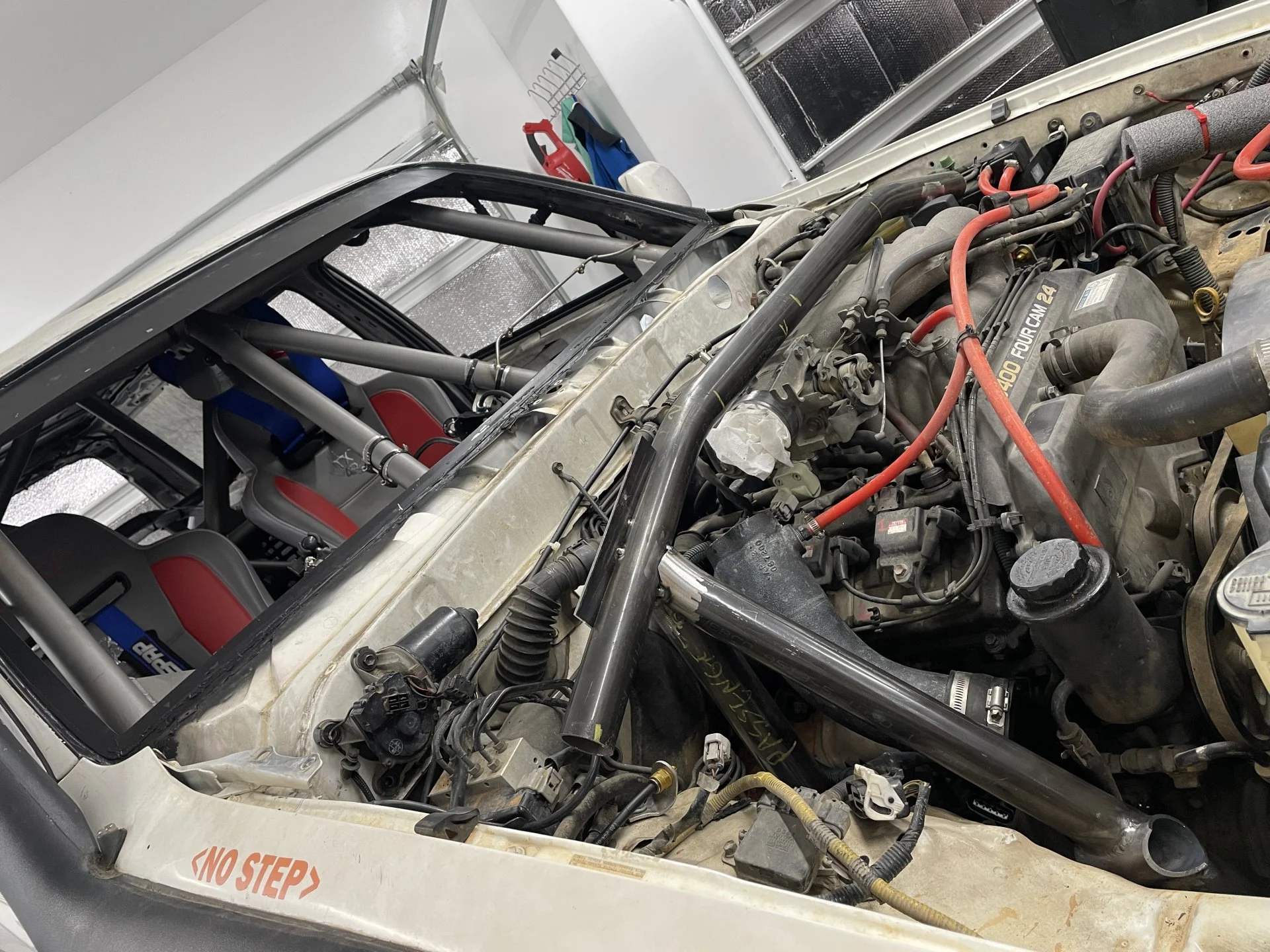

In the meantime, let's extend the roll cage to the front! Most of the research I've done shows that I'll need to reinforce the strut towers to the roll cage, so that's the reason why the engine cage is going in. Welding this in is a doozy! 5 out of 11 tubes have been fit up so far. Both shock towers have reinforcing plates that will be gusseted to the cage. The two front tubes have notches cut and welded so the UCA bolt can be removed. The last four are going to be a pain, since they connect through the body right below the windshield, leaving the firewall intact from it's top seam downward.

roll cage shock tower3.JPG

Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas

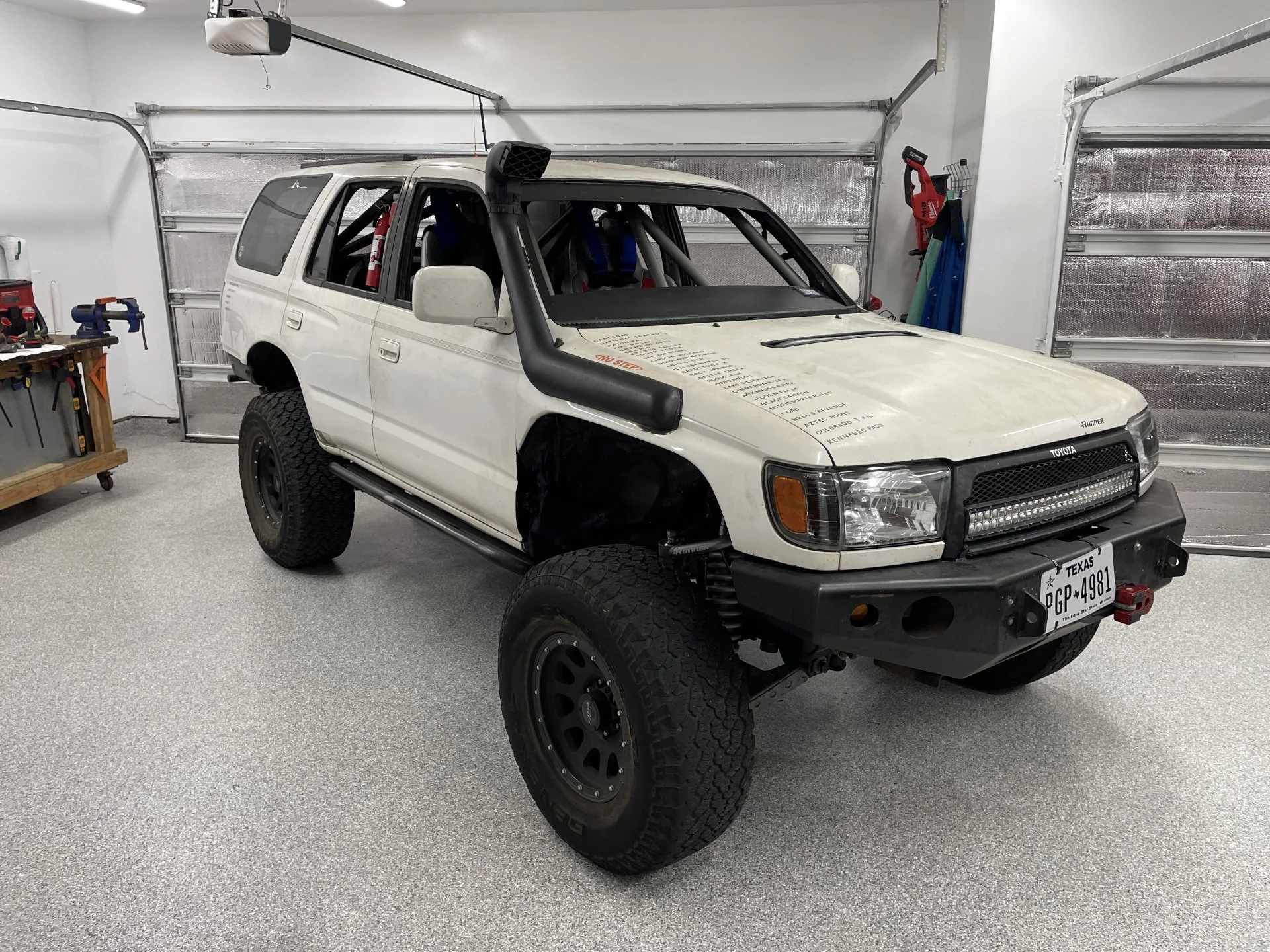

Update!

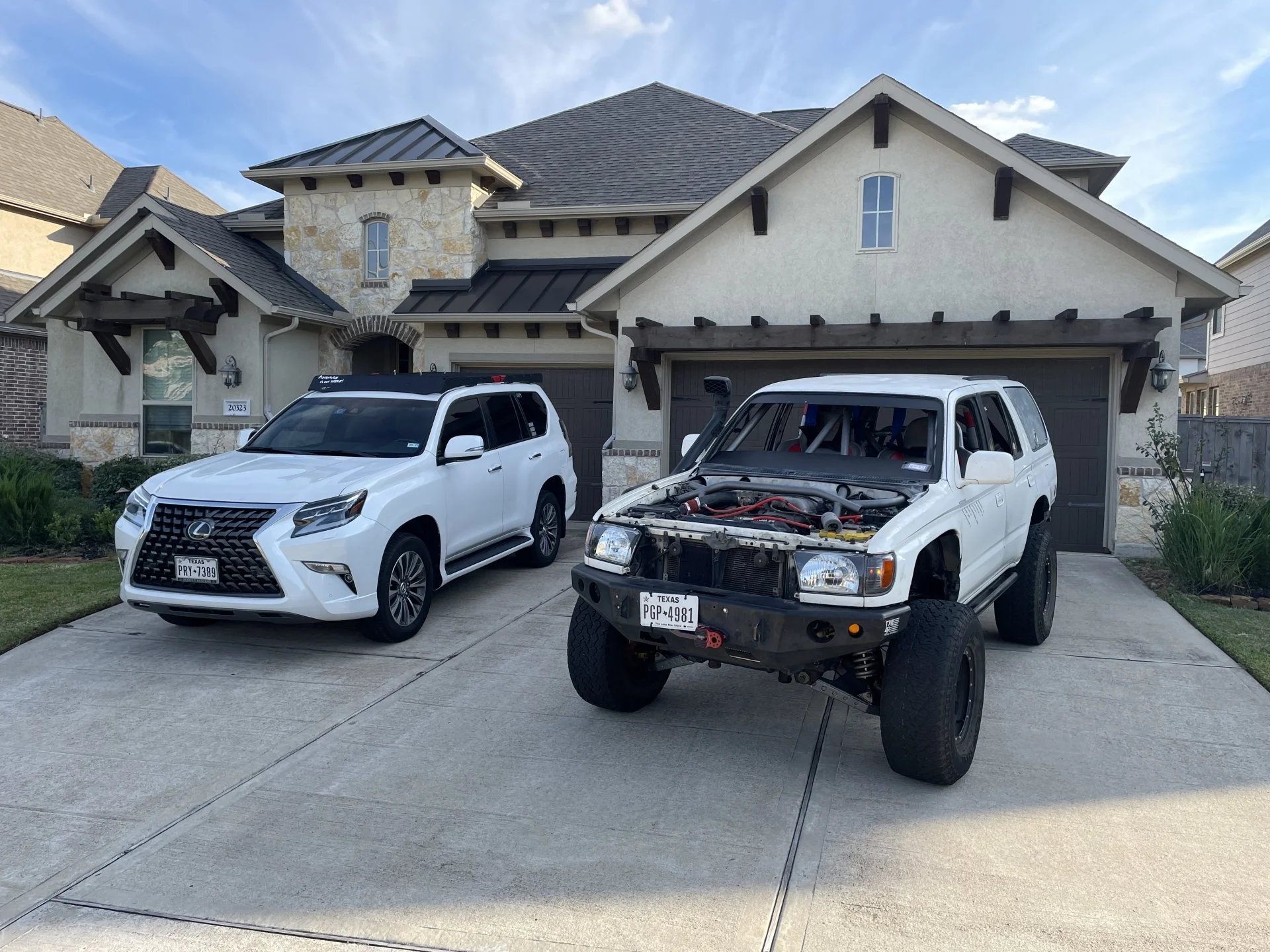

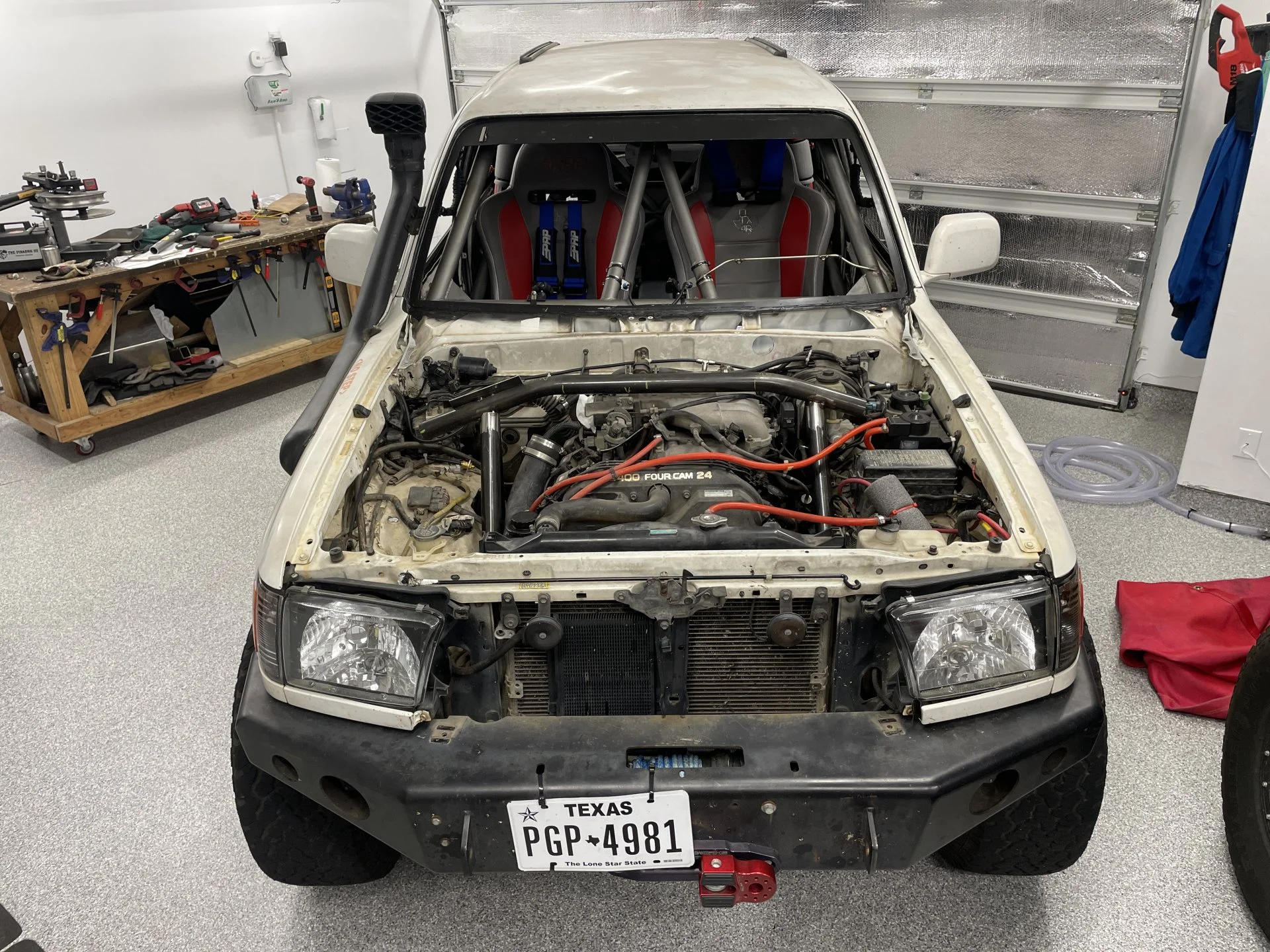

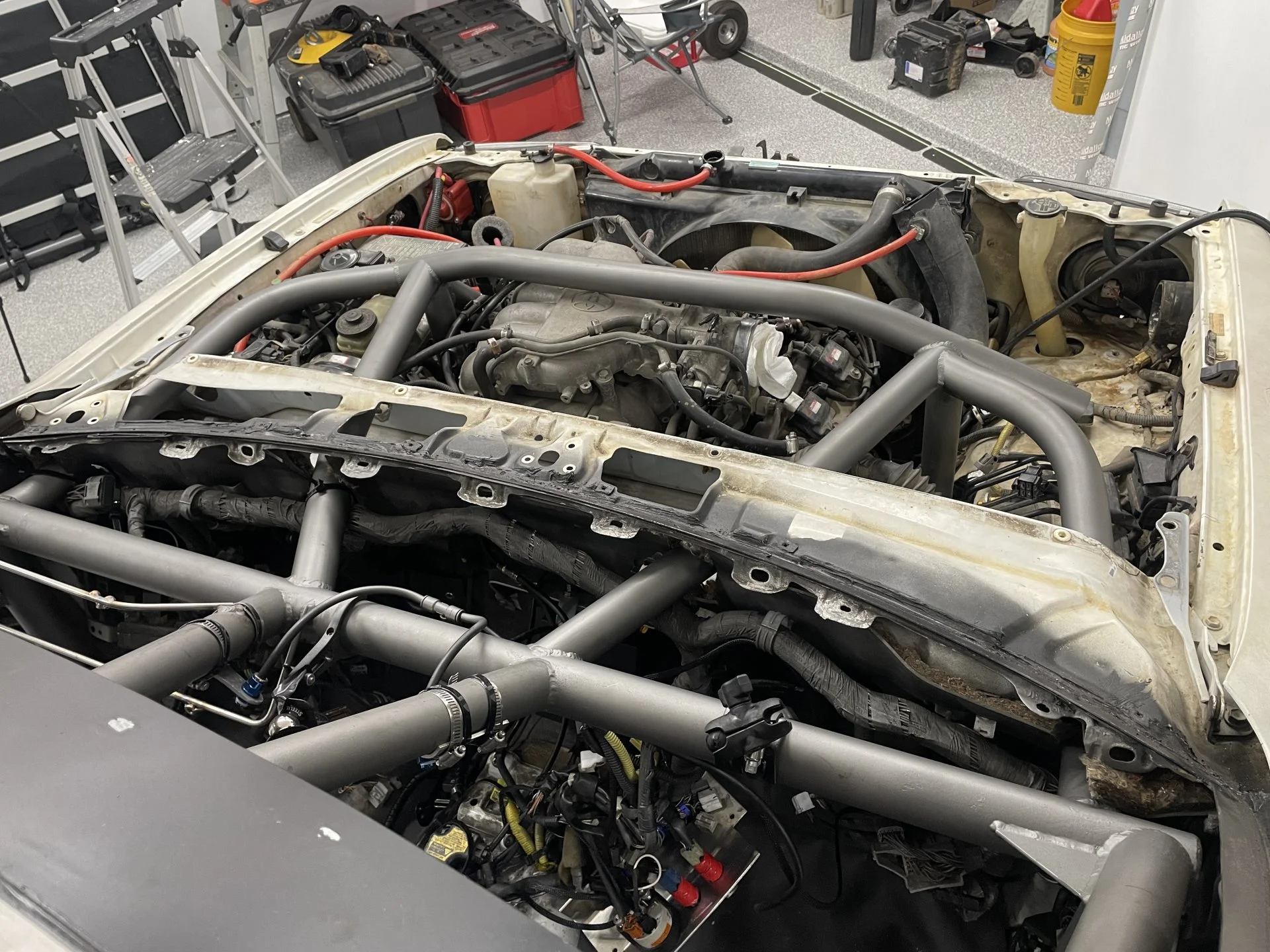

Welding of the engine cage is done! Out of all the things that could go wrong with tight access welding and high risk of damage, I poked the radiator with a pair of pliers while removing a zip tie. Sooo that had to get swapped out. Otherwise, it was a pretty smooth install!





Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas

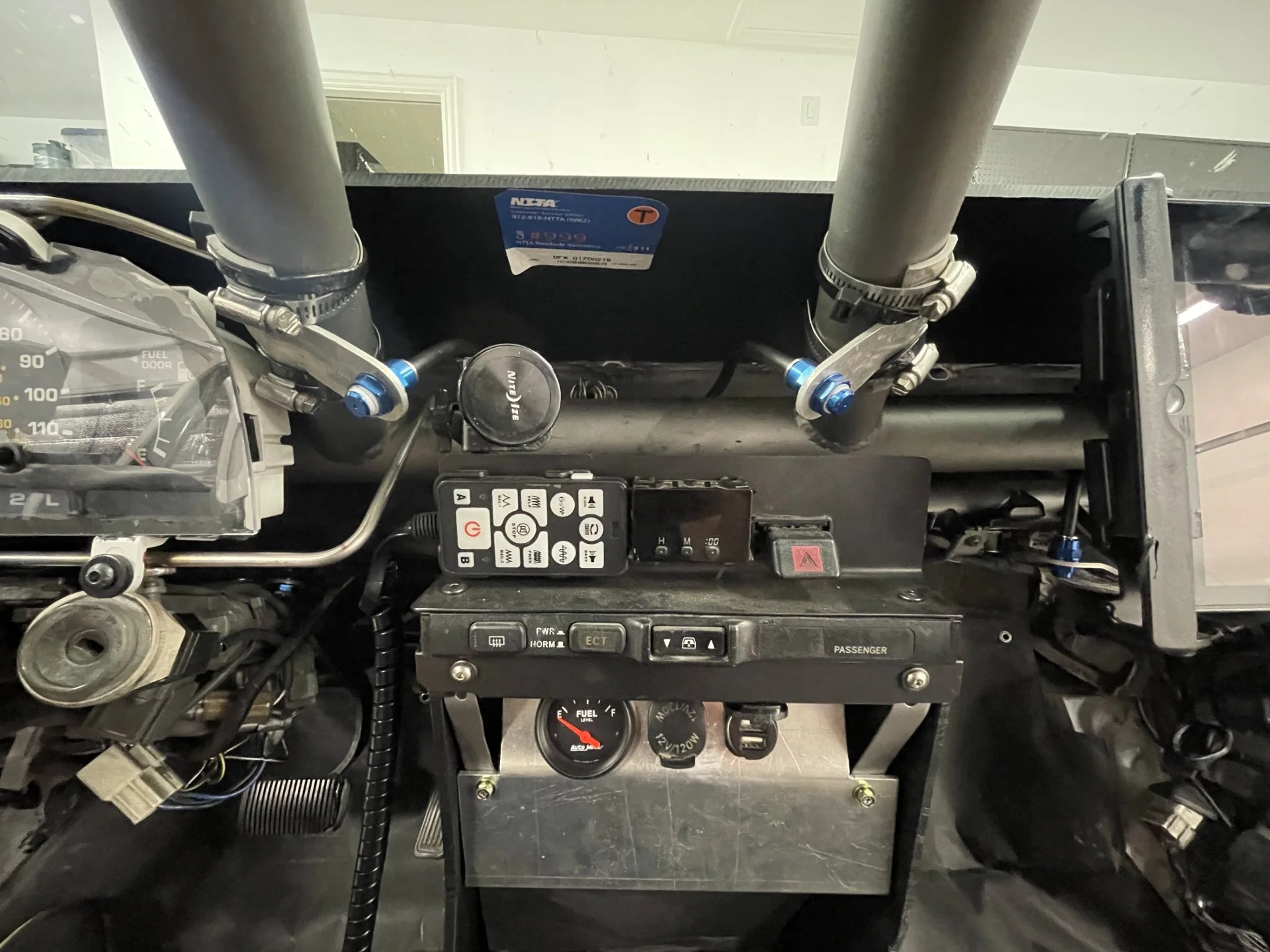

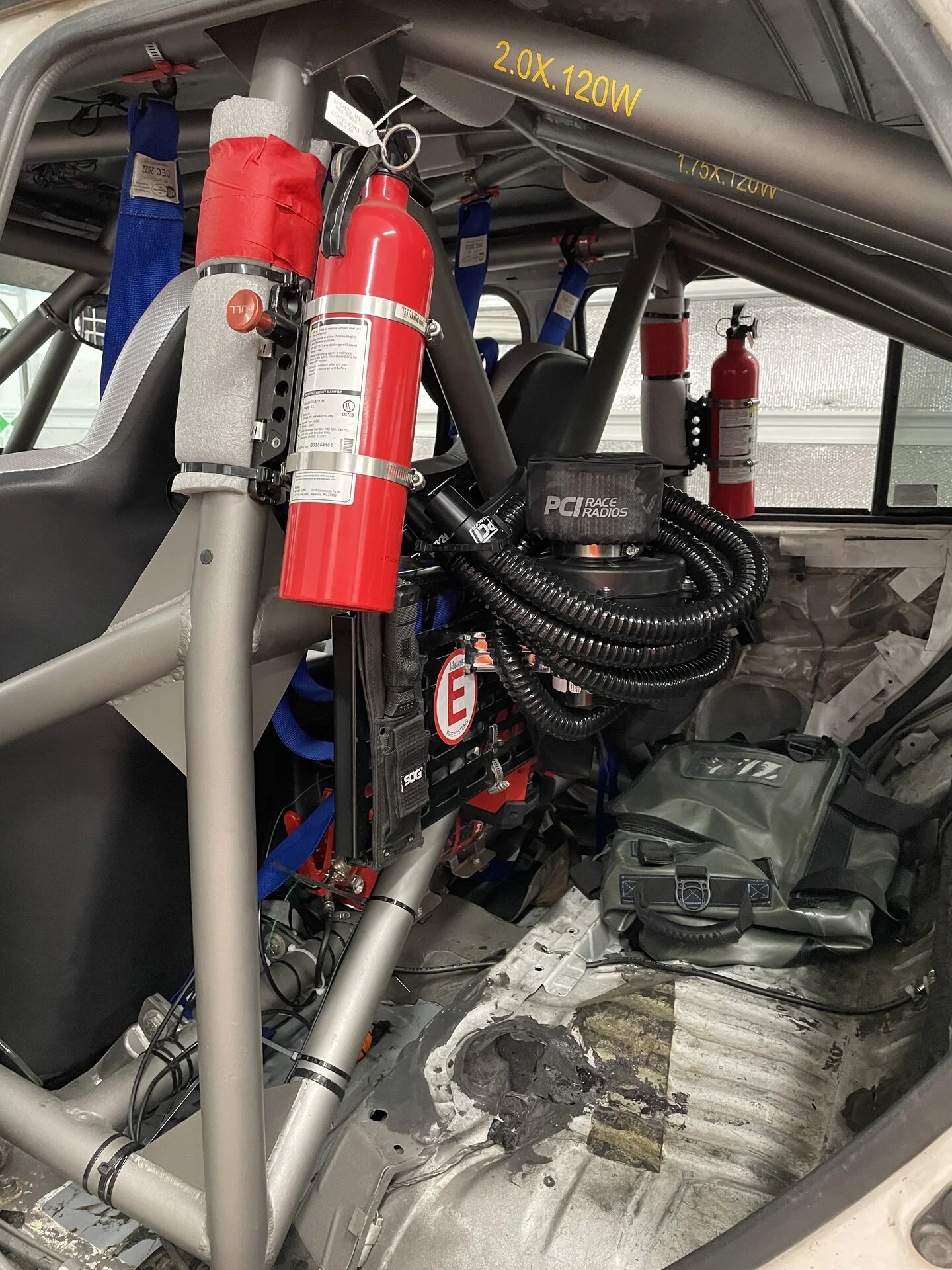

Okay, tedious items update!

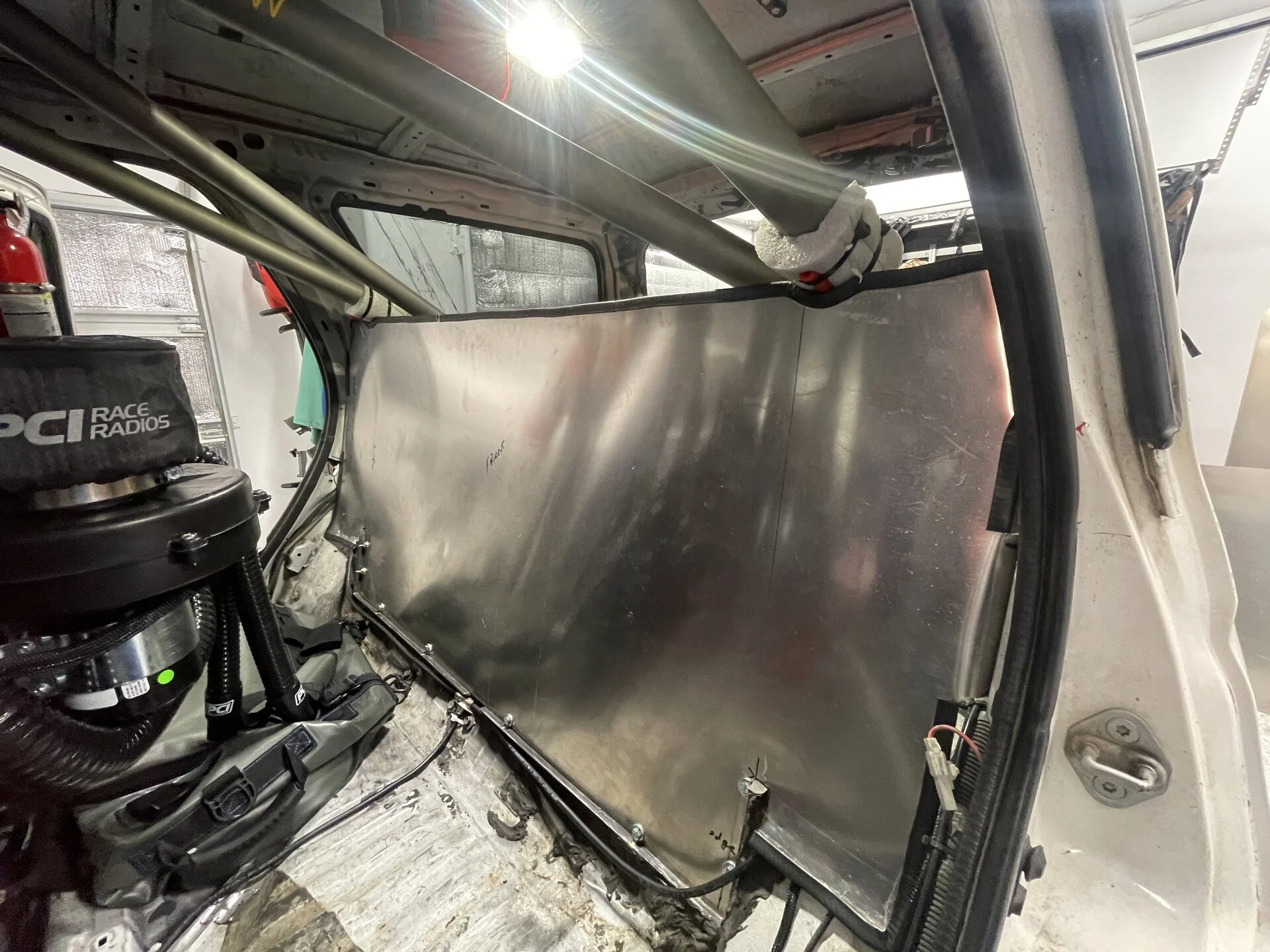

  • Rear firewall made and installed. 1/16" thick Aluminum.
  • Rewired the foglight wiring to power the main lightbar.
  • Installed PCIRace Radio's raceair kit.
  • Also made storage pins to keep the ends of the hose out of the way.







Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas
Fun update!

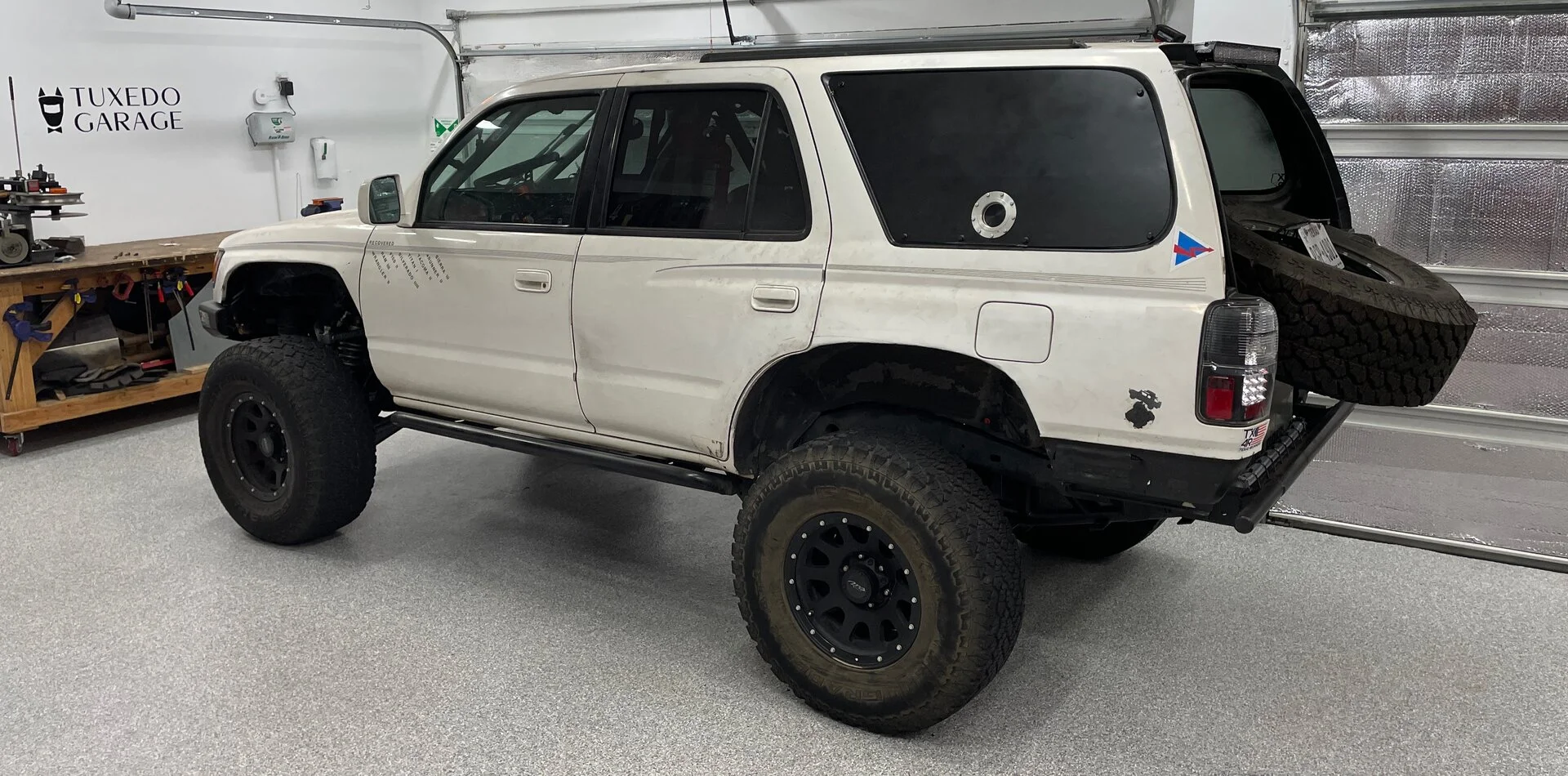

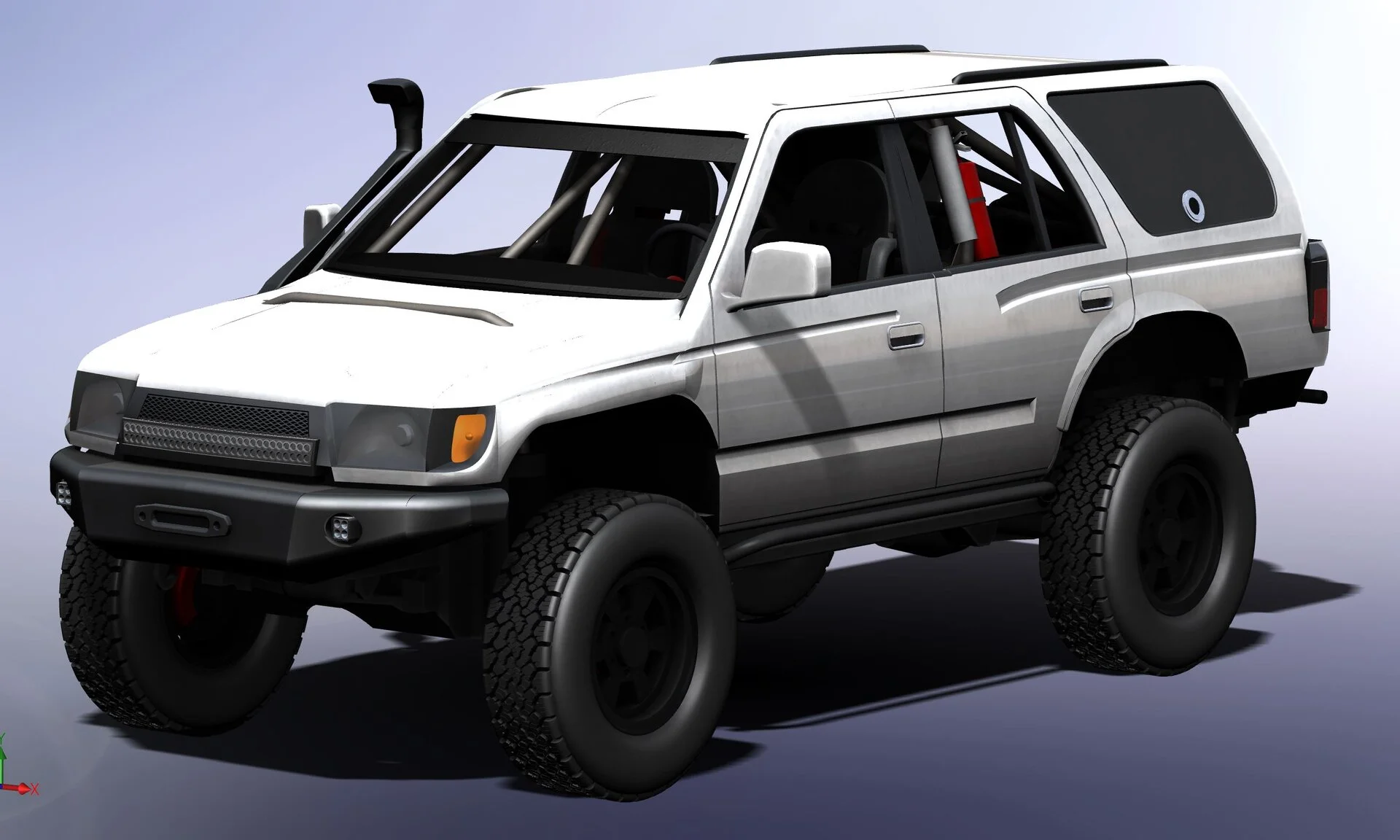

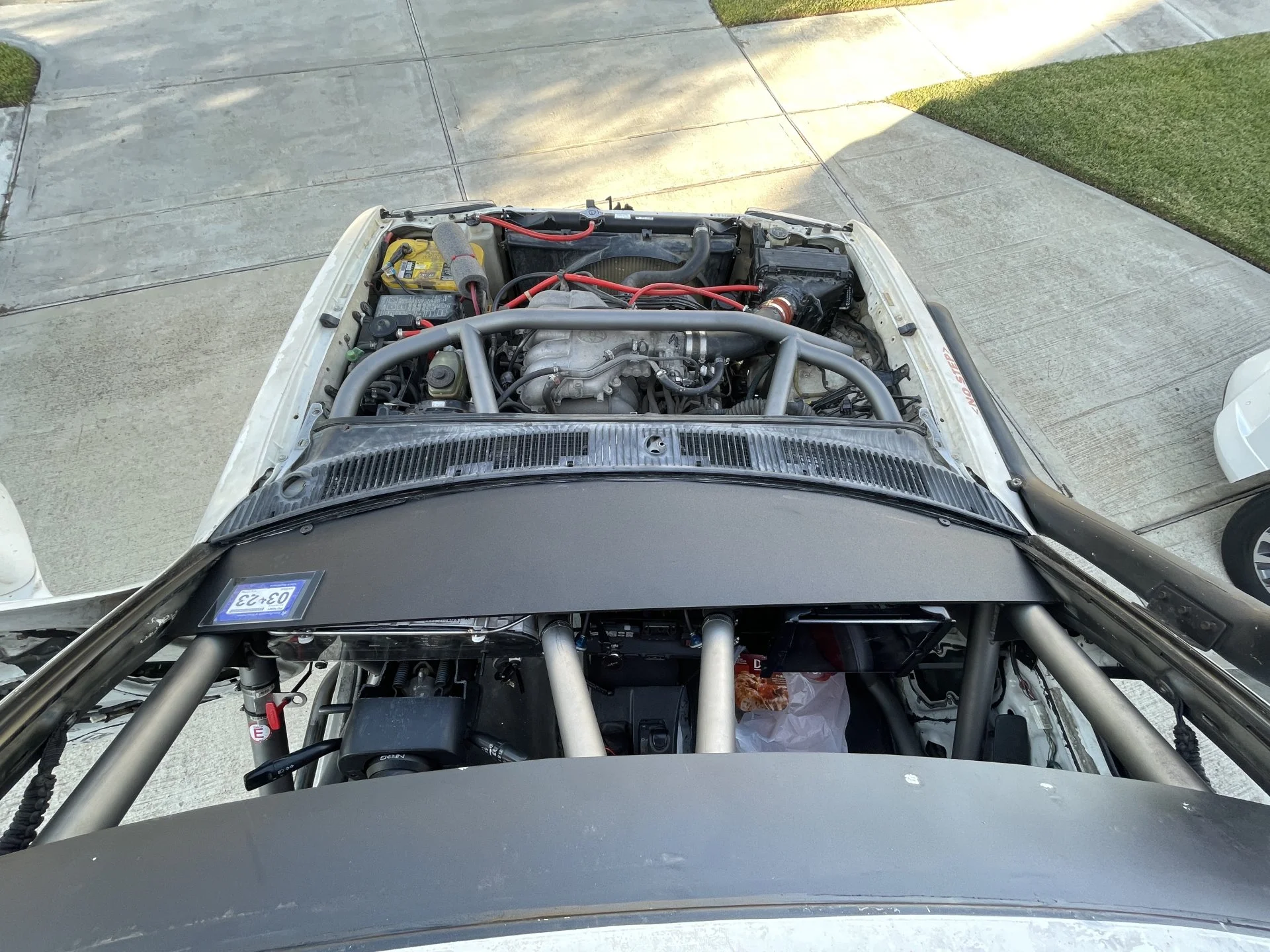

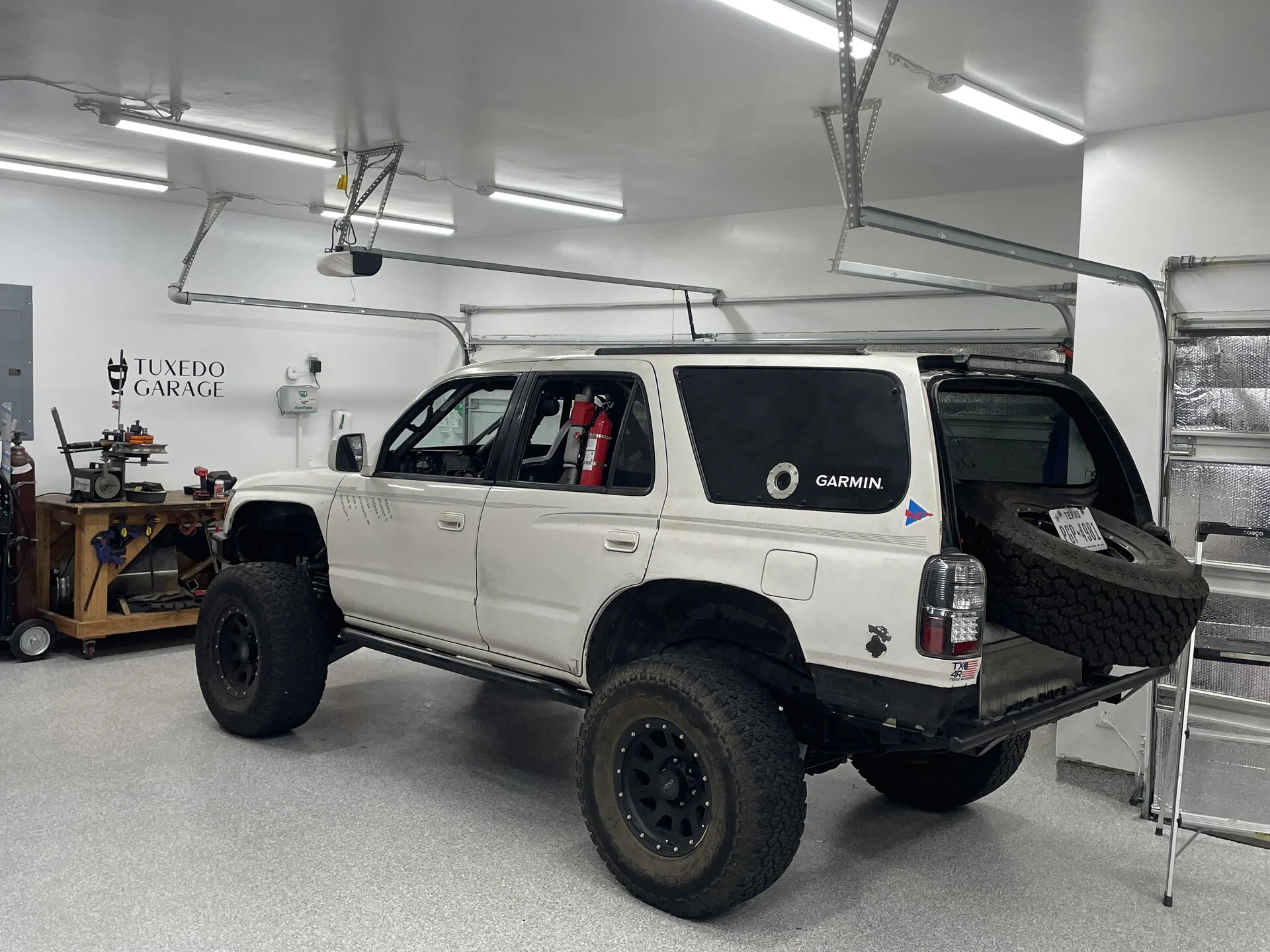

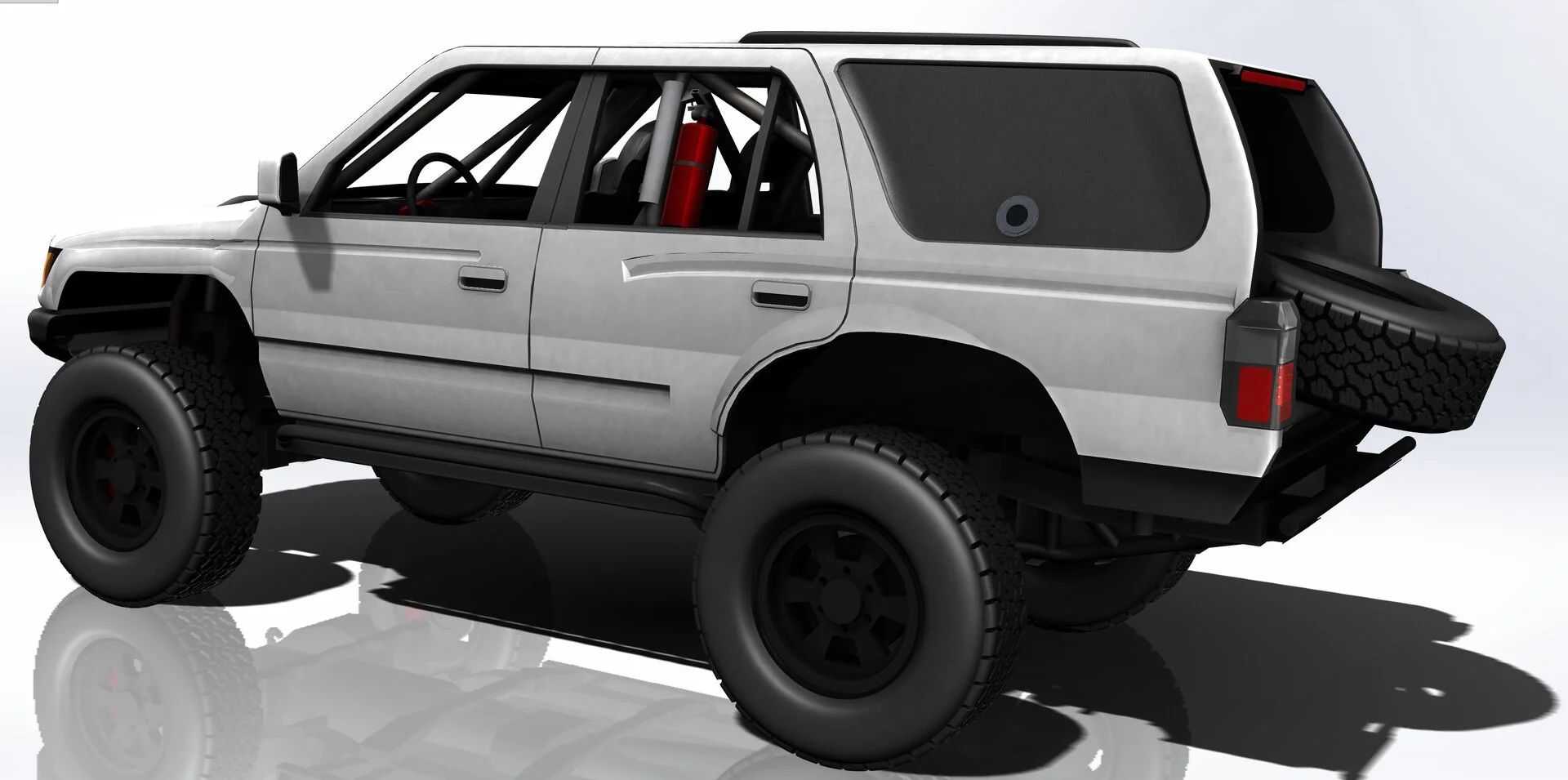

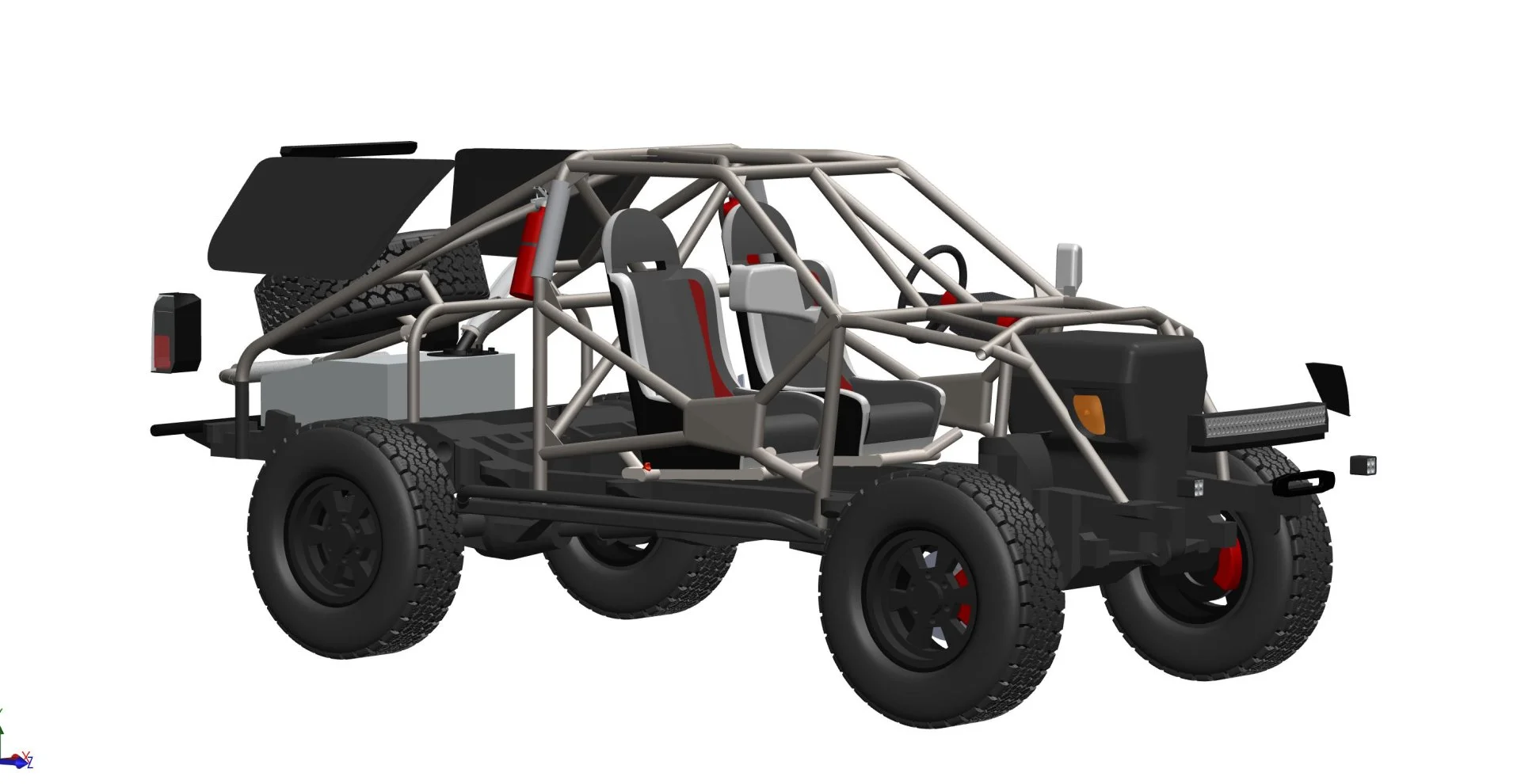

Rear fenders cut (again), and kudos to Miklos for inspiring me to update the solidworks model again with the more recent updates, including the visor and dash cover upfront. I just learned how to use the deform tool today, so that's was fun.






Joined
Jan 26, 2021
Messages
74
Location
Houston, Texas

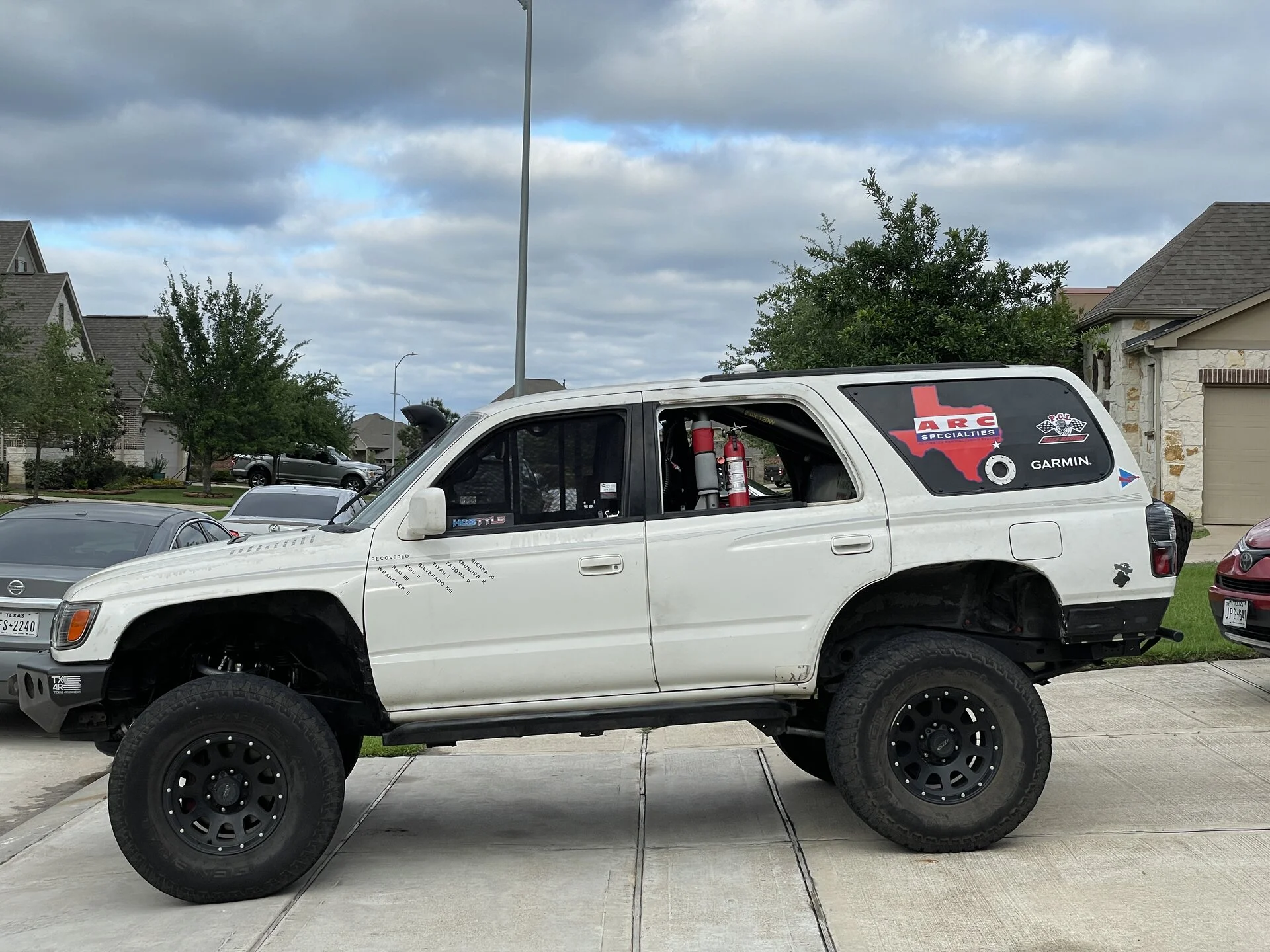

BIG UPDATE

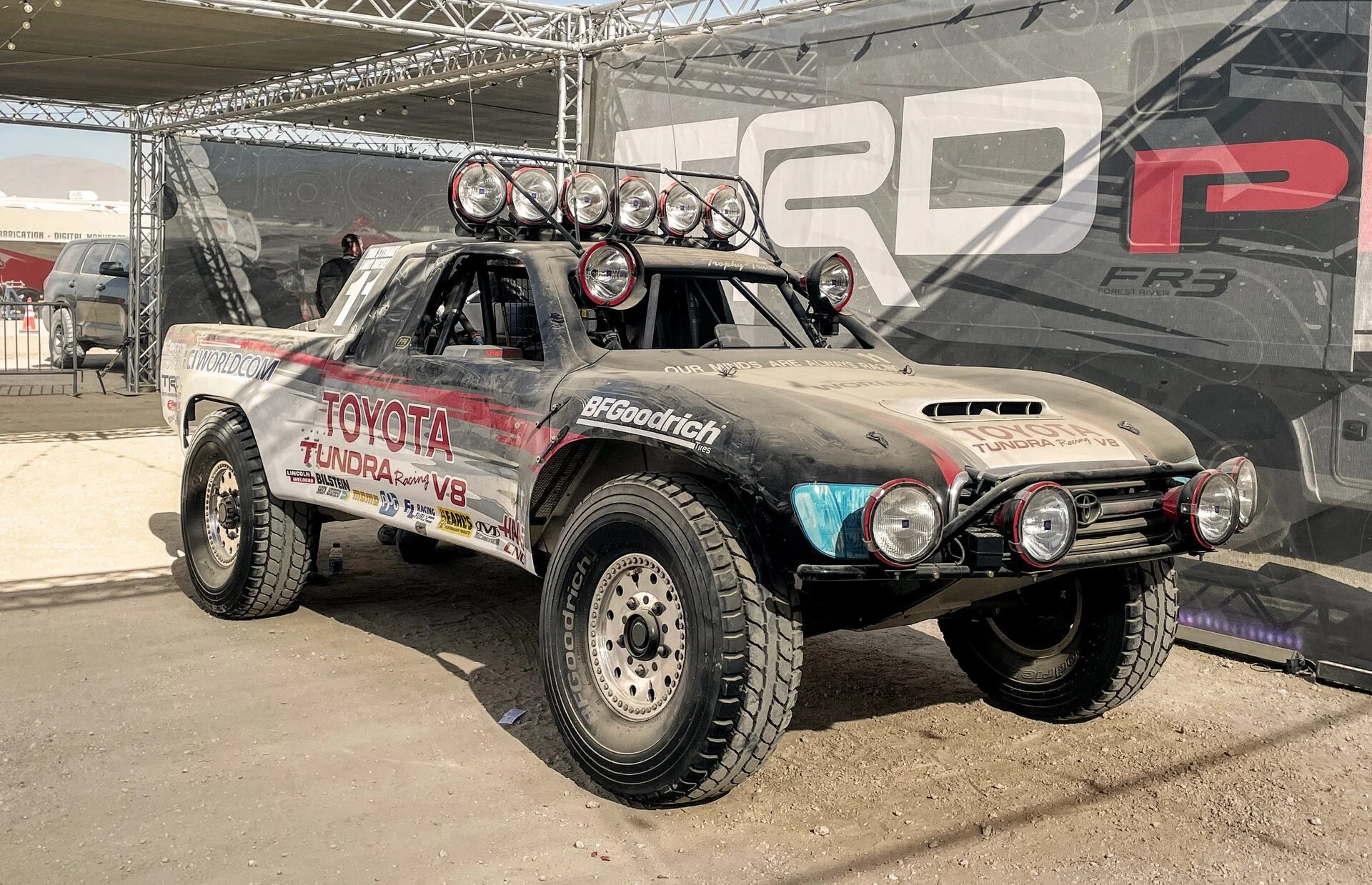

1. Adventure to KOH (seeing a buddy race: #680). Toyota brought Ivan Stewart's mid engine tundra!

2. 4runner


My wife and I went to King of the Hammers for the last two days of racing, and WOW was than an event. We flew out to Vegas, drove a jeep ~650 miles to drive out there and back, and saw the Every Man's Challenge and the Race of Kings. Incredible. Just wow.

While we were at KOH, my wife surprised me: It's your birthday, so go out and buy racecar parts! We agreed on a budget and went from there. PCI racing provided the lionshare of equipment that day. PRP was a far second and Bajadesigns was the icing on the cake.

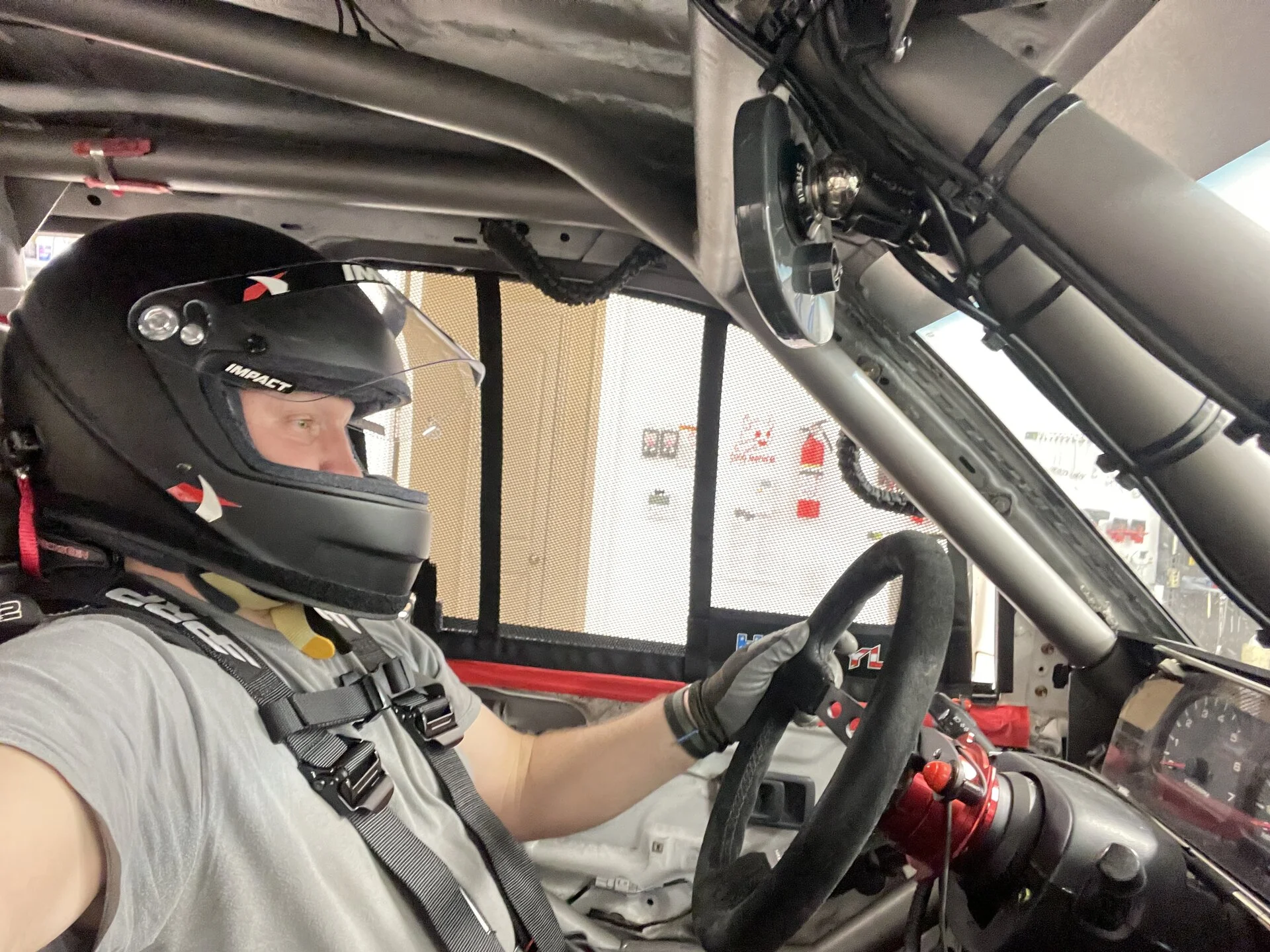

1. Helmet (impact evo), neck restraint (necksgen rev ii lite), and intercom (basic comline x elite)

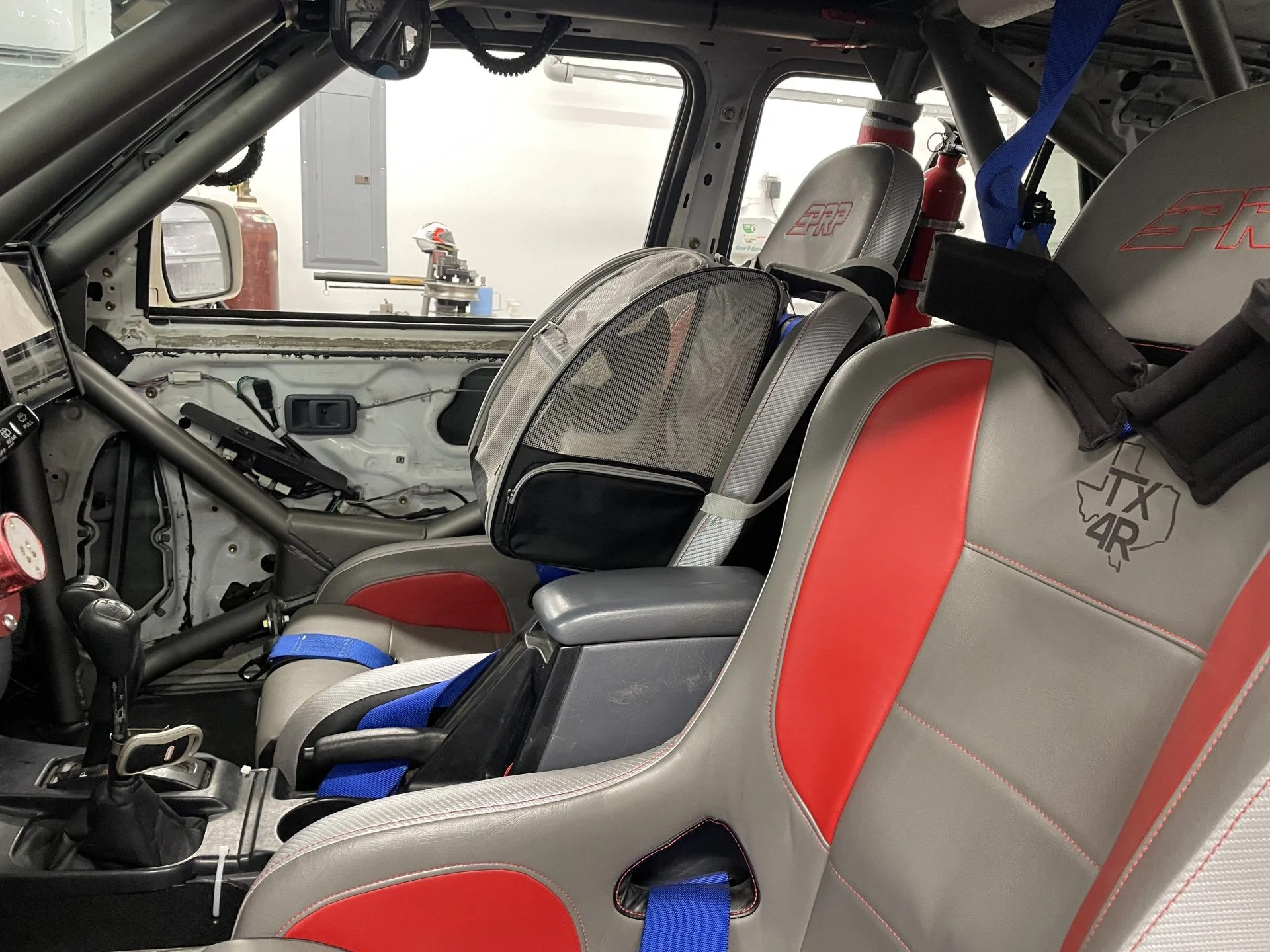

2. New harnesses (2" 5 point race harness)
3. SPOD (the new MOSFET controlled version)

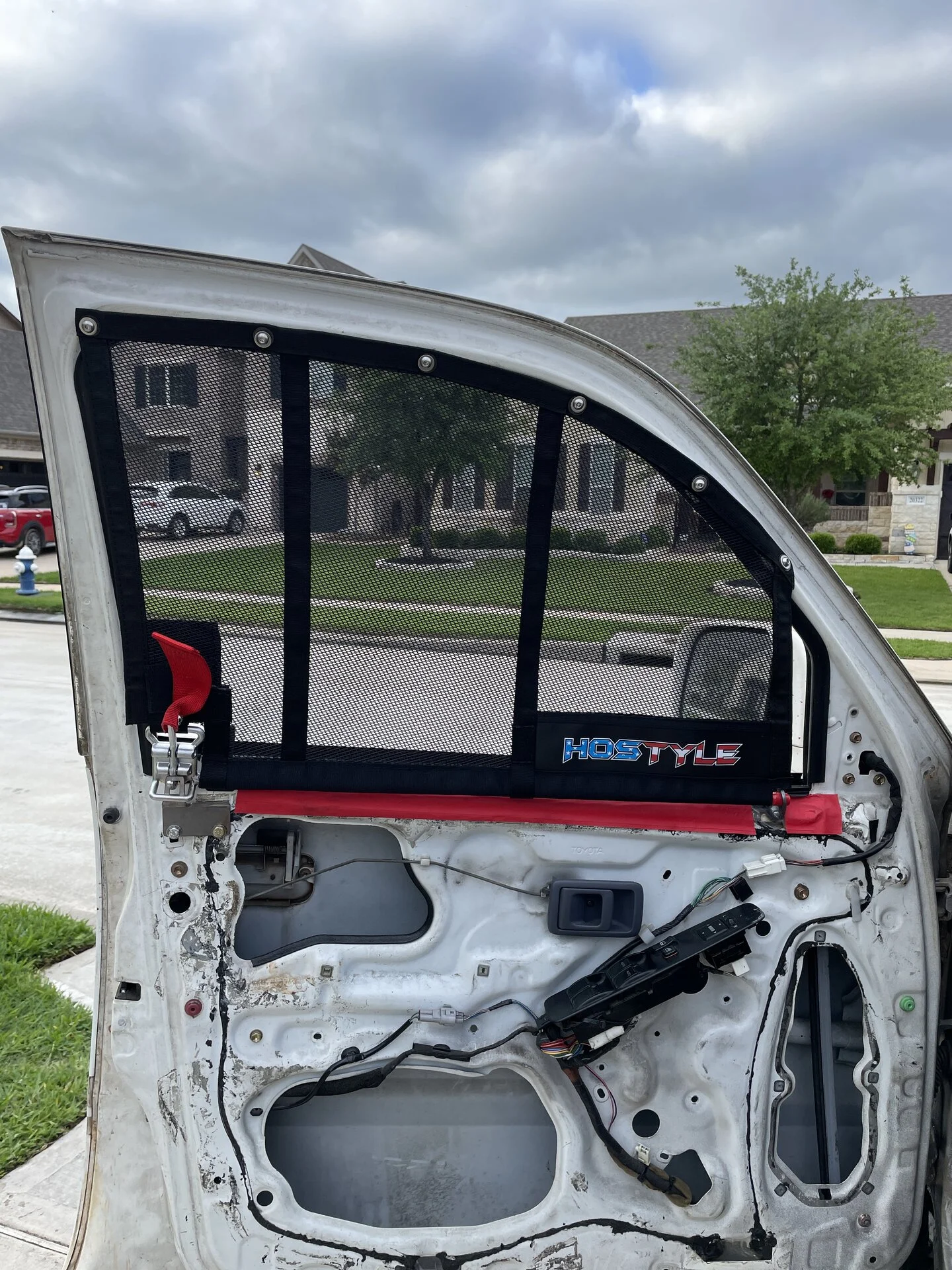

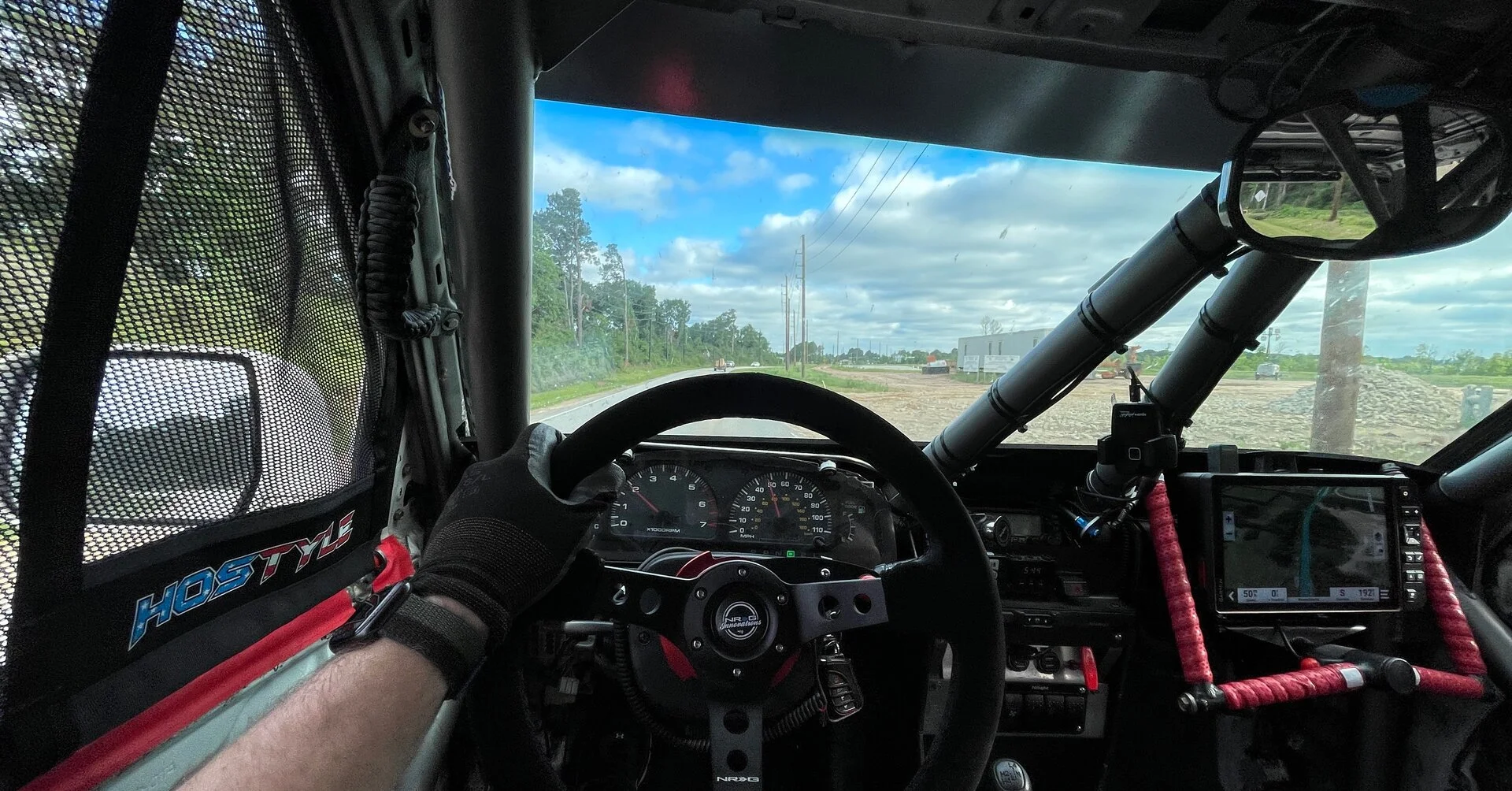

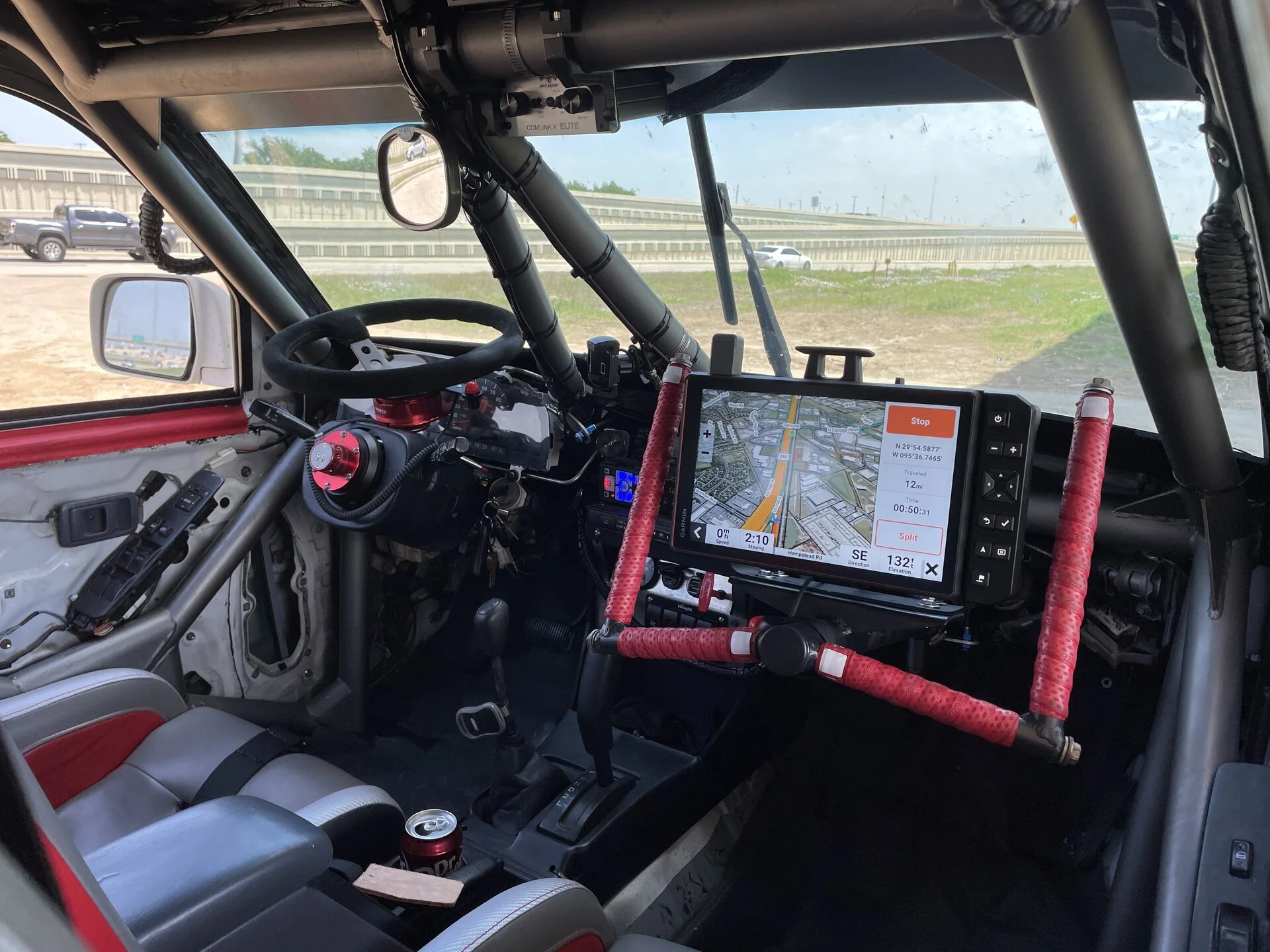

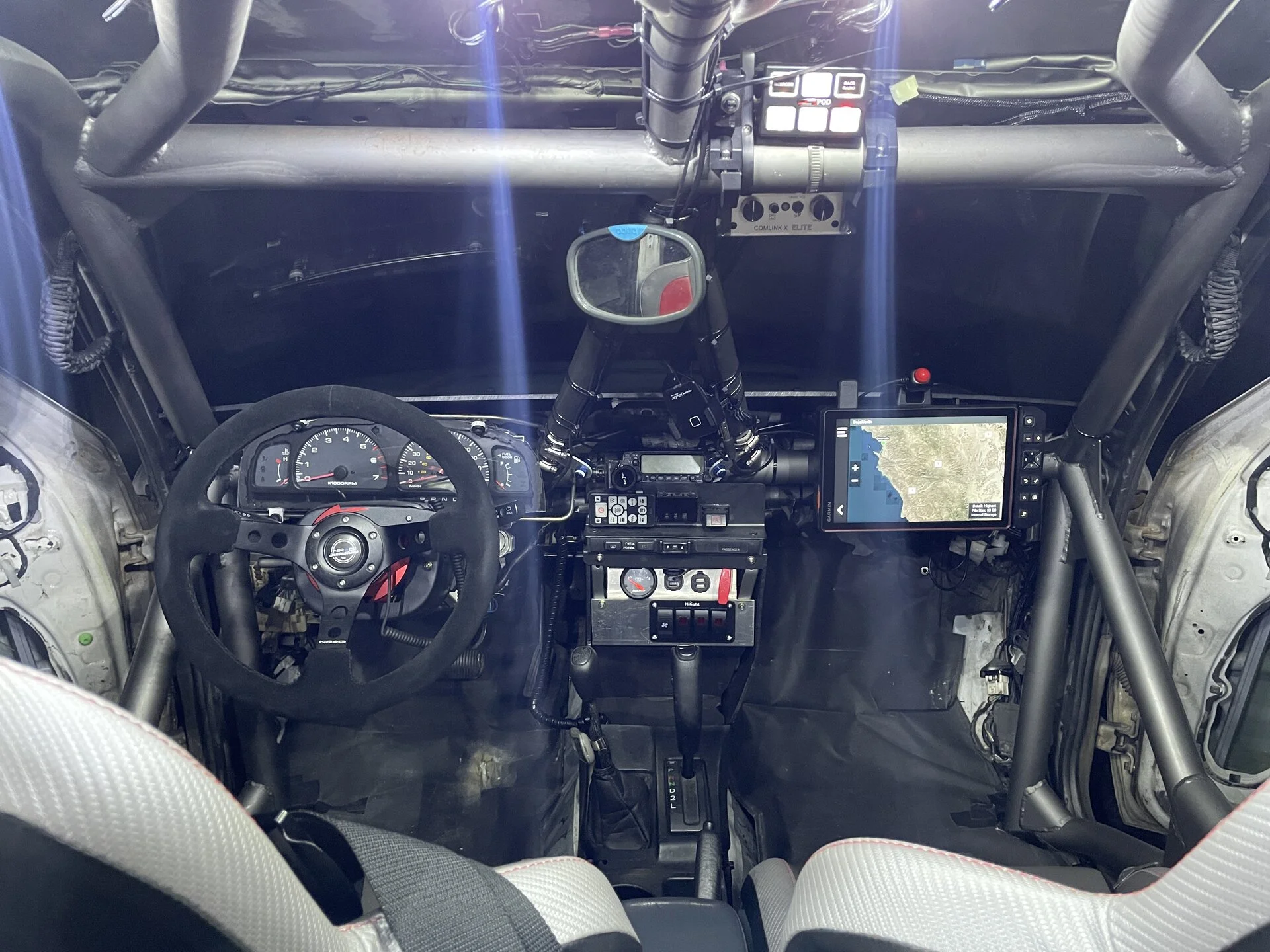

After coming back, I got more cables from PCI to interface with the icom mobile radio I already have (HAM operator). It can broadcast in the race freq's with the right antenna. In march, we also saved up for the Garmin Baja Race nav. Getting all of this gear installed makes it all the more real.

oddball specifics.

680-1 (1).JPG


IMG_4848 (1).JPG


Would you like to see photos of the tundra's Long Travel suspension? Boy, I went under the truck to get photos of that!
