3FE alternator belt tension link

[88TXCruiser]

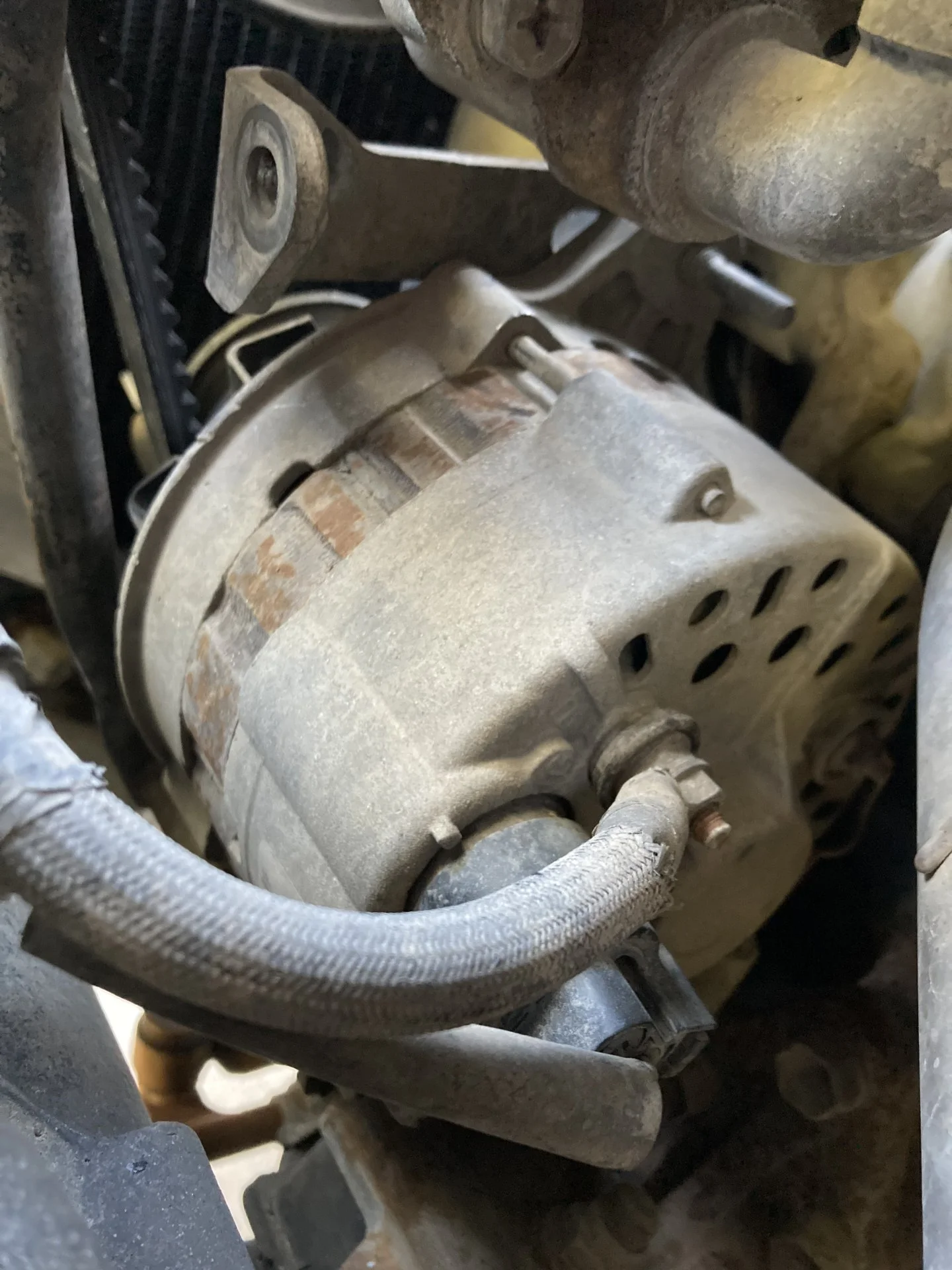

Can someone tell me the size of the screw for this linkage? M8? by xx long? Mine seems to have taken a leave of absence.
I assume it is NLA? I tried to find the part numbers but couldn't. I think I could get a long bolt and a barrel nut and weld a tab on it with a hole to fab up a replacement.

thanks,
-marc

TIA
-sammy



[LA Z]

Hay Marc,

Hopefully this will help you.
It's about 130mm long ( 5" 1/8 ) x M8



[cruisermatt]

@ToyotaMatt / VintageTEQParts sells a nice complete replacement kit for the 2F that should work here as well.



[ToyotaMatt]

Hay Marc,

Hopefully this will help you.
It's about 130mm long ( 5" 1/8 ) x M8

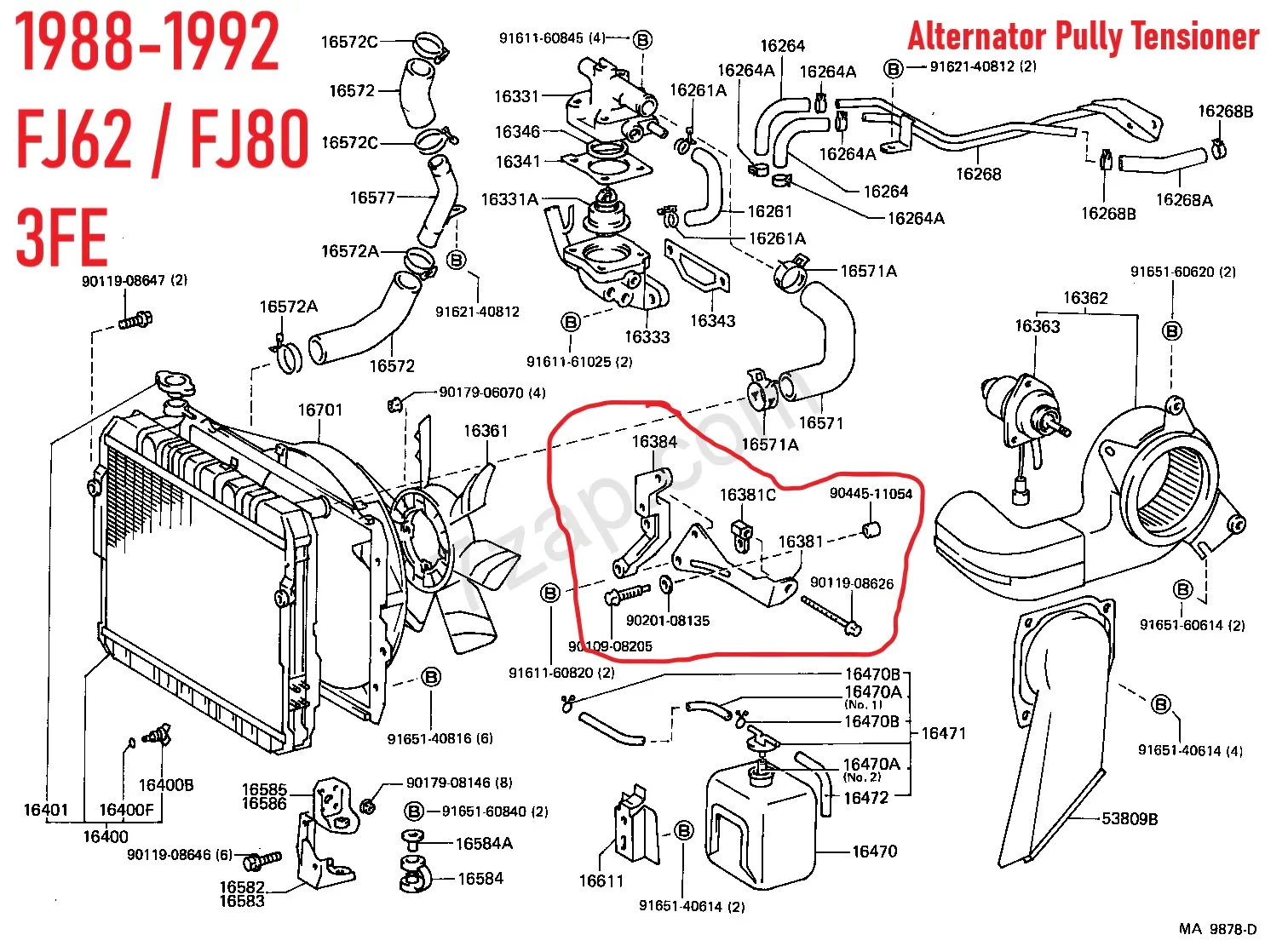

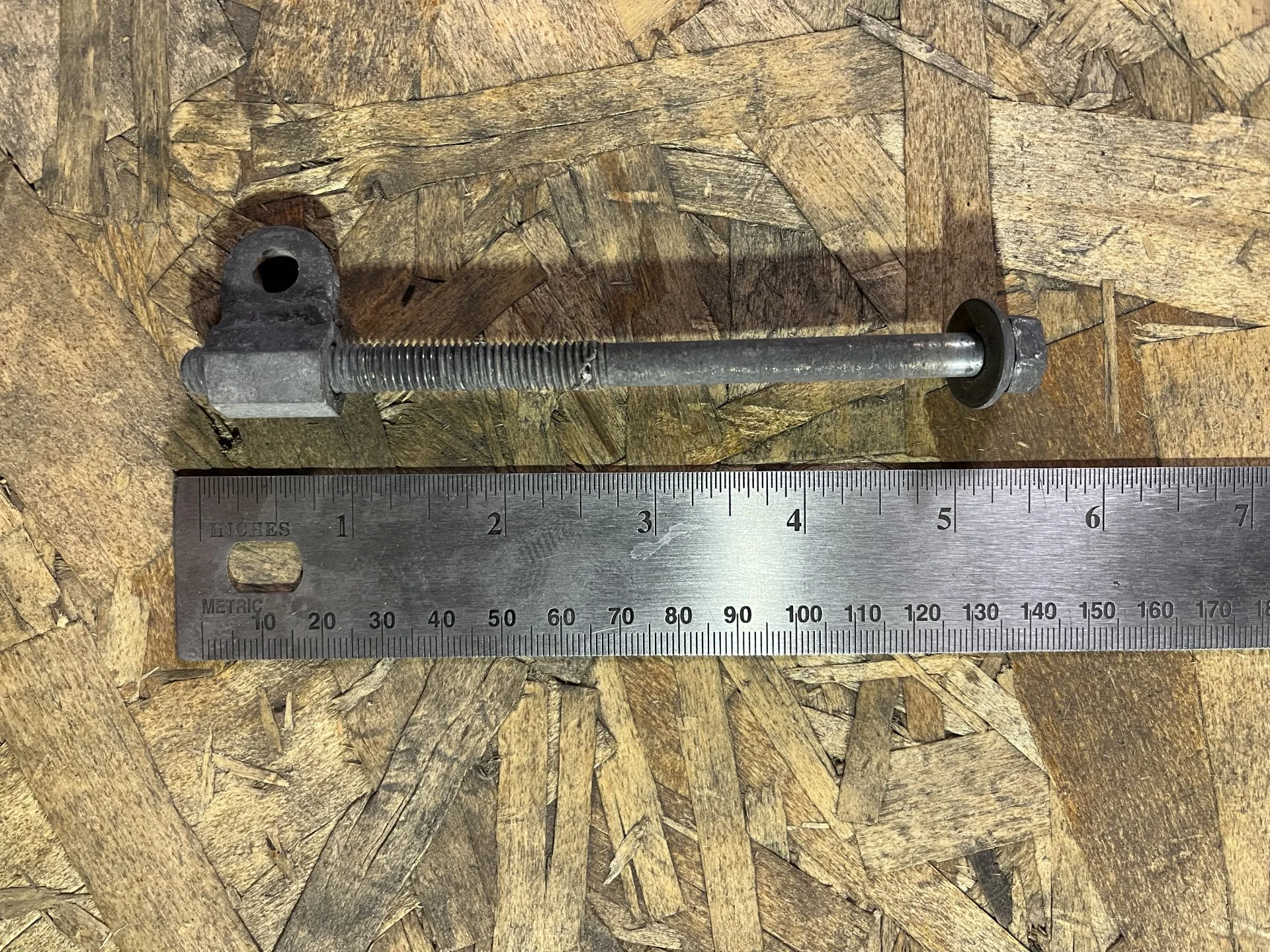

View attachment 3145497

i offer this complete ALL NEW Japan Spec. NON-USA TOYOTA OEM parts :

one of the applications i designed into it was / is the 3FE alternator on a FJ62 or other TOYOTA Vehicle platform .....


PLUG . INSTALL , PLAY is the way !

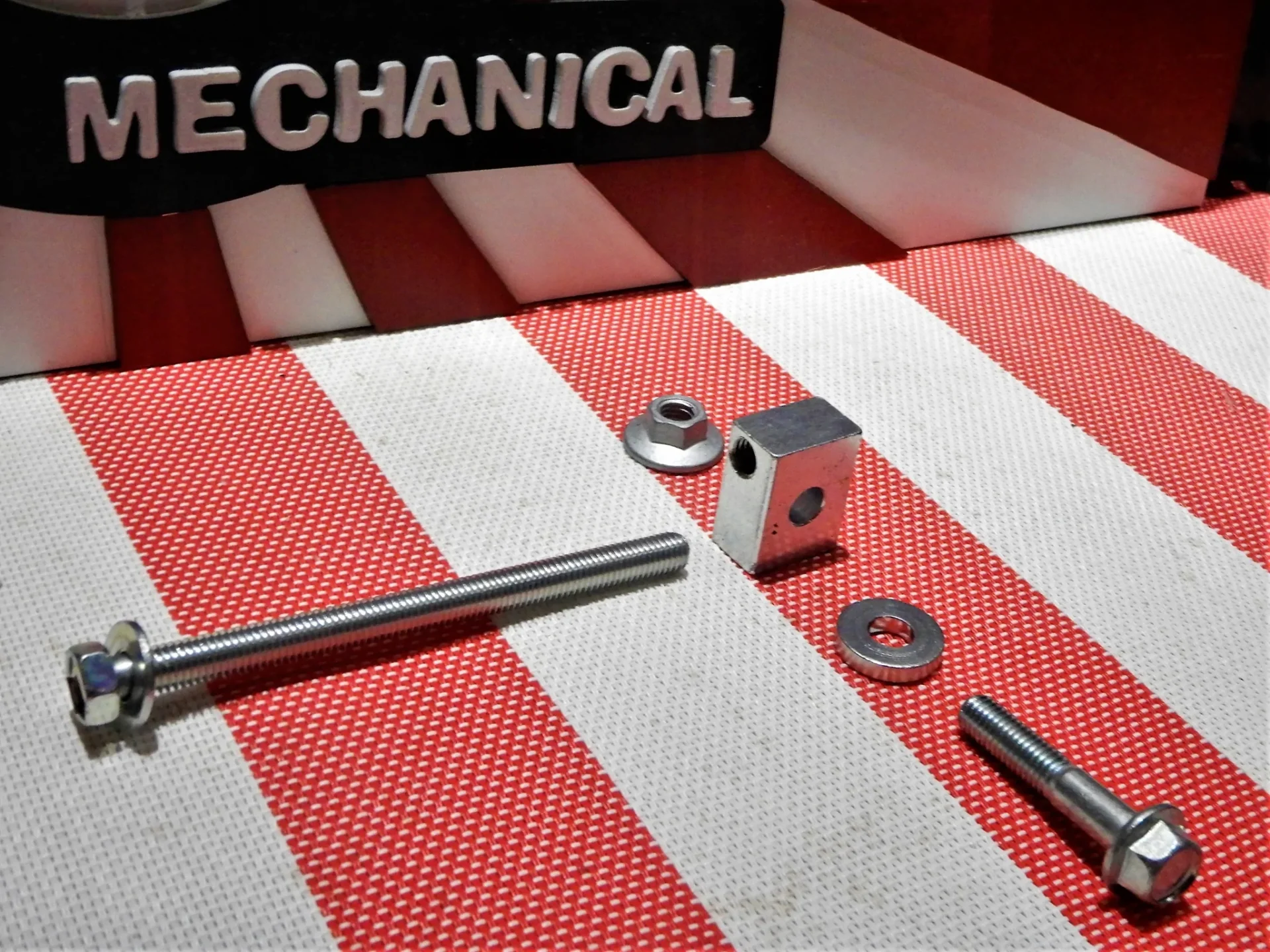

KIT # 2 ( Newly Updated ) 100% Toyota Genuine Parts 2F Drive Belt & Pulley Tension Hardware For Alternator & Smog Pump A/C IT DOES IT ALL ! Adjustment Feature Restoration & Needed Repairs Kit 1/79-1992 FJ40, FJ55, FJ60, FJ62, FJ80 2F 3FE -

KIT # 2 ( Newly Updated ) 100% Toyota Genuine Parts 2F Drive Belt & Pulley...

vintageteqparts.com



[88TXCruiser]

Hay Marc,

Hopefully this will help you.
It's about 130mm long ( 5" 1/8 ) x M8



View attachment 3145497

thanks! I might try fabricating my own with a bolt and a "coupling nut" as it is called on McMaster.
backup plan is a VIntageTec part for the spendy win.



[88TXCruiser]

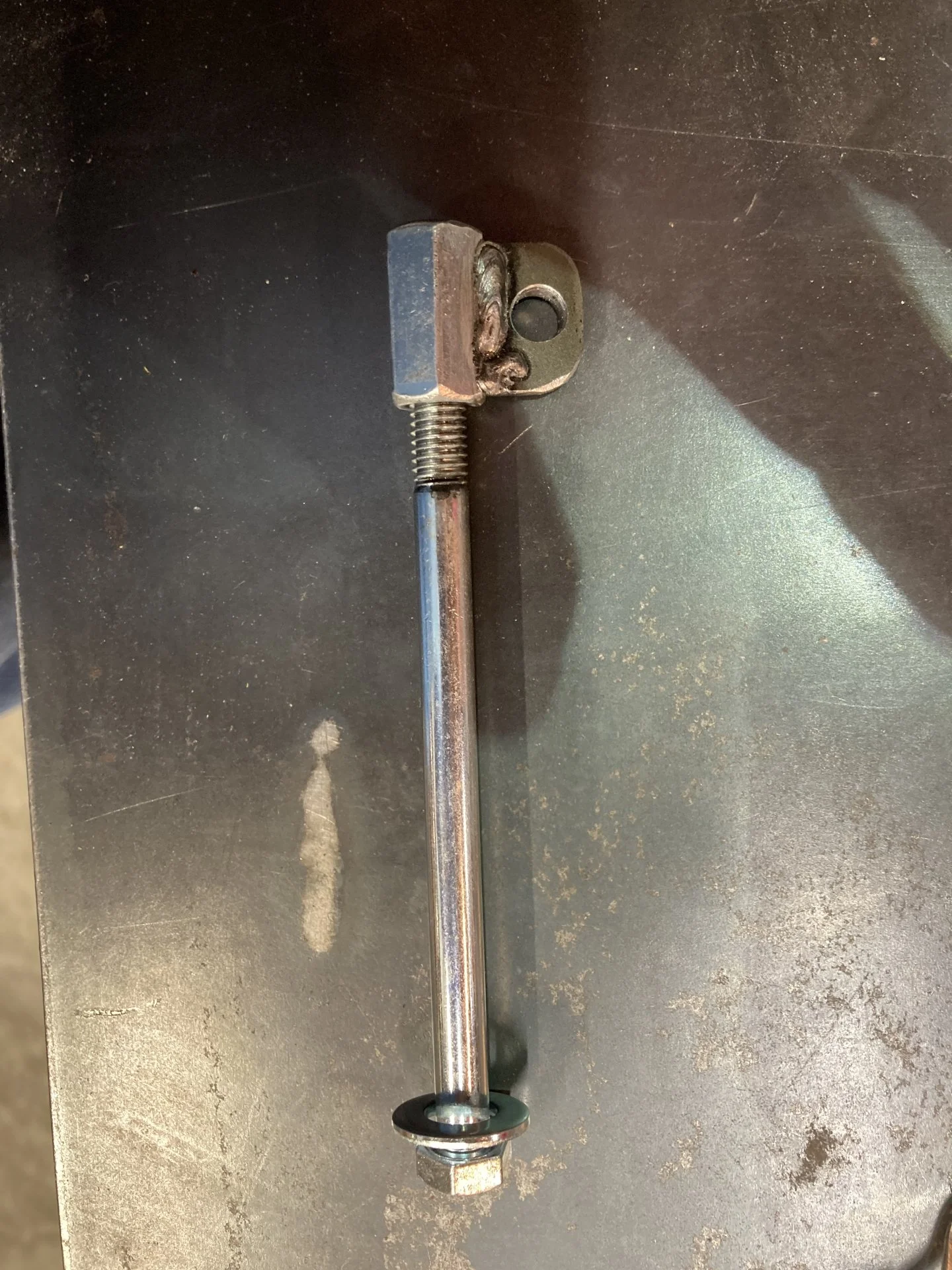

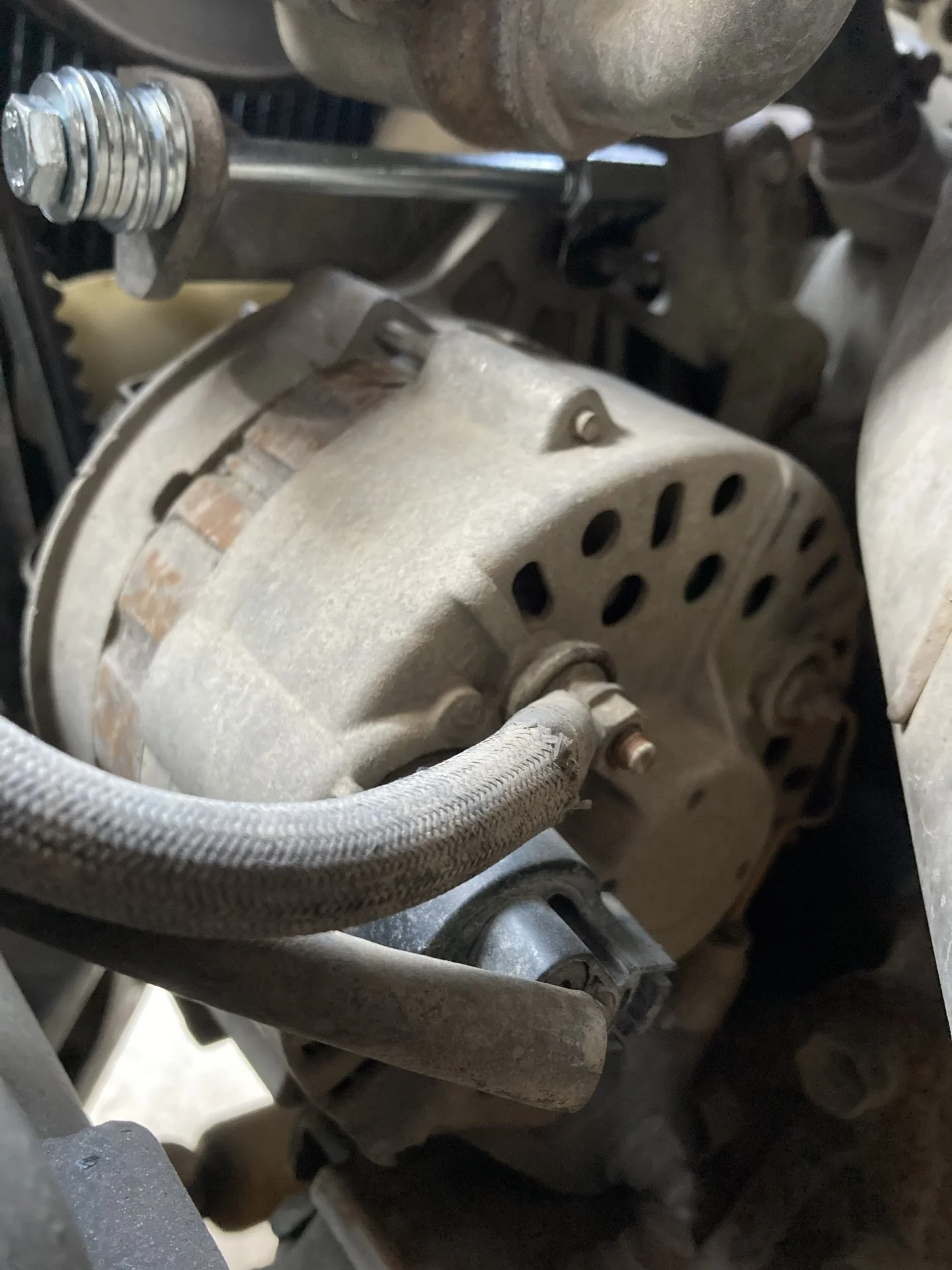

I made a thing.
I'm still new to welding, so don't judge me too much. The only issue I have is that the bolt I found at the local fastener place doesn't have a long threaded section, so I had to space out the head with about 10 washers. It's a little janky but it works for now.
$5 worth of parts, and only because the minimum order at the fastener place is $5. Good thing I got enough washers to make the order $5.



[BGarcia88FJ62]

The problem you'll run into is very little to no adjustment with that set up. You'll need a lot more threads on that bolt to be of any use.
✌️



[88TXCruiser]

The problem you'll run into is very little to no adjustment with that set up. You'll need a lot more threads on that bolt to be of any use.
✌️

yep, that is true. my current "adjustment" method is a stack of washers while I look for a bolt with more threads.



[2mbb]

get some thread rod from McMaster Carr and weld a nut on one end to make your own bolt.

Also Mcmaster has 140mm fully threaded bolts: McMaster-Carr - https://www.mcmaster.com/screws/hex-head-screws-4/thread-size~m8/length~130mm/threading~fully-threaded/length~140mm/



[88TXCruiser]

get some thread rod from McMaster Carr and weld a nut on one end to make your own bolt.

Also Mcmaster has 140mm fully threaded bolts: McMaster-Carr - https://www.mcmaster.com/screws/hex-head-screws-4/thread-size~m8/length~130mm/threading~fully-threaded/length~140mm/

Yeah, I knew I could get it from McMaster but I get frustrated paying their shipping for only a few bits. I went back to the fastener place this morning and switched out the bolt with one that is fully threaded. Will switch out the bolt tonight.
