350 exhaust (1 Viewer)

Joined
May 28, 2005
Messages
438
Location
spicewood,tx.

i will probably get razzed for this , but i need some pics of a 350 to walker? crossover set up to the rear. under or over the skid plate? help is appreciated. jim

Joined
May 28, 2005
Messages
438
Location
spicewood,tx.

beautiful! tnx ranger. i am still unclear as to whether he put the pipe above or below the skid plate tho. jim

Joined
Mar 15, 2007
Messages
327
Location
Salem Oregon


Could have been up little higher but dont rock crawl. I had to modify the pipe in back to avoid gas fumes , extending and pointing down was the trick 66 007.jpg


66 007.jpg

Joined
Mar 17, 2008
Messages
57
Location
Bend, OR

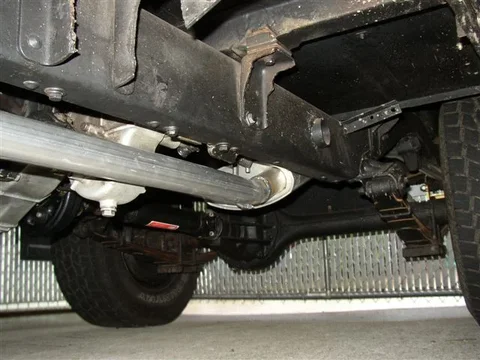

Here's some pics of what i did: 2" ram horns, walker crossover, Dynomax muffler, parts store 2" pipe to connect it all up.

The pipe is about level with the bottom of the main frame rail, i don't have a skid plate, so not sure if it would clear. If i did i think i'd want the exhaust pipe above the plate, and think it would be do-able.

I was happy with the way it all turned out, you can't see any of the exhaust system, except the tail pipe.

:beer:


Lil'John

SILVER Star
Joined
Mar 24, 2006
Messages
6,186
Location
Nor Cal in the garage with a Cruiser


A competent exhaust shop will route the exhaust wherever you want that is physically possible(ie not through a crossmember or doing figure8s around a shock)

I'm three for three in exhausts being above the skid plate.

Joined
May 28, 2005
Messages
438
Location
spicewood,tx.

thx everyone. i have saved all the pics and will print them out to take to my local shop. good info! jim

Joined
Jan 31, 2008
Messages
1,166
Location
Oregon
Napa number 42087 Walker Crossover pipe - For anyone that is curious I just called my local napa and it is just over 70.00 for it....

Edit: - It looks like you can shop and get them under 50.00 then of course add shipping.
