2F Engine Rotation

Joined
May 25, 2021
Messages
13
Location
Battle Ground, WA
Hey yall, newbie home mechanic here who has very little knowledge on engines but currently working on a 1975 FJ40. I got my 2F engine rebuilt and have it in the rig and I am trying to get the engine at TDC on the 1st Cylinder on the compression stroke however I have no idea which way the crank should be rotating. I currently have been rotating it clockwise if you are looking at the front of the engine down. Let me know if I have been doing this wrong the entire time.

Joined
Dec 20, 2007
Messages
961
Location
Orcas Island in NW Washington State
Website
www.mtpickettwoodworking.com
You got it! Clockwise when looking at it from the front. You are going to get a lot of help here. There are many really knowledgeable folks on IH8mud.

Joined
May 25, 2021
Messages
13
Location
Battle Ground, WA
Oh hell yeah! That helps me a ton thank you!

Hopefully you or someone else can answer these other questions I have below-

1: We want the intake to be closed for TDC correct?

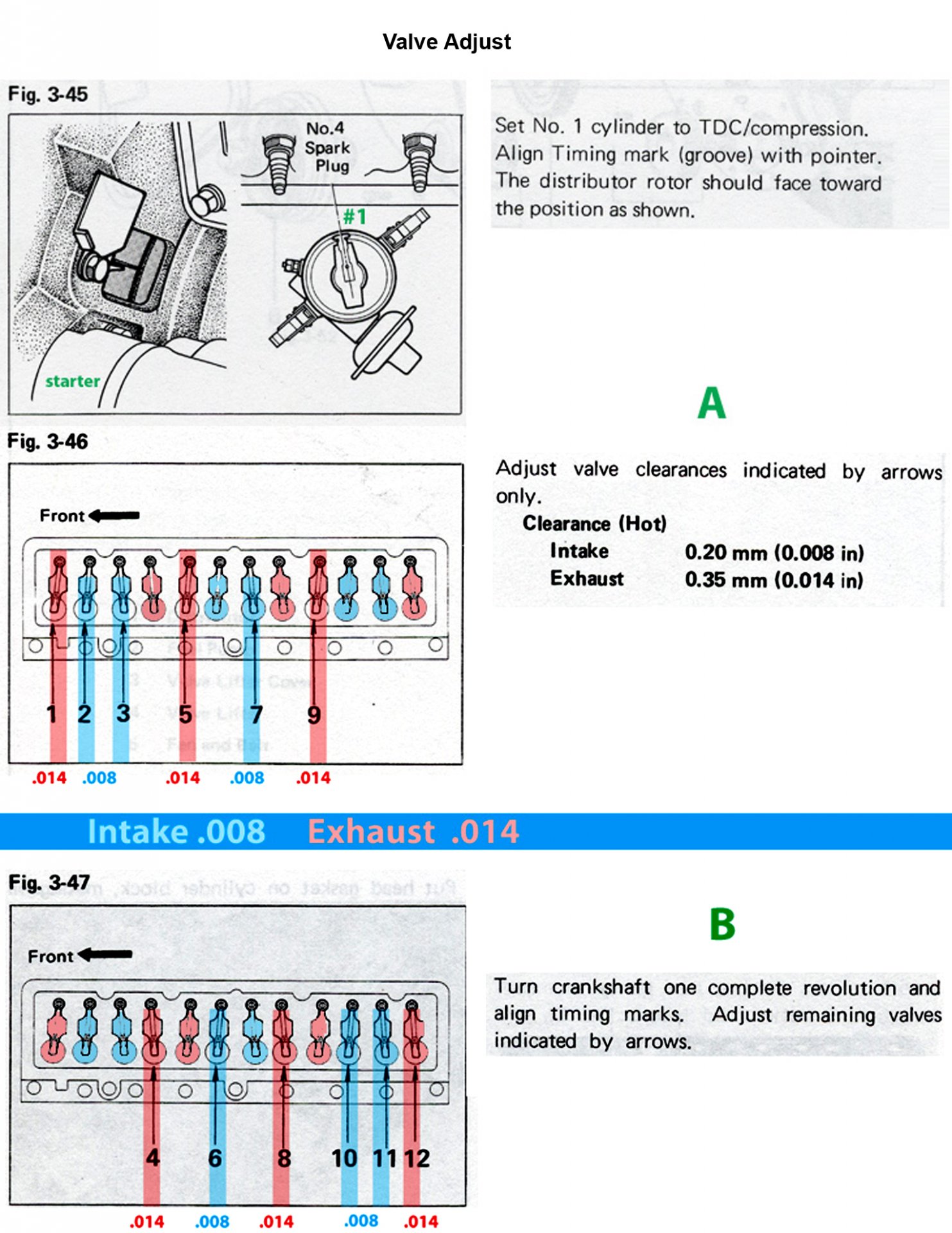

2: Do I have the rockers labeled correctly below for the 1st cylinder? (Blue "Ex" is exhaust, Red "In" is intake)

Much appreciate the help!!



middlecalf

SILVER Star
Joined
Jul 20, 2004
Messages
4,730
Location
Sweet, Idaho
Yes you marked the valves right. And with #1 at TDC on compression stroke both valves need to be closed (rockers should wiggle a bit).

Joined
Jan 22, 2007
Messages
3,139
Location
Alva, Fl.
Yes you marked the valves right. And with #1 at TDC on compression stroke both valves need to be closed (rockers should wiggle a bit).
When doing this "cold" adj the rockers should exhibit the "wiggle"-in conformance to the gauge clearance for the intake/exhaust-as middlecalf said-better to have that 'wiggle" a little loose than too tight--it'll get tight when the engine gets up to op temp--then you can check again when hot(best to do while the engine is running)--too tight and you risk burnt valves--a tiny bit of rocker 'rattle' is not going to result in a valve job down the road---

Joined
Dec 20, 2007
Messages
961
Location
Orcas Island in NW Washington State
Website
www.mtpickettwoodworking.com
Anybody have numbers that have proved close for a preliminary cold adjustment?


JohnnyC

Long ago TLCA# 2231
Joined
Jun 17, 2005
Messages
17,485
Location
UpState Ny, Wells Me
This

When doing this "cold" adj the rockers should exhibit the "wiggle"-a little loose than too tight


then you can check again when hot(best to do while the engine is running)--too tight and you risk burnt valves--a tiny bit of rocker 'rattle' is not going to result in a valve job down the road---


JohnnyC

Long ago TLCA# 2231
Joined
Jun 17, 2005
Messages
17,485
Location
UpState Ny, Wells Me
No, just set it to the book specs, they don't change much from hot to cold on these engines.
Run engine to operating temp once or twice, then retorque head bolts, mani bolts and readjust valves.
