can someone please tell me where fuel pressure regulator vacuum line goes to? is one of the three metal lines behind egr. on a 93 4runner 22re. thank you

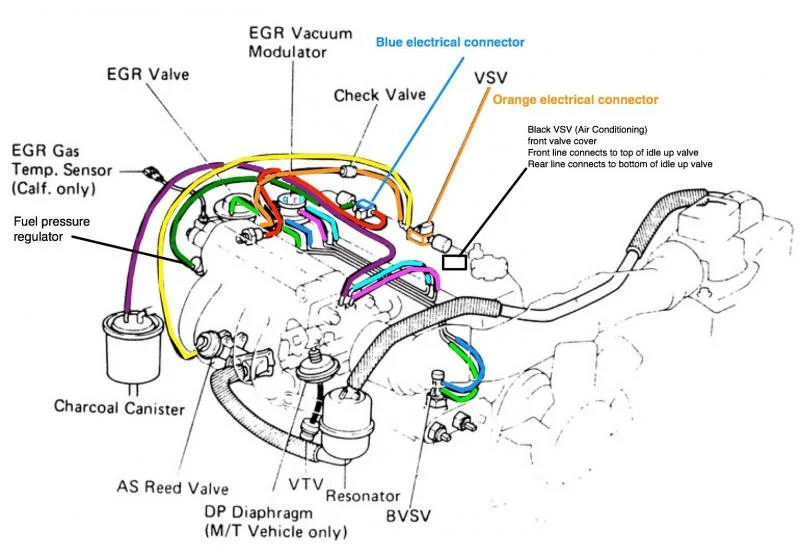

22RE VACUUM DIAG.jpg

It goes to the VSV on top of the valve cover close to the fire wall.
