1HZ alternator

Discussion in 'Diesel Tech / 24 volts' started by roscoFJ73, Jul 25, 2005.

  1. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia

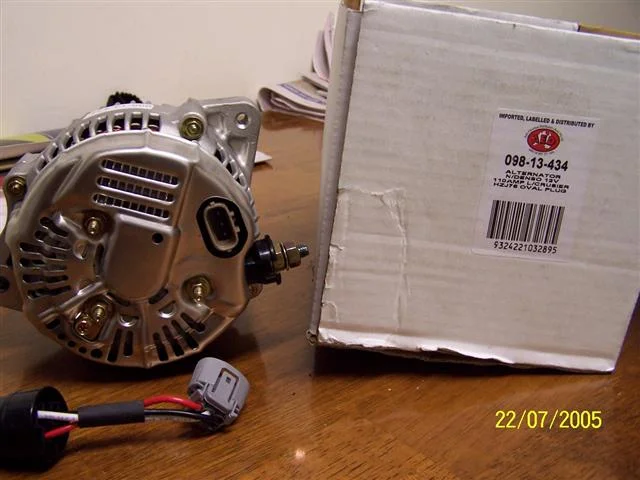

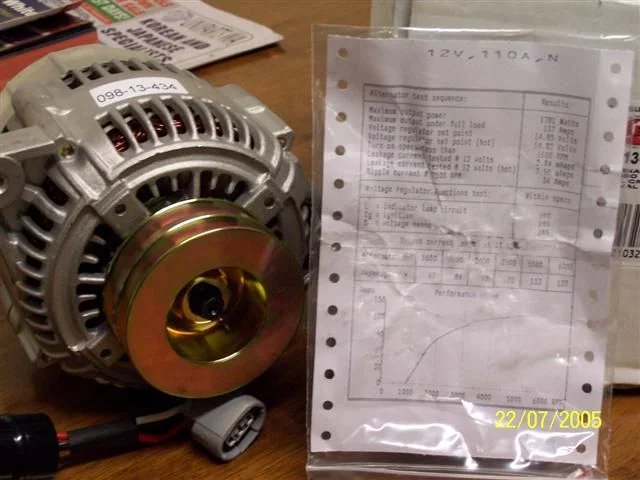

    I picked up this 1HZ alternator for slightly more than a 1/3 the cost of the OEM.
    I cant tell the difference between the new alt and my old one except the new doesnt have a label.

    My auto electrician got it for me after he checked the quality and give it the thumbs up.
    Its rated at 110 amps but the test data says its capable of 137 amps:cool:
    robs pics 002 (Small).jpg robs pics 001 (Small).jpg

  2. VTCruiser

    VTCruiser

    Messages:
    3,454
    Likes Received:
    13
    Joined:
    Sep 12, 2003
    Location:
    Tacoma, WA
    where did you buy it/who makes it?

  3. HZJ60 Guy

    HZJ60 Guy Tank Buster

    Messages:
    2,356
    Likes Received:
    3
    Joined:
    Sep 11, 2003
    Location:
    Seattle area
    Yes where and who?

  4. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    I got no idea who makes it. None of the components have names or country of origin although Im assured its not made in the PRC.
    Its possible its OEM. My auto electrician says some of the products from his supplier are OEM for other brands such as Hyundai.

    It came from this shop.
    http://www.aea.com.au/shopping/Alternator_UnitsNippon_Denso.html

    I think they have the quality aftermarket starters as well.Im not sure if theyll sell to the public,but Ill ask them tomorrow and if theyll do overseas:D

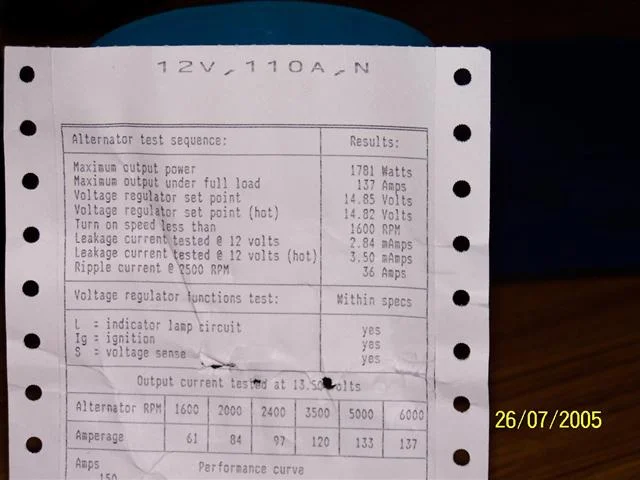

    A closer look at the specs, Ihope you can read them
    robs pics 003 (Small).jpg

    Last edited: Sep 9, 2005
  5. Tapage

    Tapage Club 4X4 Panamá SILVER Star

    Messages:
    22,942
    Likes Received:
    1,103
    Joined:
    Apr 4, 2003
    Location:
    Panamá
    I hate you .. you don't have vaccum pump issues, to change alternator, I'm married with some alternator with vaccum pump, or buy a electrical vaccum pump about 350 USD .. :)

  6. beanz2

    beanz2 Moderator

    Messages:
    2,124
    Likes Received:
    6
    Joined:
    Nov 16, 2002
    Wow, a 137A alternator... here we have to go for a Mean Green or a GM CS130 to get that kind of amperage.

    Yes, we all have the Aussies to envy, they got the HDJ78/79 much earlier than anyone else that even the Japanese didn't even get :)

    Dave

  7. bigbrowndog

    bigbrowndog

    Messages:
    1,662
    Likes Received:
    16
    Joined:
    Apr 30, 2005
    Location:
    N.Q. australia
    Dave,,, Keep in mind what we have to PAY for the things.[inflated Aussie prices.AHHHH.]

  8. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    If anyone wants one,their Sydney branch will send them to North America for $326AUD + freight.
    Ask for Tom:D

  9. beanz2

    beanz2 Moderator

    Messages:
    2,124
    Likes Received:
    6
    Joined:
    Nov 16, 2002
    $326 for an HDJ78? I'll take ten please :D


    You guys down under sure have a strong aftermarket industry for landcruiser parts. Isn't there a healthy price competition too?

    Dave

  10. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    Are these the same alts as a HDJ78? The box says 1HZ

    Finding the ones that will deal with O/S customers is not easy.
    The healthy price competition could always be healthier:D

  11. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    :D Then you need a new mistress:D

    This place in Sydney http://www.aea.com.au/shopping/Alternator_UnitsNippon_Denso.html
    have a full range of new OEM Toyota alts for all H ,HZ ,B FZ and F cruisers WITH PICS :D
    The HJ60 is $680 including the vaccum pump plus overseas frieght,ask for Mick

    I think thats way cheaper than Toyota.

  12. bigbrowndog

    bigbrowndog

    Messages:
    1,662
    Likes Received:
    16
    Joined:
    Apr 30, 2005
    Location:
    N.Q. australia
    Yes and no, a lot depends where you are. When I posted that I was thinking more along vehicle prices..Eg on chit chat , Nissan 350z US$ 35,000 Oz kicks off at $65,000. Our Monaro exported to the USA as the Pontiac G.T.O. [goat] is $10,000 cheaper in the States with higher specs.They also had to shift the fuel tank from behind the axle to in front of it and other changes to comply with U.S, specs guess the Oz suckers paid for this.A lot of quality tools,parts like superchargers,turbos,big brakes,cams & roller rockers,aircon pumpr,quality bearings and bolts,yada yada are a lot cheaper. Leaves wimpering into his beer. :cheers: :bounce: :bounce: :bounce:

  13. beanz2

    beanz2 Moderator

    Messages:
    2,124
    Likes Received:
    6
    Joined:
    Nov 16, 2002
    The grass always looks greener on the other side :D

    Dave

  14. Tapage

    Tapage Club 4X4 Panamá SILVER Star

    Messages:
    22,942
    Likes Received:
    1,103
    Joined:
    Apr 4, 2003
    Location:
    Panamá
    mmmm my alternator funtion fine ( yet :D ) the problem is, only 60 amp, I can do some modif to it, and now I can get aprox 88 amp, but compare it with 137 amp .. :oops:

  15. Eric Winkworth

    Eric Winkworth

    Messages:
    2,091
    Likes Received:
    8
    Joined:
    Mar 1, 2005
    you may pay alot but, at least you can go buy a new 78 munster, I can't, so who's grass is greener?

  16. rubycakes

    rubycakes

    Messages:
    35
    Likes Received:
    0
    Joined:
    Jul 9, 2005
    WARNING: Hijack alert!

    I spoke with the guys at AEA and they quoted me a price of $340(US!!!) for a 12V 80amp alternator/vac. pump assembly. Something doesn't compute here. Rosco mentioned a price of $680 us. I'm pretty sure I asked for alt AND vac. pump.

    Second question: is it ok if it's 80amps? The one I have now is what around 40 if I read other material correctly. Please educate me on why it is ok/not ok to have a 12V 80A alternator when before there was an 12V 40A or 55A? They can get a 55A one but they're more expensive ("more dear" as he put it).

    Thanks,
    Paul

  17. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    Hi Rubycakes. I usually add "AUD" when quoting in AUD. The $680 AUD is about $516 USD so there is still a discrepancy.
    The price I got was for a HJ60 and their catalogue doesnt list a 80 amp alt to suit a 60 series that I could see.
    Only a 55/60 amp.

    One of us was given a bum steer

  18. rubycakes

    rubycakes

    Messages:
    35
    Likes Received:
    0
    Joined:
    Jul 9, 2005
    Rosco,

    That's why I'm scratching my head. I can't even find the quoted alt. on their online catalog:
    http://www.aea.com.au/shopping/index.html
    The one I asked about was the ALT2830 but I was quoted a price on the ALT2830-80.

    What are the issues involved with using an 80amp versus 55amp (assuming both fit the same)? I dont' understand the electrical implications.

    The guy I spoke with is sending me more info today (they were having internet "issues" yesterday).

    Thanks,
    Paul

  19. roscoFJ73

    roscoFJ73

    Messages:
    14,772
    Media:
    3
    Albums:
    1
    Likes Received:
    1,273
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    I guess the 2830-80 not on their list if they have one.


    I dont know much about amperage but the electrician I use says its ok.
    Im going from 55 to 110 or possibly 137 if the specs are correct:D
    The benefits are that you can run more appliances.
    And anyway they are Nippon Denso and designed for your landcruiser.:cool:

  20. Tapage

    Tapage Club 4X4 Panamá SILVER Star

    Messages:
    22,942
    Likes Received:
    1,103
    Joined:
    Apr 4, 2003
    Location:
    Panamá
    The stock HJ-60 alternator are 55/60 AMP, good for all stock devices .. but if you have 2 bnat, winch, stereo, aux light .. for sure you need other more powerfull alternator.
