1hdt Intake gasket

Discussion in 'Diesel Tech / 24 volts' started by Webster77, Dec 7, 2017.

  1. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    I have recently acquired intake gaskets for my 1hd-t, and I’m looking for any advice on installation. The job seems pretty straight forward, my only concern is after I remove the injector lines is there anything I need to do or be aware after reinstallling them. I’m my thinking is I’m cracking the fuel system so I’m worried about air. Not sure if I need to be.. thanks for any help or suggestions.

  2. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    Take a few pics and lots of mental notes about the orientation of the injector hardlines, you need to remove all/most of the clamps that hold the lines together, and getting it all back in the same orientation can be tricky. Also take note of the order you remove the lines from the pump, you can't get at the back/bottom ones without removing the front/top ones first, and installation is in reverse order.

    As for air, you should be able to bleed the system via primer pump once it's all back together, no big deal in my experience.

  3. gnarlynick2072

    gnarlynick2072

    Messages:
    689
    Likes Received:
    297
    Joined:
    Sep 17, 2011
    Location:
    Calgary, AB
    I just wrote the cylinder # in sharpie on the 17mm nuts that connect to the injectors. Easy to keep track that way.

  4. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    Thanks guys, for the advice!

  5. roscoFJ73

    roscoFJ73

    Messages:
    14,460
    Media:
    3
    Albums:
    1
    Likes Received:
    1,057
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    The injector lines will only go one way. Air is nothing, easy to get of.
    Make sure you have a good torque wrench and pipe spanners.
    If you don't have pipe or tube spanners, use 2 open end spanners on one injector nut
    I think the best way is to do one and then reinstall it. Then you don't have fuel leaking out and air getting in.
    It should start fairly easy if you can get the line back on quickly.
    These are injector seats or gaskets? "Intake" usually means the air tube and/or inlet manifold.

  6. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    I believe he's changing the intake manifold to head gaskets, which requires removal of injector hardlines.

  7. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    Yes.. intake gaskets, I have a little oil swap age and it bothers me..

  8. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    I was getting some oil seepage there too, some of the bolts weren't even finger tight...but if you're digging in deep enough to tighten them, might as well change the gaskets.

  9. mudgudgeon

    mudgudgeon

    Messages:
    1,947
    Likes Received:
    1,025
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    Oil seepage shows that you have a high amount of oil coming through the PCV and into the intake and turbo

    Best tip - give your kids the right spanners, and lock them in the garage unil the job is done.
    You need tiny little hands to get at some of the bolts.

  10. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    Is there an under lying issue then with the high amount of oil coming through the PCV?

  11. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    And would a catch can help relieve that?

  12. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    A catch can would help keep oil out of the intake tract, but I was surprised to find how clean my crossover tube and intake manifold were after seeing some seepage at the IM gaskets. I'd had a catch can in place for about a year before I did the gasket swap, and pre-catchcan I was getting oil dripping from the turbo housing, so either it wasn't as bad as it looked, or it cleaned itself up over the next year of driving before I got in there.

  13. Wildnlost

    Wildnlost

    Messages:
    77
    Likes Received:
    59
    Joined:
    Nov 20, 2015
    Location:
    The Great White North. AB, Canada

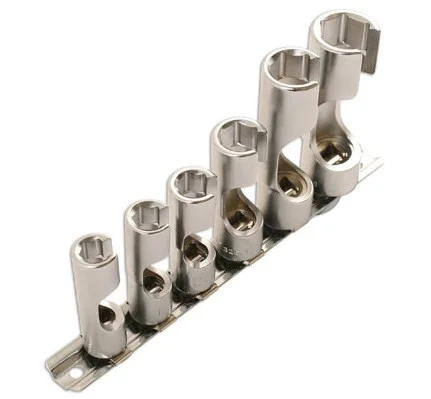

    Ck the condition of your turbo too. If the Turbo Shaft oil ring seal on the compressor side is weeping you can get oil into the IM too. I videoed the lines and routing with my phone after labeling the lines with masking tape. As it turned out I didnt need the vid it is pretty straight forward.... a little cussing. Having the proper steel line socket helps alot.


    Last edited: Dec 11, 2017 at 11:10 PM
    b702012 likes this.
  14. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    It looks like there’s going to be some language!

  15. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina

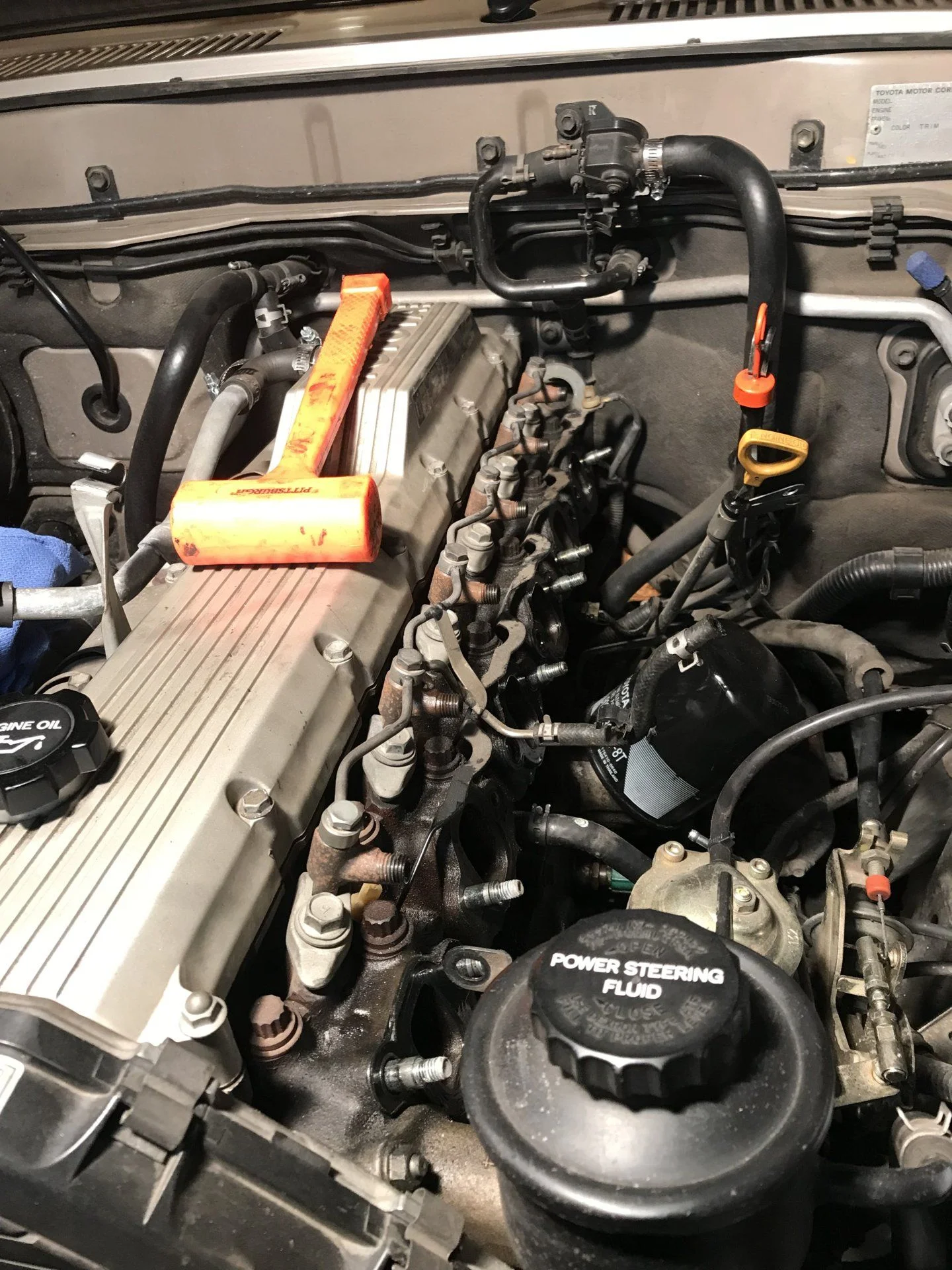

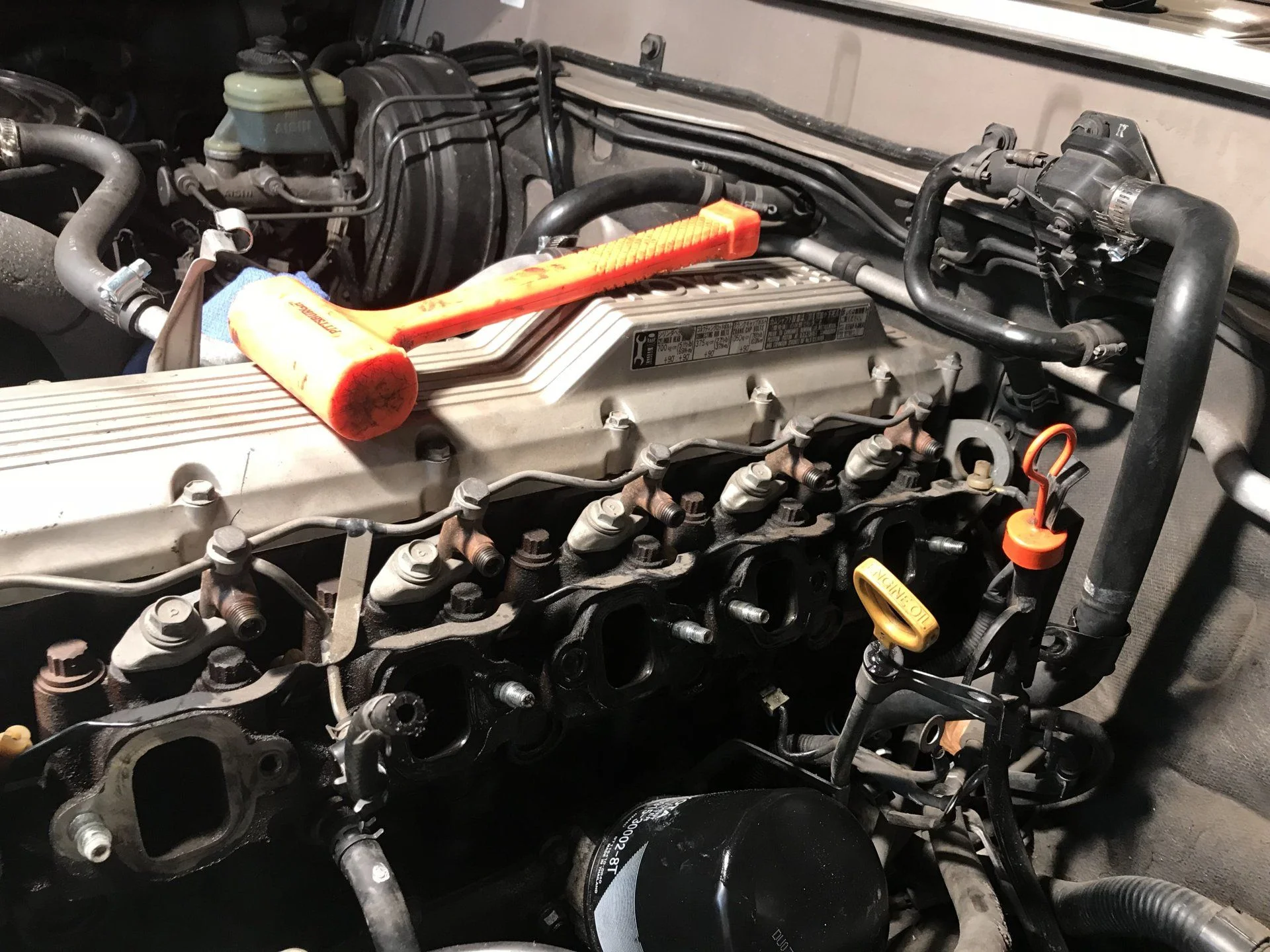

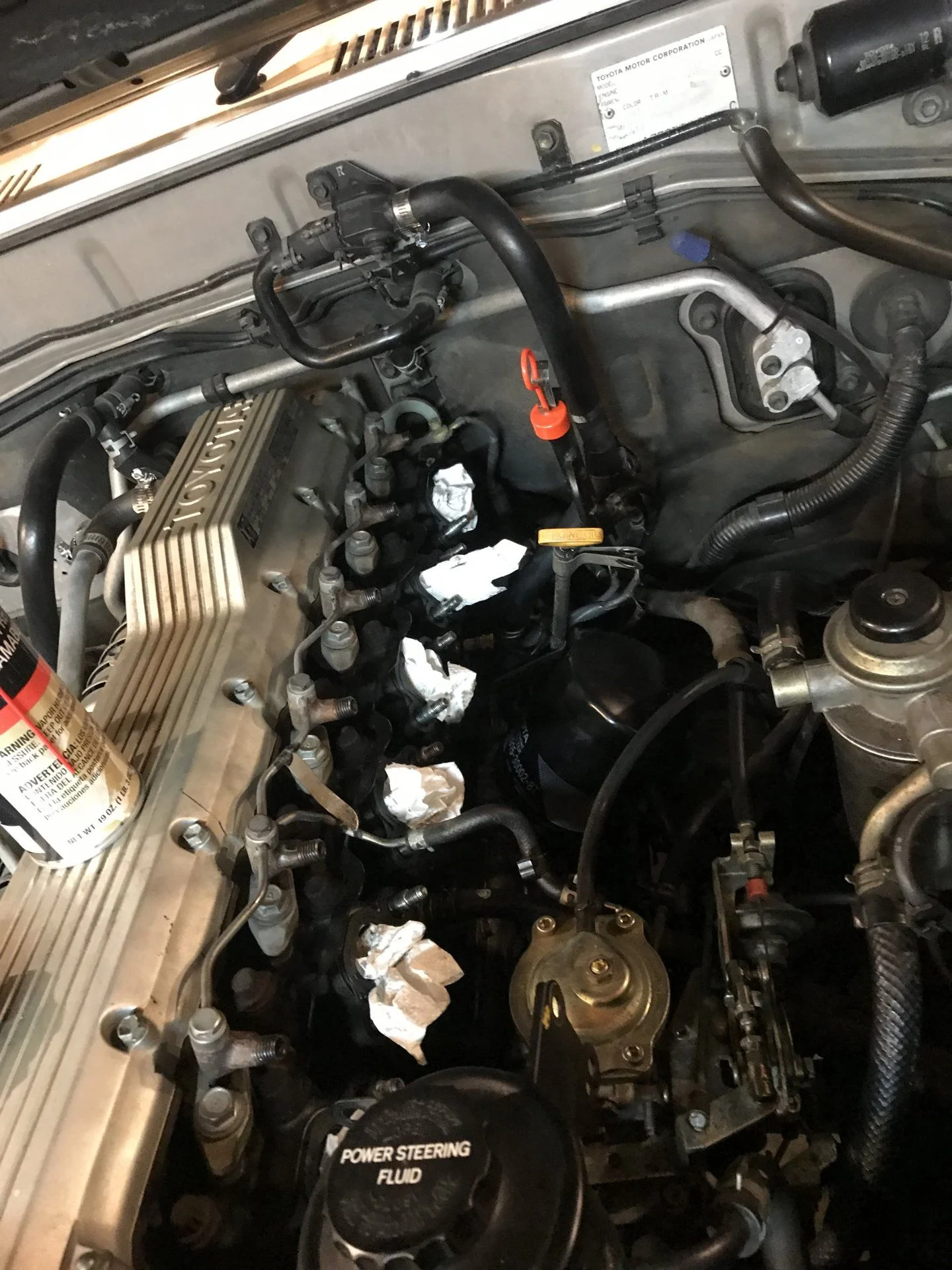

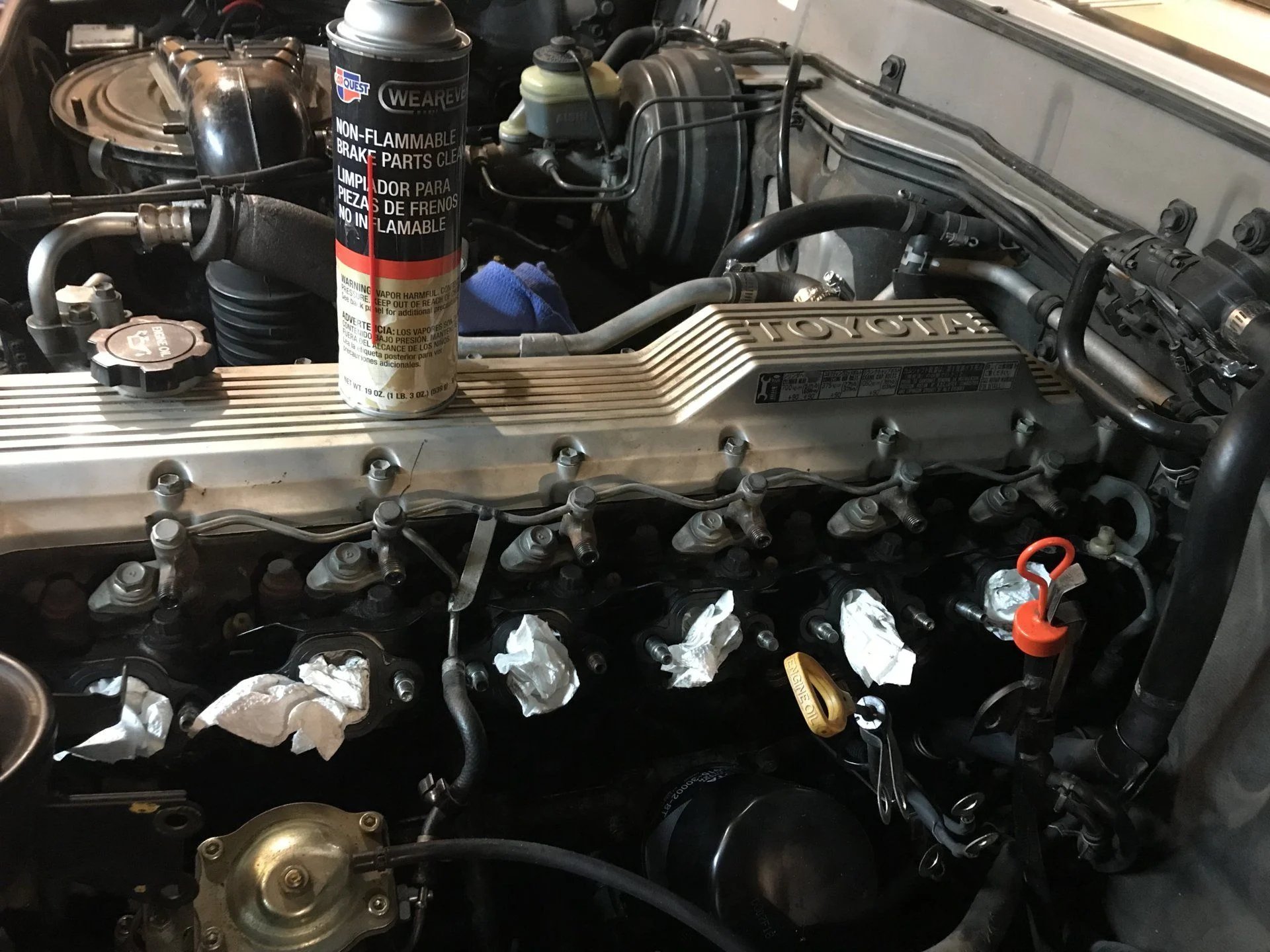

    I got started tonight got everything stripped down, took notes of what order the lines came off and what order I loosened the lines in from the pump, hopefully the lines will slide back on in reverse order, of my notes pan out I’ll post them up to see if they help the next guy.






    b702012 and IanB like this.
  16. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    Were all your IM bolts tight?

  17. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    A couple were looser than the rest for sure, now I’m wondering if I should have also bought the rubber washers for the bolts. They aren’t in bad shape so I guess they’ll be fine???

  18. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    I got all new ones, they were hardened a bit and I wonder if that played a role in them loosening off on mine? I'm sure just retorquing them will be a big move in the right direction, and they'll be fine for years and years again.

  19. Webster77

    Webster77

    Messages:
    200
    Media:
    5
    Albums:
    1
    Likes Received:
    84
    Joined:
    Apr 18, 2016
    Location:
    Chapin, South Carolina
    IanB did you bleed the lines after everything was put back together or just hand prime then fire up. The manual doesn’t state anything about bleeding the lines ......

  20. IanB

    IanB SILVER Star

    Messages:
    3,370
    Likes Received:
    1,086
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    Hand primed and it fired right up for me.

    Wildnlost likes this.
