1979 FJ40 Transfer Case Direct Linkage Schematic Needed w/Toyota Part Numbers.

  • Thread starter Ackcruisers
  • Start date
  • Watchers 1
Ackcruisers

Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
820
Location
MA

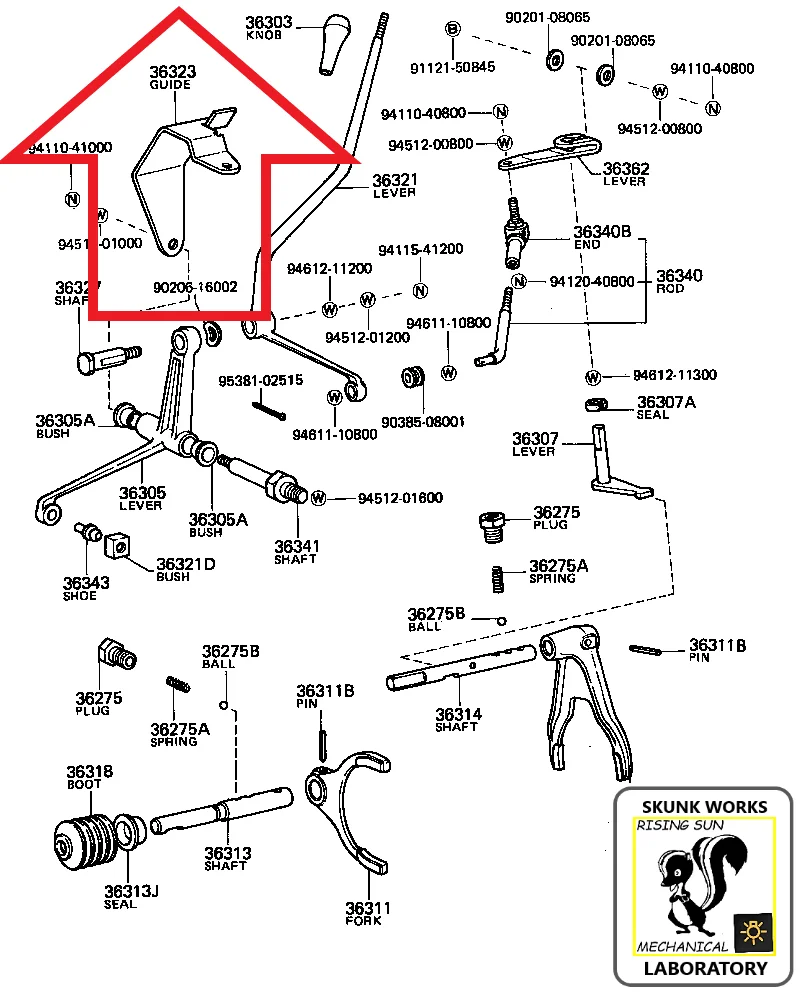

Assembling my linkage and realized I purchased nuts, wave washers etc...parts for the wrong shift linkage. Can someone send me a link or schematic with Toyota part numbers for the 1979 transfer case shift linkage as shown on SOR below?

7C104BBB 410C 49D7 A289 2F58C6A57F1B

ToyotaMatt

ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
17,895
Location
EAST COAST
Website
vintageteqparts.com
Assembling my linkage and realized I purchased nuts, wave washers etc...parts for the wrong shift linkage. Can someone send me a link or schematic with Toyota part numbers for the 1979 transfer case shift linkage as shown on SOR below?

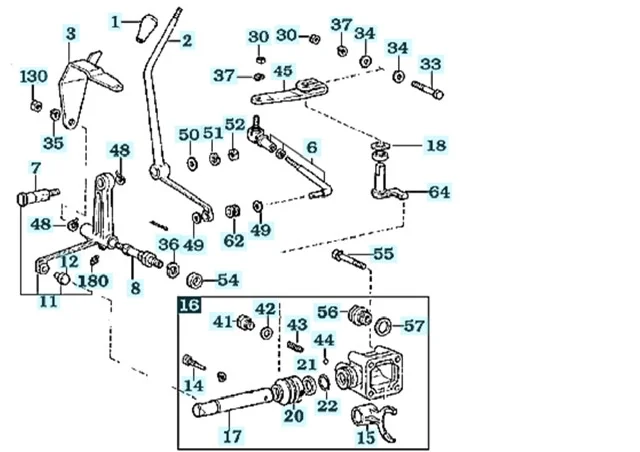

View attachment 2832258


I have the socket and ball NOS # 6 and # 45 Paul if u need them ?

NO cost involved …

I can have the correct toyota microfiche diagram in your hands in 42 seconds , where would u like it sent ?

Just let me know , standing by sir

Ackcruisers

Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
820
Location
MA

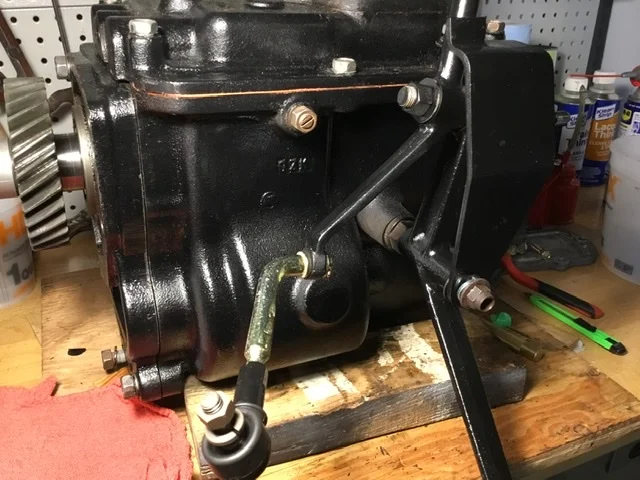

Thank you, Matt. Wow, appreciate the generous offer. I’ve got those parts. Please email me at pwreiss at Comcast dot Net.

F91468F0 4AD2 4610 8E87 0EF2EAE31C27

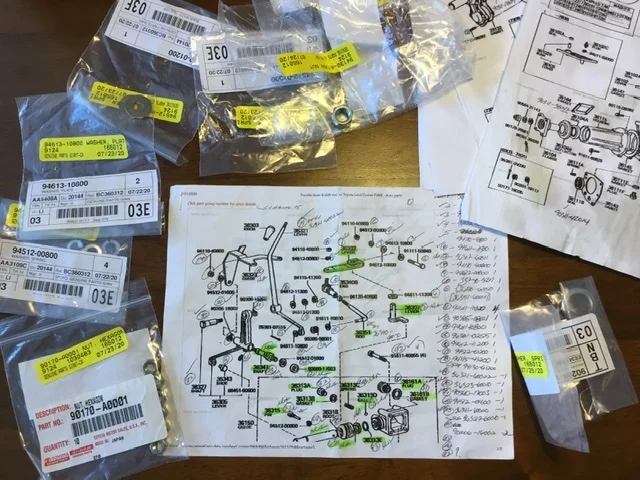

Just working on mapping the myriad of parts to see which ones can be used in assembly.
F48D5105 13C6 4A91 A0FF A66B53669B38

As you can see, the desk work I did was for the wrong linkage assembly.

ToyotaMatt

ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
17,895
Location
EAST COAST
Website
vintageteqparts.com
Last edited:
Ackcruisers

Ackcruisers

SILVER Star
Joined
Nov 24, 2019
Messages
820
Location
MA

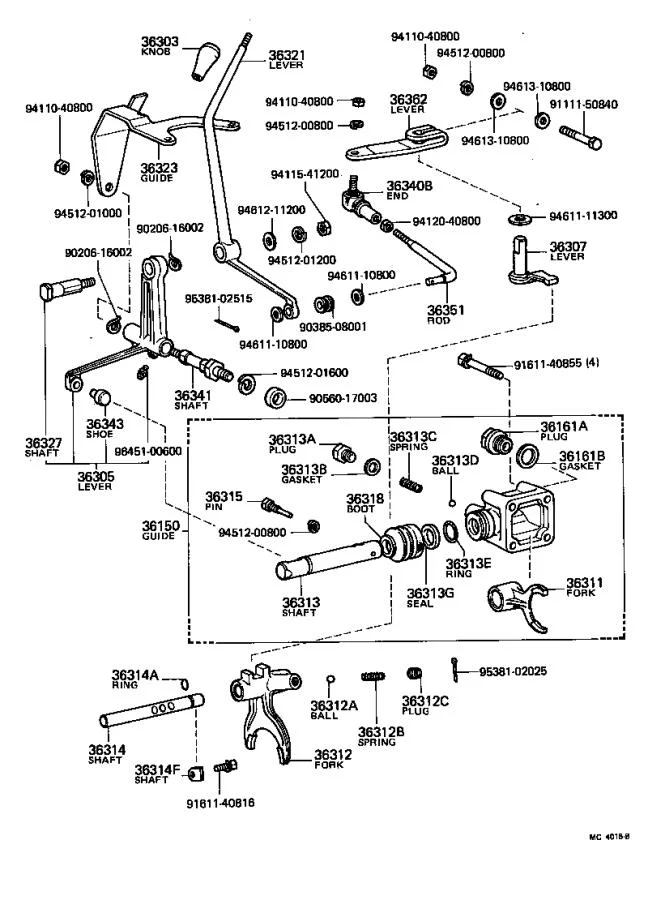

Thanks for this schematic. This is strange, my transfer case has a build date of 12/79 and the linkage is from 8/80 and later. Guess they changed the linkage earlier in preparation for the split case.
