Hey All

I have a 1975 FJ40 (left-hand drive) and I'm getting close to the finish line of a long resto. At the moment I'm reconnecting the charcoal canister/evap system. It's been so long since I took everything apart that I can't recall where/how the canister mounts under the hood. I have an owners manual schematic that seems to show it on the drivers side, but it seems counter-intuitive and I can't seem to find any photos online or an obvious spot where it would mount I'm also curious if it has an additional bracket that's needed for mounted, other than the one that's a part of the canister itself (seems like the '78's have a bracket from a couple photos I found)

If anyone has a '75 40 and is able to snap a photo of the location, or just pass along any info at all that would be a big help.

Thanks!



[zerotreedelta]

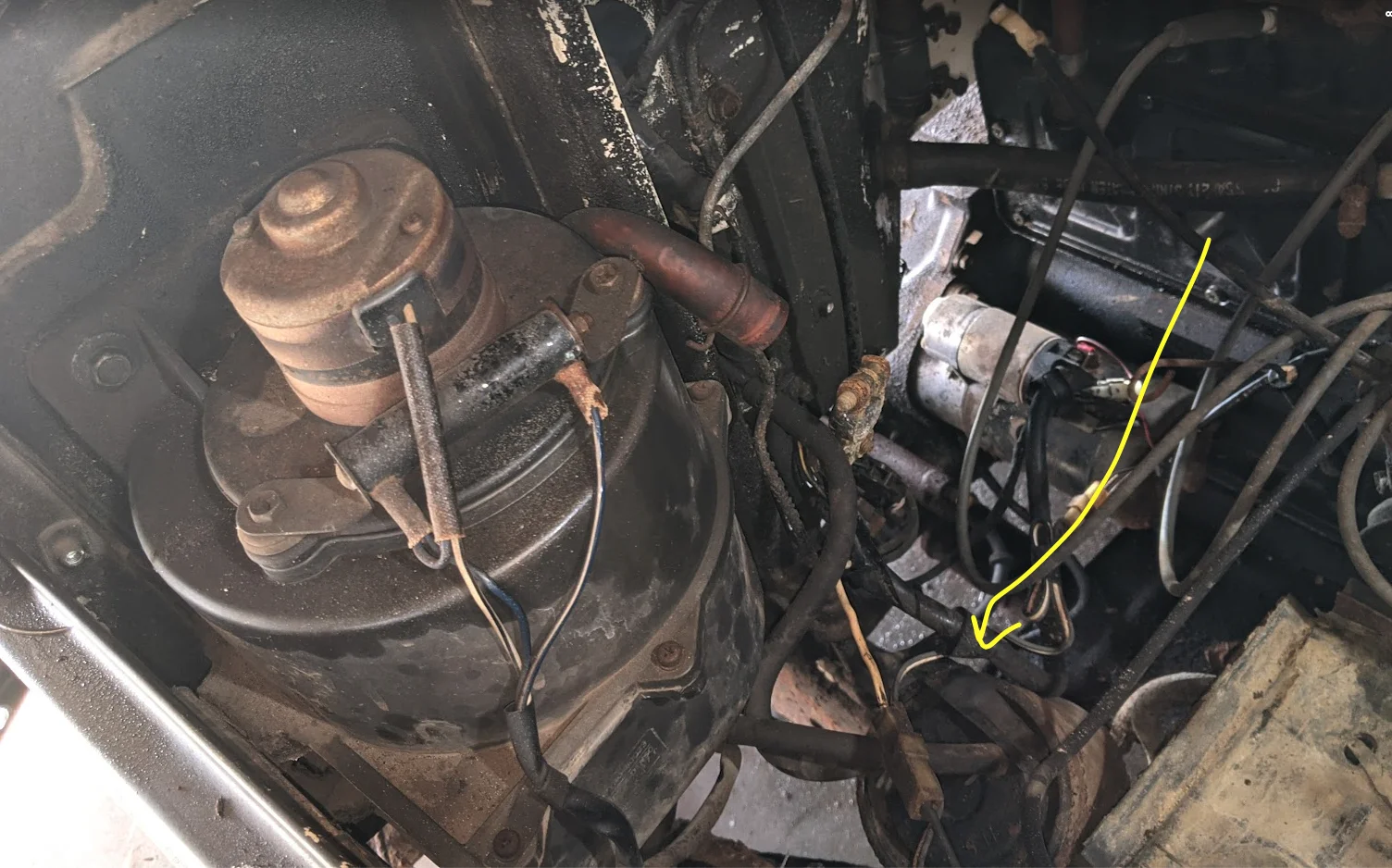

My '76MY (9/75) had it on the passenger fender liner...not a great photo, but there should be two holes for the strap bracket if the '75 has it there.

It's possible the 75MY has it elsewhere, but not sure.



[FJ75]

My '76MY (9/75) had it on the passenger fender liner...not a great photo, but there should be two holes for the strap bracket if the '75 has it there.

It's possible the 75MY has it elsewhere, but not sure.

View attachment 2882088

Thanks for this. Is that mounted direct to the inner fender? any bracket there or just bolted direct?



[zerotreedelta]

Just direct to the inner fender via the horseshoe bracket - I don't recall if there's captive nuts or if it was through-bolts for OEM. I used non-OEM replacement fenders for my resto', and they seemed to be for newer years...I had to drill holes in that spot and just used stainless bolts.



[FJ75]

Sorry just caught that you mentioned the fender. Thanks again. I think the fact that it is on an angle might have solved this. I used aftermarket fenders as well and they have reinforcement in that spot, so that seems right. It just didn't seem right since it didn't sit vertically so this helps.



[zerotreedelta]

Yup...I think I ended up slanting it a bit as well. I want to say there was one hole that was usable and I drilled a second.

My hunch was the aftermarket fenders are for a newer model as far as holes and brackets go, but minor twiddling.



[ranchdawg]

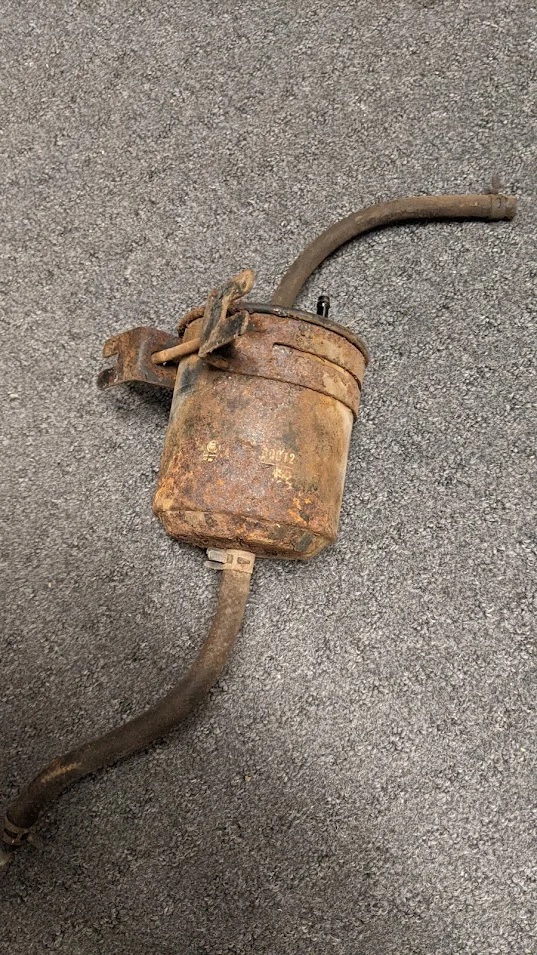

Here is a photo of my ‘75. Mine was on the driver side underneath the master cylinder.



[ranchdawg]

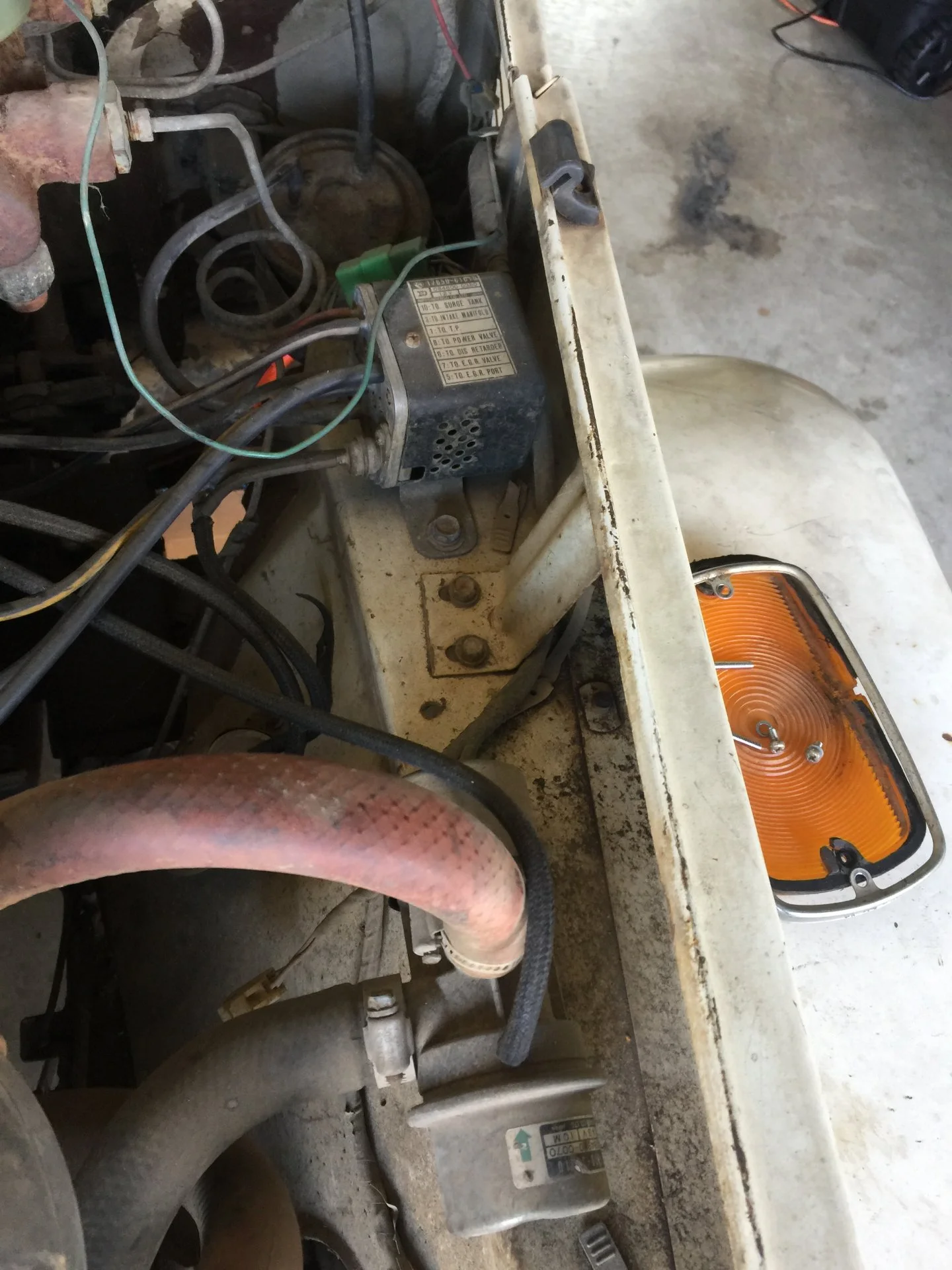

Found another from the top side.



[zerotreedelta]

Interesting - the washer bottle goes there for a '76.



[FJ75]

Found another from the top side.
View attachment 2882467

Interesting thanks for this. This is in line with the diagram from the manual, but also seems there is a bracket as well. I’ll head out to the garage and take a closer look today
