So Aisin FANB75020 from Kurt.

Hopefully it fits on the stock fan clutch I have on it.

Ever notice how you start collecting "not quite the right" parts during a car build?
Good question for @cruiseroutfit

He may have a shorter snoot pump.

There is no way you should be having this issue. I’ve stuffed 5-6 2Fs in early 40s with no issues. It’s close but it works

Joined
Jan 12, 2015
Messages
3,263
Location
Clarksville, Tennessee
Website
hotmilkforbreakfast.wordpress.com
Good question for @cruiseroutfit

He may have a shorter snoot pump.

There is no way you should be having this issue. I’ve stuffed 5-6 2Fs in early 40s with no issues. It’s close but it works
And just like that, I figured out the problem.

The front frame crossmember was subtly off in a critical dimension.

While it is square to the frame rails from the front, the cross member was 1/2" thicker on the driver side, and the curve that distributes the stress was shallower to the place where it rivets to the frame. To overcome this, whoever last installed it used a longer radiator mount on the driver side, which is why it looked funny in the initial pictures.

In order for the radiator to sit square, it was all the way forward on the driver side slot and all the way to the rear on the passenger side. This pushed the radiator back into the space we have to work with like an 1 1/2".

I just took a grinder to that puppy, and reduced the thickness on the driver's side frame cross member to 3 1/2" to match the passenger side. And made the curve toward frame side rail there more or less match the passenger side. Also redrilled the driver's side radiator mount so the radiator sits square.

And now, just like that, the radiator fits. A bit tighter with the fan than I normally like, but it fits. And the new fan blade should help that tightness.

Joined
Jan 12, 2015
Messages
3,263
Location
Clarksville, Tennessee
Website
hotmilkforbreakfast.wordpress.com

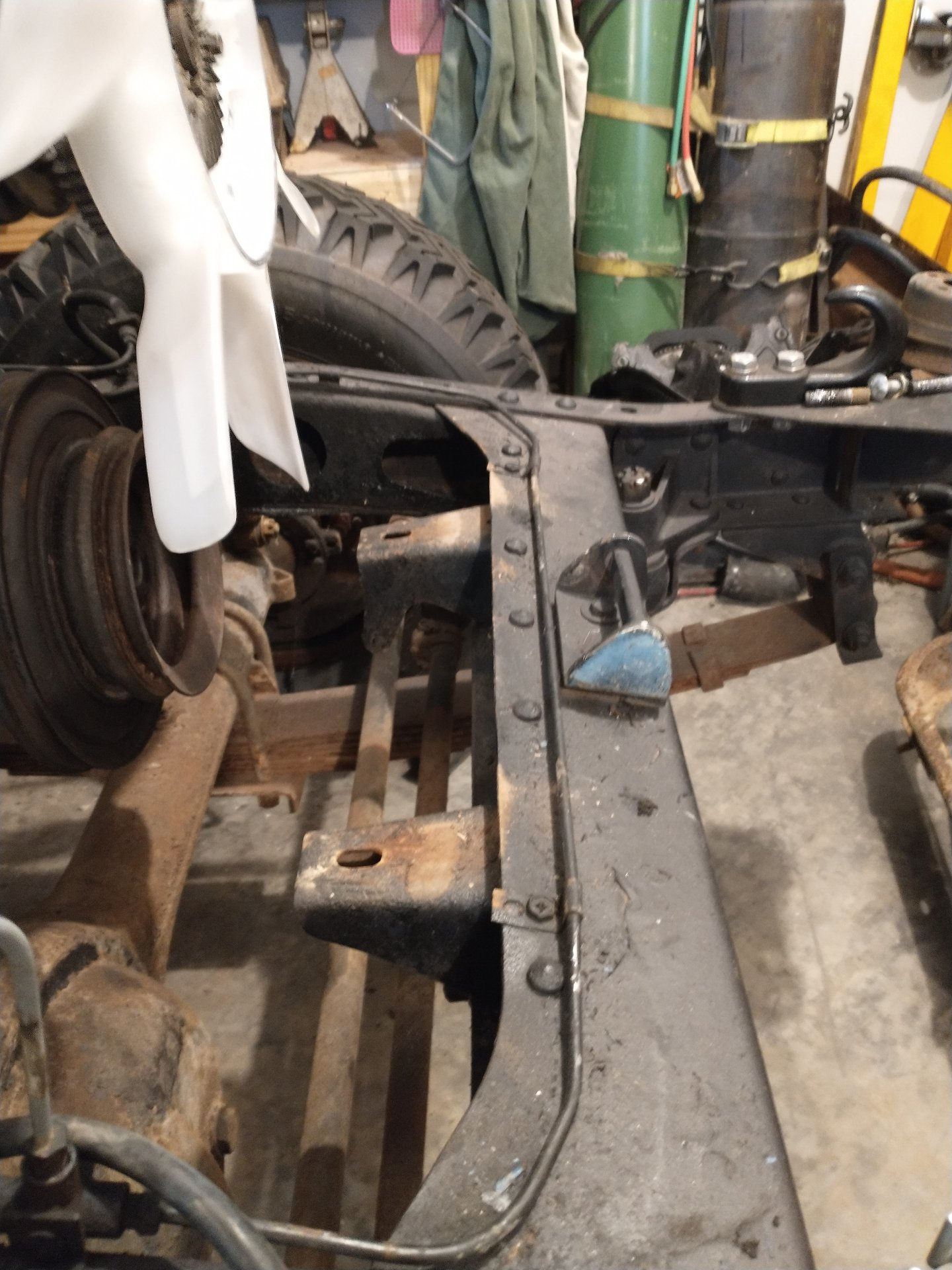

Here's the picture I posted earlier, which clearly showed the issue, if I'd only bothered to put a measure to the crossmember and radiator supports.



middlecalf

SILVER Star
Joined
Jul 20, 2004
Messages
4,523
Location
Sweet, Idaho
Good you got it to fit but that cross member sure looks like it’s the factory riveted install. And the drivers side radiator mount is longer than the passenger mount because of the pto. And the cross member isn’t symmetrical wrt the centerline of the rig. Something else is up with your rig.

Joined
Jan 12, 2015
Messages
3,263
Location
Clarksville, Tennessee
Website
hotmilkforbreakfast.wordpress.com
Good you got it to fit but that cross member sure looks like it’s the factory riveted install. And the drivers side radiator mount is longer than the passenger mount because of the pto. And the cross member isn’t symmetrical wrt the centerline of the rig. Something else is up with your rig.

Whatever is up with Mavis, it was also up for the P.O..

The fan shroud is notched out to allow for the alternator pulley/belt and the F four blade fan was fairly tight with the original radiator. And I can find no super obvious signs of major damage/alteration that made that so.
