Those look great!

Now….
how about the park brake cable accordion boot on the outside of the firewall?🤔😃😉


can you post me a photos , part # or call out # and what microfiche slide its on ?

also ,

FJ55 or FJ40 or ?

thanks

im not 100% sure the exact part u refer to ......


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
FJ55

Best I can do for you is the diagram and pn# from Specter’s website

View attachment 2786649

View attachment 2786650

View attachment 2786651


in order to reproduce this part i would need a complete un altered original then CLONING can begin

i have a 1/79 FJ55 LG-KA here at the shope i take care of 24/7 and store it for a client too

ill take a lookie see and see if it has one ?


passenger side upper fire wall right ?


i have tons of samples boots of all kinds i have scooped up overe the years too well documented where they came from and what they fit too

many oem toyota also


fyi , i can start here too ?



maybe


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
That’s the one ☝️ 👍 Thanks Gonzo!


i need a better quality close up photo please

like MACRO nice !

details matter here more then you can possibly imagine ...

thanks




like this :










ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
Here's the part number FWIW:

46331CBOOT(FOR INTERMEDIATE LEVER PULL ROD)
36371-60011


THANK YOU my warm mr. eagle :)

you always come thru for the greater good of the land cruiser community as a whole and have very much respect for that ............ :popcorn:




ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
46331C36371-60010BOOT(FOR INTERMEDIATE LEVER PULL ROD)1969/03 - 1970/06FJ55DISCONTINUEDDISCONTINUED
46331C
36371-60011
BOOT(FOR INTERMEDIATE LEVER PULL ROD)1970/06 - 1980/07FJ5#




NOW ...........

- to find a CLONABLE LIVE Specimen > ? 🤔





- can any one confirm if the sheet metal holein fire wall is round or oval ?


- then i NEED a Exact ID Inside diameter In MILLIMETERS ONLY , NO SAE Please .........

- USE a pocket chum caliper or digital one ONLY NO Tape measures or small rigid scale rules , there is little to NO ZERO room for error on a sheet metal hole related to a boot or grommet LIP SEAL u be suprizsed at the LOW free play tolerance that dose NOT exist in any way

- TOYOTA ONLY uses WHOLE Steps or Step increments like : 22mm , 23mm , 24mm etc

- never 1/2 or 1/4 mm steps .......fyi

- length approx. in mm of boot itself ?

- I know and assume it starts out fire wall side a larger diamiter , and CONES out to a tip much much smaller to seal a cable or rod at the end further out for sure .....

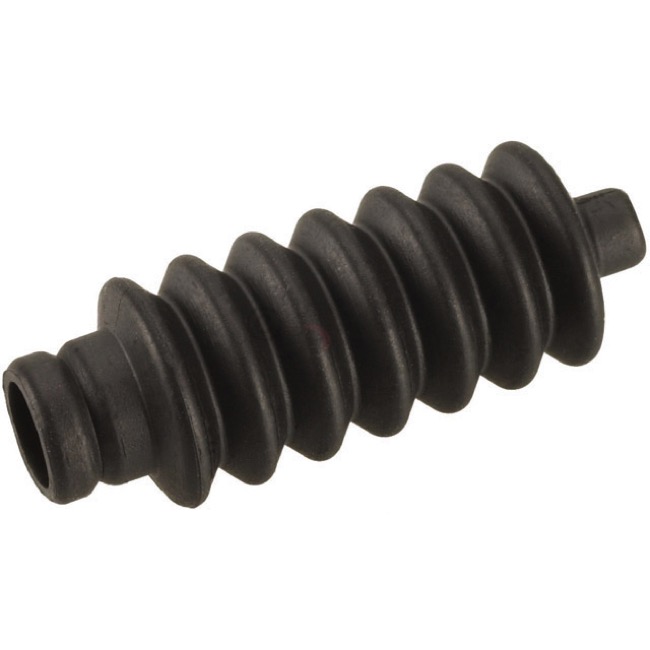

- Im gonna take a @3_puppies WAG and show examples ONLY pics

- Please tell me what's the actual closest example all images labeled A , B , C , D , E

thanks for any help \

kinldy matt
