04' LX470 NAV Delete?

L

lndcrzrr

Joined
Jan 26, 2022
Messages
6
Location
Vancouver, Canada
First post here, been lurking for a year and decided to make an account lol.

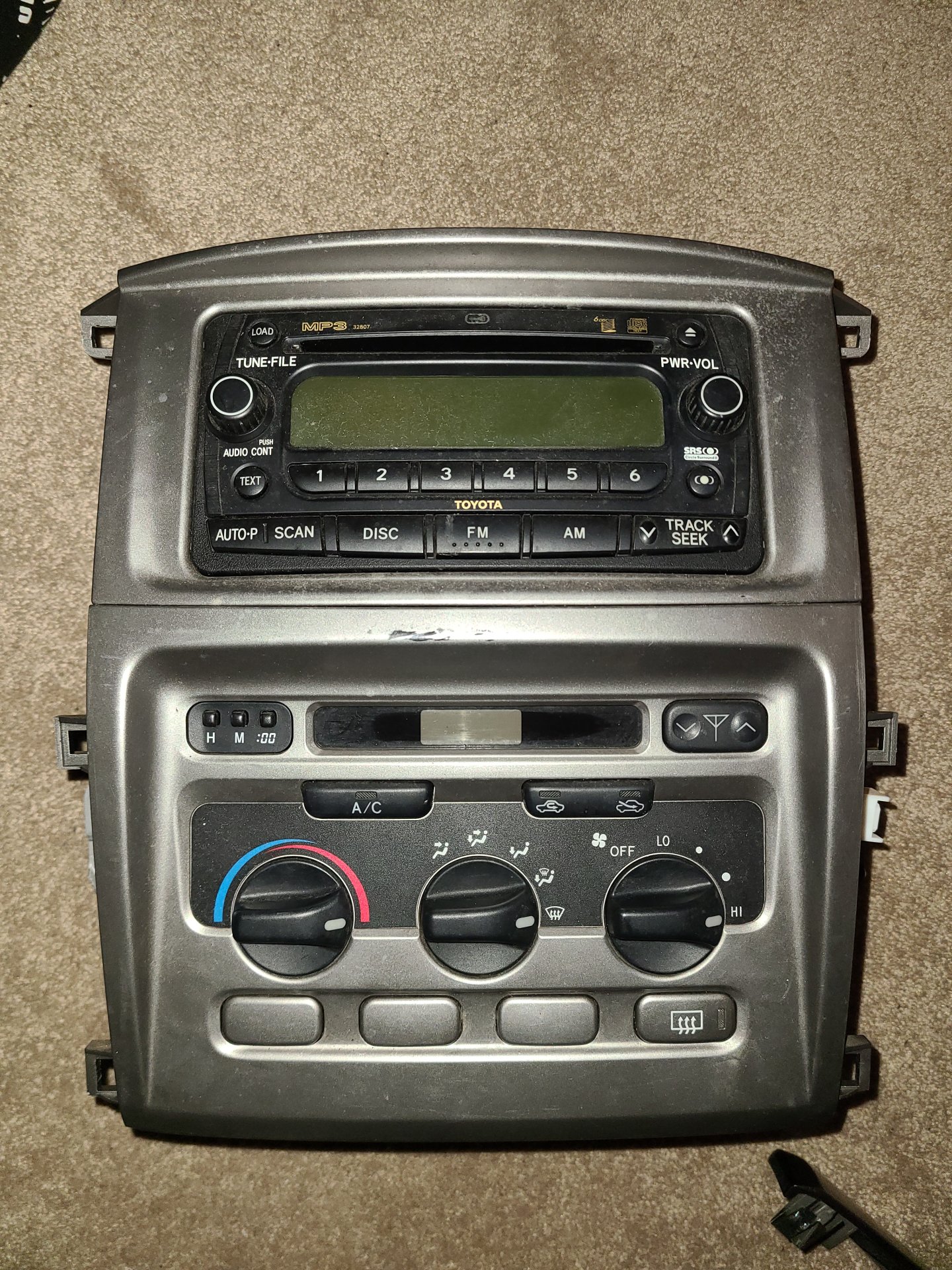

I just recently picked up a non-navigation climate control from an Australian spec. 05' landcruiser.

20220125 232234


I was wondering if there are any write ups on installing this into a 04' LX470 with the climate control integrated into the nav. display?

Ive looked and all Ive seemed to have found are the pre-03' nav deletes (with knobs). And post-03' with the button type climate control interface. Nothing on the post-03' with knobs. Maybe I didnt look hard enough?

Just want to know before I dig into this and figure it out myself.

C

Coin

Joined
Oct 8, 2018
Messages
181
Location
N. Texas
Whoo buddy! You are in for a treat! Jerryb's write up on the button interface was ludicrous enough, I can't image the effort involved to make that work.

Please write it up here if you manage to get it working. Many would be interested.

kgrove

kgrove

Joined
Jul 23, 2008
Messages
308
Let's hope this works. I've wondered for a long time about sourcing used parts from non-nav 100s in Australia or S Africa. I just assumed they were the same push button setups we've been converting our LCs and LXs and didn't realize they used rotary dials more similar to the '02 and earlier US non nav cars.

L

lndcrzrr

Joined
Jan 26, 2022
Messages
6
Location
Vancouver, Canada
Messaged jerry. He said theres someone on here that did it successfully but he cant recall who it was. Did a super quick check over the wiring diagram of my Nav equipped 04' LX470 and found the servo motor wiring colors seem to be the same along with power and ground. Hopefully this works out. Still trying to find a pinout for the 05' Landcruiser GXL climate control.

I will dig in to it deeper as soon as I sort out the wiring for my other project cars. Lol!

Njck22

Njck22

SILVER Star
Joined
Sep 24, 2017
Messages
899
Location
Texas
Buy the euro TIS subscription and download the wiring diagrams that match the vehicle this came out of. Then we can help you. I'm very curious if this can actually be done, given the much higher prevalence of manual type climate controls. Me, I like my auto controls.

W

wbwufpack

Joined
Sep 29, 2021
Messages
13
Location
Denver, CO
I plan on following your progress and really hope this works out for you. Out of curiosity where did you find the parts?

L

lndcrzrr

Joined
Jan 26, 2022
Messages
6
Location
Vancouver, Canada
Finally got around to working on the truck again. Wiring is coming along. Just and FYI I'll make a more detailed write-up once I have everything operating as it should.

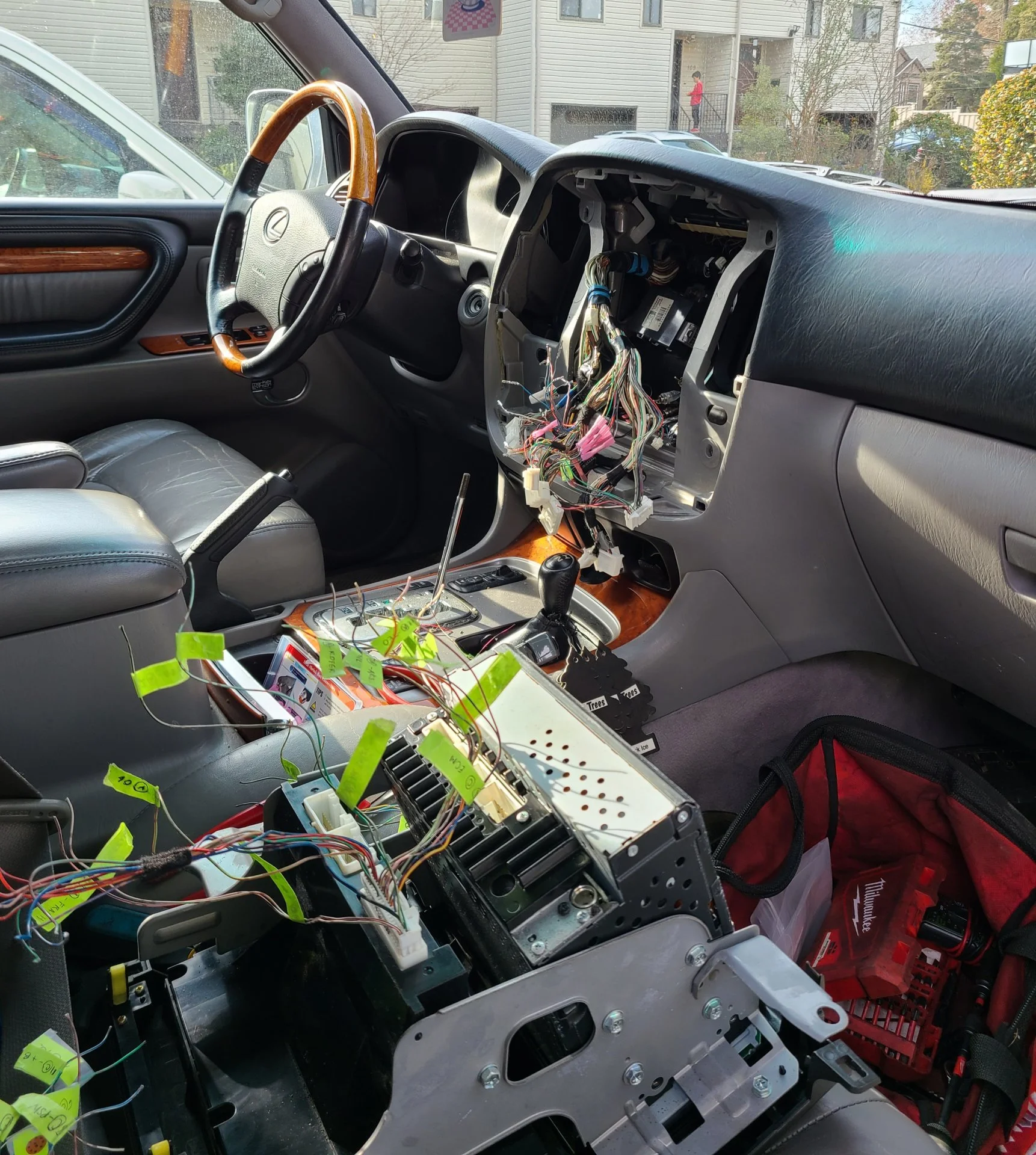

20220417 011512

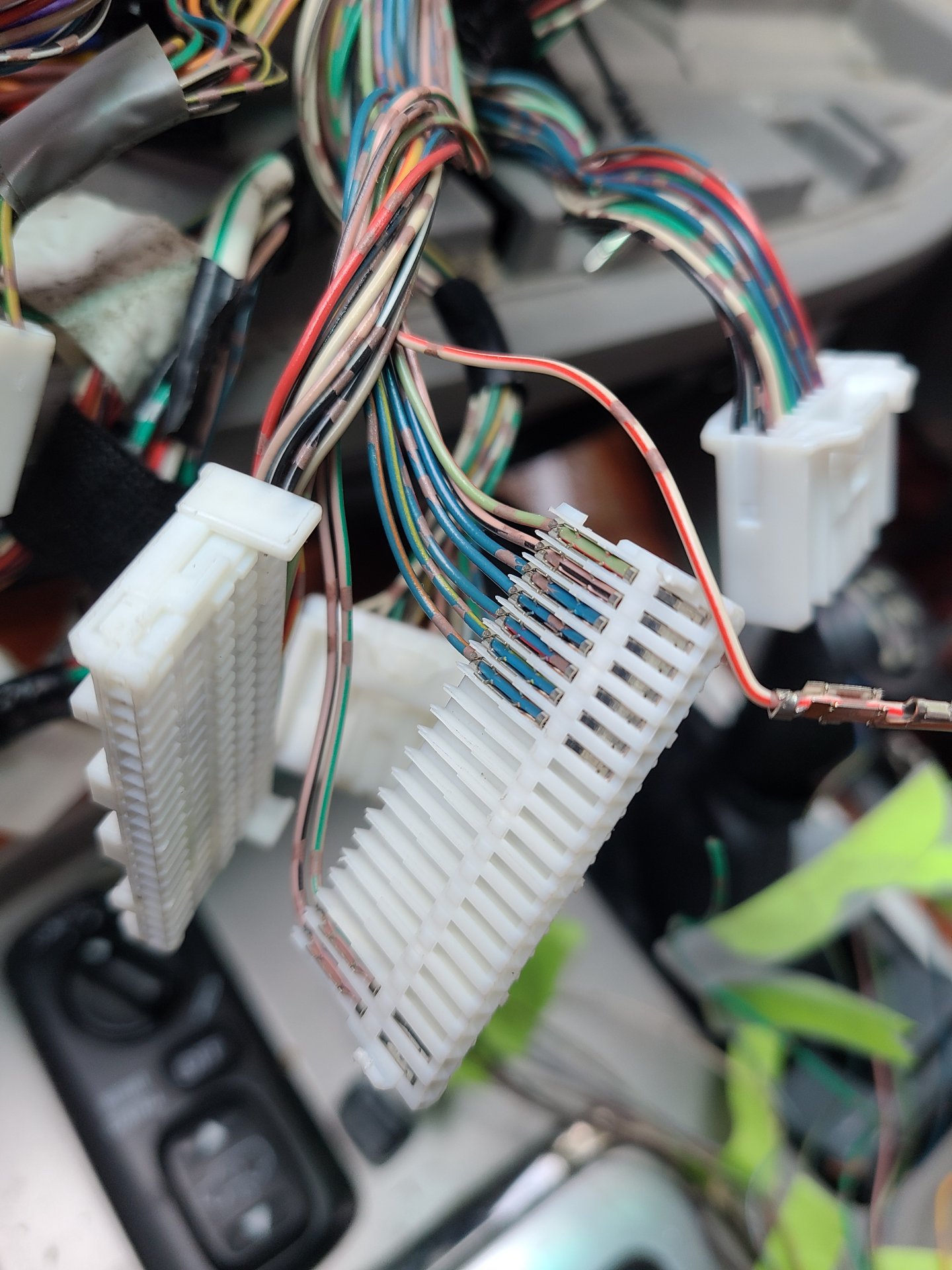

The harness (3 plugs) out of my navigation equipped 04' LX470 a/c control assembly plug directly into the manual 3 knob climate control. Although doing this will only get it less than half working, you'll have power, ground, illumination and servo-motor operation (for hot/cold and air routing; face, legs, defog etc.) but no blower motor or air conditioning. I re-pinned all 3 connectors, did some color matching and probing with my multimeter and still have 15 or so left over wires.

20220415 144824


I just paid for access to European TIS and downloaded a bunch of wiring diagrams related to the manual 3 knob climate control. Looking at the diagrams/pinouts its now much simpler, haha. Since my 04' has automatic air conditioning it only has one wire output from the a/c control assembly to the blower motor controller. I now realize I should have grabbed the blower motor box with the blower resistor, relays and pigtails. Whelp. Should be easy enough to make my own harness/circuit though.

I will update this thread as I continue along. I would like to say though, having the double-din/radio mounted where the climate control display used to be is so much better.

jerryb

jerryb

Supporting Vendor
Joined
Jul 30, 2016
Messages
2,629
Location
pensacola fl.
If I had saw this in jan I would have answered better in the PMs. Sorry about that. I was away working.

seeing the front, waht about mirror heater and rear fan control OR rear AC.
Looks like it's coming along, if you need anything more let me know.

L

lndcrzrr

Joined
Jan 26, 2022
Messages
6
Location
Vancouver, Canada
I'm getting very close now. Looks like it has the option for rear a/c (wiring is there), just needs a button. Spliced the side mirror defogger into the rear defogger so they both come on when the switch is depressed. Hazard button, center diff. lock and passenger seatbelt reminder are operational. Still need to find the security light/immobilizer light pin (my euro tis subscription expired). Bulbs need to be replaced, A/C switch and recirculating/fresh air switch are also not working. Lastly, as stated above I will also need to run wiring for the blower motor relays and resistor in order for it to work.

Once all this wiring is finished up Ill be getting a headunit that sits a little more flush in the dash. Reason I bought the one below is how the headunit had to be mounted before.

New setup:

20220419 212914

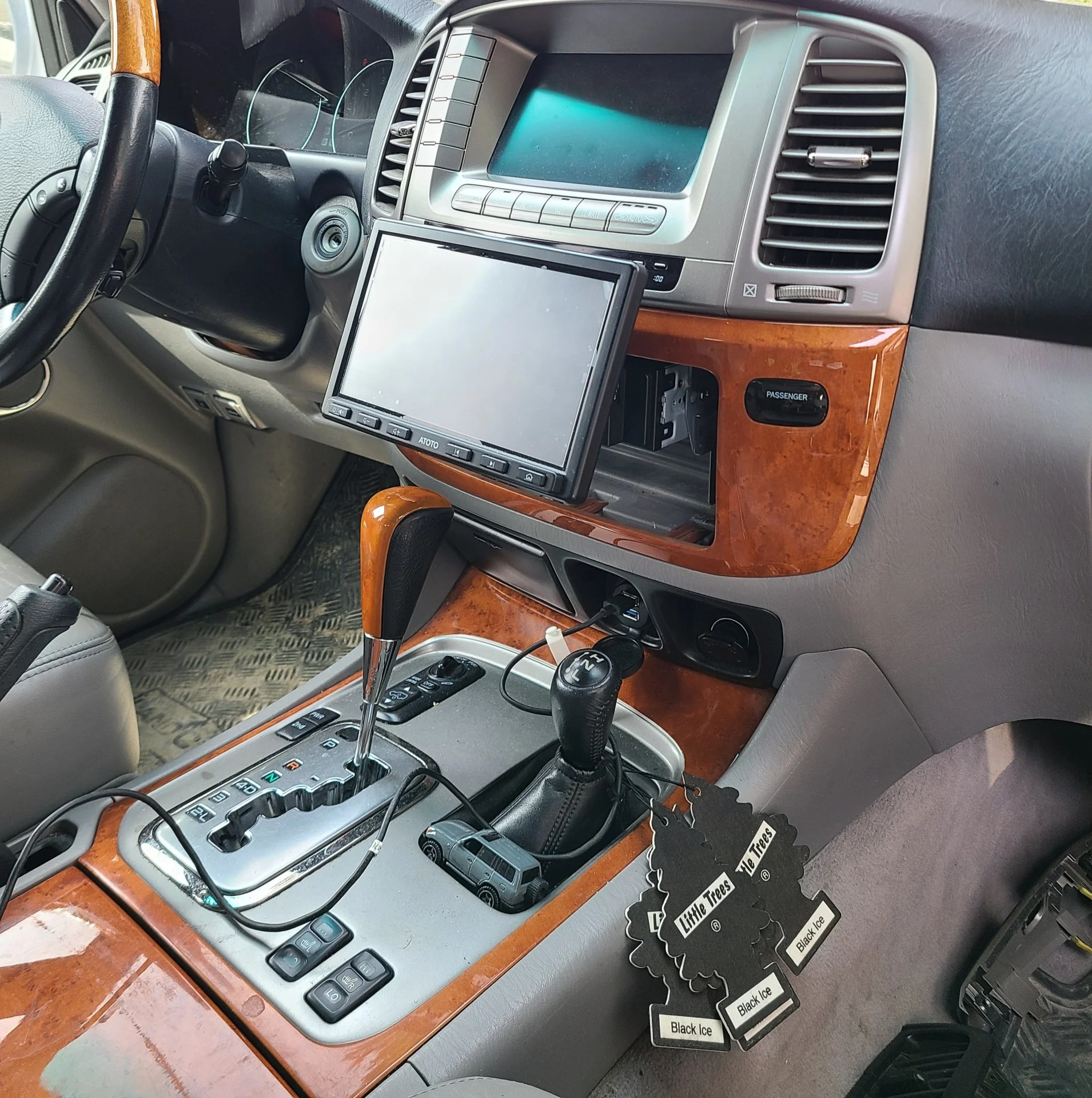

Old setup (very close to the shift knob):

20220415 141753


.

C

Coin

Joined
Oct 8, 2018
Messages
181
Location
N. Texas
I absolutely LOVE the dial climate controls. I really wish my LX had those. So much easier to adjust quickly than dicking around with the touch screen.

C

Coin

Joined
Oct 8, 2018
Messages
181
Location
N. Texas
You know, if you were to put together a guide on how to do this, with parts, people would pay for it. I know I would. I liked jerryb's work to use the digital climate controls, but it required parts that were virtually unavailable. If these parts are easy to source, this could be valuable knowledge.

I don't say this to take away from mud's knowledge base, only to give lndcrzrr motivation to make a guide!

W

wbwufpack

Joined
Sep 29, 2021
Messages
13
Location
Denver, CO
You know, if you were to put together a guide on how to do this, with parts, people would pay for it. I know I would. I liked jerryb's work to use the digital climate controls, but it required parts that were virtually unavailable. If these parts are easy to source, this could be valuable knowledge.
I don't say this to take away from mud's knowledge base, only to give lndcrzrr motivation to make a guide!
+1. Nice work!

excessive

excessive

Joined
Jan 11, 2011
Messages
1,642
Location
Charleston, sc
You know, if you were to put together a guide on how to do this, with parts, people would pay for it. I know I would. I liked jerryb's work to use the digital climate controls, but it required parts that were virtually unavailable. If these parts are easy to source, this could be valuable knowledge.

I don't say this to take away from mud's knowledge base, only to give lndcrzrr motivation to make a guide!

+2
