09-12-06, 03:59 PM
|
#1 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| 2F Crank Pulley
I need a 2F Crank Pulley/Harmonic Balancer with 2 grooves for a '76 2F. Mine wobbles because the key way has been torn up thanks to a forced installation. PM if you have one.
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
|
|  |
|
09-12-06, 11:00 PM
|
#2 (permalink)
| | Forum Lifer
Join Date: Mar 2003 Location: on thin ice
Posts: 7,481
| got one for $50 shipped to you. | |
| | |
09-13-06, 12:34 PM
|
#3 (permalink)
| | photosynthesizing
Join Date: Oct 2003 Location: Palm trees and cool streams
Posts: 4,561
| Quote: |
Originally Posted by orangefj45 got one for $50 shipped to you. | Dang, beat me to it.
__________________
aka Bushrat
1969 FJ40 Project TOROTE: Tim@DOA 3FE stroker (aka 2FE), H55F, SOA/SR, 35" MT/R, 3:1TC, 4WDB ... assembled!
1985 4Runner: lifted, locked, Tim@DOA 22RE, 4.7 tc, with 33" training wheels. R151F with dual 23-spline TCs in the garage.
"EFI Jon, EFI." - Juane | |
| | |
10-04-06, 04:04 PM
|
#4 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| Thanks guys for the quick response and parts!
Turns out the pulley orangeFJ45 sold me first wasn't quite right. It has one wide pulley groove and one narrow groove. I needed one with two wide pulley grooves. Maybe pre-1976 2Fs use the one wide + one narrow pulley? Who knew? Being that the pulley wasn't that expensive and shipping is, it didn't make sense to send it back to sit on orangeFJ45's garage shelf. The pulley can sit on my shelf. So if anyone needs this specific pulley you know how to reach me.
Luckily pappy did have the one I needed and in really nice shape. So I'm motoring on, wobble free.
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
| |
| | |
10-04-06, 10:39 PM
|
#5 (permalink)
| | elder statesman
Join Date: Apr 2004 Location: so cal, going 45
Posts: 8,619
| lbrillhart, in case you happen to see a 'want' ad yourself, that pulley would have been used on a 73-74 model. Narrow outer belt for the smog pump, wider inside belt for the alternator, F engine.
Hth
Mark A.
__________________ A carbureted man in a fuel injected world.
65SWB45, 64LWB45, 68FJ40, 69FJ40, 72VJ40, 76HJ45[gone],84FJ60[gone], 76K5, 73Sub454, 97Sub5.7, 2002 Trailblazer
TLCA member, The White Trash Of The Elwood chapter
my website: http://www.marksoffroad.net IT'S FASTER if you CALL ME! | |
| | |
10-05-06, 10:13 PM
|
#6 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Willamette Valley-Oregon
Posts: 674
| [quote=65swb45;1449895]lbrillhart, in case you happen to see a 'want' ad yourself, that pulley would have been used on a 73-74 model. Narrow outer belt for the smog pump, wider inside belt for the alternator, F engine.
65swb45 and lbrilhart
Would the narrow pulley groove be compatible with a GM power steering pump pulley? I am collecting parts to do pwr on a 1971 40 with a stock F engine. | |
| | |
10-06-06, 09:15 AM
|
#7 (permalink)
| | 250+ Club
Join Date: Apr 2004
Posts: 913
| Would the narrow pulley groove be compatible with a GM power steering pump pulley? I am collecting parts to do pwr on a 1971 40 with a stock F engine.[/QUOTE]
I used a narrow pully on the pump with that pully, just make sure you have the correct water pump pully with spacer as well, Larry | |
| | |
10-06-06, 09:25 AM
|
#8 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| I don't have any experience doing the PS conversion with the narrow pulley.
I'll post a pic of the pulley by tomorrow. Let me know if you'd like any measurements from the pulley.
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
| |
| | |
10-07-06, 08:45 AM
|
#9 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Willamette Valley-Oregon
Posts: 674
| lbrillhart
Thanks! Yes, measurements would be appreciated, across the width of the groove at the top and the depth of the groove.
Again, thanks.
Handcannon | |
| | |
10-09-06, 05:10 PM
|
#10 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| handcannon,

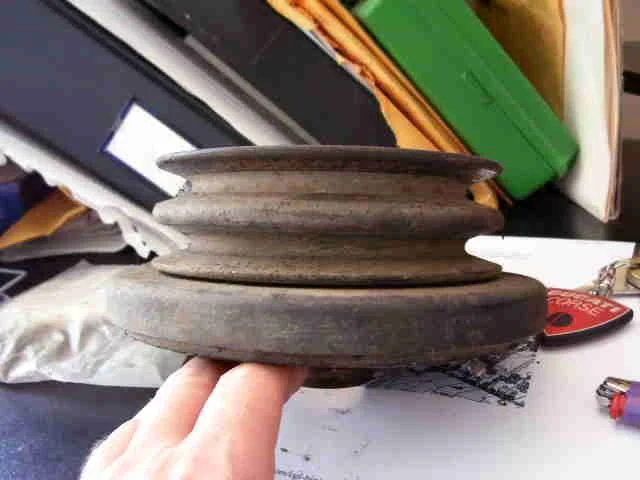

The width of the outer "skinny" pulley is 3/8" narrowing to about 1/8" at the bottom and is 1/2" deep .
The width of the inner "fat" pulley is 5/8" narrowing to about 3/16" at the bottom and is 3/4" deep .

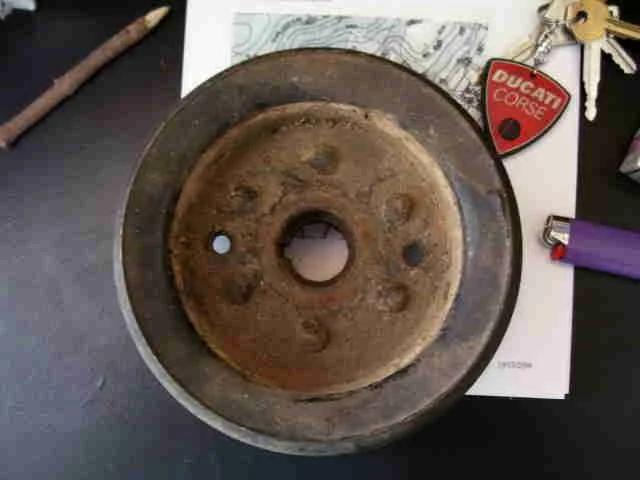

BTW, the profile pic shows something blocking the pulley groove. It's a cob web. I can leave it or clean it out - your choice  .
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
| |
| | |
10-09-06, 10:09 PM
|
#11 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Willamette Valley-Oregon
Posts: 674
| lbrillhart

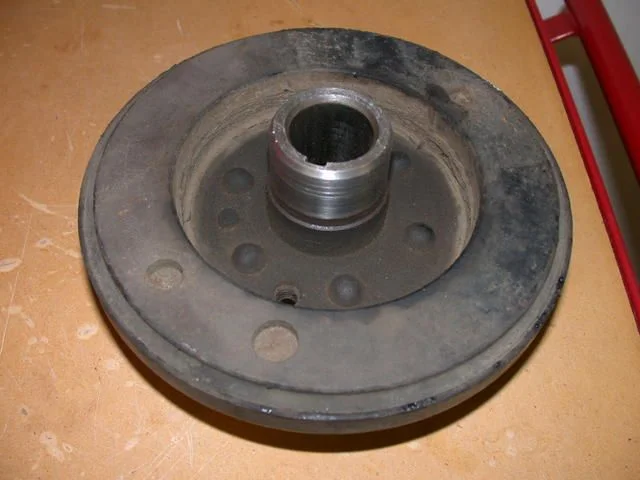

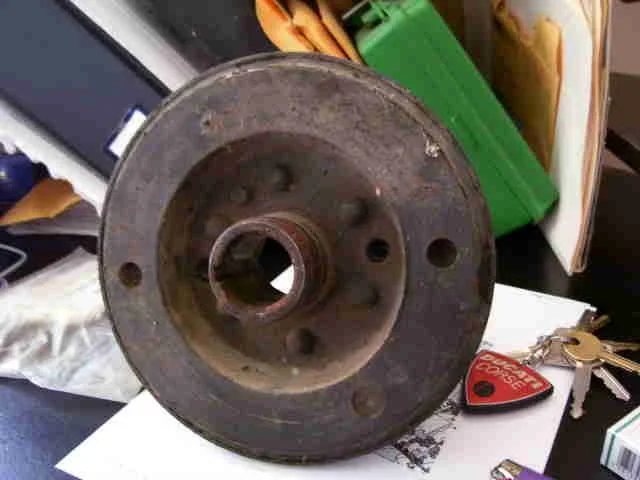

Just a couple more quick questions. The second pic looks like the surface the front seal runs on needs to have a speedi-sleeve. Is this correct? How much do you want for it shipped to 97321?
Thanks
Last edited by handcannon; 10-10-06 at 06:58 AM.
| |
| | |
10-10-06, 09:12 AM
|
#12 (permalink)
| | Site Addict
Join Date: Oct 2005 Location: Hagerstown MD
Posts: 1,756
| Do you still need a 2f pulley with two same sized grooves?
__________________
1978 (mostly) FJ-40, lift, 2F, bigger tires and custom swiss cheese body panels to reduce weight!
Various other toys 87 4runner, Motorcycles Ducati and Triumphs with an old Mach III in the mix.
| |
| | |
10-10-06, 09:12 AM
|
#13 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| Yes I think it needs a sleeve. I can ship it out tomorrow for $50, including shipping.
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
| |
| | |
10-10-06, 09:49 PM
|
#14 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Willamette Valley-Oregon
Posts: 674
| lbrillhart
Sent you a PM
Handcannon | |
| | |
10-11-06, 09:16 AM
|
#15 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| F-Junker - Pappy sold me the one I needed. Thanks though!
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
| |
| | |
10-11-06, 02:00 PM
|
#16 (permalink)
| | Site Addict
Join Date: Jun 2003 Location: Davis, CA
Posts: 1,025
| F-Junker,
I'll take your pully as long as it has the wide grooves. I'll pm you as well. | |
| | |
10-12-06, 11:00 PM
|
#17 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Willamette Valley-Oregon
Posts: 674
| lbrillhart
Did you get my PM? I'm interested in the pulley.
Handcannon | |
| | |
10-13-06, 08:17 AM
|
#18 (permalink)
| | IH8MUD Lurker
Join Date: May 2005 Location: Broomfield, CO
Posts: 22
| I did receive your PM and replied. I thought. I'll try again.
__________________
1976 FJ40 Resto/Mod
Currently - in about as many pieces as imaginable
Someday - 2F, 4spd, EFI, Mini P/S, Rear Discs, 3.73s, 2" OME Lift
| |
| | |
10-13-06, 08:57 AM
|
#19 (permalink)
| | Site Addict
Join Date: Oct 2005 Location: Hagerstown MD
Posts: 1,756
| I have the pulley it took some digging, I throw up a pick after I take a conference call at 11am. It has the same size pulley grooves
__________________
1978 (mostly) FJ-40, lift, 2F, bigger tires and custom swiss cheese body panels to reduce weight!
Various other toys 87 4runner, Motorcycles Ducati and Triumphs with an old Mach III in the mix.
| |
| | |
10-14-06, 07:35 AM
|
#20 (permalink)
| | Site Addict
Join Date: Oct 2005 Location: Hagerstown MD
Posts: 1,756

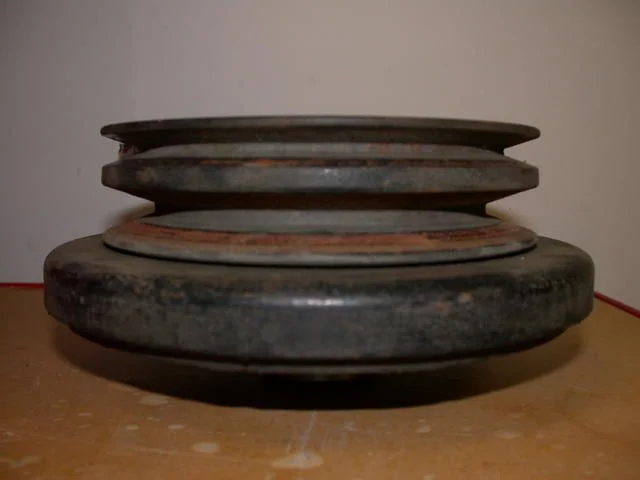

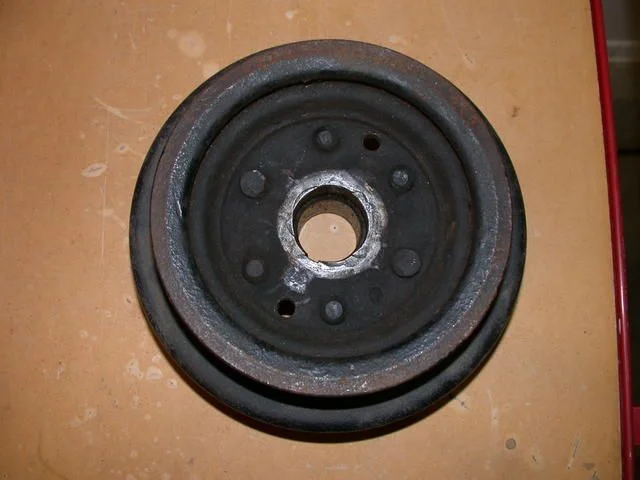

| Pics of the pulley
Quote:
Originally Posted by iron_giant  F-Junker,
I'll take your pully as long as it has the wide grooves. I'll pm you as well. |
It's got a little dried mud in it, but looks good, no heavy pitting, but dirty.
Let me know if you want it, I can ship it out on Monday or Tuesday. Did you look into any of those parts listed in my pm? -Junk
__________________
1978 (mostly) FJ-40, lift, 2F, bigger tires and custom swiss cheese body panels to reduce weight!
Various other toys 87 4runner, Motorcycles Ducati and Triumphs with an old Mach III in the mix.
| |
| | |
