My scratch built expedition style trailer build up thread

[REZARF]

I worked with this really strange stuff all day...





























































Wood!

Man, I love working with wood compared to metal, it shapes SO nicely and with no resistance!

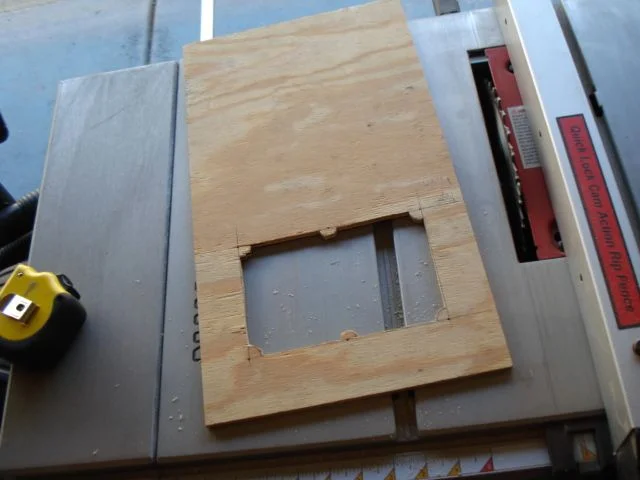

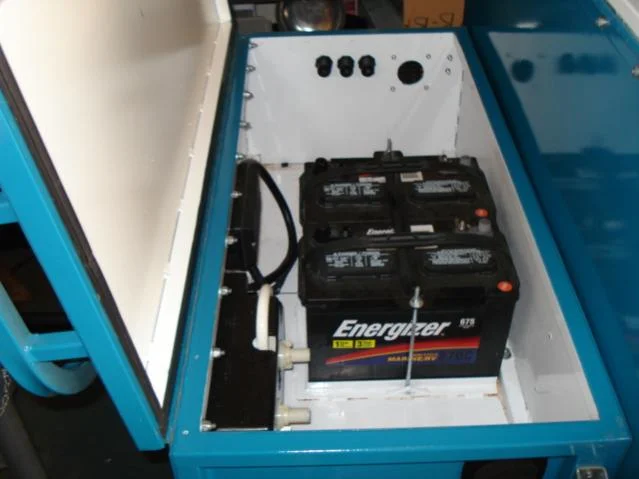

I cut out a piece of 1/4" plywood to span the gap over the batteries and trailer wiring junction box. I will attach the panel with a great industrial Velcro that I have had great success with before and it will work in this application with NO problems. The whole thing only ways a couple of pounds. This way I can hide all the wires underneath the panel and not have a sloppy looking rats nest of wire.

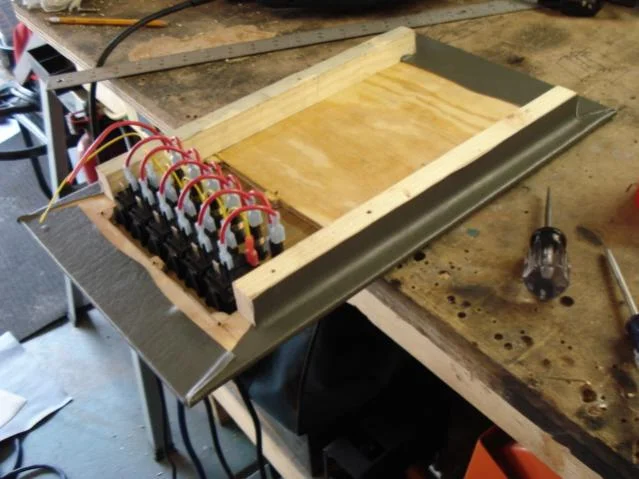

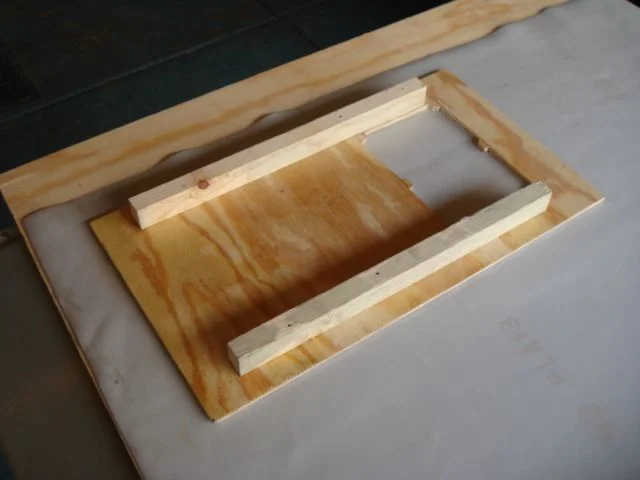

I added a few strips of ripped down 1x to make little stiffeners for the panel so it wouldn't flex over time and it will add a little strength for placing things on this little shelf.

[REZARF]

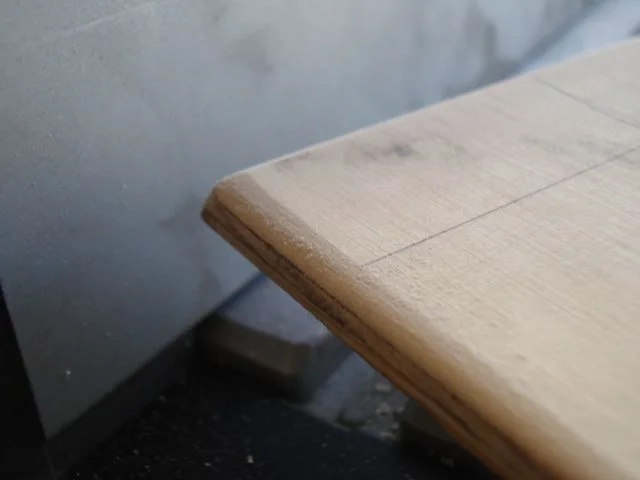

Can you believe I didn't even need a grinder to make these round overs!

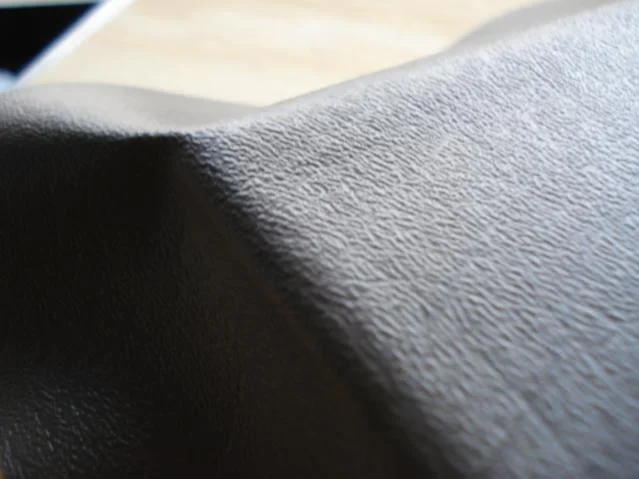

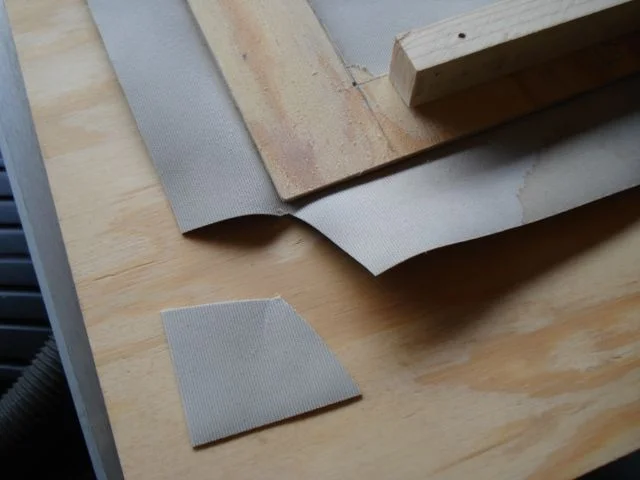

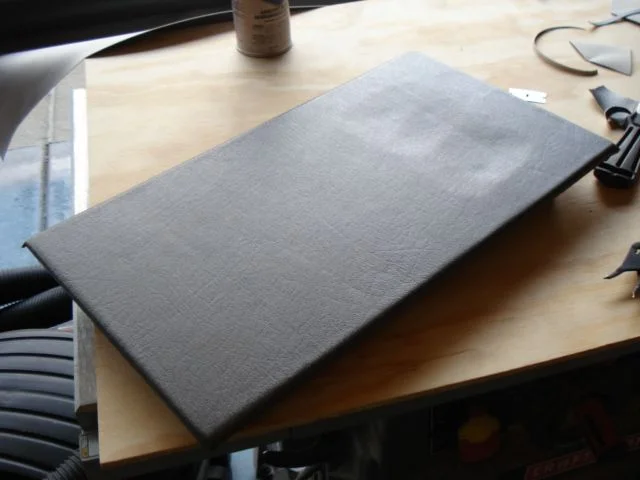

I decided to use some left over marine vinyl from another project to cover the panel and dress it up a bit. I simply spray both surfaces to be bonded (the vinyl and the plywood) and wait about a minute for the adhesive to set up to a nice tack... then slap them together. Then flop it over and make sure you cut out enough material in each corner for the material not to overlap on itself too much.

[REZARF]

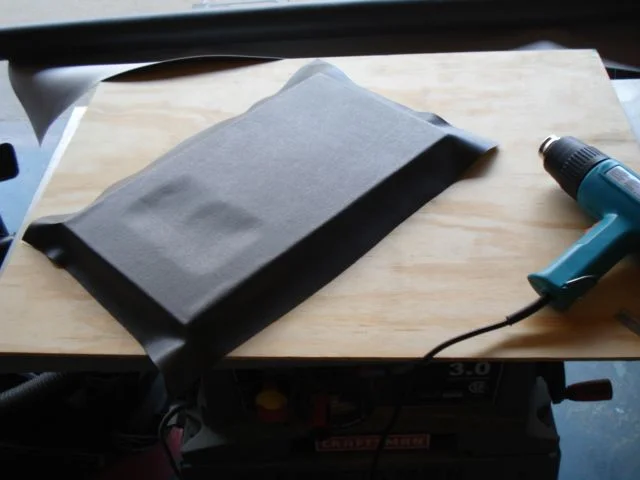

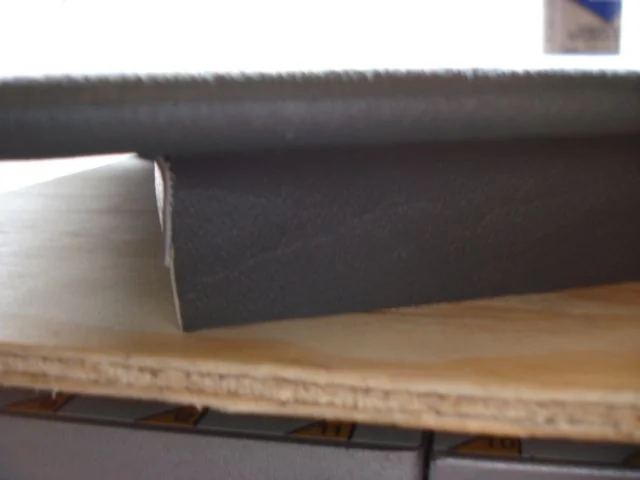

Next bust out a heat gun and hit one edge at a time and get the vinyl nice and hot (it will stretch much easier this way) and if you watch really close you can just see the vinyl start to get glossy before it starts to burn and right before it burns you grab the edge and fold it over for a nice clean seam and crips lines.

[REZARF]

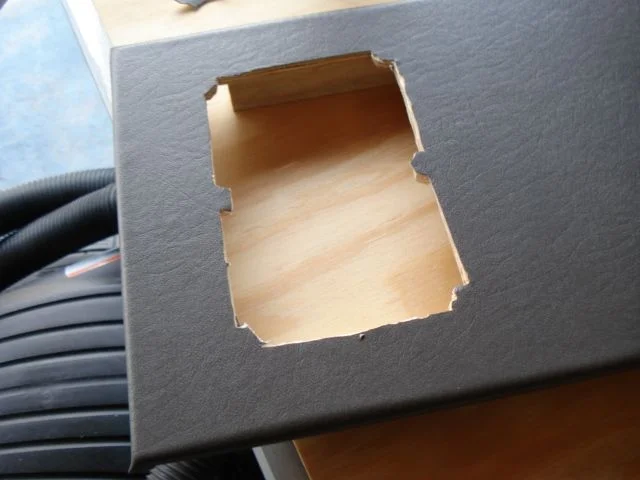

Next all you have to do is dive in the center of your cut out with a razor and slice along the sides to open up your hole for the panel. It doesn't need to look good, it will all be covered by the overlap of the fuse panel. Then I screwed the fuse panel into the plywood for a final fit... and fit it did!

[REZARF]

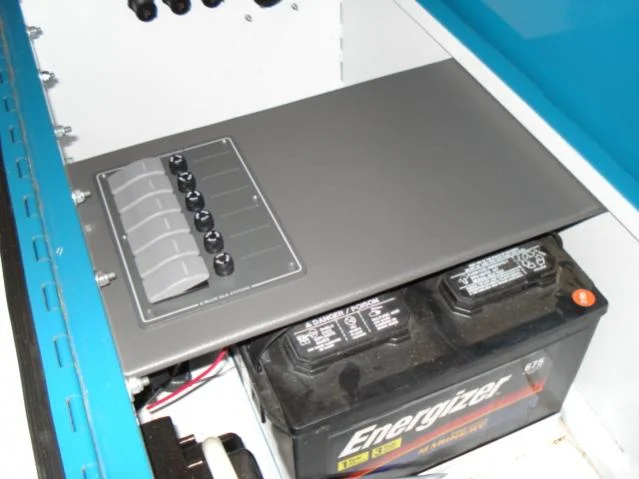

Here it is all fit up and installed. Next I need to run a small harness to turn on all the different goodies on the trailer here is how things will get used...

Aux 12v Outlets
ARB Freezer
LEDs for lighting under the tent (mood lighting)
Water Pump
Interior Tent Lights
Spare (maybe an inverter)

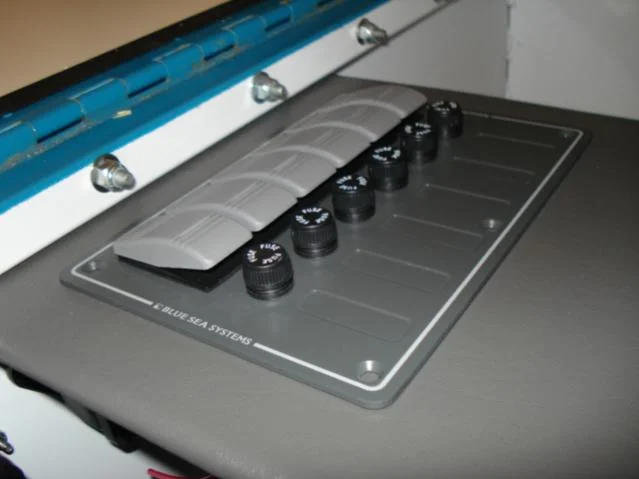

I can order labels through blue sea very inexpensively and I plan on doing so for each of the labels above, it adds a really nice custom look.

[REZARF]

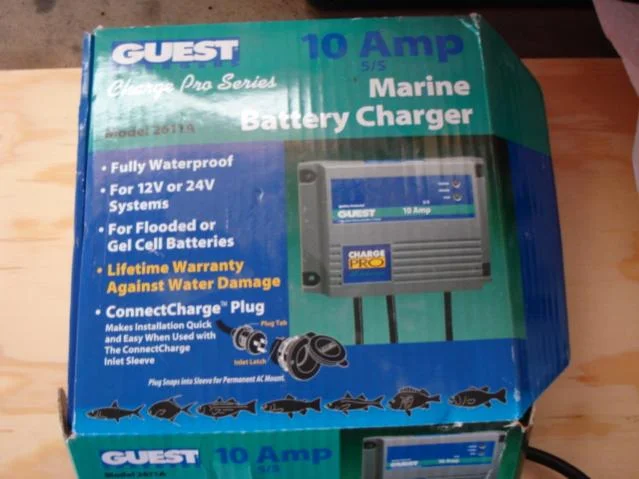

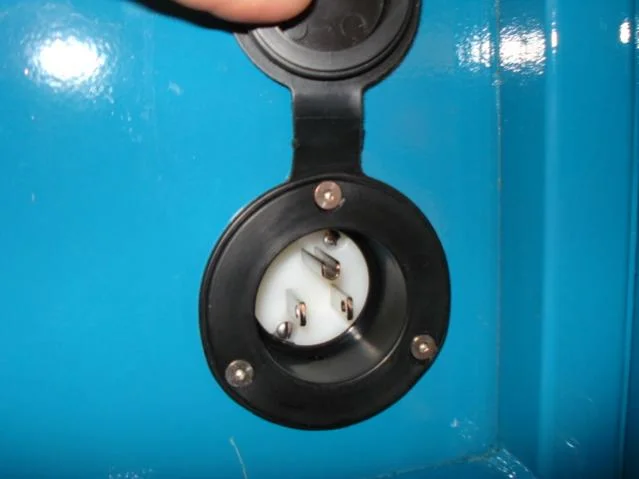

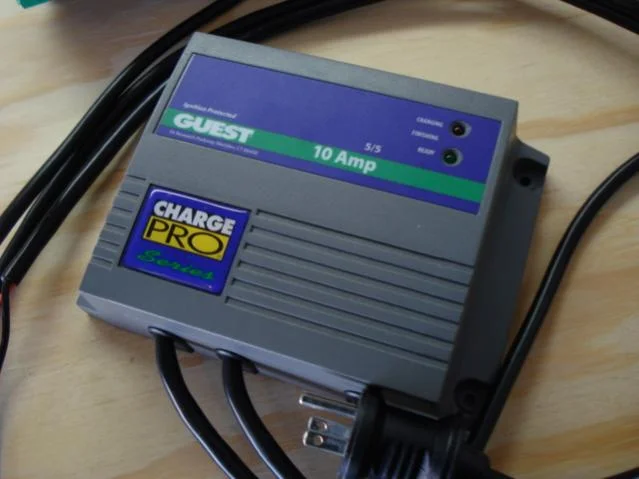

I installed the Marinco Shore Power outlet too, and here is a shot of the yet to be installed 2 bank battery charger that loads, floats and maintaines the batteries all on it own. I hope it works out well, but then with an extension cord I can have limitless power at any RV site or hotel plug in. You can use the batteries while being charged which is pretty sweet.
