Pics Wanted: Your tent/trailer setup - Page 4

davegonz · 03-19-07, 10:42 PM

After screwing up my finger, I really didn't have the patience for doing any calculations....Jason (Arcteryx) and I basically drilled 3 sets of holes before we got it to work. Yes, I'm a lazy engineer. If you get the same ones I got (from McMaster Carr), I can take some dimensions for you to save you some grief.

Erich_870 · 03-21-07, 01:00 PM

Quote:

Originally Posted by Rubiconcruiser

Sorry about the finger Dave, anyway how did you calculate the gas shock dimension for the top lift?

McMaster-Carr has some good info on how to design your gas shocks.

http://www.mcmaster.com/nav/enter.asp?pagenum=1137

Erich

REZARF · 03-21-07, 08:32 PM

good info, thanks for sharing.

cbmontgo · 03-21-07, 08:34 PM

Quote:

Originally Posted by Erich_870

McMaster-Carr has some good info on how to design your gas shocks.

http://www.mcmaster.com/nav/enter.asp?pagenum=1137

Erich

Damn. I wish I had read that before I bought the freakin' 250# ones...

Grouseman · 04-04-07, 09:10 PM

Let's keep this thread going.

SS

loquito · 04-12-07, 01:44 AM

Quote:

Originally Posted by cbmontgo

Here are a couple more.

Hi, I was wondering if you would do me a favor?
I am shamelessly copying your lid. I was wondering if you would be willing to post pics and more details on the metal building studs you used. Thank You
Steven

cbmontgo · 04-13-07, 07:34 PM

Quote:

Originally Posted by loquito

Hi, I was wondering if you would do me a favor?
I am shamelessly copying your lid. I was wondering if you would be willing to post pics and more details on the metal building studs you used. Thank You
Steven

I don't have too many pics of the studs themselves, but they are basic steel studs that you'd find at Home Depot. I came up with the idea because I needed something lightweight and strong. Wood is too heavy for this application.

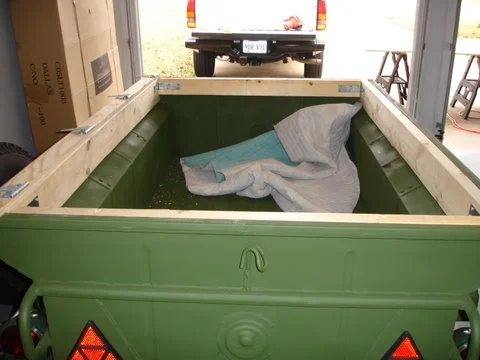

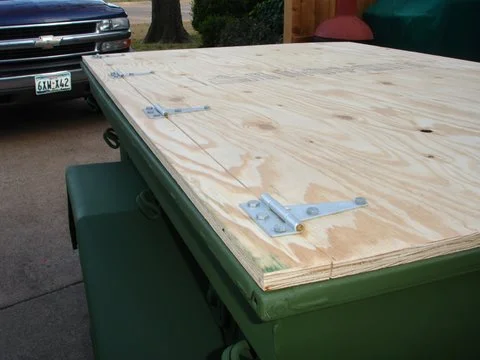

Here are some pics of the plywood deck and frame. It just survived a tough trip to Big Bend and 250 off-road miles and still is very tight...

landy67 · 06-09-07, 04:38 PM

I finally have my trailer to the point that I can post a picture or two.

I still have to put on tires that match the truck, add gas shocks and paint the lid, but this is what I came up with. I’m able to get at stuff inside the trailer through the opening in the rear of the lid, and it’s a real comfortable place to spend the night.

I expect to do lots of off road camping this year.

Thanks for the ideas!

Dan H
Pembroke, MA
dan@landy67.com

cbmontgo · 06-09-07, 07:52 PM

It's looking good! I love the old Rover too.

REZARF · 06-11-07, 09:42 PM

Landy-

Looks good man! I Love the dual doors for sure. However, it looks like MDF of something similar, I would look into an excellent sealant before getting it too wet.

I could be way off.

Rezarf <><

landy67 · 06-14-07, 12:35 PM

Sorry for the delay responding…

The top’s not MDF, it’s made out of MDO. MDO is marine grade plywood that has a hard paper face on the exterior. It holds paint forever, and is real top quality plywood. This is the stuff that the highway signs are made of.

The only real down side is the weight. Man is this stuff heavy. I may try to make a heavy duty arrangement like the ones that ARE uses for their toneau covers. That way I can use a short throw piston that will give me more control for opening and closing.

I’ll post pictures of whatever I end up doing.

LX470Pilot · 06-15-07, 08:50 PM

Couldn't find it in a search, other than people asking the same question I'm about to...

Anyone have any experience with Safari Trailers (http://www.safaritrailers.com/)?

I'm really interested in getting one, but can't find any information other than their site.

Anybody?

kent l · 06-17-07, 12:58 AM

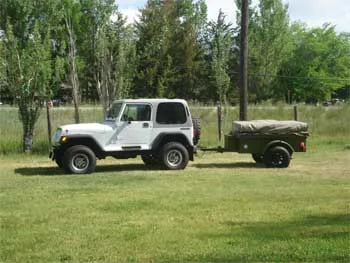

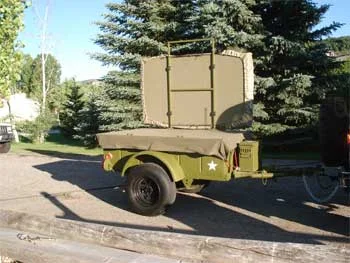

this is mine

cbmontgo · 06-17-07, 09:21 AM

Quote:

Originally Posted by kent l

this is mine

Sweet! That looks almost identical to mine, just Bantam-style!

Grease Cruiser · 06-17-07, 05:47 PM

Quote:

Originally Posted by cbmontgo

Sweet! That looks almost identical to mine, just Bantam-style!

Could be Bantam or could be Willys MBT. Hard to tell. Nice looking trailer though.

DBOZ40 · 06-18-07, 02:06 PM

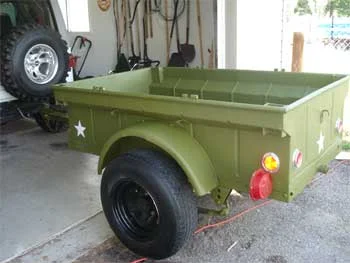

Here are some progress pictures of what my son and I are working on. . .

If you guys have any cool ideas for a cooler/fuel can rack for the front, let's here 'em.

Donn

Rubiconcruiser · 06-18-07, 10:17 PM

For those of you who dont already know, the Can Back trailer top as is displayed prior to this thread is back in business, TEL 1 877 763 8867 Phoenix, Arizona

kent l · 06-19-07, 12:09 AM

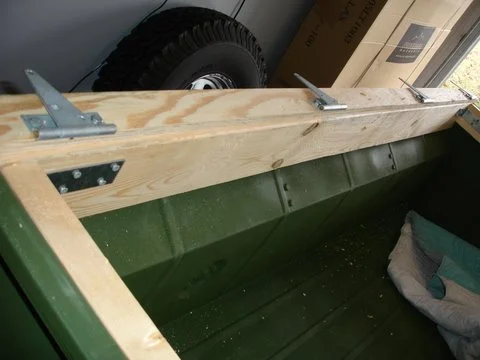

here is a pic of my frame and lid. It can hinge on either side. I can also lift it off and just use the trailer that is why I made the frame 4inches outside the box. An added benifit was the lids stays vertical for the loading of camp gear then i just shut it pin it and go.

cbmontgo · 06-20-07, 06:35 AM

Quote:

Originally Posted by kent l

here is a pic of my frame and lid. It can hinge on either side. I can also lift it off and just use the trailer that is why I made the frame 4inches outside the box. An added benifit was the lids stays vertical for the loading of camp gear then i just shut it pin it and go.

That is really a great idea. I have never seen it done this way before.

davegonz · 06-20-07, 12:08 PM

I like it. Are you going to put some gas springs on there to help lift the tent?

kent l · 06-29-07, 11:06 PM

cbmontgo
I got the Idea from looking at your posts. I liked the how yours lid was easy to construct but I wanted a wwII looking tarp instead of a lid. The way you hinged it made me think of an easy solution.. I like the way the tent comes of in one piece with the frame. Me and my 18 year old son can move it with out any strain. I am looking at some gas struts but I kind of like how it goes vertical and stays. It is not to hard to lift I just get on one corner and push it up it is not to bad to get up.
It is a nice set up I can pull it with my Rovers and my jeep. I know I don"t have a Toyota now but I have owned a few. The Toyota guys are aways one step a head of the jeep guys

Thanks for the idea.

450 DUDE · 07-04-07, 05:13 PM

Here are some progress pictures of what my son and I are working on. . .

If you guys have any cool ideas for a cooler/fuel can rack for the front, let's here 'em.

Donn[/quote]

Looks great !!
For the front , Maybe triangulate the tongue and build up a platform.
You could also incorporate a storage box up there.

ken

cbmontgo · 07-05-07, 04:38 PM

Quote:

Originally Posted by kent l

cbmontgo
I got the Idea from looking at your posts. I liked the how yours lid was easy to construct but I wanted a wwII looking tarp instead of a lid. The way you hinged it made me think of an easy solution.. I like the way the tent comes of in one piece with the frame. Me and my 18 year old son can move it with out any strain. I am looking at some gas struts but I kind of like how it goes vertical and stays. It is not to hard to lift I just get on one corner and push it up it is not to bad to get up.
It is a nice set up I can pull it with my Rovers and my jeep. I know I don"t have a Toyota now but I have owned a few. The Toyota guys are aways one step a head of the jeep guys

Thanks for the idea.

Cool!

stoo · 07-11-07, 04:40 PM

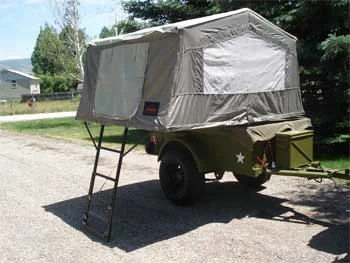

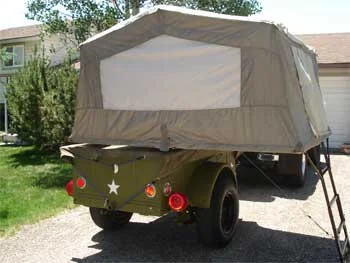

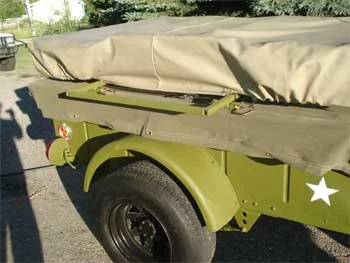

Here's our setup, it's not much like what you guys have over there though.
It has electric brakes, 33"BFG mud to match the car, Q/S bed up top, full kitchen, 60lt water tank, shower etc. etc.
Stu

As new

DIY kitchen (unfinished in these pics)

All set up, without the front wall zipped in.

rutbeer · 07-11-07, 07:34 PM

I think I just wet myself

450 DUDE · 07-11-07, 09:13 PM

That thing rules above all else that rule!

And I also have soiled myself.

ken

spressomon · 07-11-07, 09:52 PM

Yeah...nice trailer! There's a market stateside for that one!
