tube fender build

Discussion in '40- & 55-Series Tech' started by 2badfjs, Aug 30, 2008.

  1. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage
    i needed to do something with my front fenders ever since extending my wheel base to 104"
    sooo, i started tackling this awhile back and finally got a chance to start mounting them up.
    i started by mocking up the left fender first. took all my notes and bending angles and measurements, then made the right fender with just the specs (no mock up)

    i will still add bracing and plan on making a x-piece that will be removable from fender to fender and connect them to the bib.
    i might even mount my shocks to them.

    pics are in order of build.

    :D

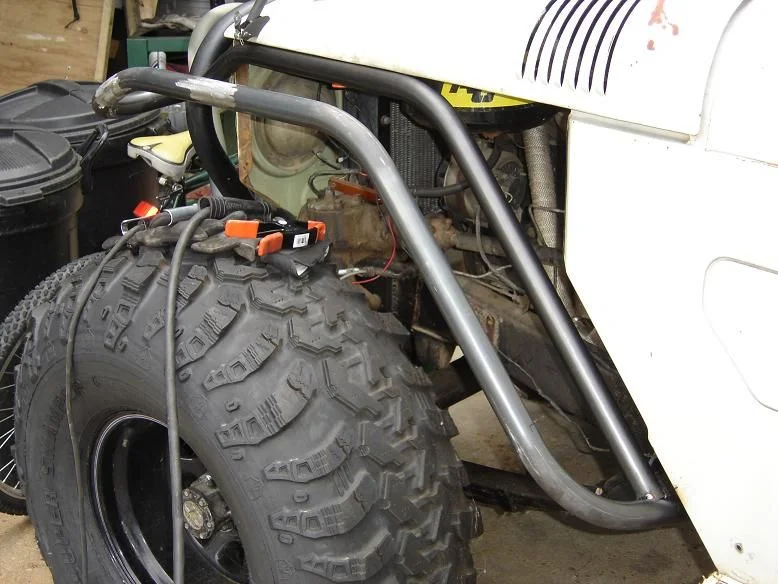

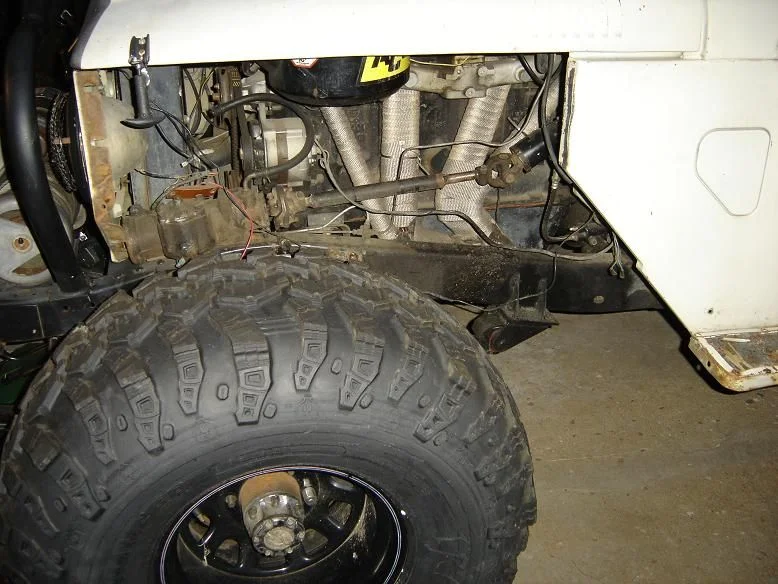

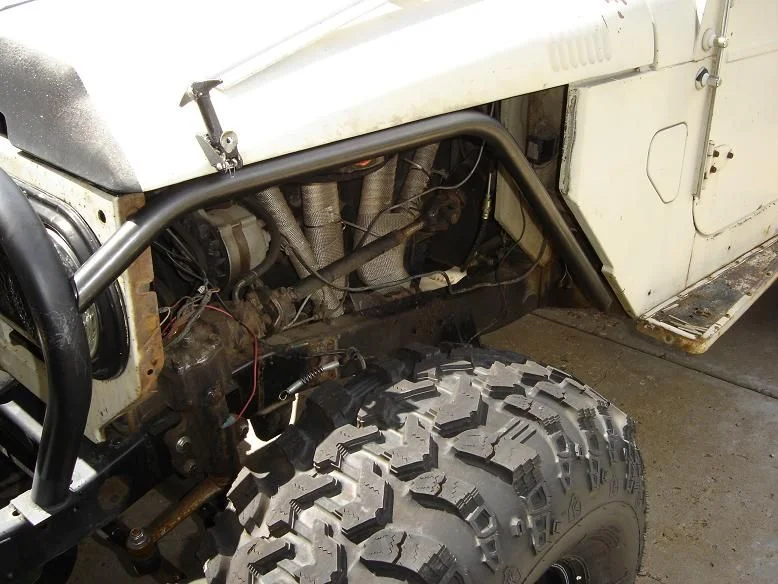

    DSC02559.JPG DSC02563.JPG DSC02565.JPG

  2. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage

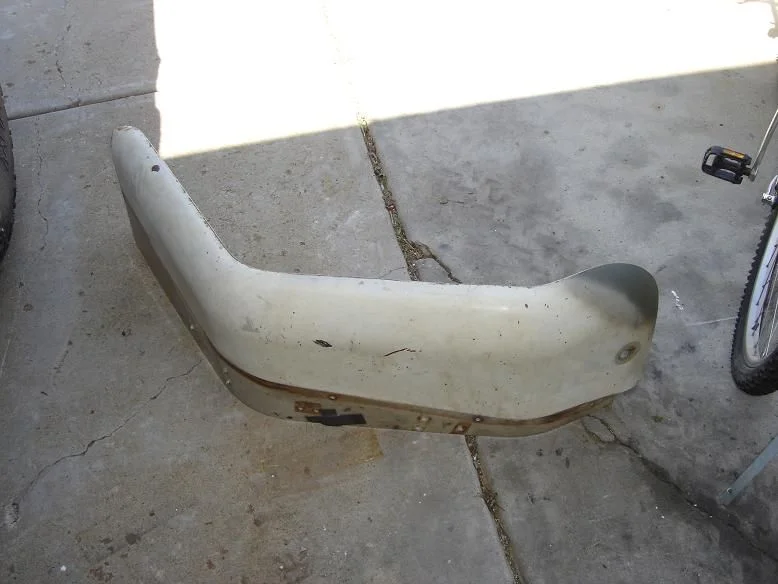

    the last pic here is of the perfect 69 fender that i cut up and not even sure if i'll use it to skin these :D

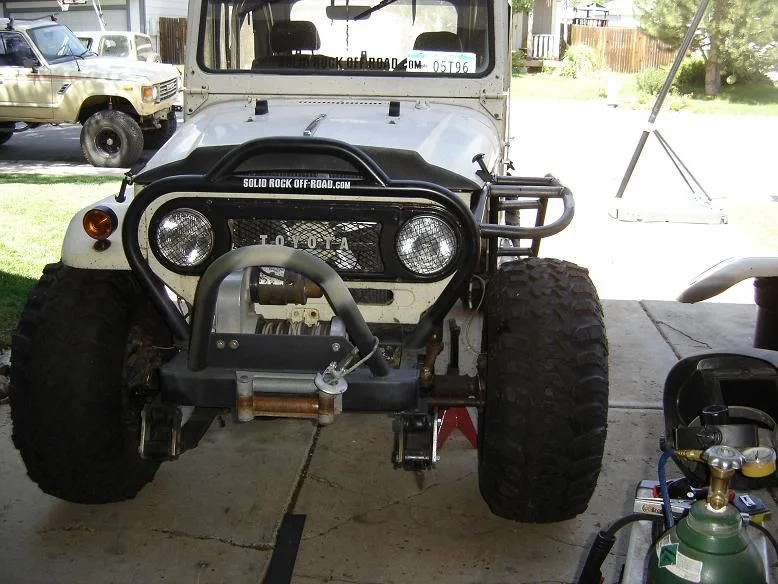

    DSC02568.JPG DSC02569.JPG DSC02570.JPG

  3. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage

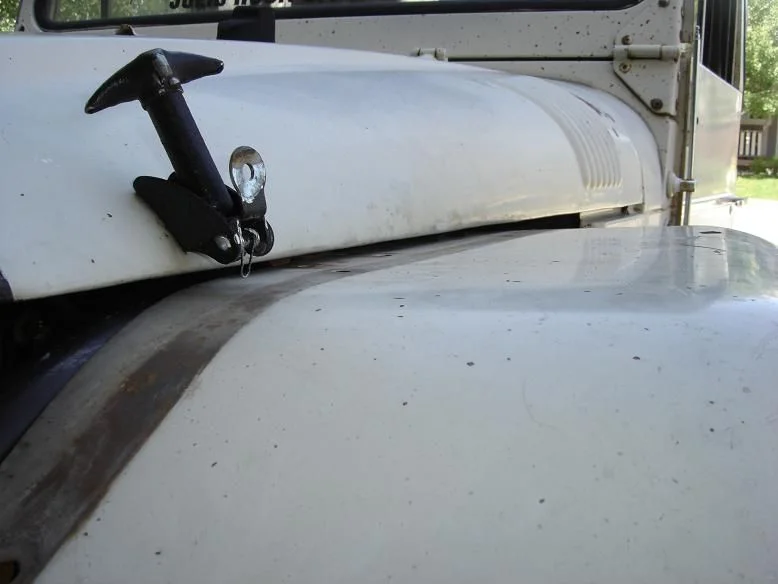

    before and after pic between fenders
    body line at the hood

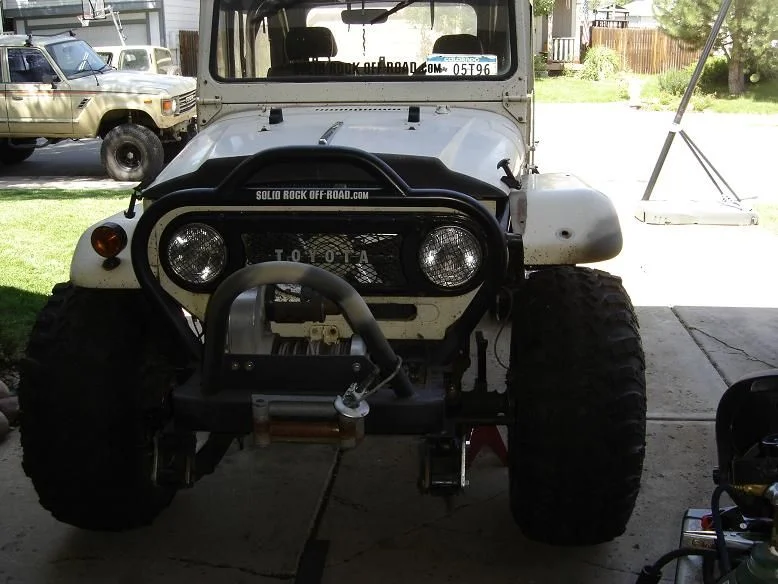

    DSC02571.JPG DSC02573.JPG

  4. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage
    last ones for now of the right side.
    put a bit o' paint on them to slow the rusting out in the weather.

    BTW, these are tied into the hood hoop, not the bib.

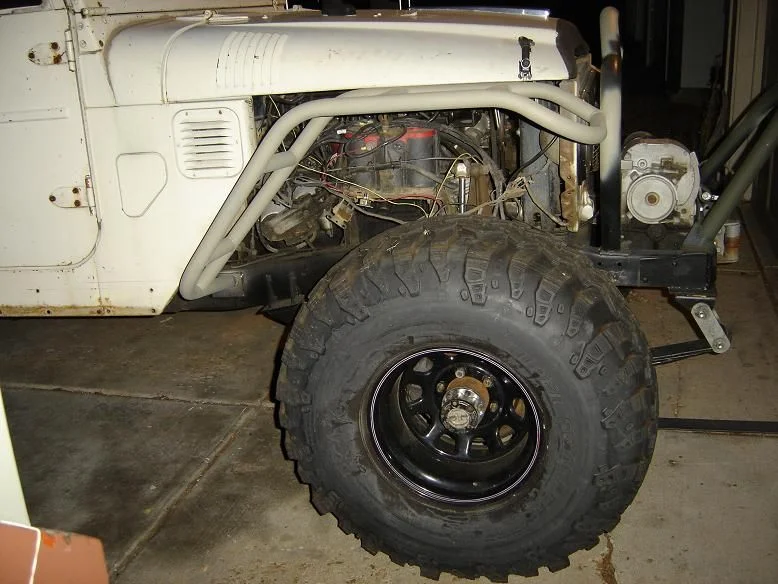

    DSC02575.JPG DSC02576.JPG

  5. fj40forlife

    fj40forlife

    Joined:
    Dec 18, 2005
    Messages:
    1,497
    Location:
    Orange County
    thats what I been thinking of doing. but I need some tires to see how everything is going to fit first looks nice dud

  6. Rix86

    Rix86

    Joined:
    Aug 20, 2008
    Messages:
    273
    Location:
    Tacoma
    Similair to what I started tonight...
    The one I'm doing will connect to the sliders though.

  7. LC_Hamma

    LC_Hamma The Anti-Leafer SILVER Star

    Joined:
    Nov 11, 2002
    Messages:
    2,826
    Location:
    Dallas, Georgia
    I see where you had to butt weld twice ;p That compound curve in the front takes some tricky measuring & tube adjustment on the bender. I'd have to do the same thing. Looks :smokin: You using 1 1/2" HREW?

  8. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage
    thanks LC, thanks guys!
    i figured if i overshot a measurement i could butt weld it. i measured the cut and readjusted where the bend started on the right fender.(no butt weld there);)

    but the compound bend at the front had to be cut and rewelded to get the two bends to look right.

    the stock fender fits pretty good.

    yup, 1.5 hrew

  9. brokenparts

    brokenparts

    Joined:
    Apr 4, 2006
    Messages:
    3,893
    Location:
    Hillsboro, OR
    right on man... looks good. Now let's what you can do for that 60. :)

    Still lovin' my rear 60 bumper!

  10. D'Animal

    D'Animal Rescuer of Beagle and Landcruisers Moderator

    Joined:
    Mar 31, 2006
    Messages:
    20,776
    Location:
    Central California
    Looks very Good!

    I will be having that done to my rig when the fabricator slows down a bit with other projects.

  11. handcannon

    handcannon

    Joined:
    Sep 18, 2005
    Messages:
    1,371
    Location:
    Willamette Valley-Oregon
    Love it!! Be interested to see pricing when you get to that part. I like the idea of putting the stock fender over the tube for stock looks.

  12. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage
    not sure if i'll be marketing these.

    good looking boxers in your avitar!!

  13. D'Animal

    D'Animal Rescuer of Beagle and Landcruisers Moderator

    Joined:
    Mar 31, 2006
    Messages:
    20,776
    Location:
    Central California

    I would think these would each be custom made. Things such as Body lift, stinger, apron, no apron, etc would be a nighmare for you.


    Good Luck though!

  14. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage
    x2

    for that reason is probably why i won't sell them.

    now if someone wanted the exact same thing and a hood/bib hoop and was to mount them all at the same time.
    then it might work.

  15. FJFOOL

    FJFOOL SILVER Star

    Joined:
    Mar 14, 2006
    Messages:
    1,004
    Location:
    Federal Way, Wa.
    Nice work, they really look great!!:cheers:

  16. jimhendrixx

    jimhendrixx

    Joined:
    May 19, 2008
    Messages:
    634
    Location:
    Kenmore, WA
    WOW, that is pretty sweet!

  17. Twisty

    Twisty

    Joined:
    Nov 13, 2006
    Messages:
    620
    Location:
    Sunshine Coast, QLD, Australia
    They look great! Am planning on doing some for mine now the wheelbase is at 98", so your pics will help, thanks for posting!

    What size Iroks are they?

  18. 2badfjs

    2badfjs

    Joined:
    Jan 26, 2005
    Messages:
    5,211
    Location:
    in the garage
    36x13.5x15s

  19. Twisty

    Twisty

    Joined:
    Nov 13, 2006
    Messages:
    620
    Location:
    Sunshine Coast, QLD, Australia
    Cool, and sorry for the off-topic, but am trying to decide between them, 37x14 Iroks, 36x12.5 TSL or 35x13.5 Krawlers at the moment and by the looks I run similar lift, have you been happy with them? many clearance issues?

  20. handcannon

    handcannon

    Joined:
    Sep 18, 2005
    Messages:
    1,371
    Location:
    Willamette Valley-Oregon
    Shucks!! I was serious about the interest, guess I'll have to keep thinking about how to mod my fenders to achieve a similar look to what you got. I want to lift the fenders for more clearance without a big suspension lift or drastically changing the looks of the rig. It's going to be a DD with some back country/ hunting thrown in. No intentions of hardcore wheeling at this point.

    The big boy in the avatar is daddy 2X now. First litter was with our reverse brindle female--10 pups, 8 various shades of brindle/reverse brindle and 2 white. Second litter was with the female in the avatar (she's now full grown but still petite)--7 pups, 6 in fawn and flashy fawn and 1 white. As you can see, I'm stuck on boxers!
