Will this work?
Chris FJ80
SILVER Star
Wiring diagram
Here is a wiring diagram I made to show how the seat heaters connect to the seats in my 95. I've shown the wire colors for the wires that run into the BC1 and BC2 connectors that connect the seats to the wiring harness in the floor. This might help you.
Here is a wiring diagram I made to show how the seat heaters connect to the seats in my 95. I've shown the wire colors for the wires that run into the BC1 and BC2 connectors that connect the seats to the wiring harness in the floor. This might help you.
This is great Chris, thanks.
My 80 has original seat heating but the switches in the center console are done for. I'm replacing the originals with some simple on/off switches so I only want to chose from none or HI heating.
I dont read many wiring diagrams but if I understand this correctly i need to supply the seat connecter to the seats under the center console with Gnd to white/black and 12+ to blue/orange?
First post btw. Hello!
Many thanks
Joakim
My 80 has original seat heating but the switches in the center console are done for. I'm replacing the originals with some simple on/off switches so I only want to chose from none or HI heating.
I dont read many wiring diagrams but if I understand this correctly i need to supply the seat connecter to the seats under the center console with Gnd to white/black and 12+ to blue/orange?
First post btw. Hello!
Many thanks
Joakim
Chris FJ80
SILVER Star
Joakim
If you have OEM seat heaters and switch but you want to move to just an on/off (on being HI setting) switch, you need to do two things:
1) Put 12VDC through your new switch into the BLUE-YELLOW wire
2) Connect the BLUE-ORANGE wire to ground/earth.
If you power the BLUE-ORANGE with 12VDC, you will get the LO setting
I am attaching the FSM wiring diagram here
Good luck
If you have OEM seat heaters and switch but you want to move to just an on/off (on being HI setting) switch, you need to do two things:
1) Put 12VDC through your new switch into the BLUE-YELLOW wire
2) Connect the BLUE-ORANGE wire to ground/earth.
If you power the BLUE-ORANGE with 12VDC, you will get the LO setting
I am attaching the FSM wiring diagram here
Good luck
Chris FJ80
SILVER Star
For passenger side:
1) 12VDC into the black wire
2) Connect the yellow wire to ground/earth
Good luck!
1) 12VDC into the black wire
2) Connect the yellow wire to ground/earth
Good luck!

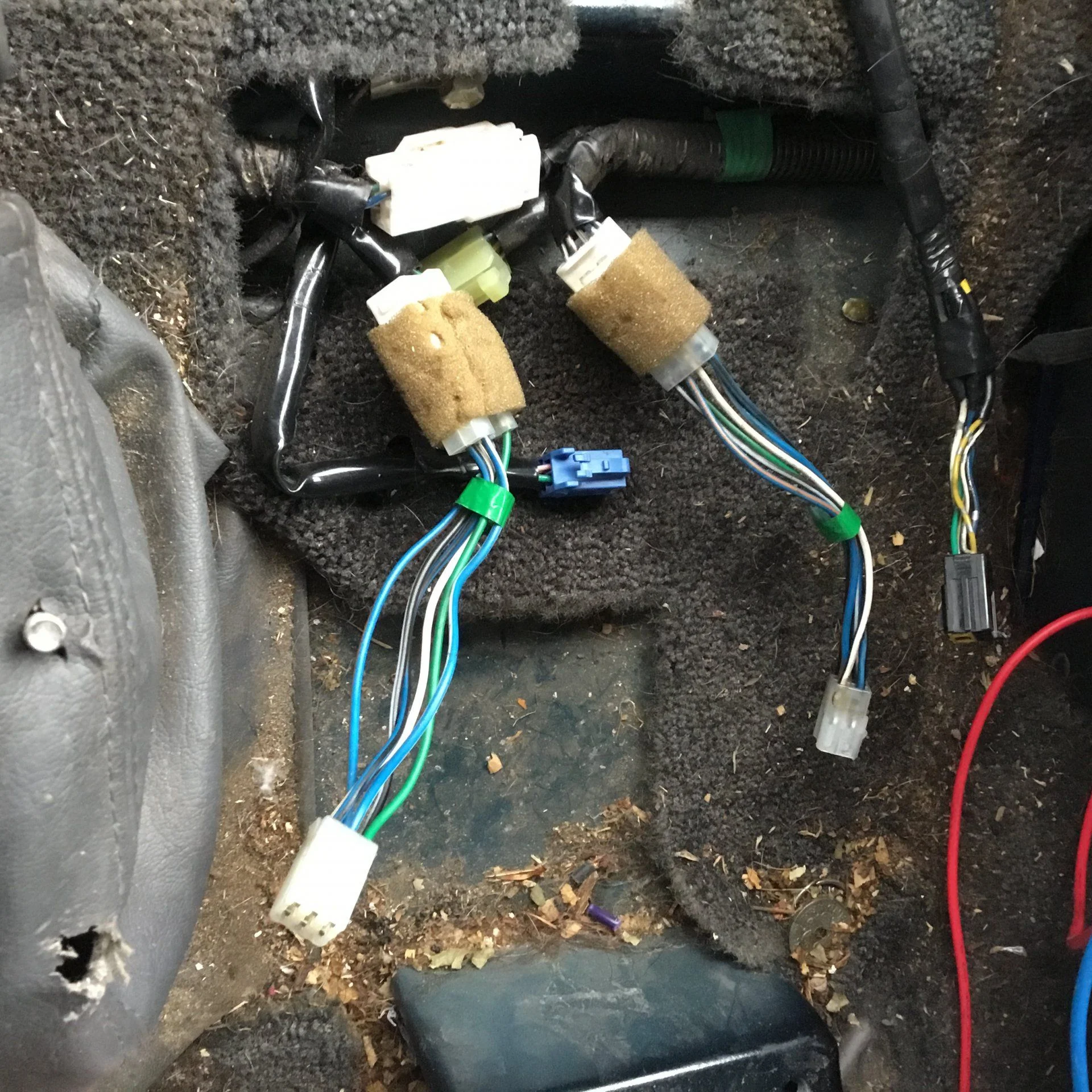

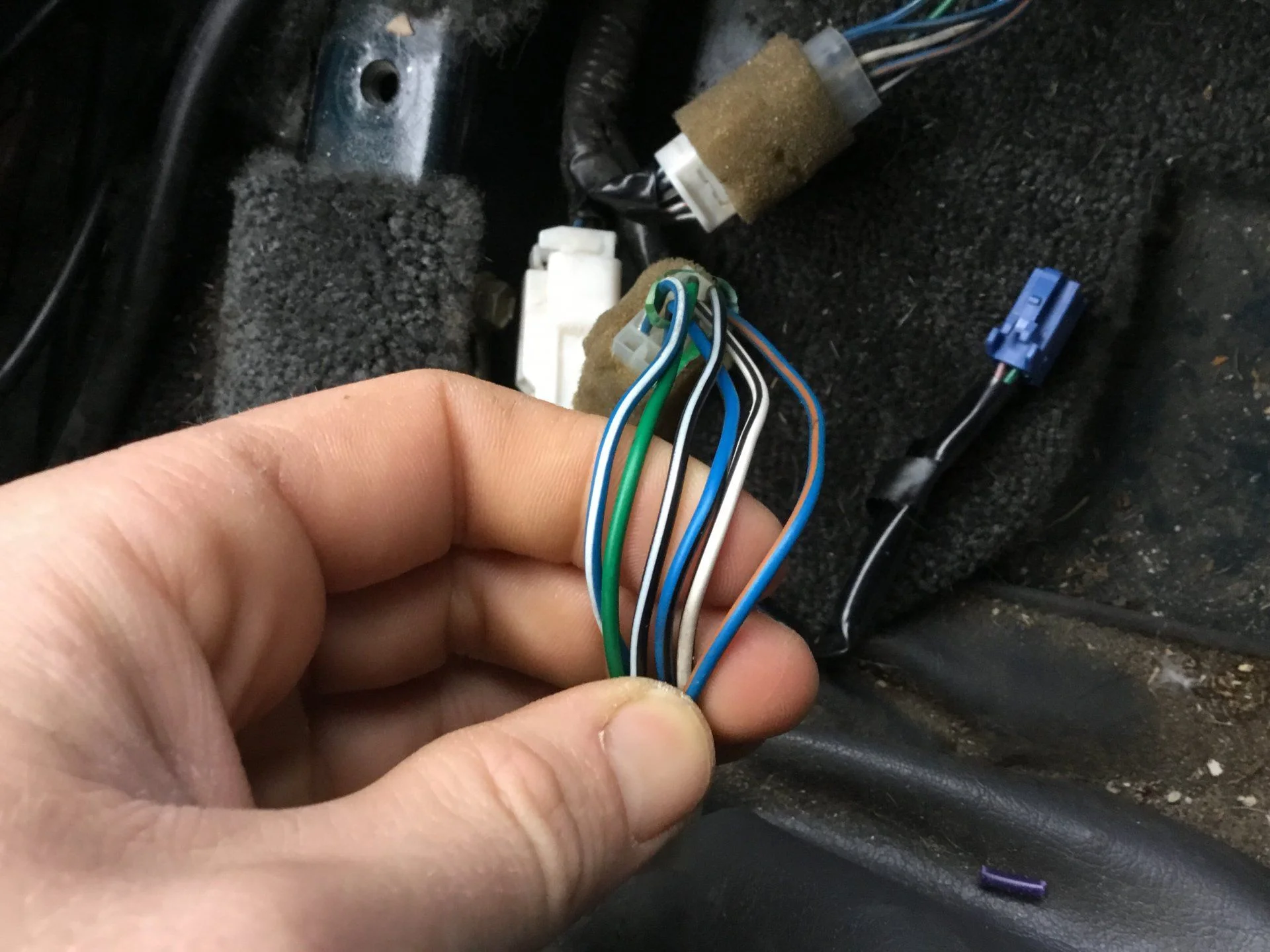

Finally got around to have a look at this.
I don't see any yellow/blue or black wires.
Can't I just short the wires that go to the old switches somehow?
They both have
Blue/orange
White/black
Black/white
Blue/black
Green
Blue/white
Many thanks
I don't see any yellow/blue or black wires.
Can't I just short the wires that go to the old switches somehow?
They both have
Blue/orange
White/black
Black/white
Blue/black
Green
Blue/white
Many thanks
hello,
does the 94 with manual seats come with wiring harness if one decides to change the seats to automatic seats? Thanks
does the 94 with manual seats come with wiring harness if one decides to change the seats to automatic seats? Thanks

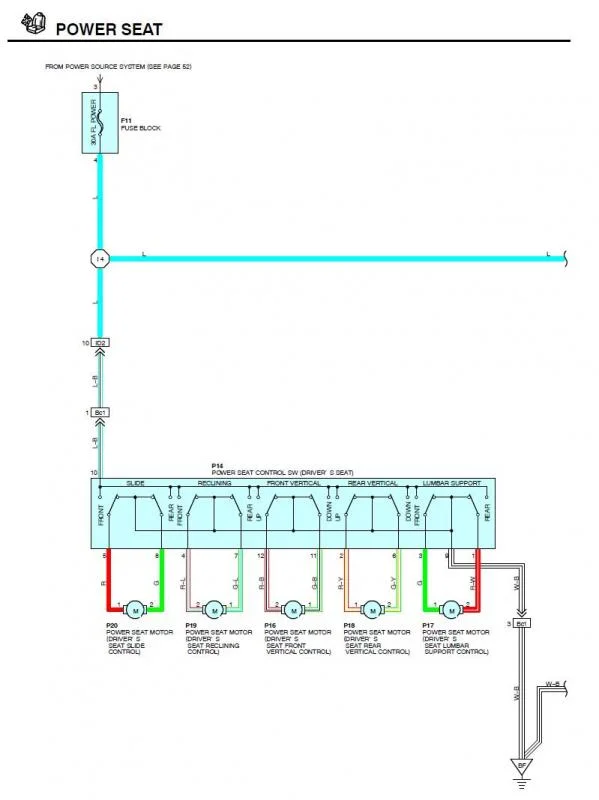

Has anyone put electric power front seats in an 80 series?
I have a 1992 fj80 and want to put leather seats from a 1996 100 series in it. Does the fj80 have the wiring harness for the seats in it or will I have to rig up a wiring harness? Any guidance on how to do this would be fantastic.
I have a 1992 fj80 and want to put leather seats from a 1996 100 series in it. Does the fj80 have the wiring harness for the seats in it or will I have to rig up a wiring harness? Any guidance on how to do this would be fantastic.
You would have to fabricate the wiring. 91/92 FJ80s did not get power seats.
Does anyone have specifications or directions for an uninformed person in fabricating the wiring harness for the 92 fj80?
I am also interested in how to fabricate the seat bracket floor mount to fit the 100 series seat bracket to the 92 series bolt pattern? The floor holes in the 92 are not as wide.
I am also interested in how to fabricate the seat bracket floor mount to fit the 100 series seat bracket to the 92 series bolt pattern? The floor holes in the 92 are not as wide.
