Rear axle job and pics.

Discussion in '80-Series Tech' started by beno, Mar 28, 2005.

  1. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    Hey all:

    Rook2 and I are working on a rear axle job/rear brake job write-up and I just wanted to post some pics. of the job that I took last week.

    The full write-up is in the works and will be done soon--promise--with the requisite pics. and explanations.

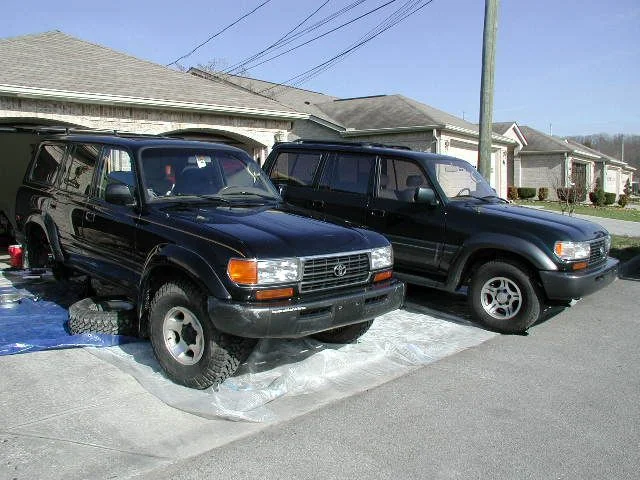

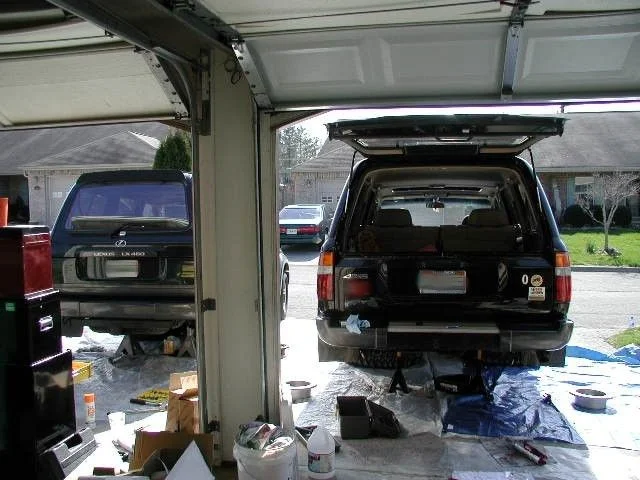

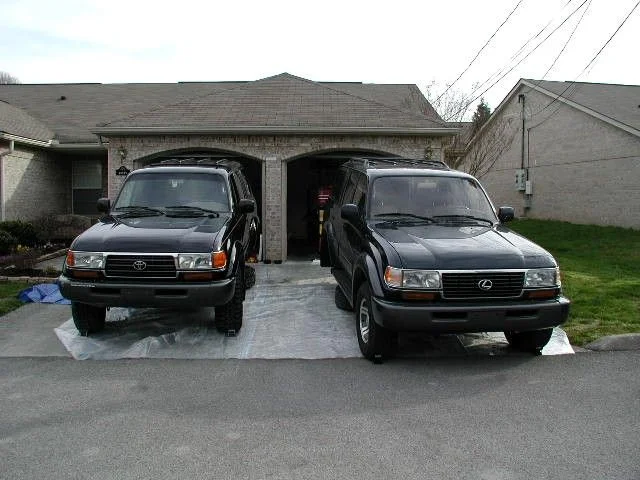

    Here are some of the trucks--Rook's got a LX and mine is a regular LC.

    Best.
    -onur
    Akron, OH
    P3210051.JPG P3210082.JPG P3210085.JPG
  2. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    Some more pics...

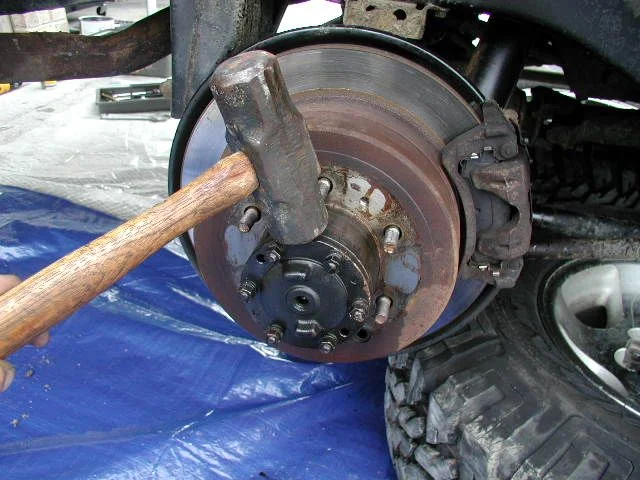

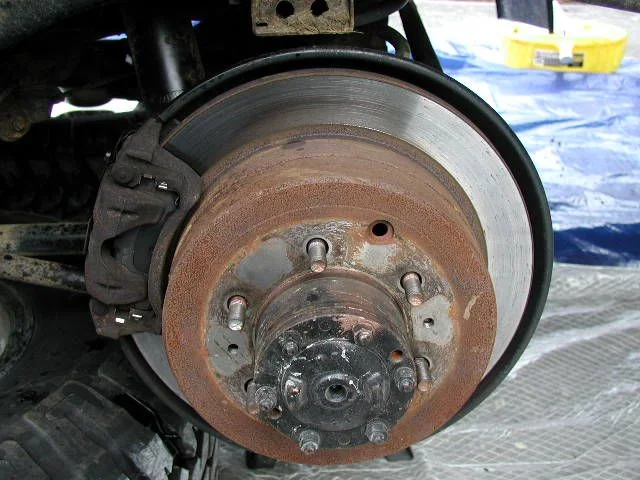

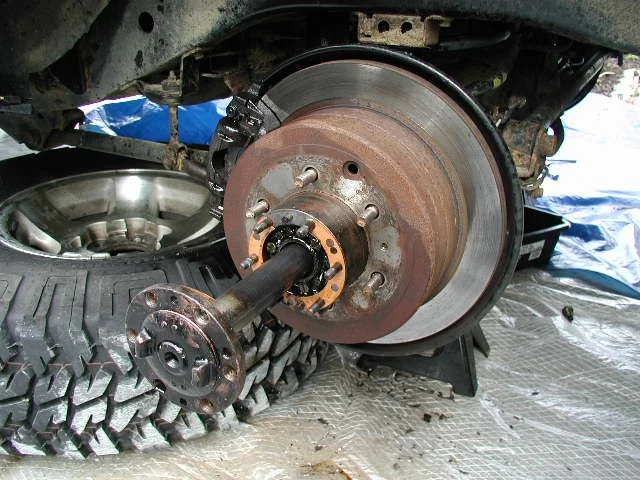

    Before the job, hammer to hub to break loose the cone washers, and the axle coming out...
    P3210053.JPG P3210054.JPG P3210057.JPG
  3. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    And some more...

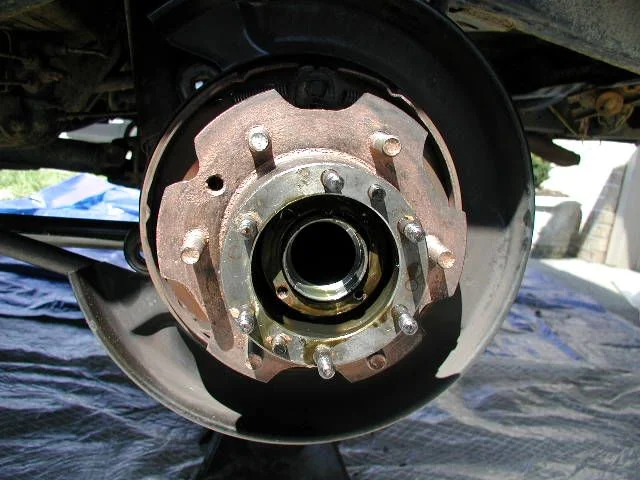

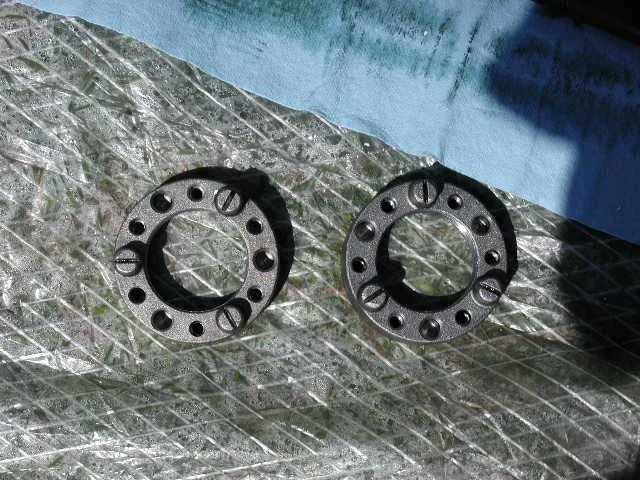

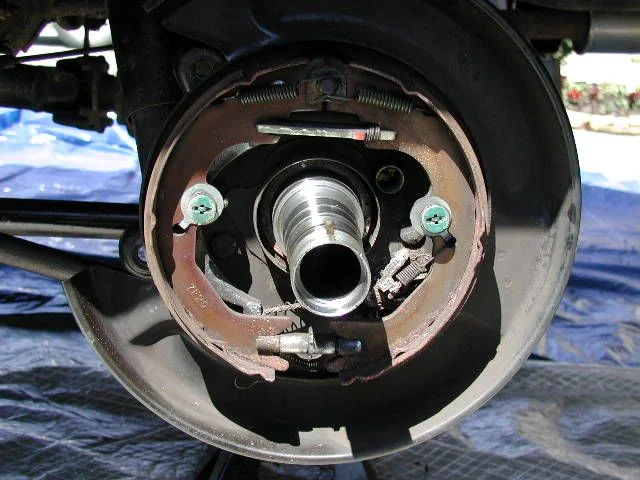

    pic. of the lock nuts that you use the SST for and that you adjust for the pre-load at the end, a pic. without the rotor, and a pic. after the hub is off (note the e-brake mechanism inside--mine is due for a rebuild...talk to you soon Dan!!)...
    P3210065.JPG P3210067.JPG P3210068.JPG
    Last edited: Mar 28, 2005
  4. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    And some more...

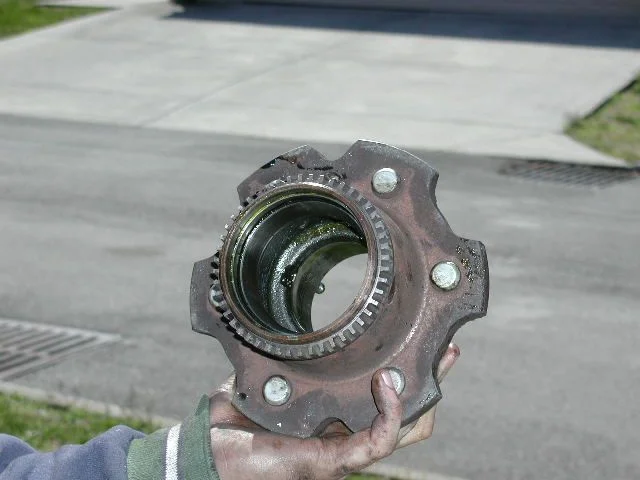

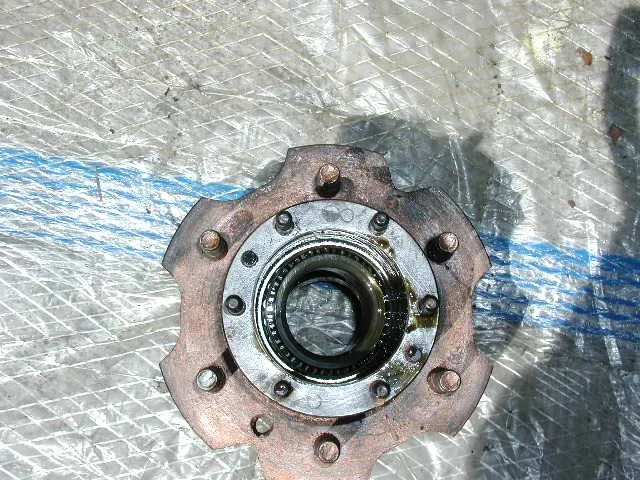

    Pic. of the dirty hub, hub without bearings, and of all the parts after the removal
    P3210069.JPG P3210071.JPG P3210074.JPG
  5. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    yet more pics...

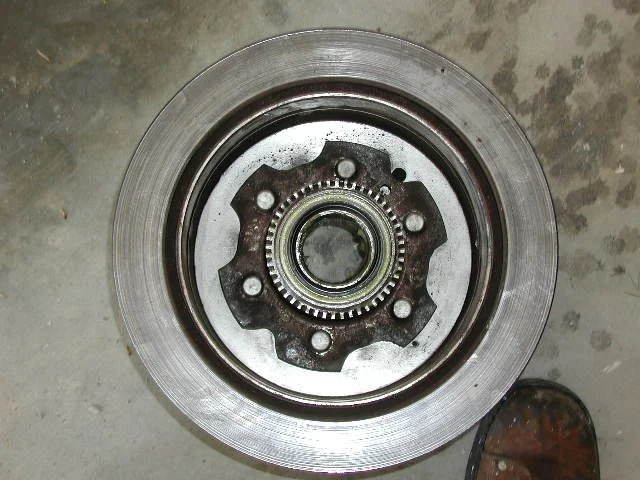

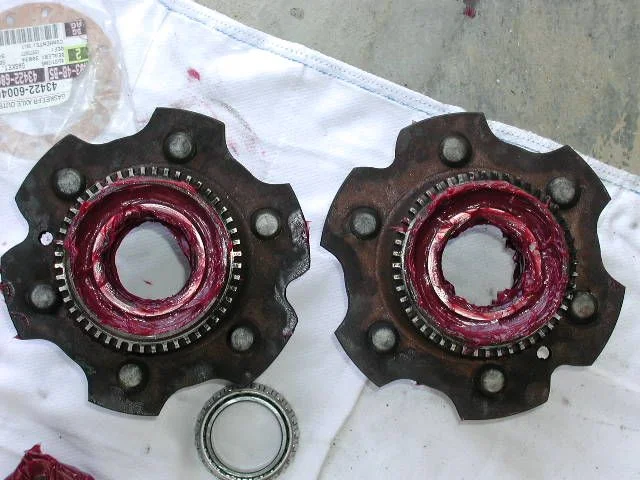

    Hubs packed with M1 synthetic grease and the bearings, hub re-attached to brake rotor, hub w/new rotor back on spindle with the grease inside...
    P3210078.JPG P3210080.JPG P3210087.JPG
  6. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    yet some more...

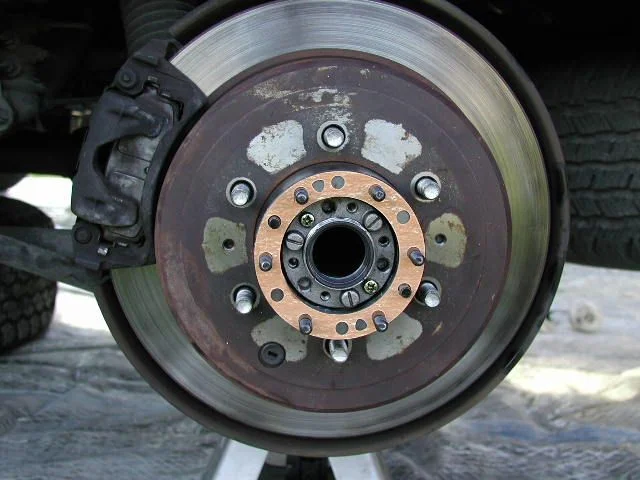

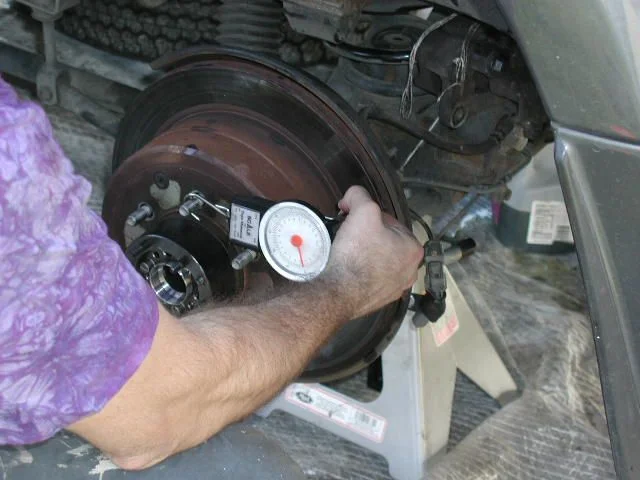

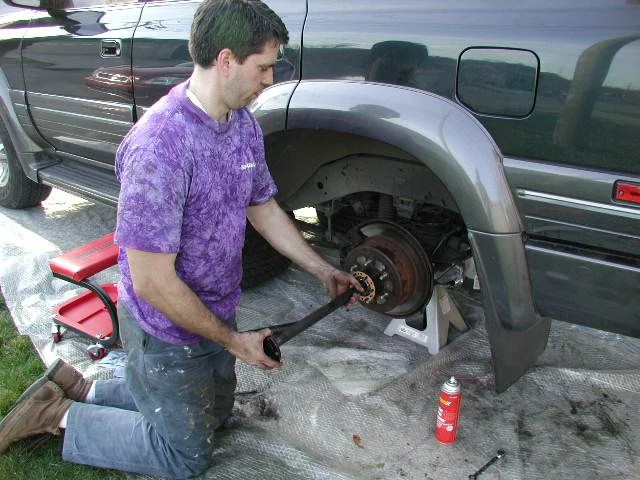

    Rook2 checking the preload with a fish scale, with the new gasket placed on the hub, and Rook2 pushing his axle back into the housing--carefully!!
    P3210090.JPG P3210093.JPG P3210094.JPG
  7. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    last ones--promise

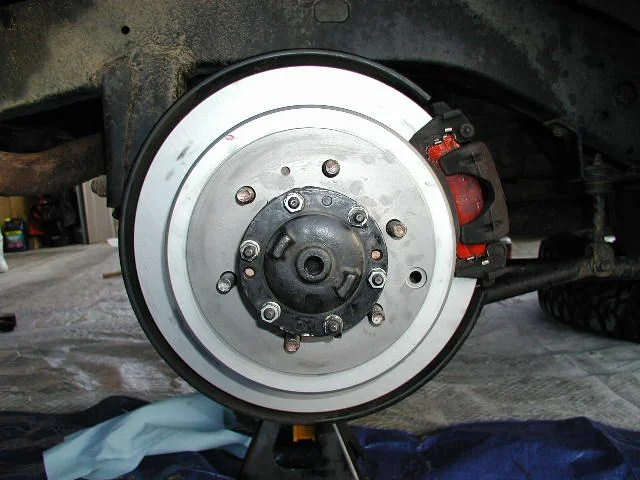

    and the final look of the rear axle all put back together sans tire...hopefully a write up coming soon....

    Best regards.
    -onur
    Akron, OH
  8. Romer

    Romer fatherofdaughterofromer Moderator

    Messages:
    9,334
    Location:
    Centennial, Colorado
    Awesome. Thanks for the pics. I'll be doing this in the next few weeks.

    Ken
  9. IdahoDoug

    IdahoDoug

    Messages:
    8,782
    Looks great. One comment would be to use caution with a hammer that big to get the tapered washers free. Better to use a smaller hammer and pounding repeatedly as you could concievably flat spot the wheel bearings with that sledge.

    DougM
  10. concretejungle

    concretejungle SILVER Star

    Messages:
    8,720
    Location:
    North Cadillac
    Thanks for the pics dudes! I was going to tackle this very job pretty soon, and i learn best from pictures!

    I second what doug said about the hammer. Also one other note,.....i thought i remember hearing speak that when you pull the axles out, to be sure if you have a locker to engage it....i think engage, otherwise something about the spider gear falling down and having to take the rear end apart to get it lined back up. Someone, know what i'm trying to talk about here?
  11. IdahoDoug

    IdahoDoug

    Messages:
    8,782
    I'd heard that, too. I haven't studied the third member(s) enough to know if this is an issue. I have lockers and didn't even know about this, yet my axles slid in and engaged in seconds at all four corners. I have a bit of a hard time thinking that there's a part in there that's going to fall off without the axle. The third member would be a complete unit that goes into the diff housing and its side gears and spiders would be self contained - ie it's not a pile of loose gears but an assembly.

    Dunno for sure, but worth a conversation/thread with someone who's put in a third member to regear or for repair. Christo? Robbie?

    DougM

  12. beno

    beno 33030-60450 Moderator Supporting Vendor

    Messages:
    13,022
    Location:
    Covington, GA
    Hey CJ: Yeah, I engaged the rear lockers before I pulled the axles--that way the spider thing doesn't get all squirrely on ya and make it a very difficult time getting the axle back in. Rook2 didn't have rear lockers so he didn't have to worry about them.

    Doug--just two decent hits with the hammer did the job. No flat spots at all. I did the same for the front end job and one hit above and one hit from below worked just fine...the hammer isn't a BFH (it's a small BFH... :D ). I was very careful in hitting it square on, with not too much force, just enough to pop the cone washers out.

    Best.
    -onur
    Akron, OH
  13. bjowett

    bjowett Supporting Vendor

    Messages:
    2,456
    Location:
    Western Massachusetts
    Nice write up and PICS!
  14. helocat

    helocat Tube is your buddy! Supporting Vendor

    Messages:
    579
    Good photos. How many neighbors made comment about the “Cruiser” repair shop! What was the total time wheels up/wheels down?

    Mark
  15. Rookie2

    Rookie2

    Messages:
    2,887
    Location:
    Knoxville
    IIRC, in an old post Christo referred to it as a lock sleeve or dog gear.

    See this thread for more discussion on this, doesn't sound like a route you want to temp faith with:
    http://forum.ih8mud.com/showthread.php?t=13104

    Beno: Did you get any pics through the axle for both rigs?

    :beer:
    Rookie2
  16. sjcruiser

    sjcruiser

    Messages:
    839
    Great pics! (except the one that had the aftermarket pads; or at least looks like it)

    Edit: On a second thought, it might be the anti-squeal goop overdosed
  17. Rookie2

    Rookie2

    Messages:
    2,887
    Location:
    Knoxville
    Hehe... no doubt. I've had her up on jack stands doing one thing or another every few weeks, since I got it. Not many comments about it, other than "what's wrong with it today?" This was on Monday, so not much traffic in and out.

    Total time: We started jacking them up about 8:30 and finished cleaning the grease off our hands at about 6:00. Looking back, I'm not quite sure what took us so long, but that was pretty much straight through. I guess cleaning everything up good.

    :beer:
    Rookie2
  18. e9999

    e9999 You want to do what...? Moderator

    Messages:
    15,180
    Location:
    PRK
    so this would be the one time when the lockerless guys actually have one over the rest of us lockerfulls? :D
    Bah, let them have their simple pleasures.... :D :D :whoops: :cheers:
  19. IdahoDoug

    IdahoDoug

    Messages:
    8,782
    Onur,

    I wasn't worried so much about flat spots on the housing, but on the bearings which you wouldn't be able to see. The kind of shock you can deliver to the wheel bearings like that is WAY more than even hitting a square edged curb at road speed. Once you've hit it a time or two, the umoving bearings may have displaced their grease and then it's metal to metal from then on. They're designed to roll and spread the load and move grease all at the same time. I'd recommend hard tapping all around more vs hard blows. I'm a little paranoid as I carry an enormous amount of weight back there quite a bit, so.....

    Just pointing it out, sounds like you have things under control.

    DougM
  20. Junk

    Junk

    Messages:
    6,210
    Location:
    buggerville nj
    Thanks for the write up guys. Great pics too and will add this to the faq list. Looks like we need to have tech faqs versus other faqs soon.

    Are we required to wear ugly shirts like that or was that just for romantic ambience? :eek:
