OME Lifts discussion for the FAQ

Discussion in '80-Series Tech' started by Romer, May 15, 2006.

  1. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    This FAQ deals exclusively with an OME lift. There are other lifts provided by Slee, and Man-a-Fre. Links for those lifts are included at the end of this FAQ. One of those lifts might better fit your application. OME is the most widely used and so we will focus on that for this discussion. The concepts here can then be applied to the other lifts via the links.

    [​IMG]

    Please bear in mind that every truck is slightly different and each truck will potentially behave differently to each set-up. Adding any lift will cause driveline issues that are not serious in a stock setup to be exacerbated in a lifted set-up. e.g. marginal U joints and drive shaft balance issues will begin to make noises and vibrations. Please see the Drive Shaft section in the FAQ.

    So you want to lift your truck? First there are a lot of questions you need to answer. The lift you put on should match the near term condition of the truck. In other words, if you won't be installing bumpers and a winch for a while, you need to size the lift without them.

    Also, when planning a lift, you should discuss it with some of our local supporting vendors, Slee Off Road, Cruiser Outfitters and Man-a-Fre all carry and support OME lift kits and components. In fact, we would like to thank Christo Slee and Kurt from Cruiser Outfitters as some of the info here-in was utilized from their tech sections. Christo supplied the information on Castor in support of this thread. Also, cruiserdan and Beowulf posts were used as inputs along with other forum members.

    There are several things to consider when doing a lift:
    • Springs - Main factor for determining lift
    • Shocks - Main factor for determine of axle play
    • Castor - correction required to return steering to normal based on lifts effects on driveline and steering components. Usually done on OME lifts via a Castor correction kit (Bushings in the control arm).
    • Steering Damper
    • Brake Lines - Longer lifts and spacers may require longer brake lines
    • Swaybar Brackets - Extensions to swaybar for taller lifts to prevent damage
    • Control Arms - Replacements are available to compensate for lift, but not needed for most OME lifts.
    • Tire Size
    • Tire Bumpstops - Modifications typically only required for 35: tires and up.
    • Spacers - Used at top of springs to make spring lift taller
    So what size lift do you want?

    Last edited: Mar 6, 2007
  2. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    OME makes lifts from stock hight up to 3.5" based on the loads specified below. Un weighted, they could be as high as 5". However, the resulting lift depends on what accessories you cary. Armor, Bumpers, Winches, Tools, and Trail Spares will all weigh a lift down.

    If you have a Lexus LX450, the stock suspension is much softer than the 80 series Toyota venison. The softer ride tends to provide more lean around corners and a lot of people don't like it. Just changing to the stock height OME will make a great improvement.

    The nice thing about an OME lift kit, is that once you have a basic OME lift installed, you can swap springs as you add armor and accessories to maintain the same basic lift height with the extra weight.
    So for the OME you really need to decide 0" lift, 2.5" lift or 3.5" lift. Higher lifts can be accomplished using heavy springs in un-weighted situations or by adding spacers, but the higher lifts take it out of the OME design window.
    From Christo Slee's Web Page: Since this is not just another lift kit, it is essential to match the spring rates to the weight of the vehicle.

    Here is a an example Rule Of Thumb first posted by Beowulf
    ==============================================
    OME Springs:
    General rules:
    unladen 864=5" lift or 2" w/400 kg load (20mm wire)
    ....... 863=4" lift or 2" w/250 kg load (19mm wire)
    ....... 860=2" lift or 1.75" w/a gas tank (18mm wire)
    ....... 850=2" lift w/some weight(dual batteries etc)
    ....... 851=2" lift w/bar & winch, dual batteries, etc
    ....... Stock springs 16mm wire.
    ================================================
    OME shocks
    ............. Open ......... Closed
    ............ length ........ length
    N70 ......... 614 .......... 354
    N71E ........ 620 .......... 370
    N74E ........ 620 .......... 370
    N73 ......... 614 .......... 354
    N73L ........ 667 .......... 387
    N74L ........ 667 .......... 387
    ================================================

    Here are a couple of useful Tables. Note that the J Spring is the same basic spring as the non J, but 1" taller.
    This is from Slee's site on springs, expected lift WITH expected weight load.
    [​IMG]

    Table 2 was compiled from information on the Cruiser Outfitters Site
    [​IMG]
    Note that an un-loaded 864 lifts about the same amount as an unloaded 863J (both of which are about an inch or so higher than an 863). It takes twice the weight to lower 864's to any given height as it takes to lower 863J or 863. That's because the spring Diameter on the 864 is wider.

    Last edited: May 16, 2006
  3. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    So as stated previously, the first step is to select which spring set you are going to use.

    For example, A stock rig with 33" or smaller Tires would be perfect for the OME Medium 2.5" lift Kit

    This would consist of the:

    2 x OME 851 Front Coil Springs
    2 x OME 860 Rear Coil Springs
    2 x N73 Nitrocharger Shocks
    2 x N74E Nitrocharger Shocks
    1 x SD24 Steering Damper
    1 x CA77B Caster Kit
    1 x Caster Bushing Press Piece

    This lift would be fine even when Armor is attached. However, the armor, bumpers and winches will weigh this down and your 2.5" lift could turn into a 1.5" lift.

    So, say you have an ARB Front Bumper, Winch, Sliders and Rear Bumper Tire carrier and want the 2.5" lift. Many in this application would select the OME Heavy Kit

    This would consist of:
    2 x OME 850 Front Coil Springs
    2 x OME 863 Rear Coil Springs
    2 x N73 Nitrocharger Shocks
    2 x N74E Nitrocharger Shocks
    1 x SD24 Steering Damper
    1 x CA77B Caster Kit
    1 x Caster Bushing Press Piece

    Note, the springs are the only difference between the two kits. From Table 2 above we can see that the Heavy Spring is .8" taller allow for an extra 150 lbs load (see table 1) to get to the same height.

    From the Slee Off Road Web Site on the Heavy Kit:
    This is the kit that we install for trucks that have a replacement front bumper, winch and rear bumper installed. The spring rates can support 110-250lb additional up front weight and 440lb additional weight in the rear. With the additional weight, the total list will be between 2" and 2.5". If extra carrying capacity is required in the rear, the springs can be replaced with Extra Heavy rear springs that can accommodate up to 880 lb additional weight.
    The steering damper assist with kick-back in off-road situations, especially with running over-size tires. The caster kit returns the truck's steering geometry to stock.
    It should be noted that if the Heavy Load suspension is used in an application where there are no additional weight on the truck, it could lead to a harsh ride as well as vibrations and handling anomalies.

  4. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    Now that seemed easy, but there are other factors.

    For the Front:
    A WARN 12K wink weighs more than an 8K winch and lots of people are running dual batteries. This extra weight will weigh the front down, losing some of the lift. Custom made spacers or the 1" Mr. Gasket Spacers can be used to help offset this. The Metal Custom spacers are superior because the Rubber Gaskets wear out and can get crushed.

    The other alternative is to run 850J springs in the front. This gives an extra 1.2" to help offset the additional weight in the front.

    For the Rear:

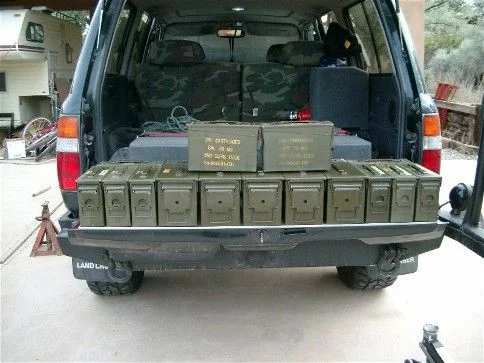

    Lots of people run drawer systems full of tools and spare parts. They have CO2 Tanks installed, Refrigerators and other items that weigh down the rear more than the stated weight load of the 863 OME heavies. There are 864's and 863J's as options.

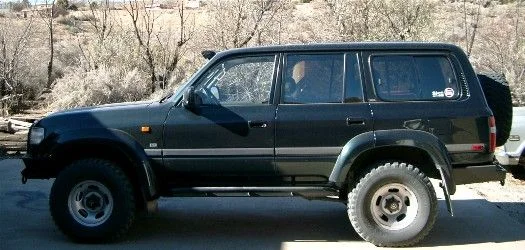

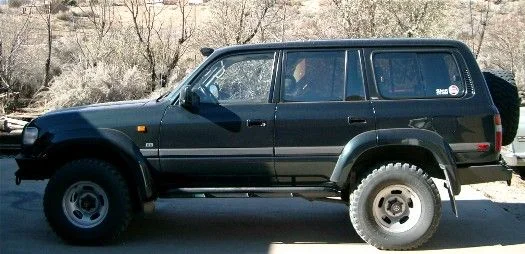

    cruiserdan ran the following test:

  5. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    Note, that selecting your springs based on your weight load should not require the change of shocks Castor corrections or anything else. All the rest of the parts in the kit will be the same.

    That allows someone who installed the 2.5" lift kit in a stock configuration to swap out the springs as the weight increases.

    For example, adding an ARB Bull Bar and a 9K winch would justify swapping the medium spring (OME851) out for the Heavy Spring (OME850). If you install a 12K WARN and have a dual battery set-up, an OME850J can be used.

    Swapping the springs is simple.

    The above assumes your tires are 33" or smaller. and you selected your springs to maintain a 3" or less lift based on your installed "toys"
    When you go outside the design range of the OME kits, many other factors come to play and this is where the variability of everyones rig comes can give different results. What works for one rig, may cause driveline or Castor issues with another

  6. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    Now some want a bigger lift than the 2.5" to 3" lift OME is designed for. They will use the larger springs without the weight or add spacers to increase the height of the lift. Drivibility and Castor issues develop here.


    You might ask, what is Castor and why do I care?

    The dictionary definition of castor is "a small wheel usually free to swivel used to support and move furniture, trucks, and machines." An example of castor is the front wheel on a shopping cart. When you push a shopping cart, the wheel is forced to steer in the direction you push the cart.
    Castor is measured in degrees, the amount the steering pivot (king pin) is angled back from vertical. Because the tire patch is located behind the steering pivot (king pin) the cornering side forces will try to unturn the steering. This is why race cars have power steering.
    Castor causes the tires to steer in real cars, also. There is a little difference, however, in cars castor causes camber when the steering forces it off its normal position. These camber changes cause slight changes in tire loads. Many times these small changes are enough to influence the car's handling characteristics. The amount of castor is very often used to adjust the car's handling characteristics coming into a corner.

    Any lift kit will have an impact on Castor. Castor problems become drivibility issues and driveibility issues turn into Saftey and Relibility problems.

    From the Slee Off Road Web Site:
    By lifting the truck, the front axle moves away from the frame. Due to the design of the front control arms, the axle will tilt forward and reduce the caster angle. Stock caster for a 80 Series Land Cruiser is 2-4 degrees positive.
    We are aware that a lot of people do not install Castor correction. Mostly this is due to not having the right tools to do the job. They are then convinced that their trucks handle ok, but they are not aware of how good it can handle. We have installed the caster bushings for a lot of customers, that ran the truck without it for a while, and I have yet to meet one that did not comment on how well the truck drives. now.
    There are also some that do not install the bushings due to reports of cracked front housings or arm mounts. Indeed this has happened in the past, but we believe that it mostly happened in Australia where the driving conditions are a lot different from here. Also, this might have been from earlier OME bushings where the center metal sleeve was a lot larger and the polyurethane a lot smaller. We have not seen a single case of this in any of the trucks that we have serviced or installed the bushings on. We have seen cases where the center metal sleeve has separated from the urethane.
    Caster can also be corrected by some DIY ways of slotting the mounting holes and welding washers on the outside. This accomplishes the same as the caster bushings, in that it rotated the axle back to stock location. The problem with this is that you are limited in the adjustment you can make, and if done to severely, the tie-rod that runs behind the axle, will hit the front control arms when the suspension articulates. This can result in a bent tie-rod or your steering binding up.


    Last edited: May 15, 2006
  7. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    What do the Control Arms do and when Should I consider swapping them out?

    When the castor is off to the point that Castor plates and the OME bushings won't correct it back to stock, new control arms can correct this. For eaxmple, above Christo states that his Control Arms can correct castor 11 deg, which with a 6 inch lift would put it back to stock at +3 deg as shown in the graphic above.

    Last edited: May 16, 2006
  8. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    The charecteristics between the regular shocks and L shocks are shown in Beowulfs rule of Thumb up front and are repeated here:
    ===============================================
    OME shocks (in mm's)
    ............. Open ......... Closed
    ............ length ........ length
    N70 ......... 614 .......... 354
    N71E ........ 620 .......... 370
    N74E ........ 620 .......... 370
    N73 ......... 614 .......... 354
    N73L ........ 667 .......... 387
    N74L ........ 667 .......... 387
    ================================================
    When do I need to change to the L Shocks? and when do I need to change to extended brake lines
    A great discussion going back and forth on L vs Reg OME shocks, bump stops and other factors can be found here

    Last edited: May 15, 2006
  9. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    What are bump stops and what do they do? When do you need to move the bump stops and how do you do it?
    Bump Stops prevent the suspension from "bottoming" as the vehicle hits large road irregularities.


    Why do I need to be concerned about extending my diff breathers and what is that? Extended diff breathers are for when you want to wheel you new lift through water. Without the extended diff breathers, water will get into your axle and a proper axle rebuild should be done to prevent damage.

  10. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    What about running bigger tires. How do the bigger tires add to the equation?
    Slee Off Roads Article "Lift Size vs. Tire Size"

    Essentially, with the standard 2.5" lift kit, 33" tires are the largest that can be run without rubbing or "stuffing" issues.
    Larger tires can be run when spcaers are added to the springs to bring the lift above 3-4"

  11. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    Of Course there are other lifts and Lift kits. These can be bought in kit form or piecemeal to build your own. As always, it is recommened that you contact the dealer for advice on your specific application. This FAQ does not cover any of these other kits.
    Slee Off Road:
    [​IMG]

    Slee 4" Lift Kit
    Slee 6 " Lift Kit


    Man-a-Fre:
    [​IMG]

    Man-a-Fre sells a 4" lift kit which is made up of OME J springs, L shocks and Man-a-fre components.


    [​IMG]

    Also Cruiser Outfitters sells Lift kit components and is another source. All 3 are supporters of ths site and we appreciate their support.

    These may be better suited for your application. If you utilize one of these lifts and want to do a write-up on it, we will link it here for reference.


  12. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    Last edited: May 15, 2006
  13. Romer

    Romer fatherofdaughterofromer Moderator

    Joined:
    Sep 14, 2003
    Messages:
    9,481
    Location:
    Centennial, Colorado
    I recived an e-mail asking to add the following to the FAQ, this seemed the best place to do it. I have always just used the rule that the longer spring goes to the side of the axle with the longest difference between the diff and the hub

    I have been researching lean on my 80 series and have discovered that my springs on the front end were not correctly installed. After speaking with ARB Usa I received an explanation that I think would be worthy to include in the FAQ about suspension. Most of the thread searching I found and instructions on Slee's site refer to PS and DS springs. Mine were marked A and B. Basically this rule of thumb should be followed for spring placement and I think it could help others down the road.

    Email text from the ARB Technician I spoke with....

    "The way we recommend to install the coils on the 80 is with the B spring (B is taller than A for this truck) front driver and rear passenger. We recommend it this way due to the additional weight on the front driver corner. However, as long as you stagger the A and B coils the vehicle should sit level unless you have added more weight to one side than the other in aftermarket accessories"
