I'm back at it.
Dad has been busy cleaning up the 12HT! It looks great!
I did a bit of cleanup of the engine bay. You'll notice that I powder coated the left and right side mud shields. We used Pewter from Shane (that's really more for the 40s) but it looks good in there we think.
I had to modify the FJ-60 left side mud shield a bit to allow it to clear the motor mount and the diff breather. Five minutes setting up the plasma cutter, and 30 seconds to trim it and it. Then, naturally, I powder coated it.

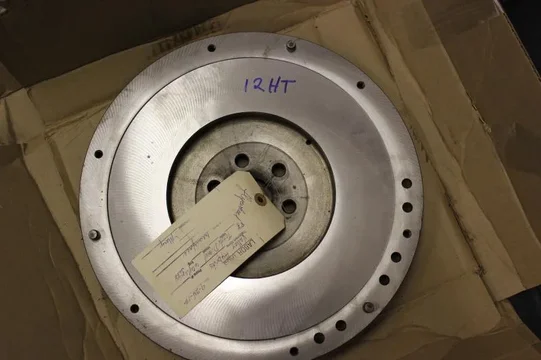

Last of this post is the 12HT flywheel from Georg.
Dad has been busy cleaning up the 12HT! It looks great!
I did a bit of cleanup of the engine bay. You'll notice that I powder coated the left and right side mud shields. We used Pewter from Shane (that's really more for the 40s) but it looks good in there we think.
I had to modify the FJ-60 left side mud shield a bit to allow it to clear the motor mount and the diff breather. Five minutes setting up the plasma cutter, and 30 seconds to trim it and it. Then, naturally, I powder coated it.
Last of this post is the 12HT flywheel from Georg.
DanS HJ-45
SILVER Star
- Thread starter
- #47

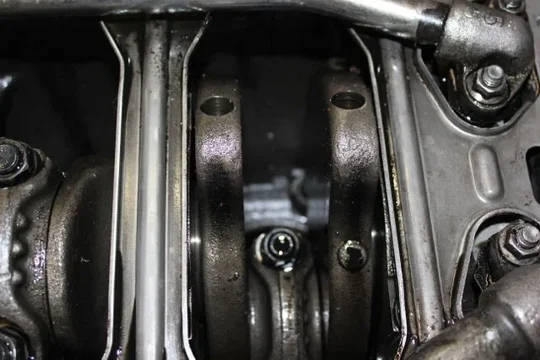

We pulled the oil pan off, just to get a good look inside the engine, and to reseal it tomorrow.
It's drying tonight. Tomorrow it'll get put back on with FIPG, and a shiny coat of black paint!
We also powder coated a few odds and ends. I am absolutely amazed at how much pitting the average battery tray has in it. Takes forever to wheel that rubber off so that we can get on with the powder coating!
It's drying tonight. Tomorrow it'll get put back on with FIPG, and a shiny coat of black paint!
We also powder coated a few odds and ends. I am absolutely amazed at how much pitting the average battery tray has in it. Takes forever to wheel that rubber off so that we can get on with the powder coating!
DanS HJ-45
SILVER Star
- Thread starter
- #48
I also kicked around the shop on some wiring jobs...
I started with the aftermarket gauges. I ran the wires for all 3 of the ISSPro gauges.
I mostly had to test that my wiring pigtail would be long enough to allow us to install and remove those three gauges sometime in the future.
That's it for today. I should have more tomorrow...
Dan
I started with the aftermarket gauges. I ran the wires for all 3 of the ISSPro gauges.
I mostly had to test that my wiring pigtail would be long enough to allow us to install and remove those three gauges sometime in the future.
That's it for today. I should have more tomorrow...
Dan
DanS HJ-45 said:I'm back at it.
Dad has been busy cleaning up the 12HT! It looks great!
I did a bit of cleanup of the engine bay. You'll notice that I powder coated the left and right side mud shields. We used Pewter from Shane (that's really more for the 40s) but it looks good in there we think.
I had to modify the FJ-60 left side mud shield a bit to allow it to clear the motor mount and the diff breather. Five minutes setting up the plasma cutter, and 30 seconds to trim it and it. Then, naturally, I powder coated it.
Last of this post is the 12HT flywheel from Georg.
Glad to see dad's surgical cleaning skills carry over so well from his medical practice
DanS HJ-45
SILVER Star
- Thread starter
- #50
OK, back at it. Not a lot of real photogenic stuff today.
I'm diving into wiring, mostly.
Yesterday we put the cleaned and repainted oil pan back onto the engine. This job is so incredibly easy with the engine upside down!
I mounted a sedimenter onto the firewall, so that the fuel filter warning light would have something to turn it on....
The boost lights in the tachometer are activated by two pressure switches on the right fender well. I fabricated a bracket to hold the ISSPro boost gauge sender near them, and then used a spare Toyota hose T to plumb in the boost gauge sender. Clean, simple, and avoids having to drill and tap the intake for the sender.

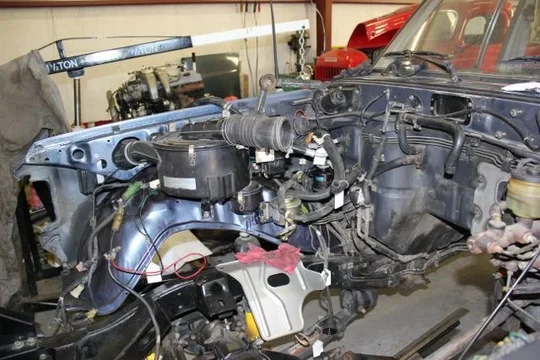

Here's a pic of the right fender with almost everything installed (no washer reservoirs yet, and no glow screen relays yet). It's busy over there, but it's not all that bad, so there is room to add things like a sedimenter and whatnot.
One quick question for tomorrow: what kind of amperage does a 12HT glow screen draw?

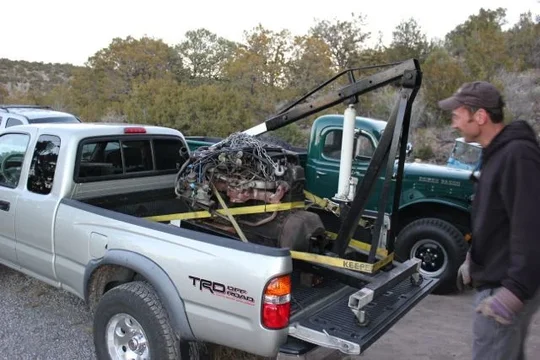

Last pic of the day: goodbye to the 2F! We loaded it up and hauled it to Senior Chamba's place. Now you get to practice your surgical cleaning skills brother!
Dan
I'm diving into wiring, mostly.
Yesterday we put the cleaned and repainted oil pan back onto the engine. This job is so incredibly easy with the engine upside down!
I mounted a sedimenter onto the firewall, so that the fuel filter warning light would have something to turn it on....
The boost lights in the tachometer are activated by two pressure switches on the right fender well. I fabricated a bracket to hold the ISSPro boost gauge sender near them, and then used a spare Toyota hose T to plumb in the boost gauge sender. Clean, simple, and avoids having to drill and tap the intake for the sender.
Here's a pic of the right fender with almost everything installed (no washer reservoirs yet, and no glow screen relays yet). It's busy over there, but it's not all that bad, so there is room to add things like a sedimenter and whatnot.
One quick question for tomorrow: what kind of amperage does a 12HT glow screen draw?
Last pic of the day: goodbye to the 2F! We loaded it up and hauled it to Senior Chamba's place. Now you get to practice your surgical cleaning skills brother!
Dan
Hey Theo,
The 2f is now sitting in my warm garage awaiting a refresh and warm up (shaved head .040", port, polish, new cam, new oil pump, new water pump, Jim C carb rebuild/tune, emissions delete using my non US brackets, manifolds and air cleaner, etc) I'm pretty excited. I tried to load the 12ht into the truck but Dan noticed. :-( the 2f will go into Lexie when done. I wanted to do a 2fe, but I've accepted that I won't have the time.
It was nice to get to help a wee bit Dan....we need more wrenching time! Great and impressive work as always.
The 2f is now sitting in my warm garage awaiting a refresh and warm up (shaved head .040", port, polish, new cam, new oil pump, new water pump, Jim C carb rebuild/tune, emissions delete using my non US brackets, manifolds and air cleaner, etc) I'm pretty excited. I tried to load the 12ht into the truck but Dan noticed. :-( the 2f will go into Lexie when done. I wanted to do a 2fe, but I've accepted that I won't have the time.
It was nice to get to help a wee bit Dan....we need more wrenching time! Great and impressive work as always.
Last edited:
Getting ready to buy a set of isspro gauges for my new to me 61. Mind if I ask where you got them from and which model you went with?
DanS HJ-45
SILVER Star
- Thread starter
- #55
Absolutely. LOVE THEM, so far. Not that the truck is running yet, but I am really, really impressed with the quality of them, very well thought out. I will definitely buy more, and not buy the Autometer again if I have the choice.
I bought them from http://www.issprogauges.com, and I bought the EV2 gauges.
ISS-R17021 EV2 0-1600 °F Pyrometer Gauge - R17021
1 $197.40 $197.40
ISS-R17133 EV2 0-30 PSI Boost Gauge - R17133
1 $162.95 $162.95
ISS-R17588 EV2 100-280 °F Coolant Temperature Gauge - R17588
1 $119.11 $119.11
A little pricier than other brands, but as nice as these are--worth it IMHO.
So, today I made a trip into town to pick up some odds and ends (like a new oil line for the vacuum pump, fuel and oil filters, etc...).
Then I opened up the HJ-61 wiring harness, to pull out what we need.
The next job was to rectify a problem that I had, that I hadn't yet figured out how to deal with it...
Can you spot the problem here?
That's right, there's no brake warning light in the combination meter! The horror! Since I'm using the HJ-61 cluster housing, for the glow plug light and the air filter warning light are new, but the choke, brake, and seat belt warning lights are removed. Choke? Don't need that--diesel. Seat belt? Don't need that--stupid.
But the Brake warning light? The diesel turns on the warning light if the vacuum reservoir is low. That's new, and cool. So, because I am who I am--I must make it work. That's when I realized that the HJ-61 combination meter included a brake warning light (instead of just charge and hi-beams). But, the HJ-61 oil pressure gauge was broken. So, for me to get busy swapping out the gauges themselves...

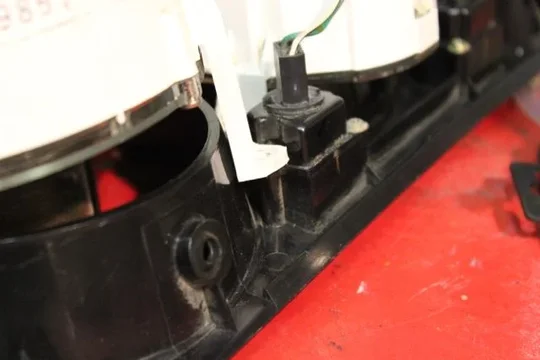

To do this, you remove the combination gauge from the gauge cluster, then remove the front three screws to remove the clear plastic cover and the gasket that seals it to the gauge. Then, you remove the center cover (the circular metal disc that has the icons for TEMP, FUEL, OIL and VOLTS. Once that is done, you remove the gauges themselves by removing the nuts from the studs on the back (or the screws for the volt meter), and simply push the gauge out towards the front and then replace it with a good one. It's a
job, at most.Here's one gauge swapped...
And now all 4 gauges swapped...
With that done, there's another problem: the RHD and LHD combination meters are on the opposite sides of the gauge cluster. Basically, they are on the outside of the cluster. This means that the RHD combination meter doesn't sit flush on the three screw holes, one of the feet hits the turn signal indicator...
DanS HJ-45
SILVER Star
- Thread starter
- #56
...But that's an easy fix.
Take one saw blade, and cut off the offending leg--this lets it sit flush on two of the three mounting screws. But, 2 screws isn't enough, I assume, because Toyota used 3.
So, you cut off one of the feet from the surplus gauge pod...
And it attaches onto pads that are molded into the correct gauge pod! Just glue it together, and you've got it mounted securely, easily.

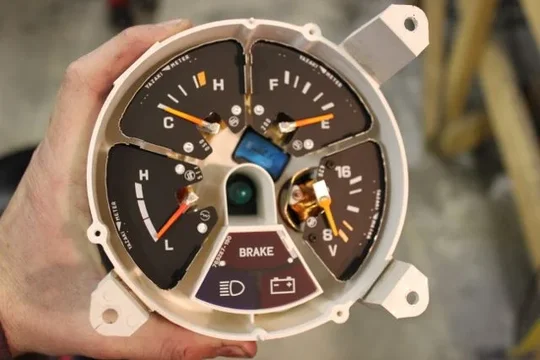

Voila! Here's the completed gauge cluster!
But.... that leads us back to wiring. Here's the pin diagram I made of the cluster.
Note: the check marks are the pins that are the same between the FJ-60 and the HJ-61.Basically, I'll have to repin three pins on this plug, but that's it. We're talking 10 minutes of work, if that.
OK, that's the pictures for today. More tomorrow, likely of a mess of a wiring harness--because I know you are dying to know what that looks like.
Dan
Take one saw blade, and cut off the offending leg--this lets it sit flush on two of the three mounting screws. But, 2 screws isn't enough, I assume, because Toyota used 3.
So, you cut off one of the feet from the surplus gauge pod...
And it attaches onto pads that are molded into the correct gauge pod! Just glue it together, and you've got it mounted securely, easily.
Voila! Here's the completed gauge cluster!
But.... that leads us back to wiring. Here's the pin diagram I made of the cluster.
Note: the check marks are the pins that are the same between the FJ-60 and the HJ-61.Basically, I'll have to repin three pins on this plug, but that's it. We're talking 10 minutes of work, if that.
OK, that's the pictures for today. More tomorrow, likely of a mess of a wiring harness--because I know you are dying to know what that looks like.
Dan
