Here we go (FJ-40 getting a 3B/Turbo/H55f)...

Discussion in 'Diesel Tech and 24 volts Systems' started by DanS HJ-45, Nov 4, 2008.

  1. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    First off, a quick link to an earlier thread, but related to this swap.

    http://forum.ih8mud.com/diesel-tech-24-volts-systems/239824-3b-cradle-edic-wiring-question.html

    With that part done, I decided to try to swap the 3B into Dad's 1979 FJ-40 in November.

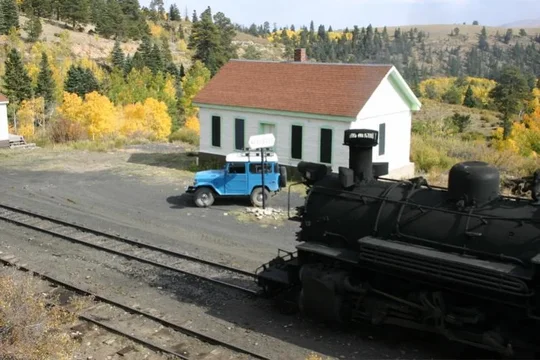

    In October, I took it on a little trip. To Northern NM/Southern CO to see the Aspens.


    Tonight, with the help of Dad and Mom, we started taking stuff apart.

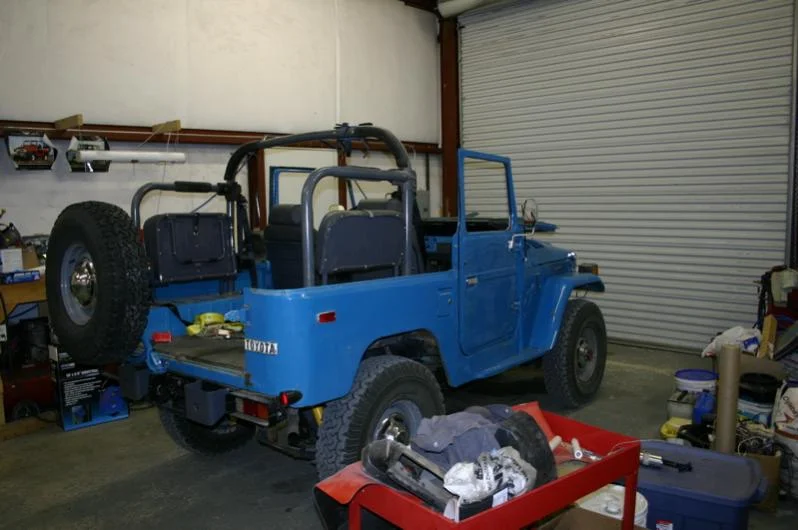

    The hard top is OFF.
    top off 1.jpg
    top off 2.jpg

    I have to head off again to work tomorrow for a couple days, but when I get back I've got 4 days off before I have to go back to work (and I'm thinking of calling in sick for at least one trip this month). In that time, I'm hoping to pull the 2f/H42, and get the tub off of the frame. With any luck, I'll also find the time to get the 3B installed in the frame and the parking brake added to the split-case.

    We've got a crossmember and frame mounts for it from a BJ-42 with the 5 speed, so that part is taken care of, along with BJ-40 motor mounts and isolators.

    Here's the parts I still need to source to make this work:
    • 5 speed/engine rear isolator
    • EDIC relay and related wiring for this engine
    • clutch slave cylinder
    • air cleaner that will work with the Safari turbo that was already installed on the engine
    • driveshafts will have to be made/altered (once engine/trans are in)
    • Radiator: should I just have the FJ-40 radiator reworked to move the inlet and outlet, or should I order something?
    • Pyrometer, Boost Gauge and Water Temp Guage will be added
    • Must get the 3B pulley and plate for power steering, as well as mount a PS pump (the truck has factory PS)

    The hardest one here seems to be the EDIC relay and wiring. I'v got P/N 28590-56090 from Toyota, along with the Denso numbers for it too, but I have yet to find one. At the moment, the engine will be installed and I'll just open the hood and have a helper crank it while I hold the fuel control to "overinject" or something. It'll be annoying, but at least the truck will be driveable while I source a relay and wire it up. The part is common to the BJ-60 as well, so you Canadians please keep your eyes open for me. ;) Especially if you see one being parted. I'm also hoping to get the foot of wiring harness from the plug for the EDIC motor and EDIC relay to make my wiring job easier.

    The engine came from an Australian BJ-73 that SOR brought in, and Dad bought from them about a year ago. I believe it's between an 1984-1988.

    The truck is currently bone stock, with a smogged 2F that runs great (just uses too much fuel IMHO), and an OME 2.5" lift and 33x9.50 tires. I think it'll be just fantastic with the 3B/Turbo and 5 speed.

    My plan is to just get the engine and transmission installed and working, and then maybe start working on the little bit of cancerous rust on the truck, but to leave it for a year or two to really disassemble and repaint and everything. But we'll see. I just want to get the engine in (and avoid working on mine for the winter, so I can save $$$ for ripping my HJ-45 into a lot of little pieces next spring).

    Updates when I get back to working on it in 4 or 5 days (depending on when I get home). But probably questions from the road.

    Guys that have done this already: am I missing anything?

    Dan
    sublette.jpg top off 1.jpg top off 2.jpg
  2. seapotato

    seapotato

    Messages:
    3,588
    Location:
    Lacus Oblivionis
    It'll probably start just fine without doing that, my 3b's always have...it's the shutting it off part that'll get annoying, but a cheapo choke cable can fix both .:hillbilly:
  3. beejay42

    beejay42

    Messages:
    304
    Location:
    Melbourne, Australia
    just thought I would say that my 3B has the EDIC removed and has a manual choke cable to shut it off- with no capacity for over-inject.
    It starts with absolutely no problem in 'run'.
    Good luck with the swap.
  4. crushers

    crushers post ho SILVER Star

    Messages:
    22,153
    Location:
    Tara Ontario
    if you add the parking brake to the t/case then you will have to move the rear cross back about 4"
    rad, buy new while they are still available.
    cable over elec for diehard reliability.
    both engiens are 12V?
  5. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    Yep. Both 12V.

    The rear cross is no biggie. Does it even need the tubular crossmember once we add in the BJ-42 crossmember? I'll probably just move it back anyway, just to keep it stronger back there.

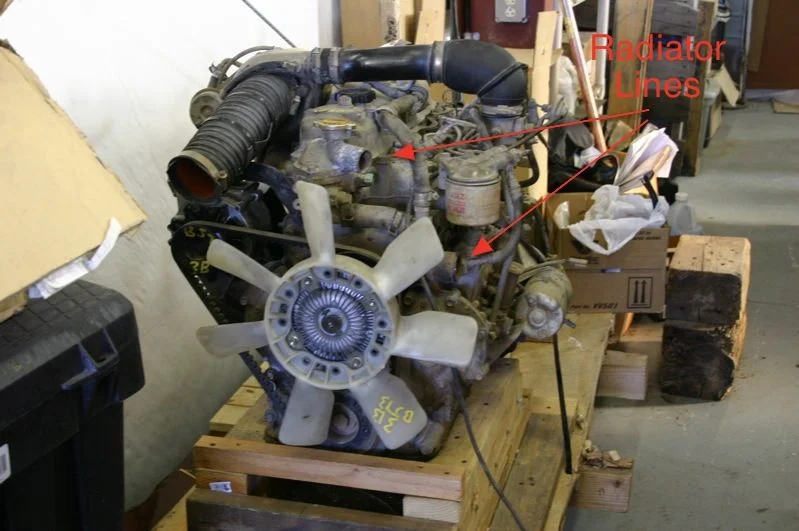

    As to the radiator: the engine is out of a BJ-73, so the engine inlets are in a different place than they would have been for a real BJ-40/42 correct? For an 84+ 3B they are different, and if I will be monkeying with the radiator anyway, I figure I should just monkey with the existing one.
    engine w:radiator outputs.jpg
    Is the 3B radiator bigger or smaller than the 2F radiator? Bigger is better here, especially with the turbo on there, so if I have to do anything crazy I'll probably just buy an aluminum radiator or something.

    If it was mine, I'd probably go with the cable over the EDIC, but Dad likes it all to work with the key (shoot, the Wilson switch for GPs was almost a tough sell), so the EDIC it is. For simple reliability I can always pull the EDIC rod off.

    Good to know that the overinject position seems like overkill, because it may just be running around with a choke cable for a while then!

    Dan
    engine w:radiator outputs.jpg
  6. crushers

    crushers post ho SILVER Star

    Messages:
    22,153
    Location:
    Tara Ontario
    AFAIK both are the same size just different inlets and outlets...

    so if you are moving the inlet and outlet then why not increase the number of cores while it is out?
  7. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    Consider it done! I don't think you can have enough cores on a turbo-diesel. Good to know.

    Dan
  8. Otterav

    Otterav

    Messages:
    715
    Location:
    Boulder Creek, CA
    Hello,
    The stock 3 core rad does not have enough cooling capacity for the turbocharged 3B, especially at altitude. US Radiator or as Wayne suggests OEM 4 row will serve you well. EDIC, starter and glowplug relays are the same as a BJ60, eBay will be your buddy!
    Hola
    eric
    P.S. My 3B build is in my sig line!
  9. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    I've read it repeatedly Eric! Good stuff.

    I can't wait to really rip into it when I get back from this trip. Stupid job.

    Dan
  10. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    Well, yesterday I was hoping to get the whole tub off. But the day before I got a bit delayed in my trip home, so I didn't get to do anything on the cruiser. Luckily a couple of the HDC guys came up and we got most of the front end taken apart, as well as everything stripped out of the tub.

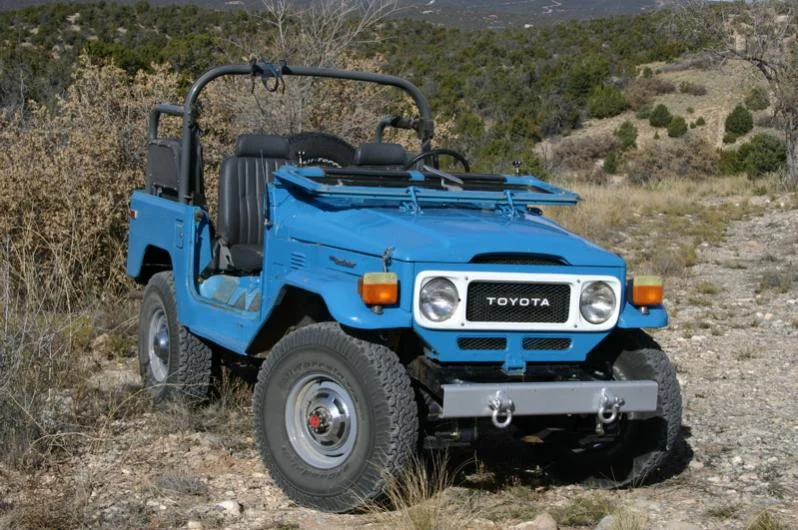

    First off, since it was still pretty much together, I just HAD to take it for one last spin before it becomes immobile. So, the chica and I drove around the neighborhood without the top and doors. Also, it was to get the engine warmed up for the compression check (just because everybody wants those numbers when you sell an engine).
    before 1.jpg

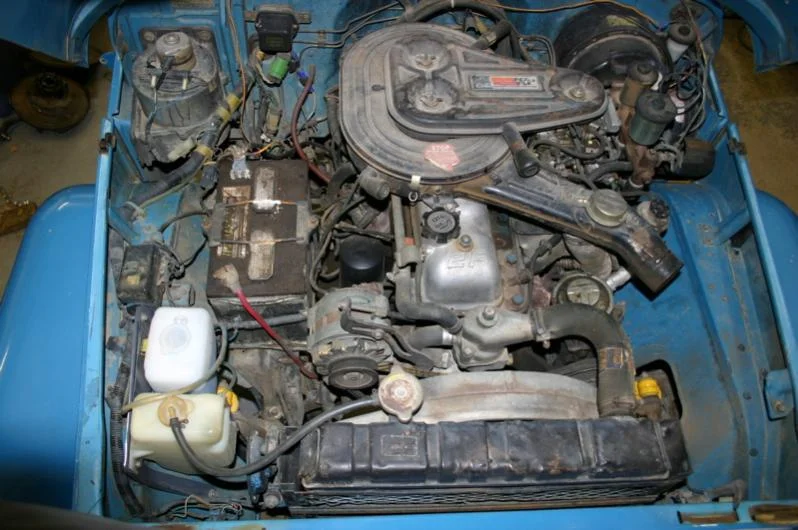

    With it warmed up, we started pulling the front apart, at least as far as we could and still be able to spin the engine for the compression check later. Here's an overview of how a 1979 smogged 2F looks before I make a mess of it. :)
    before 2.jpg

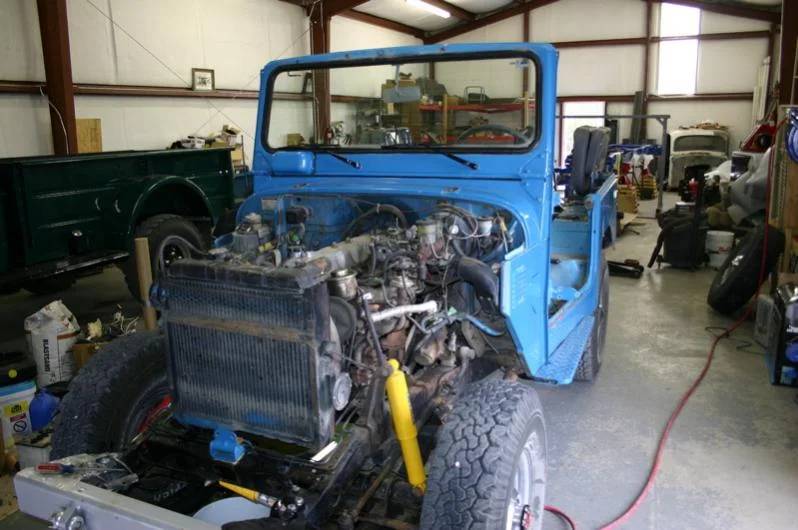

    Here's how I left it yesterday. I'm *hoping* to pull the tub off this evening, but we'll see.
    tearing down.jpg

    I also started the 3B for the guys to hear (well, and because I think it's wicked cool). With a lot of smoke it indeed started and clattered around a bit.

    I'm having a tough time finding 12371-58010, the rubber isolator between the H55f and the 40-series crossmember. I'll try to get CDan on the phone today, but we'll see. The best estimate I've got at the moment is 4 months out (SOR insisted it was IMPOSSIBLE to get them here--which I think is just code for not having any), and if that holds up, I'll just pull everything apart and start doing the bodywork on the tub and make this the whole frame off job.

    Dan
    before 1.jpg before 2.jpg tearing down.jpg
  11. Diesel42

    Diesel42

    Messages:
    744
    Location:
    Northern California
    Looks like a great start. Keep going.

  12. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    Pics aren't all that exciting today.

    Just disconnected more stuff and worked on getting the tub loose.

    It pretty much is.

    Couple things I uncovered...
    1) a PO pulled the fuel pump and installed an electric pump on the frame rail (poorly)
    2) the same PO removed the metal fuel line (actually just cut it off) and ran one single rubber line along the frame rail to the motor.

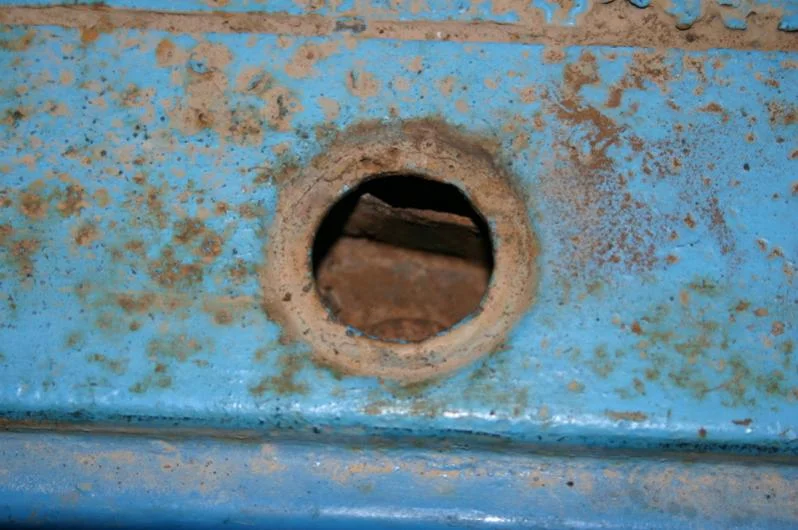

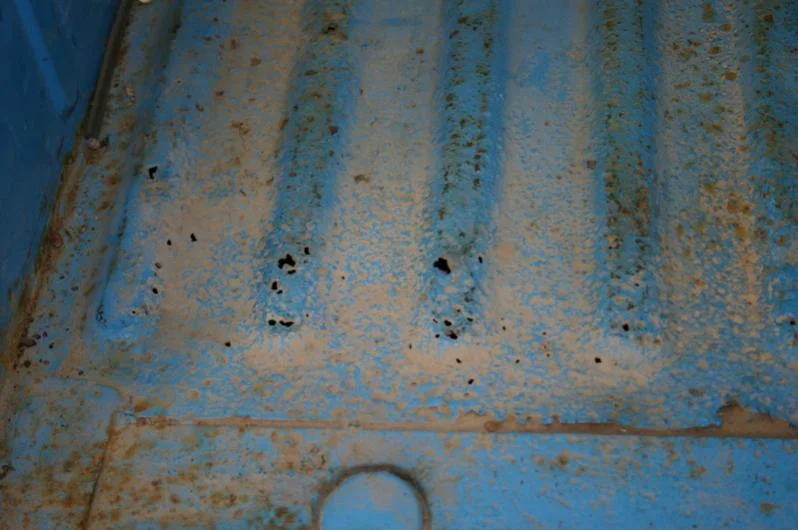

    3) the rear end is pretty rusted. That's what all the pics of are today. A PO repainted it, and it appears that it was basically just bedlined and painted over some of the cancer.
    4) The trailer brake controller (don't ask) has a brake line going from the master to it, and it has leaked and stripped the paint under the dash, so there is a bit of rust starting there--no real cancerous rust yet though.

    So I probably won't get it back on the road in a hurry. The rust needs to be taken care of, which is no biggie, as I was planning on doing that later anyway. The tub itself is ready to come off, as soon as I cut one of the rear sill bolts off (the sill is so rusted I can't get a wrench on the bolt head). Hopefully I can get the bodywork done this winter and either rent a spray booth or be ready to repaint it in the spring.

    I also swapped LED's into the instrument cluster. That took 5 minutes. Maybe tonight I'll head back up to the shop, hook the battery back up and check out the lights.

    Dan
    rust 1.jpg rust 2.jpg rust 3.jpg
  13. Right on!, i'll be watching this one. I'm build a 3b powered 40 but from the frame up using most of the guts of an 83 bj60 with a five speed conversion...:D
  14. Ruadhrigh

    Ruadhrigh

    Messages:
    2,066
    Location:
    Burque
    nice work as always Dan. Where is the pic of your Chica driving the 40? :confused:
  15. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    I'm not sure I snapped a pic of that. I'll have to check....

    Checked out pappy's 60 series 5 speed isolator for the FJ-60 crossmember (flat on the bottom) and I very well may be modifying an FJ-60 crossmember to work, as at least that is fairly easily available. ;)

    Didn't get a whole lot done on the cruiser today. Between stopping by pappy's and going to the zoo with the chica, it was a busy day outside the shop. But I did get a few gauges in the mail for it (Pyrometer and Boost, waiting on water temp). First thing tomorrow morning: tub is OFF.

    Dan
  16. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    pics in a few....

    But the tub is OFF.

    Briefly, the tub has more rust than I expected. PO repainted but put sound mat or bedliner over some rust in the floors and sill. In fact, one of the rear body mounts didn't actually need to be unbolted, as it was simply no longer connected to the body at all.

    The dash is 100% uncut. That blew me away. I figured they hacked it a bit to put the stereo in, but nope.

    Like I said: pics soon.

    Dan
  17. crushers

    crushers post ho SILVER Star

    Messages:
    22,153
    Location:
    Tara Ontario
    before you tackle the steel tub shoot me an email and i will give you some advice.
    cheers M8
  18. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    Will do Wayne.

    The hotel they put me in today doesn't have Internet for my computer. So you'll all just have to wait until I get to Edmonton tonight for more pictures. Thank goodness for the iPhone.

    But I am using the day to call around for parts still.

    Dan
  19. Dan, where was the electric fuel pump mounted on the 40? When I was crawling around under there I did see it.

    Thanks,
    Vince
  20. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    4,127
    Location:
    Idaho Springs, CO
    Vince: It was on the right frame rail, toward the inside, just under the passenger seat. Do you want it? It's going in the trash otherwise.

    OK, time for pictures.

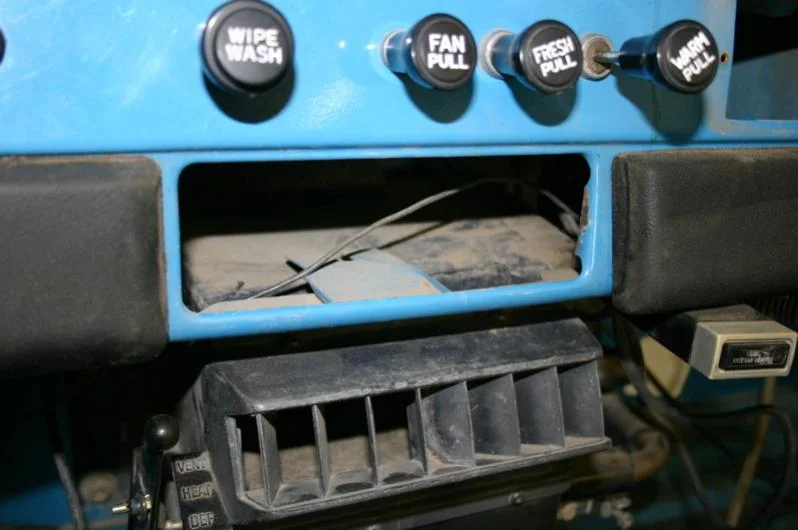

    The radio cutout.... (oooh.... ahhhh.....)
    radio cutout.jpg

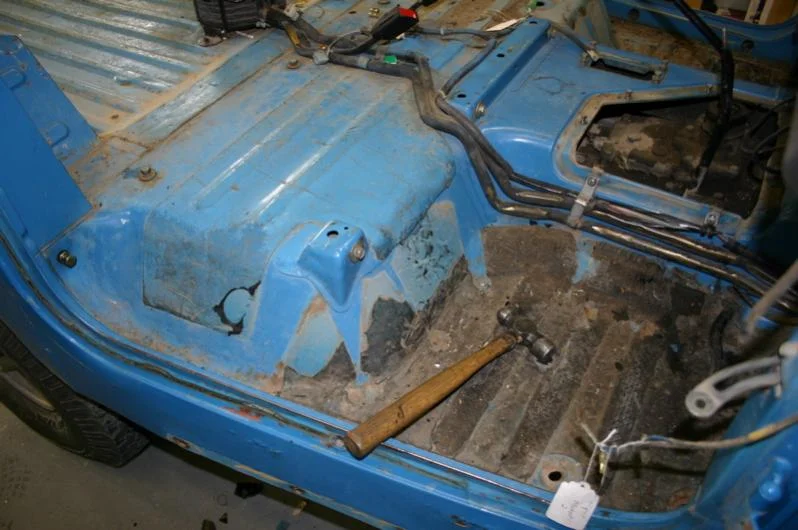

    And the sound mat stuff that was applied to the front seat areas. Where people's feet were, it had the ability to mash itself into the rust in the front floorboards and stuff. For the most part though it did a good job protecting the metal, from what I can see. A pain to remove though.
    sound deadening.jpg
    sound deadening 2.jpg
    radio cutout.jpg sound deadening.jpg sound deadening 2.jpg
