Hi guys, my soldered connections broke loose from the cord connector at the controller. Unfortunately it is impossible to tell where they terminated.

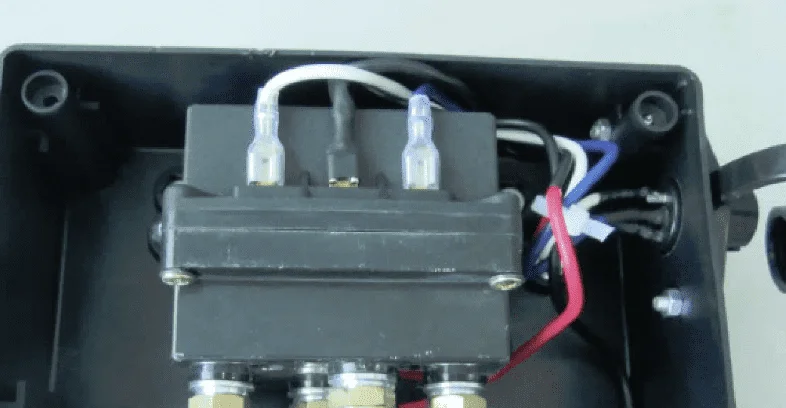

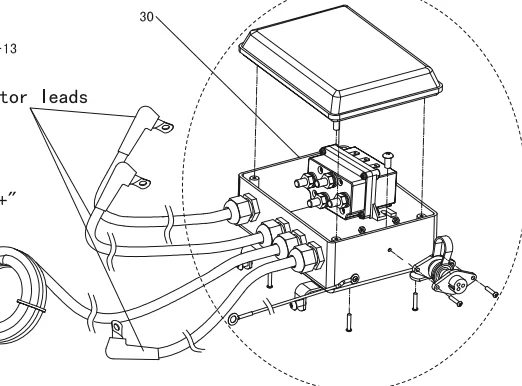

Do any of you have a wiring diagram or photos of the inside that may give me a clue of where each terminates on the connector so I may re solder them?
