OK, this particular post needs to be in the stickies. I've been looking for it for a while. Just ordered up a BaoFeng BF-F9 V2 8W HT and some accessories (longer whip, mag mount for the car, cables and blah blah). Trying to figure out next steps like "how" to actually use it, and this post is great. I had missed the meeting, but this should get me started playing around. If anyone else is in my same boat - new technician, new radio, thinking "now what?", maybe we can have a practice session with some hands-on radio time for the essential functions (repeaters, autopatch, etc.)
Thanks, good info!You might want to consider some way to hard-mount the HT, plus a external mic/speaker is a huge help.
https://forum.ih8mud.com/threads/handheld-ham-radio-mount-how-i-did-mine.811000/
I have since upgraded... The old microphone was way too small and hard to hold, plus the speaker was too small. I now have THIS MIC/SPEAKER.
But... I bought a new FT-7900 and will be remote-mounting it this week. I need to drop the headliner in my Taco as I'm going to hard-mount a LMO type antenna mount where the satellite radio antenna is. Looking forward to 50 watts on 2 meters!
Although... I was able to hit a repeater in the San Tan mountains from 101/Scottsdale Rd on my 5 watt Yaesu HT with a 1/4 wave antenna on a mag mount. The guy I was talking to said it sounded just fine...
Ham is the red headed step-cousin of the true patron of meat >
highjack over
The best ham experience is at honey baked

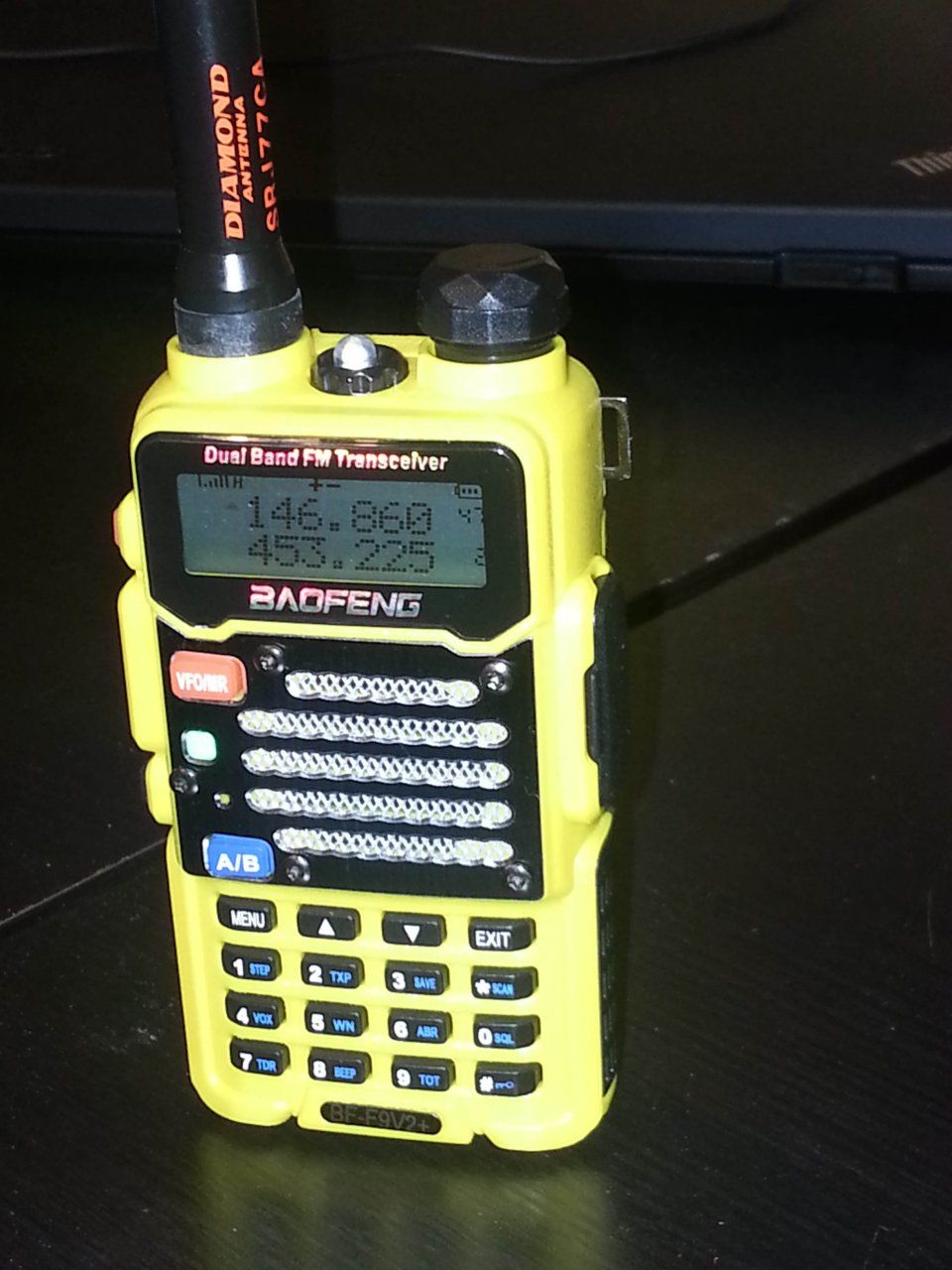

Up and running! I can at least listen to a repeater on Usery Pass from my house in Gilbert.
View attachment 1004953
One of the basic tenants of amateur radio is to use the lowest possible power required to communicate.I'm still messing around, have the HT in the car with the mag mount antenna (Tram 1185) today to see what comes in, and what I can talk to. The new BaoFeng's HT's have 1W, 5W, and 8W Tx settings. I'm guessing every little bit helps. I have the OEM battery, and also a 12V adapter. Have (obviously) not used long enough to know how long the battery will last talking at max output.
One of the basic tenants of amateur radio is to use the lowest possible power required to communicate.
Of course the difference between 5 and 8 watts is about 30 feet!
Get a good antenna for best results and get it high as you can.
Well, I'll try both in my car and see what happens. It's a little unwieldy with the SRJ77CA on the radio as it's ~15" tall, but I can hit Usery Pass repeater and use autopatch to make a call just fine from home, which is about 14 miles. I can hit Mt Ord from home, which is about 45 miles as the crow flies, and can access the autopatch, but it drops the call almost immediately. Couldn't maintain a connection. Is that typical? (this is on high power with 8W).Another place to save power and increase range is minimize the cable and connector attenuation between said radio and said antenna. Small numbers add up to serious signal loss. Usually not too bad for Rx, but can easily halve Tx range. Adapters are notorious for being bad ideas in the RF world -- sometimes handy, but never close to what a properly designed cable interface.
These cable issues are why a hand held with stubby inside a car works as well as the same handheld with a 18" SMA-UHF adapter cable connected to a magnetic roof mount with an extra 15 or 25 feet of cheap RG58, especially when on the 70cm band.
Well, I'll try both in my car and see what happens. It's a little unwieldy with the SRJ77CA on the radio as it's ~15" tall, but I can hit Usery Pass repeater and use autopatch to make a call just fine from home, which is about 14 miles. I can hit Mt Ord from home, which is about 45 miles as the crow flies, and can access the autopatch, but it drops the call almost immediately. Couldn't maintain a connection. Is that typical? (this is on high power with 8W).
