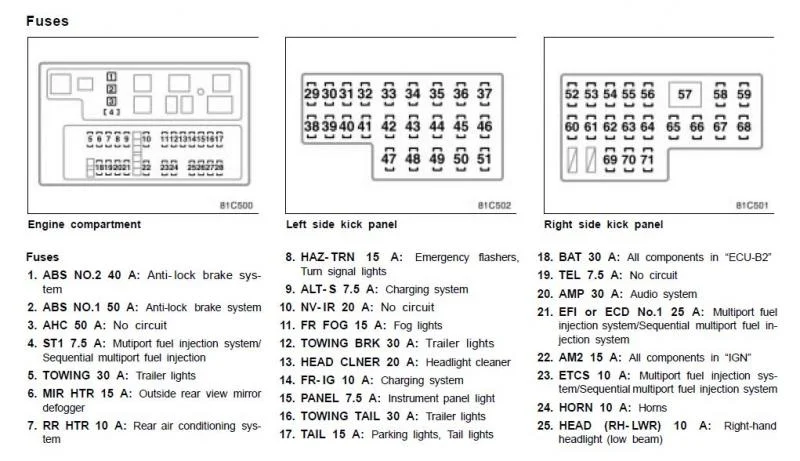

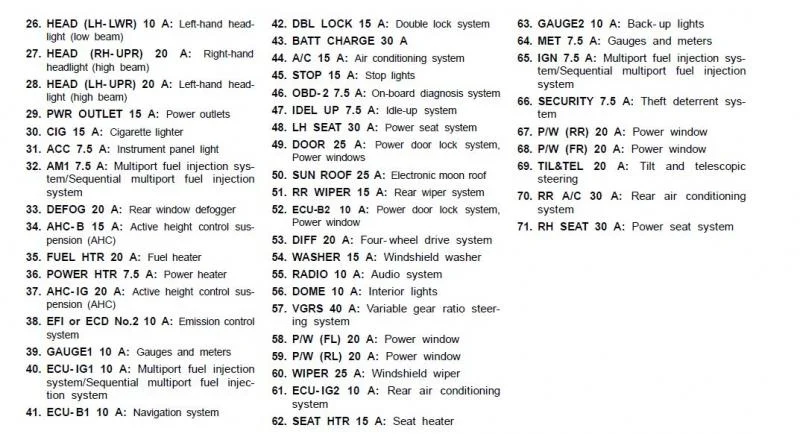

Fuse block diagrams (5 Viewers)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Status
Not open for further replies.
Trunk Monkey

Trunk Monkey

Moderator
Joined
Apr 27, 2003
Threads
306
Messages
10,953
Location
Salt Lake City
From a 2004, there may be some difference in model years and LC/LX.
