Front Diff Fill and Drain Plugs - PLEASE...

Discussion in 'FJ Cruiser' started by billybronco, Dec 22, 2010.

  1. billybronco

    billybronco

    Messages:
    84
    ...will somebody for the love of God, show my dumbass PICTURES with little arrows pointing to where the plugs are????

    There is NOTHING in my manual nor anywhere on the internet that I can find.

    I dropped the damn plate and there are a dozen plus bolts in the general area of the differential.

    THANK YOU.
  2. FJ45Dude

    FJ45Dude

    Messages:
    48
    Location:
    Arizona

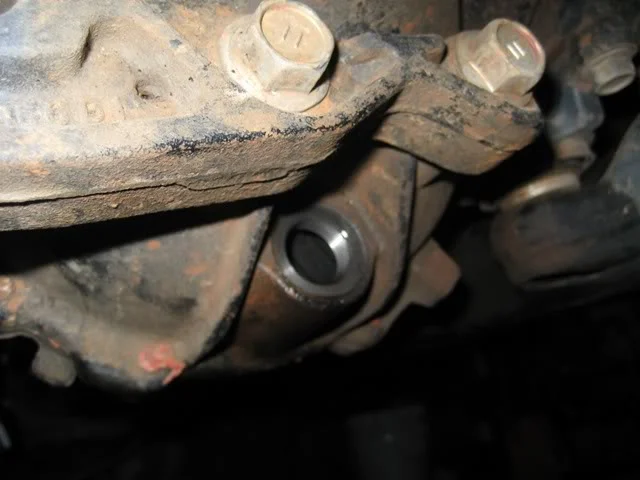

    The top picture is is of the drain hole (plug removed) and the second picture is of the fill hole (plug removed). {EDIT} Pictures originally taken and posted by "1911" in the thread: http://www.fjcruiserforums.com/forum...placement.html. Thanks "1911"!

    Here is are the key steps: remove fill plug on side using 10mm hex, remove drain plug from bottom (also 10mm hex), drain completely, clean and reinstall the drain plug with a new crush washer, torque to 48 ft. lbs., refill with gear lube until it dribbles out of the fill hole, reinstall fill plug with new crush washer, torque to 29 ft. lbs.

    And... Done! :beer:

    Make sure to remove the fill plug first. It can be quite frustrating to drain the entire thing only to find that you cannot remove the fill plug.

    I like 75W-90 synthetic Mobile 1 for the front diff.
