    GOAL: BUILD AN EXPEDITION CLASS FJ-60

    This has turned into a whole vehicle build thread now and not just an engine swap. So I have logged work I have done on the rig, issues, solutions and links to other resources, as well as my parts costs, etc.

    From May 2008 to Dec 2012 (when the 2F died), usage activities for this rig have been: for DD, a couple trips to Canyonlands Utah, camping up in the mountains and the like.
    Hauling stuff and for the ride. Love a manual tranny

    FUTURE uses (once I get it back together again - is that possible?): Longer trips in the western US background, mostly Utah

    Since I am an old software geek (same age as Bill Gates, but much poorer) and engineer things, I have planned the project, researched it and then modified it over time as reality comes between the eyes or new options come to light. So I might have too much detail, but this is my thread. Deal with it.

    Suggestions and criticisms are welcome to be considered. (And I have considered many and changed my plan several times from such)

    THREAD's TABLE OF CONTENTS - links to various topics of the thread/build - hope this is useful

    Goal, Table of Contents and prior history of what I did http://forum.ih8mud.com/threads/dougberts-future-350-swap-how-much-torque-is-too-much.541922/
    Powertrain bill of goods, parts to get http://forum.ih8mud.com/threads/dou...-much-torque-is-too-much.541922/#post-7181353
    Reference links and TODO Task List http://forum.ih8mud.com/threads/dou...-much-torque-is-too-much.541922/#post-7181550
    Original post (2011) on engine rebuild http://forum.ih8mud.com/threads/dou...-much-torque-is-too-much.541922/#post-7181550
    Discussion on engine design http://forum.ih8mud.com/threads/dou...-much-torque-is-too-much.541922/#post-7181876
    Block at machine stop http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-2#post-7253967
    Block BACK from machine stop http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-3#post-7738900
    Painted block http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-3#post-7829464
    Day I lost the 2F http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-3#post-8127483
    Stripping down the 2F http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-4#post-8169705
    350 CAM and chain installed http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-4#post-8188508
    2F gets pulled http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-5#post-8603715
    Tranny and TC are out http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-5#post-8686012
    Cleaned engine bay http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-5#post-8688200
    NV4500 vs Ranger Overdrive adapter discussion http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-5#post-8689442
    Front fenders, et al off , BODY LIFT starts http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-6#post-8716082
    Front frame getting cleaned and painted http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-6#post-8766432
    Roof RUST FOUND, headliner removal http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-7#post-8814980
    Underbody cleaning and Rust Bullet http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-7#post-8863187
    Moulding anchors search http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-8#post-8867014
    and http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-8#post-8871596
    Rear C channel clean up (lots of work to do this) http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-8#post-8878320
    Underbody painting w/Rust Bullet http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-9#post-8976799
    Fenders and et al, sandblasted http://forum.ih8mud.com/threads/dou...torque-is-too-much.541922/page-9#post-8978809
    Fenders and et al, painted http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-8983782
    More engine work http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-8982137
    Took off doors and began renewal on them http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-8999374
    Tail hatch work http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-9008007
    Window regulators http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-9008404
    ZEP 505 Cleanser is great http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-9020448
    More underbody painting http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-9046548
    and http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-10#post-9050624
    30mm floor plugs problem and a source found http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-11#post-9077821
    2nd head order, and fan discussion http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-11#post-9087760
    V belt vs single belt discussion http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-12#post-9090103
    More engine parts installed http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-13#post-9097710
    and http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-13#post-9115214
    and http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-13#post-9127645
    and http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-15#post-9194257
    Axle cleaning and painting http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-13#post-9100459
    power steering http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-13#post-9123923
    Mechanical fan issues with Ranger adapter http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-14#post-9132798
    and http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-14#post-9147851
    Painted engine bay, front axle and cowl rust spots http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-14#post-9147735
    Zinc plating on old bolts/nuts http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-15#post-9209552
    Start Transfercase rebuild with kit http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-15#post-9206702
    and http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-15#post-9227913
    Tool for measuring TC preload in-lbs http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-16#post-9236490
    Start of Front axle rebuild http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-17#post-9259419
    Rebuilding the AISIN locking hub http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-18#post-9285623
    Start of Ranger OD installed (NOTE: MEASURE the tranny input bearing prior to ordering) http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-18#post-9297330
    Installed flywheel on engine http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-19#post-9309938
    Finished left front axle/knuckle rebuild http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-19#post-9313143
    Finished Ranger install with tranny and transfercase http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-20#post-9322686
    Exhaust system discussion 2.5 inch from headers to Y, then 3 inch all the way out http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-20#post-9341087
    What I learned on rear drum parts kits READ THIS if you doing your rear brakes http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-21#post-9353052
    Putting powertrain together and into engine bay http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-21#post-9368412
    Firewall wiring upgrade http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-23#post-9395859
    Revisit of spark plug wires and Ram Horn manifolds http://forum.ih8mud.com/threads/dou...orque-is-too-much.541922/page-24#post-9412161



    History

    I acquired the rig in May 2008 for $2500. 189,000 miles on it.
    I put 49,000 miles on it until the engine went out, Dec 2012 (seen later on this thread)

    After buying it, it Immediately needed:

    2F Specific mods/fixes (things that no longer apply since the 2F is now GONE):
    New clutch pressure plate, disc, throwout bear, etc
    New oil (old oil was very lumpy) and filter, changed again in 500 miles for flushing of bad oil
    New coolant (Moab Red did NOT seem right color for coolant) after a BIG flush
    (those last 2 items and others hints, indicated to me that PO's did NOT take care of the rig.
    I believe that is why the engine block later died at 238k miles)
    New coolant hoses throughout

    Body specific mods/fixes that outlast the 2F engine = they are still on the rig:

    rear pinon bearing broke, and replaced
    Had rear axle rebuilt with new bearings and seals (from Kurt at CruiserOutfitters.com)
    Front pinon bearing replace
    New OME shocks
    New steering stablizer

    Over the next several years I did or bought the following:

    2F Specific mods/fixes (things that no longer apply since the 2F is now GONE):

    New water pump.
    New thermostat and gaskets
    Desmogged
    new vac lines
    Removed air pump and installed JimC's idler pulley
    JimC Dizzy rework a used 2nd dizzy I sent him.
    Bought a 2nd head, had it rebuilt with SS valves (as per JimC's counsel), oil galley, rocker arm serviced and swapped in on a saturday
    6-to-1 header
    New muffler
    Trollhole carb (bought a second for a spare)
    Radiator shroud 2 piece mod

    Body/frame specific mods/fixes that outlast the engine:

    New aftermarket radiator.
    OME EMU Lift
    Saginaw PS installed
    New Clutch MC and Slave
    Painted the top of the hood - it REALLY needed it, as it was peeling
    Refreshed the Herculiner that some PO put on the sides.
    Steering gear box reworked at Texas Steering
    New rebuilt brake booster
    New brake MC and flush
    New pads in front and brakes in rear
    200 Amp Mean Green Alternator
    Fixed driver footwell rust rot
    Cruiser C-r-a-p installed on floor, got quieter
    ARB Rear Air-Locker
    Install FJ62 4.11 third members, front and rear
    Cleaned up rear cargo area, rear seat, and new rear cargo carpet
    Fab'ed my new headlight harness (now have 14.4 volts at lights instead of 8.6v)
    Fog lights
    Off road lights on roof
    Improved electrical system, better wires, grounding, etc.
    Had front knuckles rebuilt, new bearings and seals
    Added to the A pillar, a 4 gauge strip. Physical Water temp gauge, Vac gauge, Fuel mixture. Future Oil pressure
    Installed HAM radio

    Bunch of other stuff which I forget what I did.

    As can be seen, I didn't know much about Cruisers back then because of how much repair I had to do it BUT.....

    I view that as ALL TUITION well spent for my education of LandCruisers

    Then I lost the 2F, I sold all the "good" rebuilt/new parts from that engine to help fund the SBC

    While it is down, I miss it terribly. BUT I am having fun rebuilding it. Not too fancy car looks,
    but to utilitarian function - I drive through A LOT of scrub oak, which scratched the old paint job something terrible, so I extended the old Herculiner from 1/3 the way up to all the way up to the windows. It protects so much better.

    I want a off road 4x4 truck that can take the work, and keep running for some time.

    *********************************************************************************
    **************************************** Original post *************************
    *********************************************************************************


    Ok, it is time to ask some questions on a 350 swap for my fj60.

    I have been researching building my own engine from a donor block for some time. I have wanted to do this since I was a teenager, and I am NOT getting younger. So I have been: Reading, asking and calculating.

    I am starting with a 1983 chev truck 4-bolt main block, of which I will reuse the block and the Quadrajet carb (which I am rebuilding). Everything else will be bought new. My first choice is a 383 with 4.040 bore (block is already at 4.030). Then my second choice is just the 350 at 4.040 bore.

    My goal is to build a torquer with good low to mid torgue and low RPM target. I don't want to run the rig above 85 (lol). I have also purchased the Dyno Sim5 computer program to compare different configurations. This will go into my FJ60 with a NV4500 tranny, NP241 TC and a 14 bolt rear diff, all like lehiguy's rig.

    I am choosing the following parts:

    new version of GM Bowtie Vortec heads, small runners
    Edelbrock Vortec spread bore intake
    roller cam CompCams x4270HR (220/224 @.050) 111LSA .474 lift

    The Sim5 gives the following - one for the 383 and one for the 350 - numbers:

    350
    TQ 493 @ 2500 sea level (403 @ 2500 5500ft)
    HP 383 @ 5000 sea level (313 @ 5000 5500ft)

    383
    TQ 522 @ 2000 sea level (426 @ 2000 5500 ft)
    HP 373 @ 4500 sea level (304 @ 4500 5500 ft)

    Given these are just sims, they do provide relative comparisons.

    So my question becomes: How much torque is too much for a FJ60?

    Pics below is the dirty block in the back of the 60 on the way to the machinist. My plan is to have it worked over the next 4-5 months (Scott at Provo Utah's Charlies, will work on it in idle time and I will pay over that duration).

    UPDATE: It took 12 months

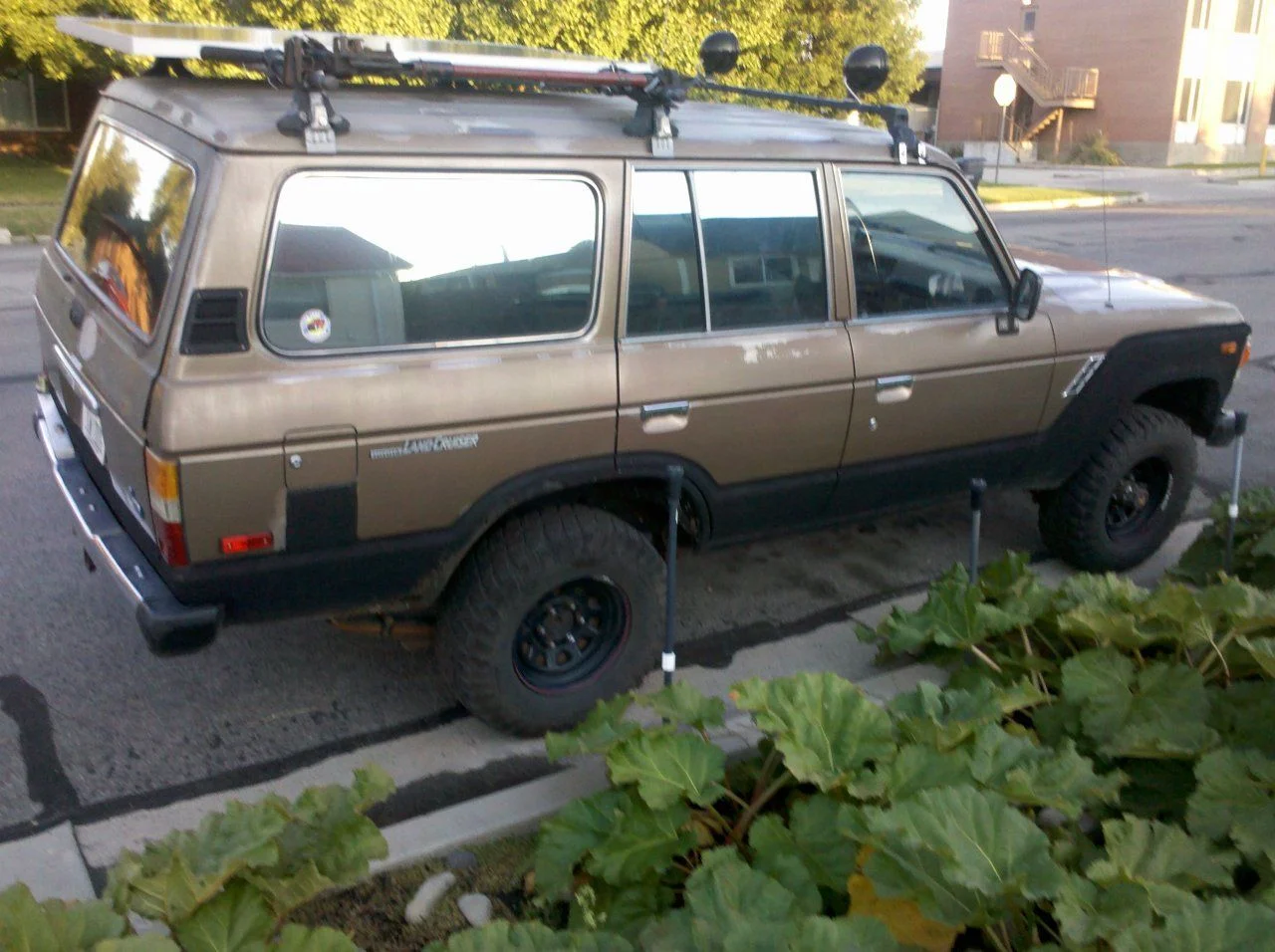

    thought to at least post a pic of the rig itself. The hood is the first part to be cleaned up and painted. Other portions will be painted - rear hatch is in process.


    View attachment 917943

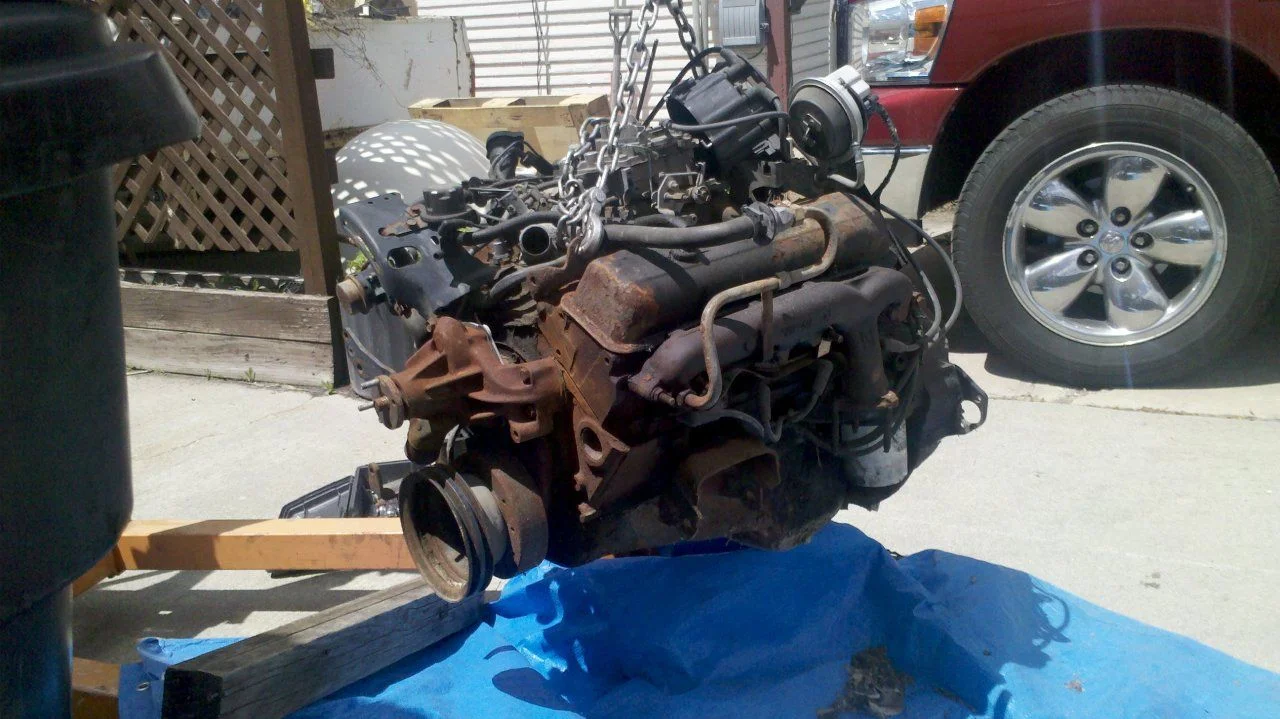

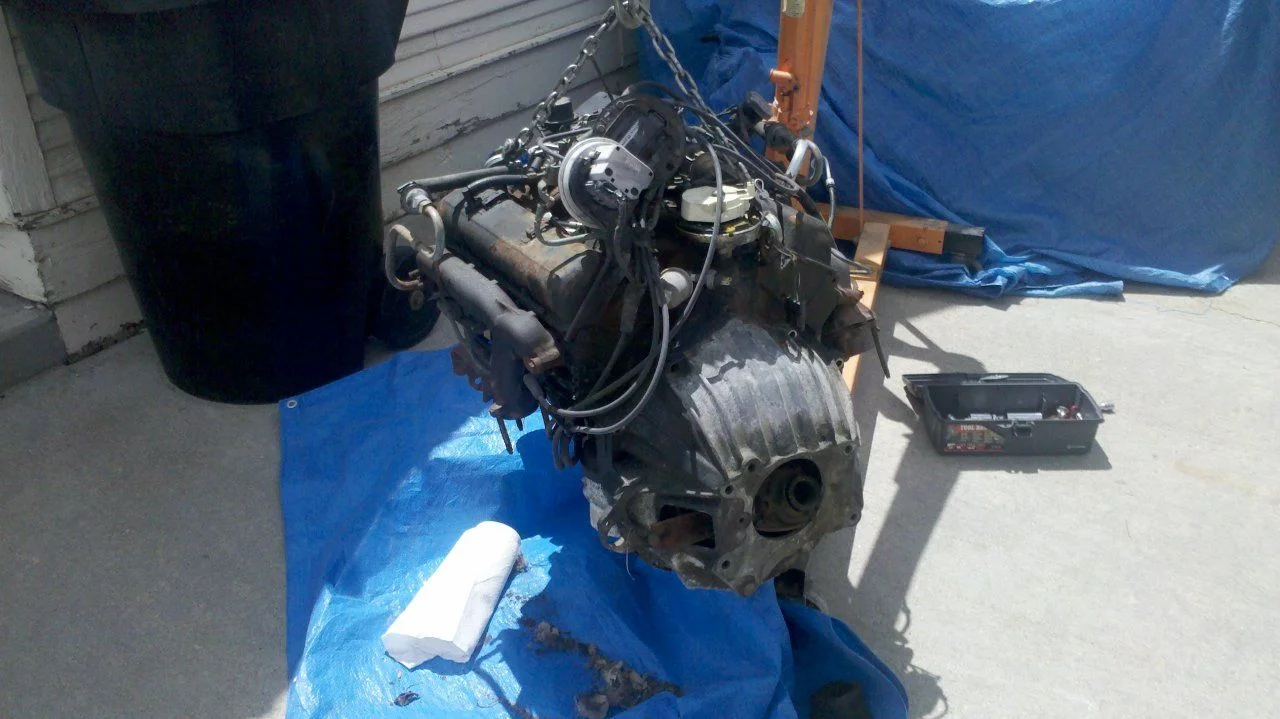

    pic is the donor motor before I tore it down

    View attachment 917938

    View attachment 917940

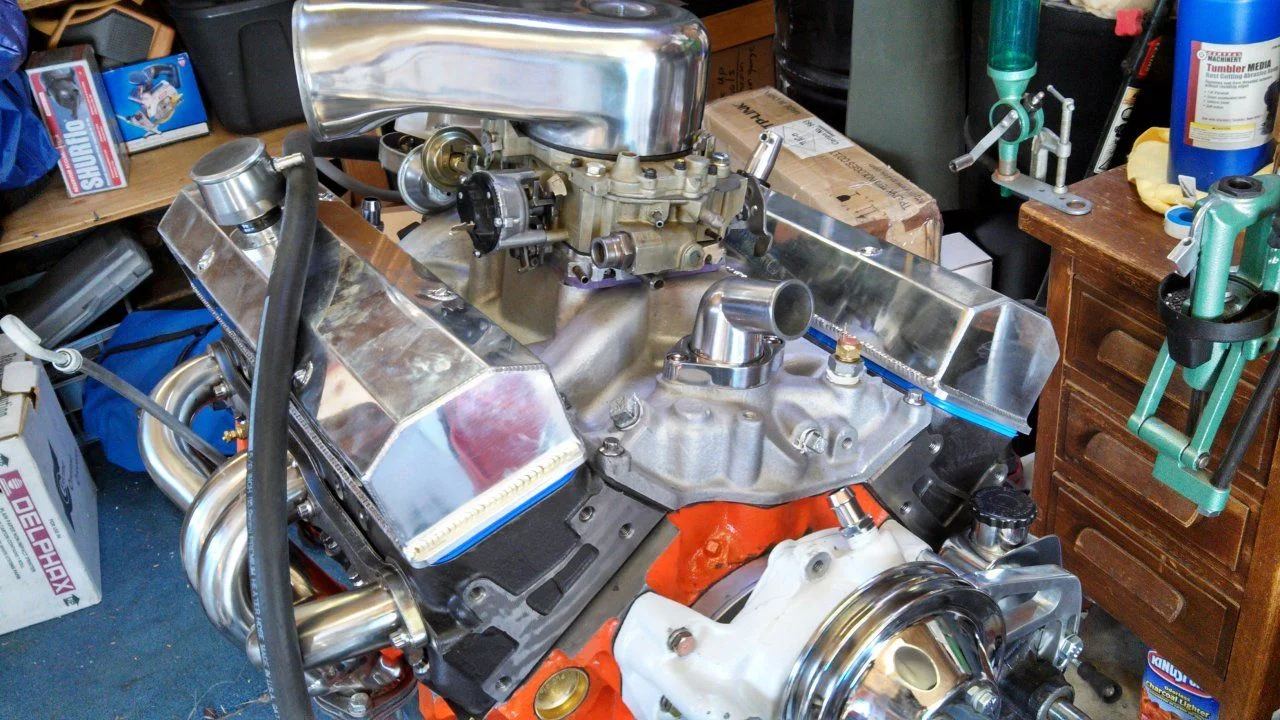

    Quick peek: After engine had been rebuilt and new parts added:

    View attachment 917941
    Last edited: Oct 29, 2014 at 5:24 PM
  2. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    UPGRADE OF POWERTRAIN: SBC ENGINE, TRANSMISSION and TRANSFER CASE PARTS COMPLETED!!

    Pic of completed engine, followed by Parts list and sources

    rebuilt engine.jpg

    Updated: 15 September 2014


    Free: 1973 4-bolt main 350 block.
    Manufactured: 10 Aug 1973

    Reusing: block, crank, rods, carb and flywheel. Thats all that will be original.
    All other parts will be purchased new, with a few used.

    $1500: Machine costs. Went with a 350ci (5.7L) target with .060" over for a 360ci (5.9L) engine.

    Balanced throughout. Bore aligned with torque plate in place.

    $1384: Ranger Overdrive http://www.summitracing.com/parts/add-760024m-27/overview/
    $520 Head: GM Bowtie small runner vortecs http://www.jegs.com/i/GM Performance/809/25534421/10002/-1
    $515: GM Bowtie head, Free shipping http://www.jegs.com/i/Chevrolet-Performance/809/25534421/10002/-1?parentProductId=955896
    $316: 16 - Comp Cams 1617-1 Self-Aligning Ultra Pro Mangnum Roller Rockers http://www.summitracing.com/parts/CCA-1617-16/
    $305: Comp Cams roller cam lifters - (used for a Dyno Test)
    $277: MSD Chevy 8360 Ready-to-Run Dizzy ($50 off with coupon) http://shop.advanceautoparts.com/p/...vy-v8-w-module-8360/17350185-P?zoneAssigned=1
    $275: Comp Cams 12-409-8 Extreme 4x4 Retro Hyd roller CAM
    $250: Rebuild kit for Transfer Case - rebuild it myself http://www.cruiseroutfitters.com/engineparts.html
    $242: Comp Cams 310 3-piece Timing Cover, can adjust/change CAM without distubing oil pan. Also more solid for cam thrust button
    $231: Centerforce II Pressure Plate 11 inch CFT165552 http://www.amazon.com/dp/B000CIQP72/?tag=ihco-20
    $200: Rebuild kit for QuadraJet carb
    $190: Harmonic balancer
    $155: Intake: Profession Products 52007- vortec intake $155 http://www.ebay.com/itm/Professiona...Parts_Accessories&hash=item1e78f12d8c&vxp=mtr
    $140: 2 Proform MLS head gaskets http://www.ebay.com/itm/1142-Fel-Pr...Parts_Accessories&hash=item2c6d043276&vxp=mtr
    $128: Pushrods http://www.jegs.com/i/COMP Cams/249/7955-16/10002/-1
    $110: Block hugger headers 1.5" primaries to 2" collector
    $105: GM Clutch Disk 10 spline 383735, 11 inch disc, 1-1/8 inch dia shaft http://www.amazon.com/dp/B000CISMS2/?tag=ihco-20
    $105: composite dizzy gear http://www.jegs.com/i/Comp Cams/249/12200/10002/-1?CAPCID=32103742751&cadevice=c&gclid=CIXl_cK9mLsCFYUWMgodf3cAmA&CA_6C15C=230006180000140600
    $99: Air intake plenum for carb http://www.spectreperformance.com/search/product.aspx?prod=9849
    $88: 3HP Starter http://www.ebay.com/itm/350783930097
    $85: Chevy Bellhousing 460486 cast number, ebay
    $80: TC linkage bushings and misc parts. Old is VERY loose and bushings are missing, AND Shipping from SOR. Very tight now.
    $79: ARP Head bolts http://www.allensfasteners.com/detail.asp?Product_ID=ARP-134-3703
    $77: MSD plug wires http://www.amazon.com/dp/B000COUMY8/?tag=ihco-20
    $75: rear tranny mount - the old one is almost 30 years old #EGM61030R http://www.cruiseroutfitters.com/engineparts.html
    $75: Stewart Stage 2 23113 Water Pump http://www.ebay.com/itm/161004997170?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649
    $69: Valve Covers http://www.ebay.com/itm/SBC-Chevy-3...Parts_Accessories&hash=item4d07eba504&vxp=mtr
    $66: Spectre 9831 Inline airbox with filter http://www.amazon.com/dp/B0035GS6RU/?tag=ihco-20
    $65: Chevy 7 bladed fan and fan clutch from ebay USED
    $55: Fel Pro valve cover gaskets 1628 http://www.jegs.com/i/Fel-Pro/375/1628/10002/-1
    $54: or Spark plug boot sleeve heat protector http://www.wirecare.com/products.asp?prodline=spb
    $45: ATP Part # ZA104 More Info {#3765372} Category: Clutch Fork http://www.rockauto.com/catalog/moreinfo.php?pk=65852
    (Alternate: Fork #15687296 1960-1972 Apache Custom Blazer http://www.advanceadapters.com/products/716176--gm-cast-iron-release-arm/ $70)
    $42: PS Bracket http://www.ebay.com/itm/350858424396
    $42: Vortec Intake Manifold gaskets - I should have just gotten http://www.jegs.com/i/Fel-Pro/375/1255/10002/-1 instead of the kit below of which I only used the intake, and can't use the other gaskets as they are for the Vortec engine
    (I bought the wrong kit - MS98000T and on valve cover gasket http://www.amazon.com/gp/product/B000CH0C0Y/ref=oh_details_o01_s00_i00?ie=UTF8&psc=1
    $42: Clutch release bearing http://www.advanceadapters.com/prod...sing-stock-land-cruiser-4-speed-transmission/
    $40.50: I use the gaskets that came with the headers instead of these Exhaust gaskets whirch are the D Shape and it did't look right - Vortec Fel-Pro 1470 http://www.amazon.com/dp/B003TPHNEE/?tag=ihco-20
    $40: MSD Blaster 2 coil 8202 Free shipping http://www.summitracing.com/parts/msd-8202/overview/
    $40: slave cylinder bracket http://www.advanceadapters.com/prod...nder-bracket-for-use-with-chevy-bellhousings/
    $36: New Tach to replace OEM http://www.jegs.com/i/Sunpro/885/CP7906/10002/-1 install http://forum.ih8mud.com/60-series-wagons/292794-new-tach-v8.html#post4585224
    $35: ALT Bracket http://www.ebay.com/itm/SBC-CHEVY-A...Parts_Accessories&hash=item4d138b10c7&vxp=mtr
    $31: Flywheel cover http://www.classicparts.com/73-84-B...nual-Trans/productinfo/90-918/#.UnF2eawnZfV24
    $30: Grommets for valve cover, PVC
    $28: Carter M6626 Fuel Pump - 3 line: draw, to carb and return
    $25: Pilot Bushing http://www.advanceadapters.com/products/716170--pilot-bearing-590-idx-1090-od
    $25: Throttle cable
    http://www.autozone.com/autozone/ac...mIdentifier=536804_0_0&CJPID=4022106&cmpid=cj
    $25: New metric bolts for tranny crossmember to bolt to frame
    $23: (found out 2 not needed) 3 Heater hose nipples to fit into intake manifold
    $18: 90 degree hose nipples to route around back of dizzy to heater
    $20: Comp Cams 7702-1 Pushrod length checker
    $20: Clutch fork Boot http://www.classicparts.com/1985-91-Clutch-Fork-Boot/productinfo/90-527/#.UyzKJttBrOp
    $20:8 AC Delco R44LTS Spark plugs
    $19: Steward 180 degree hi-flow thermostat http://www.ebay.com/itm/EMP-Stewart-301-Thermostat-180-Degree-High-Flow-Copper-Steel-3-Bypass-Holes-Each/390589740292?_trksid=p2047675.m1850&_trkparms=aid=222002&algo=SIC.FIT&ao=1&asc=11&meid=7565385820009718044&pid=100011&prg=1005&rk=1&sd=330910175826&
    $18: (not needed-went mechanical) 2 FAN connectors, $7 each http://www.clipsandfasteners.com/Ford_Wire_Harness_Connector_Radiator_Cooling_p/a20852.htm
    $15: water neck/thermostate housing
    $15: New rubber fuel lines
    $15: Spectre 4" Coupler http://www.jegs.com/i/Spectre/865/9772/10002/-1
    $14: Chrome Fuel pump plate and bolts
    $14: Block-Bell housing bolts http://www.ebay.com/itm/1955-1992-5...Parts_Accessories&hash=item5655db5ae7&vxp=mtr
    $13: Comp Cams 4607 Bronze Fuel pump pushrod
    $13: ARP Pressure Plate HP Bolts From Jegs ARP-130-2201
    $12: Comp Cams Roller Button
    $10: One valve cover gasket Fel-pro VS50293R http://www.amazon.com/dp/B000C2GIGQ/?tag=ihco-20
    $5: ARP 234-1001 ARP Cam Bolts
    $3: Release bearing collar from TLC release bearing (2)

    Total $8696 For Power Train rebuild

    Installation: $500

    ADVANCED NON-CRITICAL ITEMS

    $1400: Rear bumper and swing outs for tire, gas cans and hi-jack
    $1200+: 190 liter/50 gallon fuel tank http://www.4wdsystems.com.au/index.php?id=25
    $950: ARB Front bummer
    $600: Sliders
    $300: GPS Speedometer http://www.speedhut.com/gauge/GR4-GPS-16T/1/GPS-Speedometer-Gauge-100mph--(w--turn-signal-and-high-beam)
    $295: New QUAD Gauge display with sensors http://www.speedhut.com/gauge/GR4-QUAD-01/1/Quad-Gauge---Oil-psi,-Water-Temp,-Fuel-Level,-Volts
    Gauage article: http://forum.ih8mud.com/threads/bean-my-fj60-build-and-adventure.794299/page-7#post-9329359
    $200: MSD 6AL #6425 http://www.ebay.com/sch/i.html?_trksid=p2047675.m570.l1313&_nkw=msd 6425&_sacat=0&_from=R40
    $175: Front U bolt flip-kits http://www.4plusproducts.com/fj60uboltflipkits.html
    $175: Rear U bolt flip-kits http://www.4plusproducts.com/fj60uboltflipkits.html
    $78: Titanium Exhaust Pipe Wrap http://www.ebay.com/itm/TITANIUM-EX...r_Truck_Parts_Accessories&hash=item2ecf10318c
    $34: SPARE HRP Inline Air Filter http://www.jegs.com/webapp/wcs/stores/servlet/KeywordSearchCmd?storeId=10001&catalogId=10002&langId=-1&Ntk=all&Jnar=0&itemPerPage=90&Ne=1 2 3 13 1147708&searchTerm=HPR9831

    BRAKE RENEWING


    http://forum.ih8mud.com/threads/4ru...-and-backing-plate-eliminator-install.281660/

    BOUGHT - $151: New front axle rebuild kit: seals, gaskets, bearings, new nuts, Marlin inner seals, etc from Cruiser Outfitters.com
    BOUGHT -$66: 2 @ $24 each + $22 SH, New front flexible stainless steel brake lines
    BOUGHT -$65: Raybestos RC10376 Left Caliper http://www.amazon.com/dp/B000C71UO6/?tag=ihco-20
    BOUGHT -$65: Raybestos RC10375 Right Caliper http://www.amazon.com/dp/B000C71UNC/?tag=ihco-20
    BOUGHT -$57: Beck Arnley Drum http://www.partsgeek.com/catalog/1986/toyota/land_cruiser/brake/brake_drum.html
    BOUGHT -$57: Beck Arnley Drum http://www.partsgeek.com/catalog/1986/toyota/land_cruiser/brake/brake_drum.html
    BOUGHT -$49: Dust plate eliminator, bolts, washers, shipping http://www.marlincrawler.com/axle/f...hardware-front-hilux/backing-plate-eliminator
    BOUGHT: -$43: Parking brake cables and hold down pins from SOR
    BOUGHT -$39: Left Disc Rotor http://www.oreillyauto.com/site/c/detail/BOS6/50011263/01310.oap?year=1986&make=Toyota&model=Land+Cruiser&vi=1276556&ck=Search_C0062_1276556_3664&pt=C0062&ppt=C0009
    BOUGHT -$39: Right Disc Roter http://www.oreillyauto.com/site/c/detail/BOS6/50011263/01310.oap?year=1986&make=Toyota&model=Land+Cruiser&vi=1276556&ck=Search_C0062_1276556_3664&pt=C0062&ppt=C0009
    BOUGHT and ordered Shoes $38: http://www.oreillyauto.com/site/c/detail/WAG1/PAB549/03353.oap?year=1986&make=Toyota&model=Land+Cruiser&vi=1276556&ck=Search_C0068_1276556_3664&pt=C0068&ppt=C0009
    BOUGHT - $36: Right rear self adjuster kit http://www.oreillyauto.com/site/c/detail/WAG0/H2754/01312.oap?year=1986&make=Toyota&model=Land Cruiser&vi=1276556&ck=Search_brake_01312_1276556_3664&keyword=brake&pt=01312&ppt=C0064
    BOUGHT - $34: Left rear self adjuster kit http://www.oreillyauto.com/site/c/detail/WAG0/H2755/01312.oap?year=1986&make=Toyota&model=Land Cruiser&vi=1276556&ck=Search_brake_01312_1276556_3664&keyword=brake&pt=01312&ppt=C0064

    BOUGHT -$28: NAPA 38881 brake line (online: $8 shipping) http://www.napaonline.com/Catalog/C...rake-Hose-Right-Front/_/R-UBK38881_0406866351
    BOUGHT -$20: NAPA 38881 brake line http://www.napaonline.com/Catalog/C...rake-Hose-Right-Front/_/R-UBK38881_0406866351
    BOUGHT -$15: New rear brake wheel cylinder http://www.oreillyauto.com/site/c/detail/BHH1/WC37690/01324.oap?year=1986&make=Toyota&model=Land+Cruiser&vi=1276556&ck=Search_01324_1276556_3664&pt=01324&ppt=C0066
    BOUGHT -$15: New rear brake wheel cylinder http://www.oreillyauto.com/site/c/detail/BHH1/WC37690/01324.oap?year=1986&make=Toyota&model=Land+Cruiser&vi=1276556&ck=Search_01324_1276556_3664&pt=01324&ppt=C0066
    BOUGHT - $16: Rear brake kit http://www.oreillyauto.com/site/c/search/Drum Brake Hardware Kit/01271/C0064.oap?keyword=brake&year=1986&make=Toyota&model=Land+Cruiser&vi=1276556

    Brakes Total: $828


    MISC ITEMS

    BOUGHT - $50: Hella Horns http://www.amazon.com/dp/B0002MA03S/?tag=ihco-20
    BOUGHT - $5: Chrome dipstick http://www.amazon.com/dp/B000BQ082S/?tag=ihco-20

    Rear side window rubber seals Toyota Part # 62741-90A01 (x2)
    $60: http://www.discounttoyotaparts.com/oe-toyota/6274190a01?search_str=62741-90A01

    Radiator rubber: http://www.ebay.com/itm/FJ60-Land-C...Parts_Accessories&hash=item4ada951e6d&vxp=mtr
    http://www.toyotapartsoverstock.com...OR--RADIATOR-MOUNTING/3922894/1658461010.html

    $250: GPS locator http://www.pocketfinder.com/gps-locator/gps-vehicle-tracker/
    $65: GPS locator http://www.amazon.com/dp/B00GA98XAE/?tag=ihco-20
    Both have re-occuring fees

    AUX Relay panel: http://forum.ih8mud.com/threads/auxiliary-fuse-relay-panel.352802/

    EXHAUST SYSTEM

    2.50 Inch Exhaust parts:

    BOUGHT: $44: 2.00 inch primary/2.50 inch outlet - Y-Pipe Flowmaster Y200250 http://www.amazon.com/dp/B000CEG2LA/?tag=ihco-20
    $102: Flowmaster 942550 50 Delta Flow Muffler - 2.50 Center IN / 2.50 Center OUT - Moderate Sound http://www.amazon.com/dp/B0002Z9NO2/?tag=ihco-20

    $300 installation

    STEEL WHEELS

    http://forum.ih8mud.com/threads/pro-comp-wheels.785285/#post-8929476

    Pro Comm 16"x8" 6x5.5 BS 2.5
    Part # 97-6883R2.5
    MSRP $86 6-8 weeks build time

    Buy from retailers (4WheelParts, SummitRacing, etc)

    http://www.4wheelparts.com/Wheels/R..._c=11&t_s=209&t_pt=100021&t_pn=PCW97-6883R2.5

    Pro Comm 17"x9" 6x5.5 BS 3.50
    Part # PCW98-7983S3.5
    MSRP $98
    http://www.summitracing.com/parts/pcw-98-7983s3-5

    ROOF RACK mount
    http://www.gamiviti.com/html/products_roofracktowers.html
    http://marksoffroad.net/1specials/1specials.html

    SEATS
    http://forum.ih8mud.com/threads/new-seats-pt-cruiser-easy.525413/

    FAN http://forum.ih8mud.com/threads/ford-contour-fan-installation-thread.237250/
    Last edited: Oct 27, 2014 at 5:42 PM
  3. orangefj45

    orangefj45

    Messages:
    14,464
    Location:
    norcal
    it's not HP or torque we're super concerned with, it's "shock" or "impact" loads. if the wheels ( front or rear ) loose traction and then hook up again, you can and will break stuff. like drivelines, u-joints, pinions, axle shafts,......but even that's not so common.
    the components in your cruiser can put up with the powerplant you plan on running them with just fine. it's not like you'll be floored at all times, and i doubt you'll be seeing more than 3k RPMs a whole lot.

    fwiw, i built a 60 with a supercharged vortec 5.3 for a customer and fellow mudder. it's been on the road ( and offraod ) for a while now with no issues.

    let your brain make the decisions, not your right foot.

    georg
  4. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    TASKS COMPLETED

    With a need to cover all the things that need to be done to complete this rig, I decided to put the tasks I know about now, down on this page to provide me a "honey do this" list (Honey being the rig).

    DONE: 22 March 2014 - Cut and remove inner C channel on left rear frame, and paint
    DONE: Install new engine head
    DONE: Install rockers and set rocker preload
    DONE: Install manifold
    DONE: Install valve covers
    DONE: 22 march 2014 - Clean and paint drive lines
    DONE: 29 march 2014 - de-rust, clean, prime and paint the front axle
    DONE: 29 march 2014 - de-rust, clean, prime and paint the steer cross arms
    DONE: 29 march 2014 - clean and paint the gas tank straps
    DONE: 29 march 2014 - Remove windshield
    DONE: 29 march 2014 Paint firewall
    DONE: 12 april 2014 - put in a better ground system in the rear underbody and encase wires in a loom
    DONE: 12 april 2014 - Re-install all 4 shocks
    DONE: 12 april 2014 - Re-install front sway bar
    DONE: 20 april 2014 - Fab fuel line between pump and carb win -6 AN fittings and fuel pressure gauge
    DONE: 21 april 2014 - bought clutch disc
    DONE: 10 May 2014 - Re-install gas tank and hook up all fuel hoses, evap hoses, etc
    DONE: 20 May 2014 - Buy TC rebuilt kit
    DONE: 31 May 2014 - Re-install the heat shield above the exhaust system area
    DONE: 2 June 2014- drill out broken bolts on the frame, especially the ones for the tranny cross mount bar
    DONE: 2 June 2014 - chase all the threads on the frame, for rust and paint residue
    DONE: 2 June 2014 - Install rear fuel fill hose protector shield
    DONE: 3 June 2014 - ran rear diff breather line to front of vehicle
    DONE: 3 June 2014 - put air locker air line inside protective line and ran along frame to front
    DONE: 18 June 2014 - Buy clutch pressure plate,
    DONE: 18 June 2014 - Rebuild TC
    DONE: 19 June 2014 - Replace tire lug bolts on the left front due to broken lug
    DONE: 22 July 2014 - Buy Ranger Splitter - get correct measurements
    DONE: 16 Aug 2014 - Renew left front brakes: New rotor, caliper, pads, pins, new hose
    DONE: 16 Aug 2014 - Move engine from engine stand connected from rear to leg based stand
    DONE: 16 Aug 2014 -Install flywheel
    DONE: 16 Aug 2014 - Chase rust under cowl
    DONE: 16 Aug 2014 - Connect Ranger to tranny and TC
    DONE: 16 Aug 2014 - remove rest of head liner
    DONE: 18 Aug 2014 - Paint under cowling with Eastwood Internal frame anti-rust
    DONE: 23 Aug 2014 - Paint under cowling with Zero Rust as primer,
    DONE: 25 Aug 2014 - Install clutch parts on engine
    DONE: 30 Aug 2014 - Paint under cowling with Rust Bullet Shell Black as covering
    DONE: 30 Aug 2014 - Renew right front brakes: New rotor, caliper, pads, pins, new hose
    DONE: 6 Sep 2014 - Move engine to barn
    DONE: 6 Sep 2014 - Renew right rear brake: New drum, cylinder, springs, etc, etc
    DONE: 13 Sep 2014 - Renew left rear brake: New drum, cylinder, springs, etc, etc
    DONE: 15 Sep 2014 - Put on new Aluminum oil pan and 1 piece FelPro rubber PermaDryPlus gasket
    DONE: 16 Sep 2014 - Connect Engine to Ranger, tranny and TC
    DONE: 17-18 Sep 2014 - Install power train into rig and have front engine mounts fab'd
    DONE: 29 Sept 2014 - re-install carb
    DONE: 29 Sept 2014 - re-install fuel line from pump to carb
    DONE: 2 Oct 2014 - Painted final coat on new mounts and frame rails
    DONE: 2 Oct 2014 - Installed driver's side Ram Horn exhaust manifold
    DONE: 3 Oct 2014 - install clutch slave
    DONE: 3 Oct 2014 - Install steering shaft heat shield
    DONE: 4 Oct 2014 - hook up hydraulic line to clutch slave\
    DONE: 4 Oct 2014 - Installed short front brake line on passenger side
    DONE: 6 Oct 2014 - Install long front brake line
    DONE: 8 Oct 2014 - Mount coil
    DONE: 9 Oct 2014 - Wire up OEM Lines: Oil lead, TACH lead and IGN lead, in a loom
    DONE: 9 Oct 2014 - Wire up dizzy connector and TACH connector
    DONE: 15 Oct 2014 - Install flywheel shield
    DONE: 15 Oct 2014 - Install starter
    DONE: 15 Oct 2014 - Starter START wire
    DONE: 15 Oct 2014 - installed alternator
    DONE: 16 Oct 2014 - wire up electric choke on carb
    DONE: 17 Oct 2014 - gap (0.040) and install spark plugs
    DONE: 17 Oct 2014 - install passenger side exhaust manifold
    DONE: 18 Oct 2014 - drained and refilled transmission with 90w gear oil
    DONE: 18 Oct 2014 - filled transfercase with 90w gear oil
    DONE: 18 Oct 2014 - install OEM Temp wire to OEM sending unit
    DONE: 18 Oct 2014 - belt on alternator 49.0 inches, tad too long, but works fine. Get a 48.5
    DONE: 18 Oct 2014 - got switched power to alternator
    DONE: 18 Oct 2014 - Found bracket for front of alternator and got 10mm X 1.50 bolts for lock down and ground tap
    DONE: 18 Oct 2014 - install power steering pump - new bracket for lower driver's side
    DONE: 18 Oct 2014 - Installed power steering fluid line from pump to steering box, with more heat insulator
    DONE: 18 Oct 2014 - connected vac lines
    DONE: 18 Oct 2014 - painted bare surfaces on block (orange) and heads (black) to prevent rusting
    DONE: 20 Oct 2014 - Installed heater hose with clean out at highest point for burping
    DONE: 20 Oct 2014 - lube all lube points
    DONE: 20 Oct 2014 - install drivelines
    DONE: 20 Oct 2014 - Heightened rear diff breather line
    DONE: 21 Oct 2014 - install radiator support panel
    DONE: 21 Oct 2014 - filled Ranger with regular oil (30w) as break in oil - need to drive for 30 minutes
    DONE: 22 Oct 2014 - installed new hydraulic hood ball mounts in fenders - mounts for hood pistons
    DONE: 22 Oct 2014 - Pressed PS Pump pulley onto pump shaft to align up grooves - looks good
    DONE: 22 Oct 2014 - installed 37.5 inch V belt on PS pullley
    DONE: 22 Oct 2014 - move fenders to vehicle to prep for installation
    DONE: 22 Oct 2014 - chased threads on radiator support panel
    DONE: 22 Oct 2014 - Installed one Cap-Style Breather Vent on one Ranger breather hose
    DONE: 22 Oct 2014 - Ordered 1/4" hose barb X 1/8" female NPT fittings (5)
    DONE: 23 Oct 2014 - install spark plug wires with retainers
    DONE: 23 Oct 2014 - WIRING misc leads
    DONE: 23 Oct 2014 - put loom on wires
    DONE: 23 Oct 2014 - fill engine with break-in oil
    DONE: 23 Oct 2014 - Fab breather line to Ranger
    DONE: 23 Oct 2014 - Fab breather line to transfercase
    DONE: 23 Oct 2014 - Installed transfercase shifter
    DONE: 23 Oct 2014 - Installed transmission shifter
    DONE: 25 Oct 2014 - Installed RED Convoluted tubing over starter cable
    DONE: 25 Oct 2014 - Installed RED convoluted tubing over alternate switch power
    DONE: 25 Oct 2014 - installed front diff breather hose
    DONE: 25 Oct 2014 - Figured out how to implement the EVAP line into the system with fuel filter
    DONE: 25 Oct 2014 - Installed passenger front fender (Hard to do: took 3 hours to get it setup and correct)
    DONE: 25 Oct 2014 - Installed aluminum billet water pump pulley instead of bent chromed one
    DONE: 25 Oct 2014 - Installed a bolt sleeve into the pivot bolt of Mean Green alternator to tighten it up to align properly
    DONE: 27 Oct 2014 - Found two more bolts to installed on right fender
    DONE: 27 Oct 2014 - Installed passenger side battery tray
    DONE: 27 Oct 2014 - Cleaned up and painted radiator
    DONE: 27 Oct 2014 - Installed radiator mounts to radiator support panel
    DONE: 27 Oct 2014 - Wire brushed mount points on driver's fender
    DONE: 28 Oct 2014 - installed driver's front fender
    DONE: 28 Oct 2014 - installed driver's battery tray
    DONE: 28 Oct 2014 - 2nd coat of paint on radiator edges
    DONE: 29 Oct 2014 - installed reverse light wires to tranny
    DONE: 29 Oct 2014 - installed 4x4 light wires to transfercase
    DONE: 29 Oct 2014 - Replaced a short bolt with longer one on tranny to Ranger
    DONE: 29 Oct 2014 - Installed side marker light on right front fender
    DONE: 29 Oct 2014 - Installed convoluted tube on OEM temp wire
    DONE: 29 Oct 2014 - Installed convoluted tube on AC switch wire
    DONE: 29 Oct 2014 - Installed convoluted tube on HAM radio power leads
    DONE: 30 Oct 2014 - Installed radiator
    DONE: 30 Oct 2014 - Determined which fan we can use: 17.5" mechanical fan (could NOT use 19")
    DONE: 30 Oct 2014 - Cut electrical enclosure "floor" (cutting board) to fit enclosure
    DONE: 30 Oct 2014 - Bought the enclosure 'shelf'

    BUGGY TO-DO LIST TASKS TO COMPLETE

    build up relay box and positive and negative contact points

    *bleed brakes
    seal and paint contact points of fenders to each other and body
    *install head lights with relays
    *install new horns with relay
    replace 2 transmission to ranger bolts with longer ones
    front end re-assembled - grill, etc
    cut support panel to allow removal of AC lines without having to disconnect them
    install hood
    install hood lift pistons
    drive rig for 30 minutes for Ranger breakin w/30 weight oil, then drain and fill with its special gear oil
    header wrap on driver's side exhaust manifold, a section of it near PS
    install fuel line plus filter and return line
    install new SunPro tach in dashboard
    wire up tach to tach line - inside dashboard
    wire up alternator to positive
    find or build new ground cables
    Install Ranger shifter
    Fab exhaust system

    renew Front Driver side door
    renew Rear Driver side door
    renew Rear Passenger side door

    cut access hole in tail gate
    install and wire tail hatch with LED light
    finish painting tail gate inside and out and tail hatch
    Install renewed tail hatch by moving all parts to the new one

    New door locks
    New ignition lock
    New hatch lock
    kill switch

    Fix rust HOLES in roof
    Fix rust on cowl
    new windshield
    get new cargo window rubber, clean and tint windows and then mount them
    Eastwood Internal Frame paint onto other roof areas, Zero Rust coating
    Clean inside of roof
    Rear quarter panels fixes, cut for rear bumper
    Sound proof inside roof
    Thermo-protect inside roof
    paint Monstaliner inside roof

    Monstaliner on top of roof, and upper sides
    Monstaliner on cowl
    Monstaliner on tailgate
    Monstaliner on hatch
    Rear Bumper fab with 2" receiver
    Front Bumper buy ARB
    Winch on front bumper
    Tint windows

    REFERENCE and OLD INFO:

    Various Spark Plugs For Vortec Heads:

    5613611 R44LTS, set of 8
    5614210 MR43LTS, set of 8
    25164641 #3, Rapid Fire style, set of 8
    P526S Accel U-Groove “SHORTY” Double Platinum Header Plugs approximately 3/16" shorter then R44LTS plugs, set of 8
    RS12YC Champion
    Autolite 104 or 26
    ACCEL 516
    Bosch HR10B or HR10BX, HR9DC


    Actuals:
    Spark plug: 5613611 R44LTS, set of 8
    Oil filter: WIX 51794 (PurePro PH832)
    Air filter: Spectre #865-HPR9831 HRP Inline Air Filter
    ALT V Belt: Gates 7485
    PS V Belt: Gates 7375
    AC V Belt:
    Fuel Filter:


    PARTS - entry from IH8MUD http://forum.ih8mud.com/threads/ult...rts-still-in-stock.427242/page-8#post-9360697

    There is a WAY easier way to find parts availability than scrolling through this awesome thread.
    Just go HERE and enter your part number in the search box. If a part is discontinued, you will see it. They have always been accurate for parts availability for me... although it is doubtful that their database would be 100% up-to-date perfect.

    Don't know the part number?
    Just go HERE and find it in the drawings.
    (Numbers on Toyota drawings, except typically for bolts, nuts and washers are called "PNC" numbers. PNC numbers reference the 10 digit part number that you are looking for.. at this site the part numbers are at the far right of the page).


    Radiator Insulator: http://www.toyotapartsoverstock.com...OR--RADIATOR-MOUNTING/3922894/1658461010.html

    REFERENCE FAN OPTIONS

    Fan thread:
    http://forum.ih8mud.com/threads/v8-radiator-vs-stock-rad-feedback.617205/

    Bought used chevy 7 bladed fan with clutch off eby for $65
    -
    Mechanical Fan

    $113: fan clutch http://nostalgicac.com/gm-fan-clutch.html
    $90: Seven bladed fan #790-2030 http://nostalgicac.com/gm-fan-blade-18-inch-steel.html


    Electric

    $114: Electric fan controller http://www.dakotadigital.com/index....ategory_id=-1/home_id=-1/mode=prod/prd852.htm See Better price on EBAY
    $17: Pelican case for FAN Controller http://www.amazon.com/dp/B001OF5TII/?tag=ihco-20


    $101: Contour FAN http://www.amazon.com/dp/B000C17G9K/?tag=ihco-20
    (FAN Install threads: http://forum.ih8mud.com/showpost.php?p=8452808&postcount=103
    http://forum.ih8mud.com/showpost.php?p=7871260&postcount=1426
    http://forum.ih8mud.com/showpost.php?p=8369639&postcount=65)


    OR

    $0: Currently own Lincoln Mark VIII 19" dual speed electric fan, just need to make mount/shroud for it

    Rim http://www.jegs.com/i/JEGS Performance Products/555/671134/10002/-1

    KEYS

    http://forum.ih8mud.com/threads/keys.460893/
    http://www.ebay.com/itm/Solex-2-Doo...Parts_Accessories&hash=item540c775636&vxp=mtr

    LINKS TO SOLUTIONS TO PROBLEMS FOUND OR KNOW I WILL ENCOUNTER

    28 Feb 2014

    Needed a place to put links to various solutions to common problems in restoring a LC. So In this section of this first post
    I am putting links as I find them to problems I encounter OR will encounter as the project proceeds. That way I KNOW where the links are instead of doing searches, and others can find the same solutions if they encounter them

    Weatherpack connectors http://www.ebay.com/itm/Weather-Pac...pt=Race_Car_Parts&hash=item35c7478e93&vxp=mtr


    Rusty cowl in front of wind shield http://forum.ih8mud.com/showpost.php?p=3269316&postcount=350
    An example of what was done

    Fuel tank and part numbers for misc around it http://forum.ih8mud.com/60-series-wagons/469582-landcruiser-fuel-tank-recall-replacement.html

    Info on a FI Vortec install on EVAP system
    http://forum.ih8mud.com/showpost.php?p=7044538&postcount=196
    won't apply to my carb, but good info

    Other good rebuild threads found or pointed to:

    http://forum.ih8mud.com/60-series-wagons/552977-rusty-wagon-rebuild.html
    http://forum.ih8mud.com/60-series-wagons/533303-machinists-project-thread-86-fj60-lots-pics.html


    Interior threads
    http://forum.ih8mud.com/60-series-wagons/557909-interior-face-lift-budget.html


    ABS Panels for doors/rear: http://forum.ih8mud.com/60-series-wagons/268898-rear-side-panels-gear-storage.html

    window/regulator removal: http://forum.ih8mud.com/60-series-wagons/687247-door-panel-removal.html#post8260319

    H55 5 speed thread: http://forum.ih8mud.com/60-series-wagons/600279-some-h55f-split-case-tech.html

    Half doors - cool http://forum.ih8mud.com/tn-stlca/382258-60-series-half-door-build.html

    Removable hinges:



    portable air compressor: http://forum.ih8mud.com/threads/puma-12v-compressor.166969/

    windshield install

    kevinmrowland said: ?
    I ask since I've done a half dozen or so of them with that strip, and it's a pain, but as long as it's slick it slips into place.
    The tightness is a plus in my book, it is after all the expander strip and in that case tighter is better. I've always found much worse rust under the aftermarket window gaskets that do not have the slot for the expander strips as compared to the OE style expanded ones.

    KR
    He mentioned exactly that issue, but said it was because of improper installation, not because there's anything different with the aftermarket seal. If fact, if someone is going to try a home-installation, it's the only way to go. I held them side by side (sorry, no pic) and in fact the Precision gasket looked beefier. Had I not already bought the Toyota gasket, I would have gone aftermarket.

    Dirk said the step most places leave out (and it's in the FSM procedure) and always left out by the installer-comes-to-you guys because of the time it takes, is the final Urethane sealant step between the glass and gasket lip, not just the application between the gasket and window frame. It did take a bit of time for that final step and subsequent clean up, but he said it was absolutely necessary for a leak-free install. He also showed me it had not been done on the window he just removed from my rig... Thus the rust, and fu#!*ng water on the driver's floor boards I used to get. :crybaby:

    MUD member and FJ60 owner, and one-time in the auto-glass business "Tinker " mentions the same thing over and over in the various other windshield threads he's posted. In my first post, here, I link to another thread where Tinker affirms this.

    Did I mention I love my new windshield? The world is open, again :p

    Did anyone say I need new paint ??

    AC Bracket:
    http://www.ebay.com/itm/251012321016?_trksid=p2060778.m1438.l2649&ssPageName=STRK:MEBIDX:IT

    RELAY BOX ENCLOSURE http://forum.ih8mud.com/threads/underhood-electrical-enclosure.820375/#post-9396407

    OIL COOLER

    http://www.jegs.com/i/Flex-a-lite/400/45321/10002/-1
    http://www.jegs.com/i/JEGS-Performance-Products/555/51711/10002/-1
    http://www.jegs.com/i/JEGS-Performance-Products/555/51720/10002/-1
    http://www.etrailer.com/Engine-Oil-Coolers/Derale/D15505.html

    TRANSFER CASE LINKS

    http://forum.ih8mud.com/threads/domsmith’s-h55-build-thread…-sbc-fj40.156735/page-2

    http://forum.ih8mud.com/threads/split-case-rebuild.188968/page-3

    Last edited: Oct 30, 2014 at 8:57 PM
  5. Elbert

    Elbert SILVER Star

    Messages:
    6,817
    Location:
    AL, USA
    I would go for the most torque you can make and run on regular pump gas, and that would get you to the 383 setup I'm sure. High torque at low rpm is the best route for trucks/offroad in my view. I don't think there are that many intake solutions with using the vortec heads and I assume the intake you are referring to is a dual plane type. The vortec heads have a different bolt pattern where the intake bolts down to the cylinder heads than the older conventional 5.7 heads. The Dart II iron eagle heads are a good alternative if you were considering other options.
  6. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    That has been my base thought, which why I studied the 383 type of engine. As for the intake, it is an Edelbrock Performer for spreadbore

    The cheaper base unit is at http://www.jegs.com/i/Edelbrock/350/2116/10002/-1

    The more shiny one is at Edelbrock 21161 Edelbrock Performer Intake Manifolds for Chevy

    The original Vortec heads are a great head set and I have studied their characteristics. GMPP has come out an after market Vortec head that addresses some of the short coming of the original, thicker deck, improved exhaust, takes upto .530 valve lift, better springs. For an iron head, the GM engineers has done a great job. One can get an original Vortec head from www.sdparts.com for around $400 that has good valve lift, but these new GM heads can be had for $520 vis Jegs.

    Thanks for pointers


    Exactly, I wasn't trying to reach high numbers. I just studied and put together components that leaned toward low end torque instead of high end HP (high end HP is what all the books stress on building up a SBC, mag articles as well). After I had my build plan laid out, that is when I bought the software sim to plug in things and see what came out (also I found that every person I asked had different opinions on things and had no "normalized" foundation to start with).

    Then I put the numbers in the Sim and I saw bigger numbers than I expected with TQ. That lead to posting this question due to the "breakage" factor as you mentioned. I started with the 383 and then seeing its numbers, worked up the 350 with good, but lower numbers to possibly reduce those "shocks".

    With my 2F now, when I drive 65, my RPMs are 3000 and my speedo is spot on, with 4.11 gears and 31x10.50 tires. I will be going to 33x12.50 and the 5th overdrive of the NV4500, which will bring down the RPMs on the road. And as you indicate, low RPMs when off road.

    thx

    dougbert
    Last edited: Oct 29, 2014 at 5:24 PM
  7. ntsqd

    ntsqd technerd

    Messages:
    4,806
    Location:
    Upper So. CA
    What is your current cruising RPM? Shoot for getting your peak torque at that RPM as that will offer the best mileage. Not sure if the book goes into Brake Specific Fuel Consumption or not, but BSFC quantifies (fuel consumed per HP) and this always happens at peak torque. By running at, or just slightly under, peak torque you're operating at max efficiency for that engine combo.

    Have you considered the GMPP replacement aluminum Corvette heads? Those will let you run a bit more comp ratio while keeping to a small, high velocity intake port.
  8. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains

    At 65 MPH I am doing 3000 RPM at the moment.

    With the future overdrive, which I remember is around a .8 over factor, would put it around 2400 RPM plus going to a 33 size tire on 4.11 gears, I say 2200 to 2600 RPM target range, which matches with the above TQ numbers

    as to the Corvette Alum heads, I think you are referring to the Fast Burn: below is what I found on a personal sale (they are more expensive for sure from retail);


    Default FS-GMPP Aluminum Vortec Fast Burn Heads, Cam, Lifters, Rockers, more... BRAND NEW
    I have the following absolutely BRAND NEW GM Performance Parts from a NEW ZZ383..


    Heads- GM part #12464298 (this number superseded #12367712, which is stamped on the heads) Fast Burn Vortec aluminum.
    210cc Intake Ports
    62cc Combustion Chambers
    2.000'' Int/1.550'' Exh Valves
    -This head is a bolt-on 30 hp increase when used on GM's ZZ4 crate engine (according to GMPP)
    -Sells for $650 EACH new
    $1000/pair

    + Shipping

    [he lists other parts he is selling]

    at his price, they would match the same price as the Iron GM vortecs I am looking at.

    Here is a jegs listing for them at retail:
    http://www.jegs.com/i/GM-Performance/809/12464298/10002/-1


    They are a big port runner at 210cc, which more for HP and not Torque

    thx

    dougbert
    Last edited: Dec 14, 2011
  9. Elbert

    Elbert SILVER Star

    Messages:
    6,817
    Location:
    AL, USA

    are you sure that intake you linked to bolts down to a 5.7 vortec cylinder head? Are you aware of the differences between the vortec heads (like are stock on a 1999-97 GM truck) vs. the older school 5.7 cylinder heads? i'm referring to the bolt pattern and number of bolts used to mate the intake manifold with the cylinder head.

    At one time the only 4 barrel intake for the 5.7 vortec head was one offered by GM / GMPP.

    make sure you understand the differences before jumping off into that. I think the 5.7 vortec heads are good for a mild engine which is what you would want in the off-road torque business but as I noted the intake selection for 4 barrel carb use was and maybe still is limited. There are some people who drill the intake manifolds...i'm not one of them.

    notice the number of bolts used to fasten the intake to the cylinder head.

    http://www.summitracing.com/search/...ec/Engine-Size/5-7L-350/Brand/GM-Performance/
  10. Kurtis

    Kurtis

    Messages:
    1,391
    750 lbs of torque or more is to much. Anything less that that is good.
  11. RAMZ

    RAMZ

    Messages:
    431
    Location:
    Bakersfield CA.
    This is good imfo. :cool: keep it coming.

  12. Bret

    Bret

    Messages:
    2,027
    Location:
    CO
    On a 383 with small Dart heads I get a little over 400 ft/lbs by the time I hit 2k rpm, it peaks at around 330hp and 450 ft/lb but runs out of air by the time you hit 5k. That is enough to grenade pinions, driveshafts, hubs etc. All with some shock loading as someone mentioned earlier.

    That is enough to easily pass trucks on the interstate with authority and pull most any pass fast enough to get arrested. Makes chugging along at idle easy as well. Welcome to the dark side!

    sorry, this is in a 40, should apply to 60 too.
    Last edited: Dec 14, 2011
  13. Elbert

    Elbert SILVER Star

    Messages:
    6,817
    Location:
    AL, USA
    GM Performance 12366573 - GM Performance Vortec Dual Plane Intake Manifolds - Overview - SummitRacing.com

    I would have bought the above intake if I had gone with a carb for fuel on a 5.7 Vortec.. THere may be other manifolds out now (5.7 vortec + carb)...but this was one choice for a while or may be one of the few choices today. I've not looked at the choices for some time, since I jumped into fuel injection.

    I doubt the issue will be too much torque from a small block.... in fact I would not go crazy chasing that dream on a stock type truck. Remember why folks run fuel injection....for offroad the truck never runs out of fuel due to engine angle and too...you make some good power and reasonable fuel milage. With a carb you certainly can go crazy with modifications.... but I would not...a lot better to have a quasi stock setup thats dependable and less prone to maintence issues.
  14. Edelbrock makes a very nice dual plane manifold specific to Vortec heads. I have been using one for the past ten years. It currently sports a home made (ok, red neck) TBI adapter plate and big block throttle body.

    Norsk, I think you may find more usuable torque and certainly better economy with a cam that has no more than 212 degrees at .050" The larger cams make more torque, but not really the type of power you can hook up the a 5000# trailer and be happy. They're great for hot rods, but not always for trucks. The overlap is very effective for cylinder charging at low RPM, but you pay a penalty with mileage and heavily loaded operation. The overlap is not good for use with FI, which as I recall, you plan on doing sooner or later. The unburned fuel that makes it out the pipes due to the overlap tells the FI to go leaner which is really doesn't need to do in that case. Go with a roller cam and go with some good lift, moderate duration. Just my random thoughts...
  15. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    The link I gave was for the "shiny" version, the standard version is at Edelbrock 2116 Edelbrock Performer Intake Manifolds for Chevy

    and yes it is a Vortec manifold with 4 bolts each side, and am aware of the differences, and it is a spreadbore. I found it after multiple searches.

    dougbert
  16. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    that gives me a limit, which I don't want to approach. Once over 500 hp, the entire bottom end would need an expensive upgrade from what I have spec'd out. Instead of a cast crank, I would need a forged one and those add another $600, plus better rods, pistons, etc.

    thanks
  17. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    my range I am figuring is idle to 5500 RPM, the Sim charts indicate TQ and HP drop rapidly after 6000.

    thanks
  18. ntsqd

    ntsqd technerd

    Messages:
    4,806
    Location:
    Upper So. CA
    Those are not the heads, and it looks like the heads I had in mind have been dropped. Not finding them on the GMPerfParts page. What I had found is a aluminum replacement head for some year Corvette that had a 165cc intake port. With that small intake port volume they would've worked really nicely on a low rpm 350.

  19. norsk

    norsk SILVER Star

    Messages:
    888
    Location:
    5535.34 Feet in Utah Mountains
    good info.

    The Edelbrock is also a Dual Plane, a Vortec and a Spreadbore. Designed for idle to 5500 RPM range.

    That link is a square bore and I am wanting to do a good rebuilt QuadraJet. Have been researching that and found a great site at Cliffs High Performance Quadrajets :: Qjet Carburetor Rebuild Kits, Parts, Quadrajet Rebuilding, Quadrajet Parts, Bushing Kits, Carb Tuning

    I bought his book via Amazon which he wrote back in 2006. He has been building engines for 40 years. Owns a 1973 Pontiac Ventura, which has 650 HP 600 Ft-lbs and runs on his own tuned Q-Jet. It is his Daily Driver AND his racing vehicle. Fairly good mileage if he stays out of the secondaries due to his tuning. I have found that the Q-Jet is a great carb, BUT must tuned for the application in order to idle, off idle and WOT work right. I have learn ALOT about carbs from this book, talking with him and actually doing my rebuild with his HP-kit. One thing the Q-Jet does well is on off-road vehicles on angles, due to the design of the float, bowl, etc.

    I want to do the Carb thing at first and play with it.
  20. Elbert

    Elbert SILVER Star

    Messages:
    6,817
    Location:
    AL, USA
    yes I'm told the q-jet is the one to have if running carb off-road on GM-V8...I would do the same.

    Q-Jets are great carbs....espically for anything that's semi-mild build, I think they are the best for many mild street and off road applications...only when you really get into the hard-core hot rod or race stuff does a Holley really come into play. Getting hard to find local people who know how to work on those things now-days that everything is fuel injections. Q-jets are not hard to work on either.

Share This Page
