    I bought this clean perfectly running 1985 fj60 in '08. After thinking about it and collecting parts for over a year and some persistance from my neighbor (he didnt know what he was in for)I finally started the project in Sept. '09. I had originallyl bought the engine and trans for a buggy project but lost interest when I got the 60.

    I took a lot of pictures with the intention of doing a build thread but two months into it I lost all my pictures when my computer crashed :bang: So the pictures start in Nov. except for a few I was able to restore.

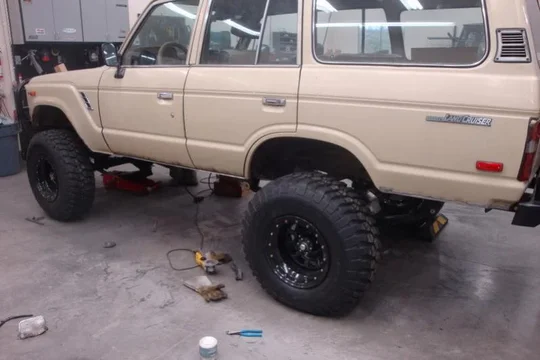

    This is how she looked when we started DSC_0041-1.jpg
    Now the plan and specs

    Drivetrain:
    6.0 vortec
    4l60e trans.
    4sp Atlas t-case
    4:11 thirds w/ ARBs
    widened front axle housing (5 1/4" kit from lcwizard)
    custom width Diamond Axle rear housing

    Suspension:
    SOA
    custom made spring hangers
    shackle reversal
    custom length Alcan springs
    Bilstein 7100 shocks

    Tires:
    315/75r-16 BFG Mud (35")

    Accessories:
    4-Plus front and rear bumpers (Thanks lcwizard)
    Warn 9.5 winch
    Ron Davis Radiator
    Lowrance HDS baja GPS w/ ext. ant.
    etc.

    I built this FJ40 a few years ago, I wanted the 60 to be similar

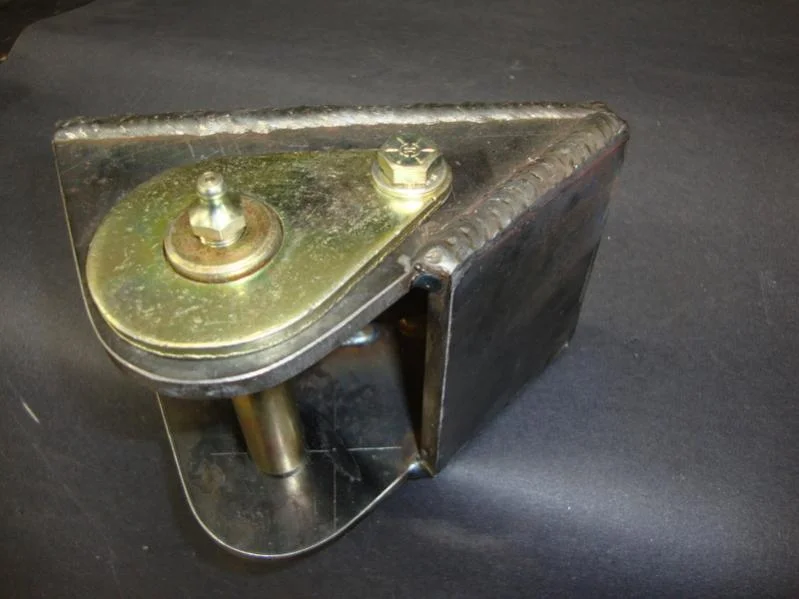

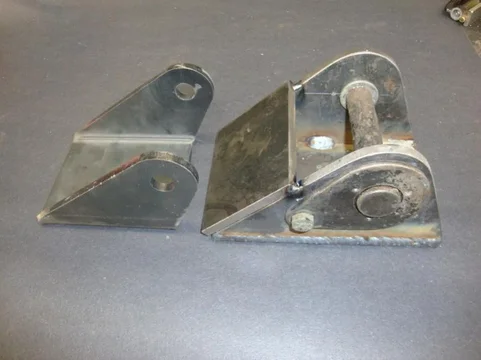

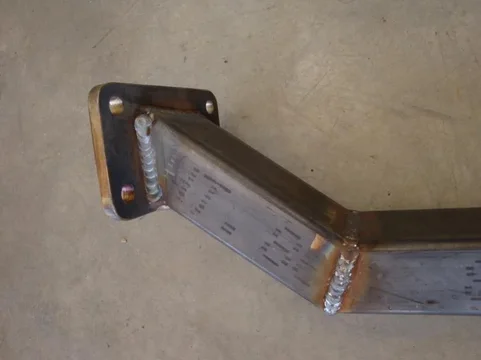

    After removing the stock spring hangers I decided I didnt like the Ruff Stuff hangers I had bought, so I made my own for front and rear.

    DSC00495.jpg DSC_0041-1.jpg DSC_0060.jpg
    Last edited: May 10, 2012
  2. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ

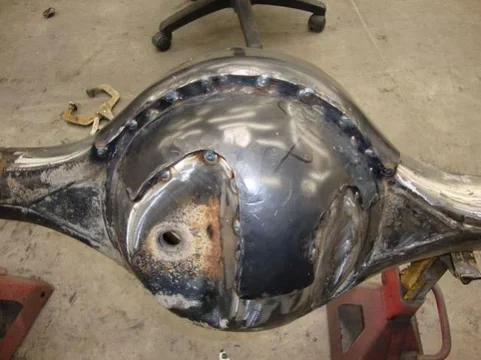

    We beefed up the front housing and I widened it

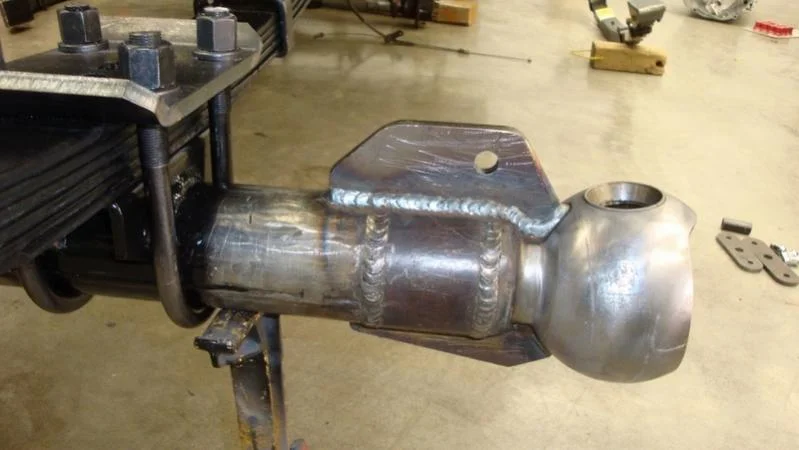

    Deleted JPG Picture 10587.jpg
    Deleted JPG Picture 1904.jpg
    Deleted JPG Picture 10587.jpg DSC00504.jpg Deleted JPG Picture 1904.jpg
    Last edited: May 3, 2010
  3. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ
    Alcan Springs installed
    Deleted JPG Picture 10432.jpg

    Deleted JPG Picture 1905.jpg

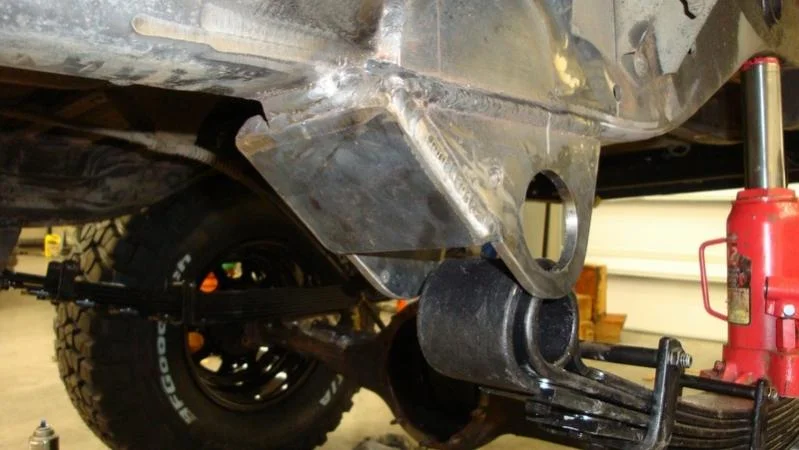

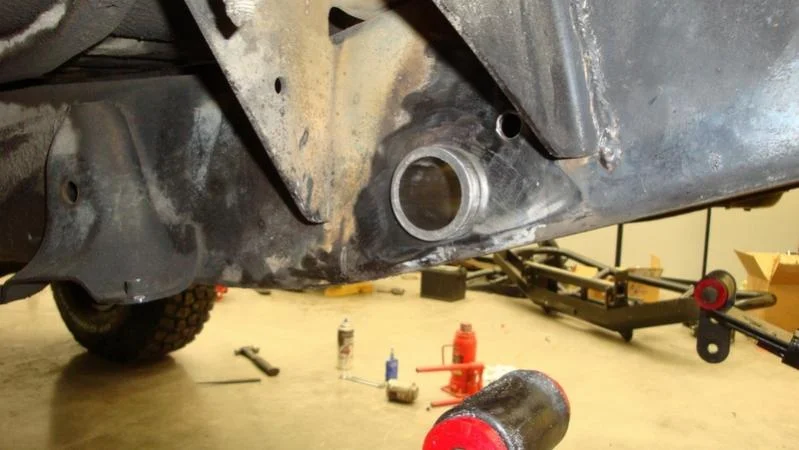

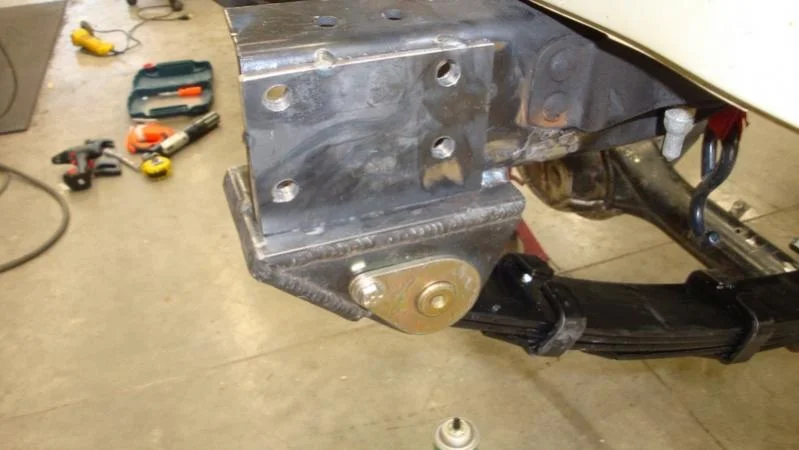

    Frame sleeved for shackle reversal up front. Also plated and sleeved the rear of the frame.

    Deleted JPG Picture 10490.jpg
    Deleted JPG Picture 10432.jpg Deleted JPG Picture 1905.jpg Deleted JPG Picture 10490.jpg
  4. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ

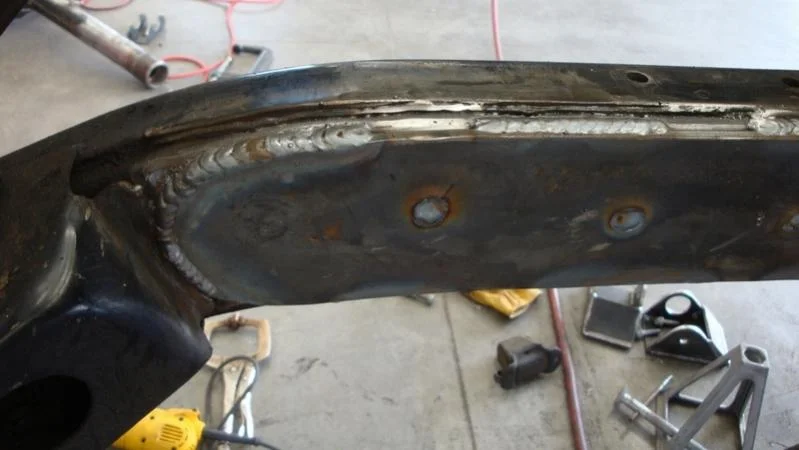

    Plated the frame for new motor mounts Deleted JPG Picture 1897.jpg

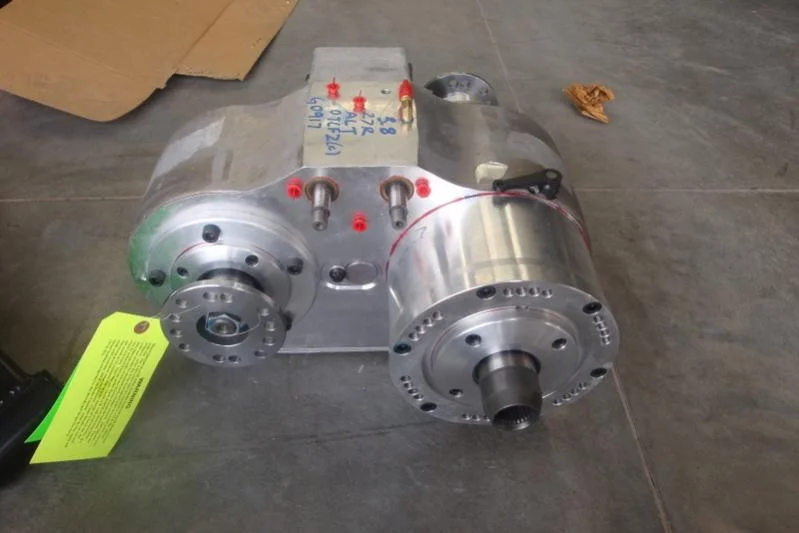

    Then the transfer case finally came. 4sp Atlas 2.72, 3.8 and 10.3 ratios.

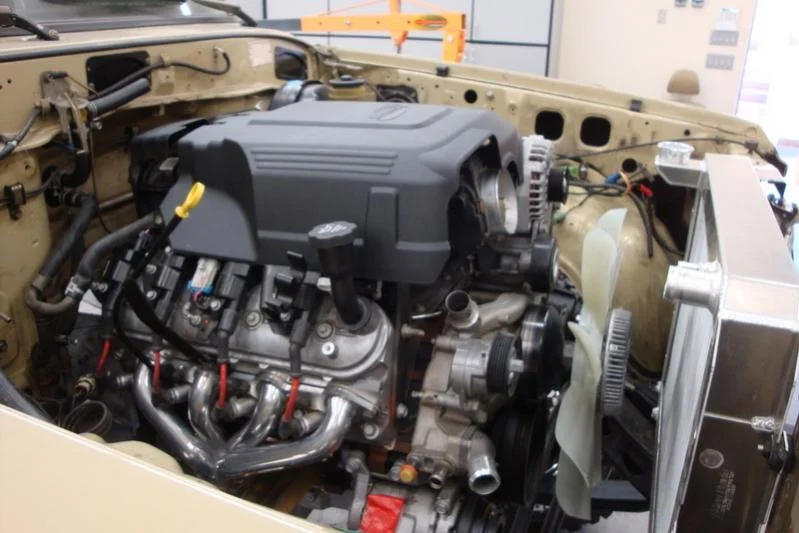

    After assembling the eng trans and t-case I got to test fit and test fit and test fit...
    Deleted JPG Picture 1897.jpg DSC03048.jpg DSC03056-1.jpg
  5. boots4

    boots4

    Messages:
    2,350
    Location:
    Portland OR
    Looks like this will be a fun truck. :)
  6. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ

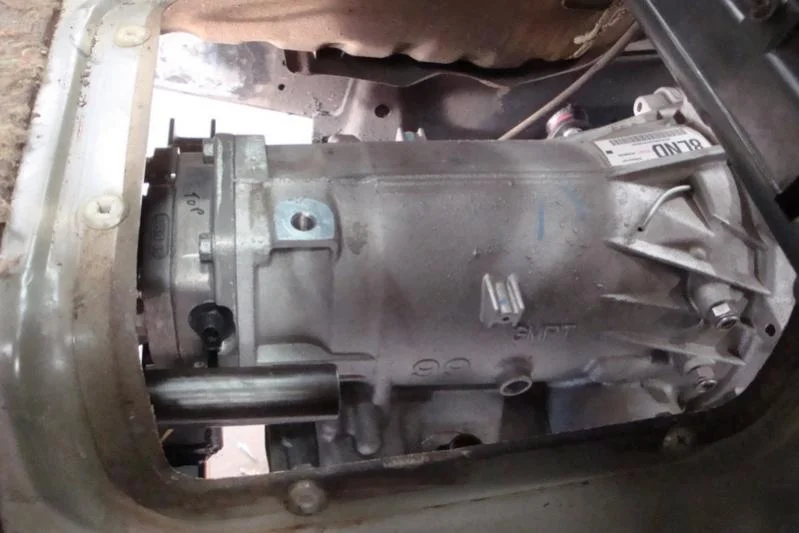

    Trans. is a good fit

    I kept the eng. as close to drivers side as possible for front driveshaft clearance.

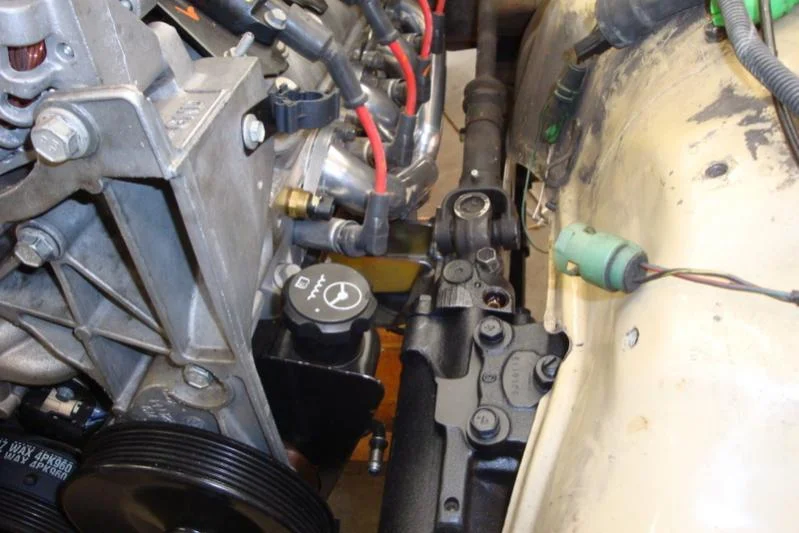

    I had to space the steering box w/ 1/2" plate and new 1/2' grade 8 bolts DSC03058.jpg

    The transfer case fit perfectly, the body has a recess underneath like it was made for an Atlas.
    DSC03054.jpg DSC03058.jpg DSC03074.jpg
  7. brokenparts

    brokenparts

    Messages:
    3,888
    Location:
    Hillsboro, OR
    daaaaaaamnnnnn!
  8. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ
    I am kinda rushing thru the build to not bore anybody w/ too many details. It gets better... My retired neighbor helped me everyday, he was a home builder and he has never done anything like this before and kept saying how much fun he was having!

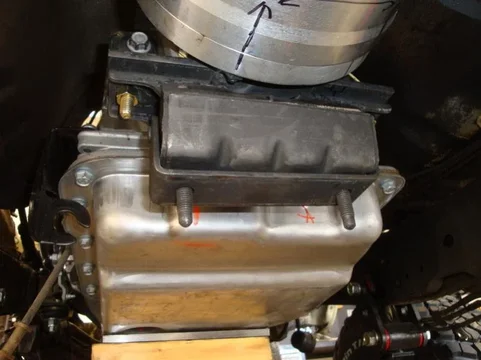

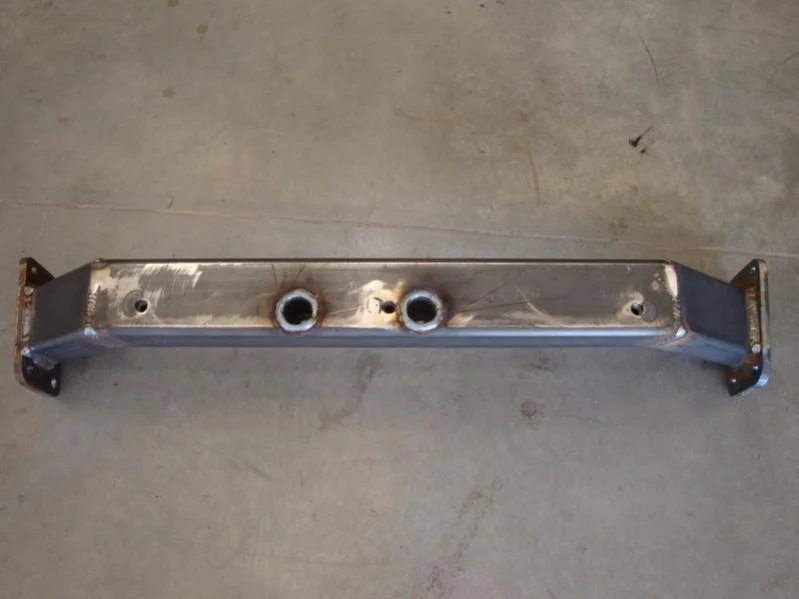

    Made some custom crossmembers, one for the trans and one for the long and heavy t-case. I used a '95 chevy 4x4 trans. mount up front(large) and a '78 chevy trans mount for the rear. (Smaller). DSC03069-1.jpg


    DSC03069-1.jpg DSC03070.jpg DSC03072.jpg
    Last edited: May 3, 2010
  9. michaelscrf

    michaelscrf

    Messages:
    68
    Location:
    Petaluma, CA
    I dont even know where to start....Everything looks perfect!!! its my dream 60! Cant wait to see it finished. Good job.
  10. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ

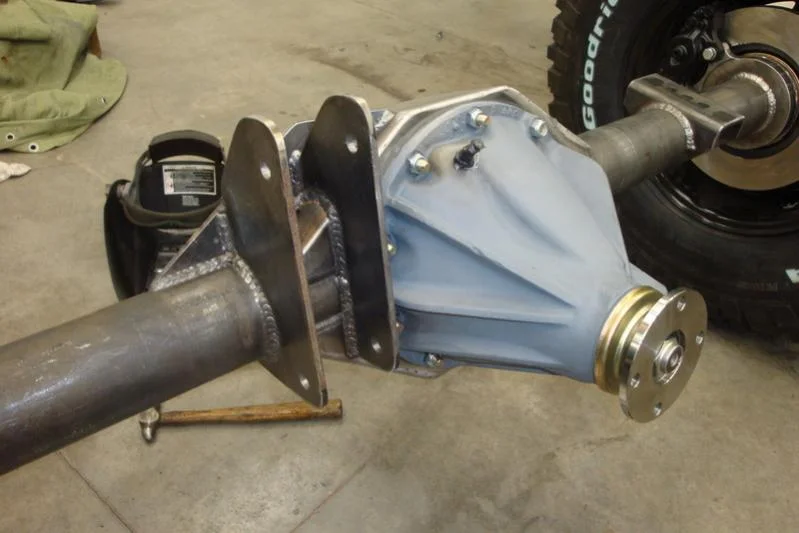

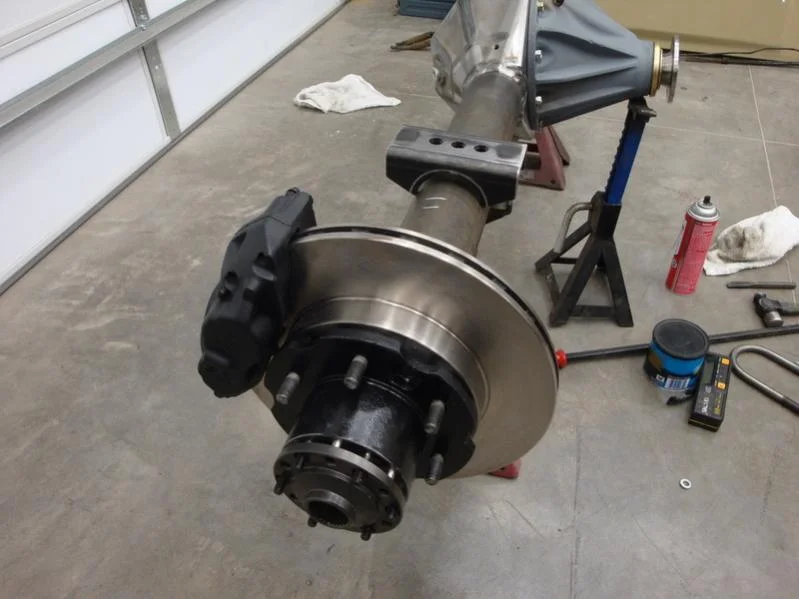

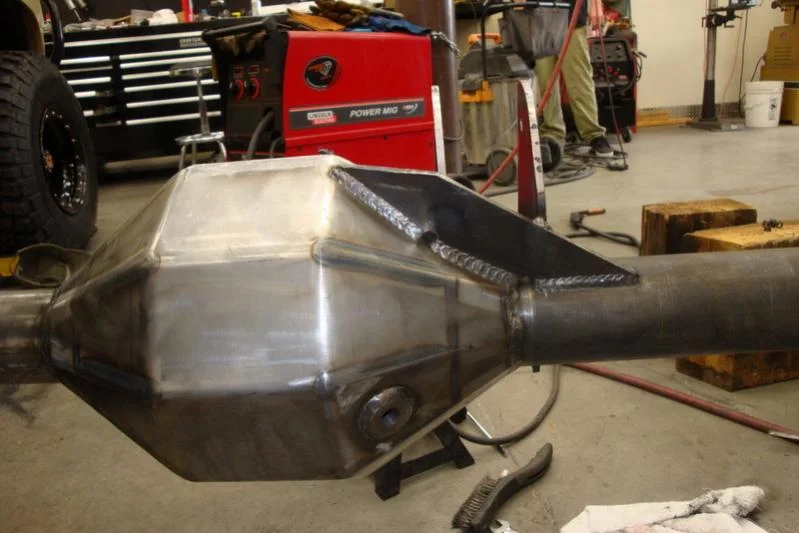

    Diamond Axle came. custom width (62 1/2") wms to match front (63 1/2") I ordered it to be a full floater and to use front LC spindles, hubs, rotors etc. Very heavy duty and well built. It came w/ custom length Longfield axle shafts, 30 spline. I ordered the chromoly hub flanges from Bobby w/ the six pin kit.

    Made mounts for the track bar that I had'nt made yet.

    Rear view
    DSC03107.jpg DSC03154.jpg DSC03155.jpg
    Last edited: May 3, 2010
  11. caserique

    caserique

    Messages:
    175
    Location:
    New York, NY
    Those spring hangars are giving me cold sweats:eek:

  12. coolotisdog

    coolotisdog

    Messages:
    463
    Location:
    Arizona
    That is going to be one sick landcruiser
  13. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ
    Thanks for the replys, I forgot to mention this truck is finished now. The whole thread is past tence. I'll try to finish the thread in a couple days.
    I was about this time I decided to try to finish it for Cruise Moab '10. Now the pressure is on, its the end of Dec. already.

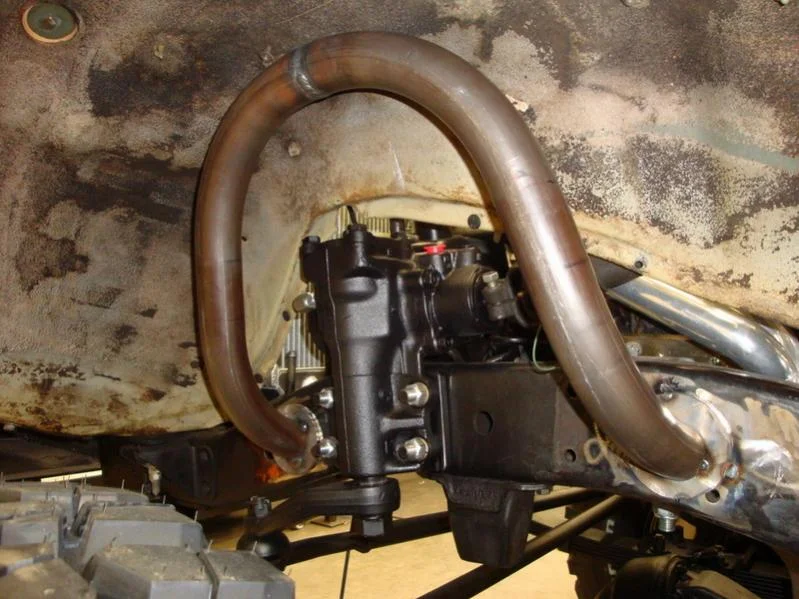

    Made front shock hoops from 1.75" .120 DOM. I dont have a 180* die so I had to make them in two halves and tigged them together. Plated the frame beneath them to spread out the load.
    Brake lines on the rear
    Front shackle angle with all the weight on it

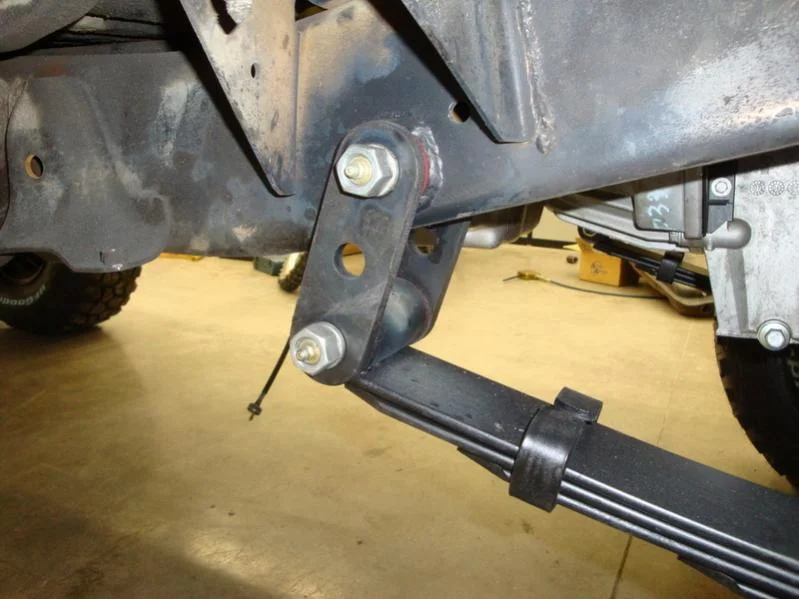

    DSC03119.jpg DSC03163.jpg DSC03128.jpg
  14. WES1977

    WES1977 SILVER Star

    Messages:
    1,690
    Location:
    Chesapeake, VA
    looks like a tough truck. Interested in seeing more as it goes along.
    Last edited: Apr 22, 2010
  15. Slowerthanu

    Slowerthanu SILVER Star

    Messages:
    1,303
    Location:
    Bountiful, Utah
    MOAR!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
  16. kling-on

    kling-on Kool Arrow SILVER Star

    Messages:
    5,253
    Location:
    Pimpin part in SanAntonio TX
    SWEET :grinpimp:
  17. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ

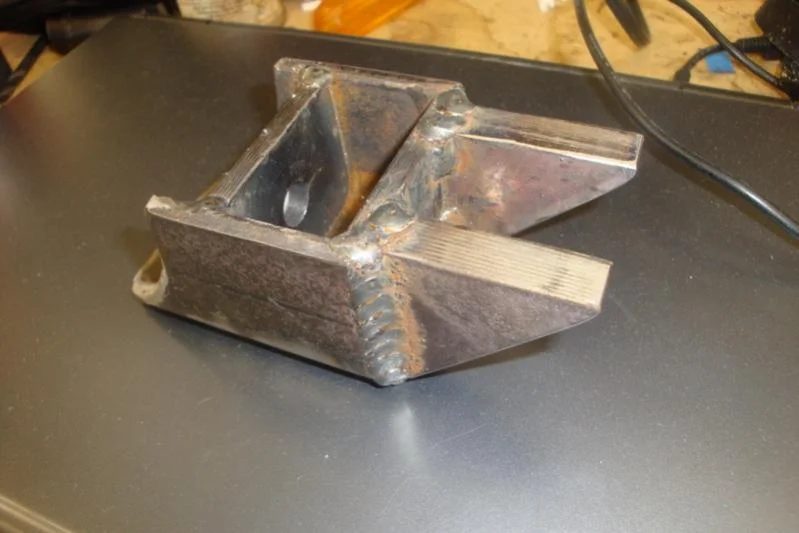

    The rear shocks had to be mounted to the front of the axle so I made these mounts that could slide over rocks while protecting the shocks

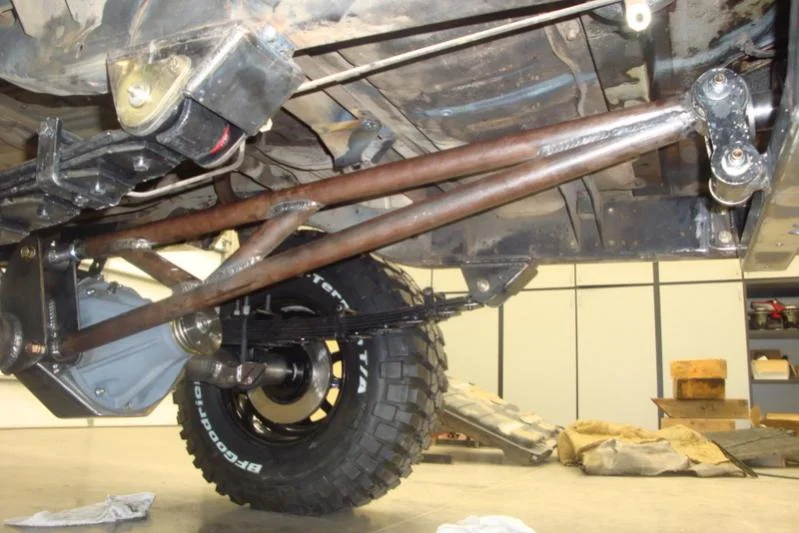

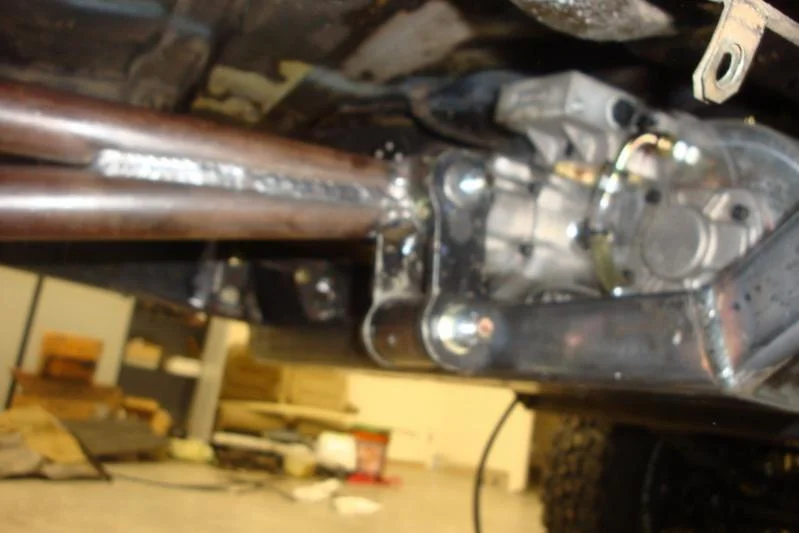

    Made an anti wrap bar w/ 1 1/2" DOM .375 wall. heavy and it wont bend. I hope.
    DSC03176.jpg DSC03253.jpg DSC03258.jpg
    Last edited: May 3, 2010
  18. robj

    robj

    Messages:
    154
    Location:
    Morristown AZ

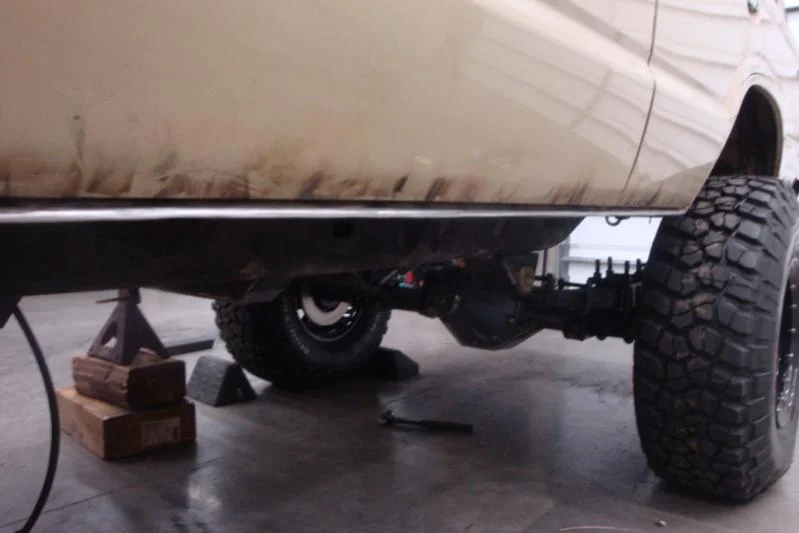

    We started cutting the rocker panels off. the plan is to make some sliders and quarter panel guards that will take up that space but not be attached to the body.

    DSC03261.jpg DSC03305.jpg DSC03310.jpg
    Last edited: May 3, 2010
  19. slcfj62

    slcfj62 SILVER Star

    So I'm staring at your last pic (post # 18) which appears to be the rear of the vehicle, and I'm not quite sure I understand why the diff is pointed in that direction.
