Hey guys, I've searched for days on here but cant find the info I need, hoping for some insight. I have a bunch of FSMs downloaded but none of them tell me which wires are which in the plug.
I have an 82 BJ60 3B 12v with an internally regulator alternator I'm trying to wire up in a 77 bj40. I dont have a picture, but if you're looking at the alternator plug, its the standard green 3 wire plug, Blue sits on top flat, on the left is white, and on the right is red. I need to know which color is my battery sense, ignition switch, and dummy light (which I probably wont use anyway).

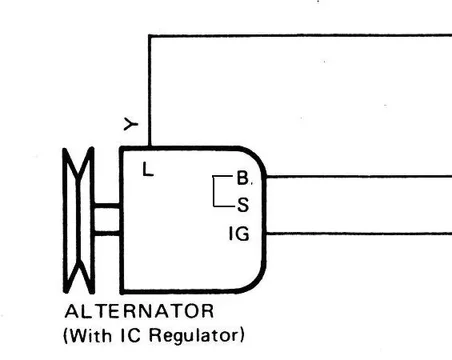

Best reference I could find was this pic I attached from this thread. The thread makes it seem like I have type 3 in the diagram? Its just confusing cause it doesnt give me the corresponding colors to be sure. I dont wanna start hooking things up and frying stuff. Thanks guys.
