2f alternator bracket

Discussion in '40- & 55-Series Tech' started by flaa1a, Apr 22, 2012.

  1. flaa1a

    flaa1a SILVER Star

    Messages:
    1,364
    Location:
    Wichita
    Bought this from someone several months ago. This does not look like the one on my 55. Is this the upper Alternator bracket for a 2f that mounts on the passenger side?

    Okay it is....but where does the end closest to the tire in this picture attach to?
    Last edited: Apr 22, 2012
  2. Pighead

    Pighead Stop calling it an FJ SILVER Star

    Messages:
    7,417
    Location:
    Walmart parking lot
    Isn't there some kind of tensioner that goes in that hole that pulls the 2F alt in that direction?
  3. flaa1a

    flaa1a SILVER Star

    Messages:
    1,364
    Location:
    Wichita
  4. Pin_Head

    Pin_Head

    Messages:
    11,485
    Location:
    OC, CA
    My cousin, Pighead, has it right.

    There is a tensioner that goes in the slot and a bolt that goes through the hole in the end and into a threaded hole in the tensioner. The tensioner stud goes through the ear of the alternator. Turning the bolt adjusts the tensioner.
  5. Rocky_LC

    Rocky_LC SILVER Star

    Messages:
    1,460
    Location:
    Tucson, AZ

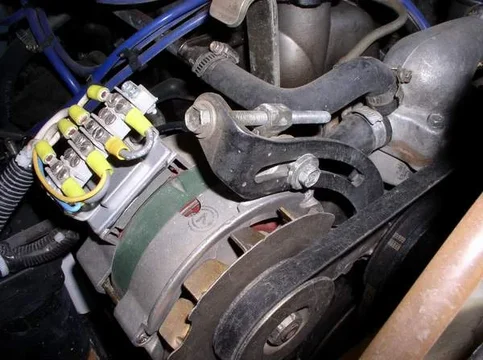

    My cousins Pin_Head and Pighead asked me to post these pictures of the tensioner.



    And don't worry about my First Uncle Once Removed - Fast Eddy. He always gets upset when he sees the crazy wiring coming off my alternator.

    Rocky
    P1010010_sm.JPG P1010011_sm.JPG
  6. SouthBostonFJ40

    SouthBostonFJ40 SILVER Star

    Messages:
    5,679
    Location:
    Reading, MA
    Can you post a picture from the other side?

    Sent from my iPad using IH8MUD
  7. flaa1a

    flaa1a SILVER Star

    Messages:
    1,364
    Location:
    Wichita
    Thanks cousins....
  8. Rocky_LC

    Rocky_LC SILVER Star

    Messages:
    1,460
    Location:
    Tucson, AZ
    Here you go....

  9. SouthBostonFJ40

    SouthBostonFJ40 SILVER Star

    Messages:
    5,679
    Location:
    Reading, MA
    Thanks!

    Is the hole in the tensioner nut threaded?

    Did you need to use a spacer on the lower bolt closest to the outside?
  10. subzali

    subzali

    Messages:
    2,627
    Location:
    Denver CO
    That must be a later model bracket. My '77 FJ40 alt. tensioner doesn't have that part on the end that the bolt tensioner attaches to. You just grab-tug-tighten the alt. by hand.
  11. Rocky_LC

    Rocky_LC SILVER Star

    Messages:
    1,460
    Location:
    Tucson, AZ
    That is an '85 FJ-60 2F engine. Definitely a later model.

    The tensioner nut is threaded (the part that rides on the long threaded bolt). The pin (facing back towards the engine) just looks like it slips through the hole in an "ear" on the tensioner. The front of the pin clamps onto the bracket to keep the alternator tight against the belt.

    So you tension it with the long bolt

    Then clamp the locating pin onto the bracket to maintain the tension.

    Hope I'm clear....

  12. SouthBostonFJ40

    SouthBostonFJ40 SILVER Star

    Messages:
    5,679
    Location:
    Reading, MA
    I have this bracket and I can't figure out how to make it work.

    [​IMG]

    Sent from my iPad using IH8MUD
  13. SouthBostonFJ40

    SouthBostonFJ40 SILVER Star

    Messages:
    5,679
    Location:
    Reading, MA
    Do you have a picture of your radiator shroud? Mine needs to be trimmed a lot with my set up.

    Sent from my iPad using IH8MUD
  14. Rocky_LC

    Rocky_LC SILVER Star

    Messages:
    1,460
    Location:
    Tucson, AZ
    I'm not running a shroud (it's on my list) because of the differences between the 2F fan positioning and the old shroud I had with my original '74 engine.

    Have not got around to messing with it... And it runs at a stable (normal) temparature.
  15. Hhhmmmm My tensioner is a lug wrench lol
  16. flaa1a

    flaa1a SILVER Star

    Messages:
    1,364
    Location:
    Wichita
    Better than me...I dont have that tensioner bracket. On the one on my pig I just pulled the alternator over then tighetend it down...Can I do the same thing with this one? Except it will have a little flooter on the end....

    Not sure why I want to change the position of the alternator other than that is what I am used to and it would be easier to get at. Are there other advantages?
  17. jimkyser

    jimkyser SILVER Star

    Messages:
    521
    Location:
    Chicago, IL
    It looks like you need to turn tab A around on the long bolt so it points down toward the alternator. Then you need to make sure bolt C is long enough to pass through the ear on the alternator AND also the hole B in tab A. Now you can adjust the tension by tightening the long bolt and lock it in place by tightening bolt C.

  18. SouthBostonFJ40

    SouthBostonFJ40 SILVER Star

    Messages:
    5,679
    Location:
    Reading, MA
    I realize the ear is the wrong way, I did that so you could see it. The bolt is the correct size for the threaded hole in the alternator but is too large to fit into the hole in the ear. Should I open up the hole in the ear or is there a bolt that has a long skinny unthreaded tip that will fit in the ear opening?
  19. jimkyser

    jimkyser SILVER Star

    Messages:
    521
    Location:
    Chicago, IL
    I would guess that there is another bolt C that has a smaller diameter unthreaded tip. I would confirm this for you if I could but I don't have that style of bracket, mine works like yours is working now, totally off the friction of the tightened bolt C. If I blow up the photo provided by Rocky_LC above, it does look like the portion of his bolt C that extends past the tab is unthreaded, though the photo gets kind of grainy.
