100 Series Drawer System - Double R Edition

Discussion in '100-Series Cruisers' started by RobRed, Oct 30, 2011.

  1. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408
    Construction has begun on the UBER LC storage system.

    Goals:

    - Deck height to create flat load floor with mid-row seats folded.

    - Aux fuse box mounting

    - Organize tools and spares I now carry in a pelican 1610

    - SubWoofer Enclosure that doesn't interfere with cargo load

    - Mounting platform for ARB Fridge

    - Mounting / Integration of DC Inverter

    - Mounting / Integration Air compressor

    - Something to Mod on my 100


    Base Dimensions: 42"w 40"D 10.5"H
    Base Material: Cabinet Grade Maple Plywood 3/4"
    Drawer Size ID approx.: 18"W 26"D 8"H
    Drawer Latches: Allegis 275021-90 http://www.allegiscorp.com/DisplayP...mp_4.jsp&cat=Single-Point Compression Latches
    Drawer Slides: KV 28" 175# Full Extension +1"
    Finish: Clear laquer and Toyota Gray carpet to match the LC interior carpet. I want it to have a factory look.

    In this design I will be adding hinged side wings that will flip up for side storage. The wing storage will be capped at each end with supports in the channel. Nothing new, we've seen this a hundred times.

    I'm waiting on a couple of parts and some time to get back. Updates to follow.

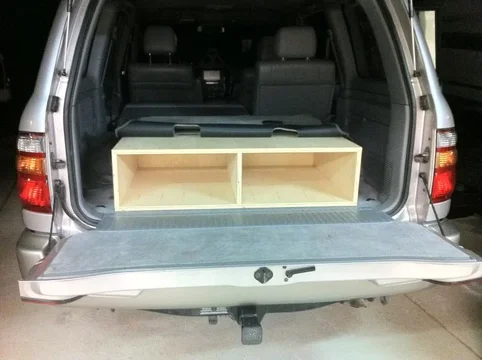

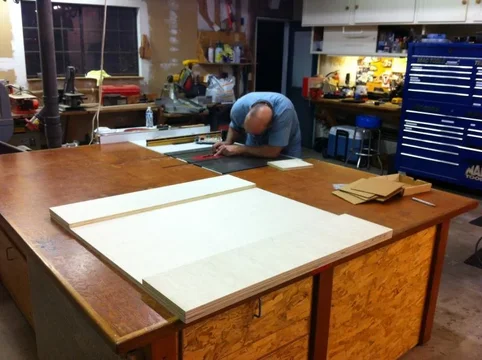

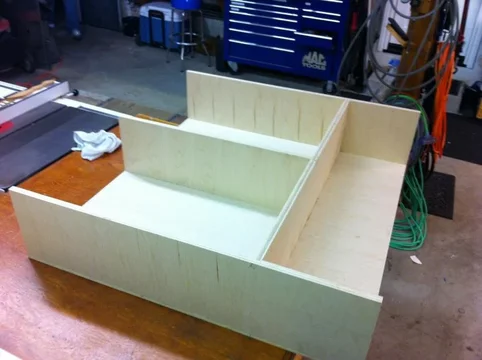

    IMG_1189.jpg IMG_1194.jpg IMG_1200.jpg
    Last edited: Nov 16, 2011
  2. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408

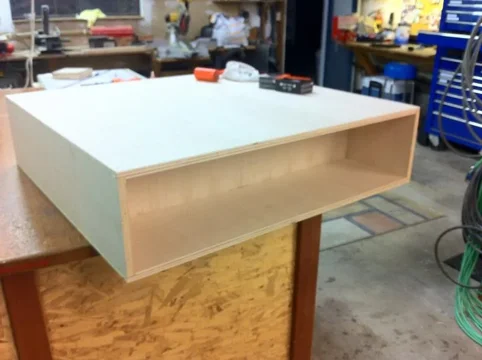

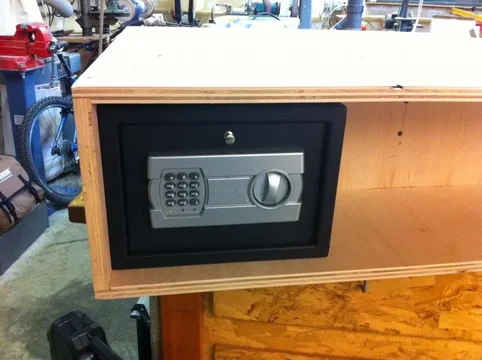

    IMG_1197.jpg IMG_2249.jpg IMG_0028.jpg
    Last edited: Feb 16, 2012
  3. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408

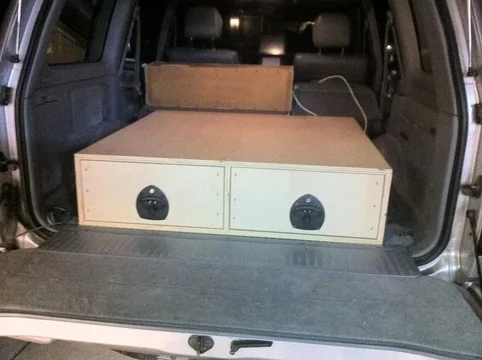

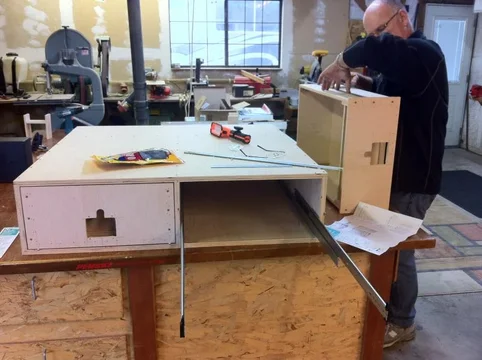

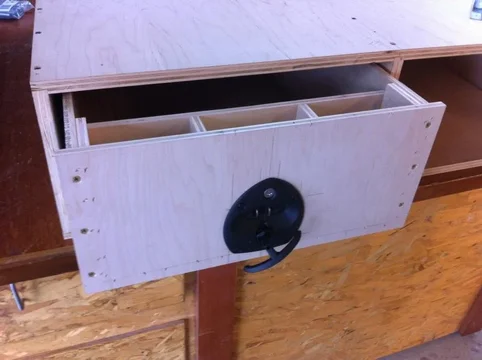

    IMG_2252.jpg IMG_2238.jpg IMG_2245.jpg
    Last edited: Feb 16, 2012
  4. FullyLitLED

    FullyLitLED

    Messages:
    3,321
    You need to invite me over to that garage...c'mon man
  5. TheFuzz

    TheFuzz Twinkie, Twinkie, Cupcake SILVER Star

    Messages:
    1,404
    Location:
    Elevated
    Threads like these make me wish I had a nicer garage and more tools. One day I will make a set of these...one day...

    Looks great so far, Rob.
  6. SupraTuRD

    SupraTuRD

    Messages:
    552
    Location:
    SF Bay Area, CA
    Very cool. Keep us posted Rob. Any plans to add "wings" to cover the sides?
  7. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408
    ummm yeah :D
  8. SupraTuRD

    SupraTuRD

    Messages:
    552
    Location:
    SF Bay Area, CA
    Duh. =]
  9. saillaw

    saillaw SILVER Star

    Messages:
    440
    Location:
    Dhahran, Saudi Arabia
    Which rear springs are you using? I assume you'll need to go with the heavy duties? Looks great btw!
  10. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408
    My springs are stock at this time.

    This drawer system will weigh less than the third row seats (90lbs).
  11. Anthony.L

    Anthony.L Looking for the end of the road... SILVER Star

    Messages:
    1,676
    Location:
    Federal Way, WA
    It's not the weight of the actual drawer system, but instead the stuff you fill it up with. ;)

    Your drawer feature list mirrors mine identically, very interested to see the final product. I have some sketches and need to get off my arse and start building!

  12. BBQ BOY

    BBQ BOY

    Messages:
    3,145
    Location:
    Charleston, SC
    I'm still trying to figure out ho you are going to incorporate the sub(s).
  13. BamaHeel

    BamaHeel Intergalactic Champion

    Messages:
    1,054
    Location:
    Birmingham
    Craftsmanship looks awesome!

    Just wondering for my own purposes - has anyone ever done a 1/2 drawer set wherein you left 1/2 of the fold down 3rd row? How would you secure it? Just wondering as I must have 1/2 for family capacity.
  14. jgray

    jgray

    Messages:
    1,312
    Location:
    Smithfield, VA
    Looking good and you sir have one sweet workshop!
  15. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408
    Truth be told that is my friends garage. Last move I gave up garage space so I have to hijack.
  16. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408

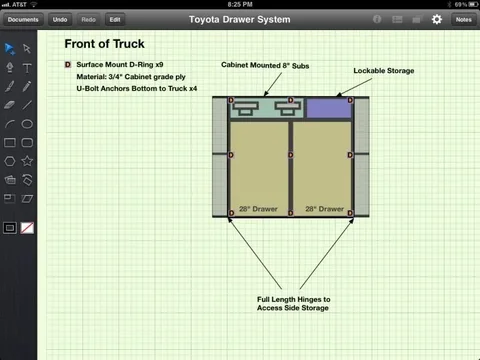

    This might help

  17. Anthony.L

    Anthony.L Looking for the end of the road... SILVER Star

    Messages:
    1,676
    Location:
    Federal Way, WA
    Which app is that on the iPad?
  18. BBQ BOY

    BBQ BOY

    Messages:
    3,145
    Location:
    Charleston, SC
    How do you feel about the subs firing towards the back of the seats? There's no reflection. I can tell a huge difference when I have my 8w7 firing against the seats vs. firing towards the tailgate. Thus being the reason I haven't built my drawers yet.
  19. RobRed

    RobRed

    Messages:
    2,291
    Location:
    Bay Area in the 408
    iDraw

    Should be just fine. There is about a 2" gap to the mid row seat bottoms. I'm installing a modest system so If I feel frisky I can roll the mid seats forward.
  20. FullyLitLED

    FullyLitLED

    Messages:
    3,321
    Your going dual JL audio 8's? I have a box for them if you want them! Unless you are making it so your subwoofers are attached to your drawers and not removable. Looking to sell the dual 8" box because I will be going wit 3 8w3's

    -LJ
