03-07-06, 12:41 AM
|
#1 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Build up: Rusty Mustard
Project to include
TH700R4 Beefed up by Georg aka Orange45
Dana 300 T-case
32 Spline Rear Output Upgrade
MiniTruck/Cruiser Hybrid Rear Axle
New Exhaust (Ramshorn)
New Cooling fan (Tarus )
+ Alot of other mini Projects to fix my Previous Hacks
Before Photo (last weekend)
Issues with the Current Setup
The Truck Prevously had a Clutch Fan that would hit Shroud every time i flexed it out..(makes it intresting while trying to focus on the rocks)
The Stock 4 speed Tranny And T-case made the truck way to fast on the rocks.. i found myself Pounding my way thru trails..
Exhaust Used to be Fender Exit Headers, They Heated up your feet for you, Leaked Bad, Mufflers Dragged on rocks, and i cant say how many times i burnt my hands on them
Why..
700r4
7004r is what Came behind my TBI 350.. The computer will control the lockup, ect just as Stock. Overdrive of .7 Keeps the RPM's down on the HWY.. 3.05 First Gear is Low for an Auto.. One of the most popular Trannys every made, parts everywhere.. the list goes on..
Dana 300
Many Adapters to a 700r4.. Ture Twin Stick.. Clockable.. 4:1 Low Range Avalible.. Front/Rear 32 Spline outputs.. 2.6:1 Stock Low range.. Common Item in Junkyards/parts stores

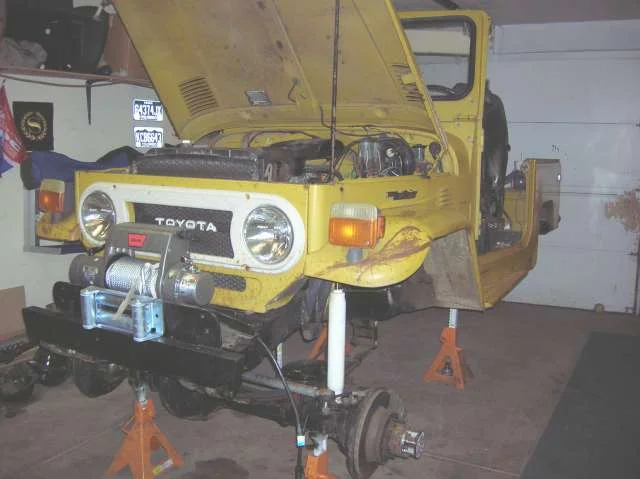

First Photo after i got most the Junk off of it
|
|
|
03-07-06, 11:14 AM
|
#2 (permalink)
|
|
Site Addict
Join Date: Jun 2002
Location: Colorado Springs, CO
Posts: 1,697
|
Kick ass man. Keep us updated.
What's your timeframe? Gonna have to make sure it's done so you can take me wheeling in June
|
|
|
03-07-06, 11:20 AM
|
#3 (permalink)
|
|
250+ Club
Join Date: Oct 2004
Location: White Mtns. AZ
Posts: 262
|
Over fifty views and no replies......?
Looks like a good plan to me, I may be mistaken but I thought you had to disable the ecm control to the tranny even if you are running the 350 tbi motor because of differences in R&P gearing?
I only ask because I'm working on the same project now, only using a stock LC t-case.....
Maybe one day it will grow up to be an Orion
__________________
1974 FJ40 SOA ON 37S TBI350/700R 4WDB OBA 99"WB
1998 Dodge CTD 12V 4x4 5sp (pulls my junk around)
2006 Dodge 24V CR (wife's dd)
|
|
|
03-07-06, 11:27 AM
|
#4 (permalink)
|
|
Admin
Join Date: Jan 2002
Location: Appleton, WI
Posts: 8,352
|
hhhmmm...sounds familiar...
IMO, upgrade the front out on that D300 while yer in there...and do the 4:1 kit and DO NOT buy a rebuild kit for it, since doing the outputs and gears gets you 99.9% of the bearings/gaskets anyways...
twinstick with cable shifters, not the levers...I wish I had....
__________________
Brian 'woody' Swearingen
Owner, IH8MUD.com
Owner, ROCKCRAWLER.com
- 1974 FJ40 'The Raisin' - 39" Pitbull Maddogs, 17x9 TrailReadys, 30-spline Longfields, SOA - 1/4 ellip, Ultimate Air, MobiArc, Optima RedTop
- 1996 FZJ80 'Gretchen' - MetalTech sliders, MetalTech tube front, MileMarker V10 MiFi, OME lift, IPOR rear & skid, 4x4Labs swings, INTI rack, dual Optima RedTops, 285 TreadWright tires, Ultimate Air, Raingler Barrier
- 2009 buggy....designing... RockCrusher60's
- 2003 2500HD Duramax - Edge/Juice/Attitude, 285 Hankook DynaPro ATM, KYB MonoMax, 4" exhaust
- 2008 32' ABU Gooseneck car hauler, 2000 Damon Hornet M-32F, 1997 14' car hauler
Forum Questions? Click Here! .. .. .. .. 2009 IH8MUD Wheelin Schedule!
'America will never be destroyed from the outside. If we falter and lose our freedoms, it will be because we destroyed ourselves.' Abraham Lincoln
'Everyone wants to save the porpoises, but no one cares about the tuna'
|
|
|
03-07-06, 02:01 PM
|
#5 (permalink)
|
|
Forum Lifer
Join Date: Sep 2003
Location: Golden, Colorado
Posts: 2,552
|
How short will the rear driveshaft be with the 700R4? This will be a great build up as its economical and strong.
Gary
__________________
Gary Waggoner
Golden, Co
1989 FJ62 SOA, 502 Mercruiser, ARBs Sold
1987 HJ61 SOA, Cable Locks, 39k miles Sold
1965 FZJ45 Pickup on Slee'd 80 chassis, plan B with 4.7 V8
2003 Tacoma, ARB, OME, SC, TRD Sold
2007 100 series, ARB, OME, Slee'd
TLCA 10689
LSLC 2000
Rising Sun 2007
www.powerplayracing.net
|
|
|
03-07-06, 02:08 PM
|
#6 (permalink)
|
|
Admin
Join Date: Jan 2002
Location: Appleton, WI
Posts: 8,352
|
my TBI350, 700R, Sunray adapter, and D300 with the AA rear output and Highangle flange allows for a stock minitruck CV front shaft to fit precisely...about 26" working length. (my rear axle IS pushed back with the 4-link tho, wheelbase is ~100")
my front 2-piece shaft uses a ~13" carrier shaft and a nearly identical 25-3/4" front mini-jointed shaft....makes them interchangable....if ya can break them...lol
__________________
Brian 'woody' Swearingen
Owner, IH8MUD.com
Owner, ROCKCRAWLER.com
- 1974 FJ40 'The Raisin' - 39" Pitbull Maddogs, 17x9 TrailReadys, 30-spline Longfields, SOA - 1/4 ellip, Ultimate Air, MobiArc, Optima RedTop
- 1996 FZJ80 'Gretchen' - MetalTech sliders, MetalTech tube front, MileMarker V10 MiFi, OME lift, IPOR rear & skid, 4x4Labs swings, INTI rack, dual Optima RedTops, 285 TreadWright tires, Ultimate Air, Raingler Barrier
- 2009 buggy....designing... RockCrusher60's
- 2003 2500HD Duramax - Edge/Juice/Attitude, 285 Hankook DynaPro ATM, KYB MonoMax, 4" exhaust
- 2008 32' ABU Gooseneck car hauler, 2000 Damon Hornet M-32F, 1997 14' car hauler
Forum Questions? Click Here! .. .. .. .. 2009 IH8MUD Wheelin Schedule!
'America will never be destroyed from the outside. If we falter and lose our freedoms, it will be because we destroyed ourselves.' Abraham Lincoln
'Everyone wants to save the porpoises, but no one cares about the tuna'
|
|
|
03-07-06, 03:49 PM
|
#7 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
i am aiming for a 100" Wheelbase.. but i want to keep leafs for now (FJ60) put my Shackle as far back as possible. My adapter is a bit thicker that the Sunray, (i will know how long tonight when Georg shows up with the Tranny+adapter).
Sorry Woody, im a CopyCat, but for good reasons.. Cheep, Strong and effective
I was originaly going to go with a sm465, but that would have lead to me yanking everything out and starting over down the road.. From here i can upgrade in stages..
As for the Front output and 4:1, its not in the budget .. In a year i will be out of school, and i will be able to pull it out and Slap in the good stuff..
Last edited by Isotel; 03-07-06 at 10:23 PM.
|
|
|
03-07-06, 10:12 PM
|
#8 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|

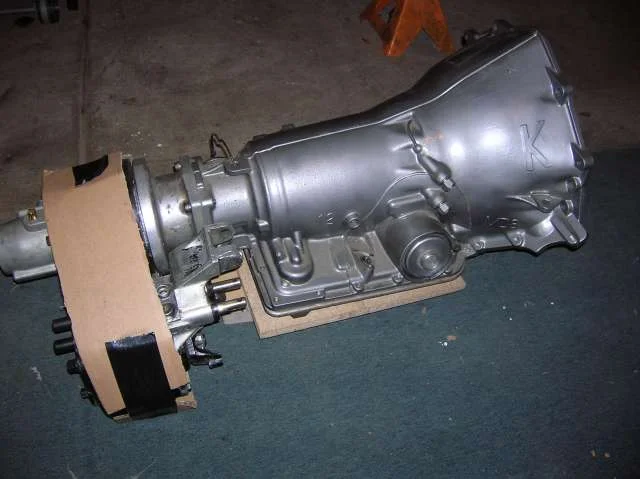

Tranny
Georg Dropped off my Tranny Tonight, (Thanks again man!)
Time to get busy..
Driveline will be about 38" with a Toyota Flange..
Driveshaft should end up in area of 26" with the FJ60 Springs
Exactly the same lenghth as with my stock 4speed Tranny/tcase and Stock Springs
Woody what did your shaft come out of? The Minitruck CV shaft i got at the junkyard is only like 21" long
Last edited by Isotel; 03-07-06 at 10:20 PM.
|
|
|
03-07-06, 10:34 PM
|
#9 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Rear Axle
Axle housing is already done, Minitruck Outers, Cruiser Center Section..
55" WTW same as stock FJ40
i Still need to Finish the Disk Brakes, and figure out a 3rd Member
i have a used 4:11 Fine Spline Gearset i may toss into my Welded 3rd for now
|
|
|
03-07-06, 10:44 PM
|
#10 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Transfer Case
The Dana 300 is already Rebuilt..
I put in the Tera Low HD 300 32 Spline Rear Output.
Twin Sticks are already Purchased.. Currie Style..
Rear Output Flange i need to order from Jessie Soon!
Still need to order a VSS
my photos went missing  so just imagine what it would look like for now
|
|
|
03-07-06, 11:02 PM
|
#11 (permalink)
|
|
250+ Club
Join Date: Mar 2005
Location: burbank ca
Posts: 711
|
Quote:
|
Originally Posted by isotel
Georg Dropped off my Tranny Tonight, (Thanks again man!)
Time to get busy..
Driveline will be about 38" with a Toyota Flange..
Driveshaft should end up in area of 26" with the FJ60 Springs
Exactly the same lenghth as with my stock 4speed Tranny/tcase and Stock Springs
Woody what did your shaft come out of? The Minitruck CV shaft i got at the junkyard is only like 21" long
|
dam you got that shit bolted up fast we didnt drop that off 30 minutes ago
__________________
anti-christ of cruiserheads
|
|
|
03-08-06, 12:03 AM
|
#12 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Lol, Its not bolted, just slid into place
one thing that had me worried was Length, due to the longer adapter and output..
|
|
|
03-09-06, 11:22 PM
|
#13 (permalink)
|
|
250+ Club
Join Date: Jan 2005
Location: Seattle
Posts: 298
|
Photos! I crave photos!
I am really looking forward to seeing this together.
VSS?
What is the advantage of a Dana 300 case? If you are going to spent the $$ why not go Atlas?
(newb question, sorry)
__________________
1973 FJ40 -
Rimrock - 2
FJ40 - 0
|
|
|
03-09-06, 11:26 PM
|
#14 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: Juneau, Ak; Fairbanks, AK
Posts: 546
|
An atlas is almost a bolt-in replacement for a Dana 300. And you can get a '300 for $50 if you look carefully.
|
|
|
03-09-06, 11:55 PM
|
#15 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Tranny Cooling Decisions
The Plan is a 17x10x 3/4" Summit Tranny Cooler in front of the Radiator, Placed right behind the bib for maximum air flow..
Somone brought up the idea of using an A/C heat exchanger off of somthing instead.. dose this person have any Merit, They are pretty big, cheep..
I will be using a Taurus fan to cool it all, Hooked up with 2 sending units controling the Relays. One for coolant, one for tranny..
VSS will be used , From JTR or maybe Painless.. 2 PPM 7/8 18 Thread for the D300
Dana 300's ive never seen as cheep as $50, but i picked mine up for a decent deal, $200 w/ new rebuild kit from a Heep Freind..
Ive got about $500 in mine so far w/ HD rear Output and Twinsticks.. Add $130 or so For a Toyota Flange, IN the future i can do the 4:1, etc.. and still be cheeper than the atlas.. main thing for now is getting rid of the Aluminum Cruiser case, and options for Strength and Gear Upgrades down the road..

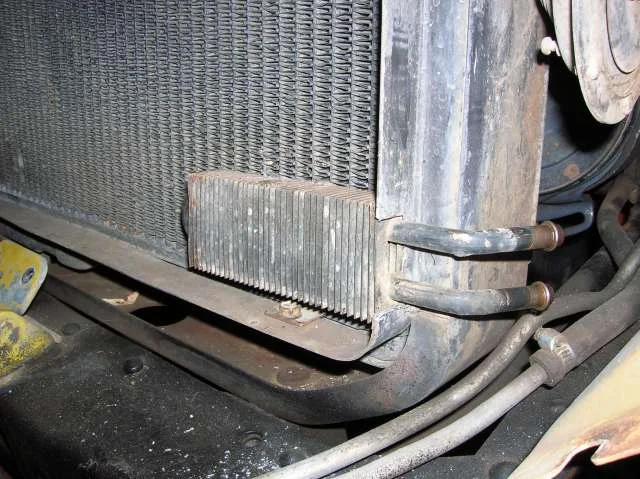

PS Cooler is installed (almost),
Last edited by Isotel; 03-10-06 at 03:29 AM.
|
|
|
03-10-06, 12:01 AM
|
#16 (permalink)
|
|
250+ Club
Join Date: Aug 2005
Location: Got glitter??????
Posts: 362
|
nice rig. looks to be a good plan for sure. are you planning on a two piece front shaft ?
chris
|
|
|
03-10-06, 04:25 PM
|
#17 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
I am Planning on a 2 piece front
but i will also look into other options.. Im like 99% sure i will do it.. this weekends project entails some Driveline Plecement and clocking decisions..
I was grinding the old mounts off last night till 2 AM.. not my favorite thing to do
|
|
|
03-10-06, 09:04 PM
|
#18 (permalink)
|
|
Forum Lifer
Join Date: Sep 2002
Location: Vancouver Island BC Canada
Posts: 4,641
|
Super cool rig man, I love the mustard and the clean body lines.
Rob
__________________
Come and visit us in Duncan, Vancouver Island, BC
www.raddcruisers.ca
Monday - Friday 08:00 - 17:00
|
|
|
03-11-06, 06:04 PM
|
#19 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Quote:
|
Originally Posted by Radd Cruisers
Super cool rig man, I love the mustard and the clean body lines.
Rob
|
Thanks, the other side is Pretty bad, and the Rear Sill is almost gone ..
This photo explains some of the body damage, Prevous Owner liked to Drink + Drive :(
Misc 70's era Pull tabs and Bottle Tops.. the intresting stuff you find in the cracks of the gas tank.. This is only about 10% of them, ive been finding more and more since i got the truck..
Last edited by Isotel; 03-12-06 at 08:09 PM.
|
|
|
03-11-06, 06:11 PM
|
#20 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|

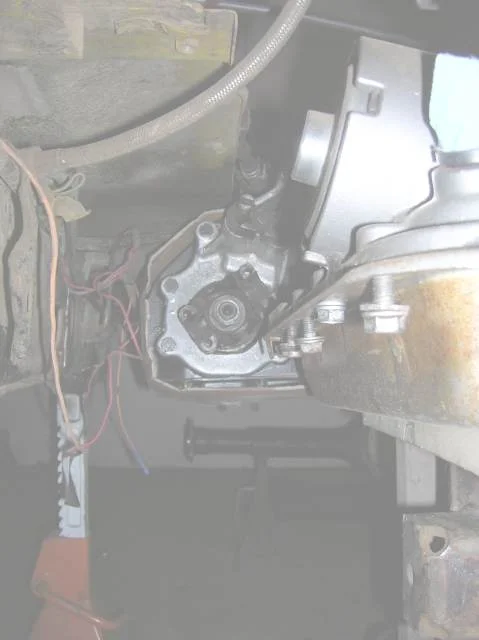

Driveline Placement

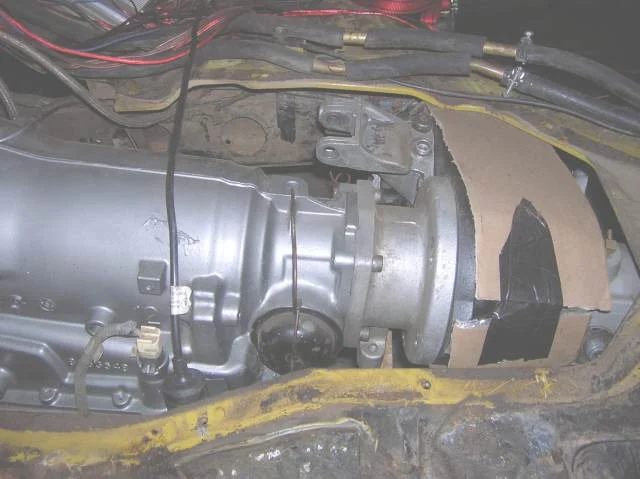

Got the Tranny and T-case Wrestled into place last night..
Any input you guys have as far as driveline placement?
The T-case is going to be a tight squeeze.. i dont think i can get it all the way clocked up without cutting out of the tub and modifying the gas tank.. It will be close..
2 Peice shaft is going to be a must.. Or drop the t-case alot..
|
|
|
03-12-06, 12:29 AM
|
#21 (permalink)
|
|
250+ Club
Join Date: Aug 2005
Location: Got glitter??????
Posts: 362
|
although mines a sm465 im about where you are now. i hope i dont get into the floor on mine as ive already built a 26gal aluminum tank that i really dont want to modify. hopefully ill be ok as i removed the stock fuel sump part of the floor and moved my sump to the outside of frame. if clocking mine flat gets me into the floor im planning on pulling my novak adaptor and welding the upper 2 holes shut and redrilling for a "1/2-clocked position" in between the highest clocking option and the next one down. see my buildup thread on pirate for pics
nice work by the way
chris
|
|
|
03-12-06, 07:25 PM
|
#22 (permalink)
|
|
Forum Lifer
Join Date: Mar 2003
Location: on thin ice
Posts: 7,240
|
nice work trevor. sorry we could'nt hang out more, we were already running way behind. to keep the trans cool, i'd run a cooler strictly designed to do so. the ac units are too big and will restrict airflow to the rad. and they're not nearly as efficient as the trans coolers. i still have a few for sale if you're interested.
|
|
|
03-12-06, 08:23 PM
|
#23 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|

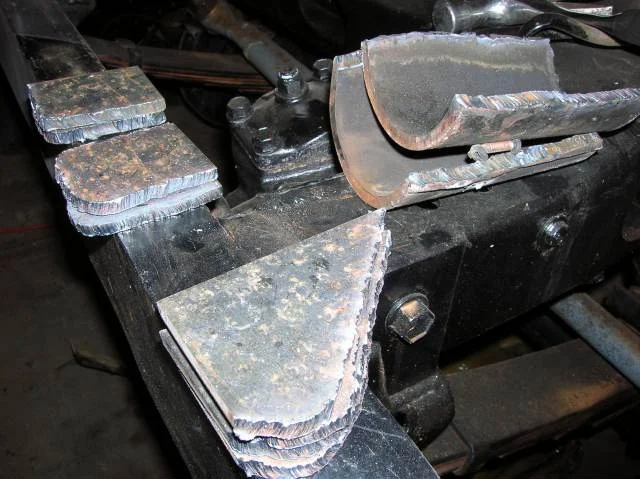

I had access to a Plasma Cutter today so i had to Hurry up with some Driveline Brackets
The Axle tube halfs will be added to my Rear Housing for some more beef for the Mopar Spring Perches to sit on
Some photos of how its looking now.. its going to end up a little to the Drivers side to clear the t-case better.
t-case is going to hang a 1/2" or so lower than the Frame
|
|
|
03-12-06, 08:42 PM
|
#24 (permalink)
|
|
250+ Club
Join Date: Oct 2004
Location: Sacramento, CA
Posts: 394
|
Nice buildup. I really like that before picture too.
__________________
Yeah Buddy
76 FJ40, H41, Orion, 33s, no flex, and two tons o' fun
97 FZJ80, locked and stocked w/ LEDs, CDL and Pin-7, ridin' dirty
|
|
|
03-17-06, 12:24 PM
|
#25 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
What Bolts should i be using for the Tranny into the Engine Block?
Junkyard search had Different sizes from 9/16 up to like 18mm.. Engine is a 1988 tbi
Spent some time Getting my Audi Ready For Sale, so i can Pay for the Rest of this Build
|
|
|
03-17-06, 01:31 PM
|
#26 (permalink)
|
|
Site Addict
Join Date: Feb 2004
Location: southeastern IN
Posts: 1,966
|
IIRC I used 9/16 on my '89 350 to bolt the bell housing up.
Nice build!
Nick
|
|
|
03-18-06, 09:59 AM
|
#27 (permalink)
|
|
250+ Club
Join Date: Jan 2003
Location: Austin, Tx
Posts: 907
|
Cool build up.
Get a good tranny cooler. You will need it when your trail'n slow. Teh tarus fan will pull some good breez through it. Here is mine (3rd pic down) to give you an idea.
http://lslc.org/austin/bios/blumenthal/Dulciena.html
Keep the posts coming!!!
__________________
Jeff Blumenthal
TLCA# 9883
KE5RST
Austin, Tx
1/71 FJ40 Dulcinea 350/700R4/NP203/TLC3SP/SO/FSR/RSR/RSHR
95 FZJ80 DeFlared, DeRunning Boarded, 33s, more to come
www.lslc.org/austin
|
|
|
03-18-06, 07:24 PM
|
#28 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Thanks for the info, nice setup, Georg is sending me a nice Stacked plate style cooler.. Whats the Story on that Beefy Steering U-Joint. My Afco U-joints are Junk,only got a year of use out of them :(
|
|
|
03-30-06, 02:31 AM
|
#29 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
Finaly an update.. i sold the Audi  All the $ has gone and parts are on the way
My digital camera was in the audi  so crappy phone pictures will need to do for now..
Ive been a welding fool, finaly getting good at it too..

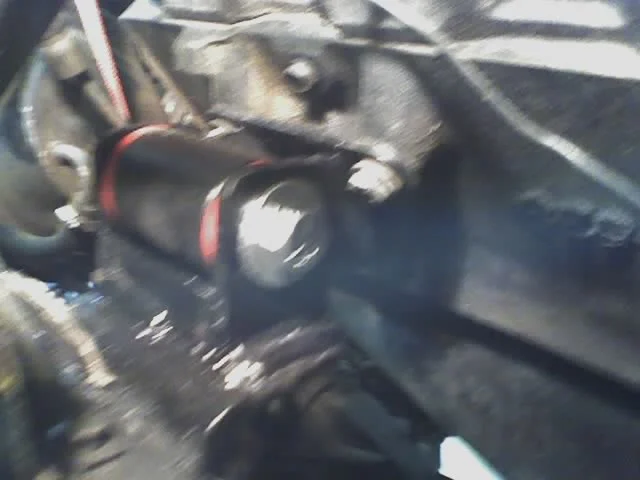

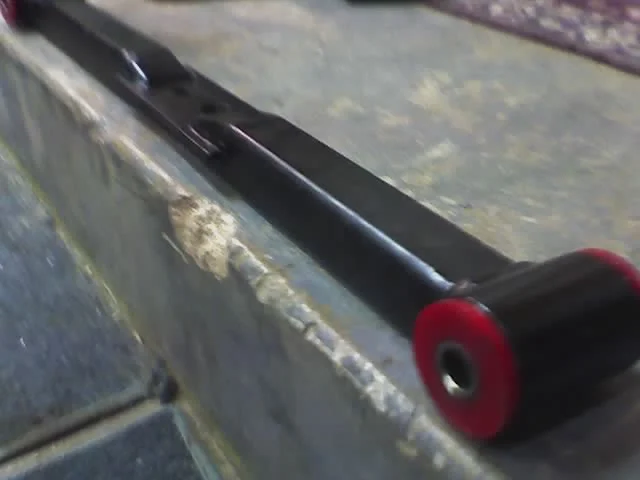

Motor Mounts and Rear Crossmember are done, Poly Bushing kits came from MAD Off road.
Last edited by Isotel; 03-30-06 at 02:38 PM.
|
|
|
03-30-06, 02:34 AM
|
#30 (permalink)
|
|
Supporting Vendor
Join Date: Sep 2003
Location: Crawlorado.com
Posts: 3,540
|
wow those photos are bad..
I could not find a Machine shop to drill holes to clock the T-case quickly, so i got out the Harbor Freigt Drill press and took my time with the holes, it came out pretty good..
time to go to bed!
|
|
|
 |
|
| Thread Tools |
|
|
| Display Modes |
Linear Mode
|
Posting Rules
|
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
HTML code is Off
|
|
|
|
|
|
