Long overdue pictures, been busy trying to get caught up after a delayed start. Project is to swap 2F, sm420, Toybox with a 4.3 Vortec and 700r4, into my Atlas 3.8. Also had to return my frame to UROC legality, removing the clearanced cutout in the frame sections. Choose to cut the entire front section off and replace, raising it at the same time.

Parts used for this round of upgrades include:
700r4 by Rusty Bray (fellow Uroc competitor)
2001 4.3 Vortec 3000 miles on it, dealer take out (thanks Jon!)
Art Carr shifter
Northwest-Aero pulley's and accessory package
Howell-Efi harness and ecm, and a wealth of advice!
Misc GM stuff from my local dealer (and wife's employer) and the uncounted $$$$ spent at Earls, Summit and Jegs on stuff I didn't need before.

Got some help from a few guys on here too, some bought parts from me, some sold/donated parts to me, Thanks to all of you! Followed Texican's thread on the 4.3 he is doing/did and got some ideas too, old fart has some' good ideas! But, night after night, AJ and Bob have been here getting dirty, and making this all happen! Thanks guys

No real order on the pics, and many more to follow, if you see something that interests you, I probably have a pic of it, just ask!

[SpaceGhost]

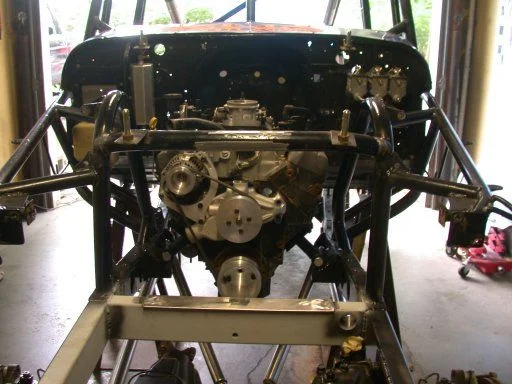

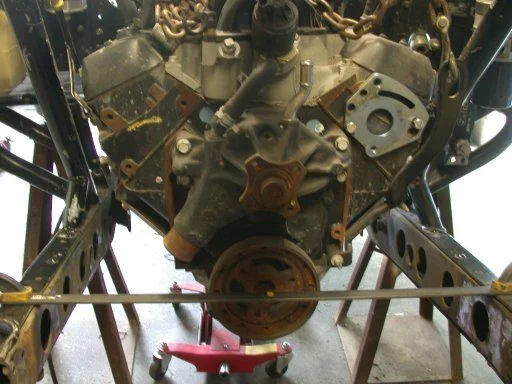

Motor hanging and mounts

[SpaceGhost]

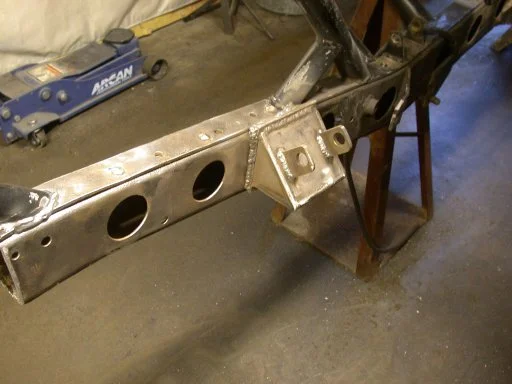

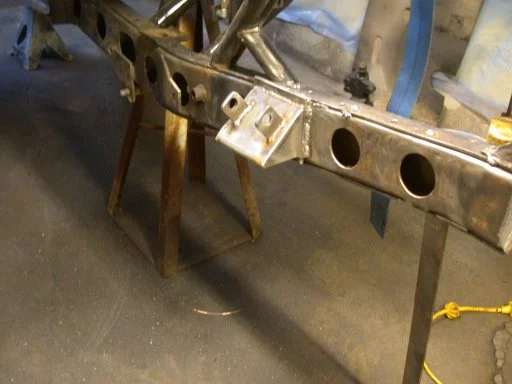

Mounts welded in, still need clearanced for links.

[SpaceGhost]

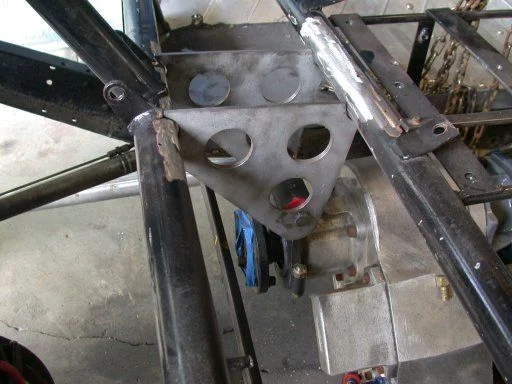

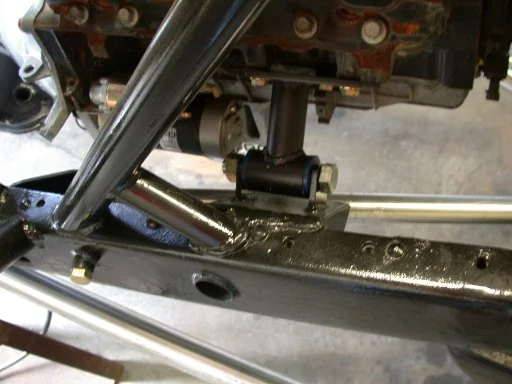

Rear mount Atlas hangs from this, second pic is front mount pass side.

[SpaceGhost]

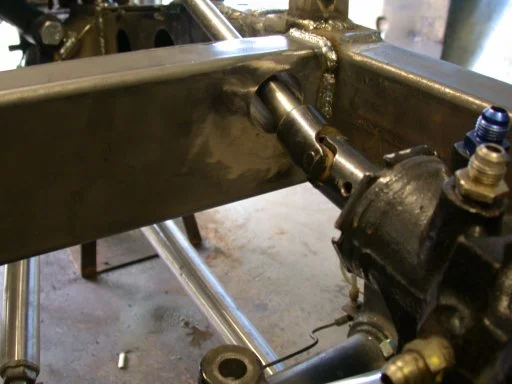

Steering box, stuck with the sagianw unit and a shot of the motor sitting in place

[SpaceGhost]

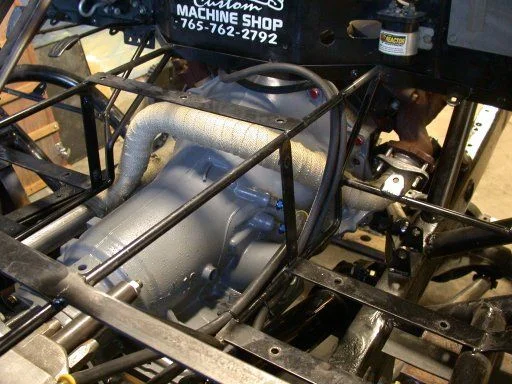

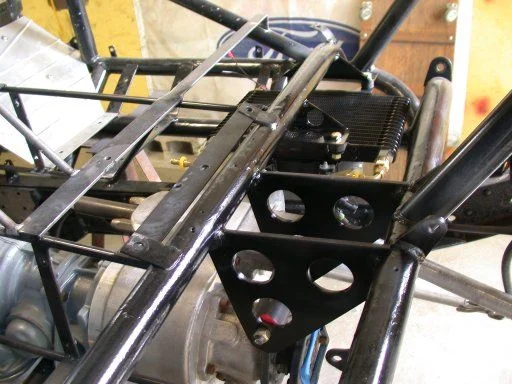

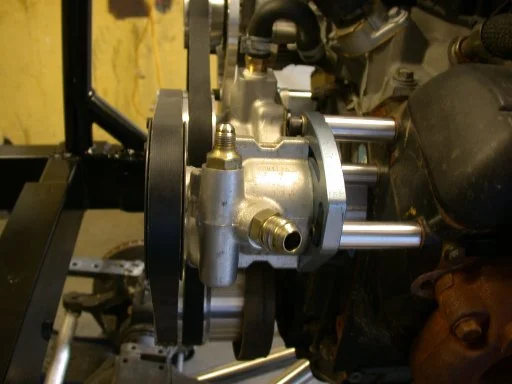

Rear mount with paint, and tranny cooler followed by power steering pump, and partial shot of the bling ass serpentine pulley set (more to come), then the hand fabbed exhaust, stock 01 blazer manifolds, routed up n over tranny and mated together. One piece into muffler, and wrapped to keep the heat down. Thats all for today.........................

[orangefj45]

is the trans adapter going to be supported from the bottom as well?!

i dig it a lot!!!!!!

[SpaceGhost]

Originally Posted by orangefj45

is the trans adapter going to be supported from the bottom as well?!

i dig it a lot!!!!!!

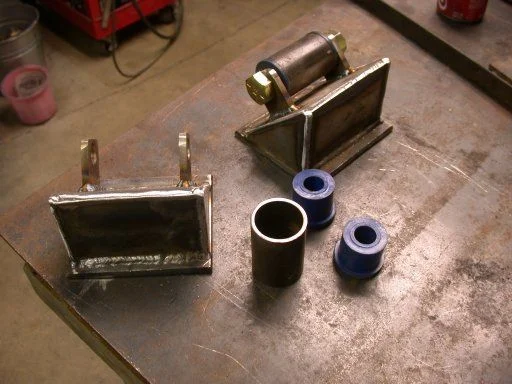

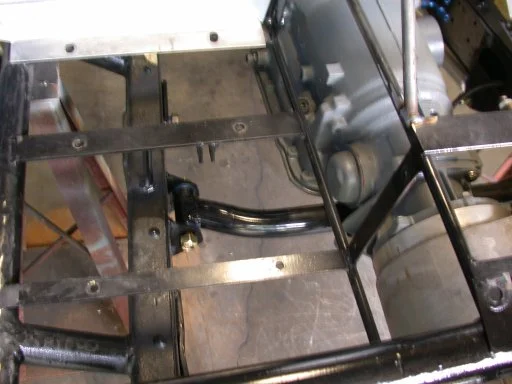

Yes, we chose to put the mount under the tranny, not the adapter. Bushed on the ends, like the motor and rear mount, here's a partial pic.
