Orion HD #3...Paging Peescoffee

General Sherman · 08-21-07, 11:19 PM

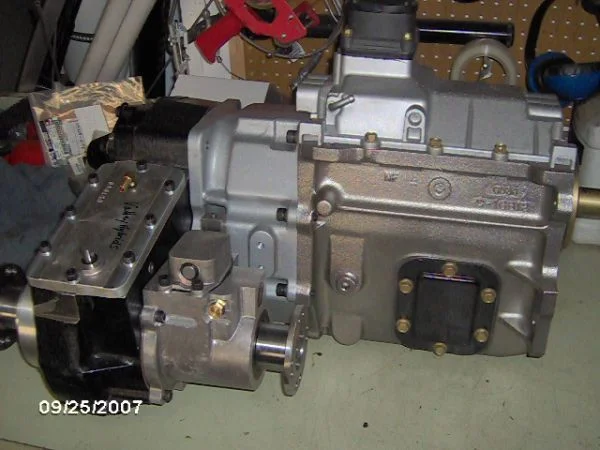

Another Orion...but its an HD
Hardcore enough for ya?

YES IT'S #3

General Sherman · 08-21-07, 11:22 PM

Thanks to Jess @ highangle for the driveflanges

KT40 · 08-21-07, 11:32 PM

VERY NICE!!!

Whats the electrical connecton for?

fj40forlife · 08-21-07, 11:45 PM

only wish that would be under my rig

General Sherman · 08-21-07, 11:49 PM

Quote:

Originally Posted by KT40

VERY NICE!!!

Whats the electrical connecton for?

VSS (vehicle speed sensor)
Requires switching to an electronic Speedo because of the 32 spline outputs. I'll post up pics as i go

LT · 08-22-07, 12:59 AM

:drool:

orangefj45 · 08-22-07, 09:31 AM

it's a bummer they went with the jeep style speed sensor versus the gm units.

Tapage · 08-22-07, 11:54 AM

Quote:

Originally Posted by orangefj45

it's a bummer they went with the jeep style speed sensor versus the gm units.

why .. ? thinking sure your opinion the GM are better ..

P.S. saw a ARB ir locker line

peesalot · 08-22-07, 12:49 PM

That air line is for Dave so he can blow dry his hair.

petescoffee · 08-22-07, 02:16 PM

Neil Looks great!!

Time to push Jess on the rear Disc Brake.

Dave

orangefj45 · 08-22-07, 02:26 PM

Quote:

Originally Posted by Tapage

why .. ? thinking sure your opinion the GM are better ..

better?! who knows....

what i do know is that most aftermarket speedos are set up for the gm pulse width/frequency.

General Sherman · 08-22-07, 10:44 PM

Quote:

Originally Posted by orangefj45

better?! who knows....

what i do know is that most aftermarket speedos are set up for the gm pulse width/frequency.

Any Autometer Electric Speedo will work with the J**p Speed sensor. You just have to know how to wire it. Jeep can't tell you and neither can Advanced Adapters but i figured it out with alittle digging. I'll let you know how it works. I'm wiring it up to An Autometer Quad Kit Like these
http://www.autometer.com/media_newsa...=7&pg=1&aid=54

alkaline747trio · 08-23-07, 06:44 PM

I will throw myself into however much debt I need to so I can have one of those for my 80...that thing is just sexy.

John Smith · 08-24-07, 02:20 PM

What patterns are on the driveflange and what does Jess get for one? It also looks like you have HD 005 from the picture.

General Sherman · 08-24-07, 08:36 PM

Quote:

Originally Posted by John Smith

What patterns are on the driveflange and what does Jess get for one? It also looks like you have HD 005 from the picture.

It's #003...Call Jess @ Highangle for the price but as far as the patterns go.It will work with any Toyota Drive shaft ever used as well as the different size bolts

bjowett · 08-24-07, 08:42 PM

Awesome! Thanks for sharing... Hope I don't find out the hard way that I need one.

bigbluefj · 11-06-07, 07:02 PM

so what is the price for something like that, with the canadian $$$$ being this strong now would be a good time for me to look at something like that for my truck????

peesalot · 11-06-07, 11:11 PM

anyone know if the HD front cone will clear a sm420 tranny ??????

VETTE60 · 11-07-07, 06:15 PM

yeah, how much????

greenfox · 11-07-07, 06:23 PM

Some where around $2,400

hlb3 · 11-07-07, 09:42 PM

That is beautiful!!

peesalot · 11-08-07, 06:54 PM

answer my guestion gawddamit ????? POSER ???????????

orangefj45 · 11-08-07, 07:24 PM

#15

!

neil , let me know on the wiring for the vss. thanks in advance!

peesalot · 11-09-07, 05:13 PM

It looks from that pic as if it would only clear if you have a doubler, an old school A/A adapter, or maybe some serious grinding on the 420 case, anyone ever tried to shave the 420 case ala a rear diff ?

CreeperSleeper · 11-09-07, 05:28 PM

Quote:

Originally Posted by alkaline747trio

I will throw myself into however much debt I need to so I can have one of those for my 80...that thing is just sexy.

x 200

General Sherman · 11-17-07, 01:35 PM

Quote:

Originally Posted by orangefj45

#15

!

neil , let me know on the wiring for the vss. thanks in advance!

Hey G,

You'll need Mopar art Number 5014007-AA.

Advanced Adapters uses A Speed Sensor from Jeep TJ Rubicons'
Let me know if you need the wiring Diagram
Neil

General Sherman · 11-17-07, 01:59 PM

Quote:

Originally Posted by peesalot

It looks from that pic as if it would only clear if you have a doubler, an old school A/A adapter, or maybe some serious grinding on the 420 case, anyone ever tried to shave the 420 case ala a rear diff ?

I think it depends on what adapter you are using. It should clear just fine with an AA adapter but you may have issues using one of the widely used plate adapters
N.

Sorry it takes a while to repond to questions, I don't live on the computor.

Update ...After finishing the guages the last step was Ebrake. Since he had just picked up an new(to him) FJ60 full float we converted it to Eldorado calipers. All new bearings and seals off he goes...3" wider

General Sherman · 11-17-07, 02:03 PM

A couple more of the axle...And by the way. If anyone is looking Dave might have a rear axle,w/ disc brakes and Poly perfrormance chromoly axles collecting dust soon

orangefj45 · 11-18-07, 11:25 AM

righton neil!

what did you use for the e-brake handle setup inside the rig? is it working well?!

petescoffee · 11-18-07, 01:12 PM
