D'Animal · 09-09-07, 08:50 PM

Quote:

Originally Posted by orangefj45

lookin good dan! wanna run a 3FE in it???

I would love too!

I'm just too stupid to figure out the wiring.

D'Animal · 09-09-07, 08:55 PM

My goal today was to get the radiator installed.

What a pain that was. Nothing bolted in.

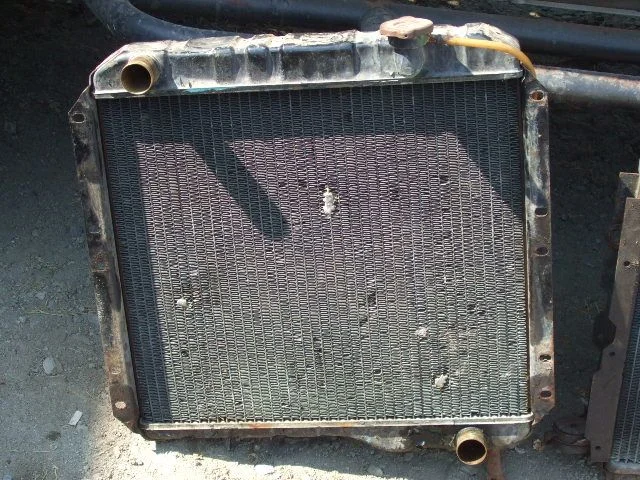

The Top Pic is the FJ 40 Radiator.

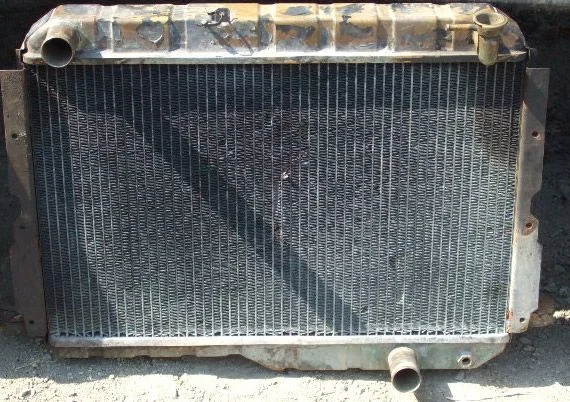

The Bottom Pic is the FJ 60 Radiator

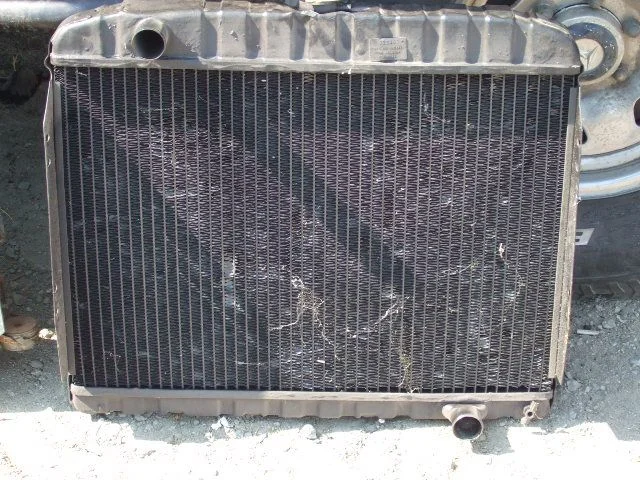

The Middle Pic is the Radiator I used. You do not want to know what it's from.

D'Animal · 09-09-07, 09:13 PM

Quote:

Originally Posted by splitshot

Hey orange, give him a steel trash can to replace the one his wife burned up

Wife picked up one when I was at the 45 Run.

D'Animal · 09-09-07, 09:40 PM

The donor vehicle came apart but it was a fruitless venture.

The radiator out of a 40 will not work unless you fab up a new radiator support or cut the frame supports.

D'Animal · 09-09-07, 09:43 PM

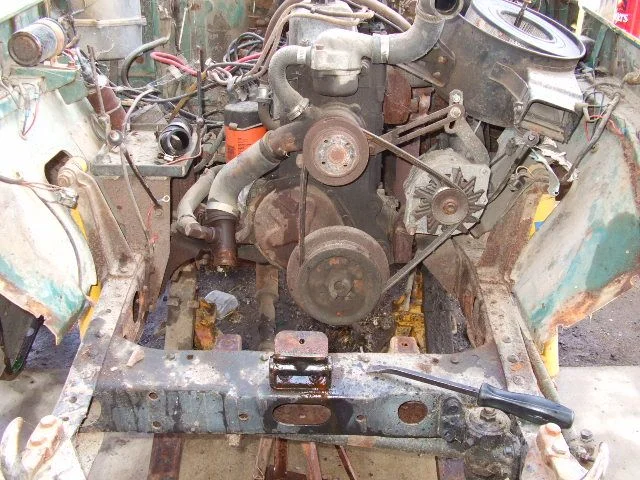

Is this Stock for a 1974 F motor in an FJ40?

greenfox · 09-09-07, 10:11 PM

no the alt is out to far.

D'Animal · 09-09-07, 10:11 PM

Here is the final product.

D'Animal · 09-09-07, 10:12 PM

The radiator is not just off set but it is square with the fan. My 40's and my 60's are the same way.

greenfox · 09-09-07, 10:22 PM

Will you have room for the head light on the drivers side?

D'Animal · 09-10-07, 07:39 AM

Quote:

Originally Posted by greenfox

Will you have room for the head light on the drivers side?

I should have enough room for it. I took the measurements from my 40 and they are the same.

Here is the gap between the radiator and the front bib. It is the same as a 40.

splitshot · 09-10-07, 08:13 AM

I might have missed it but, have you figured out how to fab the rear glass opening?

You picked the right man to do your cage, impressive work.

landcrusher909 · 09-10-07, 08:20 AM

and here is a shot of D checking it for fit, looks good brother and i have your springs

D'Animal · 09-10-07, 08:26 AM

Quote:

Originally Posted by splitshot

I might have missed it but, have you figured out how to fab the rear glass opening?

It will have the hatchback that the 74's came with for now.

D'Animal · 09-10-07, 08:27 AM

My plan is to build the entire rig and drive it to Surf and Truf 2007 for the shake down test.

I will then take it all apart and it will get paint and weatherstripping, etc.

beaufort-fj60 · 09-10-07, 08:30 AM

Quote:

Originally Posted by D'Animal

Wife picked up one when I was at the 45 Run.

how in the world did you wife melt a 55 gallon drum?

splitshot · 09-10-07, 08:32 AM

Quote:

Originally Posted by D'Animal

It will have the hatchback that the 74's came with for now.

Hmmmm, I wonder if the top half of ambulance swing doors would work also.

D'Animal · 09-10-07, 08:37 AM

Quote:

Originally Posted by beaufort-fj60

how in the world did you wife melt a 55 gallon drum?

During my FJ40 Rear bumper Build, I was welding and an ember caught a rag on fire about 10 feet away. I did not notice since I still had the helmet down. She picked up the rag and threw it in the trash can.

A few minutes later the trash can went up in flames.

D'Animal · 09-10-07, 11:16 AM

Here is the 3" gap between the fan and the radiator.

This is the same measurement I took from my FJ 40 and my FJ 60.

D'Animal · 09-10-07, 11:18 AM

Quote:

Originally Posted by splitshot

Hmmmm, I wonder if the top half of ambulance swing doors would work also.

I will be installing a flat bed with a roof rack. Similar to Mudracks rig but on an economy level.

LT · 09-10-07, 12:58 PM

Quote:

Originally Posted by landcrusher909

and here is a shot of D checking it for fit, looks good brother and i have your springs

Ah yes, the highly technical way of figuring out the height of a seat or whatever. Start stacking whatever chunks of wood/metal till best fit

pbgbottle · 09-10-07, 01:12 PM

it still looks like the front axle should be moved forward more .just a thought

keep up the great work

beaufort-fj60 · 09-10-07, 02:04 PM

Quote:

Originally Posted by D'Animal

During my FJ40 Rear bumper Build, I was welding and an ember caught a rag on fire about 10 feet away. I did not notice since I still had the helmet down. She picked up the rag and threw it in the trash can.

A few minutes later the trash can went up in flames.

gotcha.. I misread that as she melted a steel 55 gallon drum.

D'Animal · 09-10-07, 02:19 PM

Quote:

Originally Posted by pbgbottle

it still looks like the front axle should be moved forward more .just a thought

keep up the great work

I don't disagree. This is as far forward as it goes before you have to move the steering box and have custom arms made as well as utilize a rear steer set up.

I'm going to run it for now. When the 35" are on there I will see how bad it rubs and handles. After SnT it may get moved more.

D'Animal · 09-12-07, 12:25 PM

Quote:

Originally Posted by LT

Ah yes, the highly technical way of figuring out the height of a seat or whatever. Start stacking whatever chunks of wood/metal till best fit

LOL!

I'm sure Summit Racing has a seat locator for sale but this is how it's done in the real world.
