"Ronin"--FJ45 Build By Mad4wd
Guys,
Thought I would share some pics of a vehicle we are building at Mad4wd working alongside Crawl Magazine. Since I have a Tech Editor/Writer position at the rag...this has to be a jaw dropper. We will be dragging it all over the show/trail ride circuit so a high end build is in the works :-). We will be detailing the build in the mag so subscribe slackers if you haven't already and help support us!
I am a big proponent of more LC coverage in Crawl, so if you have something that we need to be writing about, trail rides, products, etc...contact me or Woody and we will get it going! This is not a customers rig...this is our rig and I have been planning this build for awhile now along with Tim Piele at Crawl (the guy who constantly busts my sack to write, plus he wants unobtainable deadlines  ). Woody prodded me to start the build up thread  . so here it is.....
RONIN--- The Samurai without a Master.
Aqualu FJ45 SWB w/6" stretched cab (extensive mods are planned for the body  )
6.0L HO GM Vortec w/mods
Mad Fab 9" Axles
The rest of the 'poop' is top secret for now
More detailed pics will be in the photo gallery at http://www.mad4wd.com if you would like to see them.
I will try and post as much as possible, but with our business we get busy and it may be a few days so please bear with me.
Feel free to give your input on the project
Larry
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
Last edited by Mad4wd; 07-25-07 at 03:07 PM.
Reason: addition
|
|
|
|
07-25-07, 12:17 AM
|
#2
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

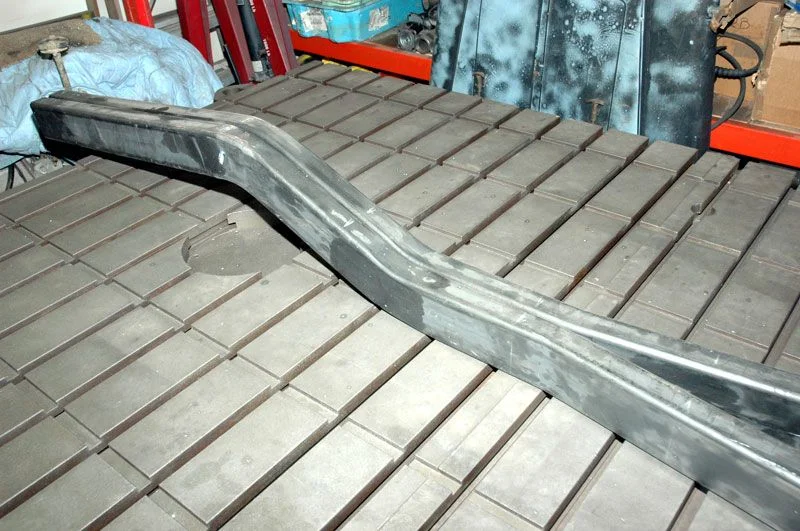

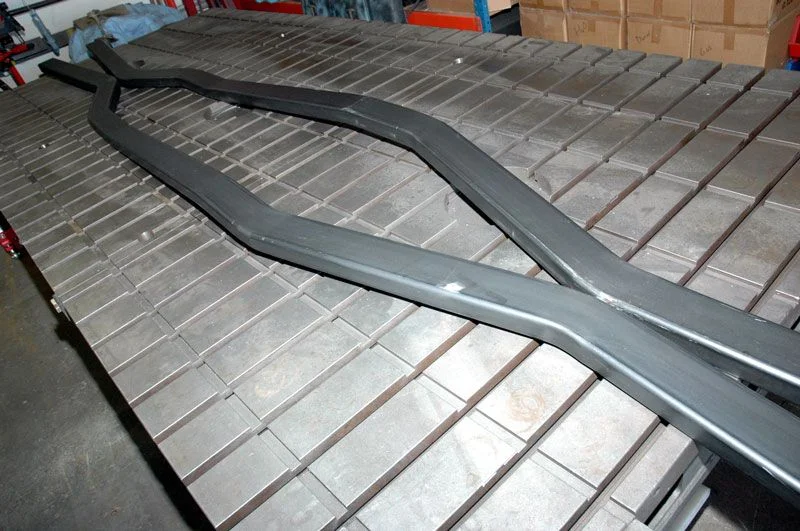

Jeremy at 'Throttle Down Kustoms' built mandrel-bent frame rails per my dimensions. He is a stand up guy and great to work with. The rails were spot on perfect .
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:35 AM
|
#3
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

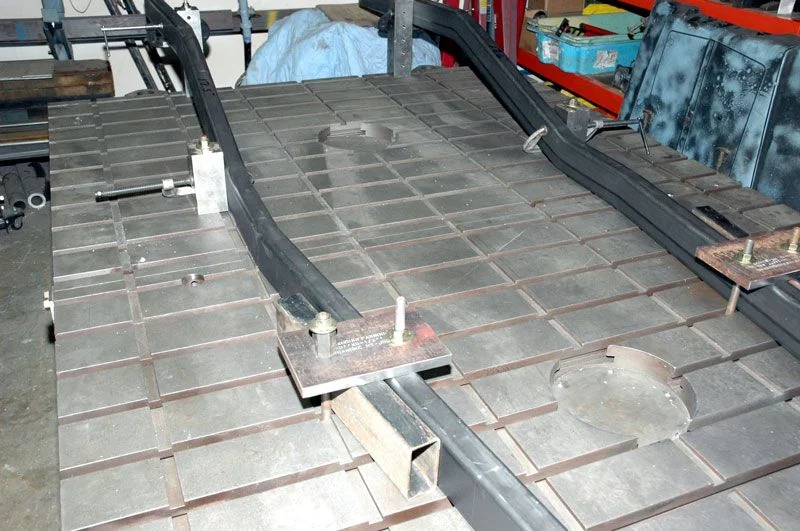

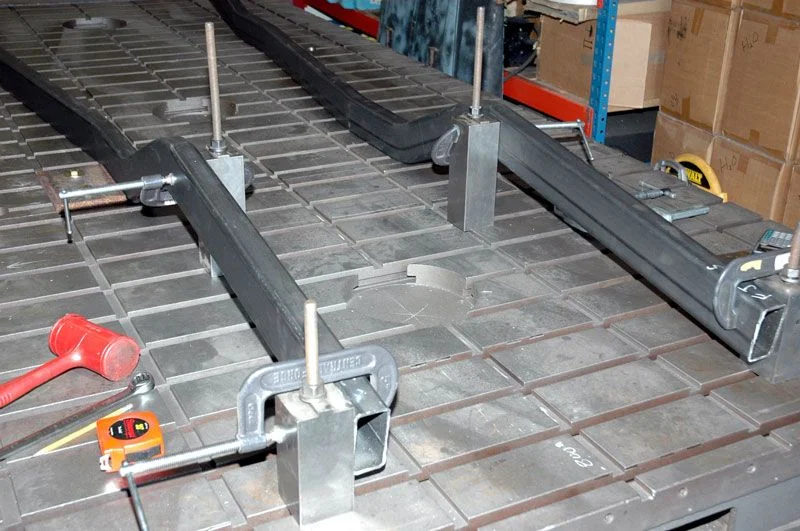

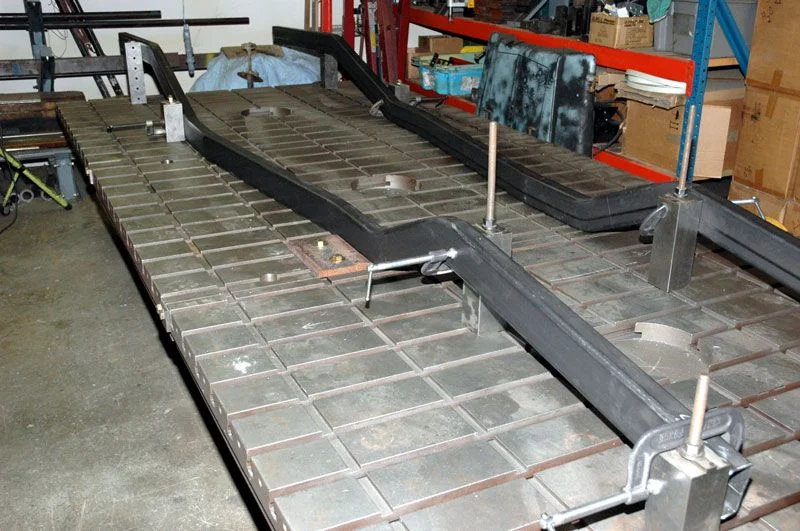

We are starting mockup now. We built the frame table it is on...it weighs 12K lbs, laser leveled and is 13.5' long. We are using tie-down blocks to square the rails to each other and make sure they are true. Everything gets clamped and triple checked. When it was finished, we were within 1/16" as far as we could tell in all directions of being pefectly square.
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:36 AM
|
#4
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
more
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:37 AM
|
#5
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
again
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:40 AM
|
#6
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
The rails are 2" X 4" X .188" in case ayone was wondering.
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 01:09 AM
|
#7
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
More to come in the morning
Larry
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 10:40 AM
|
#8
|
|
Admin
Join Date: Jan 2002
Location: Appleton, WI
Posts: 7,753
|
I've been thru the shop a couple times since this project started....all i can say is DAMN.....this will be one sweet ride, and has given me a few new ideas for my own winter project.....
which reminds me...what trans/case are you planning? don't recall that we ever talked on that...
and, what wheelbase?
__________________
Brian 'woody' Swearingen
1974 FJ40 'The Raisin' - Pitbull Rockers, TrailReadys, 30-spline Longfields, SOA - 1/4 ellip
1996 FZJ80 'Gretchen' - MetalTech, ARB, OME, IPOR, 4x4Labs, INTI
2003 2500HD Duramax - Edge/Juice/Attitude, 285 Nitto Terra Grapplers, 4" exhaust
Forum Questions? Click Here!
'America will never be destroyed from the outside. If we falter and lose our freedoms, it will be because we destroyed ourselves.' Abraham Lincoln
|
|
|
|
|
07-25-07, 10:48 AM
|
#9
|
|
IH8MUD Lifer
Join Date: Sep 2002
Location: Vancouver Island BC Canada
Posts: 3,931
|
Cool, I was in NWF when he was dialing in the toyota housings for you, will they be under it?
Edit, saw the 9inchers.
Rob
__________________
Come and visit us in Duncan, BC
www.raddcruisers.ca
--> 60 Series Cable Lockers available - 4.11s or 3.70s - handles and cables included
--> 12HT & H55F combos available - complete & running
--> in stock and ready to go.
Last edited by Radd Cruisers; 07-25-07 at 11:05 AM.
|
|
|
|
|
07-25-07, 10:55 AM
|
#10
|
|
IH8MUD Lifer
Join Date: Dec 2002
Location: nashville, tn
Posts: 2,579
|
holy balls.
that's all i've got right now...
malphrus
__________________
jonathan malphrus -- 72fj40
the only pinstriping i'll ever have on my cruiser will be after i hit a ny yankee
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
...build-up here (stalled)...
|
|
|
|
|
07-25-07, 10:59 AM
|
#11
|
|
what he said
Join Date: Feb 2002
Location: Las Vegas
Posts: 11,423
|
:drool:
|
|
|
|
|
07-25-07, 11:06 AM
|
#12
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
Woody,
Thanks for the kind words . We have a 4L65E HD Trans, 'Black Box' from Kyle at NWF, T-Case is up in the air right now. We are looking at around a 116" WB.
More Pics, hehehe

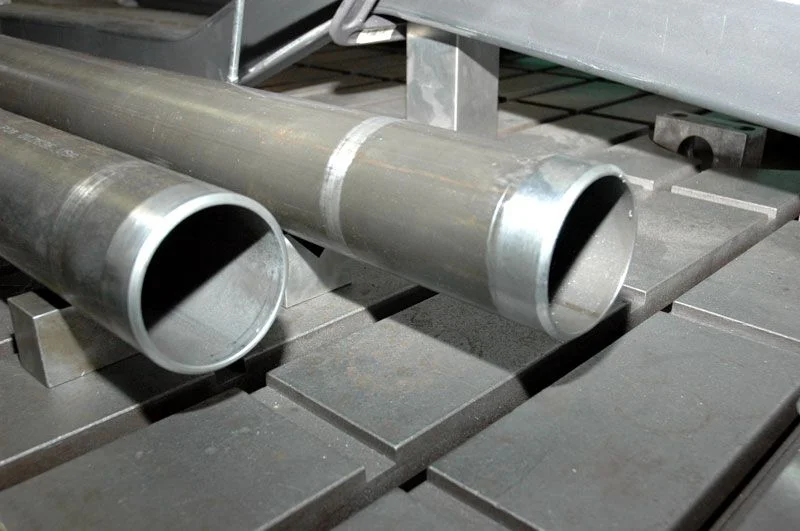

These are the front and rear crossmembers, 3.5" x .188" wall DOM...machined square and beveled for welding.
Larry
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 11:25 AM
|
#13
|
|
IH8MUD Lifer
Join Date: Jun 2005
Location: la punta alto
Posts: 1,937
|
this is gonna be fun..............
__________________
95 FZJ-80 Lifted, Locked, armored,37'd, blown and bigelow enhanced ; single digit MPG wondermobile
72 FJ-55 IPOR bumpers/sliders, SOA, 3'' BL, 8274, and a big ole F'n engine, 35' (for sale)
92 P/U stock, lil lady owned, gas miser/DD/worker aka tiny tim
|
|
|
|
|
07-25-07, 11:30 AM
|
#14
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

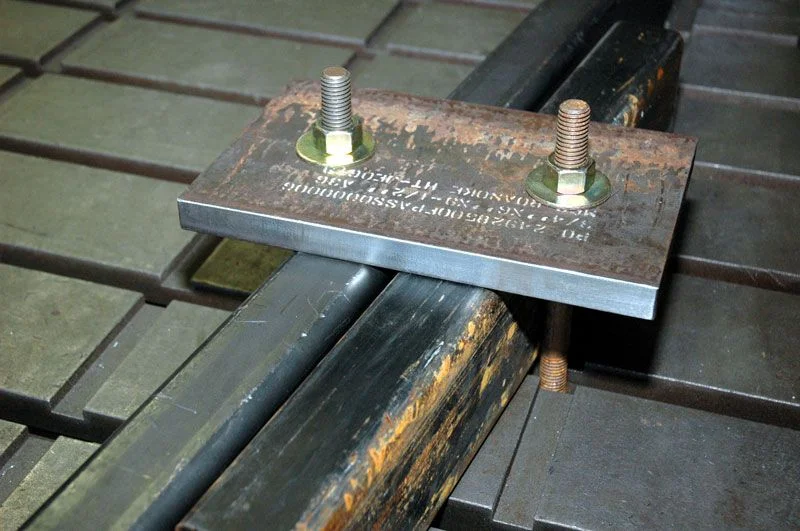

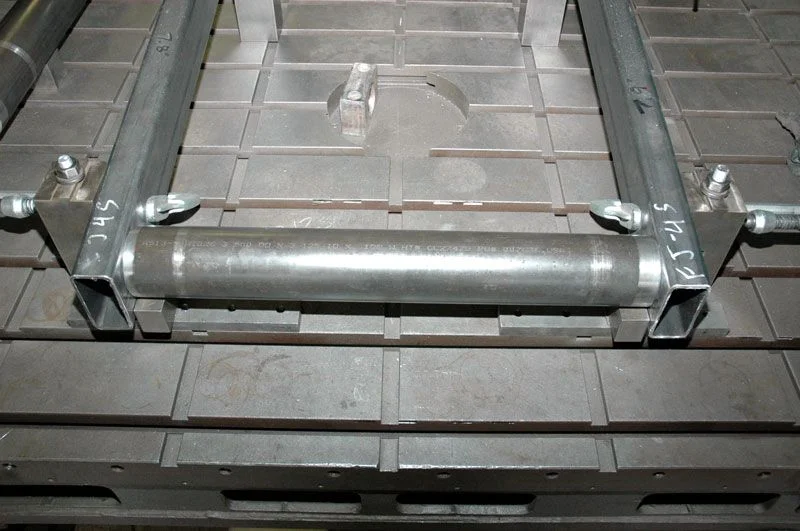

Jigged up
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 11:37 AM
|
#15
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

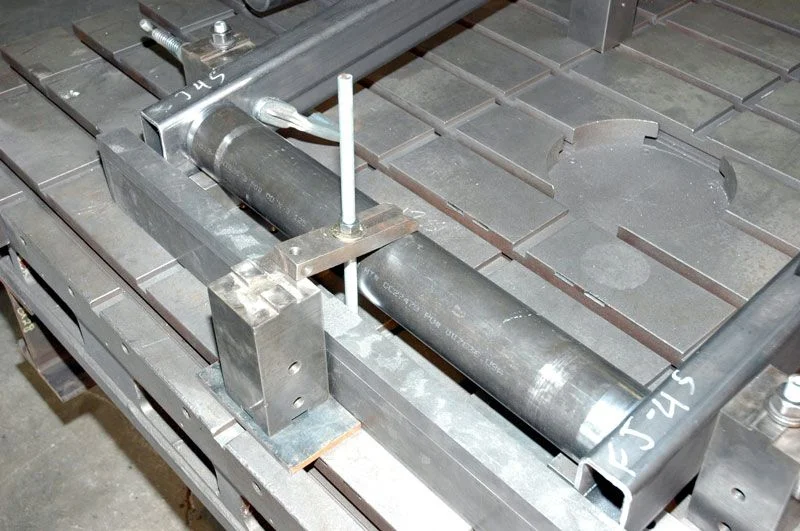

Another jig shot of front crossmember.
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 11:41 AM
|
#16
|
|
Ride On...
Join Date: Sep 2003
Location: North Florida
Posts: 7,036
|
Can I have your shop?
|
|
|
|
|
07-25-07, 11:51 AM
|
#17
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
More
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:01 PM
|
#18
|
|
IH8MUD Regular
Join Date: Jun 2002
Posts: 365
|
Looks fun!!! What are the goals and intended uses of this truck? It is already looking heavy, so I am thinking that you are not building a hard-core trail rig.
__________________
Got Rice?
|
|
|
|
|
07-25-07, 12:15 PM
|
#19
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

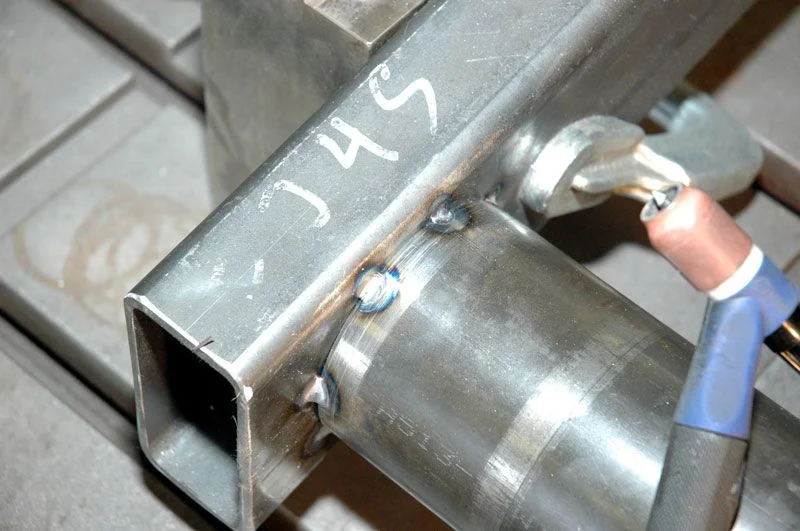

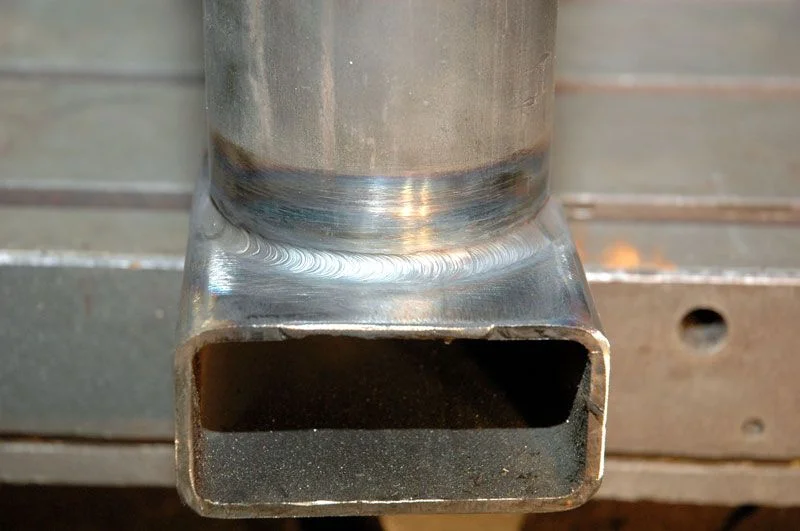

Fully TIG'd crossmembers.......
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:29 PM
|
#20
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

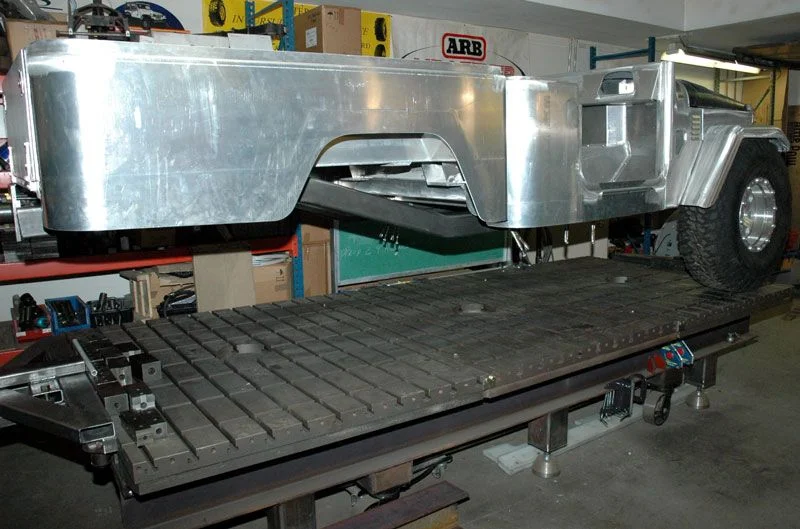

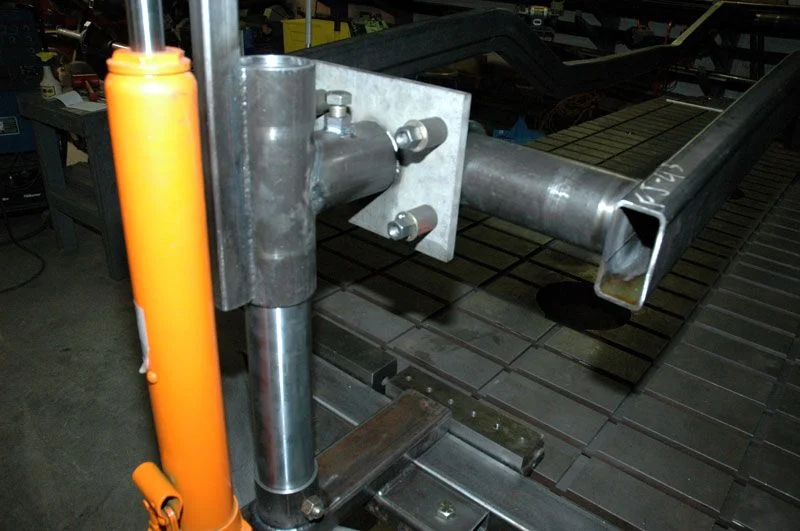

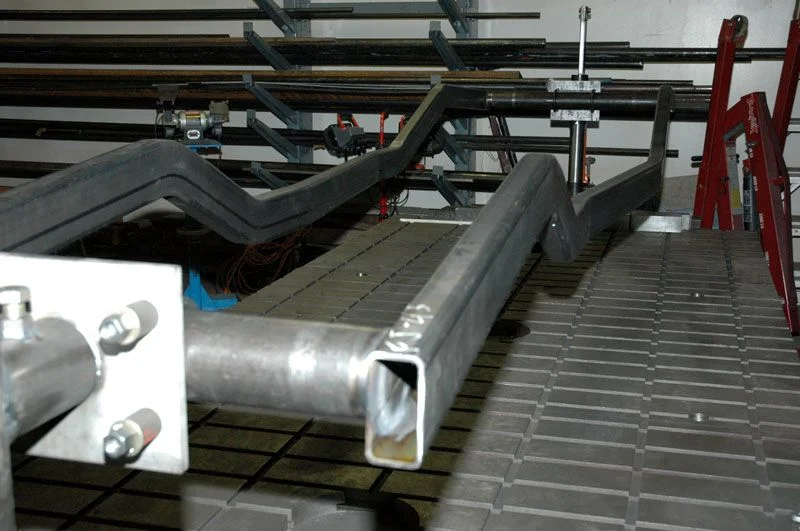

Frame mounted on rotisserie that we made for chassis table. It spins with 2 fingers ... Should make welding a lot easier for me...I am too old to be laying on my back on a steel plate...hehehe
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:29 PM
|
#21
|
|
IH8MUD Addict
Join Date: Jan 2003
Location: I'm a Utah-rd!
Posts: 752
|
Perty welds
|
|
|
|
|
07-25-07, 12:36 PM
|
#22
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
Medusa:
Im not sure on weight yet, but I cant see it being too heavy..
Frame rails are only 3/16", body is all alluminum, 6.0L HO Gen III Vortec has Alloy heads and composite intake...
Ive always wanted an FJ45 expedition style truck with desert design...I am not building it to go into tight east coast trails...more like out west, street driveable, quick, coilovered, Navi, shower, welder, etc. I even have a M101 trailer that i just got from the guys at Iron Pig Offroad to build a Expedition Trailer to match....
I have been planning this project for almost 2 years
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
Last edited by Mad4wd; 07-25-07 at 12:37 PM.
Reason: spell
|
|
|
|
|
07-25-07, 12:38 PM
|
#23
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
More...
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:39 PM
|
#24
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

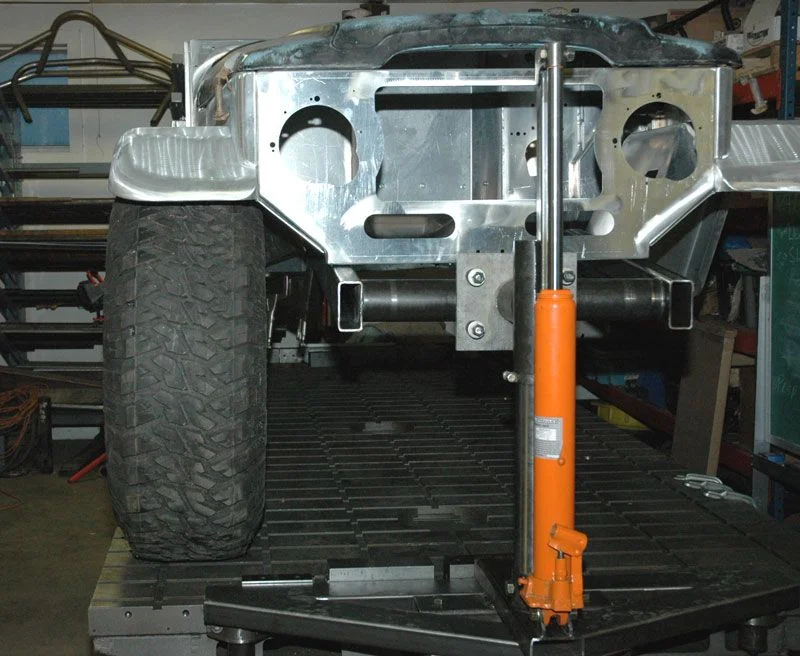

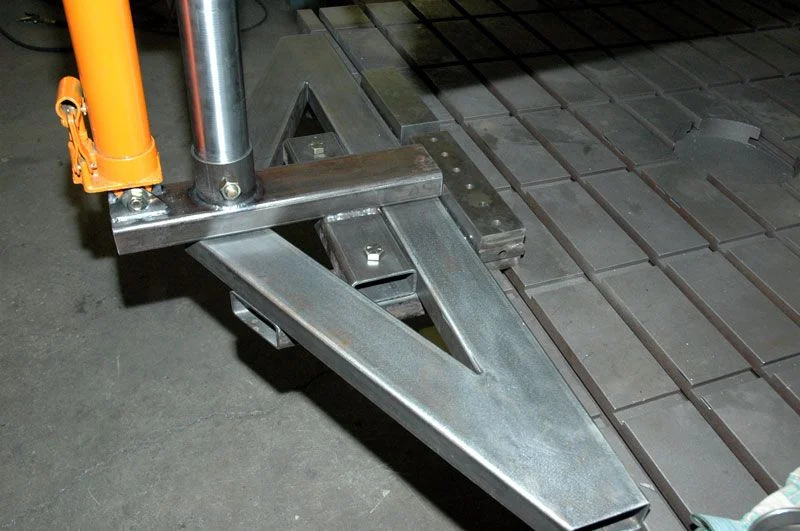

Last of the lift...

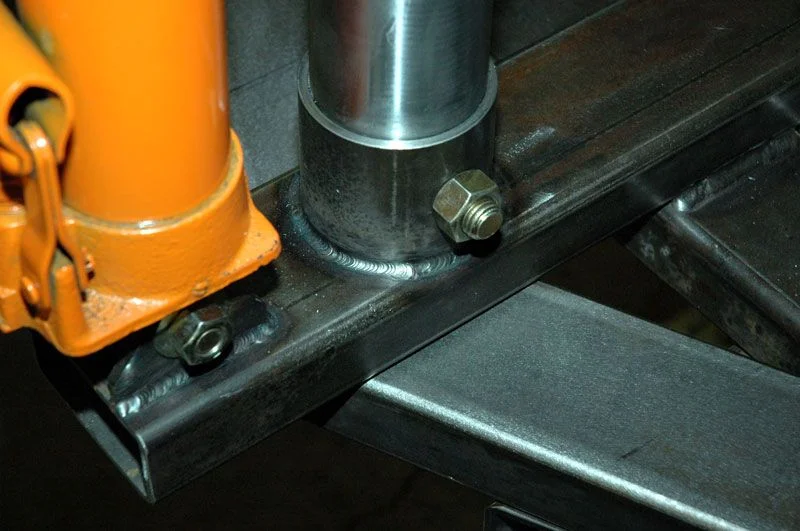

WE can adjust rake on vehicle with this and set the ride height.
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 12:44 PM
|
#25
|
|
IH8MUD Lifer
Join Date: Feb 2005
Posts: 3,391
|
wow...
__________________
Real Americans drink PBR
|
|
|
|
|
07-25-07, 01:01 PM
|
#26
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|

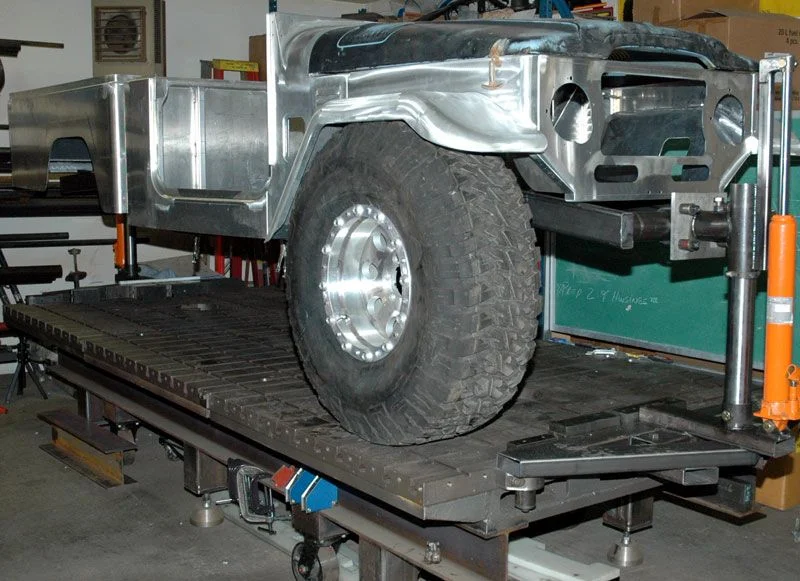

The goal is to fit 40's...so the trial fit begins. We will be cutting, chopping, building new panels, whatever it takes to get the look/stance that I want....like a Chip Foose or Troy Trepanier ride.
We do alot of high end muscle car, street rod stuff also so I have been around that all my life.
I have been so busy doing other peoples stuff that I needed to just force myself to get it going. There is no timeframe I am under, and I will be doing extensive editorial on it in Crawl magazine as it goes. I am only posting this on Mud for you guys, no other board .
Larry
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 01:03 PM
|
#27
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
That is a 40" MTR
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
|
|
|
|
|
07-25-07, 01:03 PM
|
#28
|
|
IH8MUD Junior
Join Date: Mar 2006
Location: Ohio
Posts: 155
|
The last one for now... Gotta get back to work
__________________
TLCA #17281
FJ45 SWB Project, Aqualu, 6.0 L HO, Fab9's, In Progress
66 FJ40 Project/Parts ?
84 4-Runner, Bone Stock Texas Truck
87 4-Runner, 22RET, SAS, Etc.
05 Ram CTD, BD, ATS Trans
"I could have been a chimney sweep....does anyone know where I put that matchbook cover?"
| |
woody
Radd Cruisers
Mace
