| dovetail...finally
hey y'all,
so i've finally been able to get some work done on the cruiser, so i figured i'd start up a thread to show y'all what i'm doin and to keep me motivated, ha ha
also, i challenged my bro-in-law to a build-off...his '77 bronco vs. my '72 cruiser: deadline -- october 12th we're goin to tellico. he has to finish his body up, i have to completely rebuild my cruiser from the ground up...but he's got a 7 month old kid, so i think he's got a bit more on his plate.
so here's the list of plans for the cruiser: drivetrain
rebuilt 1983 2F
4spd tranny + later splitcase (thanks rutbeer...)
fj62 axles (thanks lowtide...) w/ 30spline longs when the cash comes in suspension
soa & sr front on fj62 rear springs, pushed as far forward as i can
frontrange fab hysteer i picked up cheap last year
soa rear on fj55 rear springs, pushed way back, new spring mounts and shackle mounts of the back of rear bumper body
cutting 4.25 inches out of the floor on each side to pull the b-pillar of the door even with the a-pillar
dovetailing the rear of the tub so that the opening is one door width (a la OnTheSpot...)
no front fenders...just inners other stuff
saginaw power steering setup...goin to go ahead and tap the box for hydro assist b/c i'm pretty sure it'll be shortcoming.
oh, also aiming for the 37-39 inch tire window...
enough typing...i'll start puttin up the pics here soon, been doin the body stuff first
malphrus
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
Last edited by 72cruiser; 05-29-07 at 08:29 PM.
|
|  |
|
05-28-07, 09:19 PM
|
#2 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Portland/Corvallis, Oregon
Posts: 478
| im going to be 100% watching this! thats awesome good to see you got your plan all set up and sounds like you will have a pretty good rig for some hardcore trailing minus a 4link or something more intense i the suspension...  | |
| | |
05-28-07, 09:41 PM
|
#3 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677
| Quote:
Originally Posted by crazylandcruiser  im going to be 100% watching this! thats awesome good to see you got your plan all set up and sounds like you will have a pretty good rig for some hardcore trailing minus a 4link or something more intense i the suspension... | cool...i'd appreciate any opinions/comments you've got while i'm doin it
about the 4-link...i was this close to goin for it, but i'm a broke grad student and i've got all the stuff for the soa and time is of the essence
malphrus
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
| |
| | |
05-28-07, 09:44 PM
|
#4 (permalink)
| | Site Addict
Join Date: Sep 2005 Location: Las Vegas
Posts: 1,775
| What about gearing, I haven't studied the splitcase gears but I know my 74fj40 is getting an SM420 and 3-spd case swapped in for the purpose of being able to crawl a little bit
__________________
"Those who would give up essential liberty to purchase a little temporary safety, deserve neither liberty nor safety." -Benjamin Franklin
| |
| | |
05-28-07, 09:48 PM
|
#5 (permalink)
| | 250+ Club
Join Date: Sep 2005 Location: Portland/Corvallis, Oregon
Posts: 478
| Quote:
Originally Posted by 72cruiser cool...i'd appreciate any opinions/comments you've got while i'm doin it
about the 4-link...i was this close to goin for it, but i'm a broke grad student and i've got all the stuff for the soa and time is of the essence
malphrus | So far my only comment is move to oregon and lets do the dovetail together so i can do it to mine! cant wait to see the outcome i saw the one on pirate the guy is from oregon and lives somewhere near me cause we both go to TNF to wheel | |
| | |
05-28-07, 09:58 PM
|
#6 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677
| aight so here are some pics...

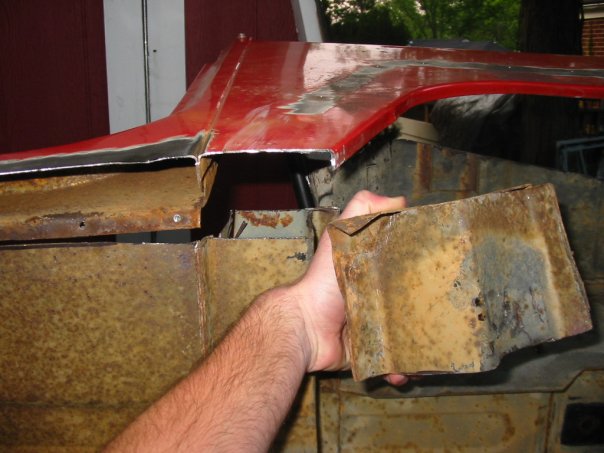

just to give you an idea of how much i'm cutting out of the tub at the b-pillar, here is the 4.25 inch chunk i removed

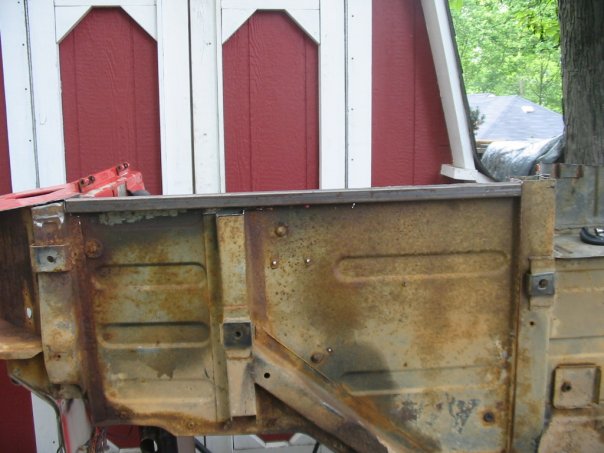

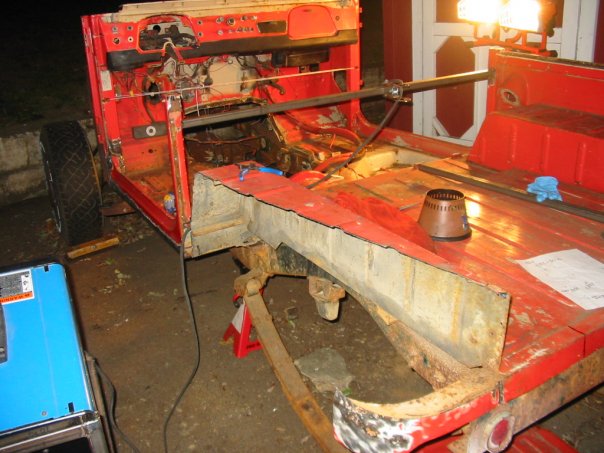

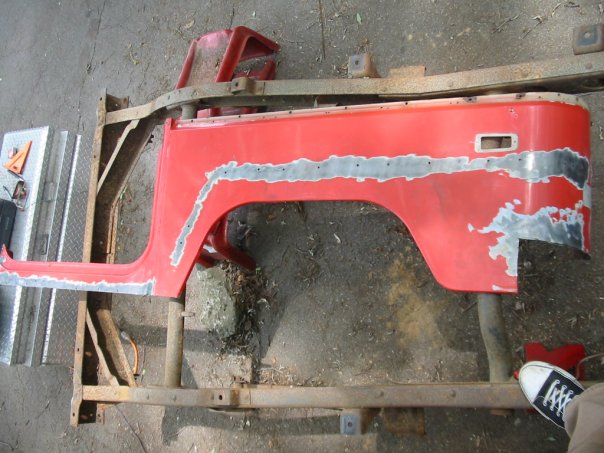

here's the rocker/doorframe and quarter panel after i drilled out all the spotwelds and cut it off the tub...it ended up being easy to just cut it all off rather than keeping it attached at the a-pillar
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
Last edited by 72cruiser; 02-06-08 at 01:58 PM.
| |
| | |
05-28-07, 10:00 PM
|
#7 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677
| here's the tub after i cut off that stuff and some of the wheelwell. i'm hoping that i don't have to raise the wheelwells when it's all said and done b/c i am moving everything in 4+ inches and putting wider 62 axles so it'll be close with tire rub...

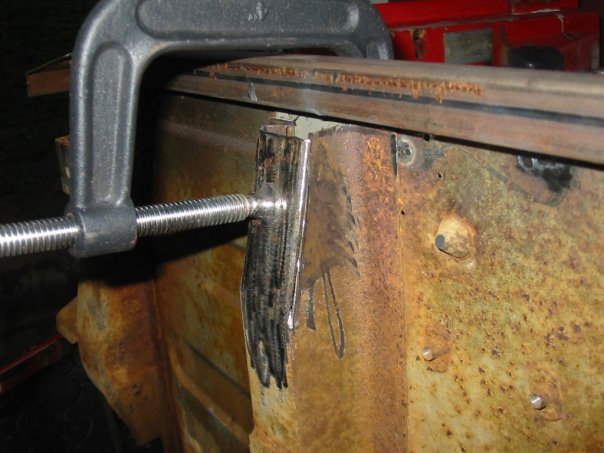

1" square tubing welded in to brace the floor after i cut out the wedge in floor
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
Last edited by 72cruiser; 02-06-08 at 01:58 PM.
| |
| | |
05-28-07, 10:00 PM
|
#8 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677
| floor support channel clearanced and welded up
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
Last edited by 72cruiser; 02-06-08 at 01:58 PM.
| |
| | |
05-28-07, 10:01 PM
|
#9 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677

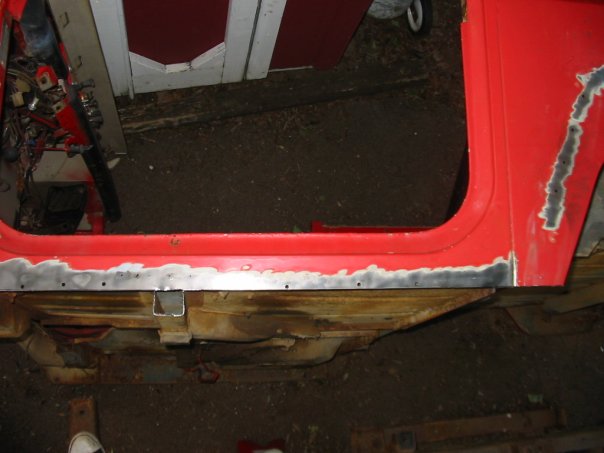

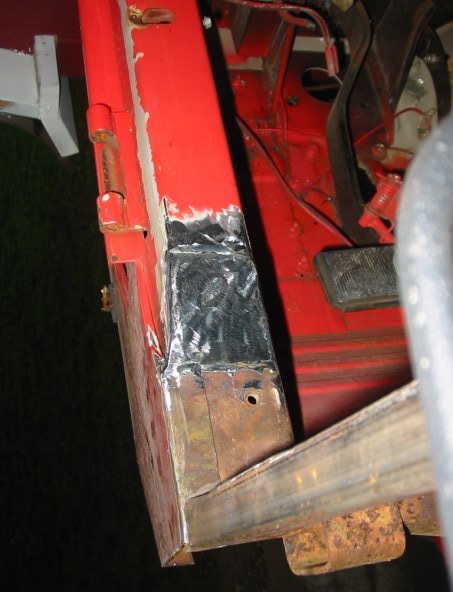

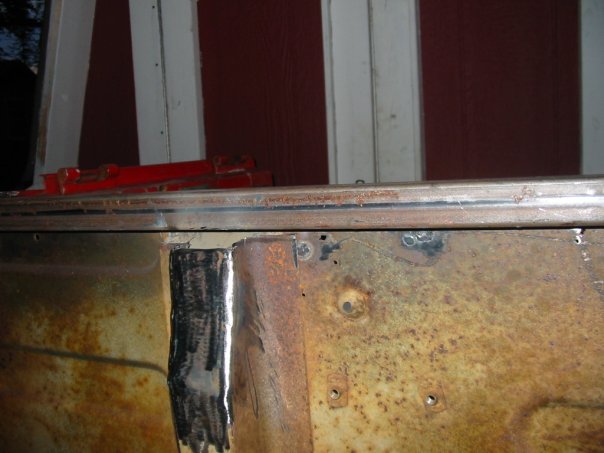

| patch panel welded into a-pillar, also shows square tubing under edge of floor

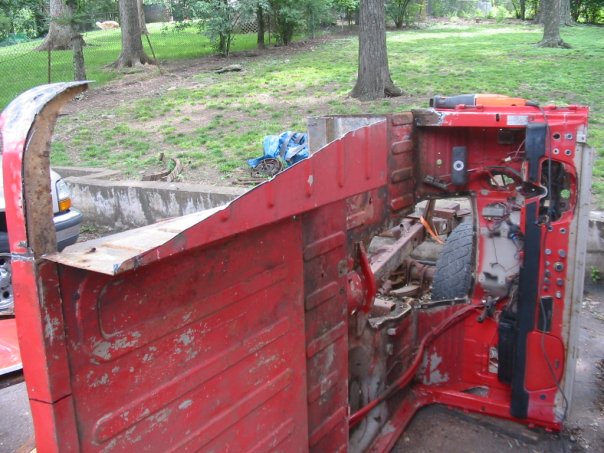

tub back upright w/ bracing to keep the doorframe square while i welded it back in
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
Last edited by 72cruiser; 02-06-08 at 01:58 PM.
| |
| | |
05-28-07, 10:03 PM
|
#10 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677

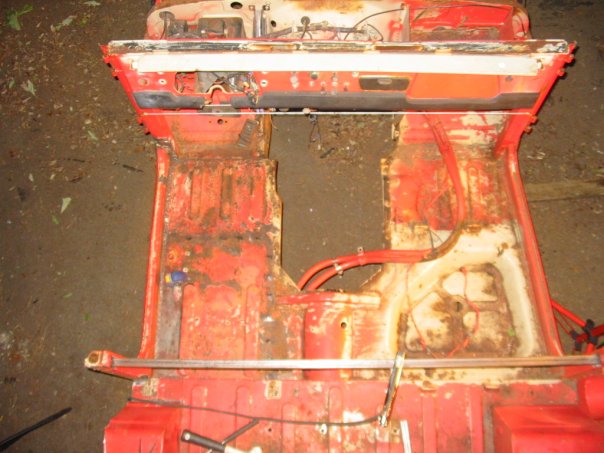

| shot from above, trying to show the difference in the driver/passenger sides. kind of hard to see

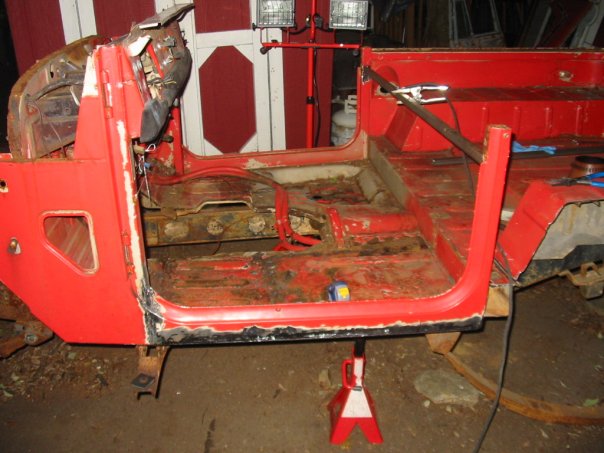

side shot...good look at the rocker chop as well
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
Last edited by 72cruiser; 02-06-08 at 01:58 PM.
| |
| | |
05-28-07, 10:08 PM
|
#11 (permalink)
| | Forum Lifer
Join Date: Dec 2002 Location: nashville, tn
Posts: 2,677
| Quote:
Originally Posted by projektdotnet What about gearing, I haven't studied the splitcase gears but I know my 74fj40 is getting an SM420 and 3-spd case swapped in for the purpose of being able to crawl a little bit | big goal is to get this guy back on its wheels (i haven't driven a cruiser in goin on 2 years now)
i'm plannin on savin up the nickles and dimes for a 4.7 toybox as the next mod...i know that's goin to mess with driveshafts but i'm okay with that. i'm also going to keep the spacer in between the 4spd and tcase just so the change in drivetrain length won't be so drastic
oh, and the splitcase is 2.313:1, iirc.
malphrus
__________________
'these are my awards, mother, from army. the seal is for marksmanship and the gorilla is for sand racing.'
| |
| | |
05-28-07, 10:17 PM
|
#12 (permalink)
| | Site Addict
