dome light variations

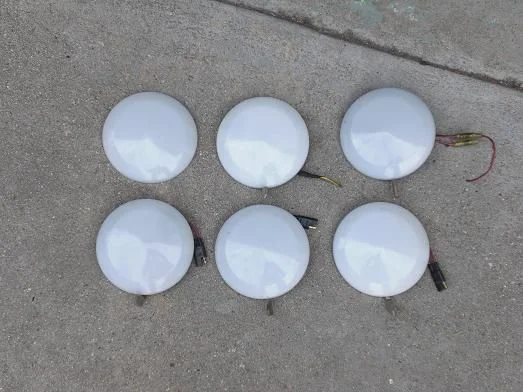

For years now, I've only thought there were two kinds of pig dome lights, early and late. Never could remember which was which, just kind of filled orders based on customer's request.
So I'm looking at my newest haul of dome lights from my road trip back east and, lo and behold, there are THREE types. One is a single wire, which we can assume is self grounding. The second, two wire version, is of the double plug type, where one half of the plug is male, the other half female.
But there is a third type, two individual wires, one a male bullet, the other a female. And I guarantee you they are factory connectors.
Any pig experts out there that can shed some light on this?
__________________
A carbureted man in a fuel injected world.
65SWB45, 64LWB45, 68FJ40,72V840, 76HJ45[gone],84FJ60[gone], 76K5, 73Sub454, 97Sub5.7, 2002 Trailblazer
TLCA delegate, Trail Crew-LAC TLCA, The White Trash of the Elwood Chapter
my website:
http://www.marksoffroad.net
IT'S FASTER if you CALL ME!
|
|
|
|
08-23-09, 07:57 PM
|
#2 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
I think the lower ones are for the later trucks. If I'm not mistaken my '76 is like that.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
08-23-09, 08:48 PM
|
#3 (permalink)
|
|
250+ Club
Join Date: Mar 2005
Posts: 716
|
My 7/70 carcass had the single wire type so, I am guessing the two wire at the top right is intermediate to charles and the 7/70. I can not tell about my 7/75 as it was replaced by a boat light though I do have the original in a box somewhere.
__________________
77fj40
75fj55
 JUST FOR THIS POST...YOU CAN JUST NEVER HAVE ENOUGH VISE GRIPS
|
|
|
|
|
08-23-09, 08:58 PM
|
#4 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
How much do those puppies go for Mark?
|
|
|
|
|
08-26-09, 04:51 PM
|
#5 (permalink)
|
|
Forum Lifer
Join Date: Dec 2003
Location: valley of the sunstroke, AZ
Posts: 3,189
|
my 2/75 is a single wire. i thought there were only 2 as well.
__________________
Clay
75 BDJ55- biopig
|
|
|
|
|
08-27-09, 10:03 AM
|
#6 (permalink)
|
|
250+ Club
Join Date: Jul 2002
Location: Palatine, IL
Posts: 859
|
78's are of the single wire variety
__________________
78 FJ55 - "Arnold"
78 FJ55 - "Chester White"
89 FJ62 - "Ming"
07 UZJ100 - "Koto"
TLCA #13476
|
|
|
|
|
08-27-09, 11:50 AM
|
#7 (permalink)
|
|
Forum Regular
Join Date: Jul 2009
Location: Wichita
Posts: 46
|
What triggers the dome light to come on? Open Door? Turning a knob? Such a simple question that I cannot figure out!
__________________
FLA A1A
Aug 72 FJ 55- Land Shark
09 Tacoma Offroad TURD
|
|
|
|
|
08-27-09, 12:14 PM
|
#8 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by flaa1a
What triggers the dome light to come on? Open Door? Turning a knob? Such a simple question that I cannot figure out!
|
There should be a switch sticking out from under the light dome. There are NO door switches in '55's that I know of.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
08-27-09, 01:22 PM
|
#9 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,054
|
Quote:
Originally Posted by cruiser_guy
There should be a switch sticking out from under the light dome. There are NO door switches in '55's that I know of.
|
X2 Only switch is on the dome. Also Mark the early corollas had the same similar dome. Might be from one of them.
|
|
|
|
|
08-27-09, 07:37 PM
|
#10 (permalink)
|
|
Site Addict
Join Date: Feb 2006
Posts: 2,461
|
need one Mark; will give you a call tomorrow;
Lou
|
|
|
|
|
08-27-09, 08:32 PM
|
#11 (permalink)
|
|
Forum Regular
Join Date: Jul 2009
Location: Wichita
Posts: 46
|
mine has the plastic dome and then wires sticking out that have a female and male end. I am guessing that some kind of bulb attachment hooks to the wires?
__________________
FLA A1A
Aug 72 FJ 55- Land Shark
09 Tacoma Offroad TURD
|
|
|
|
|
08-28-09, 12:42 PM
|
#12 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by flaa1a
mine has the plastic dome and then wires sticking out that have a female and male end. I am guessing that some kind of bulb attachment hooks to the wires?
|
Nope. Twist the dome lens and you'll see where the light attaches between two metal "ears". The wires go to the feed from the truck wiring harness.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
08-28-09, 09:10 PM
|
#13 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
Quote:
Originally Posted by n2666s
need one Mark; will give you a call tomorrow;
Lou
|
Me too, I guess calling is the way...
|
|
|
|
|
09-13-09, 03:55 PM
|
#14 (permalink)
|
|
elder statesman
Join Date: Apr 2004
Location: so cal, going 45
Posts: 8,305
|
$25 for a light.
__________________
A carbureted man in a fuel injected world.
65SWB45, 64LWB45, 68FJ40,72V840, 76HJ45[gone],84FJ60[gone], 76K5, 73Sub454, 97Sub5.7, 2002 Trailblazer
TLCA delegate, Trail Crew-LAC TLCA, The White Trash of the Elwood Chapter
my website:
http://www.marksoffroad.net
IT'S FASTER if you CALL ME!
|
|
|
|
|
09-13-09, 09:28 PM
|
#15 (permalink)
|
|
Forum Regular
Join Date: Jul 2009
Location: Wichita
Posts: 46
|
I have my cover, and like i said two wires hanging out of the headliner, but they attach to nothing.....what am i missing agian?  Does anyone have just that part? My plastic dome peice is in good spape.....
__________________
FLA A1A
Aug 72 FJ 55- Land Shark
09 Tacoma Offroad TURD
|
|
|
|
|
09-13-09, 10:48 PM
|
#16 (permalink)
|
|
250+ Club
Join Date: May 2008
Location: Kenmore, WA
Posts: 565
|
That is a lot of dome lights...
|
|
|
|
|
09-14-09, 04:01 PM
|
#17 (permalink)
|
|
Site Addict
Join Date: Feb 2002
Location: San Diego
Posts: 1,848
|
Quote:
Originally Posted by Trollhole
X2 Only switch is on the dome. Also Mark the early corollas had the same similar dome. Might be from one of them.
|
45lv's had a similar dome light too, I think?
__________________
Brett
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants." -Thomas Jefferson
|
|
|
|
|
09-14-09, 09:56 PM
|
#18 (permalink)
|
|
Forum Regular
Join Date: Jul 2009
Location: Wichita
Posts: 46
|
So how does a light bulb hook up to two nippled wires?
__________________
FLA A1A
Aug 72 FJ 55- Land Shark
09 Tacoma Offroad TURD
|
|
|
|
|
