[amos715]

well -

i picked up a coil, and i have to find the clutch slave rod, i should be able to crank this thing next week.

and maybe by the end of the week have it "oklahoma" road legal.

[amos715]

check it -

found this on here, huge beautiful schematic



edit: sorry i probably should give credit where credit is due
http://www.globalsoftware-inc.com/co...J55/73JF55.jpg
by coolerman

[amos715]

i was digging through parts, and i don't know if this belongs to an old mower, or the pig.

[nuclearlemon]

Originally Posted by amos715

i was digging through parts, and i don't know if this belongs to an old mower, or the pig.

Attachment 341581

looks like old mower

[amos715]

Originally Posted by nuclearlemon

looks like old mower

thanks it is the only one i could find, i quess i need to get a new one.

i now have a working clutch, working brakes, coil is mounted.

i also need to find the throttle cable, i thought that would be a no brainer, but i have two cables that do nothing, they may be rusted up and one of them is the throttle.

[cruiserbrett]

I would recommend a new throttle cable, SOR.com has them for cheap.

[amos715]

Originally Posted by cruiserbrett

I would recommend a new throttle cable, SOR.com has them for cheap.

thanks

and i have what i think is an electric choke? there is a black wire with yellow stripe, looks like the perfect size to bolt to coil with the black/yellow wire there?

any idea?

[PabloCruise]

Originally Posted by amos715

thanks

and i have what i think is an electric choke? there is a black wire with yellow stripe, looks like the perfect size to bolt to coil with the black/yellow wire there?

any idea?

Probably fuel cut-off solenoid.

I don't remember what year your Pig and engine are, but they were manual choke for quite a while...

[amos715]

thanks pablo

i have went through the fsm, for chasis and engine and i can not figure out a hand full of items.

first



does the hose that leaves the side of the block by the distributor attach here?

[amos715]

also i don't think i have a brake booster check valve.

if i can pick one up where does the other end of that hose go?

[PabloCruise]

When it comes to vacuum lines, your best bet is to have a vacuum schematic handy.

I know some years had a decal on the air cleaner. If you do not have this, use the F engine manual or emissions manual.

HTH!

[amos715]

that does help

i did not know there was an emissions manual.

Duuhhh. that would explain why i couldn't find it in the engine or chasis fsm.

thanks again i'll check the air breather and hood for a diagram.

wish i could get another weber, i know folks don't like them. but i desmogged my 40 and went from 13 mpg to 18 mpg in a snap.

[nuclearlemon]

Originally Posted by amos715

that does help

i did not know there was an emissions manual.

Duuhhh. that would explain why i couldn't find it in the engine or chasis fsm.

thanks again i'll check the air breather and hood for a diagram.

wish i could get another weber, i know folks don't like them. but i desmogged my 40 and went from 13 mpg to 18 mpg in a snap.

there wasn't a whole lot of emissions on the early models, so there may not be a book, but for the mid70s on, there were separate approximately 60 page books for all the emissions crap.

[amos715]

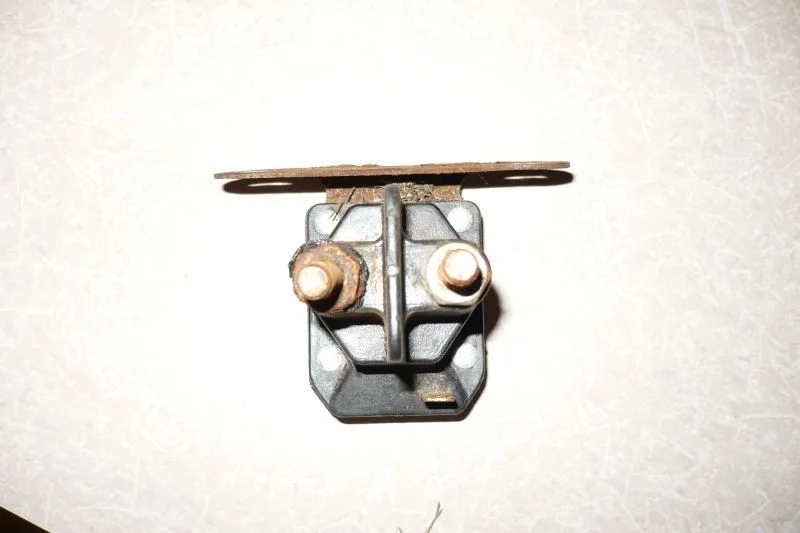

so i go buy a solenoid for the pig, this is what i got. i can not find on the schematic where it goes.

and i can't find on the fender well where it goes either?



do we use these kinds of solenoids or is the only one the one on the starter?

[amos715]

arrggg i think i was using the wrong schematic

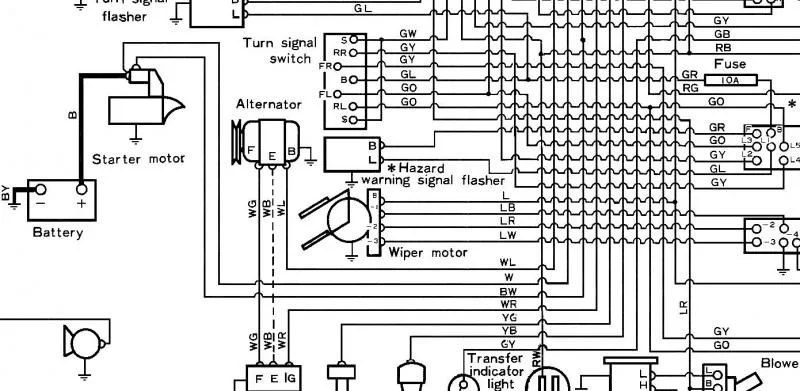

i think i found the right schematic, but i can not find the BW wire or the W wire labled on the schematic on the pig, i guess i need to grab a circuit tester and start tracing wires.

i think this is the schematic i need, so can i take the two post fender mounted solenoid back?

[amos715]

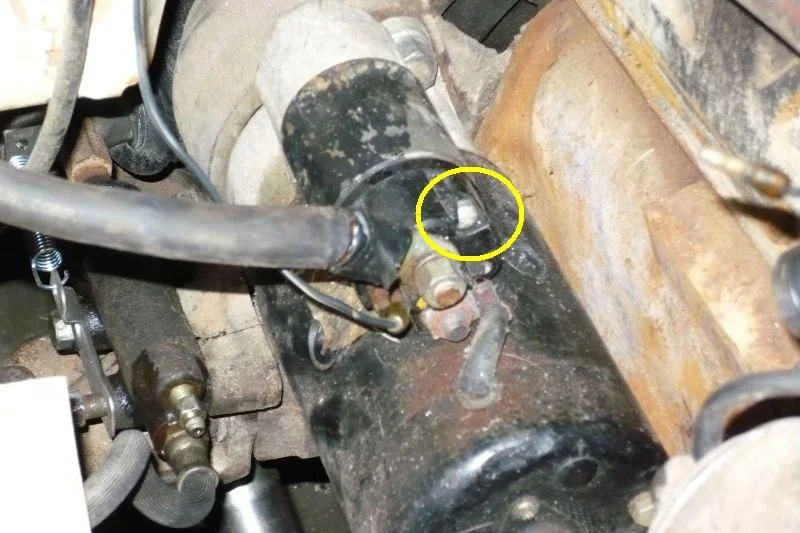

ok here is the starter




i did have the black white wire to attach

the schematic shows that there should also be a white wire, the only wire that i think could go to the solenoid is red (but it might be an aftermarket patch by the po) i am guessing the white wire should go to the screw in the yellow circle

[amos715]

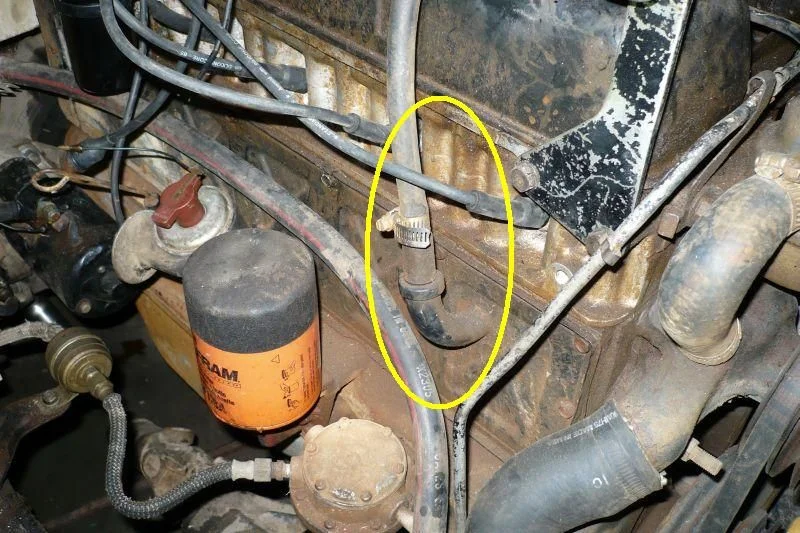

and where should this hose go on the other end.

[JackA]

That's the PCV hose and goes to the spacer under the carb...........like in your pic above.

[amos715]

Originally Posted by amos715

so i go buy a solenoid for the pig, this is what i got. i can not find on the schematic where it goes.

and i can't find on the fender well where it goes either?



do we use these kinds of solenoids or is the only one the one on the starter?

Originally Posted by JackA

Are you looking for the carb solenoid like mentioned above? Not sure what you are doing with that starter solenoid?

sorry

everything i ever worked on (short list) had a two pole solenoid. i can not find one in the schematic, or anywhere to mount one under the hood.

the barrel of parts that came with this puzzle had the battery cable running straight to the starter.

so i am trying to figure the rest of the puzzle out.

shematic shows one battery cable, one "BW" wire (black with white stripe) and one "W" wire (white)

i think my white wire was replaced with a red wire by the previous owner.

so the main question is, am i on the right track or is there suppose to be a two pole solenoid inserted into the puzzle somewhere?

[amos715]

Originally Posted by JackA

That's the PCV hose and goes to the spacer under the carb...........like in your pic above.

thanks

[amos715]

so i guess i got the vacuum lines straight now.

the accelerator cable is hooked up and working.

clutch and brakes are working.

good battery, new coil, good points.

if i can get a few wires straightened out i'll be ready to try and crank this thing.

thanks mud







better go get some gas.

[amos715]

and i really do appreciate all the help and comments.

i am flying in the dark here, so anything from "you're too stupid to own a cruiser " to " you're the rain man of fj-55" is fine with me.

[JackA]

There's no remote solenoid on these. The wires go directly to the starter. It's all good..............you'll get it.

[amos715]

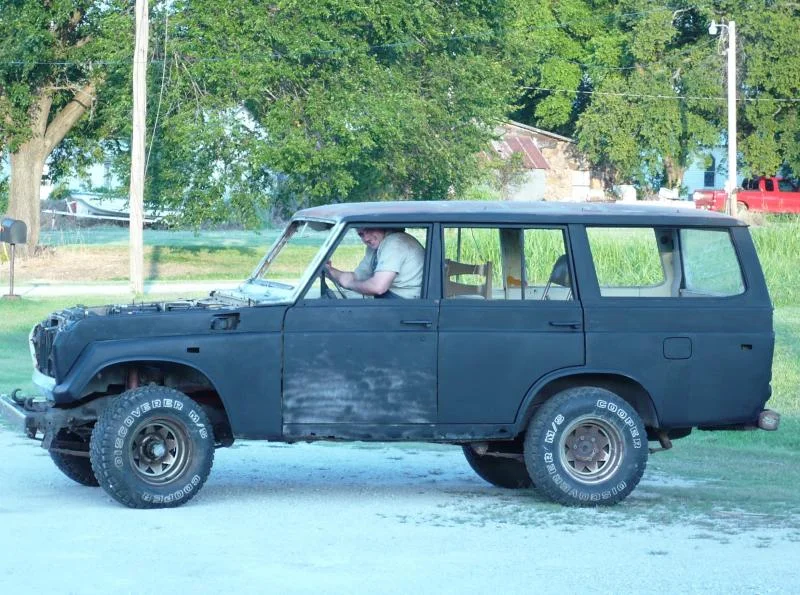

WOOOO - HOOOOO

MAIDEN VOYAGE







have to hook up motor mount, oil gauge, heater, seats, get it painted all the same color, get the glass put back in, lights hooked up.....

but it is running and driving.


thanks for all the help mud

[nuclearlemon]

:cla p:

[amos715]

i am not twelve feet tall, i am sitting on an old kitchen chair.

[romegadave]

Wondered about that for a moment........thought it was Andre the Giant driving there Congrats on a running pig!!

[nuclearlemon]

i was figuring five gallon bucket. milk crates work good.

[amos715]

Originally Posted by nuclearlemon

i was figuring five gallon bucket. milk crates work good.

ha yeah i could have bucket seats...


thanks again for the help lemon. i can not get the lights, horn, signal lights, to work.

that is going to wait till next week.

got to go take a test in the morning in okc and catch some cows for a neighbor when i get home in the afternoon

edit: oh i found my brake booster check valve too

[inkpot]

Originally Posted by amos715

i am not twelve feet tall, i am sitting on an old kitchen chair.

I thought you just messed up on the metric to SAE conversion somewhere CONGRATS on gettin it going!
