10-27-08, 06:25 PM
|
#31 (permalink)
|
|
250+ Club
Join Date: Feb 2005
Location: San Jose, CA 95118
Posts: 828
|
Quote:
Originally Posted by n2666s
Pablo; do not think pigs came with locking gas caps; did come with a locking fuel door later on..have seen a locking cap though; but IIRC was for an fj40....don't believe it was original as it was US made and would not work on a pig because of clearance issues with the fuel door.......HTH
Lou
|
Good info but... is that cap above (or OEM for '69 in my case) vented?
__________________
'87 60 DD, 2.5 w/Borla, Dakkar'd, 33s on stockers, faded
'69/70 55 UTE 350, 465, duals, OTT flat belly, SOA outboard, reversal, full widths, 37s, saginaw w/assist
TLCA# 14229
PMC
|
|
|
|
10-27-08, 07:09 PM
|
#32 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
these are the numbers I pulled from a 69 fj55
77031 CAP ASSY, FUEL TANK
77310-60010 FJ55; L/VALVE, L/KEY 1 $17.57
77310-60051 FJ4*, 55; W/VALVE, L/KEY 1 $28.08
77310-90351 FJ55; W/VALVE, L/KEY 1 $7.20
I'll add these #'s to my list to check.
|
|
|
|
|
10-27-08, 07:39 PM
|
#33 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
Quote:
Originally Posted by Trollhole
these are the numbers I pulled from a 69 fj55
77031 CAP ASSY, FUEL TANK
77310-60010 FJ55; L/VALVE, L/KEY 1 $17.57
77310-60051 FJ4*, 55; W/VALVE, L/KEY 1 $28.08
77310-90351 FJ55; W/VALVE, L/KEY 1 $7.20
I'll add these #'s to my list to check.
|
Damn Troll - thanks!!!
|
|
|
|
10-28-08, 09:37 AM
|
#34 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Gas caps. Who is gonna be the guinea pig and buy them and post pics?
77310-60010 FJ55; L/VALVE, L/KEY REPLACED BY 77310-35010 $7.30
77310-60051 FJ4*, 55; W/VALVE, L/KEY REPLACED BY 77310-60090 $11.22 (this is the one I bought above)
77310-90351 FJ55; W/VALVE, L/KEY $4.92
Talked with my parts dealer today. He said he might be able to get non imported parts. He's going to make some calls. It's through a different program than normal parts. He also said he would sell to anyone on mud and dropship. I'll talk with Woody about them becoming and advertising vendor since it's not fair to sell without giving something back to MUD.
Onward
Last edited by Trollhole; 10-28-08 at 01:21 PM.
|
|
|
|
|
10-28-08, 01:17 PM
|
#35 (permalink)
|
|
250+ Club
Join Date: Nov 2006
Location: 6 Miles Past The Edge Of The World
Posts: 542
|
Quote:
Originally Posted by Trollhole
OEM fog lights. paid $125 for them
|
where do they bolt? i'm a tard
__________________
71 FJ55 - Project
52 Farmal Model 100
The Duty Is Ours, The Results Are God's.
- John Adams
|
|
|
|
|
10-28-08, 01:22 PM
|
#36 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Quote:
Originally Posted by amos715
where do they bolt? i'm a tard
|
I'll put mine on tonight and post a pic.
Got some more
90541-03078 FUEL DOOR STOPPER $1.42
77308A CUSHION (right above the fuel door)
53452-90351 HOLDER HOOD SUPPORT $3.15
This is th plastic clip that holds the hood rod secure when in the down position.
67772-20021 CAP, DOOR TRIM $.76
67771-20022 RETAINER DOOR $.88
These are the clip and plastic socket that hold the door and cargo panels on.
74135-10030 RETAINER RR $5.94
From what I can tell this is the metal ring that goes around the rear door ashtays on 77 and later 55's
77110-60011 TANK ASSY AUX. $194.78
These are the OEM AUX fuel cans. Bling Bling.
69230-90352 TAIL GATE HANDLE $50.95
We all know what this is. It breaks and when it does you cannot open your tailgate. Very handy number.
Last edited by Trollhole; 10-28-08 at 01:56 PM.
|
|
|
|
|
10-28-08, 03:09 PM
|
#37 (permalink)
|
|
not an addict
Join Date: Jan 2003
Location: meh-ico, colorado
Posts: 9,329
|
Quote:
Originally Posted by amos715
where do they bolt? i'm a tard
|
They bolt to the bumper
__________________
"to learn is to teach someone else"
only four cruisers left
|
|
|
|
|
10-28-08, 03:11 PM
|
#38 (permalink)
|
|
not an addict
Join Date: Jan 2003
Location: meh-ico, colorado
Posts: 9,329
|
Quote:
Originally Posted by Trollhole
Gas caps. Who is gonna be the guinea pig and buy them and post pics?
77310-60010 FJ55; L/VALVE, L/KEY REPLACED BY 77310-35010 $7.30
77310-60051 FJ4*, 55; W/VALVE, L/KEY REPLACED BY 77310-60090 $11.22 (this is the one I bought above)
77310-90351 FJ55; W/VALVE, L/KEY $4.92
Talked with my parts dealer today. He said he might be able to get non imported parts. He's going to make some calls. It's through a different program than normal parts. He also said he would sell to anyone on mud and dropship. I'll talk with Woody about them becoming and advertising vendor since it's not fair to sell without giving something back to MUD.
Onward
|
are these locking caps? what's l/key mean? what's l/valve mean?
__________________
"to learn is to teach someone else"
only four cruisers left
|
|
|
|
|
10-28-08, 04:53 PM
|
#39 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Quote:
Originally Posted by nuclearlemon
They bolt to the bumper
|
right
|
|
|
|
|
10-28-08, 06:15 PM
|
#40 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
Quote:
Originally Posted by Trollhole
69230-90352 TAIL GATE HANDLE $50.95
We all know what this is. It breaks and when it does you cannot open your tailgate. Very handy number.
|
Are you saying these are still available? I thought they were disco'd...
|
|
|
|
|
10-28-08, 06:16 PM
|
#41 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Quote:
Originally Posted by PabloCruise
Are you saying these are still available? I thought they were disco'd...
|
My dealer says they can still get them.
|
|
|
|
|
10-28-08, 06:18 PM
|
#42 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
Quote:
Originally Posted by Trollhole
Gas caps. Who is gonna be the guinea pig and buy them and post pics?
77310-60010 FJ55; L/VALVE, L/KEY REPLACED BY 77310-35010 $7.30
77310-60051 FJ4*, 55; W/VALVE, L/KEY REPLACED BY 77310-60090 $11.22 (this is the one I bought above)
77310-90351 FJ55; W/VALVE, L/KEY $4.92
Onward
|
Quote:
Originally Posted by nuclearlemon
are these locking caps? what's l/key mean? what's l/valve mean?
|
x-2, if you can offer guidance about the decsriptions, I will try one.
How do I determine which is correct for my Jan 74 55?
|
|
|
|
|
10-29-08, 08:53 AM
|
#43 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Quote:
Originally Posted by PabloCruise
x-2, if you can offer guidance about the decsriptions, I will try one.
How do I determine which is correct for my Jan 74 55?
|
L means Less
W means With
So I'm assuming the one I bought would have a valve in it. I'll check tonight. It did seam fancy for just a gas cap.
|
|
|
|
|
10-29-08, 09:41 AM
|
#44 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
77310-60010 FJ55; L/VALVE, L/KEY REPLACED BY 77310-35010 $7.30 03/69 TO 12/70
77310-60051 FJ4*, 55; W/VALVE, L/KEY REPLACED BY 77310-60090 $11.22 (this is the one I bought above) 09/71 TO 07/80
77310-90351 FJ55; W/VALVE, L/KEY $4.92 09/69 TO 09/71
Updated and also confirmed L=Less W=With
|
|
|
|
|
10-31-08, 03:14 PM
|
#45 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
So no w/valve, w/key that would be relevant for my '74...
|
|
|
|
|
10-31-08, 08:49 PM
|
#46 (permalink)
|
|
Site Addict
Join Date: Feb 2006
Posts: 2,461
|
need about a complete set of these!
67772-20021 CAP, DOOR TRIM $.76
67771-20022 RETAINER DOOR $.88
These are the clip and plastic socket that hold the door and cargo panels on.
also need 77308A CUSHION (right above the fuel door)
who do you recommend contacting?; thinking about C-Dan
BTW might want to check on the locking gas caps; have a locking gas cap sold as for an fj 55 but when it is place you cannot shut the fuel door  hth
Lou
|
|
|
|
|
10-31-08, 10:49 PM
|
#47 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by n2666s
need about a complete set of these!
67772-20021 CAP, DOOR TRIM $.76
67771-20022 RETAINER DOOR $.88
These are the clip and plastic socket that hold the door and cargo panels on.
also need 77308A CUSHION (right above the fuel door)
who do you recommend contacting?; thinking about C-Dan
BTW might want to check on the locking gas caps; have a locking gas cap sold as for an fj 55 but when it is place you cannot shut the fuel door hth
Lou |
Lou, I have alot of extra USED clips if you want (it´s not like it will break the bank or anything) but they are there. Is that gas cap the one I sent? If it is, it worked fine on my ´76! You´ll need to post pics so we can see why it doesn´t work for you. The only reason I changed is because opening it was a pain and the door locks anyways.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
11-01-08, 10:42 AM
|
#48 (permalink)
|
|
Site Addict
Join Date: Feb 2006
Posts: 2,461
|
Charles, yes it is the one I got from you a while back; the gas door will not shut when it is in place; will try to get some pix of it; I tried it on the 74 and could not get it closed, have not tried it on the 69 body though.....thanks for the clip offer; mine are rusted to death and will need to purchase then only the new plastic clip retainers part # 67771-20022 RETAINER DOOR $.88 thanks again and
Lou
|
|
|
|
|
11-01-08, 02:57 PM
|
#49 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by n2666s
Charles, yes it is the one I got from you a while back; the gas door will not shut when it is in place; will try to get some pix of it; I tried it on the 74 and could not get it closed, have not tried it on the 69 body though.
|
Does the cap hit the door or what exactly? I've got to imagine that perhaps the shape of the filler neck recess in the body changed though why I have no idea!
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
11-02-08, 01:13 PM
|
#50 (permalink)
|
|
Site Addict
Join Date: Feb 2006
Posts: 2,461
|

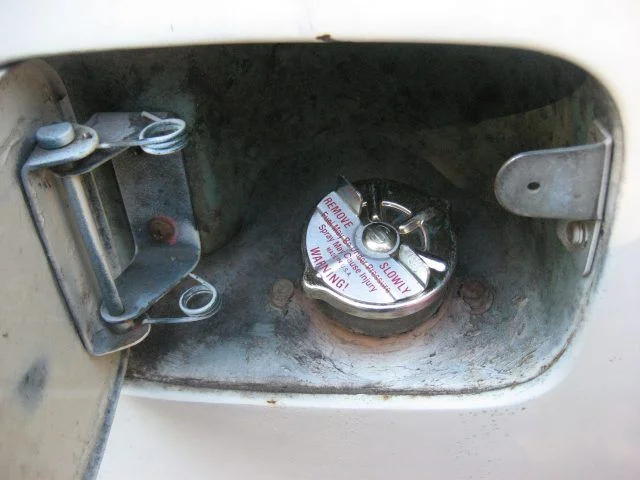

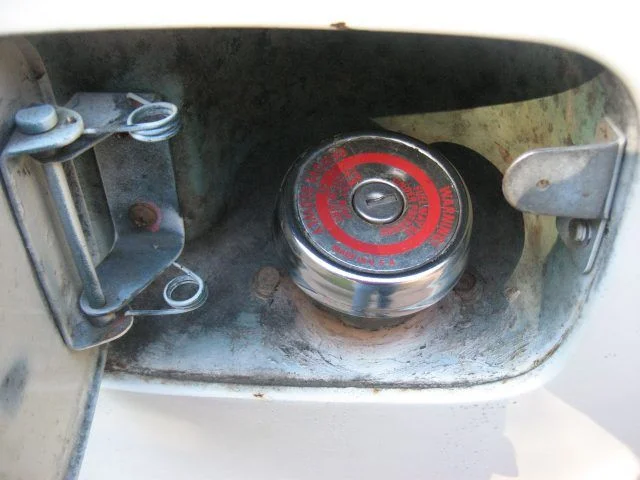

after market locking gas cap interference
Charles; here are pix of the problem; ended up getting a locking fuel door to solve the problem thanks again to Ige
the locking gas cap can be used and will fit the filler neck but then you cannot close the door; it is quite a bit wider than the aftermarket autozone I have on..........pix show the interference with the fuel door; you can see the size difference;
maybe the ones that Marshall has found won't have the problem or maybe it is only on my 74  any comments??
Lou
|
|
|
|
|
11-02-08, 05:28 PM
|
#51 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by n2666s
Charles; here are pix of the problem; ended up getting a locking fuel door to solve the problem thanks again to Ige |
I wonder if the filler neck on mine was pushed to the inside of the truck enough (there is some slop if the bolts are loosened) to make it clear as it looks like it must be really close!
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
11-03-08, 11:58 AM
|
#52 (permalink)
|
|
cruisercanvas.com
Join Date: Aug 2007
Location: Wakefield, MA
Posts: 2,061
|
Quote:
Originally Posted by Trollhole
OEM fog lights. paid $125 for them
 |
Do you know the p/n for the bracket?
__________________
Alex
1971 Freeborn Red FJ40 w/85 2F, 3 speed on the floor, Warn 8274, 33X9.5 BFG M/T's.
1965 FJ45
"The problem with the world is that everyone is a few drinks behind." -Humphrey Bogart
|
|
|
|
|
11-03-08, 12:00 PM
|
#53 (permalink)
|
|
250+ Club
Join Date: Nov 2006
Location: 6 Miles Past The Edge Of The World
Posts: 542
|
Quote:
Originally Posted by nuclearlemon
They bolt to the bumper
|
Quote:
Originally Posted by Trollhole
right
|
i like
hey do you guys know anyone who has a good manual for these, for sale
__________________
71 FJ55 - Project
52 Farmal Model 100
The Duty Is Ours, The Results Are God's.
- John Adams
|
|
|
|
|
11-03-08, 04:47 PM
|
#54 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Quote:
Originally Posted by SouthBostonFJ
Do you know the p/n for the bracket?
|
Yes
|
|
|
|
|
11-03-08, 05:24 PM
|
#55 (permalink)
|
|
Forum Lifer
Join Date: Jun 2004
Location: Northern Colorado
Posts: 6,048
|
Quote:
Originally Posted by Trollhole
Yes
|
Question - can I mount those w/ my PTO winch?
|
|
|
|
|
11-03-08, 06:18 PM
|
#56 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by PabloCruise
Question - can I mount those w/ my PTO winch?
|
I think so. I have a pair mounted on the bumper of the '45LV right now next to the winch. I have not looked at the FJ55 to see if it is possible though.
As long as there is a bumper bolt there you should be good and I'm 99% sure there is one on the outboard side of the '55 bumper.
I have a spare set of these mounts if you are interested.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
11-04-08, 10:20 AM
|
#58 (permalink)
|
|
THC
Join Date: Mar 2005
Location: Mauldin, SC
Posts: 11,055
|
Quote:
Originally Posted by JohnnyC
|
Discontinued. I check with my dealer. Do you have a source that has them?
|
|
|
|
|
11-04-08, 11:23 AM
|
#59 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,838
|
Quote:
Originally Posted by Trollhole
Discontinued. I check with my dealer. Do you have a source that has them?
|
no...was just a long shot....ohhh well...although...
i bet MOT would be able to get some for ya
|
|
|
|
|
11-04-08, 11:26 AM
|
#60 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,956
|
Quote:
Originally Posted by JohnnyC
|
These look like rock catchers to me! I don't care if they are OEM, their one thing I can do without!!
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
|
| Thread Tools |
|
|
| Display Modes |
 Linear Mode
|
Posting Rules
|
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
HTML code is Off
|
|
|
|
|
|
dtrain
Trollhole
Pepe
nuclearlemon
