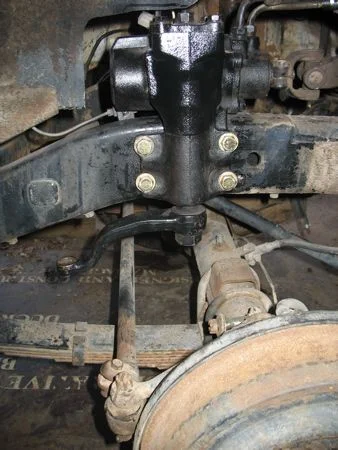

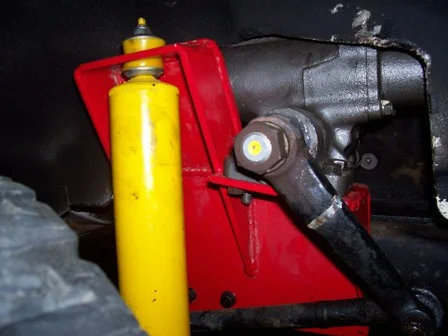

Here's the power steering Iron Pig Offroad did on my 55

Lou

[2manycruisers]

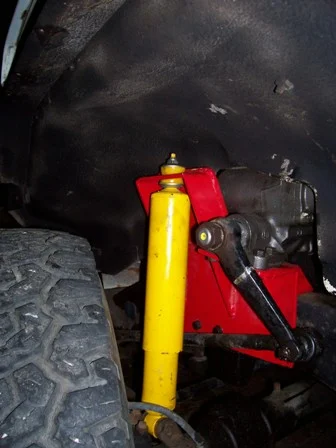

more pics please. Can you show one of the alignment of the tie rod and drag link with the wheels straight? What rod end did he use at the pitman? How is the pitman arm turned that far (perp to the frame)? How did he keep the stock shock mount?

[nuclearlemon]

while we're asking questions, is the frame sleeved where the bolts are going through...it looks like it might be.

[Luke111]

The rod and drag link are not completed, this set up was on the truck and was connected so they could move the truck down the street to the new shop. The frame is not sleeved. I'll post those pic's when it's done. Truth is , any tech question like shock mount position etc.. I'am not the guy but Lance could explain those details. There are a few post that have mention Iron Pig Power Steering and the fact that Lance has wheeled quite a few pigs I would have to say its time and trail tested. Looking at the second photo the vertical weld on the frame behind the pitman is an engine bracket, not sure if the answers that sleeved question.

Lou

[scottryana]

Lou,

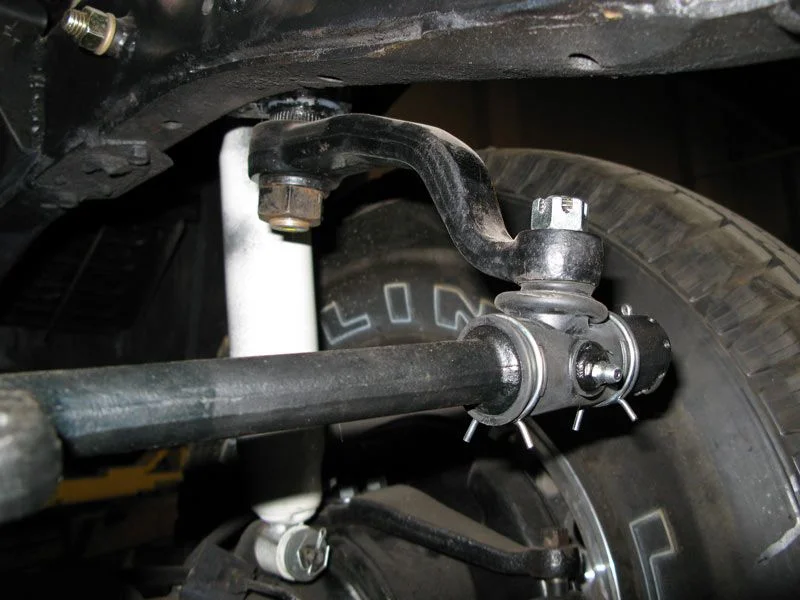

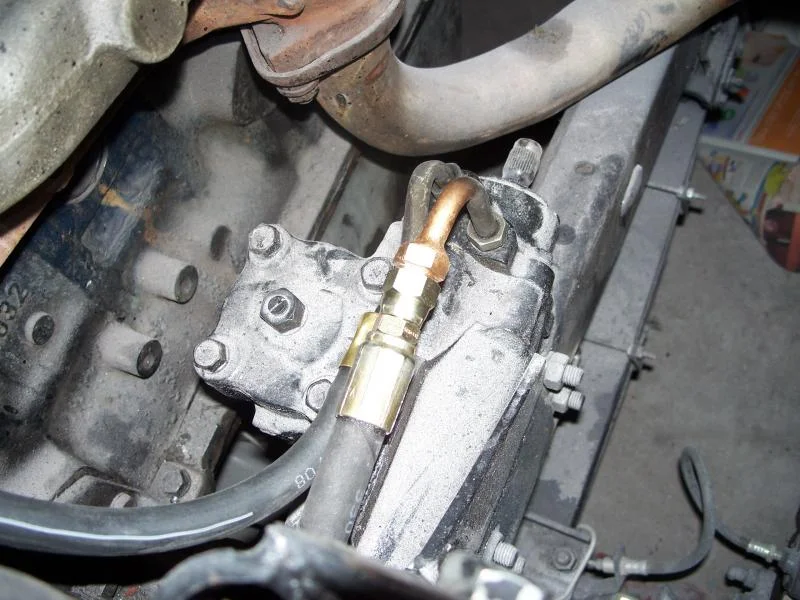

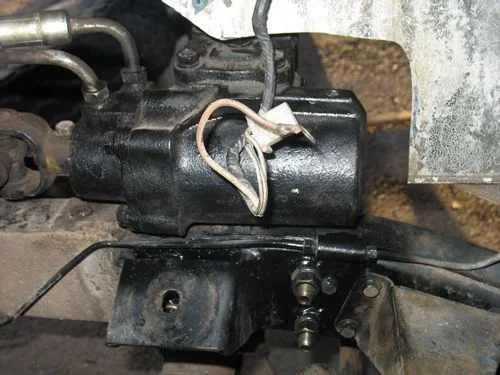

I hope you don't mind, me helping out with the question. The mounting holes for your 60 box are sleeved. If you look closely at the second photo you can see that the washers and nuts sit off the frame on small pieces of tube. When you sleeve the frame you over drill the holes and then insert and weld a piece of tube so that when you tighten the bolts it is trying to compress the tube not crushing the frame. I don't mean to condradict you, but when I talked to Lance he told me he wouldn't do power steering conversion without sleeving the frame.

Ryan.

Originally Posted by Luke111

The rod and drag link are not completed, this set up was on the truck and was connected so they could move the truck down the street to the new shop. The frame is not sleeved. I'll post those pic's when it's done. Truth is , any tech question like shock mount position etc.. I'am not the guy but Lance could explain those details. There are a few post that have mention Iron Pig Power Steering and the fact that Lance has wheeled quite a few pigs I would have to say its time and trail tested. Looking at the second photo the vertical weld on the frame behind the pitman is an engine bracket, not sure if the answers the sleeved question.

Lou

[clemson55]

Frame definitely appears to be sleeved.

[Luke111]

Ryan ,thanks for clearing that up! I'll stick to designing bumpers!


Lou

[scottryana]

Lou,

Hopefully you will have some new photos to post soon. While I was at Ironpig today I saw your freshly powdercoated bumpers. They look great. It is cool to see that you choose grey instead of the normal black. While I was there they didn't have time to get them installed or I would have snapped some photos! The back bumper looks good, but I can't wait to see that custom front bumper installed.

Ryan.

[2manycruisers]

The IPOR box location didn't work for me. The mounting bolts/sleeves would have interfered or almost interfered with the stock motor mount bracket and would have also interfered with the carrier bearing support for the pto driveshaft, so I moved it rearward about 2" to avoid them both. I'll get pics when I get more done.

[handcannon]

scouthead

If you want a sag pump with remote reservoir get one off a Chev Astro.

[scouthead]

Thanks handcannon, I think the body shop my friend works at has an astro that is being totalled. Ill have to go take a look at the pump to see if it survived!

[2manycruisers]

Unfortunately distracted by house projects, but I finally finished mounting the box and shortening the rods so I can move it around soon.

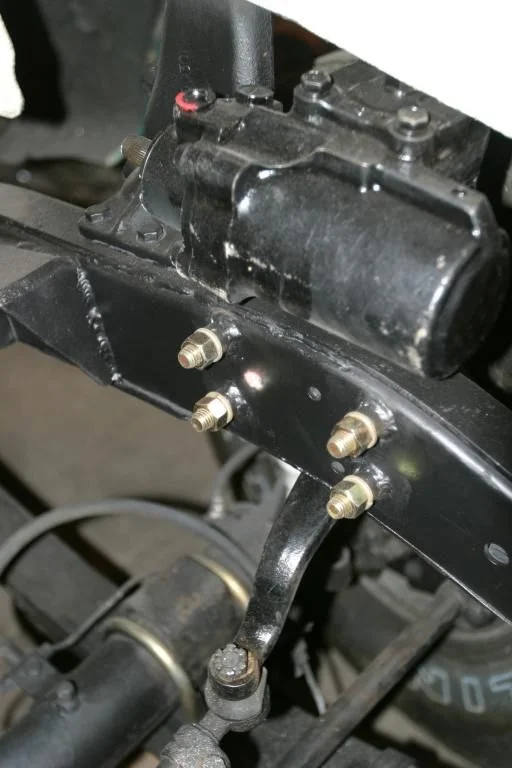

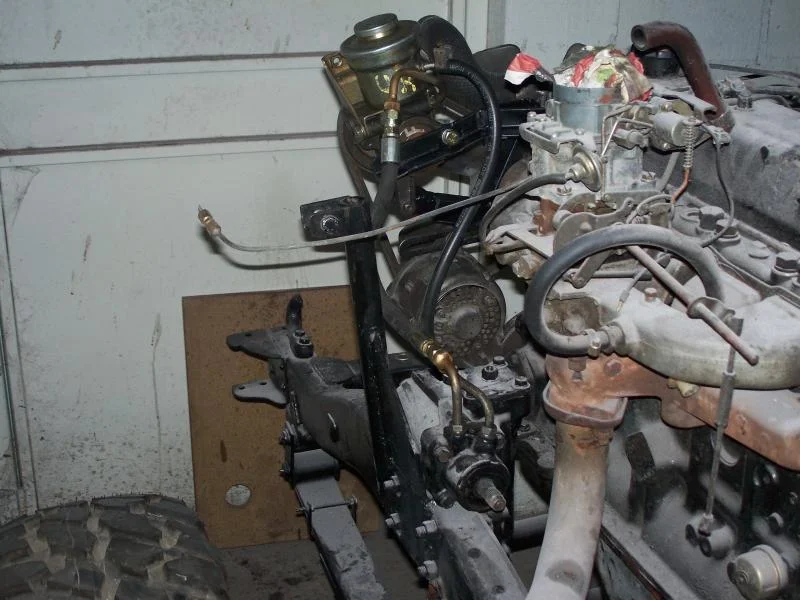

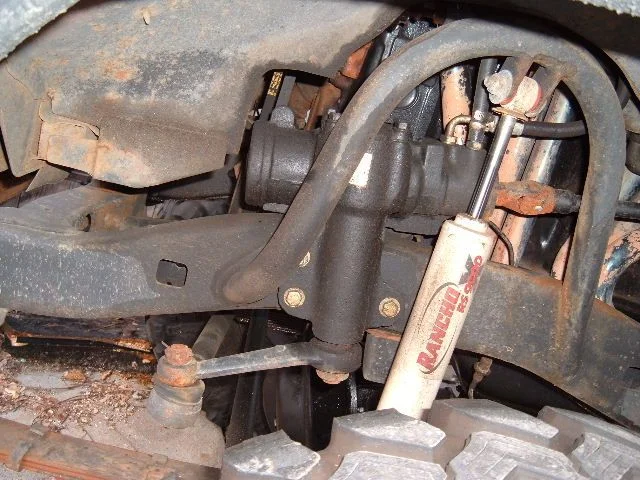

I sleeved the frame like IPOR did, but my location is different. I tried to put the box about where it is on the fj60, so the end of the pitman arm is not way out in front of the tie rod (pic 1). It's a little farther than on a stock fj60, but it fit okay with the pto and motor mounts. Two of the sleeves are behind the motor mount bracket, so they weren't so friendly to weld, but they're done.

My steering shaft is a hybrid of the fj-60 shaft and the fj-55 shaft. IIRC, I used the upper part of the fj-60 shaft (male end of splines) attached to the column with the fj-55 u-joint yoke and the fj-55 female end. I shortened the shaft about 2", sleeved it, and rewelded.

I'm going to be putting fj-60 knuckles/disks on it, so I chose to use all fj-60 parts, for now at least. I shortened the fj-60 drag link just over 2", sleeved and welded and I will do the same for the tie rod when I get the brakes done (2.5" shorter). Maybe I'll buy new rods from Marlin when I have more money, but for now that's how it will be.

[Luke111]

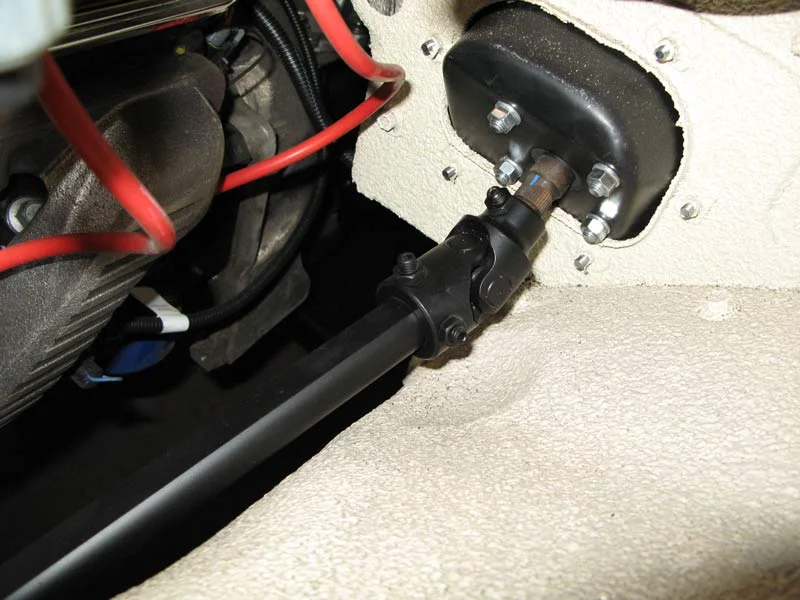

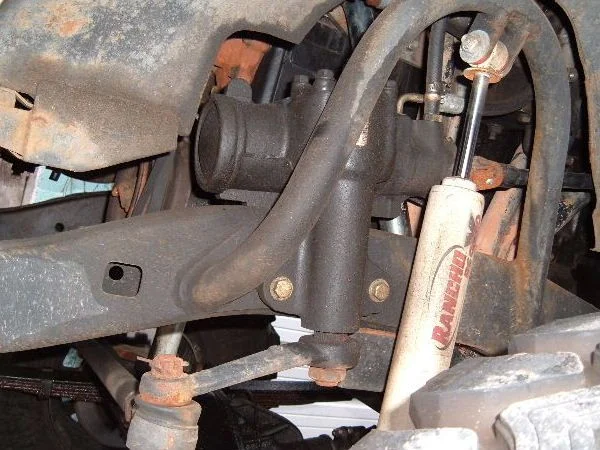

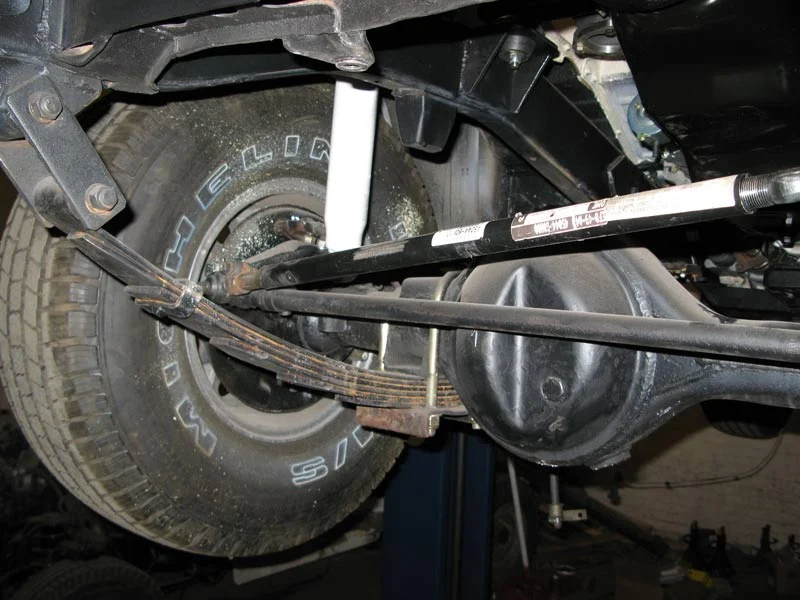

Wanted to post the Pic's of the powersteering completed along with the steering shaft. This is the IPOR setup with a Borgsen steering shaft.


Lou

[Luke111]

More

[Luke111]

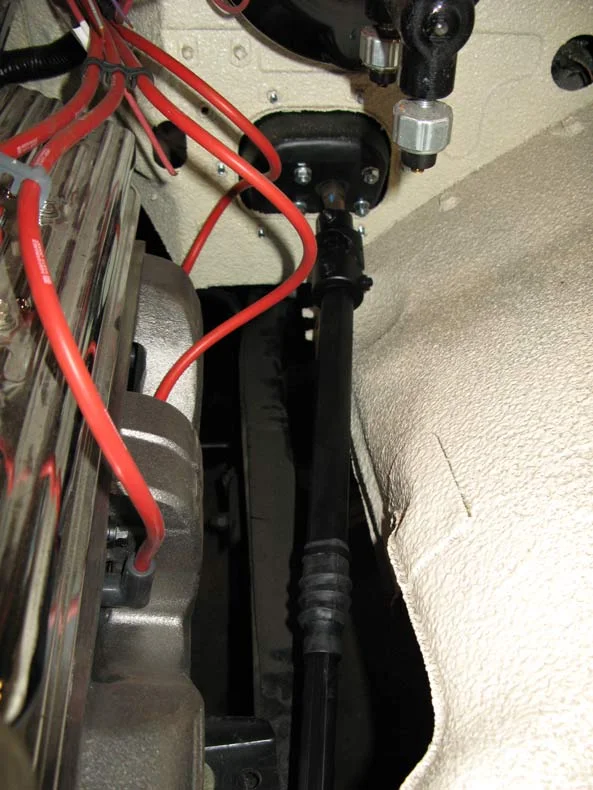

More

[scouthead]

My 60 P.S. looks the same, but I'd take your inner fenders and motor/sandersons over mine any day... damn clean!

[Pighead]

FC did the Scout power steering conversion for me. The diagonal cross-brace (left frame to front crossmember) was included in the deal. Not an optional extra. Granted, an FJ60 box puts out less torque than a Scoutbox, but it's real cheap insurance. Stout frame or not, we've seen frames twisted from power steering boxes. If you're going to do power steering, might as well do it right. Bent/twisted frames are more easily prevented than corrected... You can almost see the leading edge of the brace in pic 2...I gotta get a new camera

Originally Posted by RHINO

i didnt use any bracing or plating on mine, the 55 frame is everybit stout as the 60 frame. so far i have had no problems, no cracks and no loose bolts, lets hope it stays that way. a buddy of mine put scout power on his 55, he developed a crack but the scout only mounts with 3 bolts, maybe thats the difference?

Originally Posted by 2manycruisers

Interesting about the twisted frame, I hadn't given that much thought. I guess that's the benefit of push/pull steering mounted there. FJ60 frames are fully boxed and super stout, I've never see a cross brace on one. It might be worthwhile to consider a support such as you described, though. There are similar (in function and mounting location) aftermarket supports made for crack-prone GM truck frames. Might be worth comparing, probably made by Off-Road Unlimited or Off-Road Design. Hmm, how to build it around the pto driveshaft....

Seems like the motor would be a fairly effective crossmember, too, but maybe there's too much flex in the motor mounts.

Originally Posted by scouthead

I saw a FJ55 once out of the corner of my eye that appeared to be very clean, so I doubled back and hopped out to take a look. Real clean truck except the driver's side frame rail was twisted...The owner had installed a scout II box on it and it appeared to have just repeatedly stressed and tweaked the frame where the box was mounted,untill it stayed that way...(when I saw it,it was only sitting on 33inch tires)
When I installed the 60 box on mine, I had this in the back of my head. There is no gusset or crossmember in the section of frame where the box needs to be mounted...So I started thinking about maybe running a brace from the front crossmember(diag.) to the inside of the rail, right behind the box. I looked through a few service manuals, and came across a diagram of a 60 series' frame that appeared to show the exact same bracing I was considering building.
I am not really familiar with the 60 series, but got the impression from one of your posts that you might be. Have you ever seen anything like this on one? Just kind of curious because the 55 and 60 series frame diagrams looked very similar, and thought maybe Toyota threw in a gusset to keep the frame straight??

[Luke111]

That is sound insurance and would take about ten min. to make.

Lou

[n2666s]

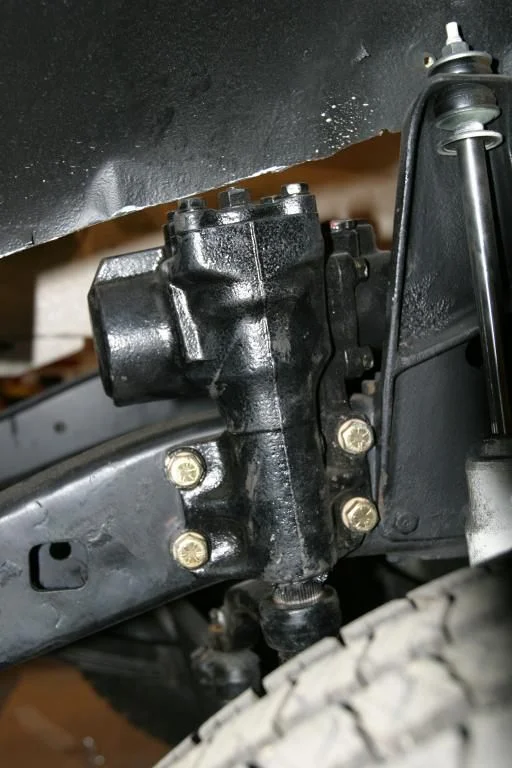

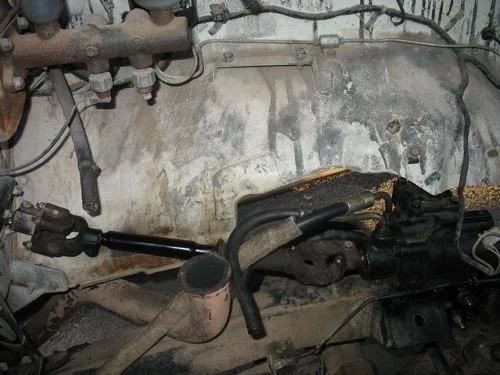

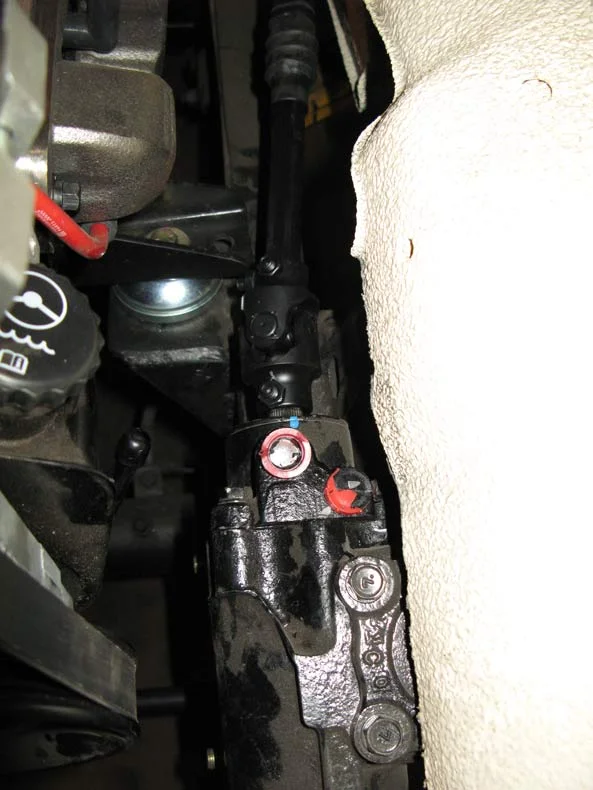

these are a few of "Rusty's" PS set up; finally got it all on last week....the bracket was fabricated by Lance at IPOR; bought from "Schmukster", the steering box is from a TOY minitruck and the PS pump is off a 1987 fj60..thanks again to Schmuckster Lance at IPOR also made the hoses and gave invaluble points and support for the installation,,,,,,,,,,,Cheers Lance L)

Lou

[n2666s]

BTW the power steering box was also a rebuilt one from IPOR.............thanks again Lance; cheers!

Lou

[scouthead]

Originally Posted by Pighead

FC did the Scout power steering conversion for me. The diagonal cross-brace (left frame to front crossmember) was included in the deal. Not an optional extra. Granted, an FJ60 box puts out less torque than a Scoutbox, but it's real cheap insurance. Stout frame or not, we've seen frames twisted from power steering boxes. If you're going to do power steering, might as well do it right. Bent/twisted frames are more easily prevented than corrected... You can almost see the leading edge of the brace in pic 2...I gotta get a new camera

This is the first time I have heard of anyone who has actually done/ had this done... Twisted rail = NO BUENO!
I currently do not have any strut or brace on my '76 with the 60 box(31" titres), but if it ever steps into bigger shoes it will. Also my '73 I'm currently building will have a crossmember under the 350, and I'll probably use a Scout II box... maybe I'll tie in something to the front brace... we'll see...

[PabloCruise]

Originally Posted by Luke111

Wanted to post the Pic's of the powersteering completed along with the steering shaft. This is the IPOR setup with a Borgsen steering shaft.


Lou

Borgeson shaft mates to 55 and 60 splines? What app? Why not use 60 series shaft?

Also, where can I see pics of your bumpers?

[Luke111]

Not sure how to attach my build thread, look at ....jsaltlick site he just post about his pig . I just post my front and rear bumper

[mookie]

http://www.wejacks.com/scoutsteering/index.html

check this link out if it is still good, you can modify your existing shock tower to make it work with fj60 or a scout box if you want to.....

[smtyblt]

Originally Posted by PabloCruise

Borgeson shaft mates to 55 and 60 splines? What app? Why not use 60 series shaft?

Also, where can I see pics of your bumpers?

Hey guys, Lance here (not Cam, just logged in as Cam...). I hopped on the thread to cop some pics of Lou's PS conversion for a guy we just sent an FJ60 power steering kit to so that he can see how the parts go together. Thought I'd take a minute to answer the question above:

We use the Borgeson shaft in place of the 55 or 60 shaft because the OD of the joint is smaller and it can fit behind the shock mount on the FJ40 if you grind the tower down some - the u-joint in the 55/60 shaft is too big. On the 55 we use it just because it's cleaner than a modified stock steering shaft. If you can weld you can certainly lengthen the stock 55 shaft and it does the job well. The slip joint is not as long in the stock shaft so measure carefully, and as always make sure your welds are sound - don't want a steering part to fail. (in some localles it may be illegal to weld on a steering component so check before you start your project)

The u-joint you're looking for to mate to Toyota gearbox and shaft is an 11/16-36 spline. We keep these, and the DD telescoping shafts in stock if you need them in a pinch.

HTH,

Lance

[bashmatic]

Hey Lance,

you are listing the steering U-joint as 11/16" - 36 spline. I dont see this offered by Borgeson. Are you using Borgeson joints? I see 1", 13/16", 3/4" but no 11/16"
What gives?

MB

[Rusty55]

I used a 1997 F-250 HD power steering box on the inside of the frame and had a local driveline shop make the linkage from the steering column to the box. I think I have the pictures in my album. It works really good for the bolts we welded tubes thru the frame to strengthen it and then made a bracket for the top bolt. I like the Ford box because you can pick a new one up at Schucks/O'Reilly for under $200. With a core. I have a junkyard box in right now and am in the process of changing it out to a new one, just because it is worn out.

[landcruisnman]

Rusty55,
Please post some pics of that F250 Box in your Pig. I've got a GM box and a FJ60 Box and can't decide which way to go. I'm leaning towards the 60 box.
Thanks
Pat

[animaldevictor]

on my pig I used, a 60 series box but from a japan (right side)1986 Bj60, what's funny about it is with the location that i have place the box there´s no need of a new shaft or nothing
