08-31-09, 12:28 PM
|
#301 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|

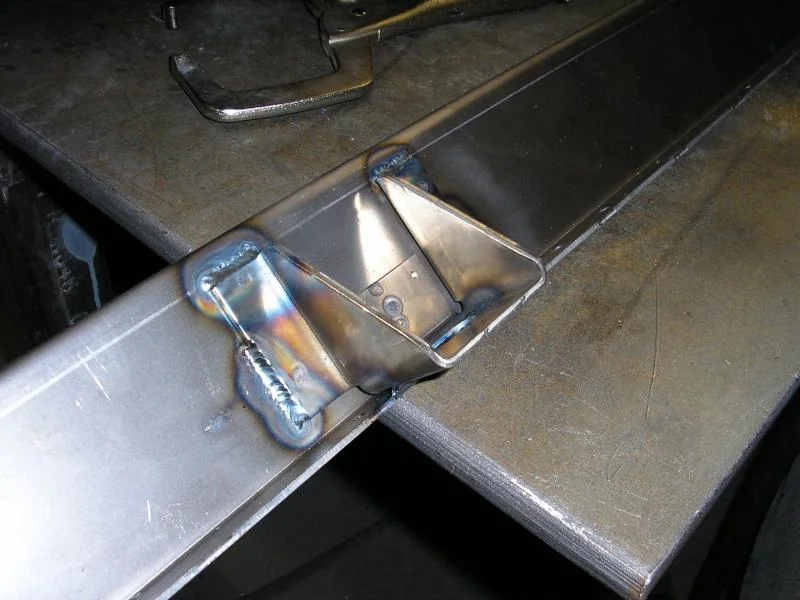

welding the tube

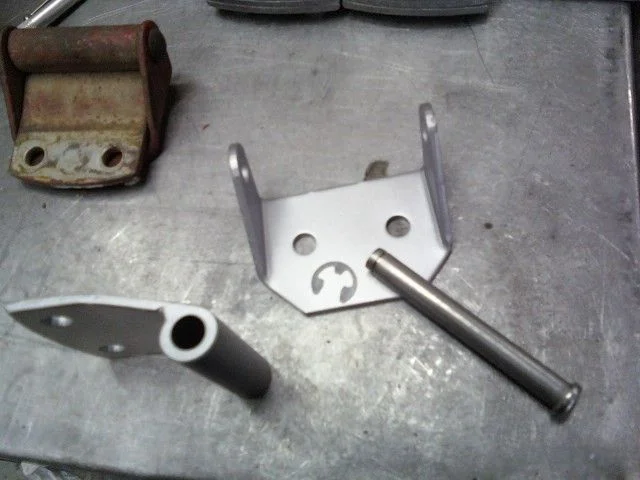

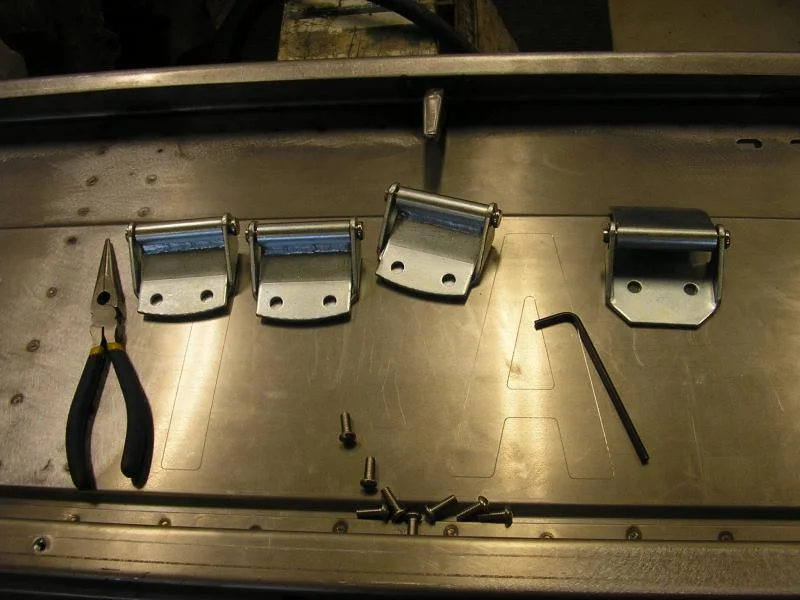

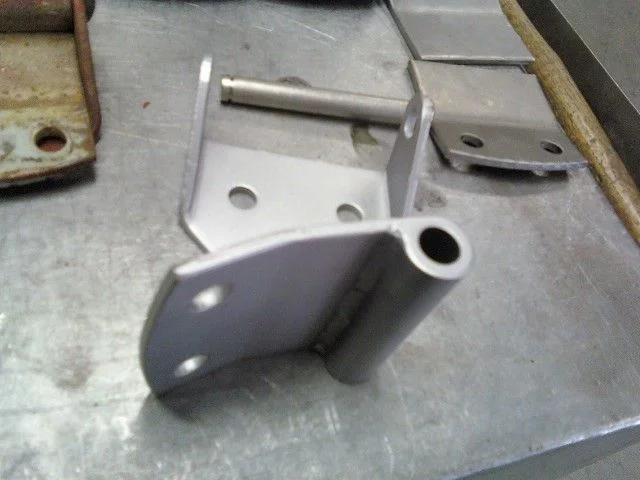

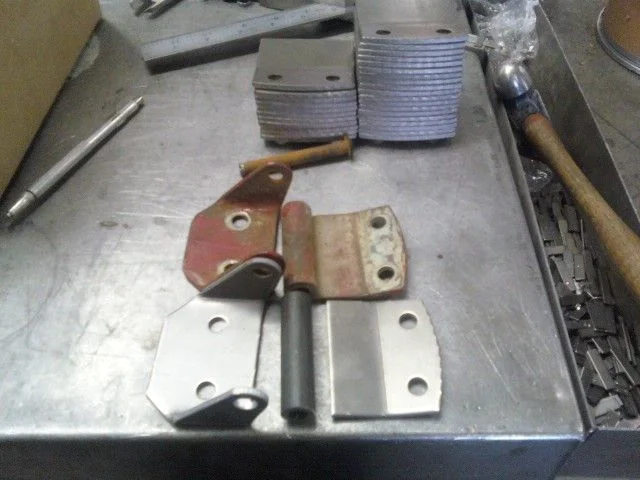

the three parts - they will be zinc plated (not the stainless pin of course  )
|
|
|
|
08-31-09, 12:35 PM
|
#302 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|

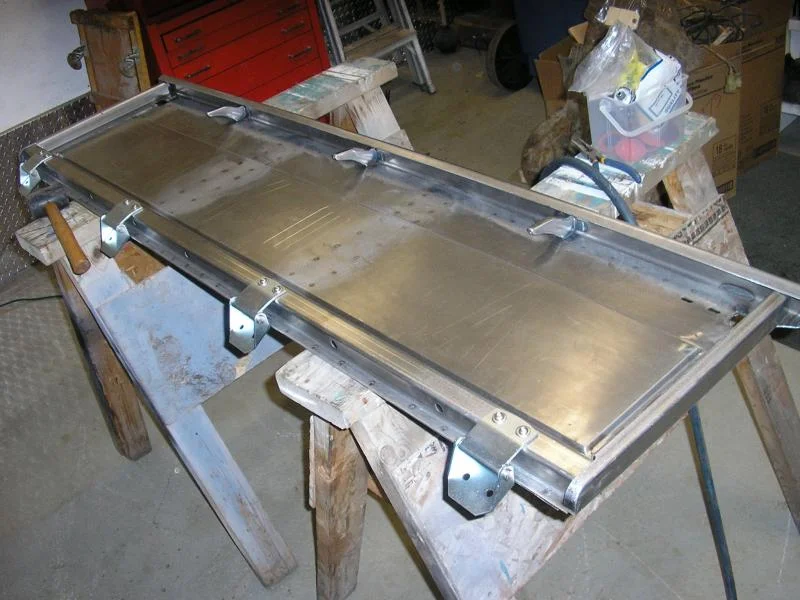

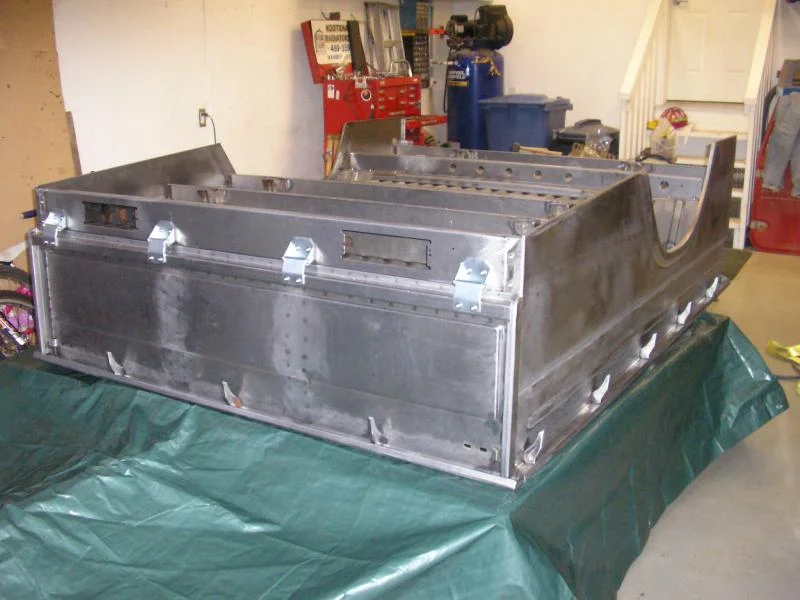

Assembled - not yet plated
The photos are a bit misleading in that mine looks way bigger in the side shot but its not. The only dimension not the same as original is the width - the side profiles are identical. Well, the pin is larger to I guess .
|
|
|
|
|
08-31-09, 12:43 PM
|
#303 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
one last picture
My price point for these will be $47.00 Canadian shipped in North America. When I first saw 65-fj65's early reproduction hinges at $42.00 us shipped I thought that might be a tad high but after making them I find he is right on the "money" - so to speak. Small runs of custom pieces are more expensive.

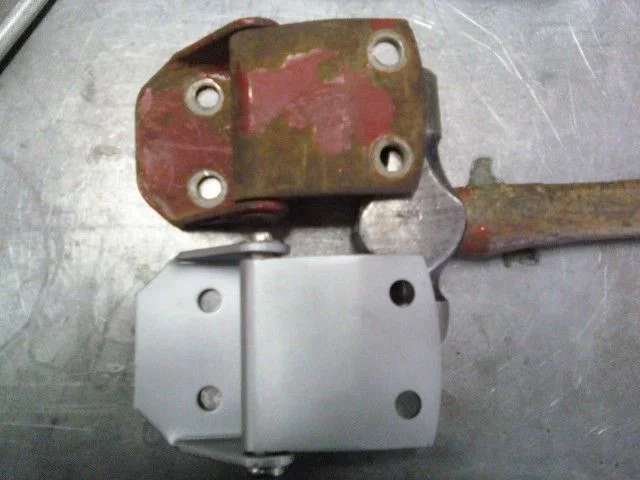

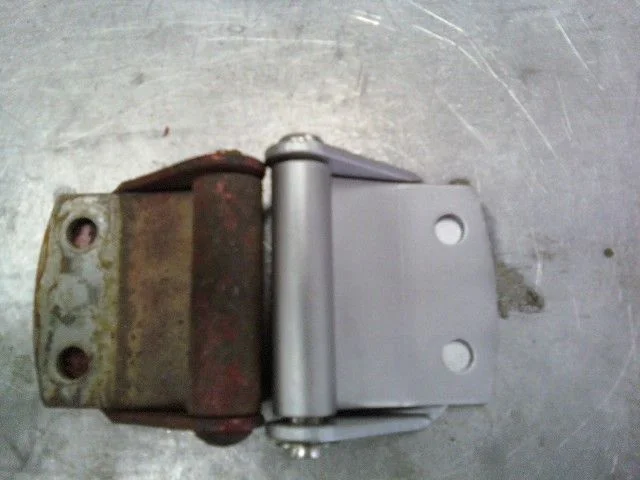

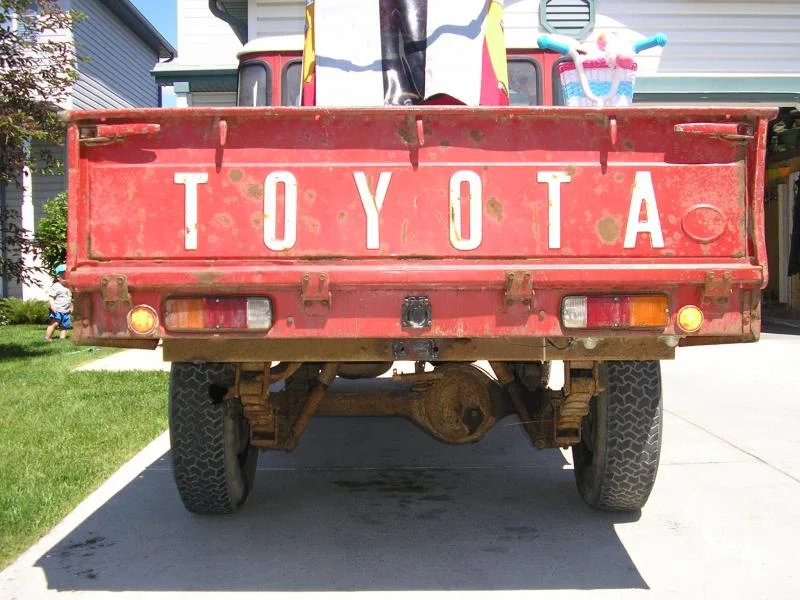

Just a note: the hinge is wider but the hole pattern is the same as original. Also - these fit the four hinge gates only.
|
|
|
|
|
09-03-09, 09:27 PM
|
#304 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
Tailgate chains

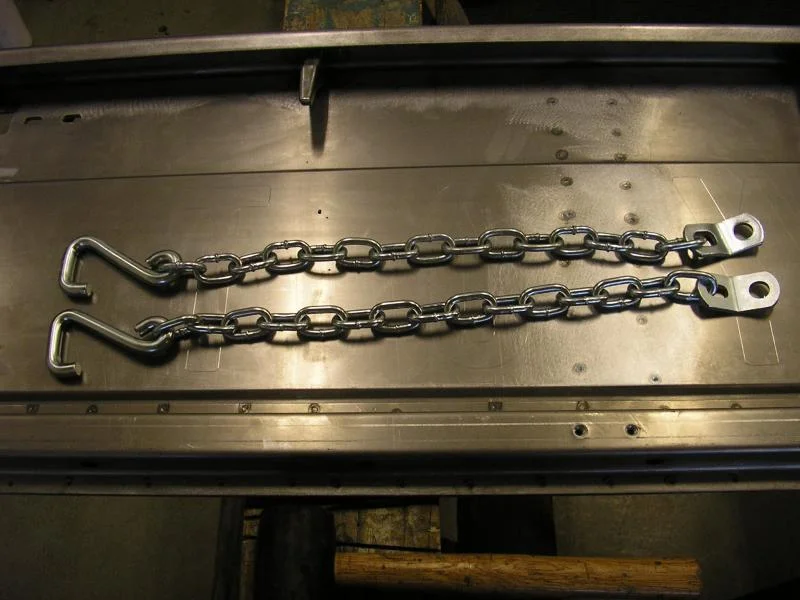

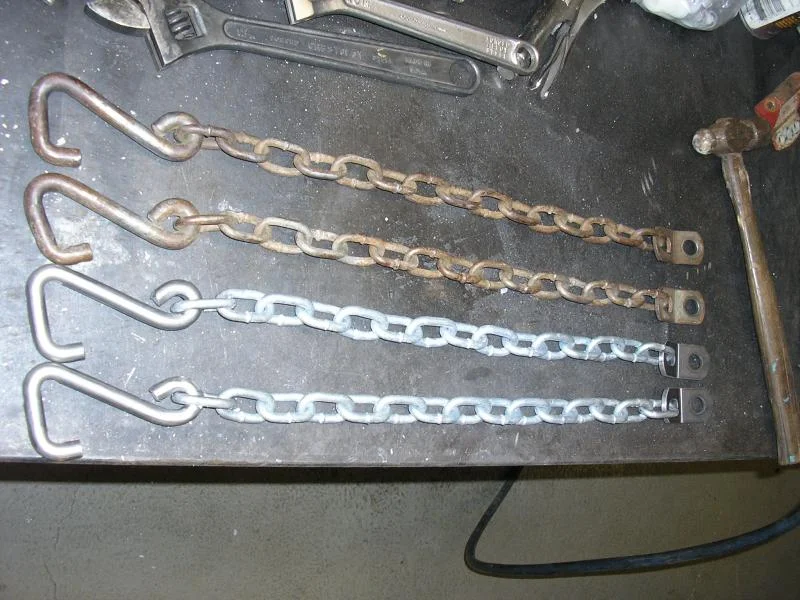

Here is my rendition of the tailgate chains - the lower ones are new, upper is original. They still need the links at either end re-welded. I will do that tomorrow and bead blast them before plating. For those that care the chain is 1/4" grade 30 long link.
|
|
|
|
|
09-05-09, 08:07 PM
|
#305 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|

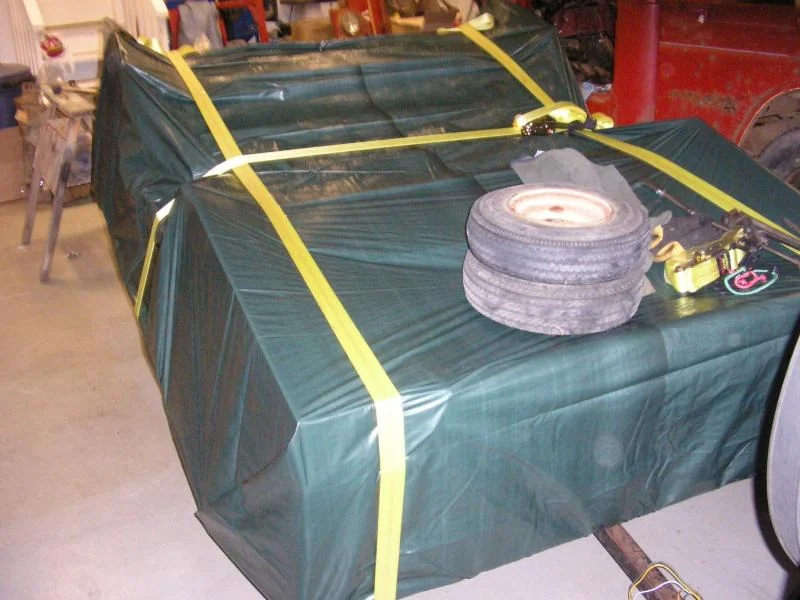

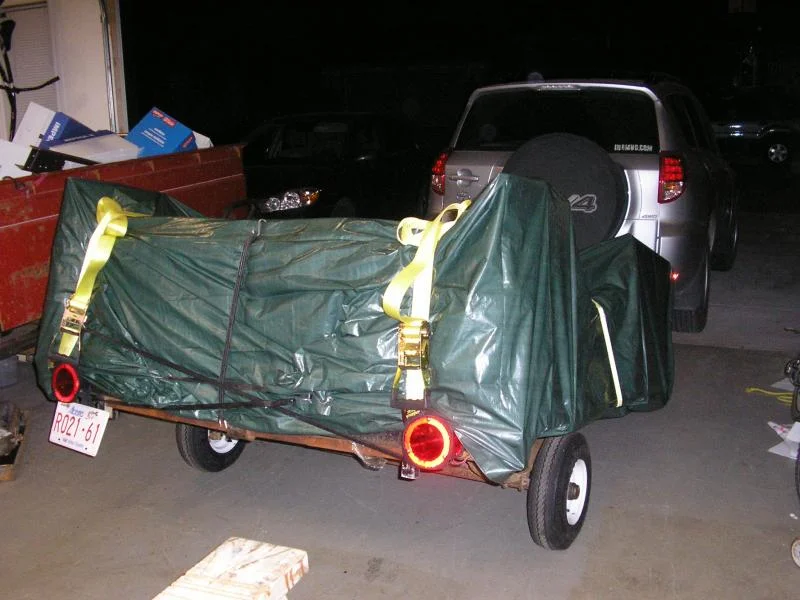

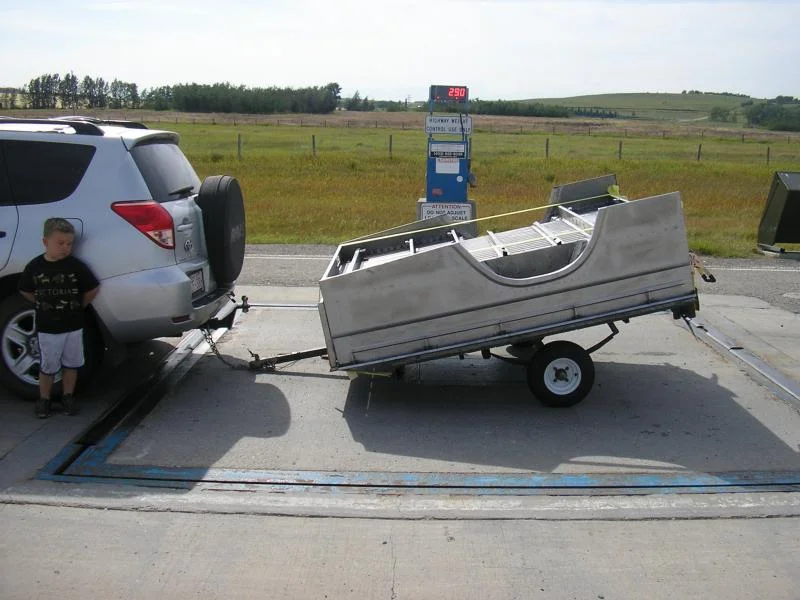

Had some fun today with my little utility trailer. New tires and repacked bearings. Then I took it about 3 miles away and weighed it at a self weigh station - 140Kg (308lbs)
Then I loaded up the new box missing only two hinges and the gate chains.
290Kg - 140Kg trailer = 150Kg (330Lbs) box
I was going to load up my original bed to see if there was any appreciable difference between them but I ran out of ambition for the day. Perhaps tomorrow  .
|
|
|
|
|
09-07-09, 10:29 PM
|
#306 (permalink)
|
|
250+ Club
Join Date: Jul 2006
Location: Redwood City, CA
Posts: 386
|
Quote:
Originally Posted by Awl_TEQ
Added stainless steel captured M8 nuts in the cross members for the parts of the floor that are bolted down.
Attachment 324676 |
Really nice work Kevin!
What the story on the stainless captured nuts? Special tool required to install? Come in many sizes? Better than welded nuts? What about the combination of stainless, cold rolled steel and final paint - any problems?
Thanks,
Gus
|
|
|
|
|
09-08-09, 07:03 AM
|
#307 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
They are called PEMs and are a propriatary self clinching fastener system that come in all standard and metric sizes up to 1/2" I think - studs too. They have a groove around one side that when you press it into the material, the material cold flows into the collar and captures the nut. They are quite strong though I believe a weld nut would be stronger. In this app. once bolted up the nuts will nearly never be undone. If it was an app. where it had to be repeatedly removed I would use a weld nut. There are no issues with painting or galvanic reaction on the stainless - just spray it.
Kevin
|
|
|
|
|
09-10-09, 09:57 PM
|
#308 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
Plating of the chains and hinges is done.

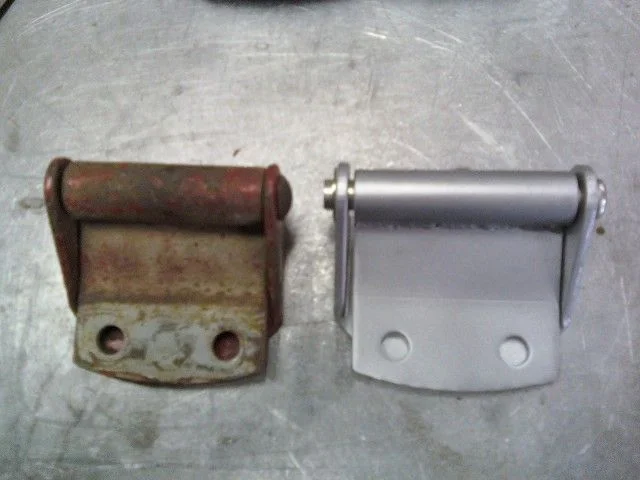

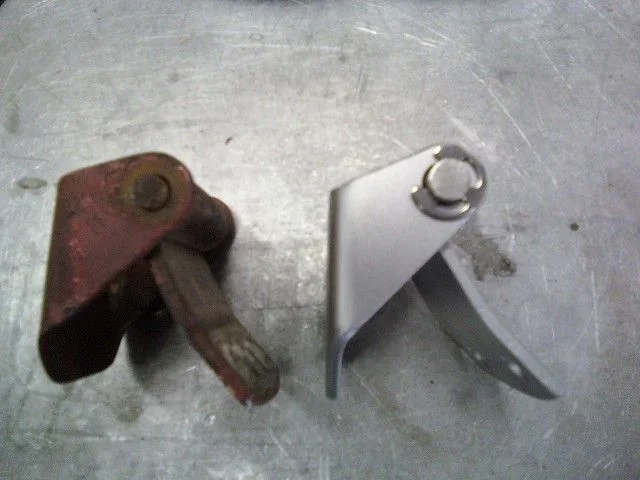

The upper one is an original off my bed and the lower one is one I made

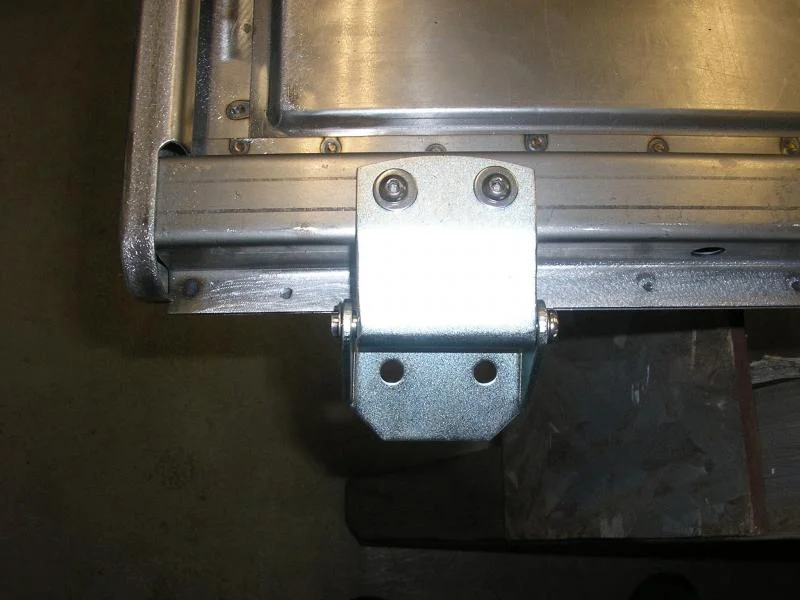

Hinges...
|
|
|
|
|
09-10-09, 09:59 PM
|
#309 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
|
|
|
|
|
09-10-09, 10:01 PM
|
#310 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|

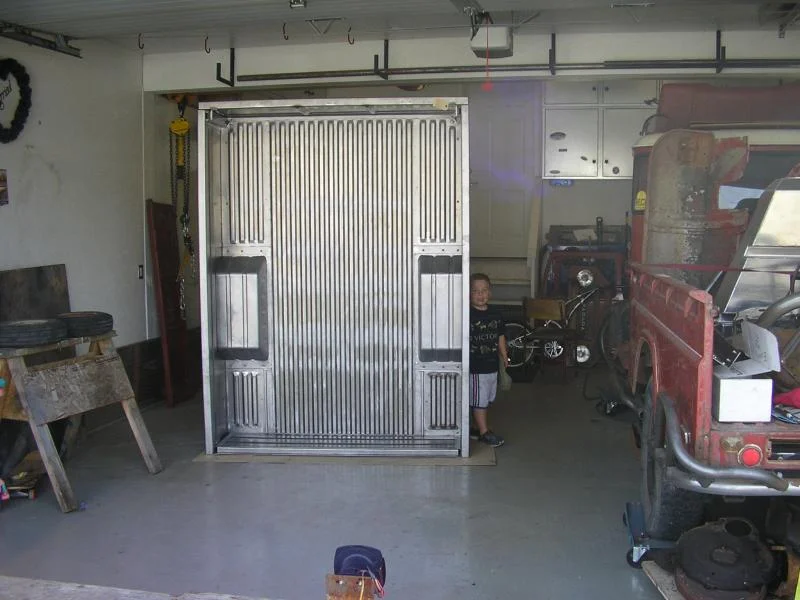

Packed and ready to go to a new home
|
|
|
|
|
09-10-09, 10:11 PM
|
#311 (permalink)
|
|
IH8MUD Cruiser
Join Date: Dec 2006
Location: Lillooet,B.C.
Posts: 316
|
Beautiful work Kevin.
__________________
Steve
Lots of cruisers in the yard.
It's better to be over the hill than to be buried under it.
|
|
|
|
|
09-10-09, 10:42 PM
|
#312 (permalink)
|
|
Forum Regular
Join Date: Dec 2006
Location: Queensland, Australia
Posts: 134
|
That's impressive, the 'styleside' bodies are almost a rarity over this way, I've got an urge to throw one on my 45 now.......
__________________
1977 HJ 45 trayback - now gone
1980 HJ 45 trayback - 60/75 series power steering complete
1983 BJ 42 shorty - project rustbucket
1981 HJ 47 troopy - project or parts? I guess we'll find out......
|
|
|
|
|
09-10-09, 11:01 PM
|
#313 (permalink)
|
|
Site Addict
Join Date: Apr 2003
Location: Southwest Oregon
Posts: 1,755
|
epic...
|
|
|
|
|
09-11-09, 06:16 PM
|
#314 (permalink)
|
|
Forum Regular
Join Date: Jul 2006
Location: Québec
Posts: 116
|
Wish i was closer! I'm in Quebec... to see how you work. I can imagine how you do some but some other parts are hard to know .
Did you cut all by cnc ?and bed the bed side are stamp?
Nice work !!
|
|
|
|
|
09-11-09, 08:27 PM
|
#315 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
Marc,
Everything comes from flat 4' x 10' sheet stock and is formed one bend at a time (using a hydraulic press). No stamps here.
Kevin
|
|
|
|
|
09-12-09, 12:39 PM
|
#316 (permalink)
|
|
Forum Regular
Join Date: Jul 2006
Location: Québec
Posts: 116
|
Quote:
Originally Posted by Awl_TEQ
Marc,
Everything comes from flat 4' x 10' sheet stock and is formed one bend at a time (using a hydraulic press). No stamps here.
Kevin
|
It can be great if you have pic of you at work !
Are you thinking of doing other parts like............the hook for the top (the pices that goes on the windshield) or the hook for the tub and top for example  ?
Not that i need it but ..... Yeah i need it!!!
So thanx
Marc.
|
|
|
|
|
09-13-09, 03:25 PM
|
#317 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
Marc - if you are not in too big a hurry I can get to those for you. I have a lot going on right now.
I delivered the bed to 71FJ40 yesterday in Billings MT - 1963Km round trip in 26 hours. He seemed pretty stoked when he laid eyes on it. Nice to put a face to the avatar - unfortunately we didn't have long to talk as we both wanted to hit the road and get home. Jason and his wife definitely have a severe case of Landcruiseritis - terminal I'm afraid.
Speaking of the disease - I stopped at 3_puppies place on the way home. I wish I had his stash of parts!! or half his fleet of cruisers. I did manage to pick up some new to me side steps for the 45. Almost bought a front 60 diff for the disc swap but I've got time for that yet.
Cheap digital camera shots
Day break North of Great Falls - you can just make out some fog around that homestead.
Sunrise East of Great Falls - this guy cut me of in Great Falls but once we hit the Hwy he was doing 80mph
Sunset North of Great Falls on the way home.
I left at 10pm Friday and was home at midnight Saturday - I need a nap.
|
|
|
|
|
09-14-09, 10:01 AM
|
#318 (permalink)
|
|
250+ Club
Join Date: Jan 2004
Location: Colorado Mountains
Posts: 363
|
Quote:
Originally Posted by Awl_TEQ
I delivered the bed to 71FJ40 yesterday in Billings MT - 1963Km round trip in 26 hours. He seemed pretty stoked when he laid eyes on it. Nice to put a face to the avatar - unfortunately we didn't have long to talk as we both wanted to hit the road and get home. Jason and his wife definitely have a severe case of Landcruiseritis - terminal I'm afraid.
|
Yes - an affliction I'm afraid....
A++ to Kevin - a real stand-up guy and a true cruiserhead as is reflected in the craftsmanship of the bed. Kevin went the extra mile on this bed and is ready to start importing these to the US if anyone else needs one.
x2 on meeting face to face
The bed is BEAUTIFUL - Pics coming shortly on the frame
__________________
'64 FJ45L
'71 FJ40 OME, ARB Bull Bar, Non-USA Carb and Distributor, Warn 12000, 34 LTB's
'85 FJ60 OME, Bull Bar, 33's
'87 FJ60
|
|
|
|
|
09-14-09, 03:50 PM
|
#319 (permalink)
|
|
250+ Club
Join Date: Aug 2008
Location: Berlin Germany
Posts: 595
|
Quote:
Originally Posted by Awl_TEQ
Plating of the chains and hinges is done.
The upper one is an original off my bed and the lower one is one I made
Hinges...
Attachment 354300 |
nice hinges ,
but something is curious on my Cruiser
I have no holes for bolts in the middle of the frame
may be I have the first lightweight "green Cruiser" Toyota ever build to save gas
Cheers
Peter
__________________
BJ43/1980 Softop ~ FJ45 LPB/1973.... old school
~ endangered species ~
~ res tantum valet quantum vendi potest ~
http://www.federalreserve.gov/
|
|
|
|
|
09-14-09, 05:20 PM
|
#320 (permalink)
|
|
Forum Regular
Join Date: Jul 2006
Location: Québec
Posts: 116
|
[QUOTE=Awl_TEQ;4777994]Marc - if you are not in too big a hurry I can get to those for you. I have a lot going on right now.
QUOTE]
Yeah! Sure i can wait.....The reason is that i have an original fj45 top but all the rest is a cowl and windswield from a fj40 and a aqualu tub...Custom from a fj40 frame etc.. and a toyota stout bed so all the parts are really hard to find here !
And don't forget if you have pic from how you work on the one of a kind bed  post it sure people will like to see this . Do you work bear feet too like Pakistan lol!!!!
Thnx again!
|
|
|
|
|
09-14-09, 10:03 PM
|
#321 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
Quote:
Originally Posted by a.greenspan
nice hinges ,
but something is curious on my Cruiser
I have no holes for bolts in the middle of the frame
may be I have the first lightweight "green Cruiser" Toyota ever build to save gas
Cheers
Peter
|
Nice to see you posting again Peter. I was wondering where you got to.
Your rear valence must have been altered (holes filled) at some point??? Perhaps not the original tailgate  It looks to me that you have some different model year parts there. Hard to tell in the photo but the tail lights look old style and too close to the ends of the panel compared to mine (1978). My lights are longer.
I made sure to set aside four hinges for you if you want them  .
|
|
|
|
|
09-14-09, 10:15 PM
|
#322 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
[QUOTE=Marcfj-45;4782342]
Quote:
Originally Posted by Awl_TEQ
Marc - if you are not in too big a hurry I can get to those for you. I have a lot going on right now.
QUOTE]
Yeah! Sure i can wait.....The reason is that i have an original fj45 top but all the rest is a cowl and windswield from a fj40 and a aqualu tub...Custom from a fj40 frame etc.. and a toyota stout bed so all the parts are really hard to find here !
And don't forget if you have pic from how you work on the one of a kind bed post it sure people will like to see this . Do you work bear feet too like Pakistan lol!!!!
Thnx again! |
Marc,
I will need a sample of the hook to copy.
The floor is too cold - I have to wear shoes

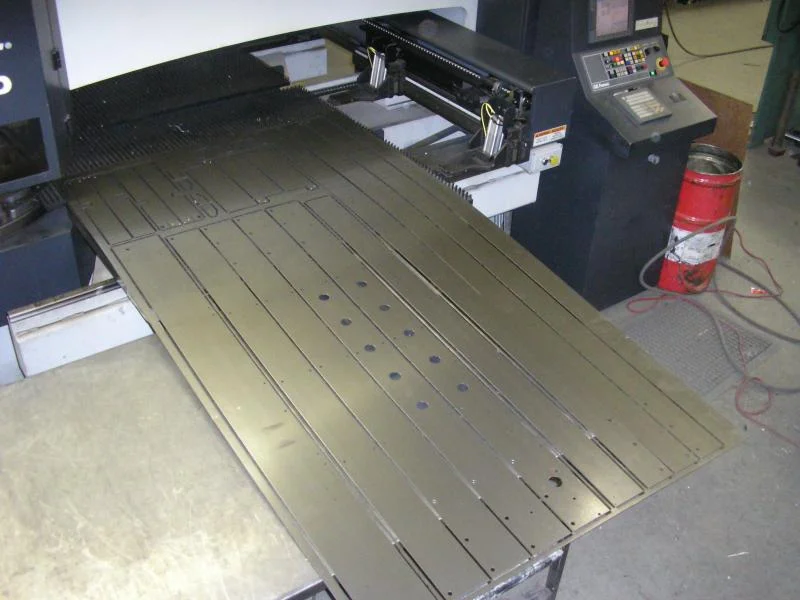

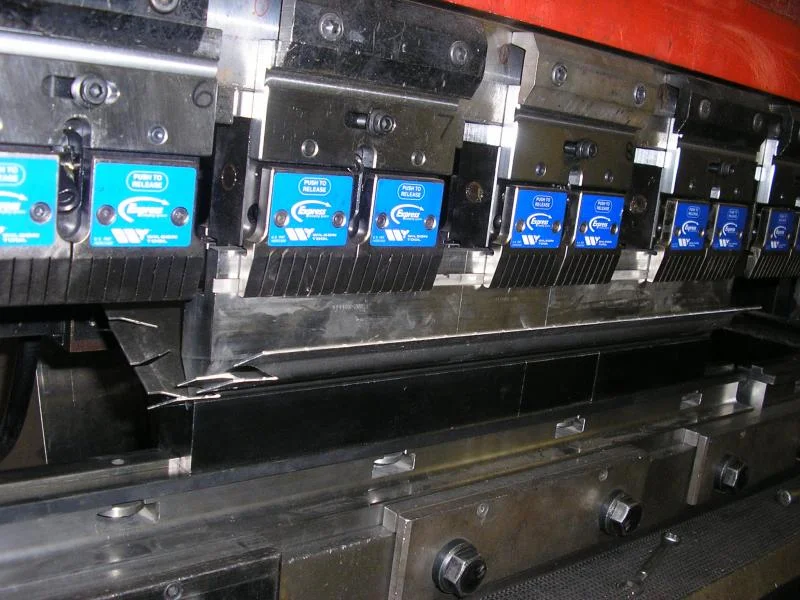

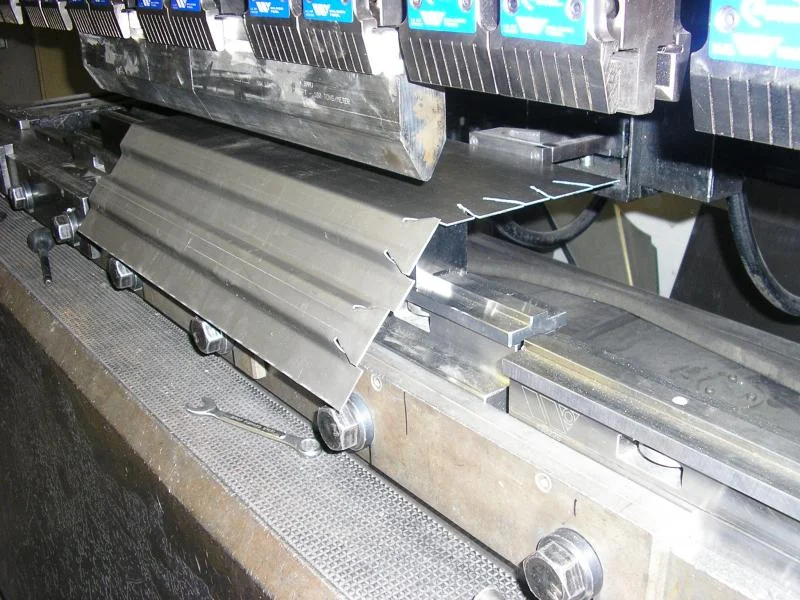

Here are some shots for you.
|
|
|
|
|
09-14-09, 11:22 PM
|
#323 (permalink)
|
|
250+ Club
Join Date: Aug 2008
Location: Berlin Germany
Posts: 595
|
Quote:
Originally Posted by Awl_TEQ
a)Your rear valence must have been altered (holes filled) at some point???
|
Can`t believe that someone fill these holes, why ??????
Don`t know if I should drill four holes in her a..
Cheers
Peter
__________________
BJ43/1980 Softop ~ FJ45 LPB/1973.... old school
~ endangered species ~
~ res tantum valet quantum vendi potest ~
http://www.federalreserve.gov/
|
|
|
|
|
09-15-09, 06:26 AM
|
#324 (permalink)
|
|
250+ Club
Join Date: Apr 2002
Posts: 980
|
[QUOTE=Awl_TEQ;4783596]
Quote:
Originally Posted by Marcfj-45
|
I want that machine..... .
Lovely work indeed.. How difficult or time consuming is all the programming going into each job? Autocad?
Ehsan
|
|
|
|
|
09-15-09, 07:11 AM
|
#325 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
Programming is anywhere from 20 min to 2 hours for the flat layout depending on the complexity of the part. Then programming the brake is maybe another 30 min to an hour. There are over 40 pcs per bed (not counting lefts and rights). So thats anywhere from 34 to 120 hours... say average the two at 77 hours of programming and you haven't even made anything yet! You still have to setup the machine with the proper tooling and actually punch and bend something....
I'm not charging enough
|
|
|
|
|
09-15-09, 07:54 AM
|
#326 (permalink)
|
|
250+ Club
Join Date: Apr 2002
Posts: 980
|
Quote:
Originally Posted by Awl_TEQ
Programming is anywhere from 20 min to 2 hours for the flat layout depending on the complexity of the part. Then programming the brake is maybe another 30 min to an hour. There are over 40 pcs per bed (not counting lefts and rights). So thats anywhere from 34 to 120 hours... say average the two at 77 hours of programming and you haven't even made anything yet! You still have to setup the machine with the proper tooling and actually punch and bend something....
I'm not charging enough |
I envy you Sir. . I seriously am going to put this thing up on my "Have-to-get-and-learn" list. . I know its serious stuff but the results are worth years of learning involved. . Way to go. Please take some VDOs of the machine in work as well.
Ehsan
|
|
|
|
|
10-03-09, 03:19 PM
|
#327 (permalink)
|
|
250+ Club
Join Date: Oct 2005
Location: Kerrville, Texas
Posts: 438
|
Quote:
Originally Posted by Awl_TEQ
|
Where have you been? I've been waiting to buy some of your tailgate chains. Are you going to have some canvas covers made for them?
I hope all is well. I enjoy your threads.
|
|
|
|
|
10-03-09, 08:21 PM
|
#328 (permalink)
|
|
Site Addict
Join Date: Aug 2008
Location: Calgary Alberta
Posts: 1,180
|
I've been working on my truck a bit and building/ shipping solenoid covers for the 8274 (see the classified section.) I've also been working on a rear sill for the 40's and I have a local guy buying a set of the bed parts that he wants loose (not assembled). I will soon be making a run of about four beds from scratch using zinc coated material this time. One is for me, one is sold and I have a few guys who haven't put deposits down yet.
If you'd like some chains I can put together a set and send them your way. I don't have any assembled at the moment but I have the materials all handy and I will be sending some stuff off my truck for plating this week and could include a set of chains. I don't have my pricing handy as I write this but If your into it send me a PM and I'll find it.
Oh- the cover... I haven't done anything with that and truthfully I have enough on my plate for now so I'll leave that up to the purchaser for the time being.
Kevin
|
|
|
|
|
|
