05-08-07, 05:56 AM
|
#61 (permalink)
|
|
Forum Regular
Join Date: Nov 2005
Location: Gig Harbor, WA
Posts: 236
|
Looked up that SOR # and it states that it is for the column seal with floor shifter. Might not work with the column shift "three on the tree"
__________________
1999LC River Rock
1970 Early Bronco
1961 FJ40 FST SOLD
Finally back from Baghdad  Iraq - crap, going back again
|
|
|
|
05-08-07, 08:50 AM
|
#62 (permalink)
|
|
450,000+ mile club
Join Date: Jun 2005
Posts: 4,835
|
Quote:
Originally Posted by 70eb
Is there a part number for the column seal w/shift arm?
|
is this the seal at the firewall? below the plate?
Part Number Search Results : OEM Catalog Item NumberMSRPCore PricePrice5512260011$23.84$0.00$19.07
DUSTPROOF, STEERING
this is for a 1969 w/colum shift
5512260021 is for no collum shift
|
|
|
|
|
05-18-08, 04:22 PM
|
#63 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,925
|
Confirmed the windshield glass # from Wes and added the mirror #'s from Rick.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
02-15-09, 02:56 PM
|
#64 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,937
|
Here's one for you. FJ25 bib BJ256-52110
That's the number on the NOS one I found.
I'll print out these other numbers and see what I might find.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
02-16-09, 11:47 PM
|
#65 (permalink)
|
|
I ruin surprises.
Join Date: Aug 2003
Posts: 5,675
|
Not sure...
... if this is the right place to post this, but I received the below list of PN's from a fellow Mudder for me to check for their availability in Japan.
UNFORTUNATELY (Don't you hate hearing that word?) the only two that are available are the transmission needle bearings and the oil pressure sender (new number).
I'll list the superceeded(sp) numbers and stuff where appropriate and highlight/underline the two that are still alive:
Brake Shoe 47410-39010
Temp. Sender 83420-39410
Fuel Sender 83320-59450
Gas Cap 77302-39030
Gas Cap 77320-69010
Level Pad 21292-60010
23 mm lug wrench 09150-00020
Backup Lamp 81670-25010 >>>>> 81670-39000
Courtesy Lamp 81230-60010 >>>>> 81230-60011
Transmission Needle Bearings 90361-06010
3rd synchro 33367-55010
4th synchro 33368-55010
Wheel 42601-69010 and / or 42601-60010
Jerry can carrier 64910-69010 >>>>>64910-69001
Hubcap 42621-30010
Headlamp Ring 81141-39010
T-bird hood emblem 75330-69020
Tailgate Toyota emblem 75350-69010
vacuum wiper motors 85110-69050
wiper arms 85190-69030
turn signal assy ?
oil pressure sender 83530-29410 >>>>> 83530-60030
canvas top 65910-69040,
65940-69040,
65960-60010 >>>>> 65960-60000-04 Dark Blue; 65690-60000-07 Olive
Steering Wheel 45100-60010
Toyota emblem BJ25-59102
Sorry if this is old news, but thought I'd post my findings since there seem to be a few parts that are still obtainable in Japan, but not in the US.
HTH's!
Mot
|
|
|
|
|
02-17-09, 04:46 AM
|
#66 (permalink)
|
|
Forum Lifer
Join Date: Jan 2003
Location: Cranbrook, B.C., Canada
Posts: 8,937
|
Does anyone have a picture of what these "Gas Cap 77302-39030" and "Gas Cap 77320-69010" look like?

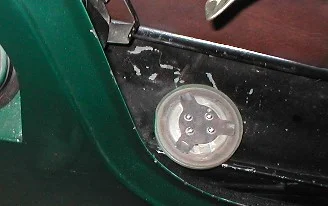

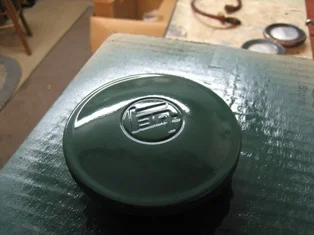

There is a box of gas caps at this place but they have no boxes or numbers. There are at least two that look like this.
__________________
'82 BJ60 H55 tranny, AXT turbo 3B diesel, high nickel alloy head, A/C, BDS lift, factory PTO, Aussie rear locker, OEM LSD front, 4:11's, 32's, PERFECT frame!
'76 FJ55, 3B turbo, alloy head, H41 tranny, 3 sp. transfer, 33's, A/C, PTO winch, long range tank!
'67 FJ45LV shop project c/w 3B turbo diesel transplant & H41 4 speed, 3 speed transfer, PTO!
www.wirrell.com
|
|
|
|
|
02-17-09, 07:08 PM
|
#67 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,925
|
Quote:
Originally Posted by mot
Transmission Needle Bearings 90361-06010
oil pressure sender 83530-29410 >>>>> 83530-60030
|
Mot, that is definately not old news, you've got a PM on the bearings.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
02-17-09, 07:19 PM
|
#68 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,925
|
Quote:
Originally Posted by cruiser_guy
Does anyone have a picture of what these "Gas Cap 77302-39030" and "Gas Cap 77320-69010" look like?
There is a box of gas caps at this place but they have no boxes or numbers. There are at least two that look like this.
|
One is locking the other isn't and has a TEQ stamping. They are a larger diameter than a 40 cap and have three ears on the inside. Unique as far as Toyota caps.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
02-17-09, 09:54 PM
|
#69 (permalink)
|
|
I ruin surprises.
Join Date: Aug 2003
Posts: 5,675
|
Quote:
Originally Posted by Cruiser_Nerd
Mot, that is definately not old news, you've got a PM on the bearings.
|
Apparently as of now there are only seven of them left in stock.
I'm waiting to hear back from Toyota to see if they can make some more or they'll be discontinued...
|
|
|
|
|
02-19-09, 07:22 AM
|
#70 (permalink)
|
|
I ruin surprises.
Join Date: Aug 2003
Posts: 5,675
|
Quote:
Originally Posted by mot
Apparently as of now there are only seven of them left in stock.
I'm waiting to hear back from Toyota to see if they can make some more or they'll be discontinued...
|

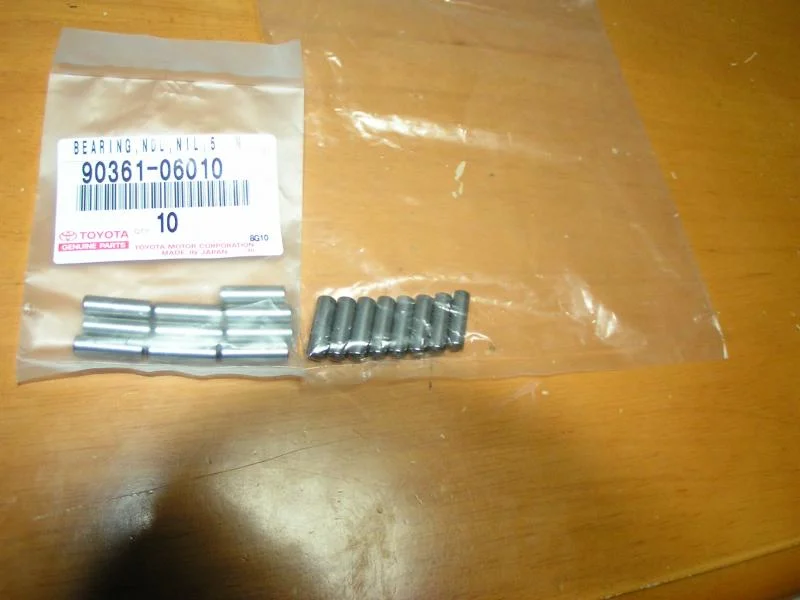

I meant to say that there were seven left, AFTER I had ordered the eighteen that someone wanted.
.
.
.
Hope these are the correct ones!
BTW, they told me that I would be able to order more, but they could not tell me when they would (if ever) be able to get more of them made.

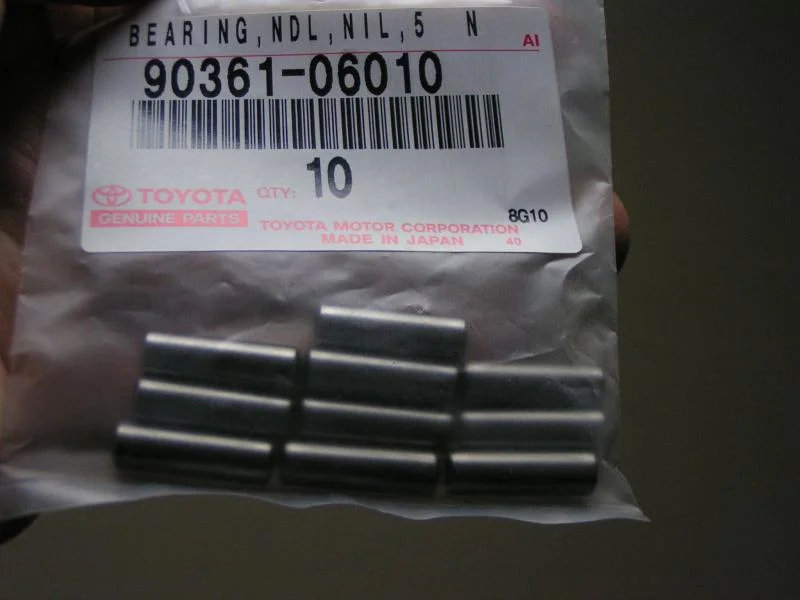

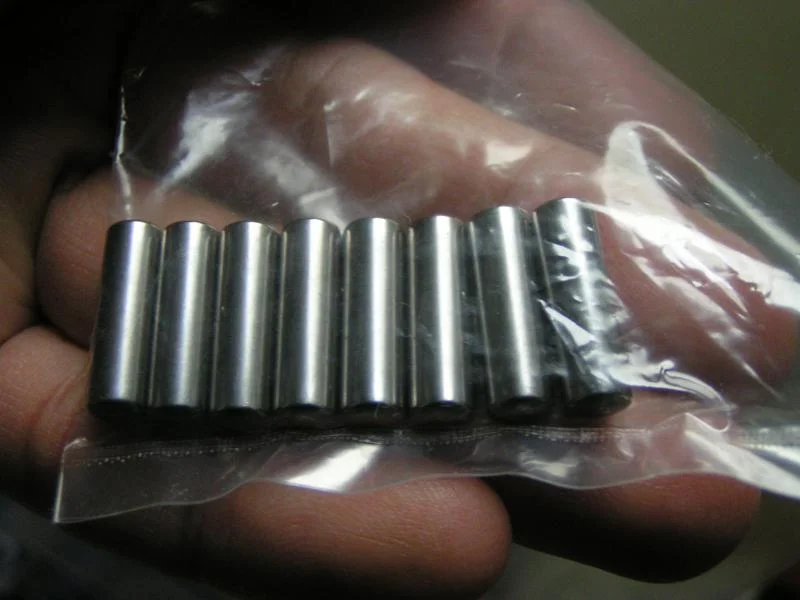

I don't know what exactly they do, but don't they look cool?
|
|
|
|
|
02-19-09, 03:22 PM
|
#71 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,925
|
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
02-19-09, 03:38 PM
|
#72 (permalink)
|
|
I ruin surprises.
Join Date: Aug 2003
Posts: 5,675
|
Quote:
Originally Posted by Cruiser_Nerd
|
Unfortunately the bearings with those patters have been discontinued... ror!
BTW, I can get the fuel caps for like $7.50... you're being charged WAY too much!!!
GOTCHA!!!
They are discontinued here as well!
Last edited by mot; 02-20-09 at 12:01 AM.
Reason: I suck at being funny...
|
|
|
|
|
02-19-09, 03:38 PM
|
#73 (permalink)
|
|
Site Addict
Join Date: Jul 2007
Location: Montreal
Posts: 1,737
|
__________________
Self Admitted Purist
1964 FJ40 Hard Top...doing a true restoration!
|
|
|
|
|
10-08-09, 10:06 PM
|
#74 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,925
|
Added substitute PTO box seals and Pillow Block Bearing #'s.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
|
| Thread Tools |
|
|
| Display Modes |
 Linear Mode
|
Posting Rules
|
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
HTML code is Off
|
|
|
|
|
|
70eb

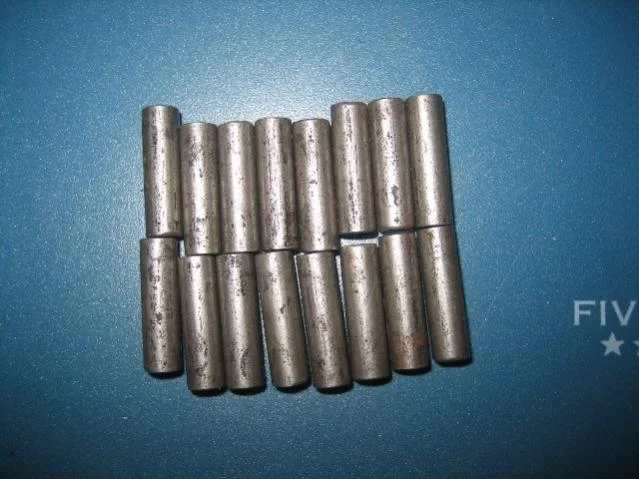

Oh no. Mot that's not them at all, this is what my bearings look like........
