05-12-05, 01:15 PM
|
#1 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|
Little 25 treasures

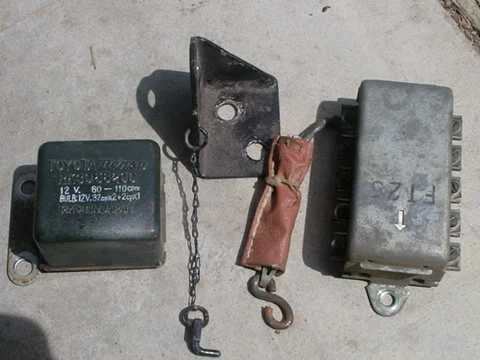

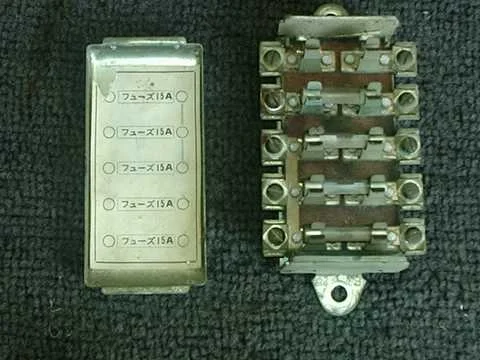

Thought I'd post up a pic of a few items that might easily go missing on a 25...flasher (I think), seat pin, soft top door limiting chain, fuse holder...
|
|
|
|
05-12-05, 01:20 PM
|
#2 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|
or these...
|
|
|
|
|
05-12-05, 01:52 PM
|
#3 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|
Turn signal switch....needs stock 25 steering wheel to self cancel, an early 40 steering wheel will fit but then ya gotta remember....
|
|
|
|
|
05-12-05, 06:52 PM
|
#4 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,941
|
Wow, never seen the door chain before!  Original cloth cover and all. Is that the same chain on the inside as used for the radiator cap/gas cap? Yep, that's the original flasher.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
05-12-05, 07:13 PM
|
#5 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
Mine has the original cloth spacers in between the hood and bib. I took them off to preserve them and replaced them with the black poly ones. Pics tomorrow. The one tailgate chain I have has the cloth wrap on it also.
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
|
|
|
|
|
05-13-05, 08:28 AM
|
#6 (permalink)
|
|
Merchant of Death
Join Date: Mar 2003
Location: Gig Harbor WA
Posts: 12,048
|
cool stuff
__________________
Truth is a torch that shines through the fog without dispelling it. Always be true to your work, your word, & your friends, & you will never live a day without peace
|
|
|
|
|
05-13-05, 10:44 AM
|
#7 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|
The door stop chain links are larger than the radiator cap/gas cap/oil filler cap, same style though...
|
|
|
|
|
05-13-05, 08:56 PM
|
#8 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,941
|

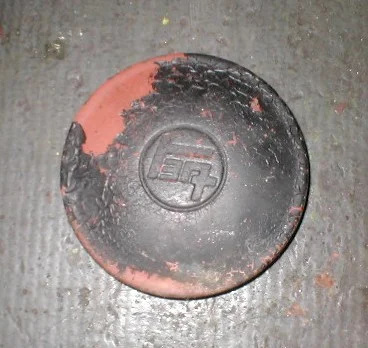

Thought this was pretty cool when I got it......I'd only seen the locking cap before:
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
05-13-05, 11:45 PM
|
#9 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|
Your next avatar? Too cool!
|
|
|
|
|
05-15-05, 08:49 AM
|
#10 (permalink)
|
|
Merchant of Death
Join Date: Mar 2003
Location: Gig Harbor WA
Posts: 12,048
|
Marv has a chrome one on his fj25
Quote:
|
Originally Posted by Cruiser_Nerd
Thought this was pretty cool when I got it......I'd only seen the locking cap before:
|
__________________
Truth is a torch that shines through the fog without dispelling it. Always be true to your work, your word, & your friends, & you will never live a day without peace
|
|
|
|
|
05-26-05, 09:24 PM
|
#11 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,941
|

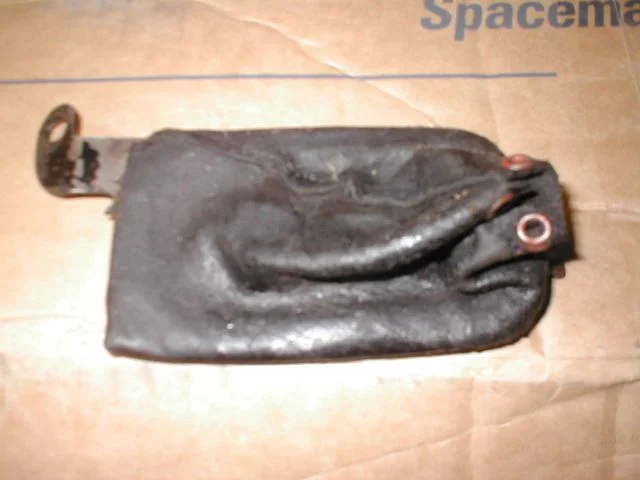

OK, you guys are tough. How about this, an original leather clutch fork boot.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
05-30-05, 10:46 AM
|
#12 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|
??
I don't have a digital camera; sorry no pics. But the PO threw in a pair of 36 inch long rods. Rounded tip at one end, 90 degree nut and bolt at the other end, and a one inch ring welded about a third of the way down the rod. Any clue from this vague description?
|
|
|
|
|
06-05-05, 05:30 PM
|
#13 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|
Bad pic, I know...has anybody seen a cover on their trouble light power supply? Found this critter, hard to believe any of the POs who beat the living crap out of this 25 bothered to cover the plug-in...
|
|
|
|
|
06-05-05, 05:56 PM
|
#14 (permalink)
|
|
250+ Club
Join Date: Sep 2004
Location: MT
Posts: 702
|

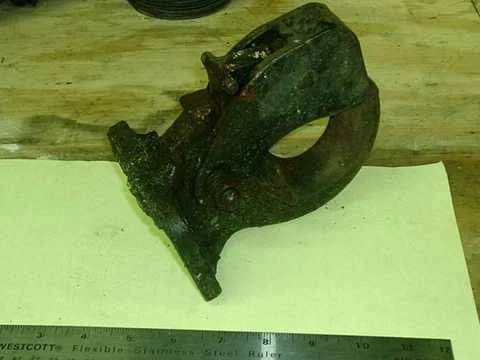

Is this an original pintle? Bolt holes match up one of my bumpers, can't check the others, just wondering...
|
|
|
|
|
06-05-05, 06:02 PM
|
#15 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
pintle looks the same as mine.
Wish I had a light socket, mines MIA.
OOH, I DO have it and it has the cover!!!
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
Last edited by foxfab; 07-01-05 at 10:55 AM.
|
|
|
|
|
06-06-05, 03:20 PM
|
#16 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|

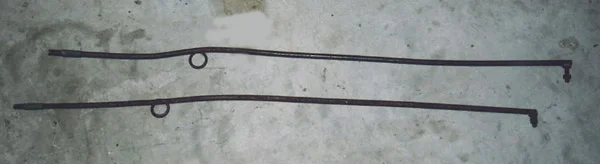

Here are the mystery rods I was talking about. Are they even part of an FJ25?
|
|
|
|
|
06-06-05, 09:13 PM
|
#17 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,941
|
Steve,
I'm gonna take a wag here........top bow over the door for an old Bestop? Used to have something like that.
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
06-07-05, 05:04 AM
|
#18 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|
Oh, darn. And here I thought I had some rare vintage pieces that I could get $500 for on ebay (or at least trade for some real tail lights).
|
|
|
|
|
06-07-05, 05:38 AM
|
#19 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
Steve, I'm working on confirming this, but everything that I've seen so far tells me that the only difference between the FJ40 bib lights that SOR sells and the FJ25 tail lights is the extra wire and the lens color. I can get you the lenses and if you can solder, you can add the extra wire for the turn signal. Its the same process that you'd do to add the blinker function to the bib lights if you were replacing those. Then all you'd need are tail light brackets.
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
|
|
|
|
|
06-07-05, 06:02 AM
|
#20 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|
Mike,
The brackets that my trailer lights are hanging on, are the right ones from what I can tell. So, all I need are the lights and red lenses.
By the way, I'm at work right now, but I'll let you know the mode configuration on the headlight switch when I get home. However from what I can remember, one notch left is headlights and tail lights; two notches left is front parking lights and tail lights; and one notch to the right of center is tail lights only and the under-dash interior light . . . . I think. Will verify.
Steve
|
|
|
|
|
06-07-05, 06:35 AM
|
#21 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
yes, those are the correct brackets. Get bib lights from SOR.
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
|
|
|
|
|
06-07-05, 09:42 AM
|
#22 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|
Quote:
|
Originally Posted by foxfab
yes, those are the correct brackets. Get bib lights from SOR.
|
Will do!! I'll contact you for the red lenses. Thanks, Mike.
|
|
|
|
|
06-09-05, 05:21 PM
|
#23 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|
Quote:
|
Originally Posted by FJnotCJ
has anybody seen a cover on their trouble light power supply?
|
Yep.
|
|
|
|
|
06-11-05, 06:26 AM
|
#24 (permalink)
|
|
Site Addict
Join Date: Apr 2005
Location: Brunswick, GA (but AZ is home)
Posts: 1,192
|
Does a dash light hood count as a treasure?
|
|
|
|
|
06-11-05, 10:37 PM
|
#25 (permalink)
|
|
IH8MUD Addict
Join Date: Apr 2005
Posts: 2,322
|

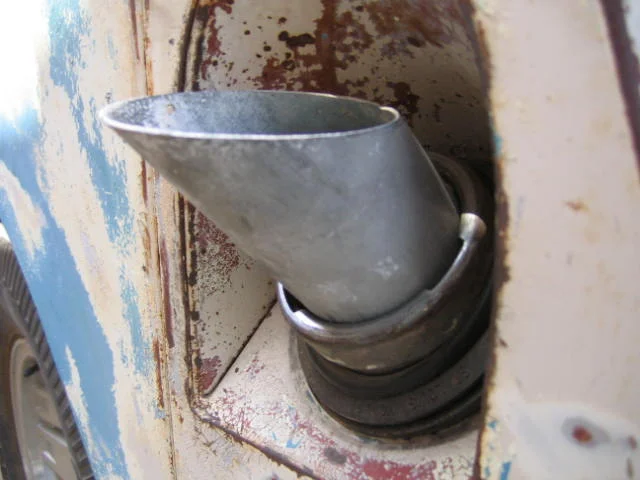

Ever run out of gas and lost your spout for your jerry can? No problem if you were driving a 25 soft top, just remove the gas cap pull the chain and this extension was attached.Pour it straight out of the can and get most of it in the tank.
|
|
|
|
|
06-12-05, 08:56 AM
|
#26 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
Its funny that they had these spouts but no provisions to carry the jerry can....
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
|
|
|
|
|
06-12-05, 11:22 AM
|
#27 (permalink)
|
|
IH8MUD Addict
Join Date: Apr 2005
Posts: 2,322
|
THe microfiche for the fj25 shows a option of a gas can carrier as well as fog lights and backup light none of which I have ever seen
John
|
|
|
|
|
06-20-05, 08:02 AM
|
#28 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
I noticed this lock hasp on the side of my tool box that I thought a PO may have installed. Come to find out it was factory !
anyone got the band or one of the locks?
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
|
|
|
|
|
06-20-05, 08:05 AM
|
#29 (permalink)
|
|
Site Addict
Join Date: Aug 2004
Location: NK, RI
Posts: 2,223
|
Here's my rear seat that I need:
__________________
YANKEETOYS.ORG
Member of the elite FJ25 club
Low range? We Don't Need No Stinkin' Low Range
Why would you want to put a round tire in a square wheel well?
|
|
|
|
|
06-20-05, 08:06 AM
|
#30 (permalink)
|
|
That 25 Guy.
Join Date: Dec 2002
Location: Higganum.
Posts: 2,941
|
Now all you need to do is find a lock.  I believe they were brass and marked "HHH".
__________________
Jim
FJ25.com
"The FJ25 is almost humorous in its simplicity, but therein lies its beauty." Nina Padgett - Autoweek
|
|
|
|
|
|
